TOYOTA SUPRA 1995 Service Repair Manual DTC 14 Ignition Signal Circuit
CIRCUIT DESCRIPTION
The ECM determines the ignition timing, turns on Tr1 at a predetermined angle (°CA) before the desired ignition
timing and outputs an ignition signa

Page 1922 of 2543

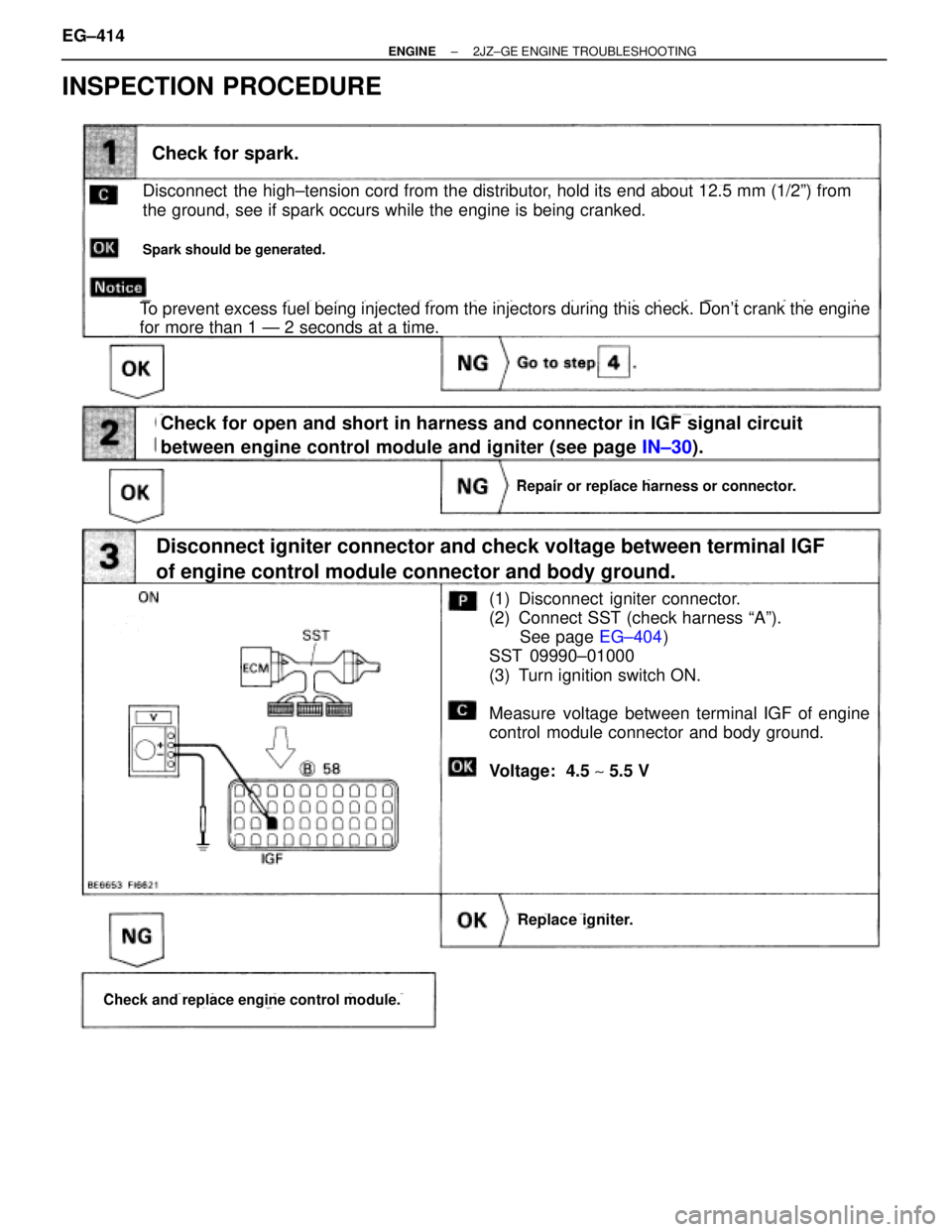

TOYOTA SUPRA 1995 Service Repair Manual INSPECTION PROCEDURE
(See page IN±30).
(See page EG±404)
Check for spark.
Disconnect the high±tension cord from the distributor, hold its end about 12.5 mm (1/2º) from
the ground, see if spark oc

Page 1923 of 2543

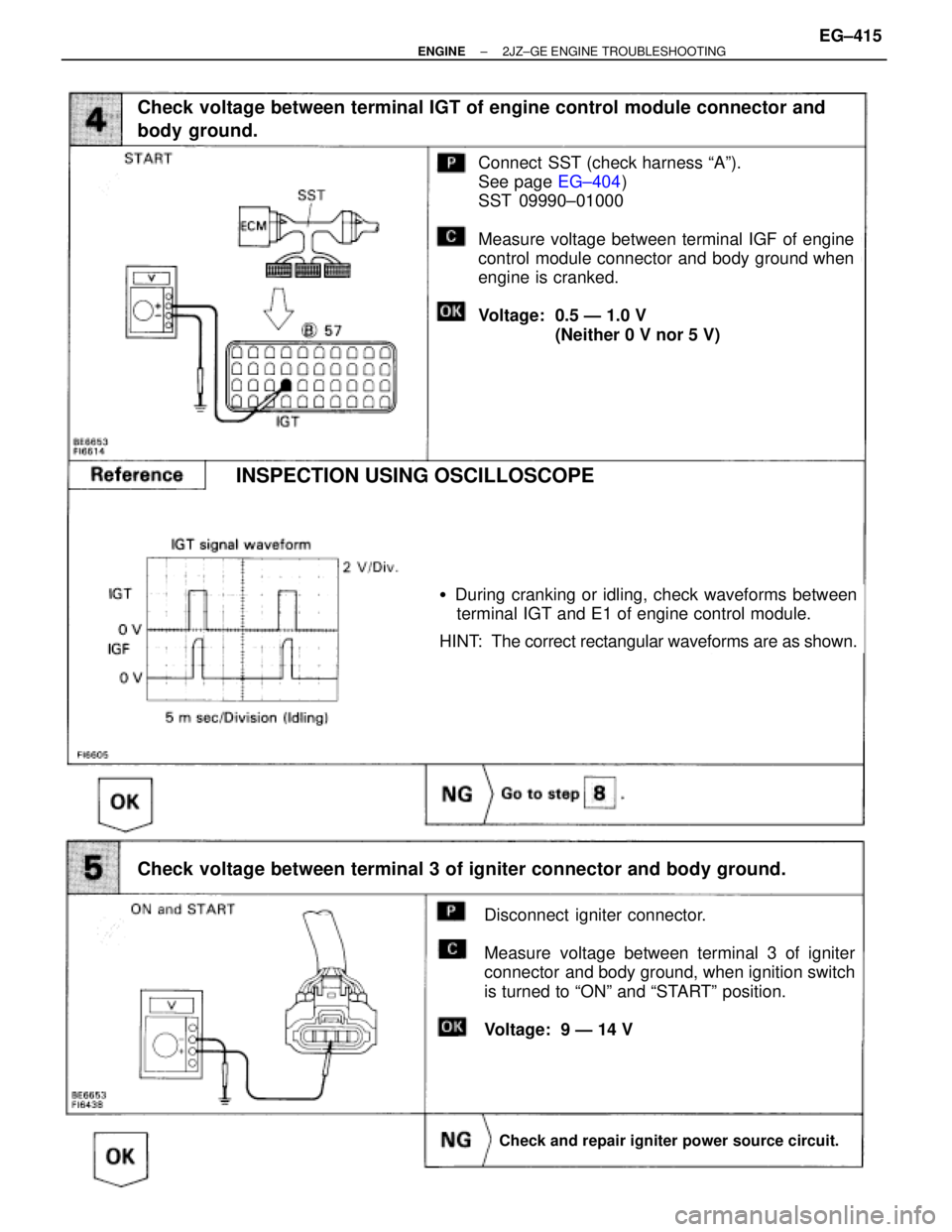

TOYOTA SUPRA 1995 Service Repair Manual Connect SST (check harness ªAº).
See page EG±404)
SST 09990±01000
Measure voltage between terminal IGF of engine
control module connector and body ground when
engine is cranked.
Voltage: 0.5 Ð

Page 1924 of 2543

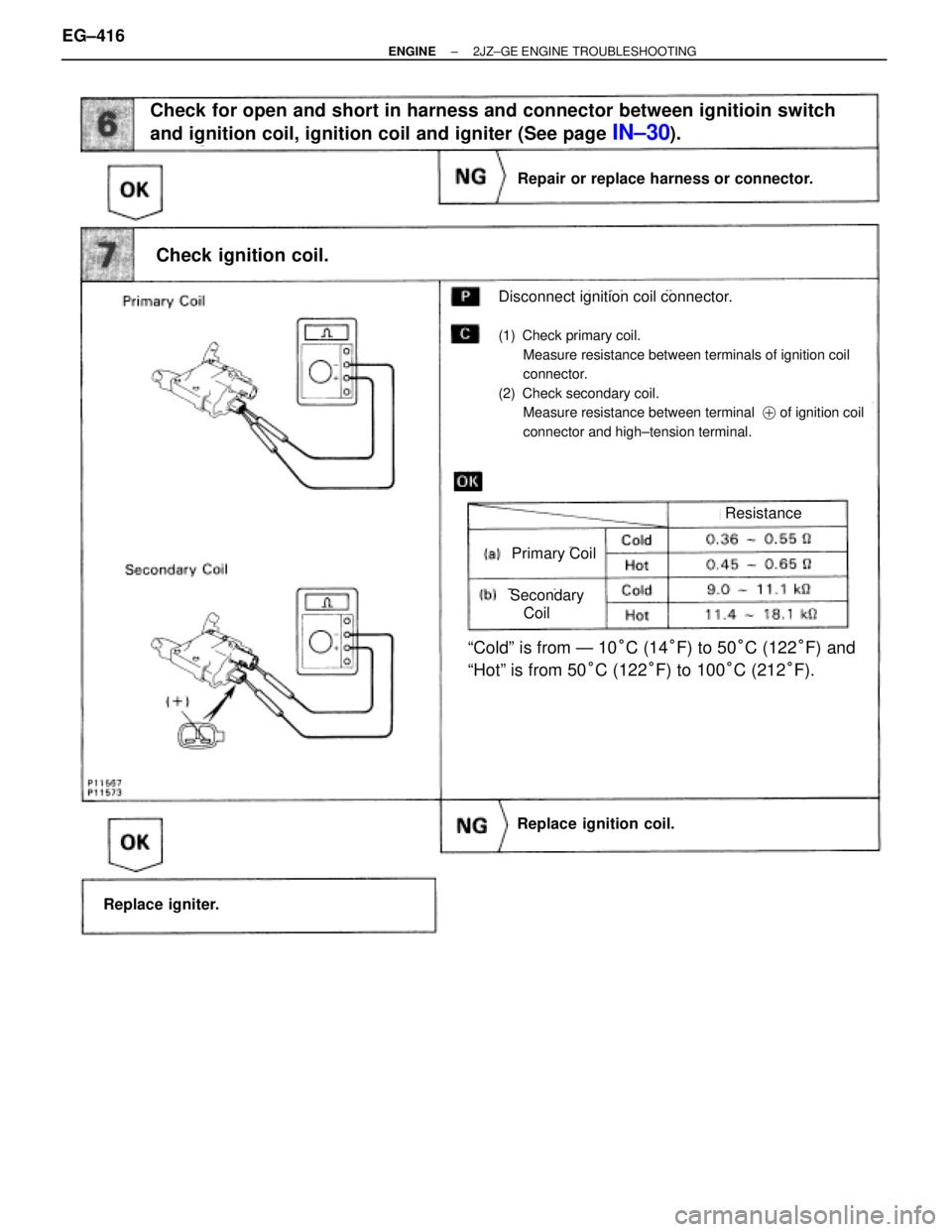

TOYOTA SUPRA 1995 Service Repair Manual Check ignition coil.
Disconnect ignition coil connector.
(1) Check primary coil.
Measure resistance between terminals of ignition coil
connector.
(2) Check secondary coil.
Measure resistance between t

Page 1925 of 2543

TOYOTA SUPRA 1995 Service Repair Manual Disconnect igniter connector and check voltage between terminal IGT of engine
control module connector and body ground.
Check for open and short in harness and connector in IGT signal circuit be-
twee

Page 1926 of 2543

TOYOTA SUPRA 1995 Service Repair Manual DTC 16 A T Control Signal Malfunction
CIRCUIT DESCRIPTION
The signal from the A/T CPU retards the ignition timing of the engine during A/T gear shifting, thus momentarily
reducing torque output of the

Page 1927 of 2543

TOYOTA SUPRA 1995 Service Repair Manual CIRCUIT DESCRIPTION
To obtain a high purification rate for the Co, Hc and NOx components of the exhaust gas, a three±way catalytic
converter is used, but for most efficient use of the three±way cata

CIRCUIT DESCRIPTION
To obtain a high purification rate for the Co, Hc and NOx components of the exhaust gas, a three±way catalytic
converter is used, but for most efficient use of the three±way catalytic converter, the air±fuel ratio must be pre-
cisely controlled so that it is always close to the stoichiometric air±fuel ratio.
The oxygen sensor has the characteristic whereby its output voltage changes suddenly in the vicinity of the stoi-
chiometric air±fuel ratio. This characteristic is used to detect the oxygen concentration in the exhaust gas and
provide feedback to the computer for control of the air fuel ratio.
When the air±fuel ratio becomes LEAN, the oxygen concentration in the exhaust increases and the oxygen sen-
sor informs the ECM of the LEAN condition (small electromotive force: 0 V).
When the air±fuel ratio is RICHER than the stoichiometric air±fuel ratio the oxygen concentration in the exhaust
gas is reduced and the oxygen sensor informs the ECM of the RICH condition (large electromotive force: V).
The ECM judges by the electromotive force from the oxygen sensor whether the air±fuel ratio is RICH or LEAn
and controls the injection duration accordingly. However, if malfunction of the oxygen sensor causes an output
of abnormal electromotive force, the ECM is unable to perform accurate air±fuel ratio control.
The main heated oxygen sensors include a heater which heats the Zirconia element. The heater is controlled
by the ECM. When the intake air volume is low t(the temperature of the exhaust has is low) current flows to
the heater to heat the sensor for accurate oxygen concentration detection.)
Flange
Platinum Electrode
Solid Electrolyte
(Zirconia Element)
Platinum Electrode
Heater*
1
Coating (Ceramic)
Ideal Air±Fuel Mixture
Richer Ð Air Fuel ratio Ð Leaner
Trouble AreaDTC No.Diagnostic Trouble Code Detecting Condition
Exhaust Gas
Output Voltage
(1)*1Open or snort in heater circuit of main heated
oxygen sensor for 0.5 sec. or more.
(2) (Main heated*1) oxygen sensor signal voltage is
reduced to between 0.35 V and 0.70 V for 60
sec. under conditions (a) ~ (d):
(2) trip detection logic)*
2
(a) Engine coolant temp.: Between 80°C
(176°F and 95°C (203°F)
(b) Engine speed: 1,500 rpm or more
(c) Load driving (Example A/T in Overdrive
(5th for M/T), A/C ON, Flat road, 80 km/h (50
mph))
(d) (Main heated*
1) oxygen sensor signal
voltage: Alternating above and below 0.45 V
Atmosphere
Open or short in heater circuit of main heated
oxygen sensor
Main heated oxygen sensor heater
ECM
(Main heated*
1) oxygen sensor circuit
(Main heated*1) oxygen sensor
HINT: Diagnostic trouble code ª21º is for the (main heated*1) oxygen sensor (Fr) circuit.
Diagnostic trouble code ª28º is for the (main heated*
1) oxygen sensor (Rr) circuit.
*1: Main heated oxygen sensor ONLY for California specification vehicles.
*2: See page EG±397.
DTC 21 28 (Main Heated*1) Oxygen Sensor Circuit
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±419

Page 1928 of 2543

TOYOTA SUPRA 1995 Service Repair Manual CIRCUIT DESCRIPTION (Contd)

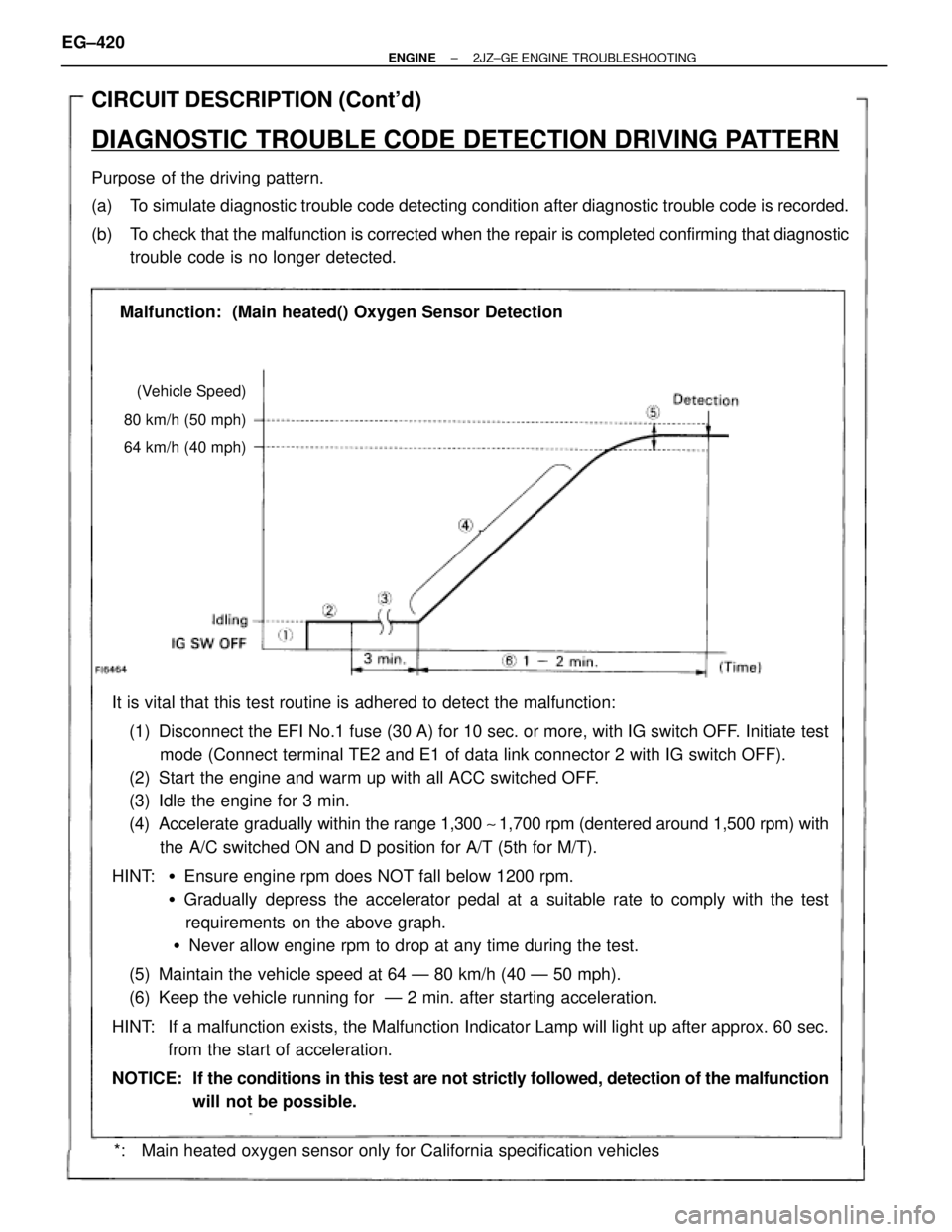

DIAGNOSTIC TROUBLE CODE DETECTION DRIVING PATTERN
Purpose of the driving pattern.
(a) To simulate diagnostic trouble code detecting condition after diagnostic trouble cod
