Page 1089 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 2. INSTALL IDLER PULLEY (See step 2 in timing belt installation in Engine Mechani- cal) 3. 2JZ±GTE: INSTALL WATER OUTLET AND NO.1 WATER BYPASS PIPE (a) Install 2 new O±rings to the No.1 water bypa

Page 1090 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 11. 2JZ±GTE M/T: INSTALL DRIVE BELT TENSIONER DAMPER 12. INSTALL RADIATOR ASSEMBLY (See radiator installation) 13. 2JZ±GE: INSTALL AIR CLEANER, VAF METER AND INTAKE AIR CONNECTOR PIPE ASSEMBLY 14. 2

Page 1091 of 2543

TOYOTA SUPRA 1995 Service Repair Manual THERMOSTAT COMPONENTS FOR REMOVAL AND INSTALLATION EG±340± ENGINECOOLING SYSTEM

Page 1092 of 2543

TOYOTA SUPRA 1995 Service Repair Manual THERMOSTAT REMOVAL HINT: Removal of the thermostat would have an adverse ef- fect, causing a lowering of cooling efficiency. Do not remove the thermostat, even if the engine tends to overheat. 1. 2JZ

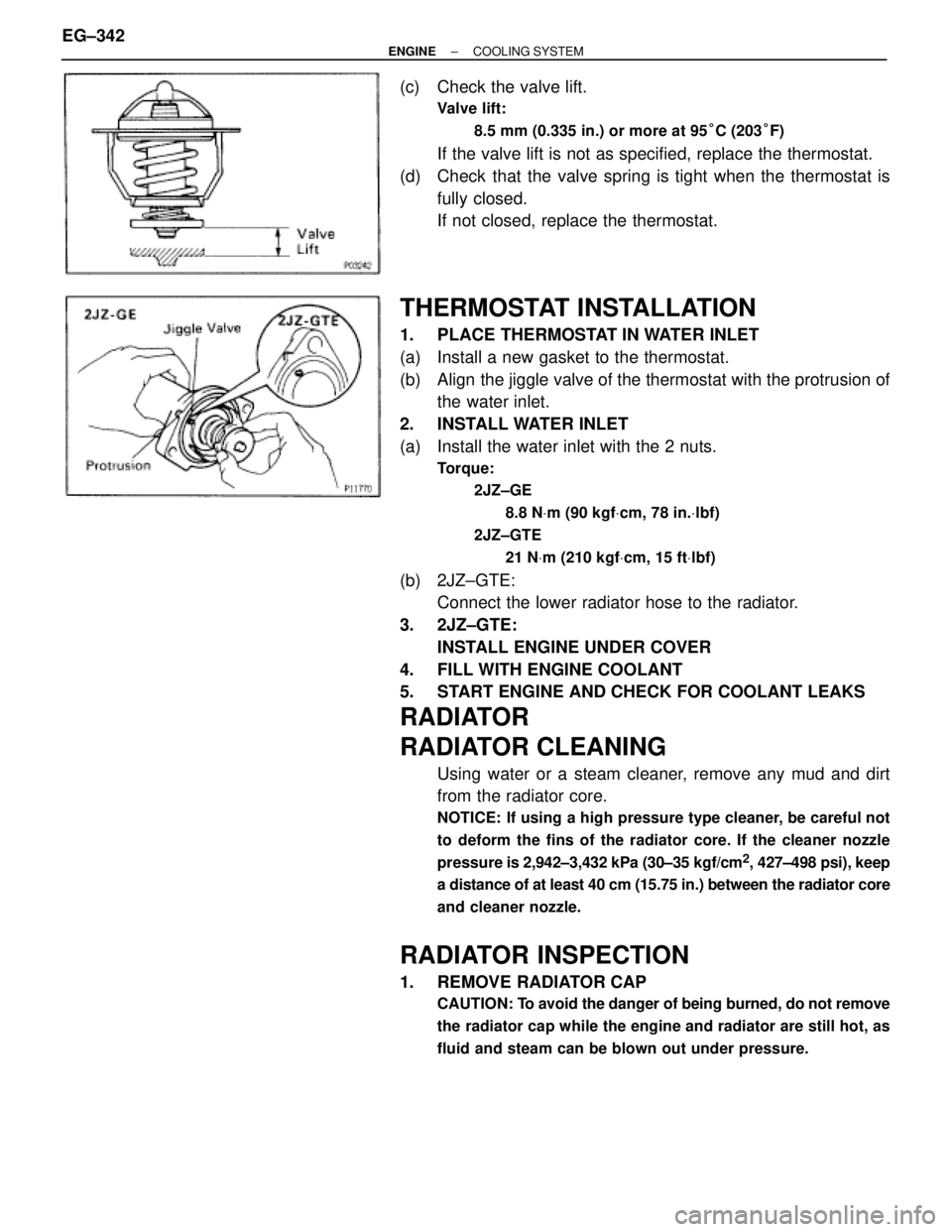

Page 1093 of 2543

TOYOTA SUPRA 1995 Service Repair Manual (c) Check the valve lift. Valve lift: 8.5 mm (0.335 in.) or more at 95°C (203°F) If the valve lift is not as specified, replace the thermostat. (d) Check that the valve spring is tight when the th

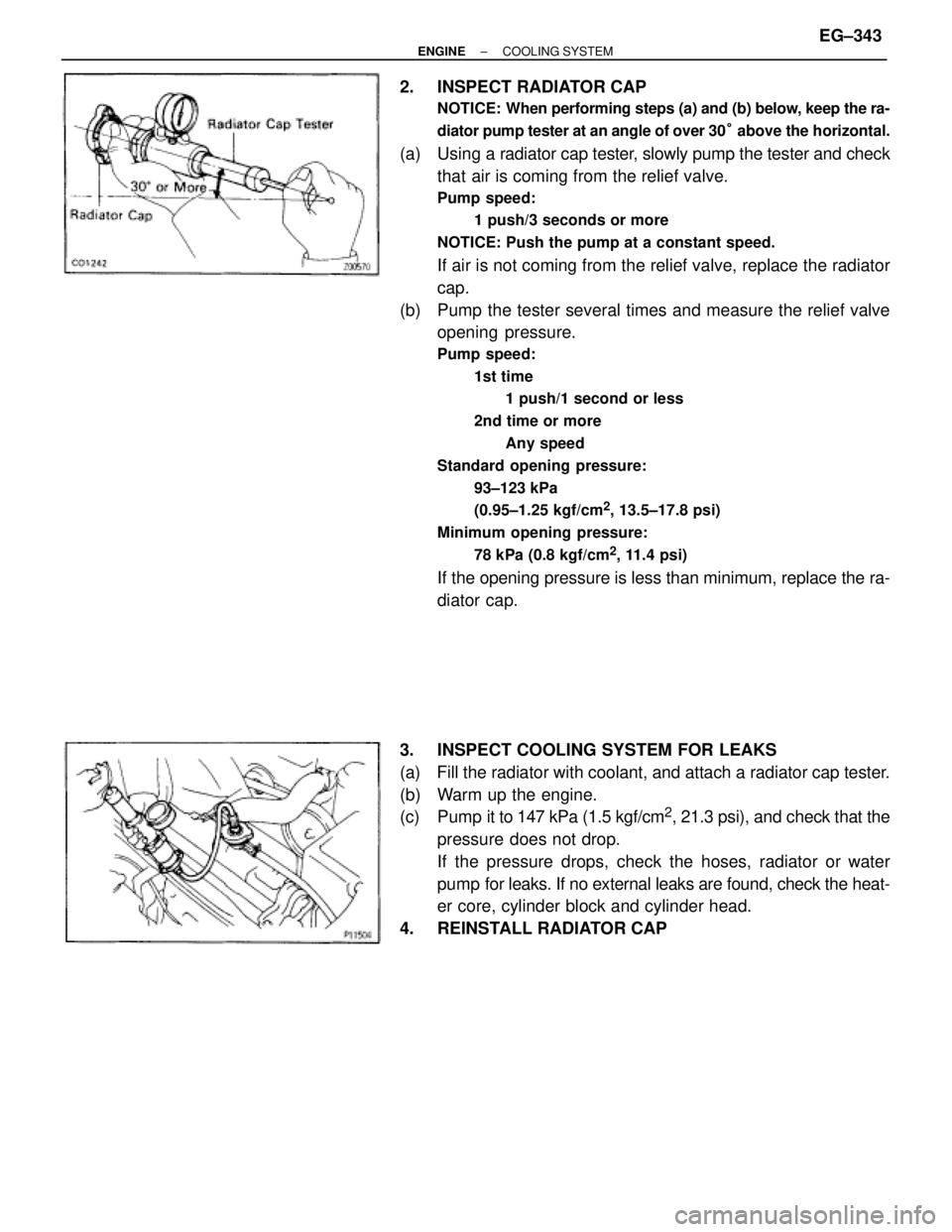

Page 1094 of 2543

TOYOTA SUPRA 1995 Service Repair Manual 2. INSPECT RADIATOR CAP NOTICE: When performing steps (a) and (b) below, keep the ra- diator pump tester at an angle of over 30° above the horizontal. (a) Using a radiator cap tester, slowly pump th

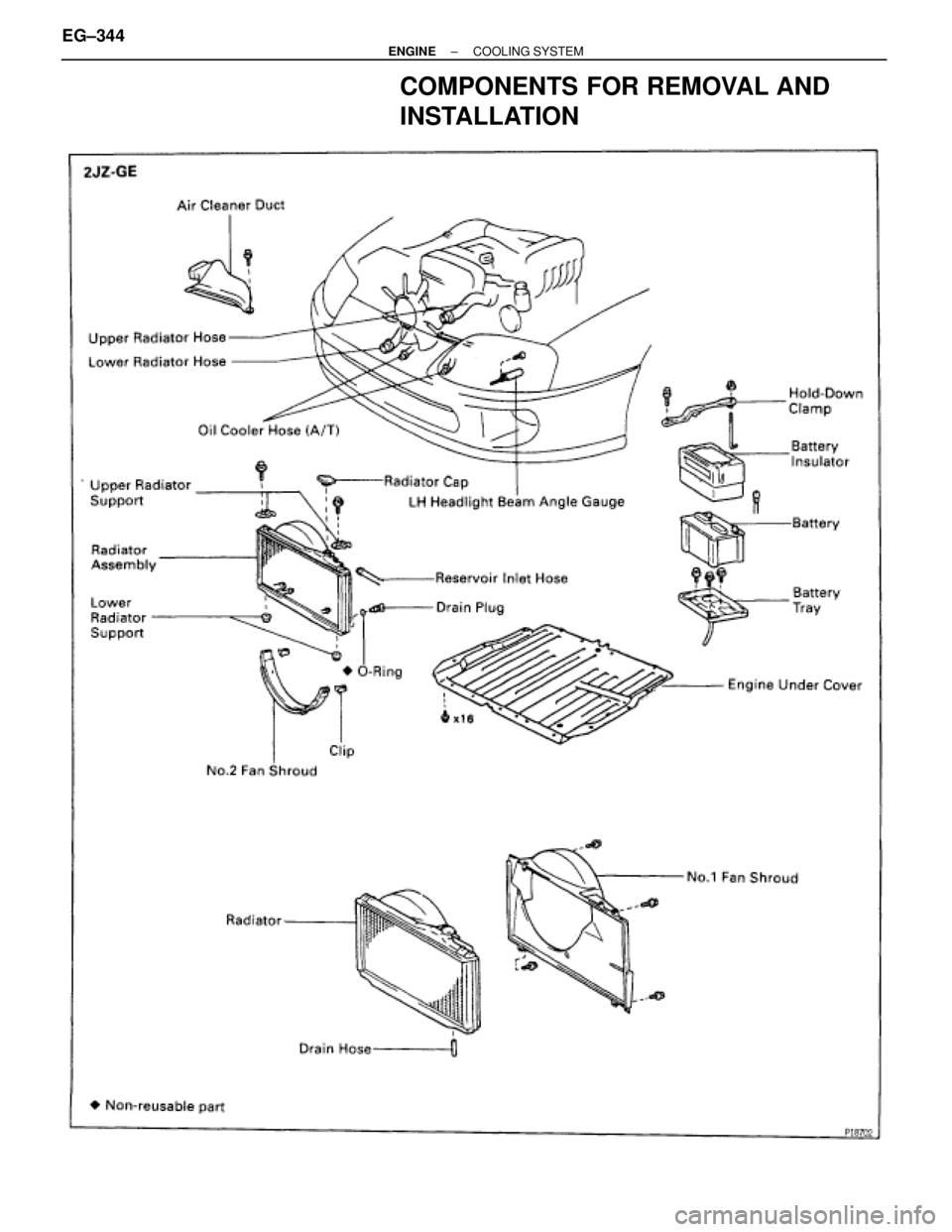

Page 1095 of 2543

TOYOTA SUPRA 1995 Service Repair Manual COMPONENTS FOR REMOVAL AND INSTALLATION EG±344± ENGINECOOLING SYSTEM

Page 1096 of 2543

TOYOTA SUPRA 1995 Service Repair Manual ± ENGINECOOLING SYSTEMEG±345
