INSPECTION PROCEDURE
(EG±463).

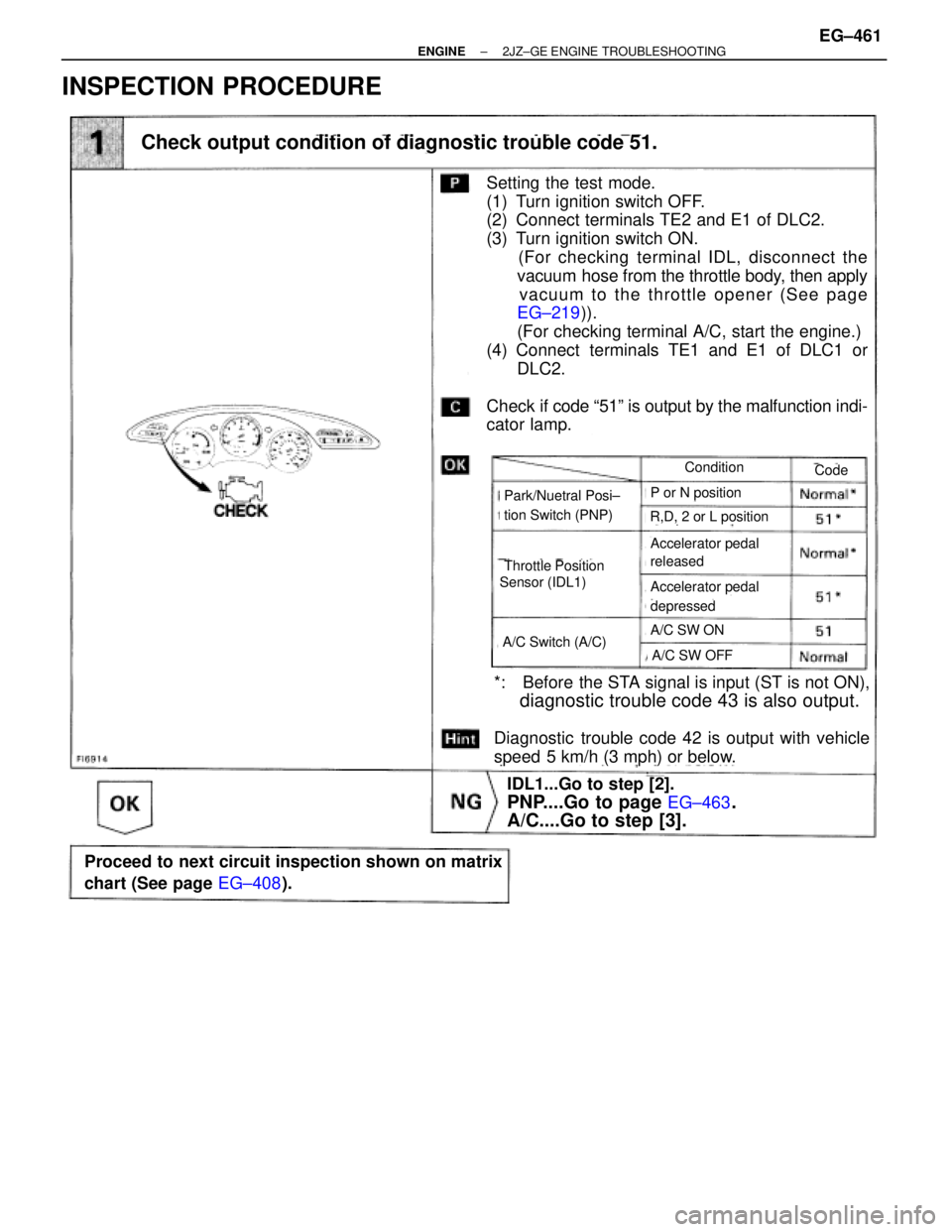

Check output condition of diagnostic trouble code 51.
*: Before the STA signal is input (ST is not ON),
diagnostic trouble code 43 is also output.
Diagnostic trouble code 42 is output with vehicle
speed 5 km/h (3 mph) or below.
Setting the test mode.
(1) Turn ignition switch OFF.
(2) Connect terminals TE2 and E1 of DLC2.
(3) Turn ignition switch ON.
(For checking terminal IDL, disconnect the
vacuum hose from the throttle body, then apply
vacuum to the throttle opener (See page
EG±219)).
(For checking terminal A/C, start the engine.)
(4) Connect terminals TE1 and E1 of DLC1 or
DLC2.
Check if code ª51º is output by the malfunction indi-
cator lamp.
Proceed to next circuit inspection shown on matrix
chart (See page EG±408).
IDL1...Go to step [2].
PNP....Go to page EG±463.
A/C....Go to step [3].
Condition
Throttle Position
Park/Nuetral Posi±
Code
tion Switch (PNP)
P or N position
released
R,D, 2 or L position
Accelerator pedal
Accelerator pedal
depressed
A/C SW ON
A/C SW OFFA/C Switch (A/C)
Sensor (IDL1)
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±461
Page 1970 of 2543
(See page EG±404)

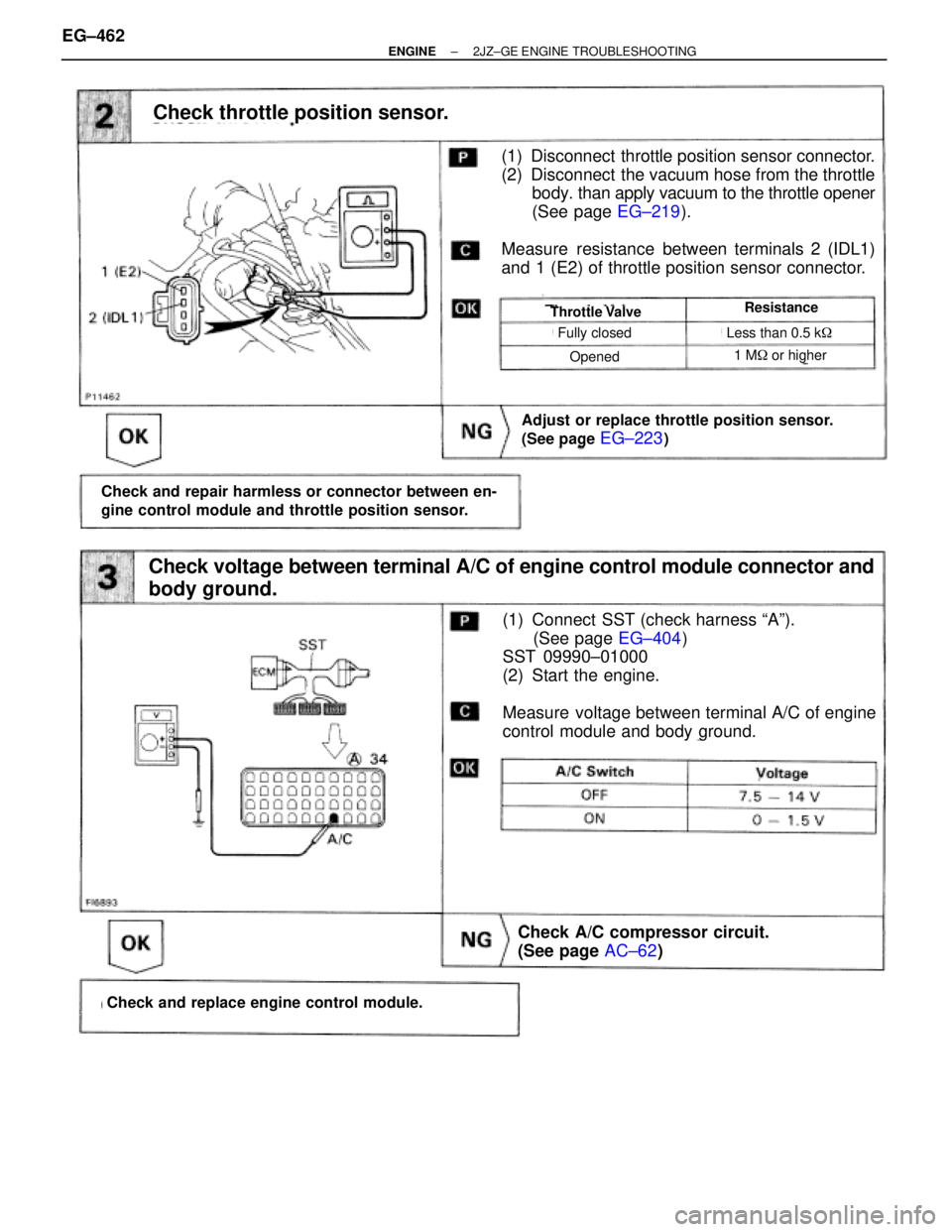

Check throttle position sensor.
(1) Disconnect throttle position sensor connector.
(2) Disconnect the vacuum hose from the throttle
body. than apply vacuum to the throttle opener
(See page EG±219).
Measure resistance between terminals 2 (IDL1)
and 1 (E2) of throttle position sensor connector.
Adjust or replace throttle position sensor.
(See page
EG±223)
Check and repair harmless or connector between en-
gine control module and throttle position sensor.
Check voltage between terminal A/C of engine control module connector and
body ground.
(1) Connect SST (check harness ªAº).
(See page EG±404)
SST 09990±01000
(2) Start the engine.
Measure voltage between terminal A/C of engine
control module and body ground.
Check A/C compressor circuit.
(See page AC±62)
Check and replace engine control module.
Throttle Valve
Fully closed
Opened
Less than 0.5 k
1 M or higher
Resistance
EG±462± ENGINE2JZ±GE ENGINE TROUBLESHOOTING
Page 1971 of 2543

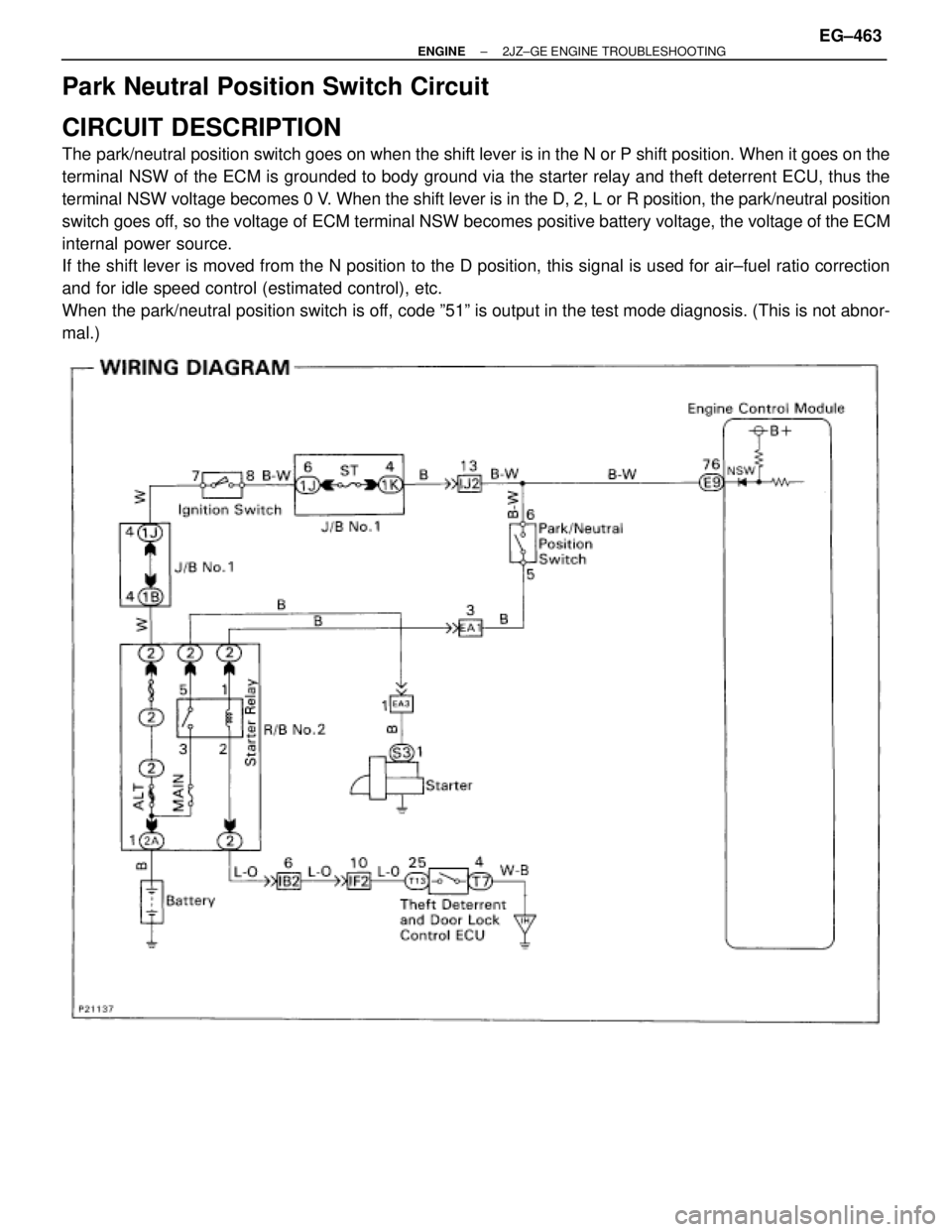

Park Neutral Position Switch Circuit
CIRCUIT DESCRIPTION
The park/neutral position switch goes on when the shift lever is in the N or P shift position. When it goes on the
terminal NSW of the ECM is grounded to body ground via the starter relay and theft deterrent ECU, thus the
terminal NSW voltage becomes 0 V. When the shift lever is in the D, 2, L or R position, the park/neutral position
switch goes off, so the voltage of ECM terminal NSW becomes positive battery voltage, the voltage of the ECM
internal power source.
If the shift lever is moved from the N position to the D position, this signal is used for air±fuel ratio correction
and for idle speed control (estimated control), etc.
When the park/neutral position switch is off, code º51º is output in the test mode diagnosis. (This is not abnor-
mal.)
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±463
Page 1972 of 2543

INSPECTION PROCEDURE
HINT: This diagnostic chart is based on the premise that the engine is being cranked under normal conditions.
If the engine does not crank, proceed to the matrix chart of problem symptoms on page EG±408.
(See page EG±408).
(See page IN±30).

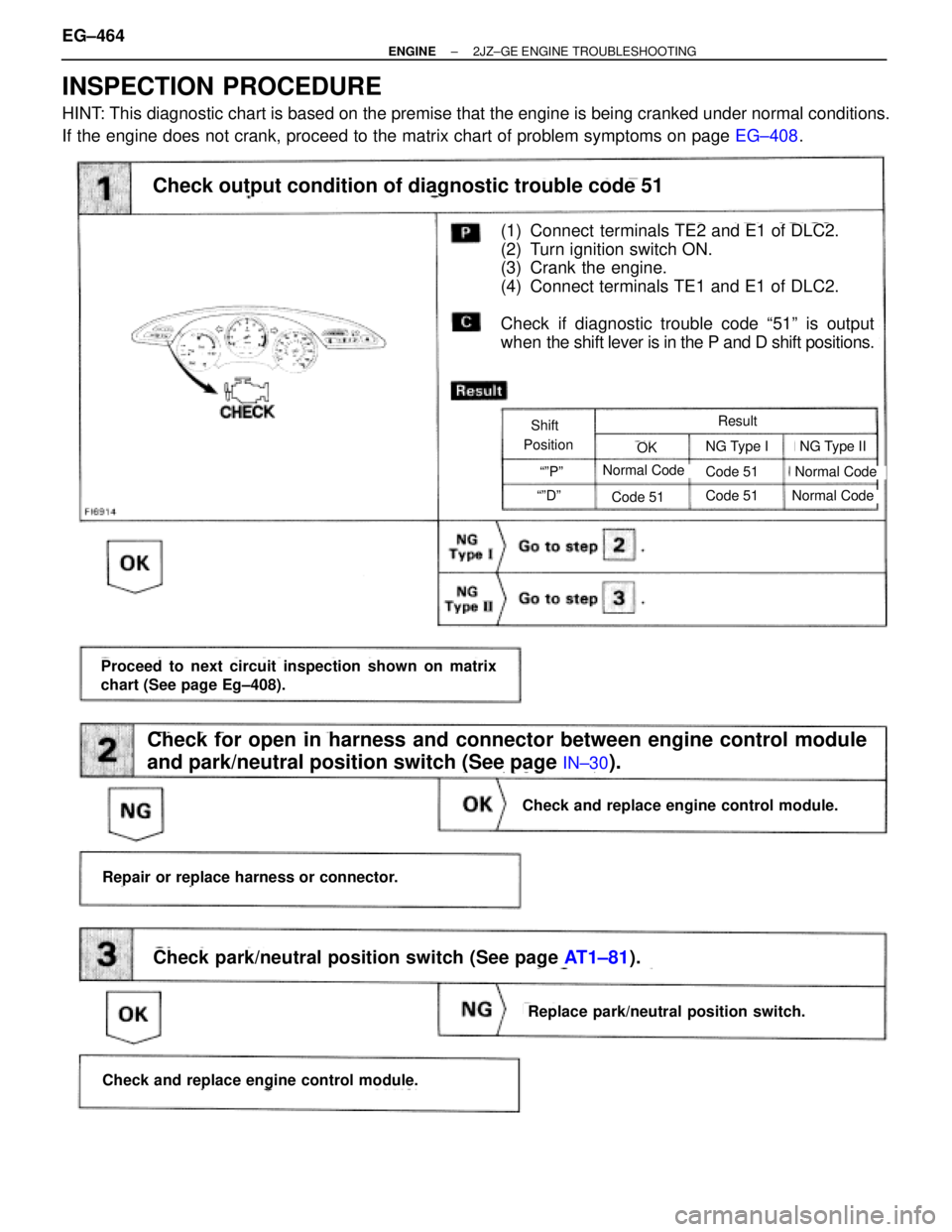

Check output condition of diagnostic trouble code 51
(1) Connect terminals TE2 and E1 of DLC2.
(2) Turn ignition switch ON.
(3) Crank the engine.
(4) Connect terminals TE1 and E1 of DLC2.
Check if diagnostic trouble code ª51º is output
when the shift lever is in the P and D shift positions.
Check and replace engine control module.
Proceed to next circuit inspection shown on matrix
chart (See page Eg±408).
Check for open in harness and connector between engine control module
and park/neutral position switch (See page
IN±30).
Repair or replace harness or connector.
Replace park/neutral position switch.
Check and replace engine control module.
Check park/neutral position switch (See page AT1±81).
Shift
Position Result
Normal Code
Normal Code
Normal Code
NG Type ING Type II
Code 51
Code 51
Code 51
OK
ªºPº
ªºDº
EG±464± ENGINE2JZ±GE ENGINE TROUBLESHOOTING
Page 1973 of 2543

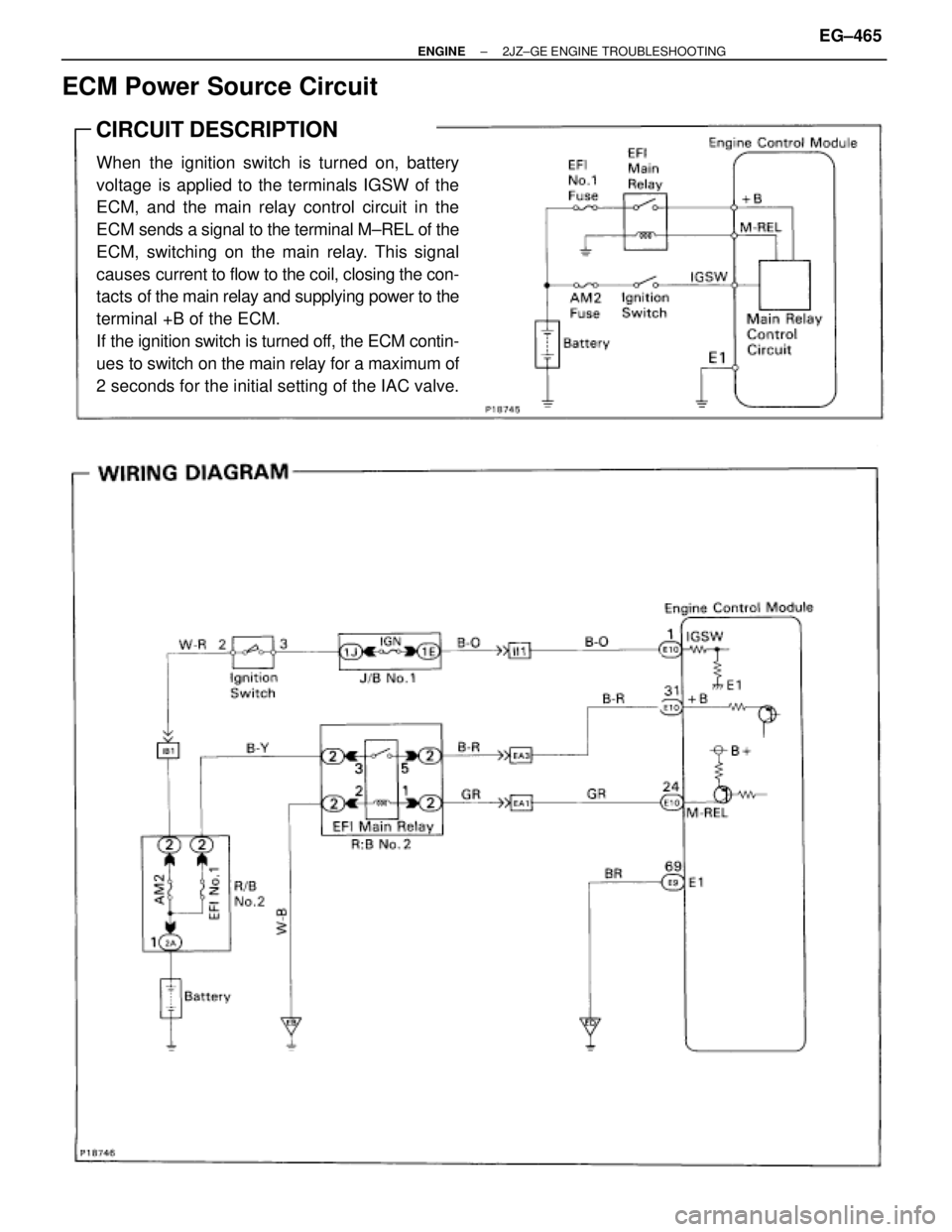

ECM Power Source Circuit
CIRCUIT DESCRIPTION
When the ignition switch is turned on, battery
voltage is applied to the terminals IGSW of the
ECM, and the main relay control circuit in the
ECM sends a signal to the terminal M±REL of the
ECM, switching on the main relay. This signal
causes current to flow to the coil, closing the con-
tacts of the main relay and supplying power to the
terminal +B of the ECM.
If the ignition switch is turned off, the ECM contin-
ues to switch on the main relay for a maximum of
2 seconds for the initial setting of the IAC valve.
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±465
Page 1974 of 2543
(See page EG±404)

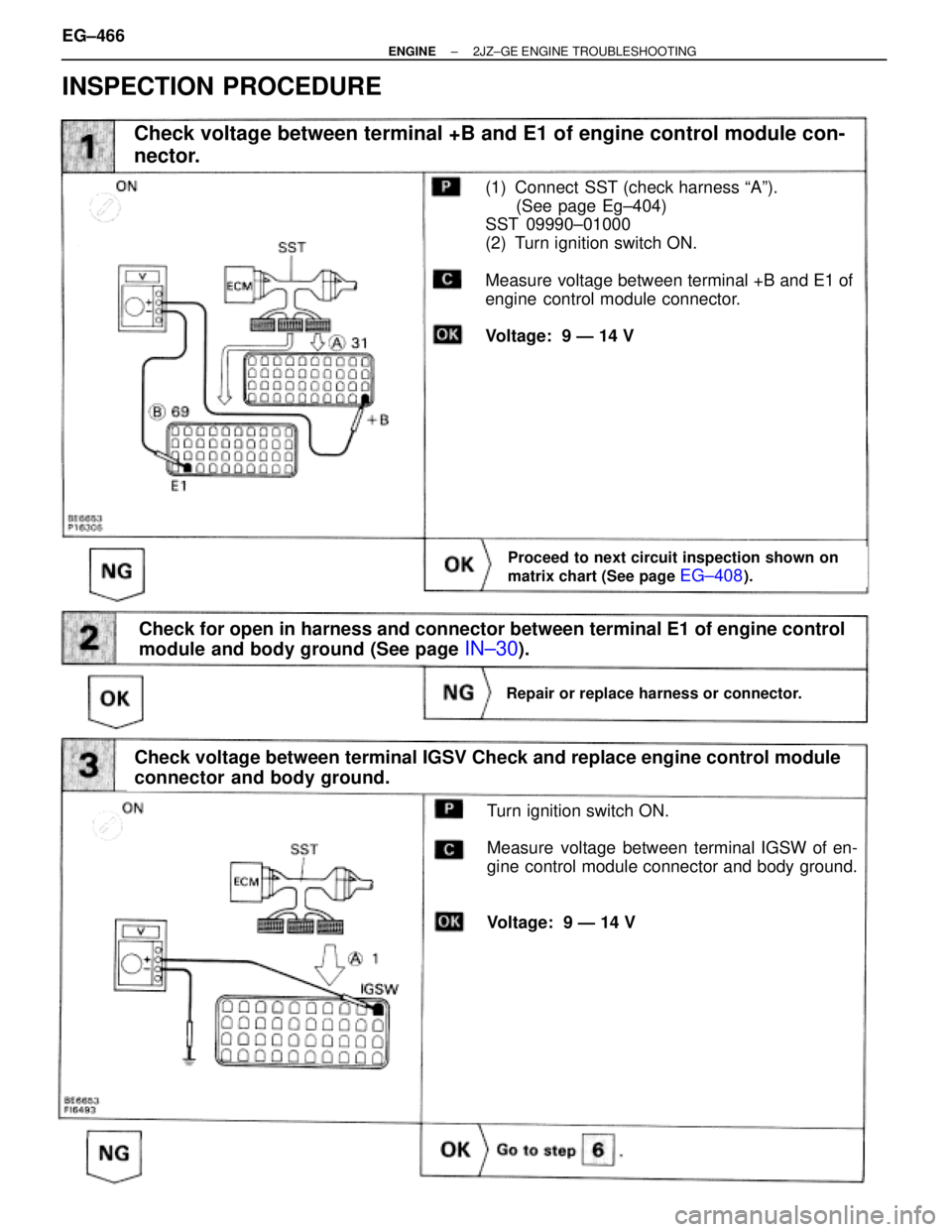

Check voltage between terminal +B and E1 of engine control module con-
nector.
(1) Connect SST (check harness ªAº).
(See page Eg±404)
SST 09990±01000
(2) Turn ignition switch ON.
Measure voltage between terminal +B and E1 of
engine control module connector.
Voltage: 9 Ð 14 V
Check and replace engine control module.
Repair or replace harness or connector.
Check voltage between terminal IGSV Check and replace engine control module
connector and body ground.
Proceed to next circuit inspection shown on
matrix chart (See page
EG±408).
Check for open in harness and connector between terminal E1 of engine control
module and body ground (See page
IN±30).
Turn ignition switch ON.
Measure voltage between terminal IGSW of en-
gine control module connector and body ground.
Voltage: 9 Ð 14 V
INSPECTION PROCEDURE
EG±466± ENGINE2JZ±GE ENGINE TROUBLESHOOTING
Page 1975 of 2543
Check IGN fuse.
Remove IGN fuse from J/B No.1.
Check continuity of IGN fuse.
Continuity
Check for short in the harness and all the com-
ponents connected to IGN fuse (See Electrical
Wiring Diagram).
Check ignition switch.
(1) Remove finish lower panel and finish lower
panel LH.
(2) Remove heater to register duct No.2.
Check continuity between terminals.
Replace ignition switch.
Check and repair harness and connector between
battery and ignition switch, ignition switch and en-
gine control module.
± ENGINE2JZ±GE ENGINE TROUBLESHOOTINGEG±467
Page 1976 of 2543

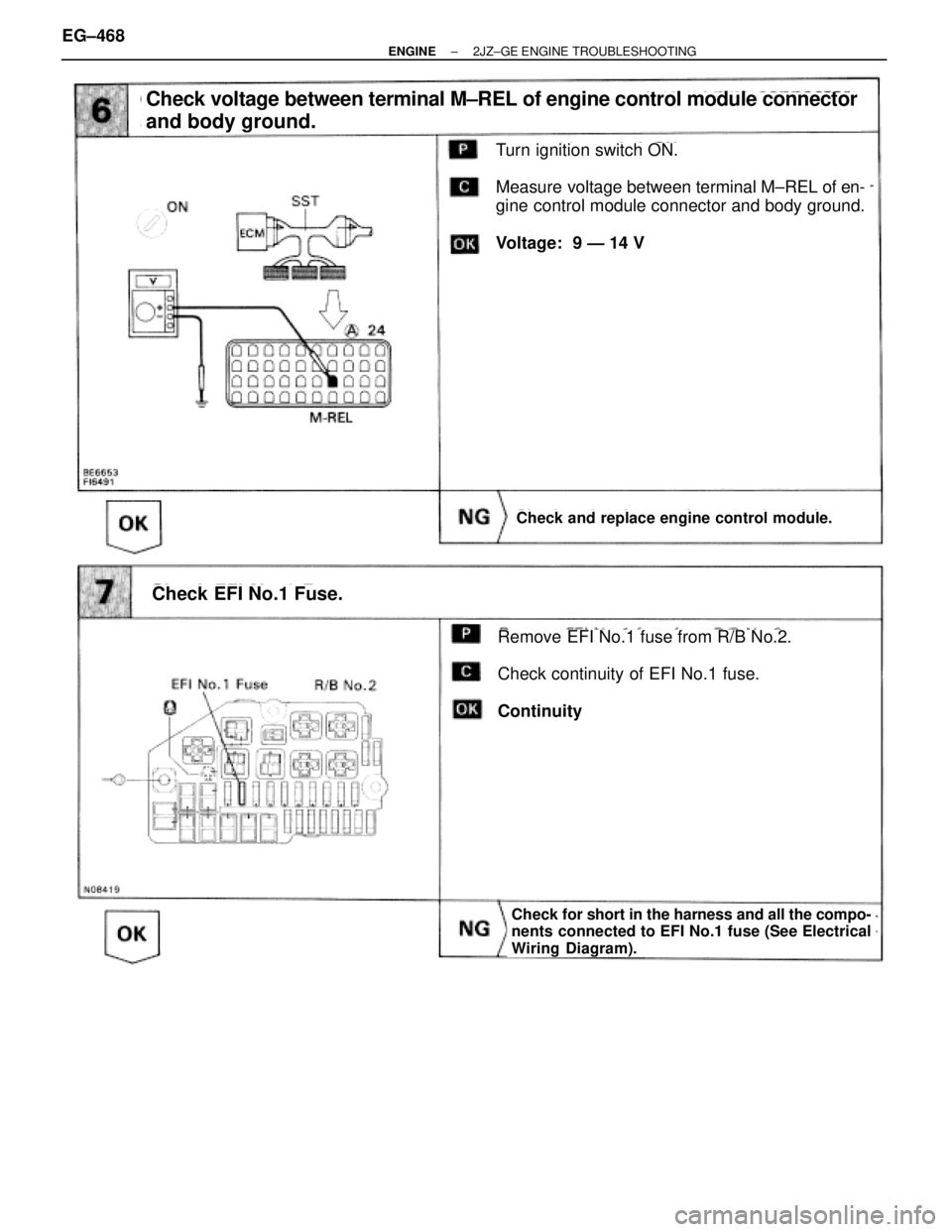

Check voltage between terminal M±REL of engine control module connector
