1995 TOYOTA SUPRA Service Repair Manual

Page 1145 of 2543

TOYOTA SUPRA 1995  Service Repair Manual HIGH±TENSION CORDS AND CORD
CLAMPS REMOVAL
1.  REMOVE THROTTLE BODY
(See throttle body removal in SFI System)
2.  REMOVE NO.3 TIMING BELT COVER
(a)  Remove the oil filler cap.
(b)  Using a 5 mm hexag

Page 1146 of 2543

TOYOTA SUPRA 1995  Service Repair Manual (d)  Disconnect the high±tension cords from the spark plugs.
Disconnect  the high±tension cords at the rubber boot. Do not
pull on the cords.
NOTICE: Pulling on or bending the cords may damage the c

Page 1147 of 2543

TOYOTA SUPRA 1995  Service Repair Manual wFit the high±tension cord by pushing the center and its
outer ring.
(b)  Connect  the high±tension cords to the distributor and ignition
coil.
wAlign the spline of the distributor (ignition coil) w

Page 1148 of 2543

TOYOTA SUPRA 1995  Service Repair Manual (c)  Secure the high±tension cords with the 8 cord clamps as
shown in the illustration.
2.  INSTALL CYLINDER HEAD REAR COVER
3.  INSTALL NO.3 TIMING BELT COVER
4.  INSTALL THROTTLE BODY ASSEMBLY
(See

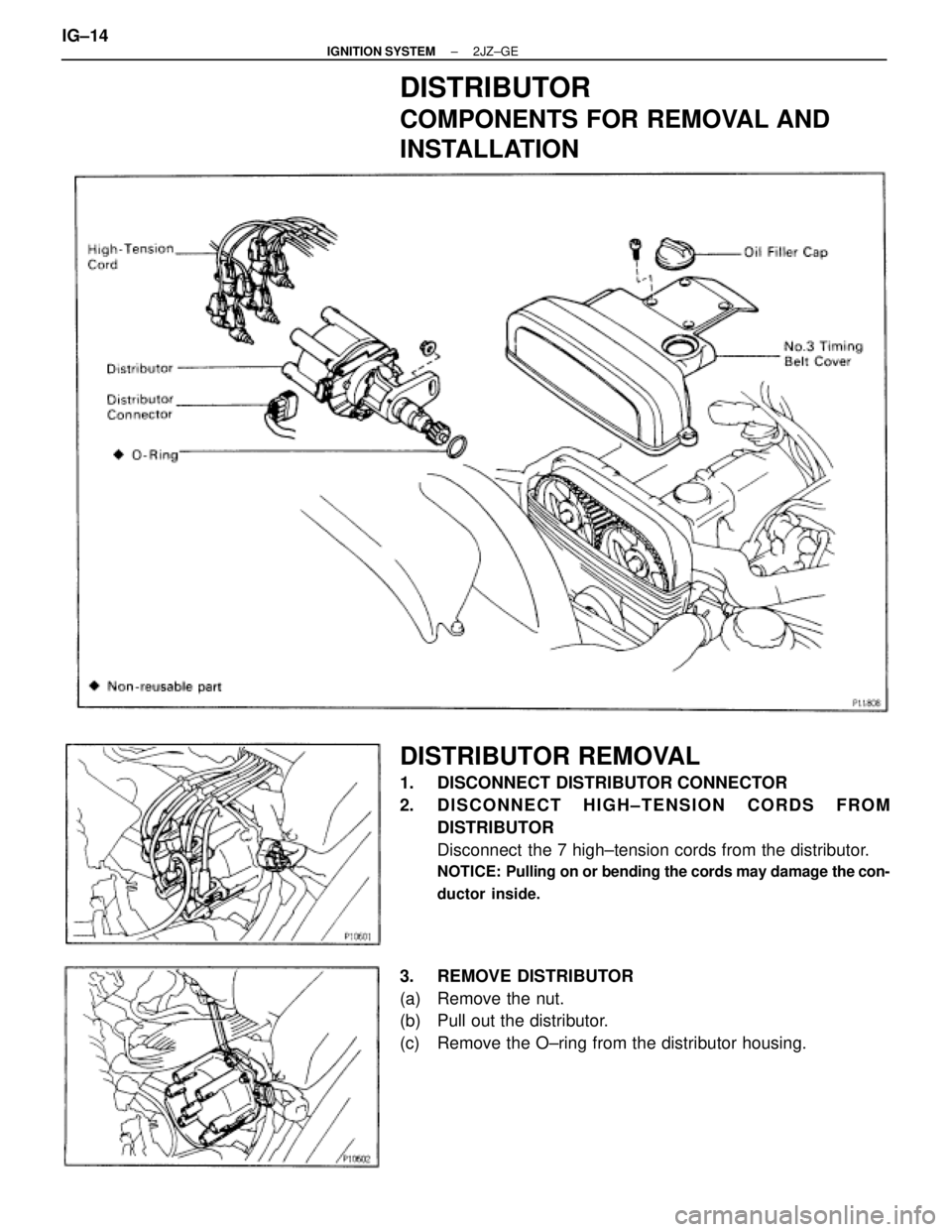

Page 1149 of 2543

TOYOTA SUPRA 1995  Service Repair Manual DISTRIBUTOR
COMPONENTS FOR REMOVAL AND
INSTALLATION
DISTRIBUTOR REMOVAL
1. DISCONNECT DISTRIBUTOR CONNECTOR
2. DISCONNECT HIGH±TENSION CORDS FROM
DISTRIBUTOR
Disconnect  the 7 high±tension cords fro

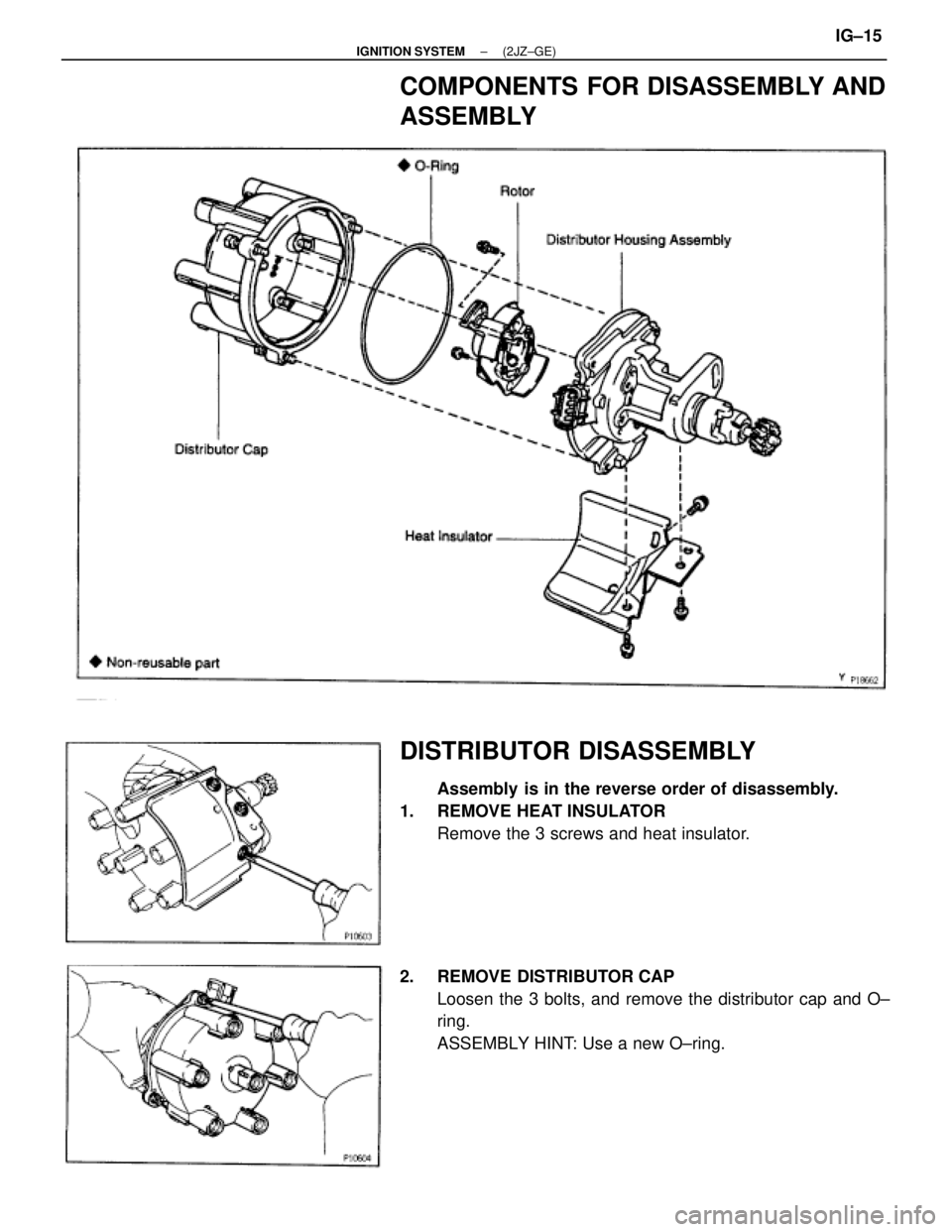

Page 1150 of 2543

TOYOTA SUPRA 1995  Service Repair Manual COMPONENTS FOR DISASSEMBLY AND
ASSEMBLY
DISTRIBUTOR DISASSEMBLY
Assembly  is in the reverse order of disassembly.
1. REMOVE HEAT INSULATOR
Remove the 3 screws and heat insulator.
2. REMOVE DISTRIBUTOR

Page 1151 of 2543

TOYOTA SUPRA 1995  Service Repair Manual 3. REMOVE ROTOR
Remove the 2 screws and rotor.
ASSEMBLY HINT: Align the hollow of the signal rotor with the
protrusion of the rotor.
DISTRIBUTOR INSPECTION
INSPECT SHAFT
Turn the shaft and check that

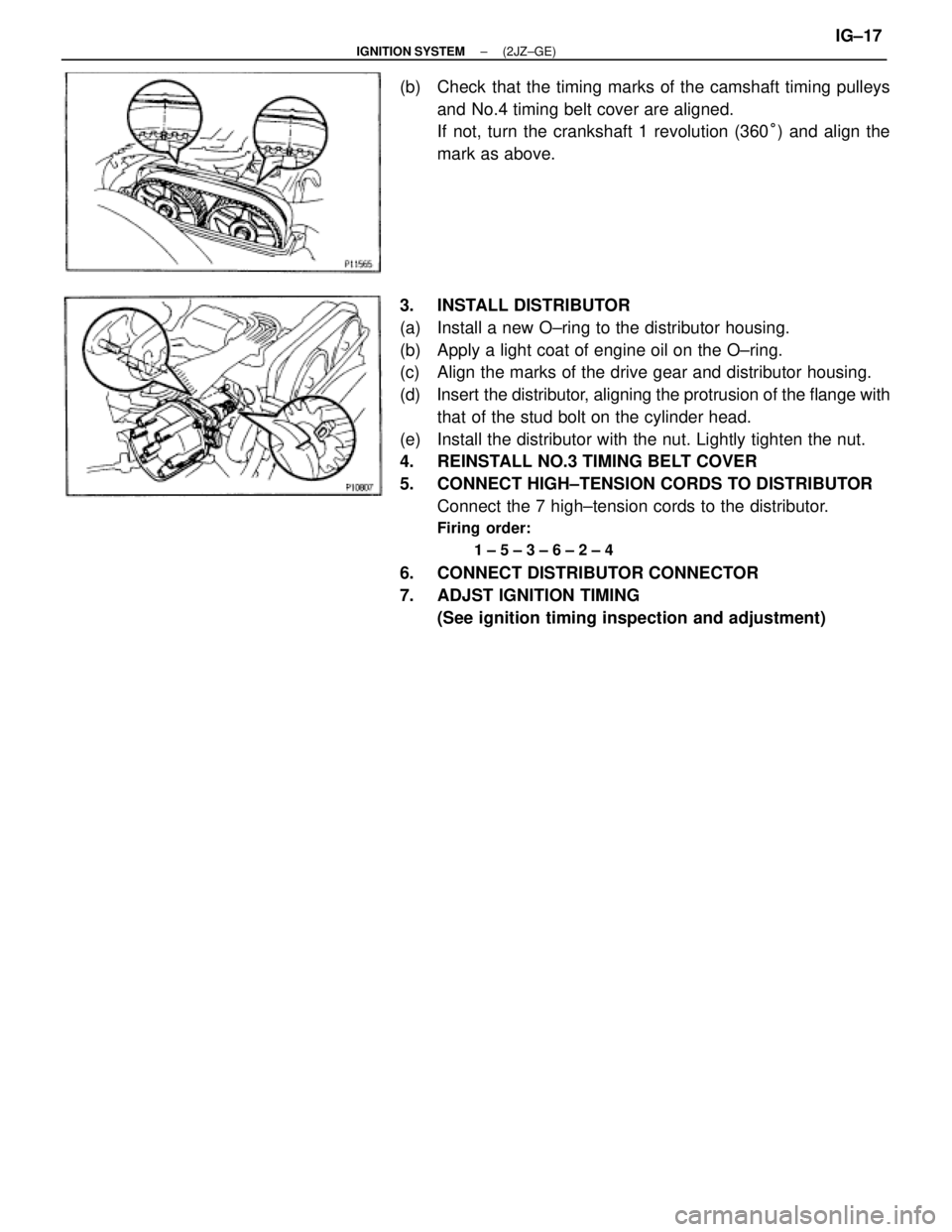

Page 1152 of 2543

TOYOTA SUPRA 1995  Service Repair Manual (b)  Check that the timing marks of the camshaft timing pulleys
and No.4 timing belt cover are aligned.
If not, turn the crankshaft 1 revolution (360°) and align the
mark as above.
3. INSTALL DISTRIB
