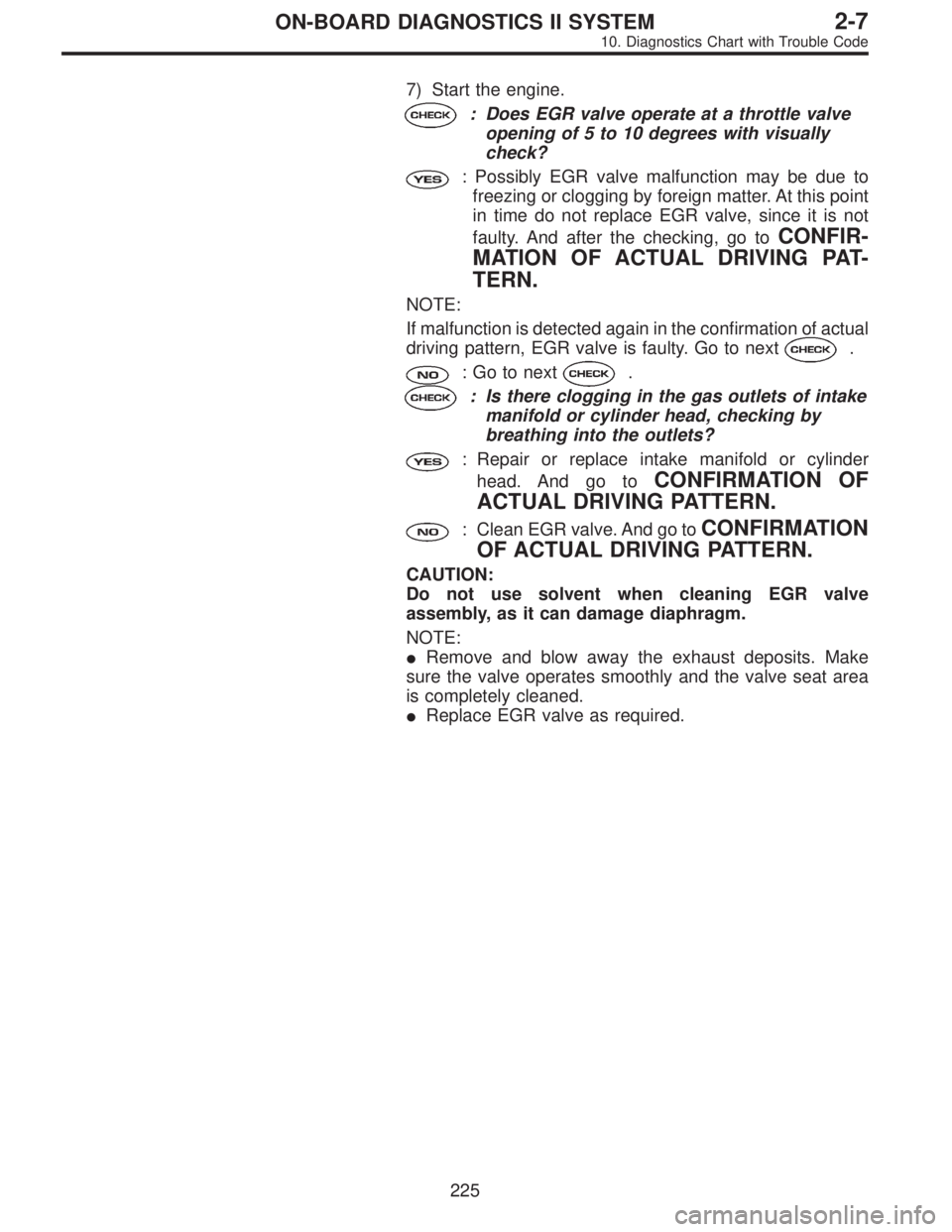

7) Start the engine.
: Does EGR valve operate at a throttle valve
opening of 5 to 10 degrees with visually
check?
: Possibly EGR valve malfunction may be due to
freezing or clogging by foreign matter. At this point
in time do not replace EGR valve, since it is not
faulty. And after the checking, go to
CONFIR-
MATION OF ACTUAL DRIVING PAT-
TERN.
NOTE:
If malfunction is detected again in the confirmation of actual
driving pattern, EGR valve is faulty. Go to next
.
: Go to next.
: Is there clogging in the gas outlets of intake
manifold or cylinder head, checking by
breathing into the outlets?
: Repair or replace intake manifold or cylinder
head. And go to
CONFIRMATION OF
ACTUAL DRIVING PATTERN.
: Clean EGR valve. And go toCONFIRMATION
OF ACTUAL DRIVING PATTERN.
CAUTION:
Do not use solvent when cleaning EGR valve
assembly, as it can damage diaphragm.
NOTE:
Remove and blow away the exhaust deposits. Make
sure the valve operates smoothly and the valve seat area
is completely cleaned.
Replace EGR valve as required.
225
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
Page 1994 of 2890
OBD0145A

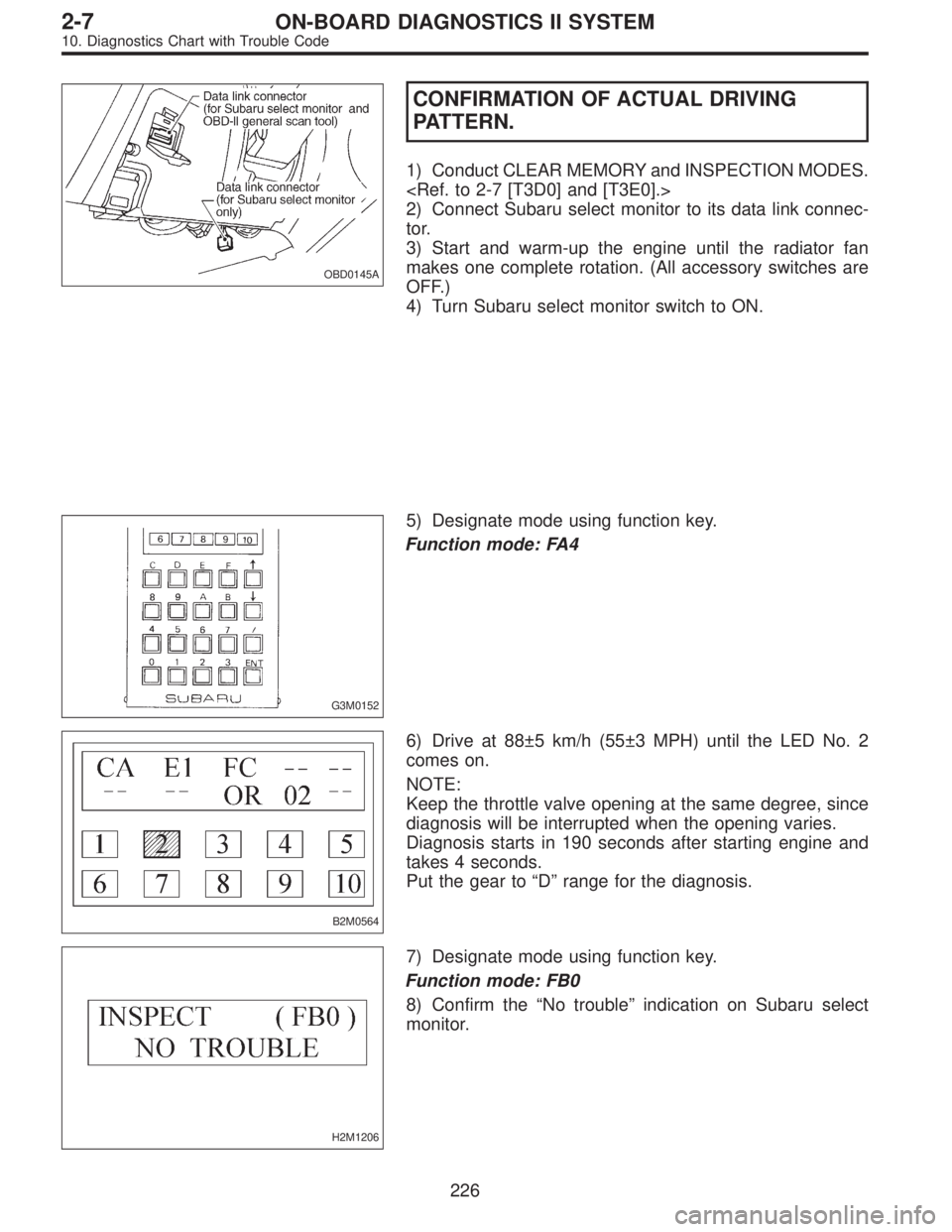

CONFIRMATION OF ACTUAL DRIVING
PATTERN.
1) Conduct CLEAR MEMORY and INSPECTION MODES.
2) Connect Subaru select monitor to its data link connec-
tor.
3) Start and warm-up the engine until the radiator fan
makes one complete rotation. (All accessory switches are
OFF.)
4) Turn Subaru select monitor switch to ON.
G3M0152
5) Designate mode using function key.
Function mode: FA4
B2M0564
6) Drive at 88±5 km/h (55±3 MPH) until the LED No. 2
comes on.
NOTE:
Keep the throttle valve opening at the same degree, since
diagnosis will be interrupted when the opening varies.
Diagnosis starts in 190 seconds after starting engine and
takes 4 seconds.
Put the gear to“D”range for the diagnosis.
H2M1206
7) Designate mode using function key.
Function mode: FB0
8) Confirm the“No trouble”indication on Subaru select
monitor.
226
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
Page 1995 of 2890
OBD0323

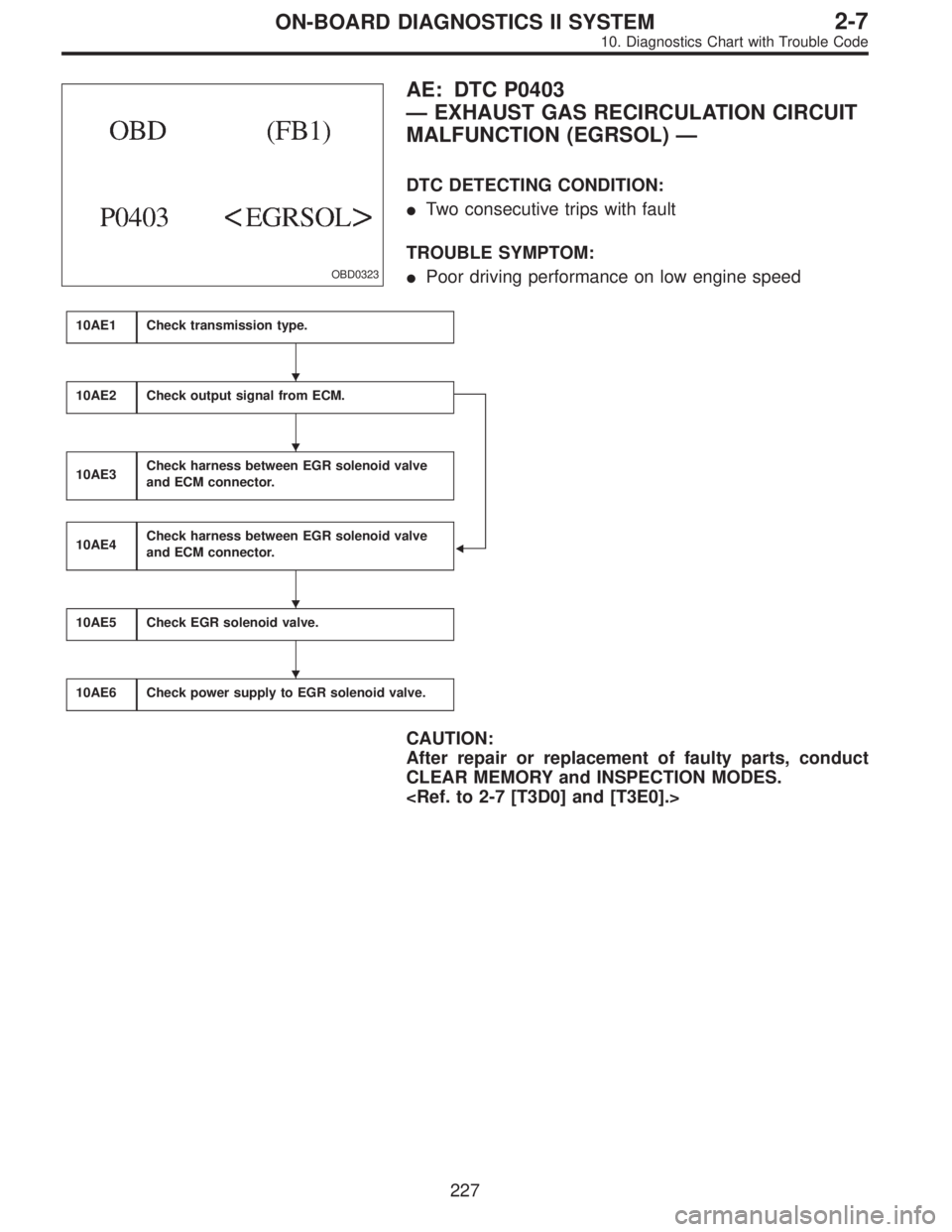

AE: DTC P0403
—EXHAUST GAS RECIRCULATION CIRCUIT
MALFUNCTION (EGRSOL)—
DTC DETECTING CONDITION:
Two consecutive trips with fault
TROUBLE SYMPTOM:
Poor driving performance on low engine speed
10AE1Check transmission type.
10AE2Check output signal from ECM.
10AE3Check harness between EGR solenoid valve
and ECM connector.
10AE4Check harness between EGR solenoid valve
and ECM connector.
10AE5Check EGR solenoid valve.
10AE6Check power supply to EGR solenoid valve.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.
227
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
Page 1996 of 2890

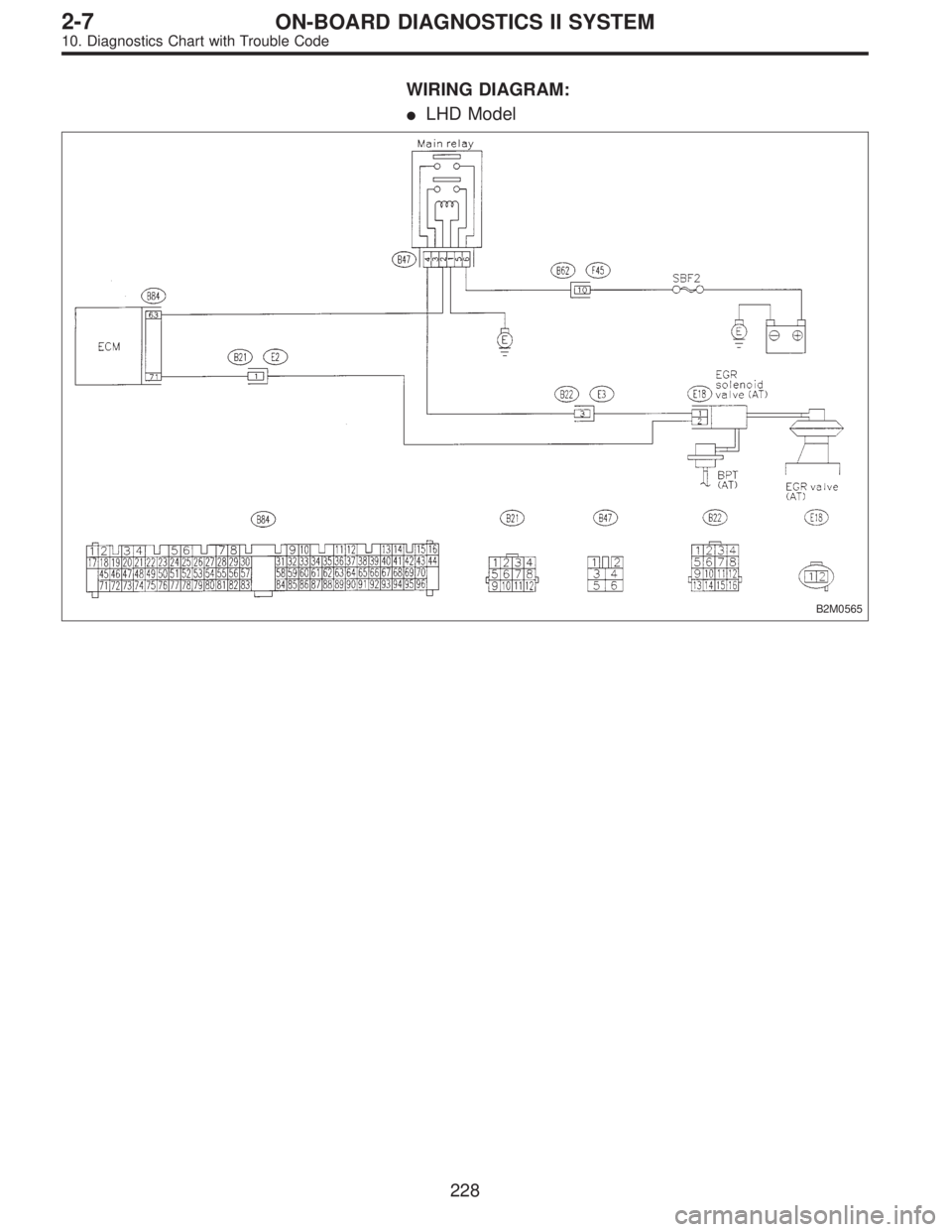

WIRING DIAGRAM:
LHD Model
B2M0565
228
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
Page 1997 of 2890

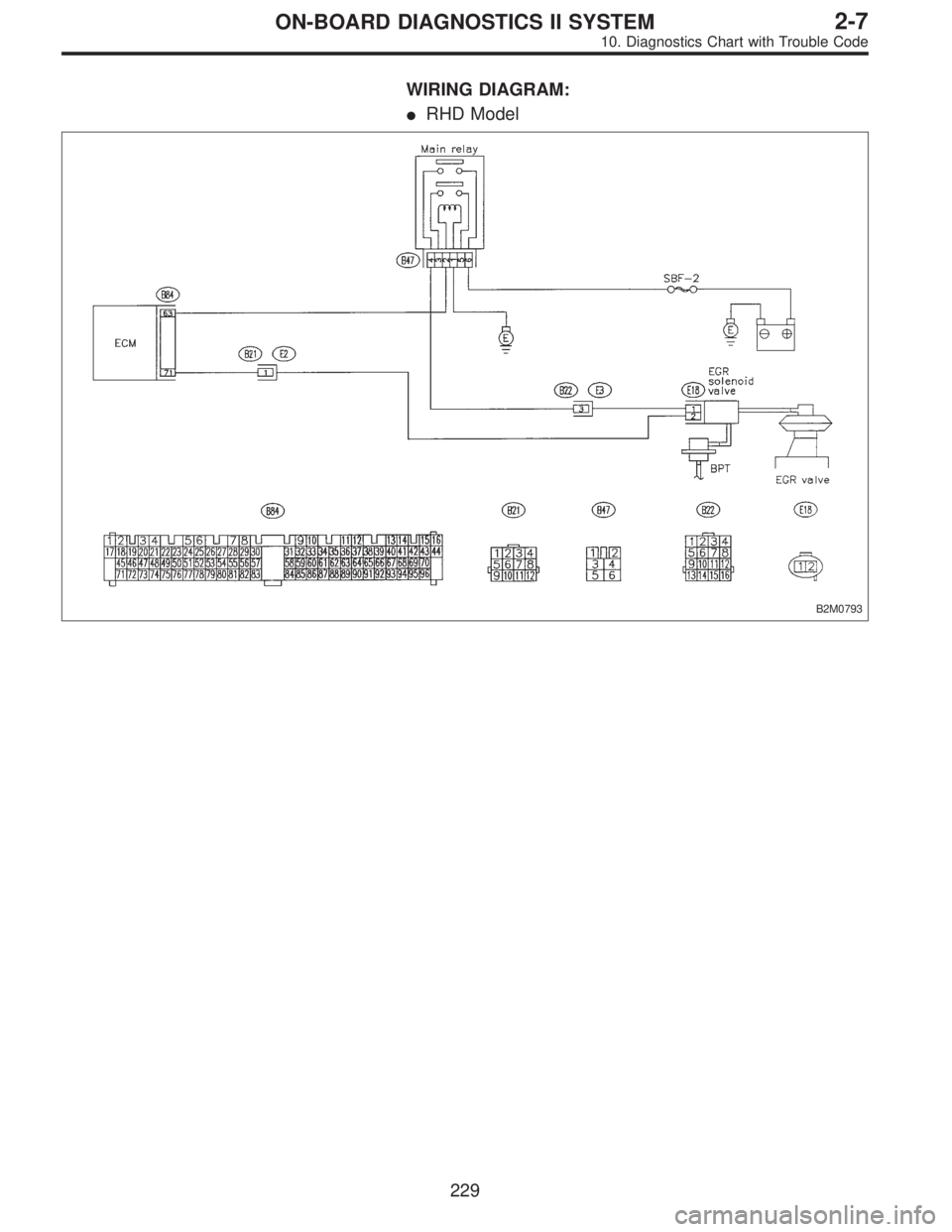

WIRING DIAGRAM:
RHD Model
B2M0793
229
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
Page 1998 of 2890

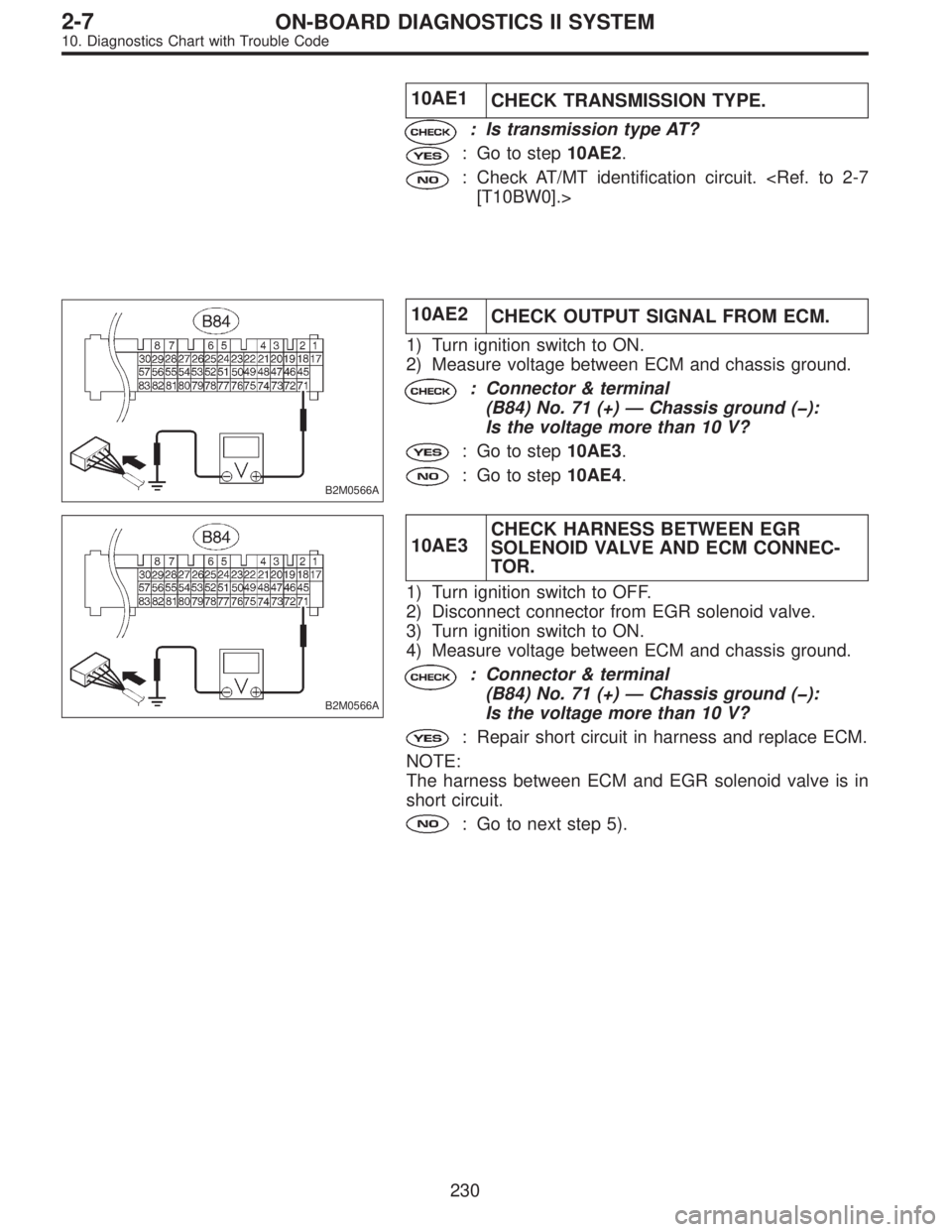

10AE1
CHECK TRANSMISSION TYPE.
: Is transmission type AT?
: Go to step10AE2.
: Check AT/MT identification circuit.
[T10BW0].>
B2M0566A
10AE2
CHECK OUTPUT SIGNAL FROM ECM.
1) Turn ignition switch to ON.
2) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 71 (+)—Chassis ground ( ):
Is the voltage more than 10 V?
: Go to step10AE3.
: Go to step10AE4.
B2M0566A
10AE3CHECK HARNESS BETWEEN EGR
SOLENOID VALVE AND ECM CONNEC-
TOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from EGR solenoid valve.
3) Turn ignition switch to ON.
4) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 71 (+)—Chassis ground ( ):
Is the voltage more than 10 V?
: Repair short circuit in harness and replace ECM.
NOTE:
The harness between ECM and EGR solenoid valve is in
short circuit.
: Go to next step 5).
230
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
Page 1999 of 2890

OBD0327

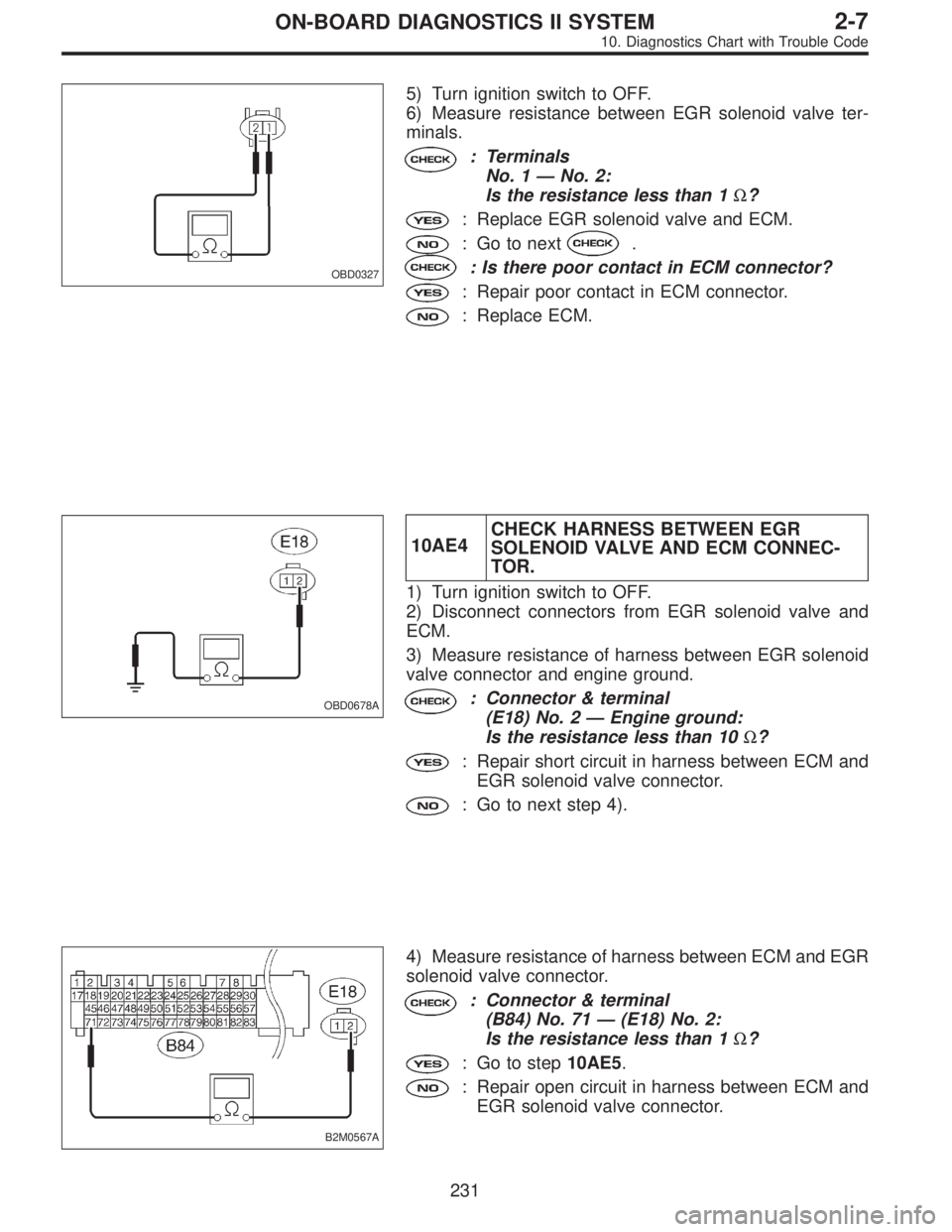

5) Turn ignition switch to OFF.
6) Measure resistance between EGR solenoid valve ter-
minals.
: Terminals
No. 1—No. 2:
Is the resistance less than 1Ω?
: Replace EGR solenoid valve and ECM.
: Go to next.
: Is there poor contact in ECM connector?
: Repair poor contact in ECM connector.
: Replace ECM.
OBD0678A
10AE4CHECK HARNESS BETWEEN EGR
SOLENOID VALVE AND ECM CONNEC-
TOR.
1) Turn ignition switch to OFF.
2) Disconnect connectors from EGR solenoid valve and
ECM.
3) Measure resistance of harness between EGR solenoid
valve connector and engine ground.
: Connector & terminal
(E18) No. 2—Engine ground:
Is the resistance less than 10Ω?
: Repair short circuit in harness between ECM and
EGR solenoid valve connector.
: Go to next step 4).
B2M0567A
4) Measure resistance of harness between ECM and EGR
solenoid valve connector.
: Connector & terminal
(B84) No. 71—(E18) No. 2:
Is the resistance less than 1Ω?
: Go to step10AE5.
: Repair open circuit in harness between ECM and
EGR solenoid valve connector.
231
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
Page 2000 of 2890
OBD0327
10AE5

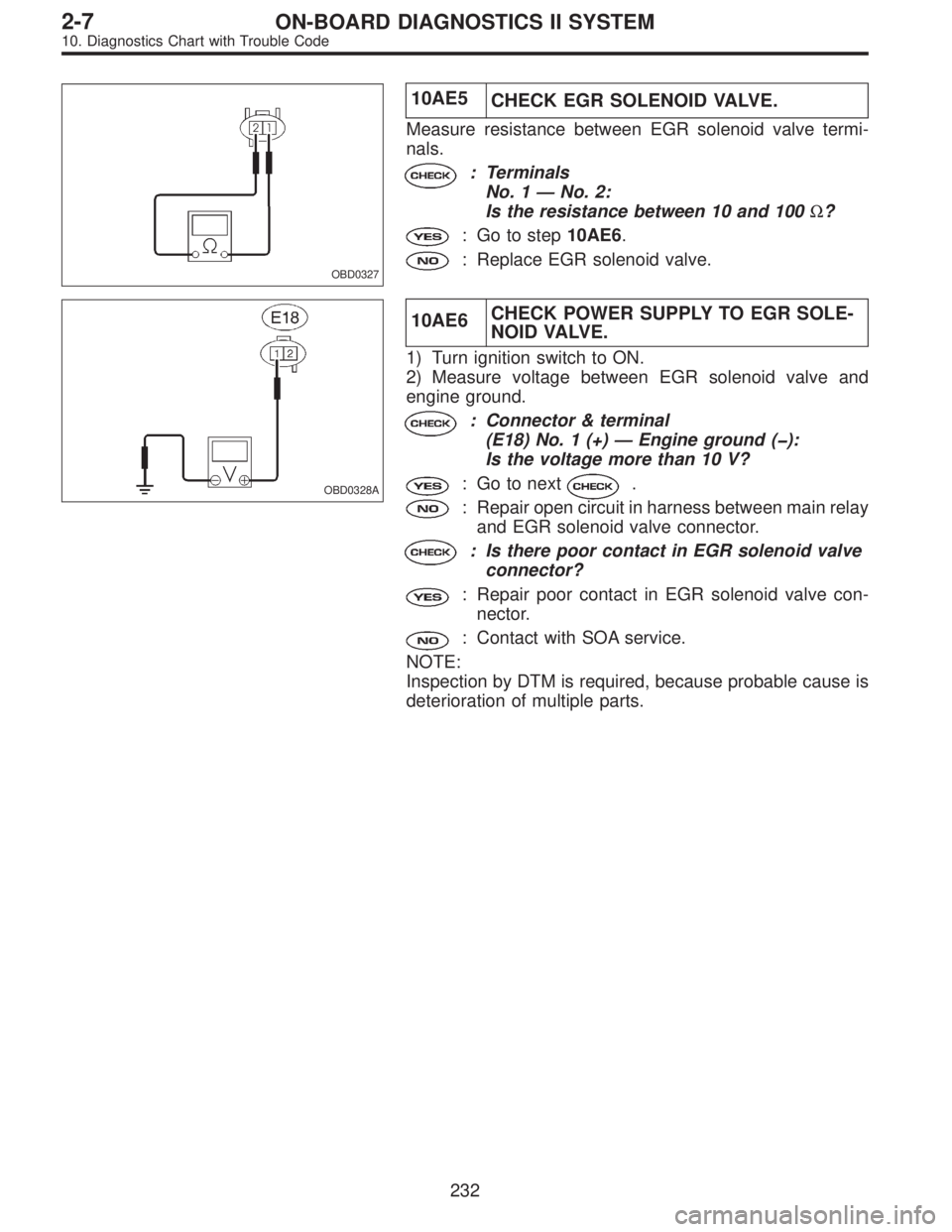

CHECK EGR SOLENOID VALVE.
