1996 SUBARU LEGACY Service Repair Manual

Page 489 of 2890

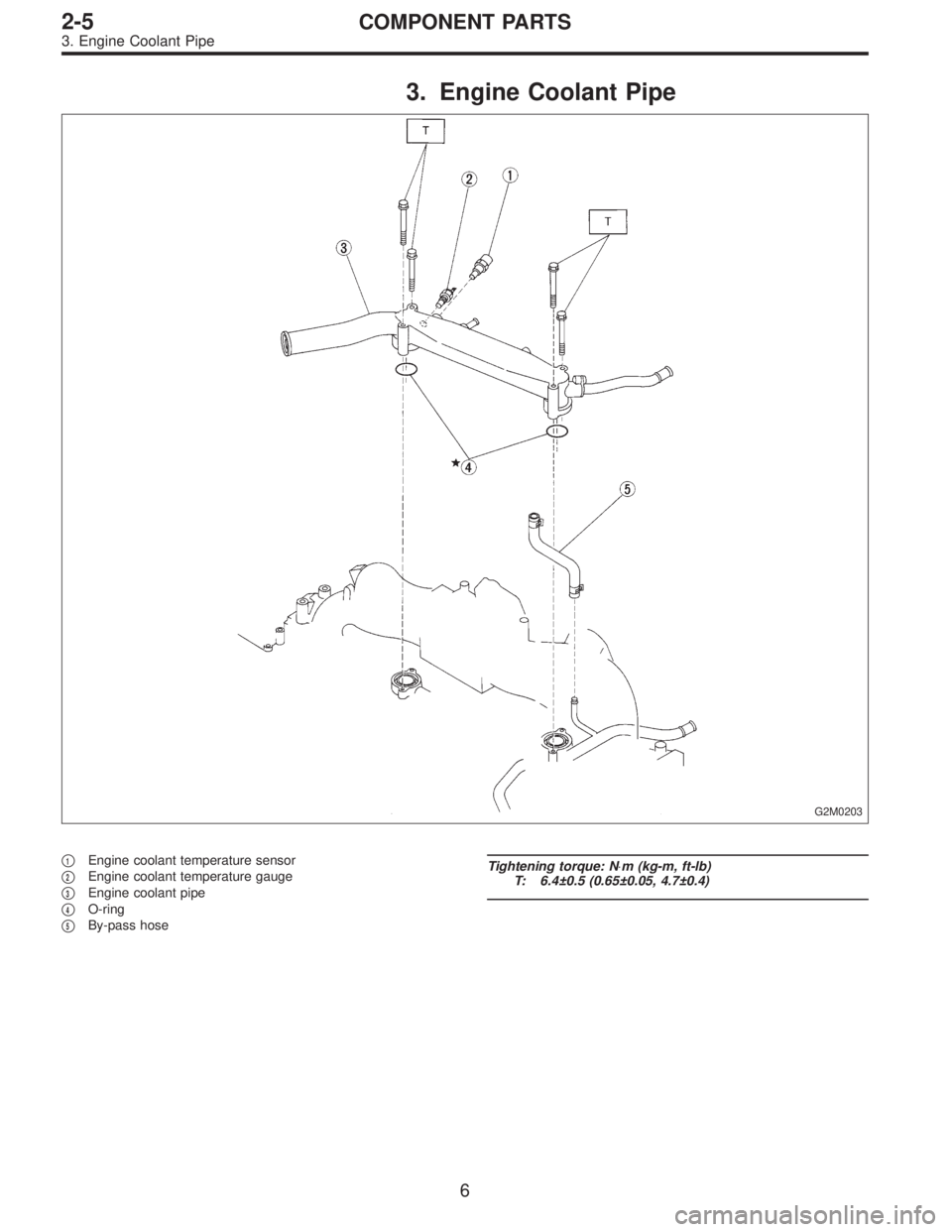

SUBARU LEGACY 1996  Service Repair Manual 3. Engine Coolant Pipe
G2M0203
1Engine coolant temperature sensor

2Engine coolant temperature gauge

3Engine coolant pipe

4O-ring

5By-pass hose
Tightening torque: N⋅m (kg-m, ft-lb)
T: 6.4±0

Page 490 of 2890

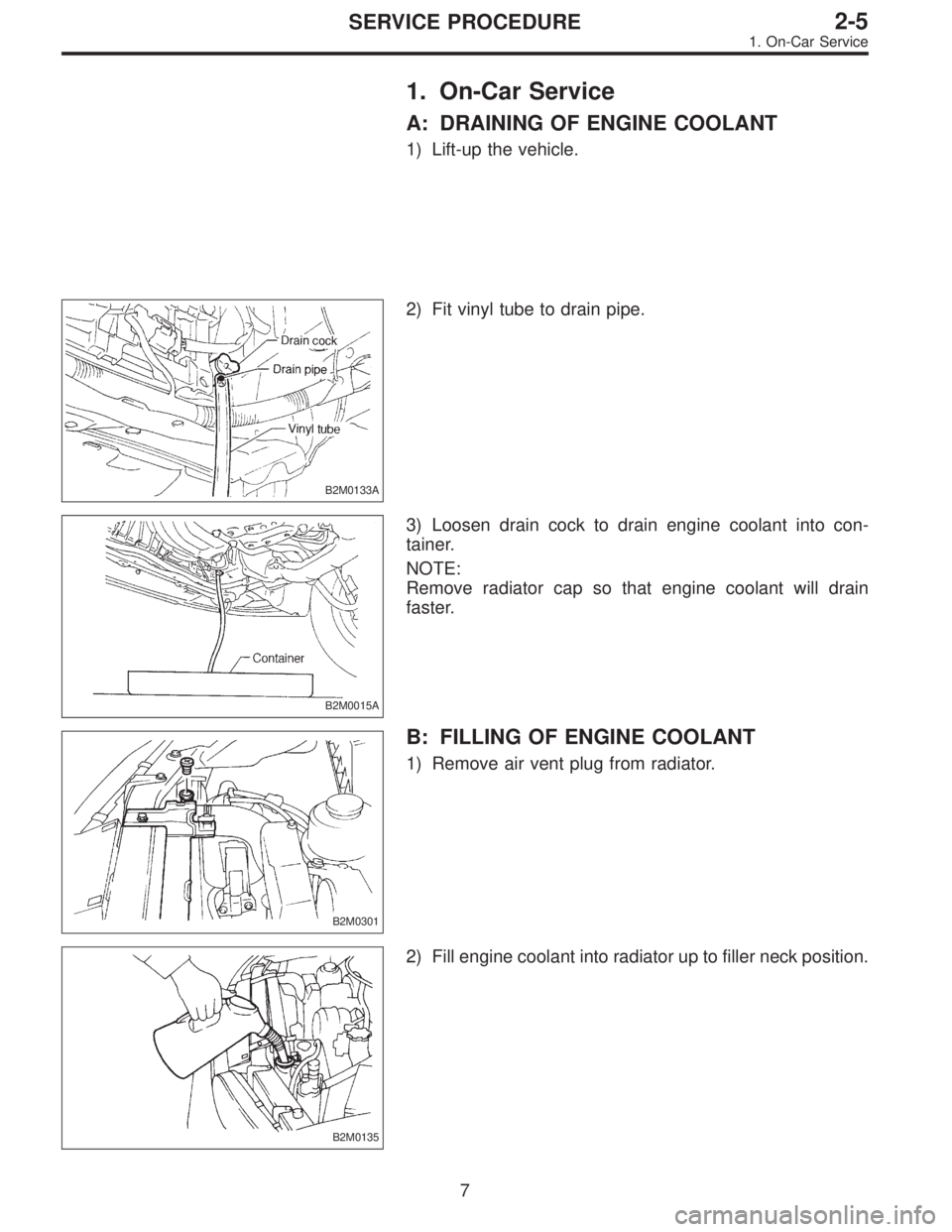

SUBARU LEGACY 1996  Service Repair Manual 1. On-Car Service
A: DRAINING OF ENGINE COOLANT
1) Lift-up the vehicle.
B2M0133A
2) Fit vinyl tube to drain pipe.
B2M0015A
3) Loosen drain cock to drain engine coolant into con-
tainer.
NOTE:
Remove r

Page 491 of 2890

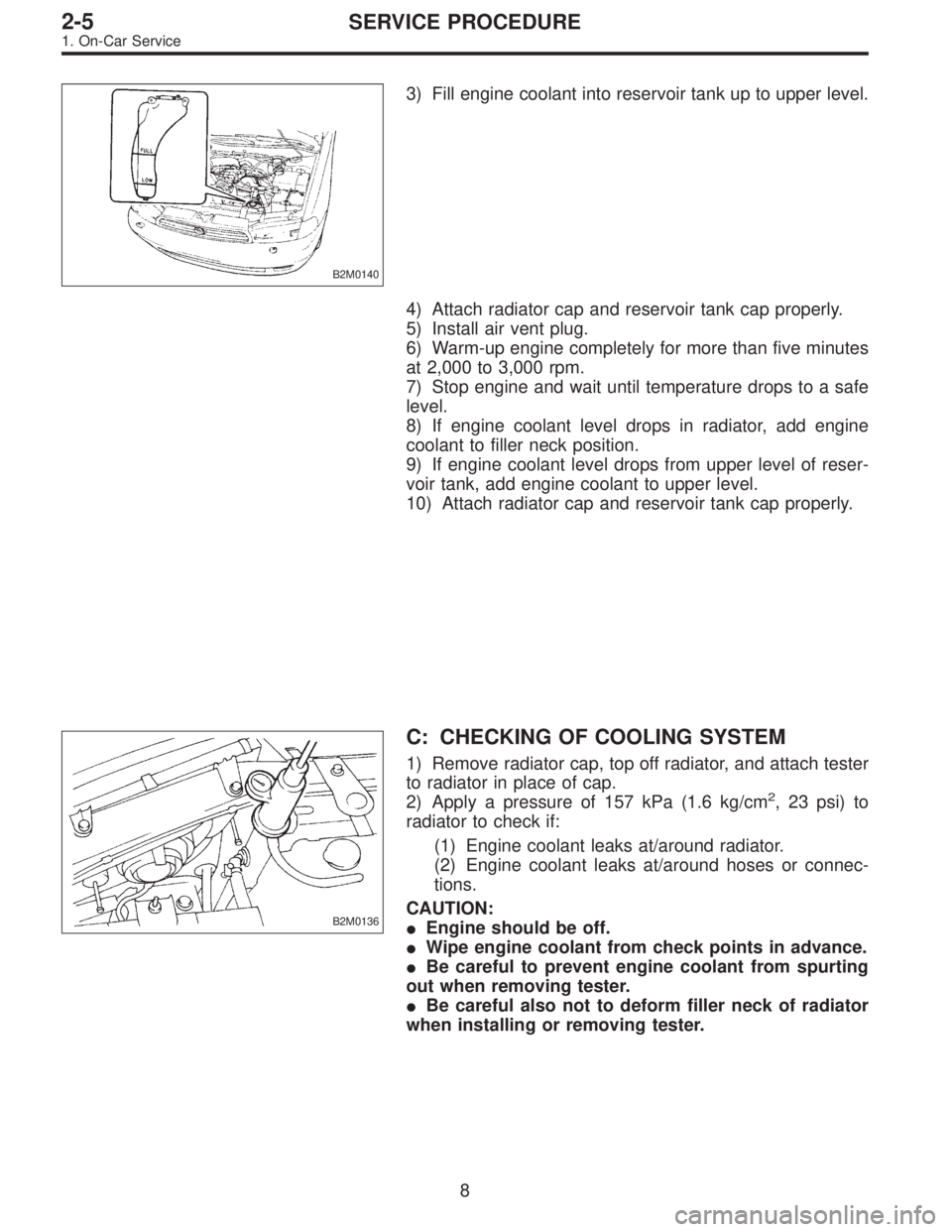

SUBARU LEGACY 1996  Service Repair Manual B2M0140
3) Fill engine coolant into reservoir tank up to upper level.
4) Attach radiator cap and reservoir tank cap properly.
5) Install air vent plug.
6) Warm-up engine completely for more than five

Page 492 of 2890

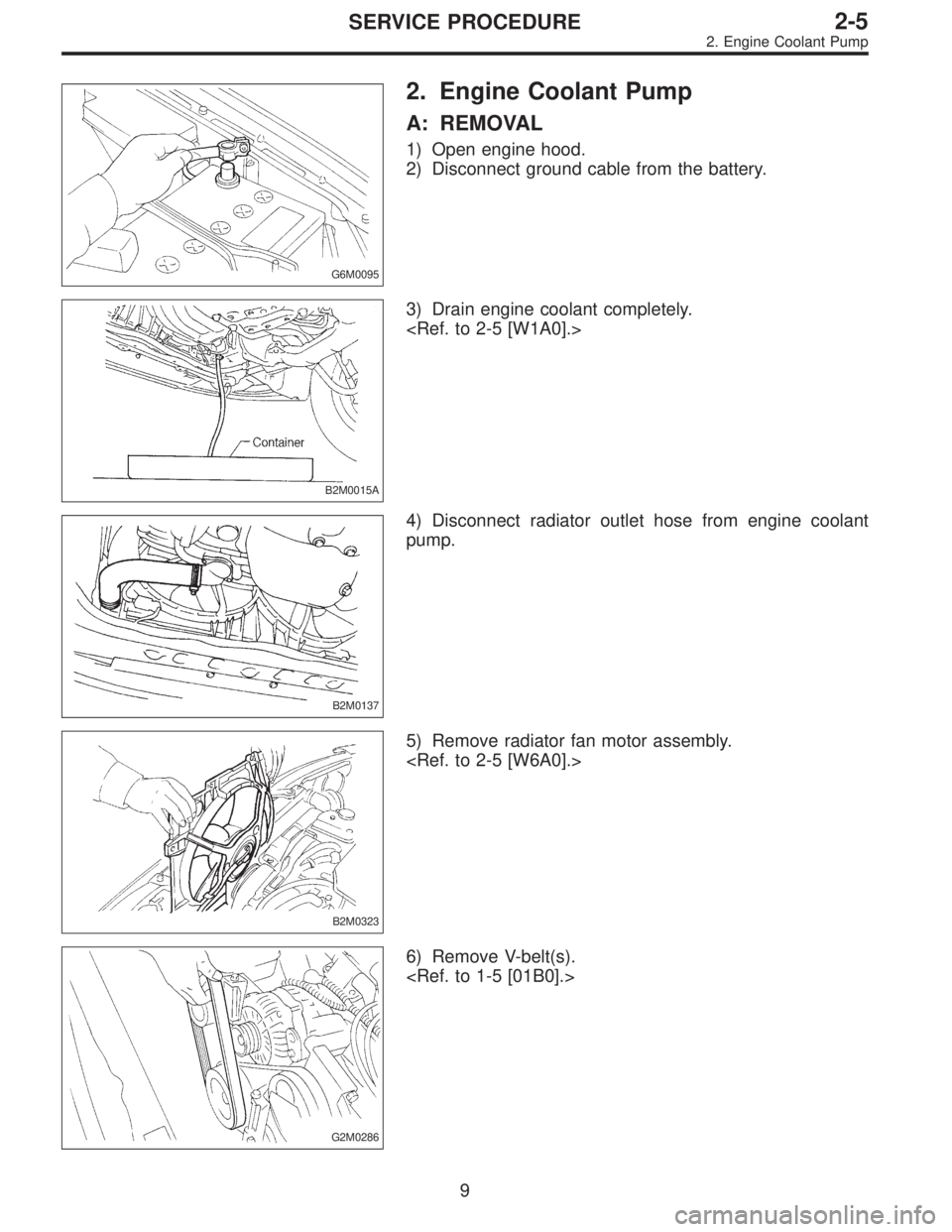

SUBARU LEGACY 1996  Service Repair Manual G6M0095
2. Engine Coolant Pump
A: REMOVAL
1) Open engine hood.
2) Disconnect ground cable from the battery.
B2M0015A
3) Drain engine coolant completely.
<Ref. to 2-5 [W1A0].>
B2M0137
4) Disconnect rad

Page 493 of 2890

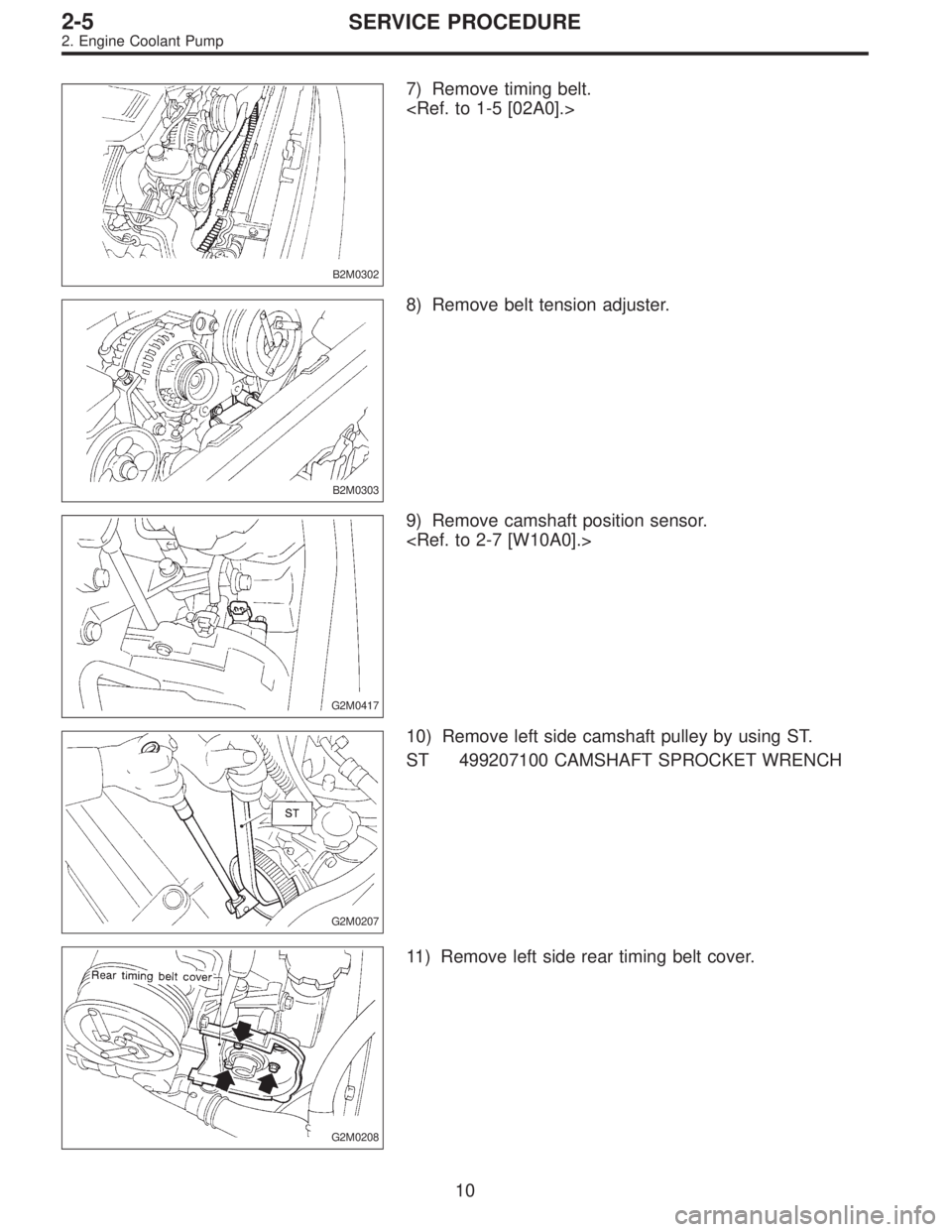

SUBARU LEGACY 1996  Service Repair Manual B2M0302
7) Remove timing belt.
<Ref. to 1-5 [02A0].>
B2M0303
8) Remove belt tension adjuster.
G2M0417
9) Remove camshaft position sensor.
<Ref. to 2-7 [W10A0].>
G2M0207
10) Remove left side camshaft p

Page 494 of 2890

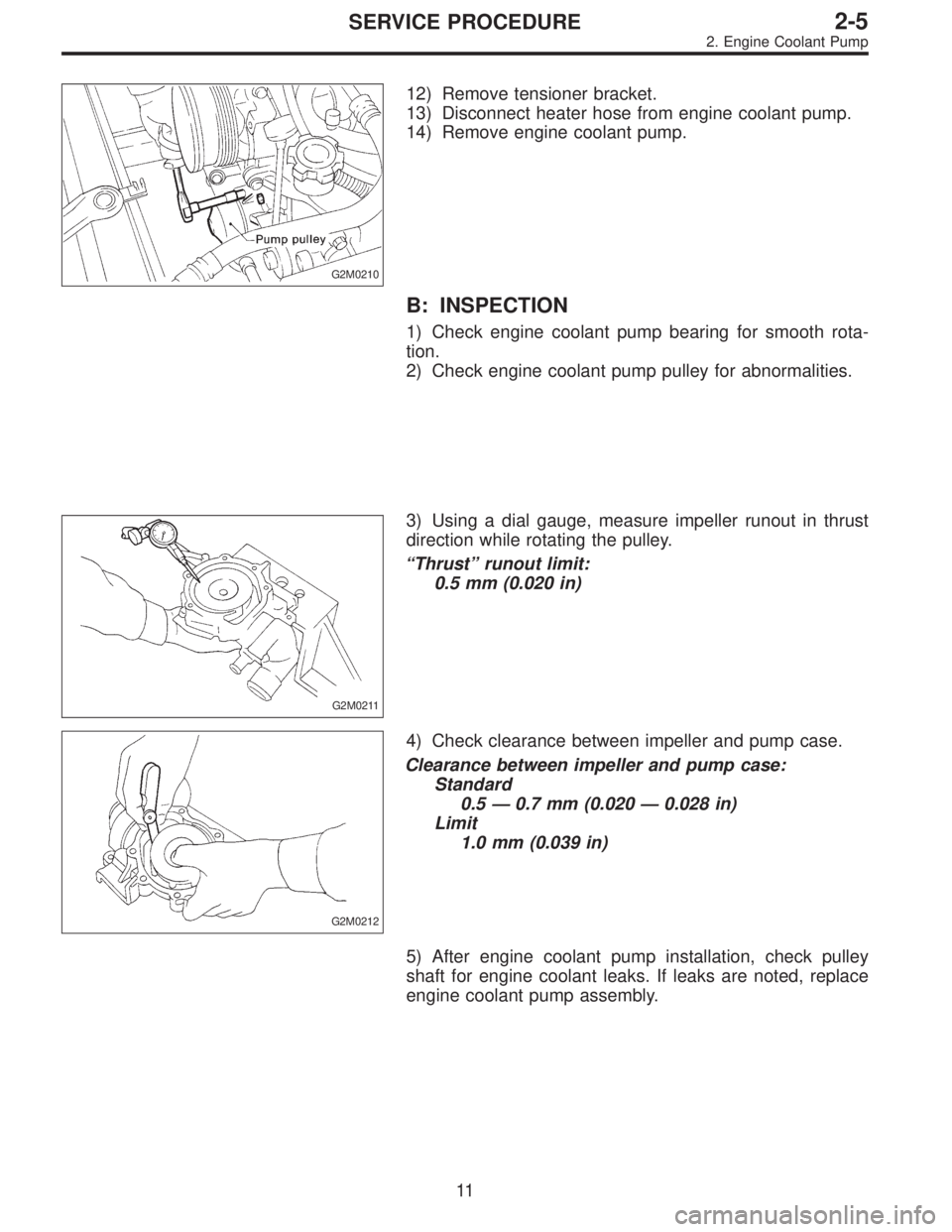

SUBARU LEGACY 1996  Service Repair Manual G2M0210
12) Remove tensioner bracket.
13) Disconnect heater hose from engine coolant pump.
14) Remove engine coolant pump.
B: INSPECTION
1) Check engine coolant pump bearing for smooth rota-
tion.
2)

Page 495 of 2890

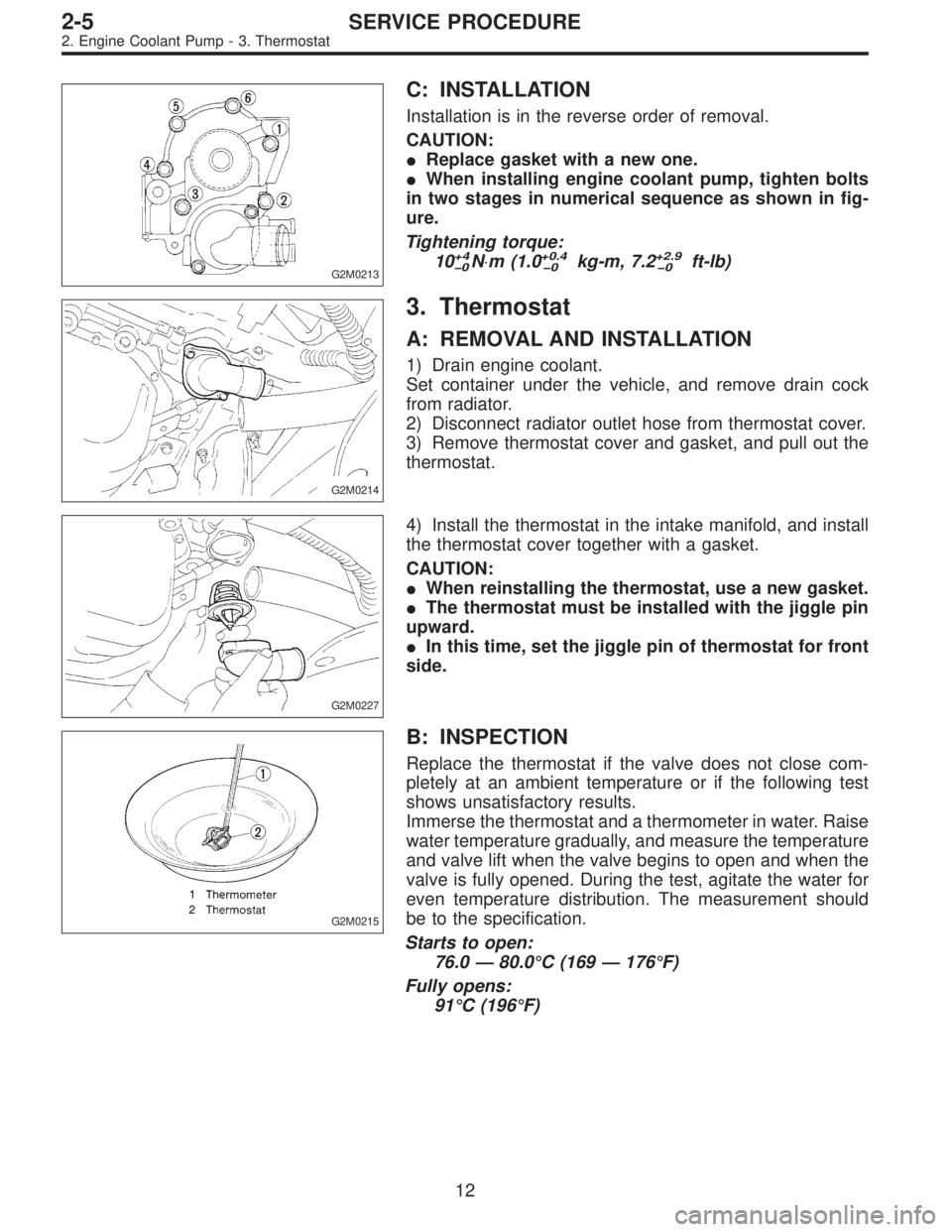

SUBARU LEGACY 1996  Service Repair Manual G2M0213
C: INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
Replace gasket with a new one.
When installing engine coolant pump, tighten bolts
in two stages in numerical sequenc

Page 496 of 2890

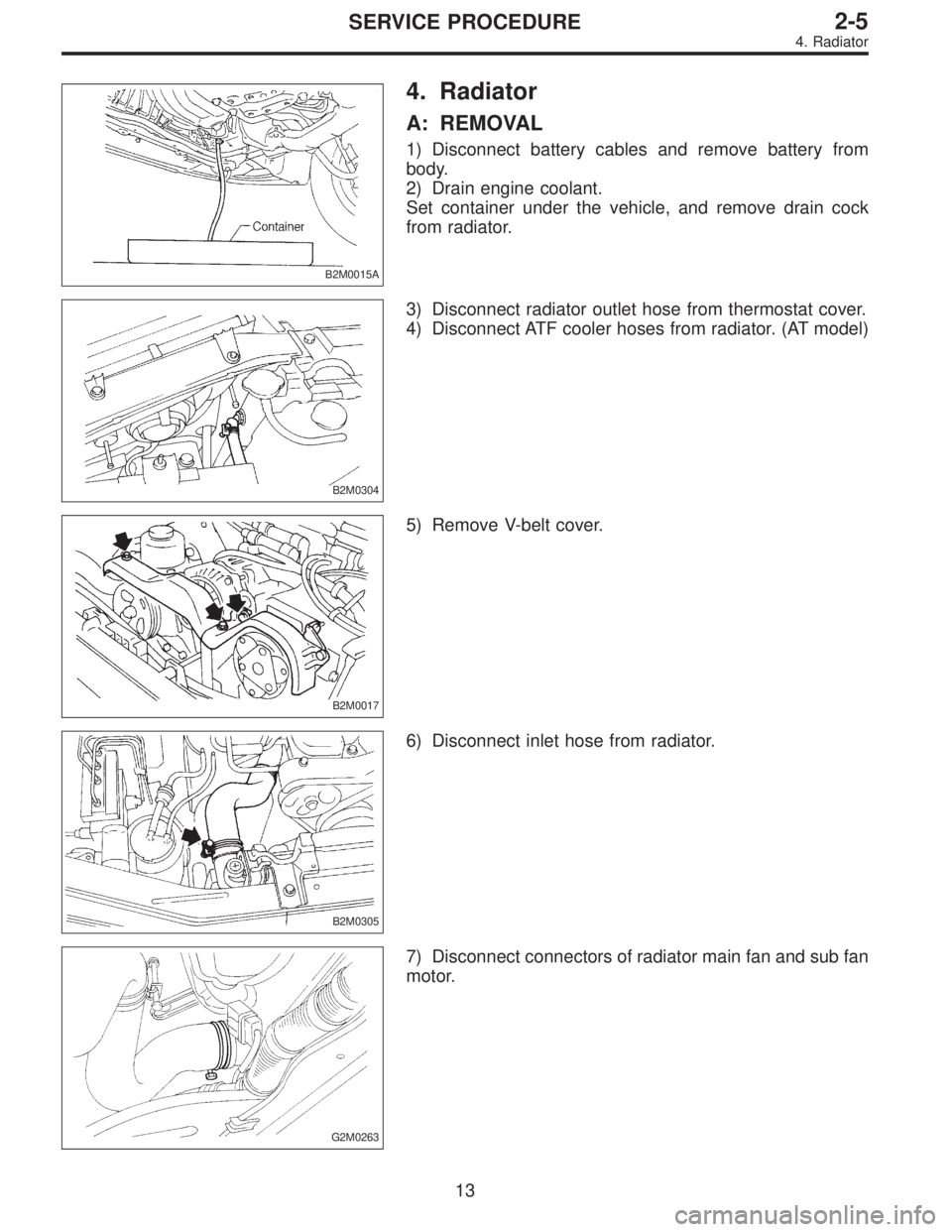

SUBARU LEGACY 1996  Service Repair Manual B2M0015A
4. Radiator
A: REMOVAL
1) Disconnect battery cables and remove battery from
body.
2) Drain engine coolant.
Set container under the vehicle, and remove drain cock
from radiator.
B2M0304
3) Dis
