SUBARU LEGACY 1996 Service Repair Manual B4M0915
8N7

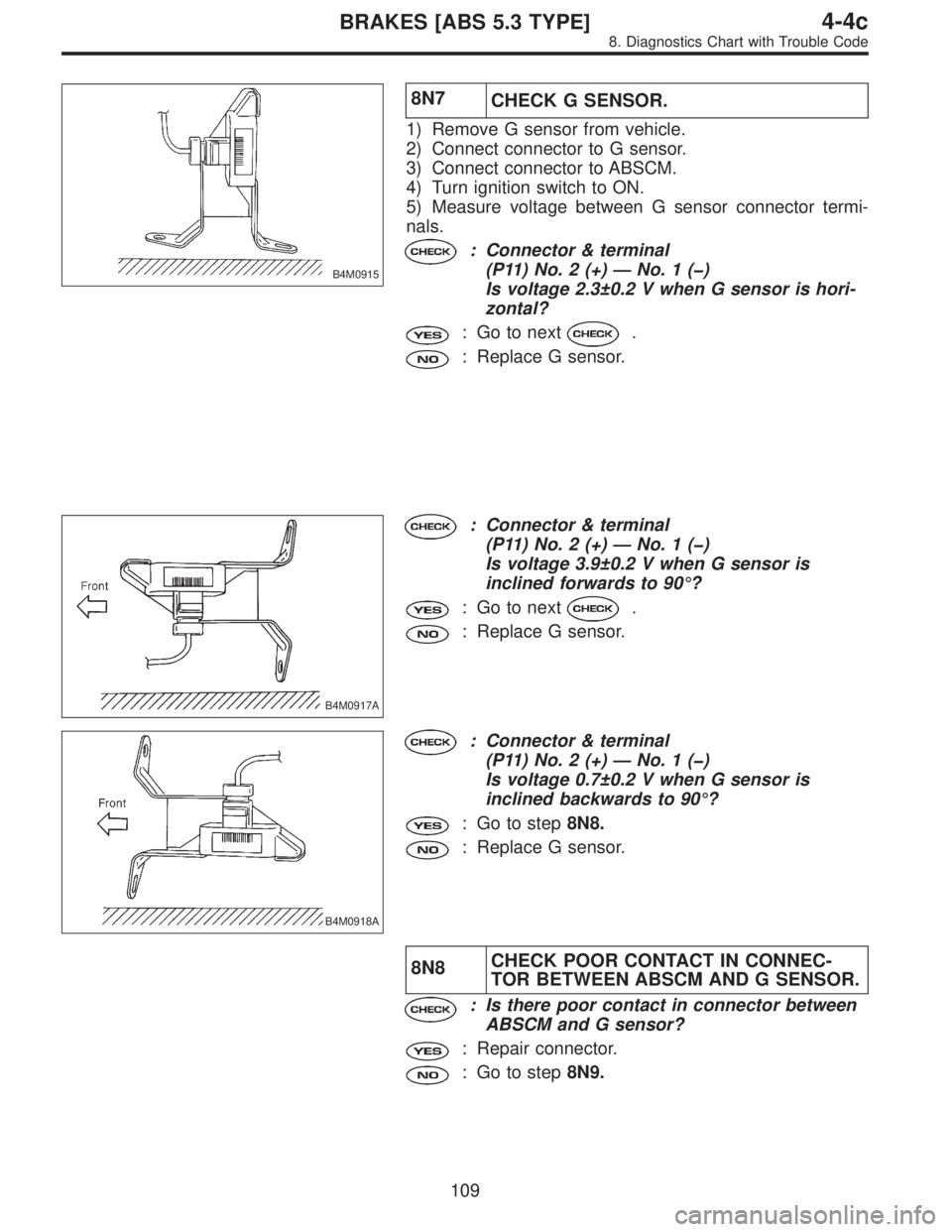

CHECK G SENSOR.
1) Remove G sensor from vehicle.
2) Connect connector to G sensor.
3) Connect connector to ABSCM.
4) Turn ignition switch to ON.
5) Measure voltage between G sensor connect

Page 2450 of 2890

SUBARU LEGACY 1996 Service Repair Manual 8N9

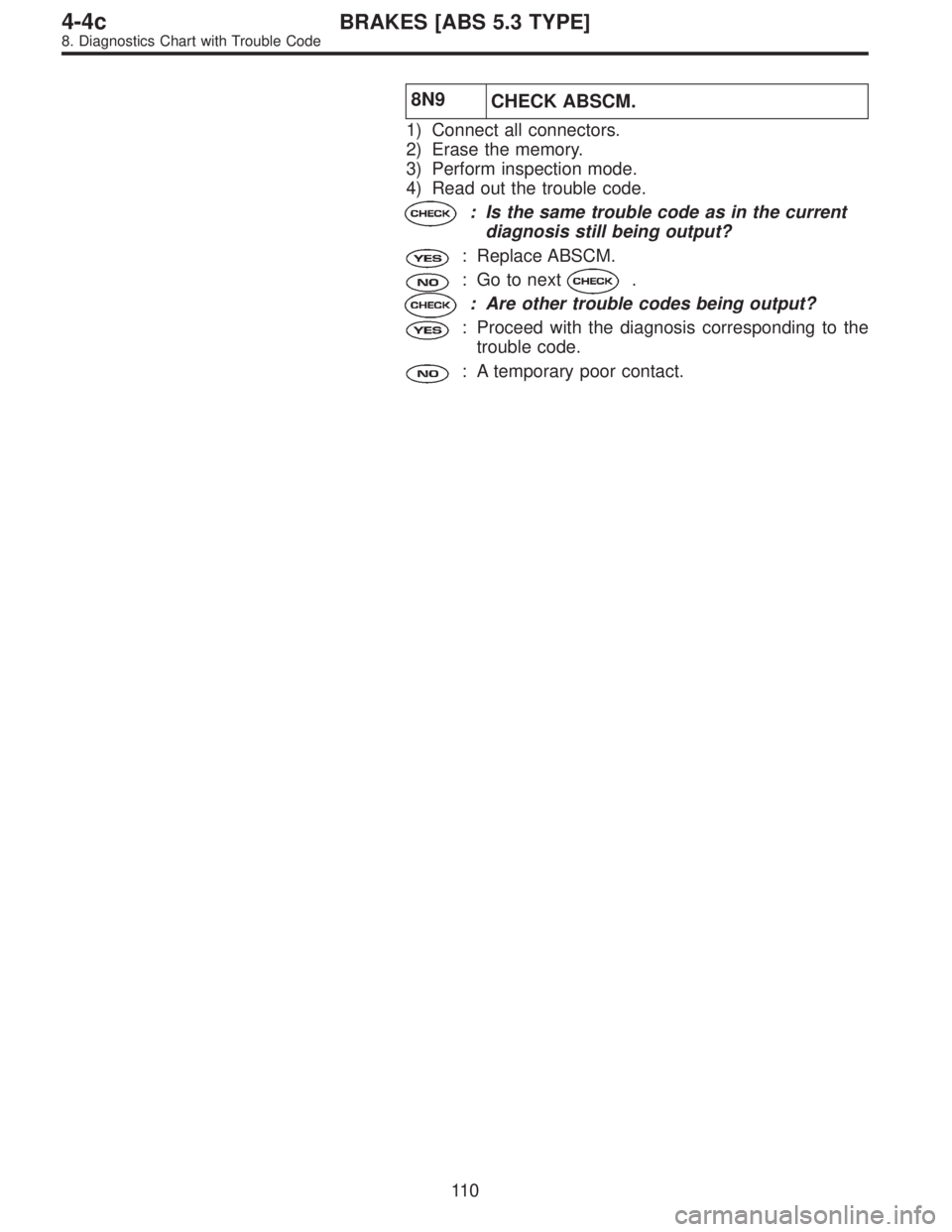

CHECK ABSCM.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
:

Page 2451 of 2890

SUBARU LEGACY 1996 Service Repair Manual G2M0096

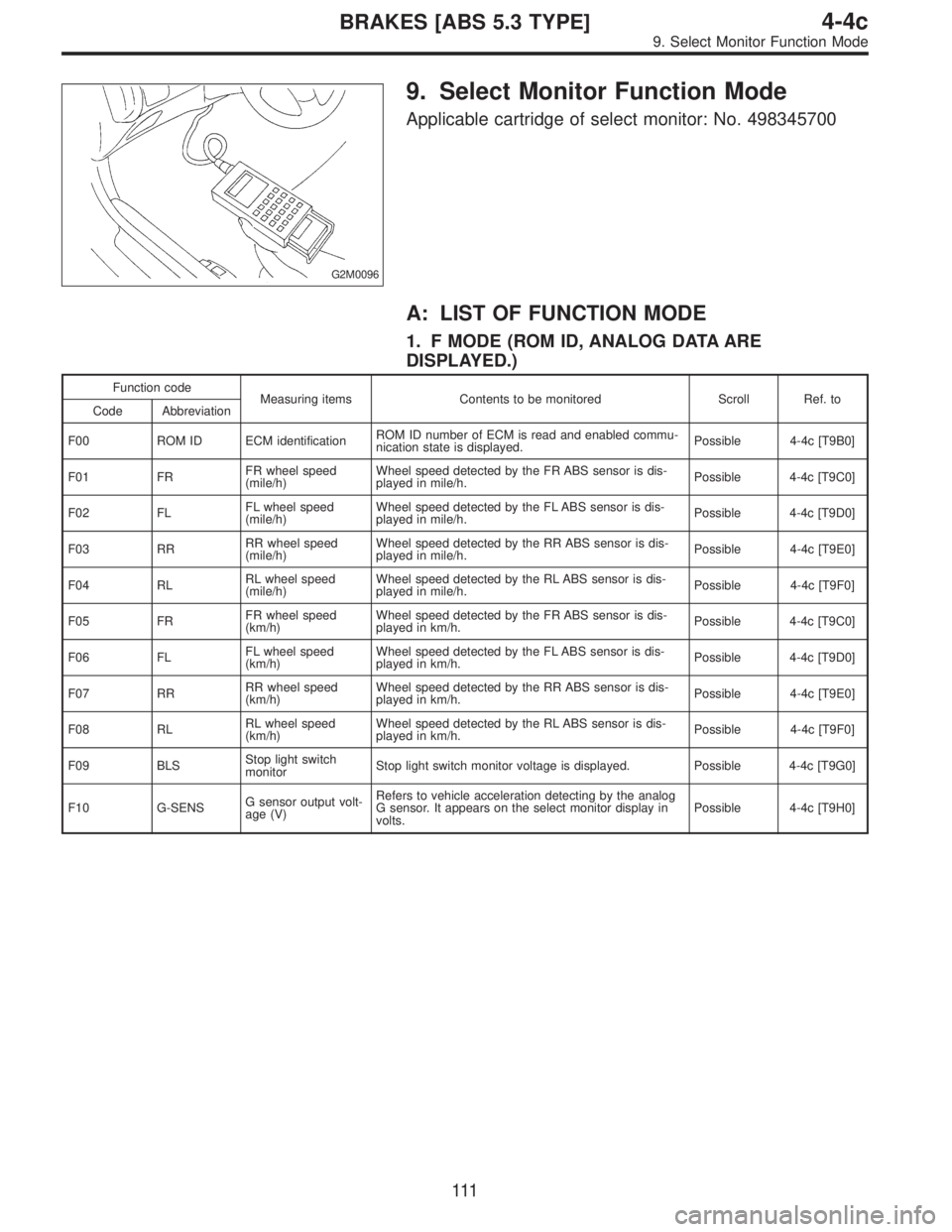

9. Select Monitor Function Mode
Applicable cartridge of select monitor: No. 498345700
A: LIST OF FUNCTION MODE
1. F MODE (ROM ID, ANALOG DATA ARE
DISPLAYED.)
Function code
Measuring items Cont

Page 2452 of 2890

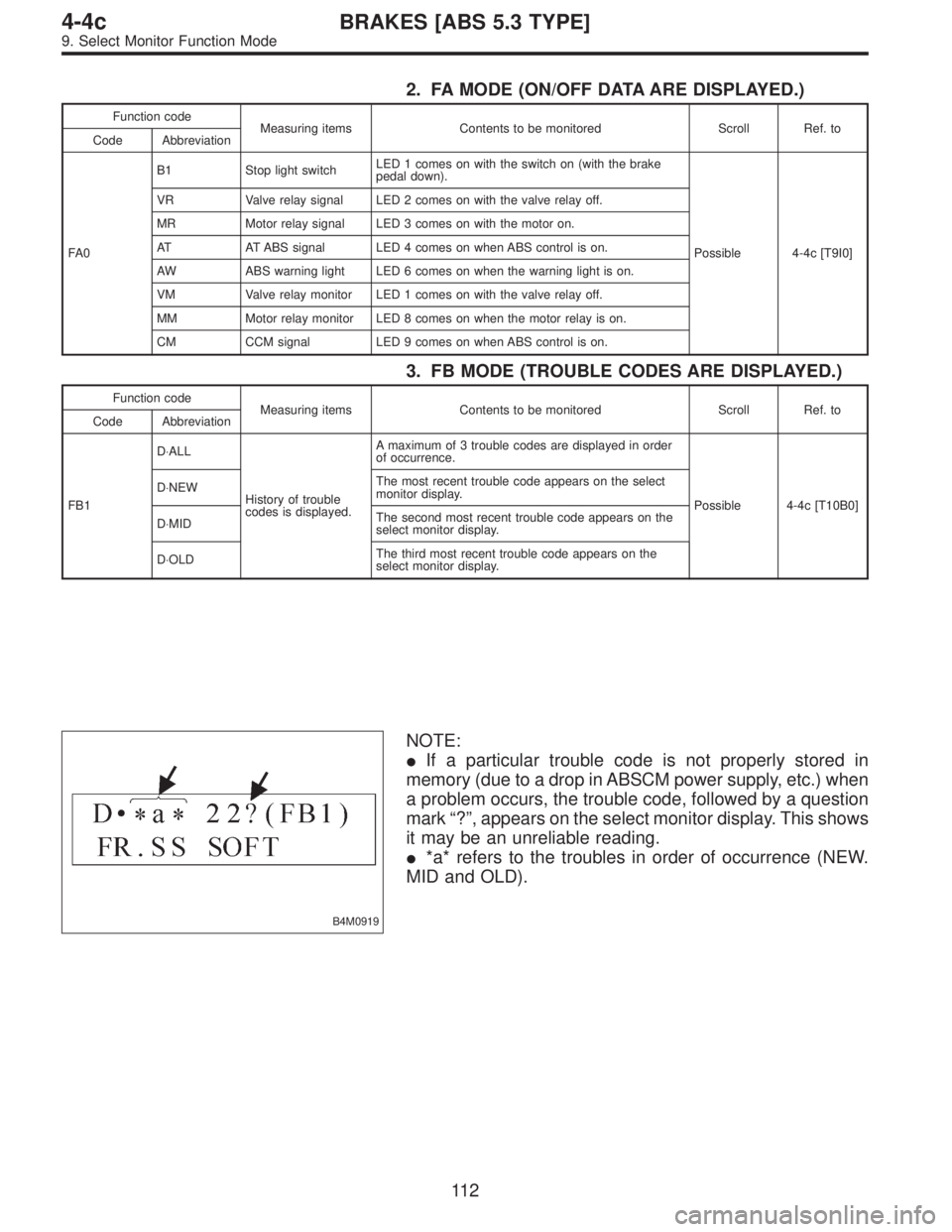

SUBARU LEGACY 1996 Service Repair Manual 2. FA MODE (ON/OFF DATA ARE DISPLAYED.)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FA 0B1 Stop light switchLED 1 comes on with the switch on (with the brak

Page 2453 of 2890

SUBARU LEGACY 1996 Service Repair Manual 4. FC MODE (TROUBLE CODES AND FREEZE
FRAME DATA ARE ERASED.)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FC0 D⋅CLRHistory of trouble
codes and freeze
fram

4. FC MODE (TROUBLE CODES AND FREEZE
FRAME DATA ARE ERASED.)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FC0 D⋅CLRHistory of trouble
codes and freeze
frame data is erased.Function of clearing trouble code and freeze frame
data stored in memory.Possible4-4c [T9J0]
5. FD MODE (ABS SEQUENCE CHECK MODE)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FD1 A⋅CHKABS sequence con-
trolPerform ABS sequence control by operating valve and
pump motor sequentially.Impossible4-4
[W19D1]
6. FE MODE (FREEZE FRAME DATA)
NOTE:
Data stored at the time of trouble occurrence is shown on
display.
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FE1 FR FR wheel speed (mile/h)Wheel speed detected by the FR ABS sensor is displayed in
mile/h.Possible 4-4c [T9K0]
FE2 FL FL wheel speed (mile/h)Wheel speed detected by the FL ABS sensor is displayed in
mile/h.Possible 4-4c [T9L0]
FE3 RR RR wheel speed (mile/h)Wheel speed detected by the RR ABS sensor is displayed in
mile/h.Possible 4-4c [T9M0]
FE4 RL RL wheel speed (mile/h)Wheel speed detected by the RL ABS sensor is displayed in
mile/h.Possible 4-4c [T9N0]
FE5 FR FR wheel speed (km/h)Wheel speed detected by the FR ABS sensor is displayed in
km/h.Possible 4-4c [T9K0]
FE6 FL FL wheel speed (km/h)Wheel speed detected by the FL ABS sensor is displayed in
km/h.Possible 4-4c [T9L0]
FE7 RR RR wheel speed (km/h)Wheel speed detected by the RR ABS sensor is displayed in
km/h.Possible 4-4c [T9M0]
FE8 RL RL wheel speed (km/h)Wheel speed detected by the RL ABS sensor is displayed in
km/h.Possible 4-4c [T9N0]
FE13 POWERABSCM power supply
voltage (V)Power (in volts) supplied to ABSCM appears on the select
monitor display.Possible 4-4c [T9O0]
FE14 G-SENSG sensor output voltage
(V)Refers to vehicle acceleration detected by the analog G sen-
sor. It appears on the select monitor display in volts.Possible 4-4c [T9P0]
FE15MM Motor relay monitor LED 1 comes on when motor relay is on.
Possible 4-4c [T9Q0] B1 Stop light switchLED 2 comes on with the stop light switch on (with the brake
pedal depressed).
AT AT ABS signal LED 3 comes on when ABS control is on.
CM CCM signal LED 4 comes on when ABS control is on.
A0 ABS control LED 5 comes on when ABS control is on.
11 3
4-4cBRAKES [ABS 5.3 TYPE]
9. Select Monitor Function Mode

Page 2454 of 2890

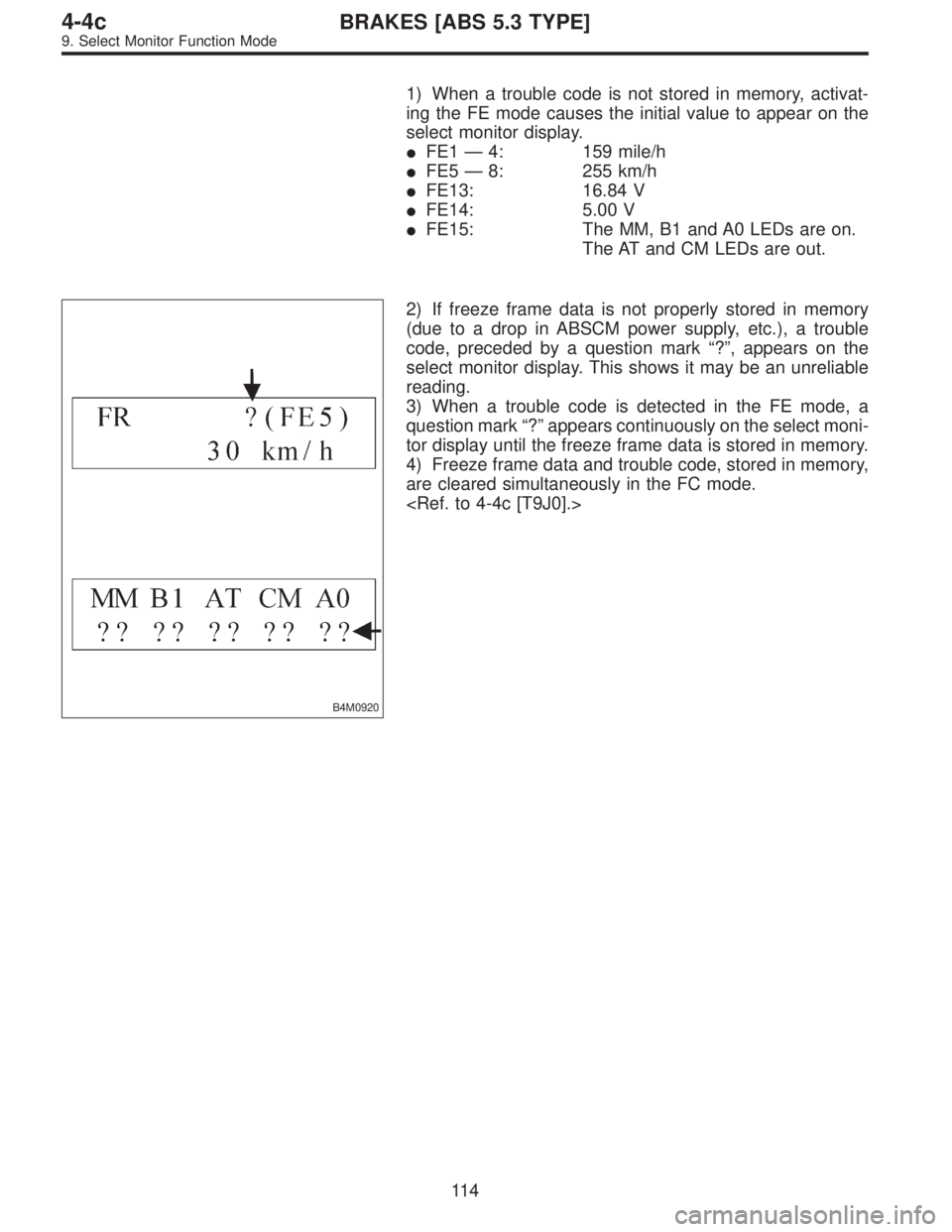

SUBARU LEGACY 1996 Service Repair Manual 1) When a trouble code is not stored in memory, activat-
ing the FE mode causes the initial value to appear on the
select monitor display.
FE1—4: 159 mile/h
FE5—8: 255 km/h
FE13: 16.84 V
FE14:

Page 2455 of 2890

SUBARU LEGACY 1996 Service Repair Manual B4M0921

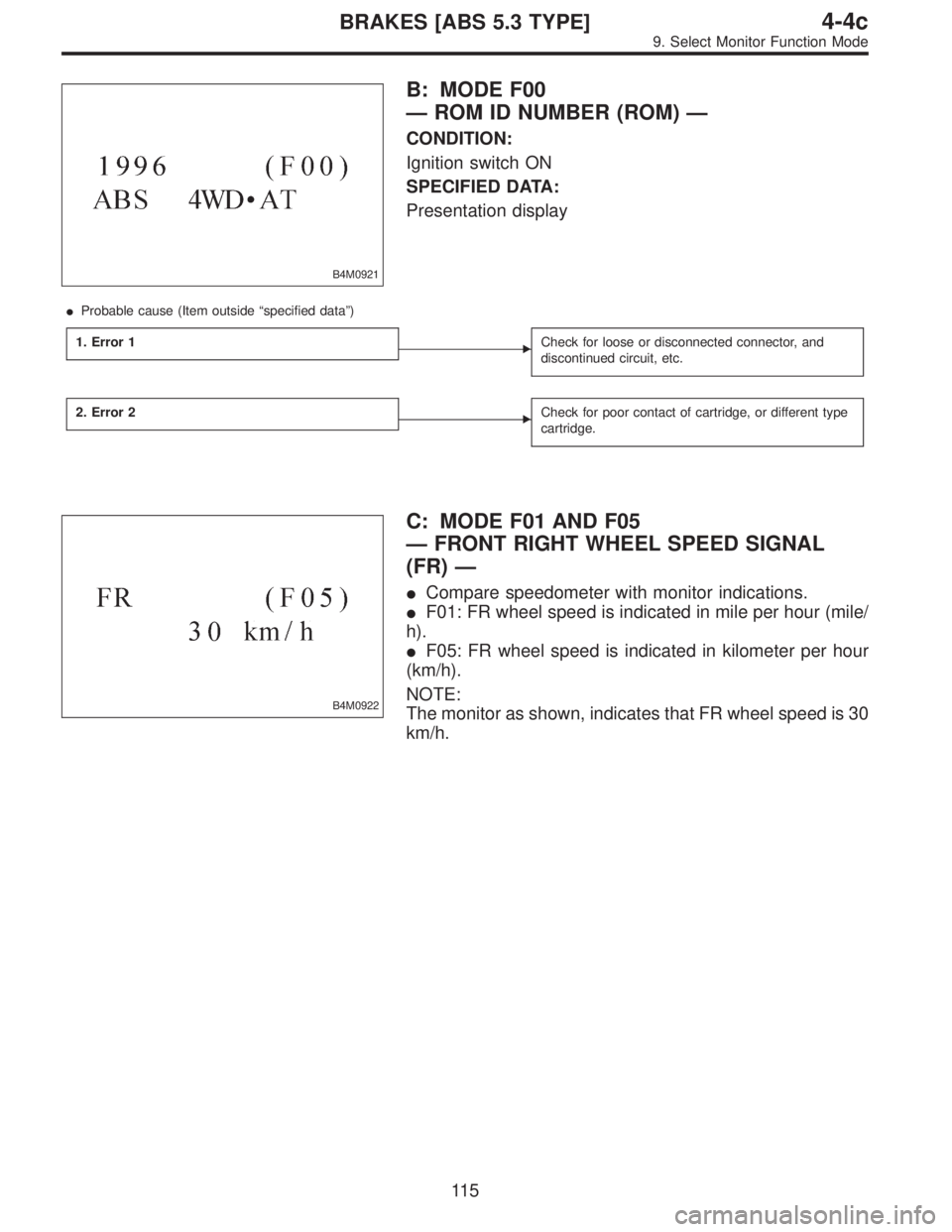

B: MODE F00
—ROM ID NUMBER (ROM)—
CONDITION:
Ignition switch ON
SPECIFIED DATA:
Presentation display
Probable cause (Item outside“specified data”)
1. Error 1
Check for loose or disco

Page 2456 of 2890

SUBARU LEGACY 1996 Service Repair Manual B4M0923

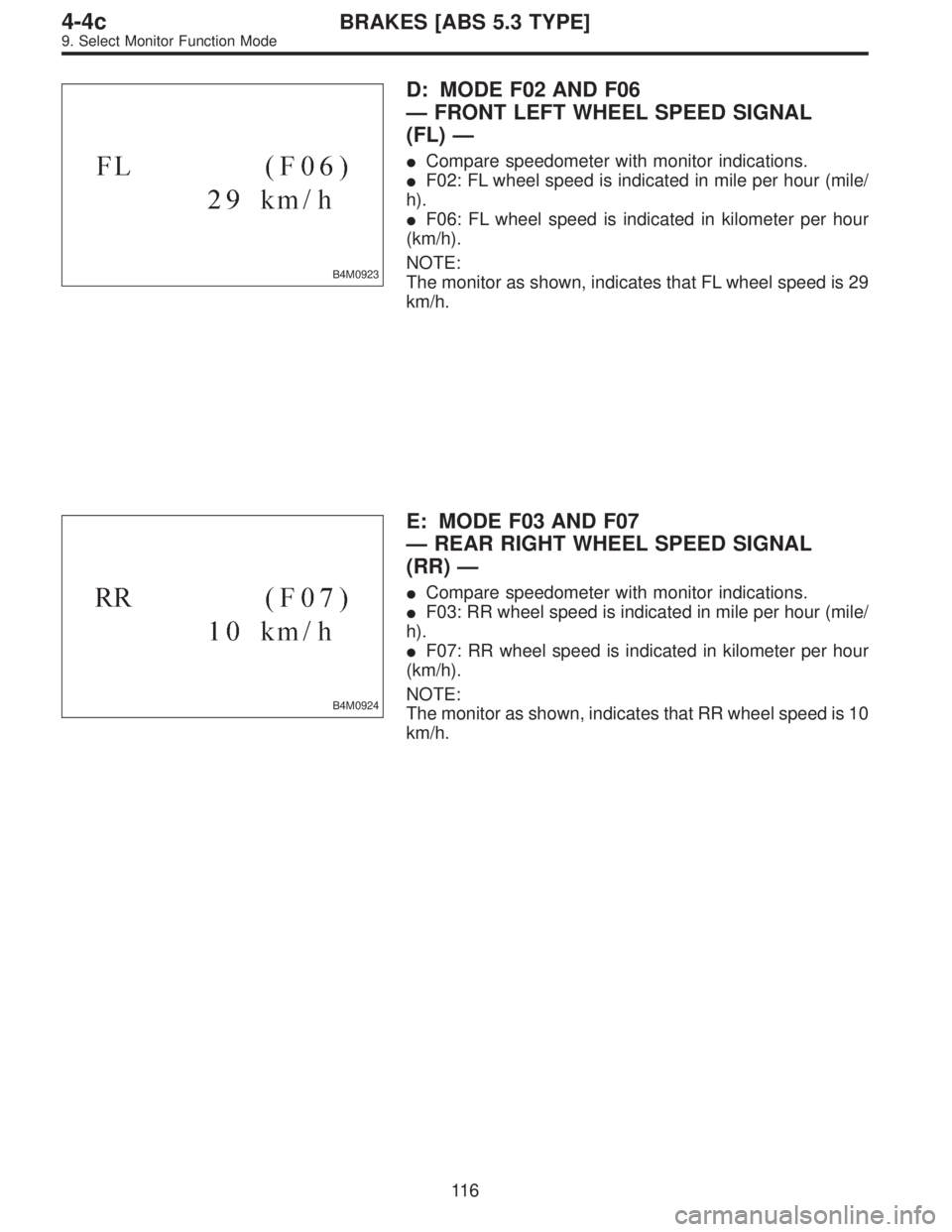

D: MODE F02 AND F06
—FRONT LEFT WHEEL SPEED SIGNAL
(FL)—
Compare speedometer with monitor indications.
F02: FL wheel speed is indicated in mile per hour (mile/
h).
F06: FL wheel speed i
