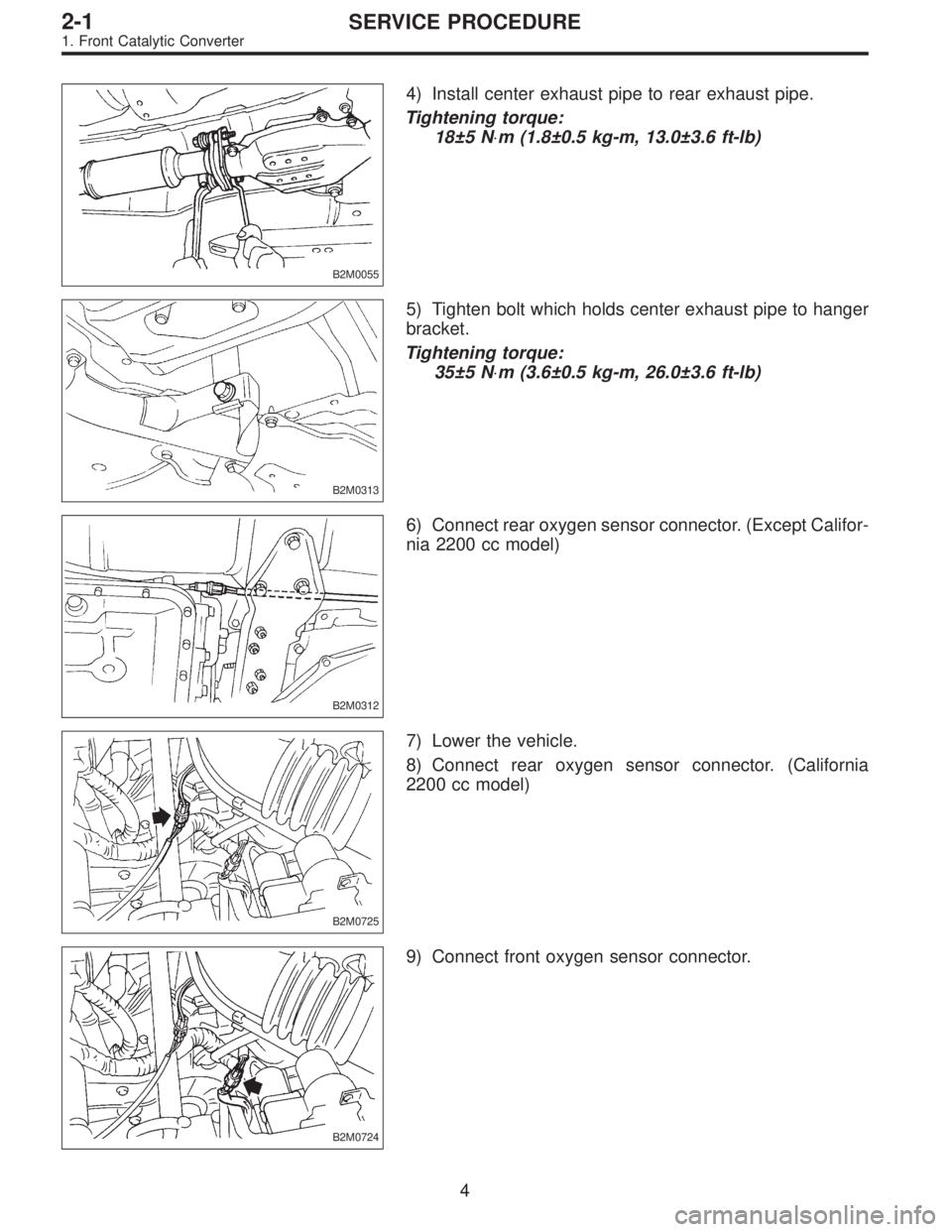

4) Install center exhaust pipe to rear exhaust pipe.
Tightening torque:
18±5 N⋅m (1.8±0.5 kg-m, 13.0±3.6 ft-lb)
B2M0313
5) Tighten bolt which holds center exhaust pipe to hanger
bracket.
Tightening torque:
35±5 N⋅m (3.6±0.5 kg-m, 26.0±3.6 ft-lb)
B2M0312
6) Connect rear oxygen sensor connector. (Except Califor-
nia 2200 cc model)
B2M0725
7) Lower the vehicle.
8) Connect rear oxygen sensor connector. (California
2200 cc model)
B2M0724
9) Connect front oxygen sensor connector.
4
2-1SERVICE PROCEDURE
1. Front Catalytic Converter
Page 282 of 2890
B2M0312
2. Rear Catalytic Converter

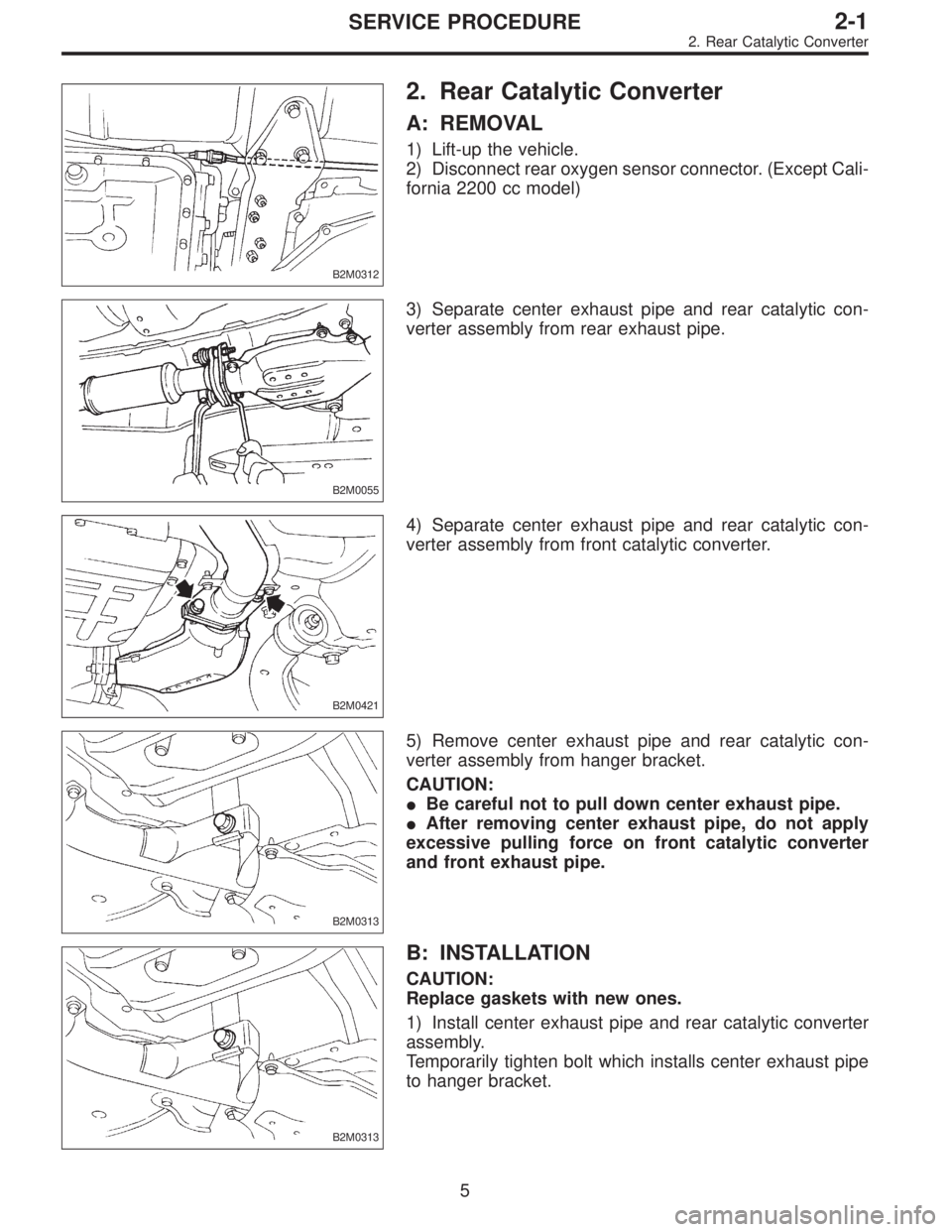

A: REMOVAL
1) Lift-up the vehicle.
2) Disconnect rear oxygen sensor connector. (Except Cali-
fornia 2200 cc model)
B2M0055
3) Separate center exhaust pipe and rear catalytic con-
verter assembly from rear exhaust pipe.
B2M0421
4) Separate center exhaust pipe and rear catalytic con-
verter assembly from front catalytic converter.
B2M0313
5) Remove center exhaust pipe and rear catalytic con-
verter assembly from hanger bracket.
CAUTION:
Be careful not to pull down center exhaust pipe.
After removing center exhaust pipe, do not apply
excessive pulling force on front catalytic converter
and front exhaust pipe.
B2M0313
B: INSTALLATION
CAUTION:
Replace gaskets with new ones.
1) Install center exhaust pipe and rear catalytic converter
assembly.
Temporarily tighten bolt which installs center exhaust pipe
to hanger bracket.
5
2-1SERVICE PROCEDURE
2. Rear Catalytic Converter
Page 283 of 2890

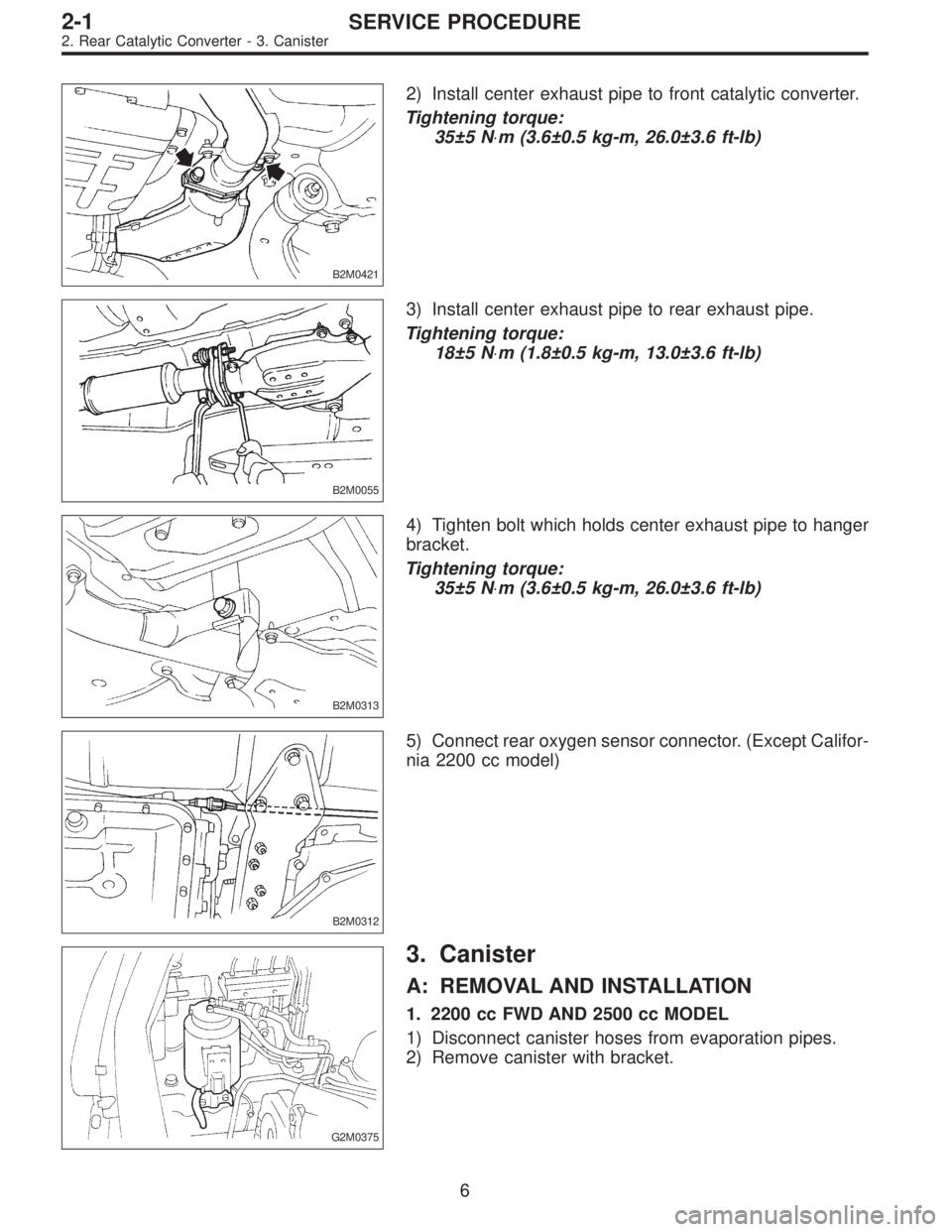

B2M0421
2) Install center exhaust pipe to front catalytic converter.
Tightening torque:
35±5 N⋅m (3.6±0.5 kg-m, 26.0±3.6 ft-lb)
B2M0055
3) Install center exhaust pipe to rear exhaust pipe.
Tightening torque:
18±5 N⋅m (1.8±0.5 kg-m, 13.0±3.6 ft-lb)
B2M0313
4) Tighten bolt which holds center exhaust pipe to hanger
bracket.
Tightening torque:
35±5 N⋅m (3.6±0.5 kg-m, 26.0±3.6 ft-lb)
B2M0312
5) Connect rear oxygen sensor connector. (Except Califor-
nia 2200 cc model)
G2M0375
3. Canister
A: REMOVAL AND INSTALLATION
1. 2200 cc FWD AND 2500 cc MODEL
1) Disconnect canister hoses from evaporation pipes.
2) Remove canister with bracket.
6
2-1SERVICE PROCEDURE
2. Rear Catalytic Converter - 3. Canister
Page 284 of 2890
B2M0421
2) Install center exhaust pipe to front catalytic converter.
Tightening torque:
35±5 N⋅m (3.6±0.5 kg-m, 26.0±3.6 ft-lb)
B2M0055
3) Install center exhaust pipe to rear exhaust pipe.
Tightening torque:
18±5 N⋅m (1.8±0.5 kg-m, 13.0±3.6 ft-lb)
B2M0313
4) Tighten bolt which holds center exhaust pipe to hanger
bracket.
Tightening torque:
35±5 N⋅m (3.6±0.5 kg-m, 26.0±3.6 ft-lb)
B2M0312
5) Connect rear oxygen sensor connector. (Except Califor-
nia 2200 cc model)
G2M0375
3. Canister
A: REMOVAL AND INSTALLATION
1. 2200 cc FWD AND 2500 cc MODEL
1) Disconnect canister hoses from evaporation pipes.
2) Remove canister with bracket.
6
2-1SERVICE PROCEDURE
2. Rear Catalytic Converter - 3. Canister
Page 285 of 2890

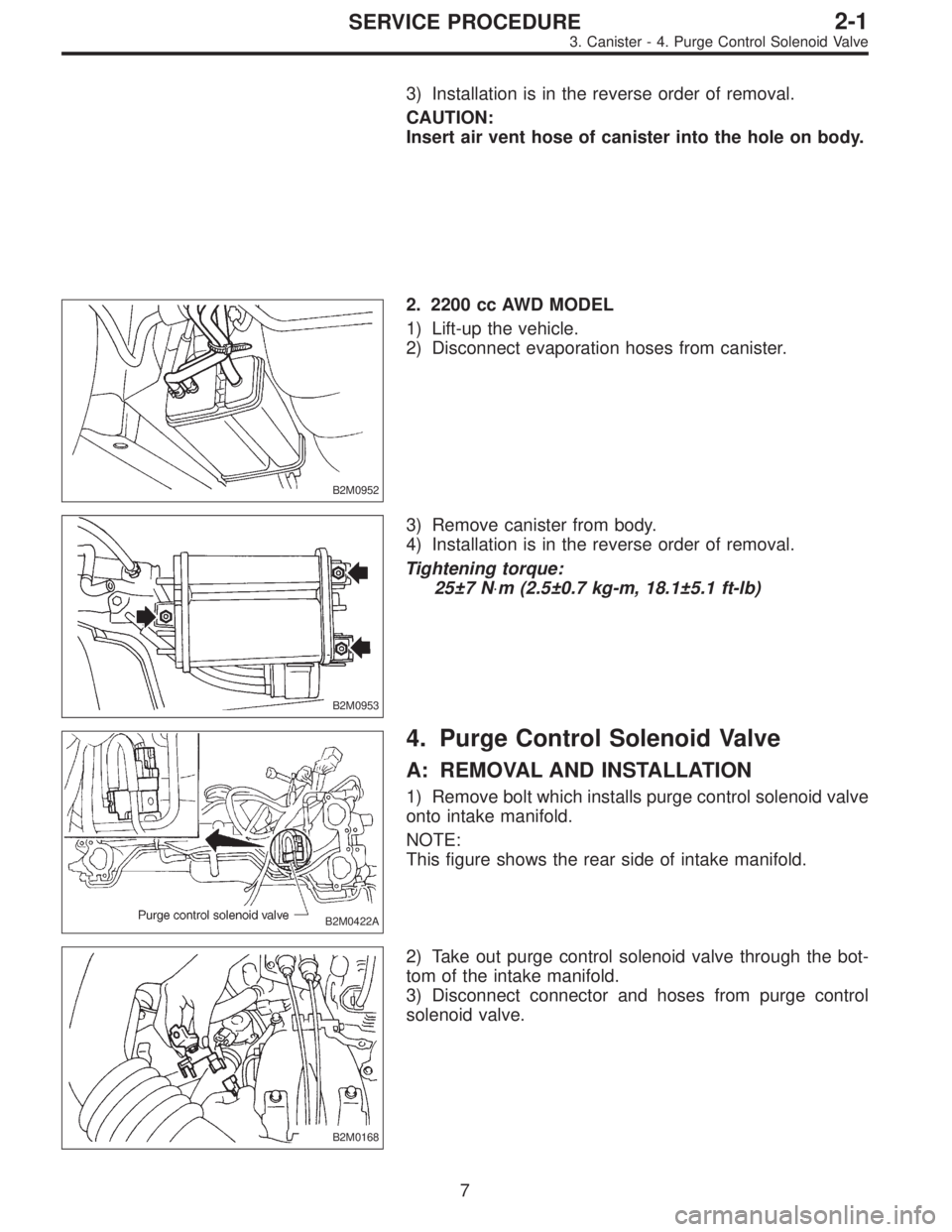

3) Installation is in the reverse order of removal.
CAUTION:
Insert air vent hose of canister into the hole on body.
B2M0952
2. 2200 cc AWD MODEL
1) Lift-up the vehicle.
2) Disconnect evaporation hoses from canister.
B2M0953
3) Remove canister from body.
4) Installation is in the reverse order of removal.
Tightening torque:
25±7 N⋅m (2.5±0.7 kg-m, 18.1±5.1 ft-lb)
B2M0422A
4. Purge Control Solenoid Valve
A: REMOVAL AND INSTALLATION
1) Remove bolt which installs purge control solenoid valve
onto intake manifold.
NOTE:
This figure shows the rear side of intake manifold.
B2M0168
2) Take out purge control solenoid valve through the bot-
tom of the intake manifold.
3) Disconnect connector and hoses from purge control
solenoid valve.
7
2-1SERVICE PROCEDURE
3. Canister - 4. Purge Control Solenoid Valve
Page 286 of 2890
3) Installation is in the reverse order of removal.
CAUTION:
Insert air vent hose of canister into the hole on body.
B2M0952
2. 2200 cc AWD MODEL
1) Lift-up the vehicle.
2) Disconnect evaporation hoses from canister.
B2M0953
3) Remove canister from body.
4) Installation is in the reverse order of removal.
Tightening torque:
25±7 N⋅m (2.5±0.7 kg-m, 18.1±5.1 ft-lb)
B2M0422A
4. Purge Control Solenoid Valve
A: REMOVAL AND INSTALLATION
1) Remove bolt which installs purge control solenoid valve
onto intake manifold.
NOTE:
This figure shows the rear side of intake manifold.
B2M0168
2) Take out purge control solenoid valve through the bot-
tom of the intake manifold.
3) Disconnect connector and hoses from purge control
solenoid valve.
7
2-1SERVICE PROCEDURE
3. Canister - 4. Purge Control Solenoid Valve
Page 287 of 2890

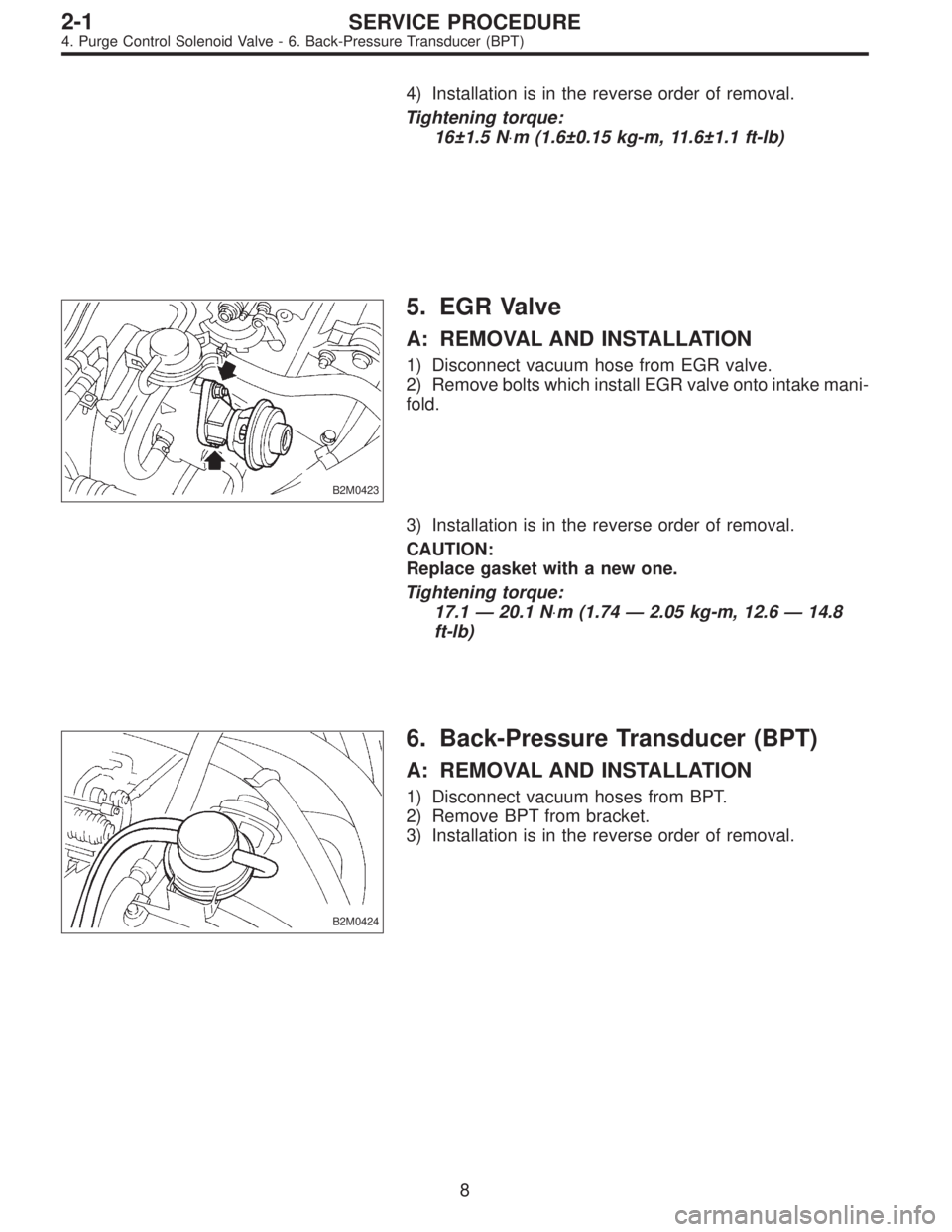

4) Installation is in the reverse order of removal.
Tightening torque:
16±1.5 N⋅m (1.6±0.15 kg-m, 11.6±1.1 ft-lb)
B2M0423
5. EGR Valve
A: REMOVAL AND INSTALLATION
1) Disconnect vacuum hose from EGR valve.
2) Remove bolts which install EGR valve onto intake mani-
fold.
3) Installation is in the reverse order of removal.
CAUTION:
Replace gasket with a new one.
Tightening torque:
17.1 — 20.1 N⋅m (1.74 — 2.05 kg-m, 12.6 — 14.8
ft-lb)
B2M0424
6. Back-Pressure Transducer (BPT)
A: REMOVAL AND INSTALLATION
1) Disconnect vacuum hoses from BPT.
2) Remove BPT from bracket.
3) Installation is in the reverse order of removal.
8
2-1SERVICE PROCEDURE
4. Purge Control Solenoid Valve - 6. Back-Pressure Transducer (BPT)
Page 288 of 2890
4) Installation is in the reverse order of removal.
Tightening torque:
16±1.5 N⋅m (1.6±0.15 kg-m, 11.6±1.1 ft-lb)
B2M0423
5. EGR Valve
A: REMOVAL AND INSTALLATION
1) Disconnect vacuum hose from EGR valve.
2) Remove bolts which install EGR valve onto intake mani-
fold.
3) Installation is in the reverse order of removal.
CAUTION:
Replace gasket with a new one.
Tightening torque:
17.1 — 20.1 N⋅m (1.74 — 2.05 kg-m, 12.6 — 14.8
ft-lb)
B2M0424
6. Back-Pressure Transducer (BPT)
A: REMOVAL AND INSTALLATION
1) Disconnect vacuum hoses from BPT.
2) Remove BPT from bracket.
3) Installation is in the reverse order of removal.
8
2-1SERVICE PROCEDURE
4. Purge Control Solenoid Valve - 6. Back-Pressure Transducer (BPT)
