Page 929 of 2890
G3M0475

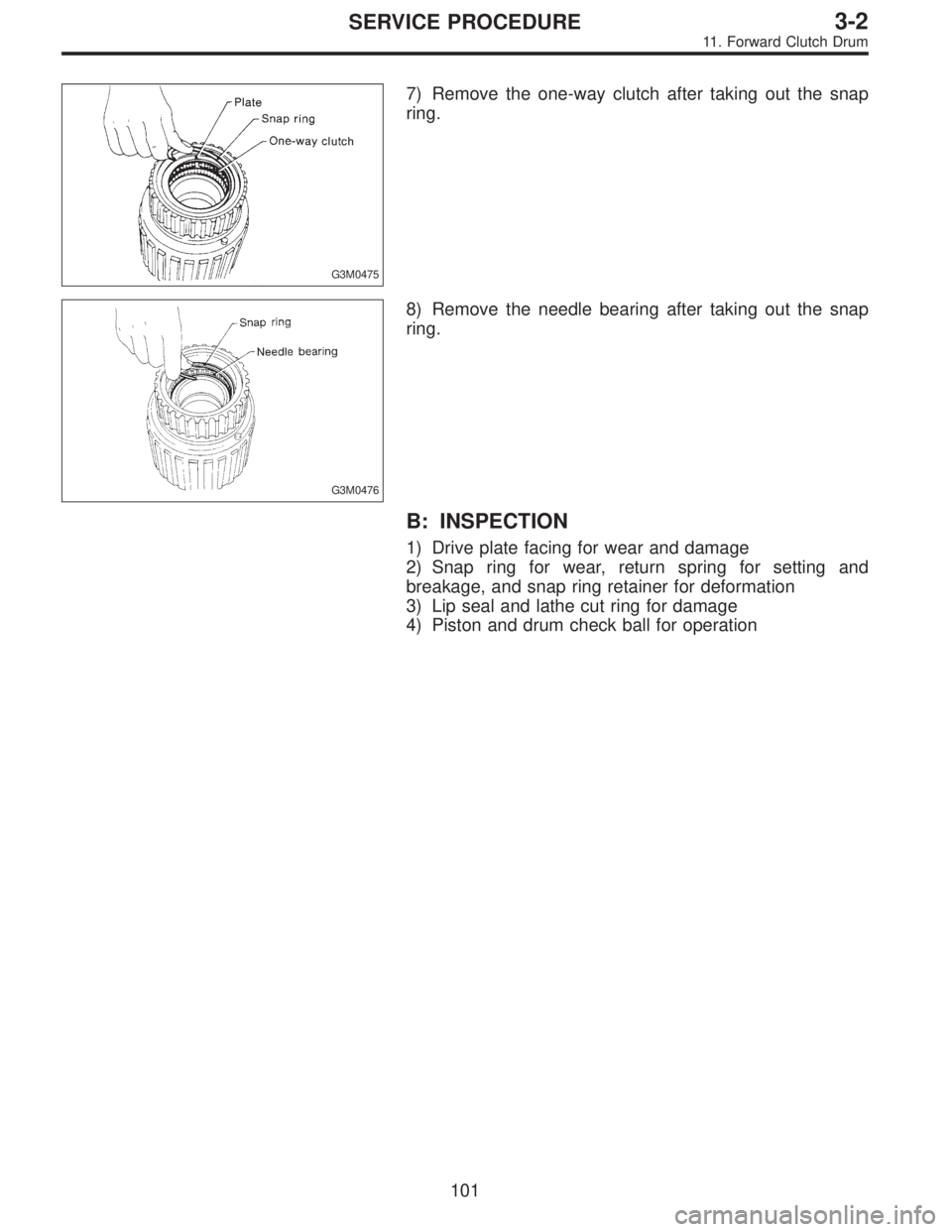

7) Remove the one-way clutch after taking out the snap
ring.
G3M0476
8) Remove the needle bearing after taking out the snap
ring.
B: INSPECTION
1) Drive plate facing for wear and damage
2) Snap ring for wear, return spring for setting and
breakage, and snap ring retainer for deformation
3) Lip seal and lathe cut ring for damage
4) Piston and drum check ball for operation
101
3-2SERVICE PROCEDURE
11. Forward Clutch Drum
Page 930 of 2890
C: ASSEMBLY
B3H0014
1Snap ring
2Retainer
3Lathe cut seal ring
4Dish plate
5Snap ring
6Snap ring
7Retaining plate
8Dish plate
9Snap ring
10Retaining plate
11Forward clutch piston
12Lathe cut seal ring
13Drift ball
14Forward clutch drum
15Overrunning clutch piston
16Snap ring
17Plate
18O.W.C. (1-2)
19Needle bearing
20Lathe cut seal ring
21Snap ring
22Outer race
23Driven plate
24Driven plate (Thicker)
25Driven plate (Thinner)
26Drive plate
27Drive plate
28Sleeve
29Bushing
G3M0478
1) Fit the forward piston and overrunning piston to the for-
ward clutch drum.
NOTE:
Align the forward piston cut-out portion with the spline of
the drum.
102
3-2SERVICE PROCEDURE
11. Forward Clutch Drum
Page 931 of 2890
G3M0473

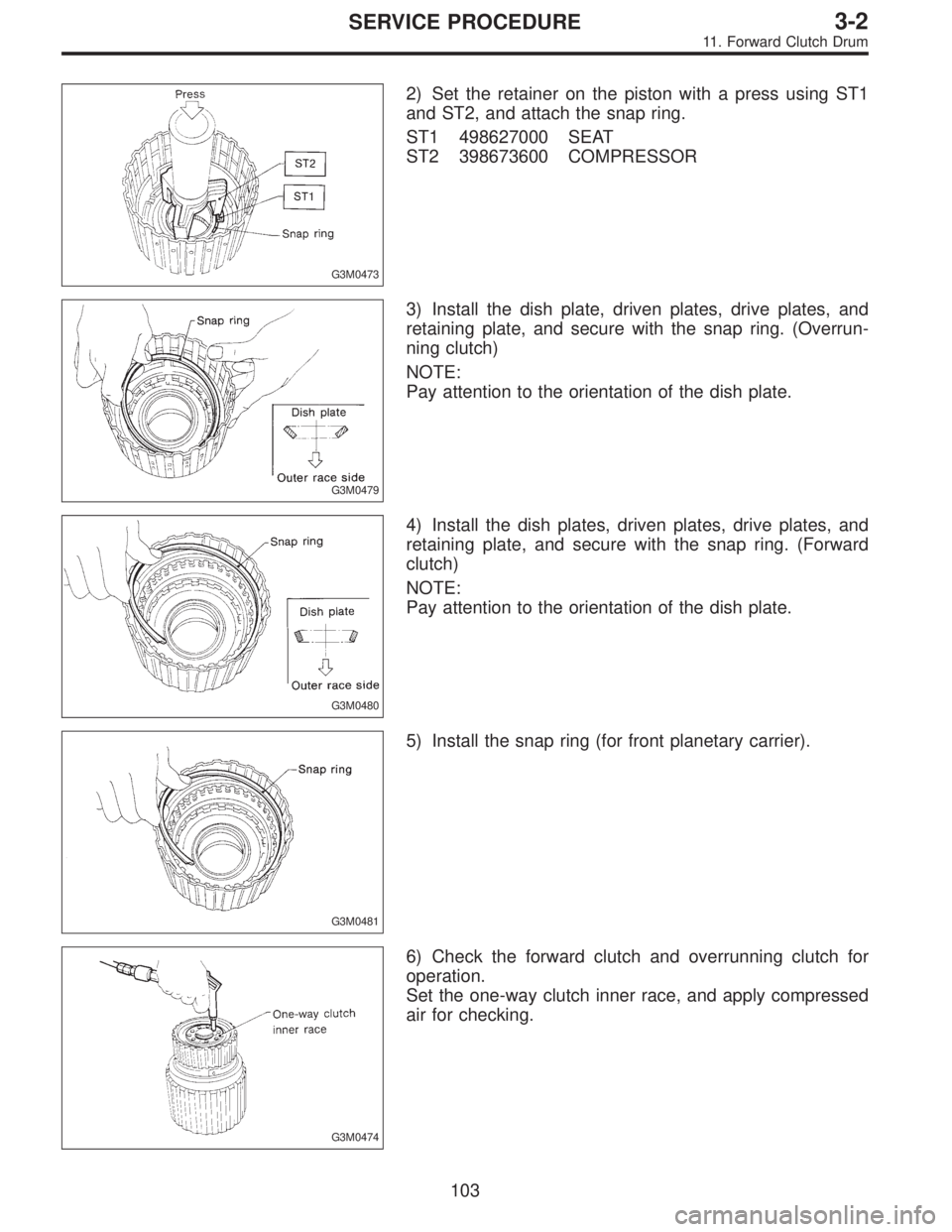

2) Set the retainer on the piston with a press using ST1
and ST2, and attach the snap ring.
ST1 498627000 SEAT
ST2 398673600 COMPRESSOR
G3M0479
3) Install the dish plate, driven plates, drive plates, and
retaining plate, and secure with the snap ring. (Overrun-
ning clutch)
NOTE:
Pay attention to the orientation of the dish plate.
G3M0480
4) Install the dish plates, driven plates, drive plates, and
retaining plate, and secure with the snap ring. (Forward
clutch)
NOTE:
Pay attention to the orientation of the dish plate.
G3M0481
5) Install the snap ring (for front planetary carrier).
G3M0474
6) Check the forward clutch and overrunning clutch for
operation.
Set the one-way clutch inner race, and apply compressed
air for checking.
103
3-2SERVICE PROCEDURE
11. Forward Clutch Drum
Page 932 of 2890

G3M0482

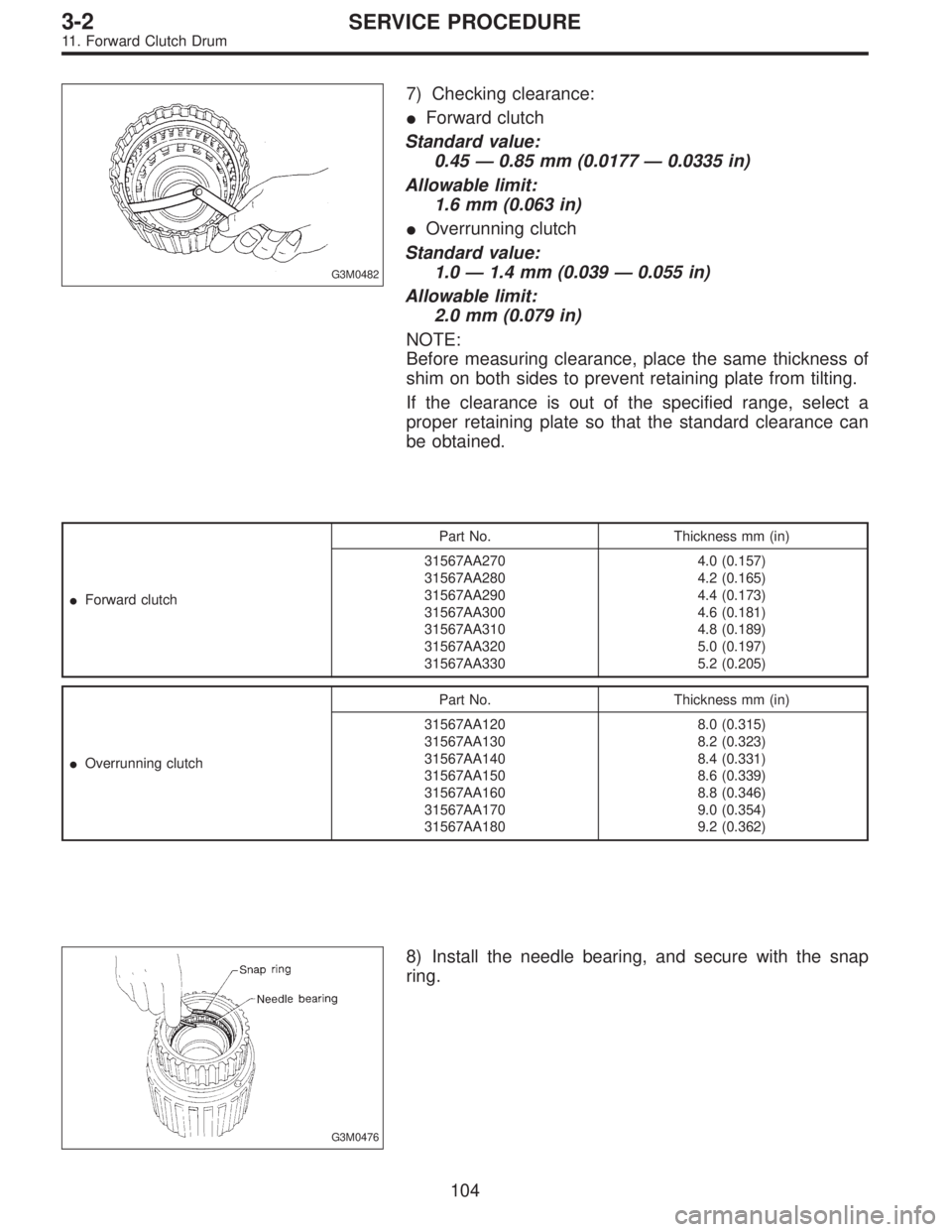

7) Checking clearance:
Forward clutch
Standard value:
0.45—0.85 mm (0.0177—0.0335 in)
Allowable limit:
1.6 mm (0.063 in)
Overrunning clutch
Standard value:
1.0—1.4 mm (0.039—0.055 in)
Allowable limit:
2.0 mm (0.079 in)
NOTE:
Before measuring clearance, place the same thickness of
shim on both sides to prevent retaining plate from tilting.
If the clearance is out of the specified range, select a
proper retaining plate so that the standard clearance can
be obtained.
Forward clutchPart No. Thickness mm (in)
31567AA270
31567AA280
31567AA290
31567AA300
31567AA310
31567AA320
31567AA3304.0 (0.157)
4.2 (0.165)
4.4 (0.173)
4.6 (0.181)
4.8 (0.189)
5.0 (0.197)
5.2 (0.205)
Overrunning clutchPart No. Thickness mm (in)
31567AA120
31567AA130
31567AA140
31567AA150
31567AA160
31567AA170
31567AA1808.0 (0.315)
8.2 (0.323)
8.4 (0.331)
8.6 (0.339)
8.8 (0.346)
9.0 (0.354)
9.2 (0.362)
G3M0476
8) Install the needle bearing, and secure with the snap
ring.
104
3-2SERVICE PROCEDURE
11. Forward Clutch Drum
Page 933 of 2890
G3M0484

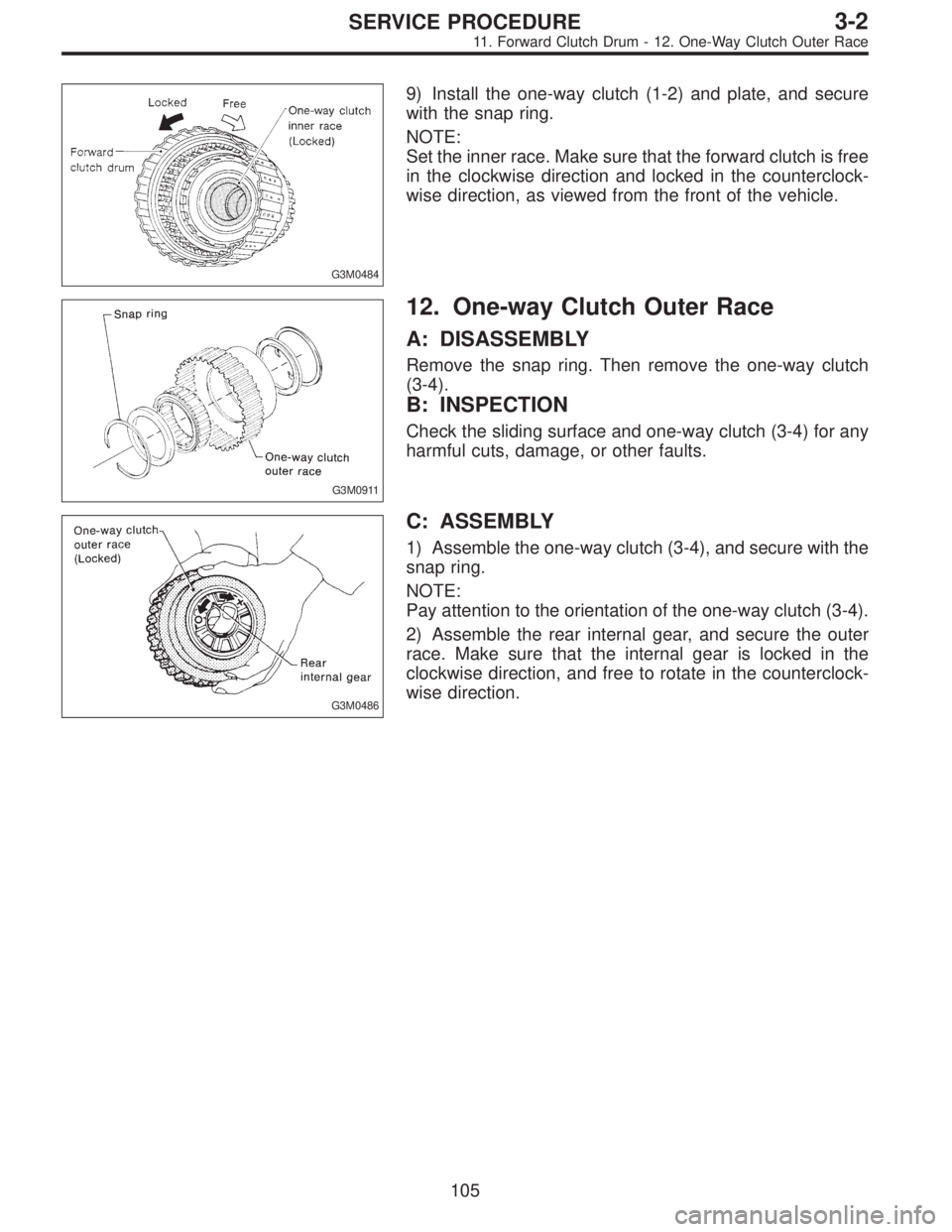

9) Install the one-way clutch (1-2) and plate, and secure
with the snap ring.
NOTE:
Set the inner race. Make sure that the forward clutch is free
in the clockwise direction and locked in the counterclock-
wise direction, as viewed from the front of the vehicle.
G3M0911
12. One-way Clutch Outer Race
A: DISASSEMBLY
Remove the snap ring. Then remove the one-way clutch
(3-4).
B: INSPECTION
Check the sliding surface and one-way clutch (3-4) for any
harmful cuts, damage, or other faults.
G3M0486
C: ASSEMBLY
1) Assemble the one-way clutch (3-4), and secure with the
snap ring.
NOTE:
Pay attention to the orientation of the one-way clutch (3-4).
2) Assemble the rear internal gear, and secure the outer
race. Make sure that the internal gear is locked in the
clockwise direction, and free to rotate in the counterclock-
wise direction.
105
3-2SERVICE PROCEDURE
11. Forward Clutch Drum - 12. One-Way Clutch Outer Race
Page 934 of 2890
G3M0484
9) Install the one-way clutch (1-2) and plate, and secure
with the snap ring.
NOTE:
Set the inner race. Make sure that the forward clutch is free
in the clockwise direction and locked in the counterclock-
wise direction, as viewed from the front of the vehicle.
G3M0911
12. One-way Clutch Outer Race
A: DISASSEMBLY
Remove the snap ring. Then remove the one-way clutch
(3-4).
B: INSPECTION
Check the sliding surface and one-way clutch (3-4) for any
harmful cuts, damage, or other faults.
G3M0486
C: ASSEMBLY
1) Assemble the one-way clutch (3-4), and secure with the
snap ring.
NOTE:
Pay attention to the orientation of the one-way clutch (3-4).
2) Assemble the rear internal gear, and secure the outer
race. Make sure that the internal gear is locked in the
clockwise direction, and free to rotate in the counterclock-
wise direction.
105
3-2SERVICE PROCEDURE
11. Forward Clutch Drum - 12. One-Way Clutch Outer Race
Page 935 of 2890

B3M0407A

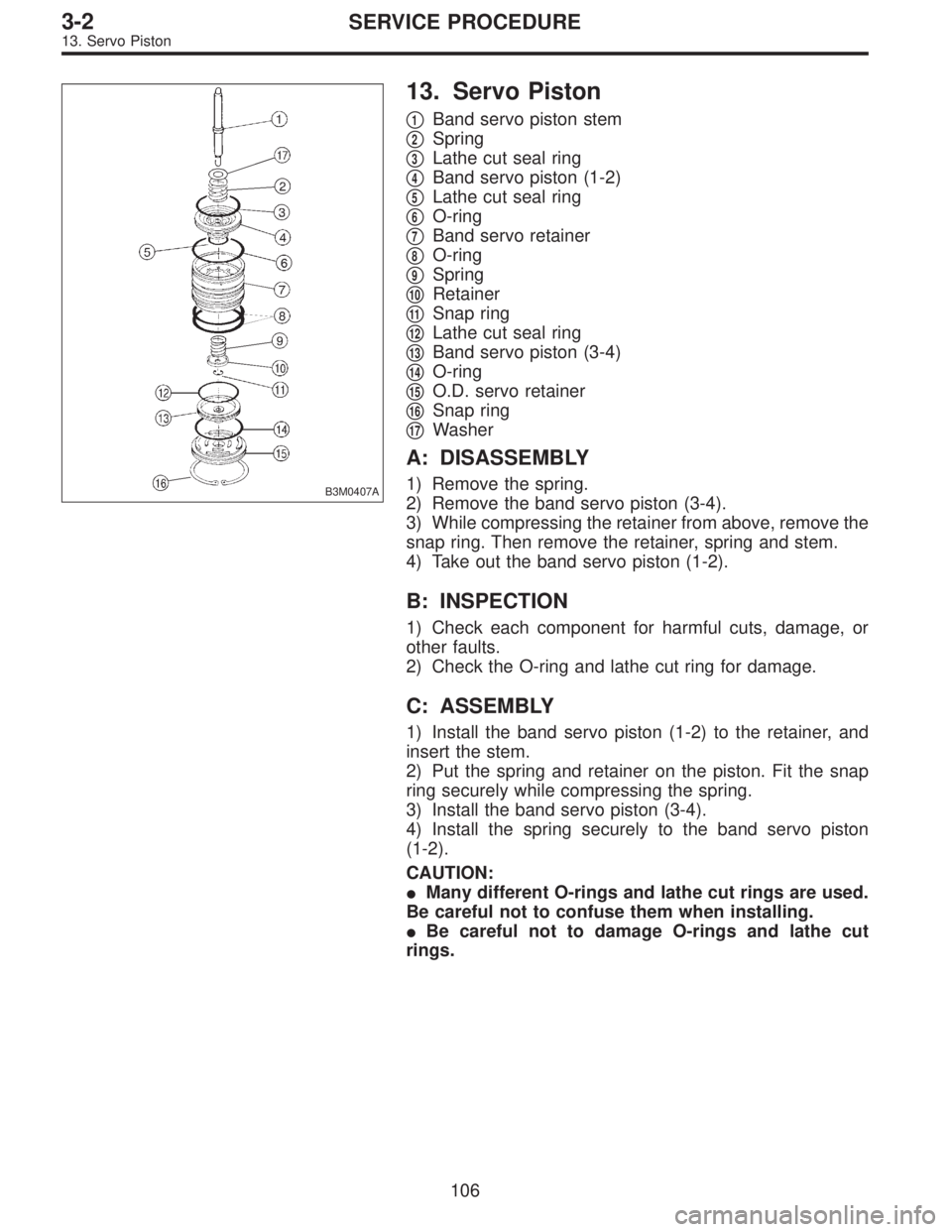

13. Servo Piston
1Band servo piston stem
2Spring
3Lathe cut seal ring
4Band servo piston (1-2)
5Lathe cut seal ring
6O-ring
7Band servo retainer
8O-ring
9Spring
10Retainer
11Snap ring
12Lathe cut seal ring
13Band servo piston (3-4)
14O-ring
15O.D. servo retainer
16Snap ring
17Washer
A: DISASSEMBLY
1) Remove the spring.
2) Remove the band servo piston (3-4).
3) While compressing the retainer from above, remove the
snap ring. Then remove the retainer, spring and stem.
4) Take out the band servo piston (1-2).
B: INSPECTION
1) Check each component for harmful cuts, damage, or
other faults.
2) Check the O-ring and lathe cut ring for damage.
C: ASSEMBLY
1) Install the band servo piston (1-2) to the retainer, and
insert the stem.
2) Put the spring and retainer on the piston. Fit the snap
ring securely while compressing the spring.
3) Install the band servo piston (3-4).
4) Install the spring securely to the band servo piston
(1-2).
CAUTION:
Many different O-rings and lathe cut rings are used.
Be careful not to confuse them when installing.
Be careful not to damage O-rings and lathe cut
rings.
106
3-2SERVICE PROCEDURE
13. Servo Piston
Page 936 of 2890
G3M0488

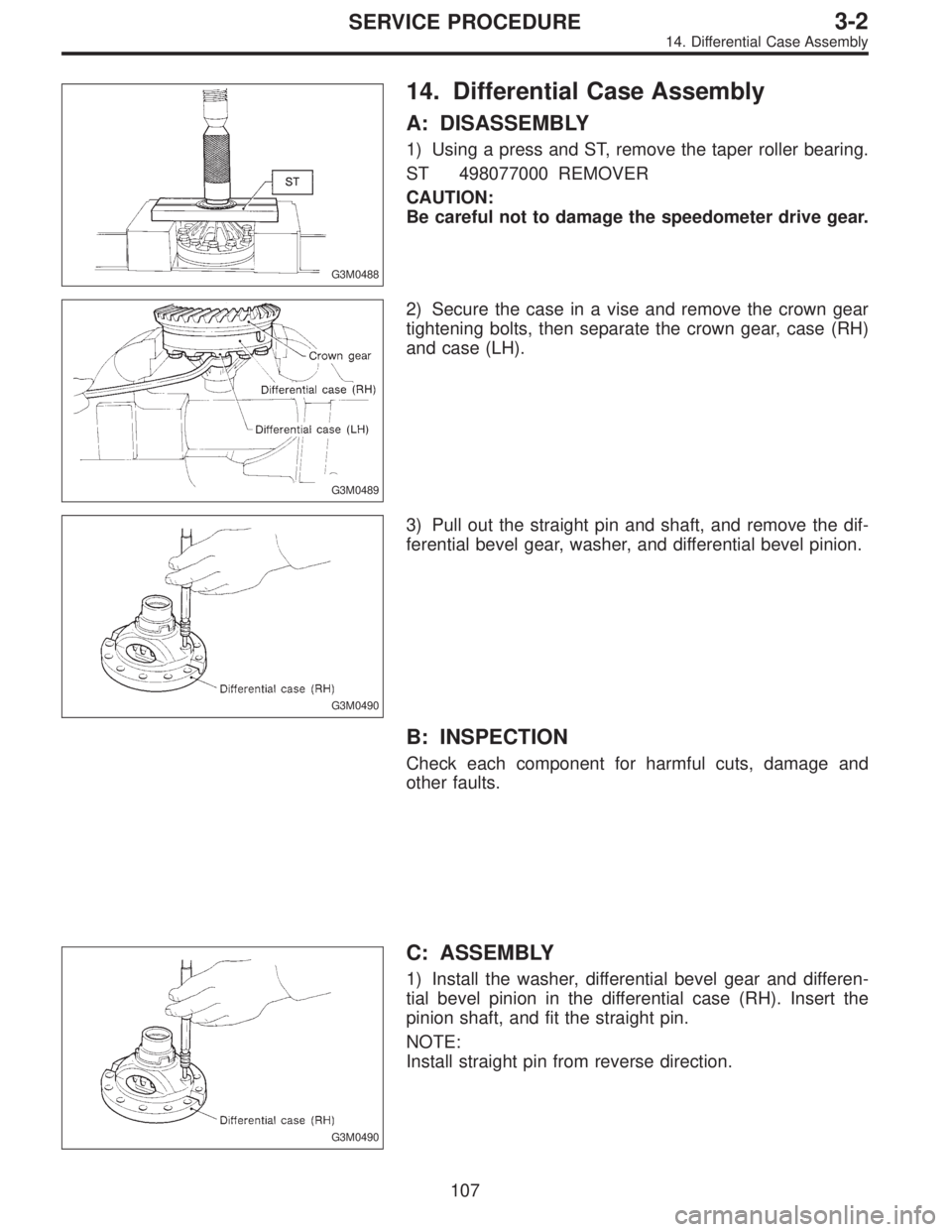

14. Differential Case Assembly
A: DISASSEMBLY
1) Using a press and ST, remove the taper roller bearing.
ST 498077000 REMOVER
CAUTION:
Be careful not to damage the speedometer drive gear.
G3M0489
2) Secure the case in a vise and remove the crown gear
tightening bolts, then separate the crown gear, case (RH)
and case (LH).
G3M0490
3) Pull out the straight pin and shaft, and remove the dif-
ferential bevel gear, washer, and differential bevel pinion.
B: INSPECTION
Check each component for harmful cuts, damage and
other faults.
G3M0490
C: ASSEMBLY
1) Install the washer, differential bevel gear and differen-
tial bevel pinion in the differential case (RH). Insert the
pinion shaft, and fit the straight pin.
NOTE:
Install straight pin from reverse direction.
107
3-2SERVICE PROCEDURE
14. Differential Case Assembly
