Page 401 of 2890

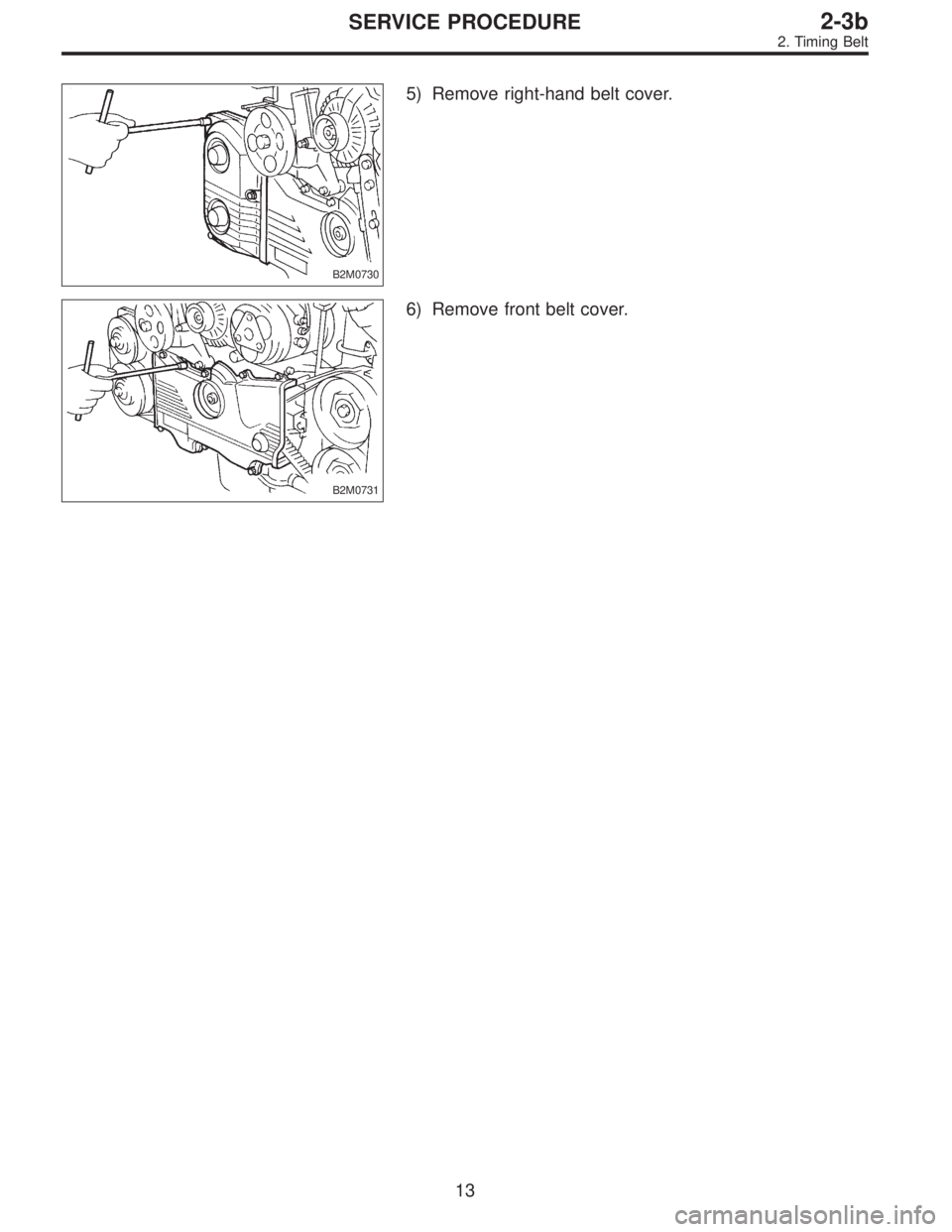

SUBARU LEGACY 1996 Service Repair Manual B2M0730 5) Remove right-hand belt cover. B2M0731 6) Remove front belt cover. 13 2-3bSERVICE PROCEDURE 2. Timing Belt

Page 402 of 2890

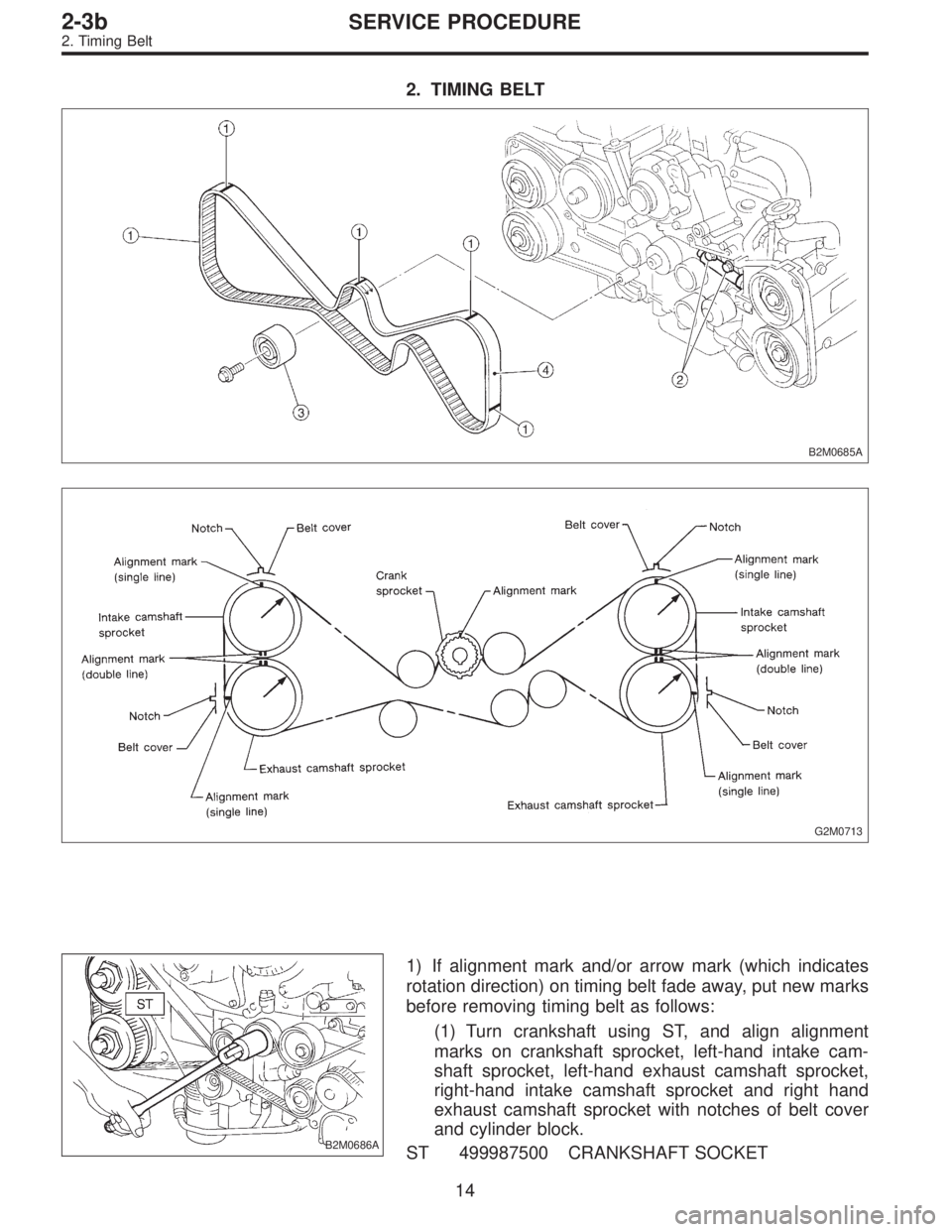

SUBARU LEGACY 1996 Service Repair Manual 2. TIMING BELT B2M0685A G2M0713 B2M0686A 1) If alignment mark and/or arrow mark (which indicates rotation direction) on timing belt fade away, put new marks before removing timing belt as follows: (1)

Page 403 of 2890

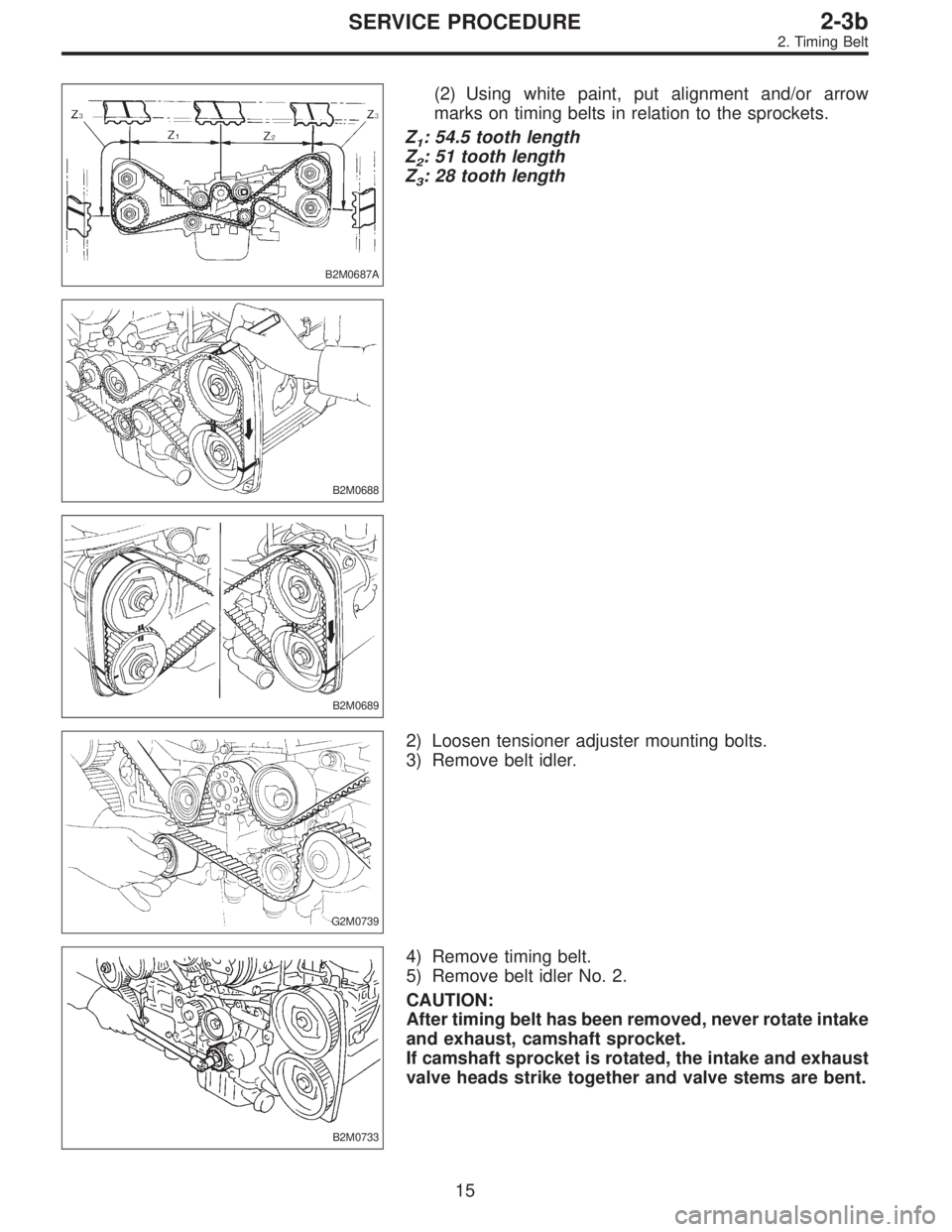

SUBARU LEGACY 1996 Service Repair Manual B2M0687A (2) Using white paint, put alignment and/or arrow marks on timing belts in relation to the sprockets. Z 1: 54.5 tooth length Z 2: 51 tooth length Z 3: 28 tooth length B2M0688 B2M0689 G2M0739

Page 404 of 2890

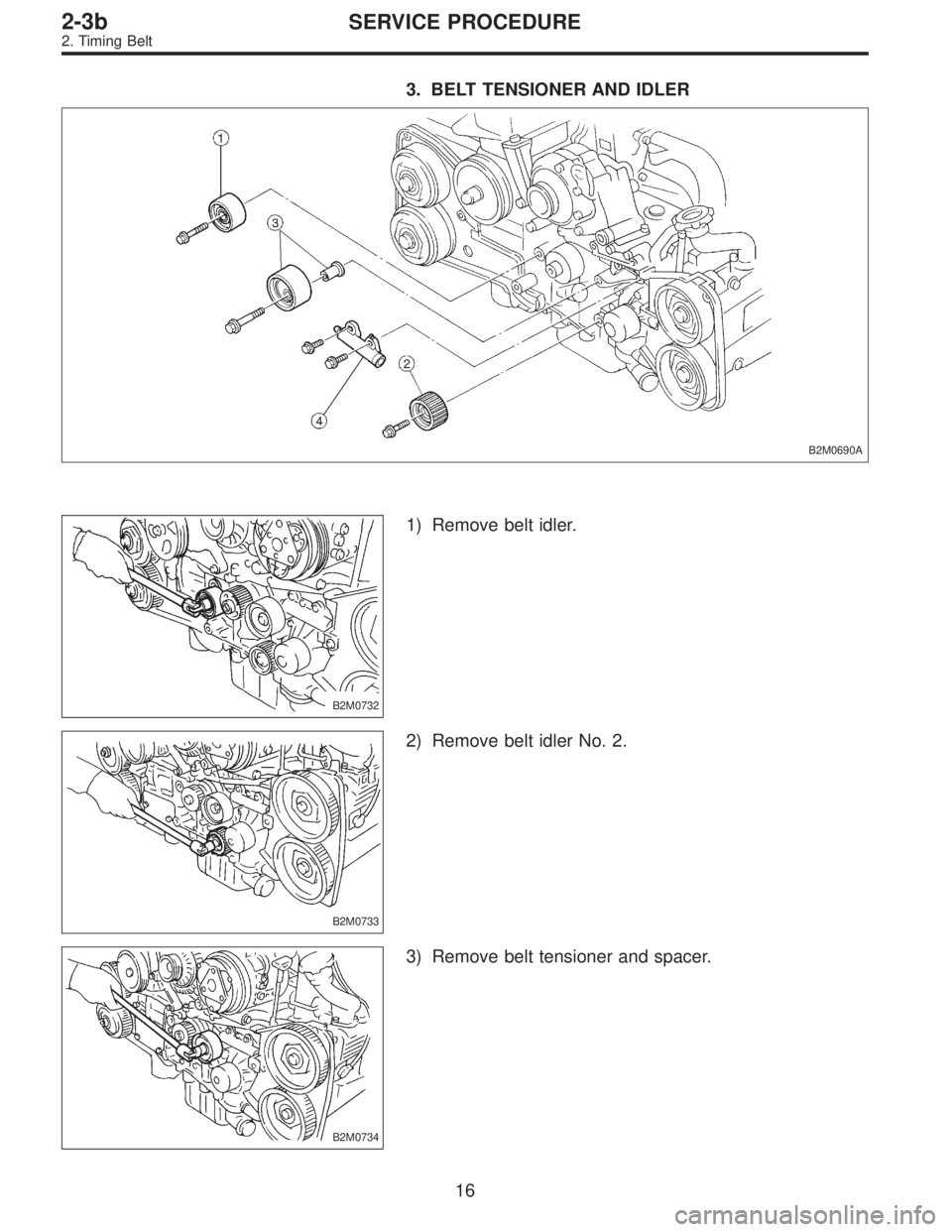

SUBARU LEGACY 1996 Service Repair Manual 3. BELT TENSIONER AND IDLER B2M0690A B2M0732 1) Remove belt idler. B2M0733 2) Remove belt idler No. 2. B2M0734 3) Remove belt tensioner and spacer. 16 2-3bSERVICE PROCEDURE 2. Timing Belt

Page 405 of 2890

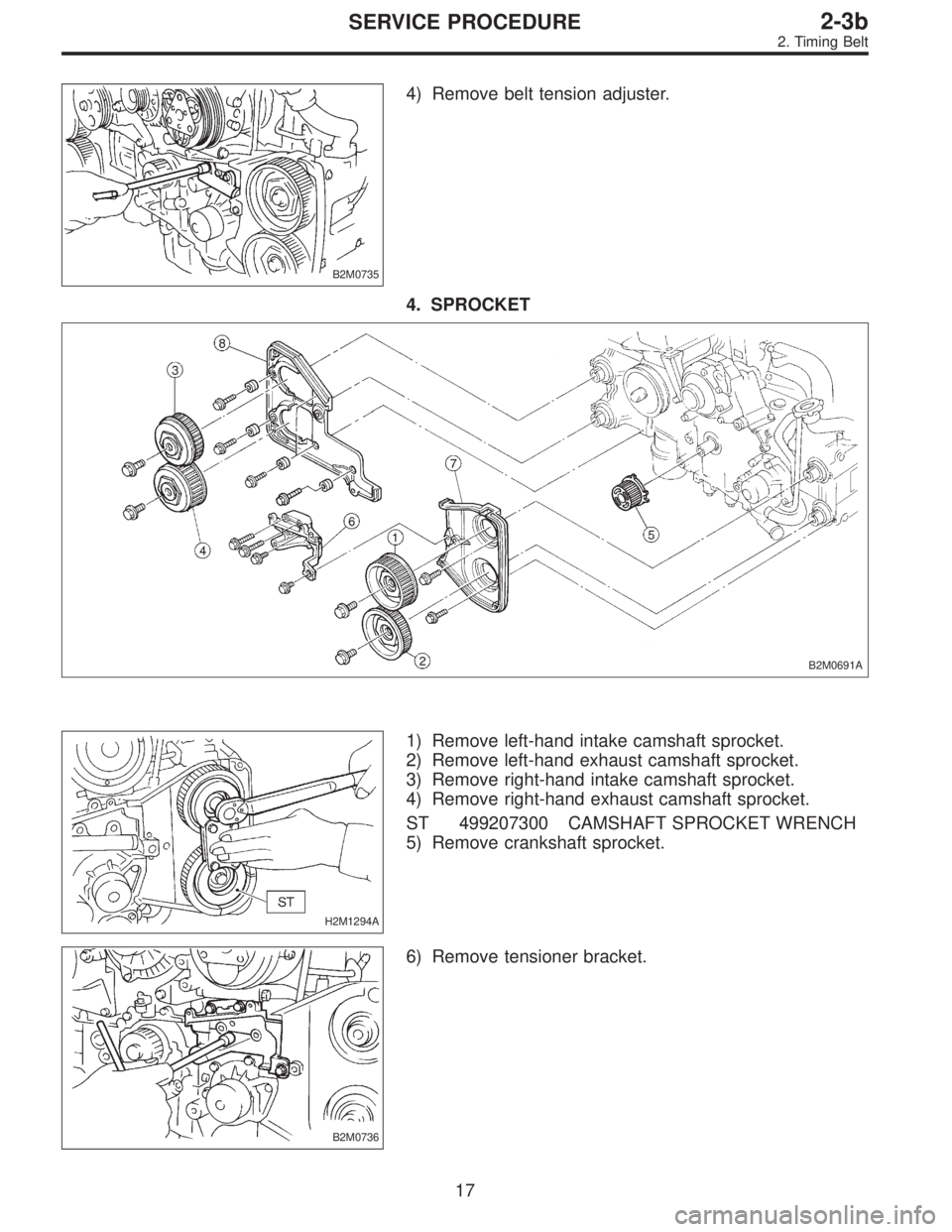

SUBARU LEGACY 1996 Service Repair Manual B2M0735 4) Remove belt tension adjuster. 4. SPROCKET B2M0691A H2M1294A 1) Remove left-hand intake camshaft sprocket. 2) Remove left-hand exhaust camshaft sprocket. 3) Remove right-hand intake camshaft

Page 406 of 2890

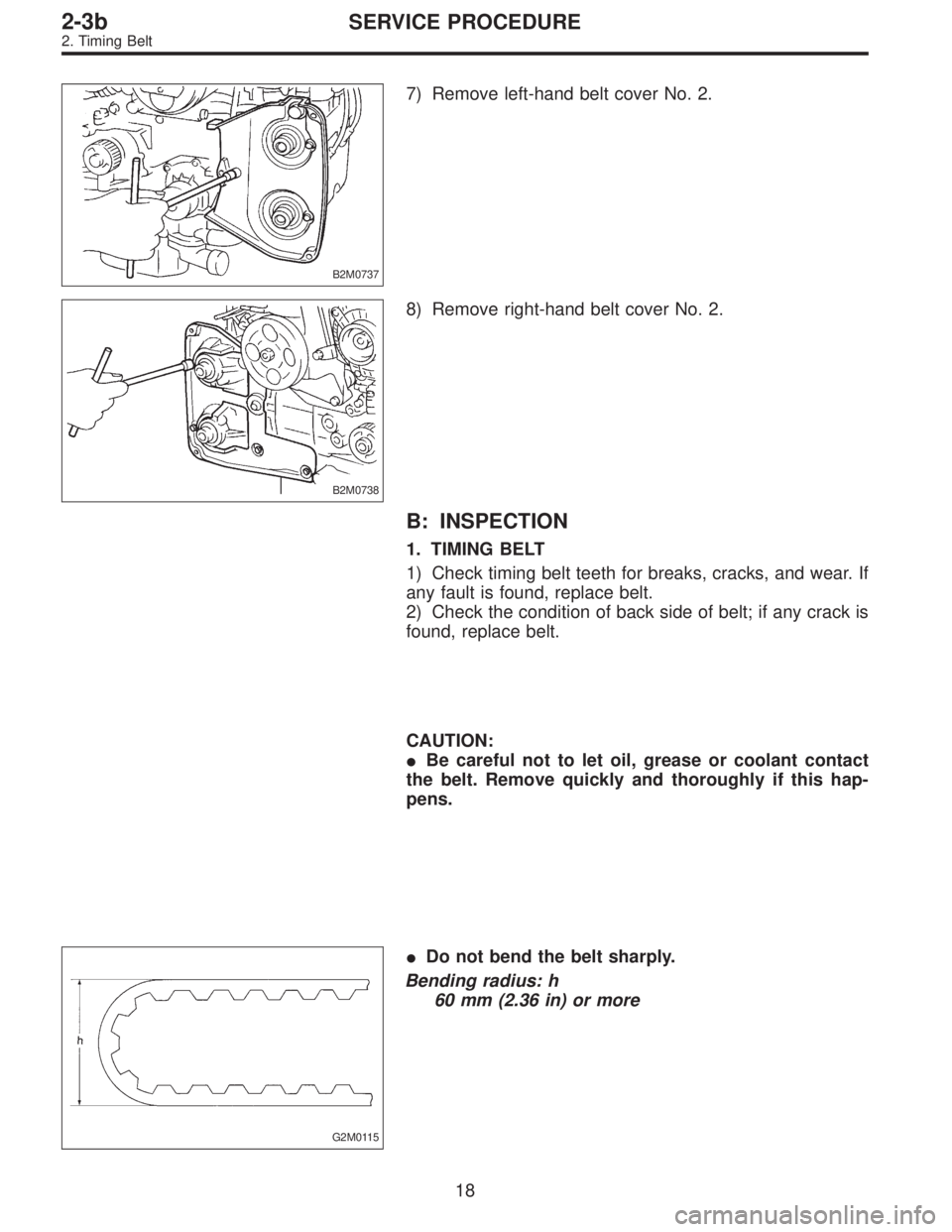

SUBARU LEGACY 1996 Service Repair Manual B2M0737 7) Remove left-hand belt cover No. 2. B2M0738 8) Remove right-hand belt cover No. 2. B: INSPECTION 1. TIMING BELT 1) Check timing belt teeth for breaks, cracks, and wear. If any fault is found

Page 407 of 2890

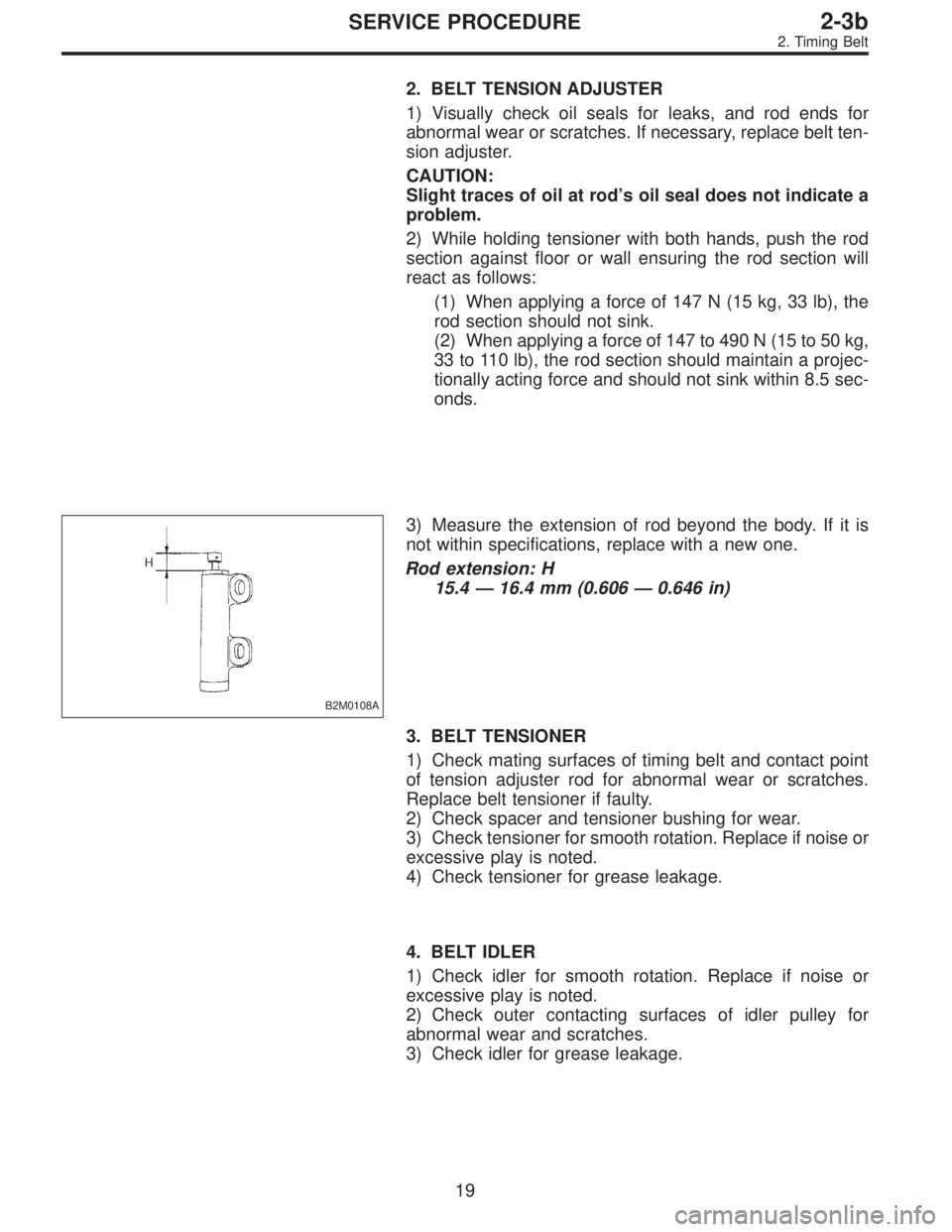

SUBARU LEGACY 1996 Service Repair Manual 2. BELT TENSION ADJUSTER 1) Visually check oil seals for leaks, and rod ends for abnormal wear or scratches. If necessary, replace belt ten- sion adjuster. CAUTION: Slight traces of oil at rod’s oil

Page 408 of 2890

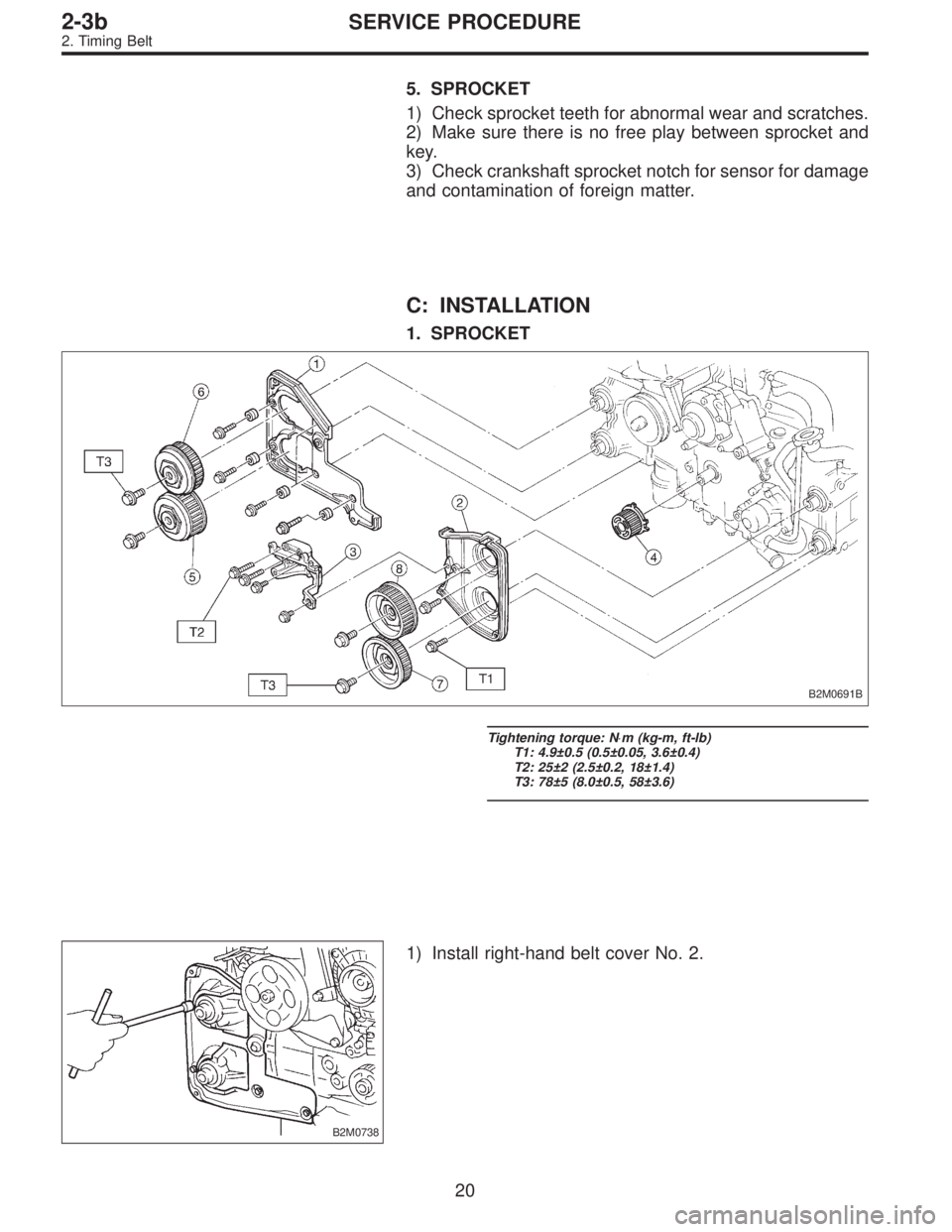

SUBARU LEGACY 1996 Service Repair Manual 5. SPROCKET 1) Check sprocket teeth for abnormal wear and scratches. 2) Make sure there is no free play between sprocket and key. 3) Check crankshaft sprocket notch for sensor for damage and contamina
