Page 1905 of 2890

OBD0145A

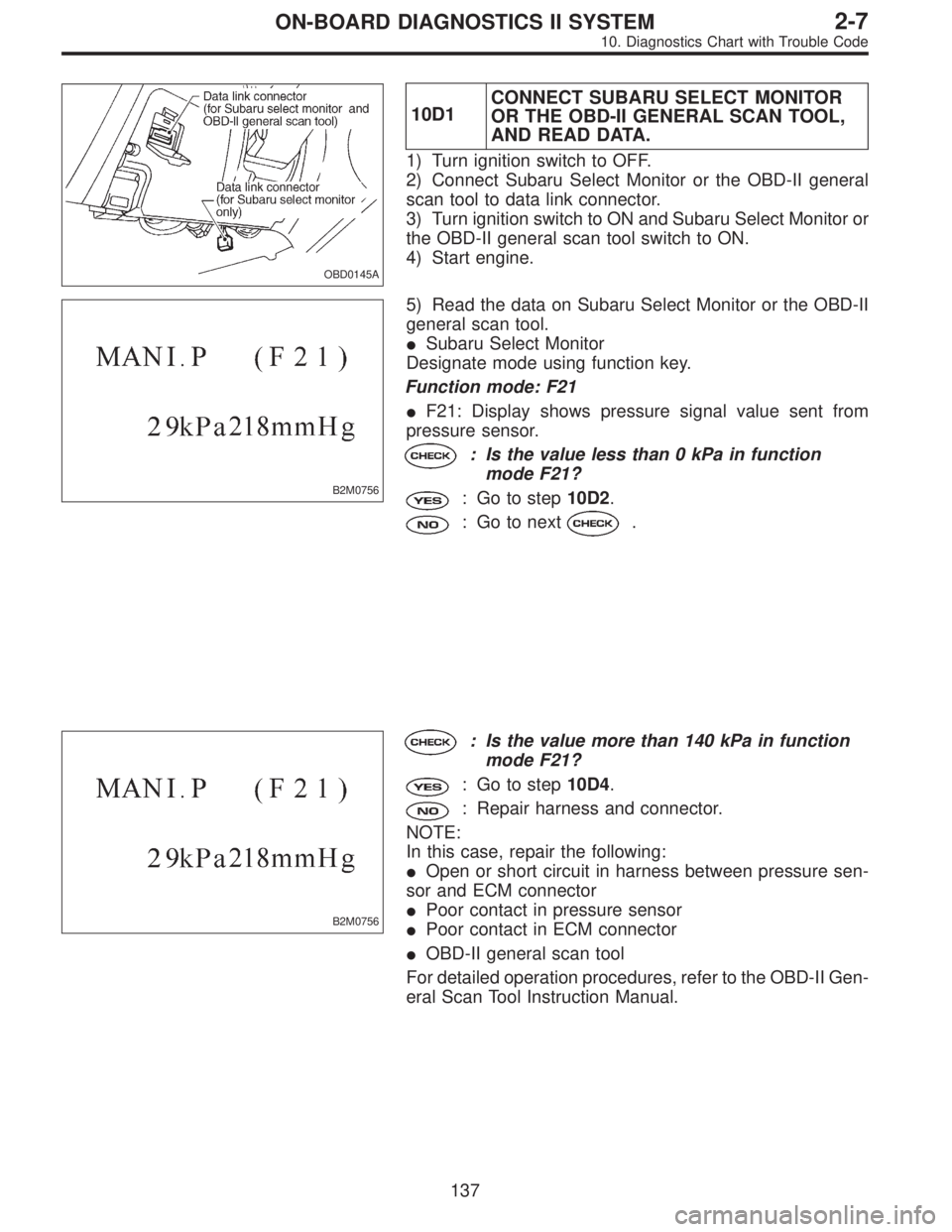

10D1CONNECT SUBARU SELECT MONITOR
OR THE OBD-II GENERAL SCAN TOOL,
AND READ DATA.
1) Turn ignition switch to OFF.
2) Connect Subaru Select Monitor or the OBD-II general
scan tool to data link connector.
3) Turn ignition switch to ON and Subaru Select Monitor or
the OBD-II general scan tool switch to ON.
4) Start engine.
B2M0756
5) Read the data on Subaru Select Monitor or the OBD-II
general scan tool.
Subaru Select Monitor
Designate mode using function key.
Function mode: F21
F21: Display shows pressure signal value sent from
pressure sensor.
: Is the value less than 0 kPa in function
mode F21?
: Go to step10D2.
: Go to next.
B2M0756
: Is the value more than 140 kPa in function
mode F21?
: Go to step10D4.
: Repair harness and connector.
NOTE:
In this case, repair the following:
Open or short circuit in harness between pressure sen-
sor and ECM connector
Poor contact in pressure sensor
Poor contact in ECM connector
OBD-II general scan tool
For detailed operation procedures, refer to the OBD-II Gen-
eral Scan Tool Instruction Manual.
137
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
Page 1906 of 2890
B2M0535A

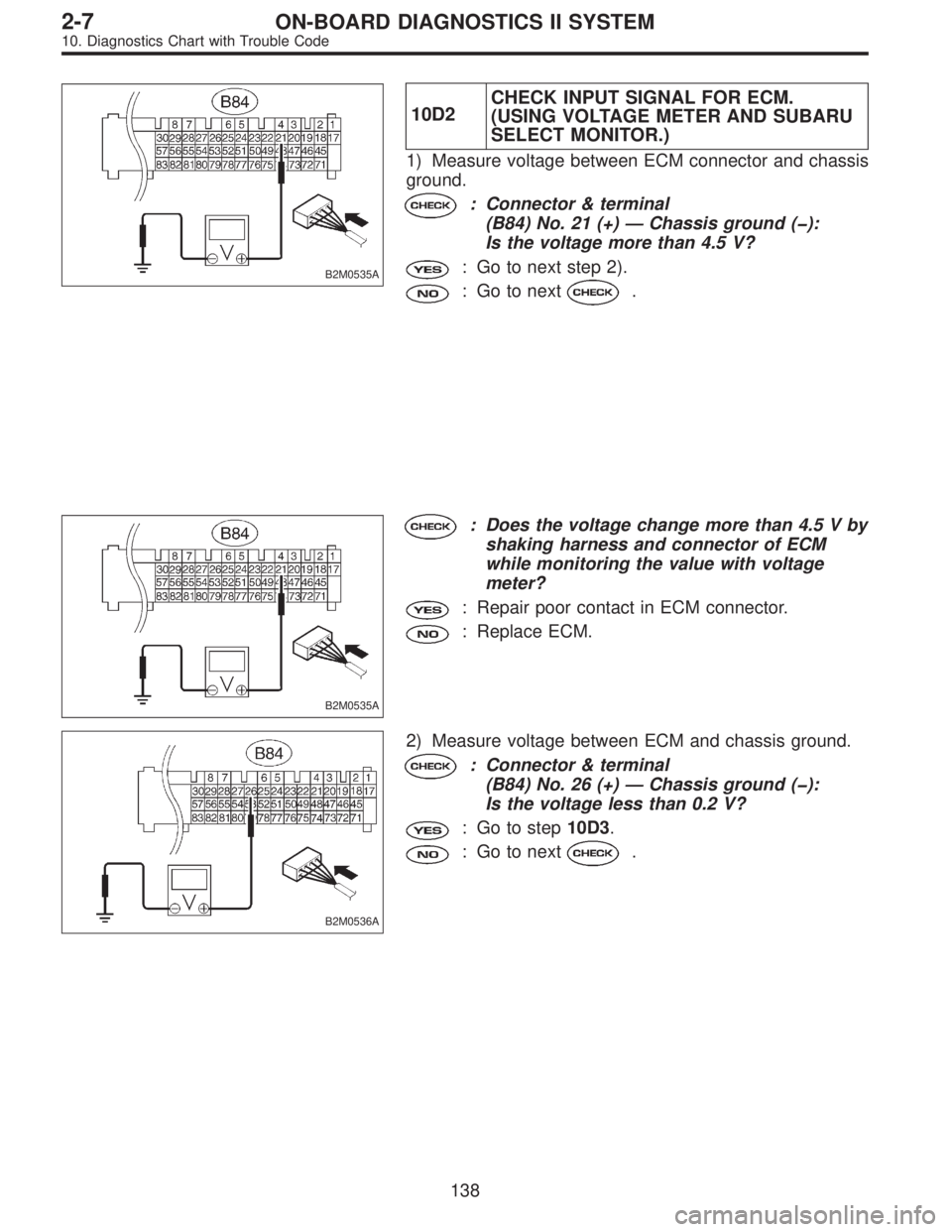

10D2CHECK INPUT SIGNAL FOR ECM.
(USING VOLTAGE METER AND SUBARU
SELECT MONITOR.)
1) Measure voltage between ECM connector and chassis
ground.
: Connector & terminal
(B84) No. 21 (+)—Chassis ground ( ):
Is the voltage more than 4.5 V?
: Go to next step 2).
: Go to next.
B2M0535A
: Does the voltage change more than 4.5 V by
shaking harness and connector of ECM
while monitoring the value with voltage
meter?
: Repair poor contact in ECM connector.
: Replace ECM.
B2M0536A
2) Measure voltage between ECM and chassis ground.
: Connector & terminal
(B84) No. 26 (+)—Chassis ground ( ):
Is the voltage less than 0.2 V?
: Go to step10D3.
: Go to next.
138
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
Page 1907 of 2890
B2M0755

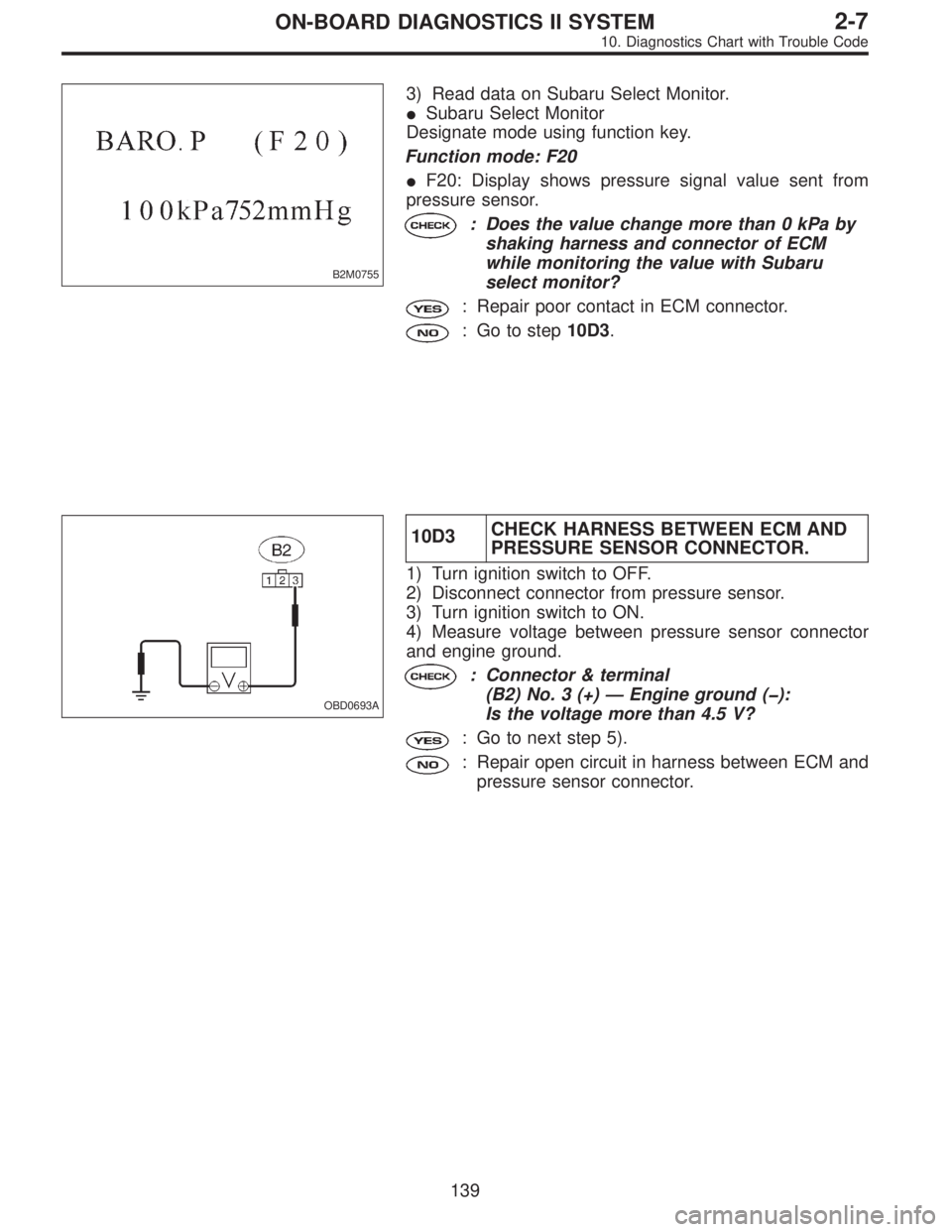

3) Read data on Subaru Select Monitor.
Subaru Select Monitor
Designate mode using function key.
Function mode: F20
F20: Display shows pressure signal value sent from
pressure sensor.
: Does the value change more than 0 kPa by
shaking harness and connector of ECM
while monitoring the value with Subaru
select monitor?
: Repair poor contact in ECM connector.
: Go to step10D3.
OBD0693A
10D3CHECK HARNESS BETWEEN ECM AND
PRESSURE SENSOR CONNECTOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from pressure sensor.
3) Turn ignition switch to ON.
4) Measure voltage between pressure sensor connector
and engine ground.
: Connector & terminal
(B2) No. 3 (+)—Engine ground ( ):
Is the voltage more than 4.5 V?
: Go to next step 5).
: Repair open circuit in harness between ECM and
pressure sensor connector.
139
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
Page 1908 of 2890

B2M0537A

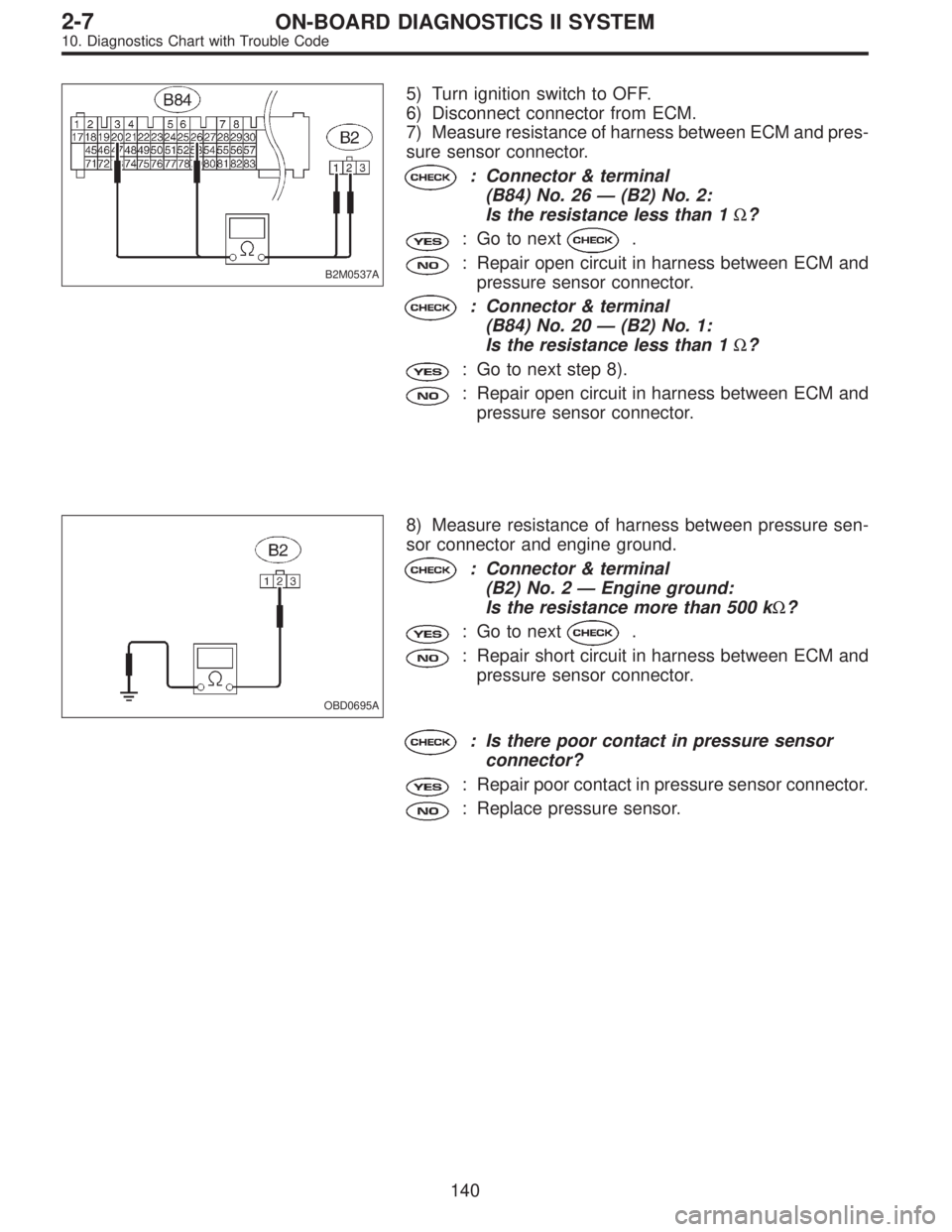

5) Turn ignition switch to OFF.
6) Disconnect connector from ECM.
7) Measure resistance of harness between ECM and pres-
sure sensor connector.
: Connector & terminal
(B84) No. 26—(B2) No. 2:
Is the resistance less than 1Ω?
: Go to next.
: Repair open circuit in harness between ECM and
pressure sensor connector.
: Connector & terminal
(B84) No. 20—(B2) No. 1:
Is the resistance less than 1Ω?
: Go to next step 8).
: Repair open circuit in harness between ECM and
pressure sensor connector.
OBD0695A
8) Measure resistance of harness between pressure sen-
sor connector and engine ground.
: Connector & terminal
(B2) No. 2—Engine ground:
Is the resistance more than 500 kΩ?
: Go to next.
: Repair short circuit in harness between ECM and
pressure sensor connector.
: Is there poor contact in pressure sensor
connector?
: Repair poor contact in pressure sensor connector.
: Replace pressure sensor.
140
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
Page 1909 of 2890
B2M0756

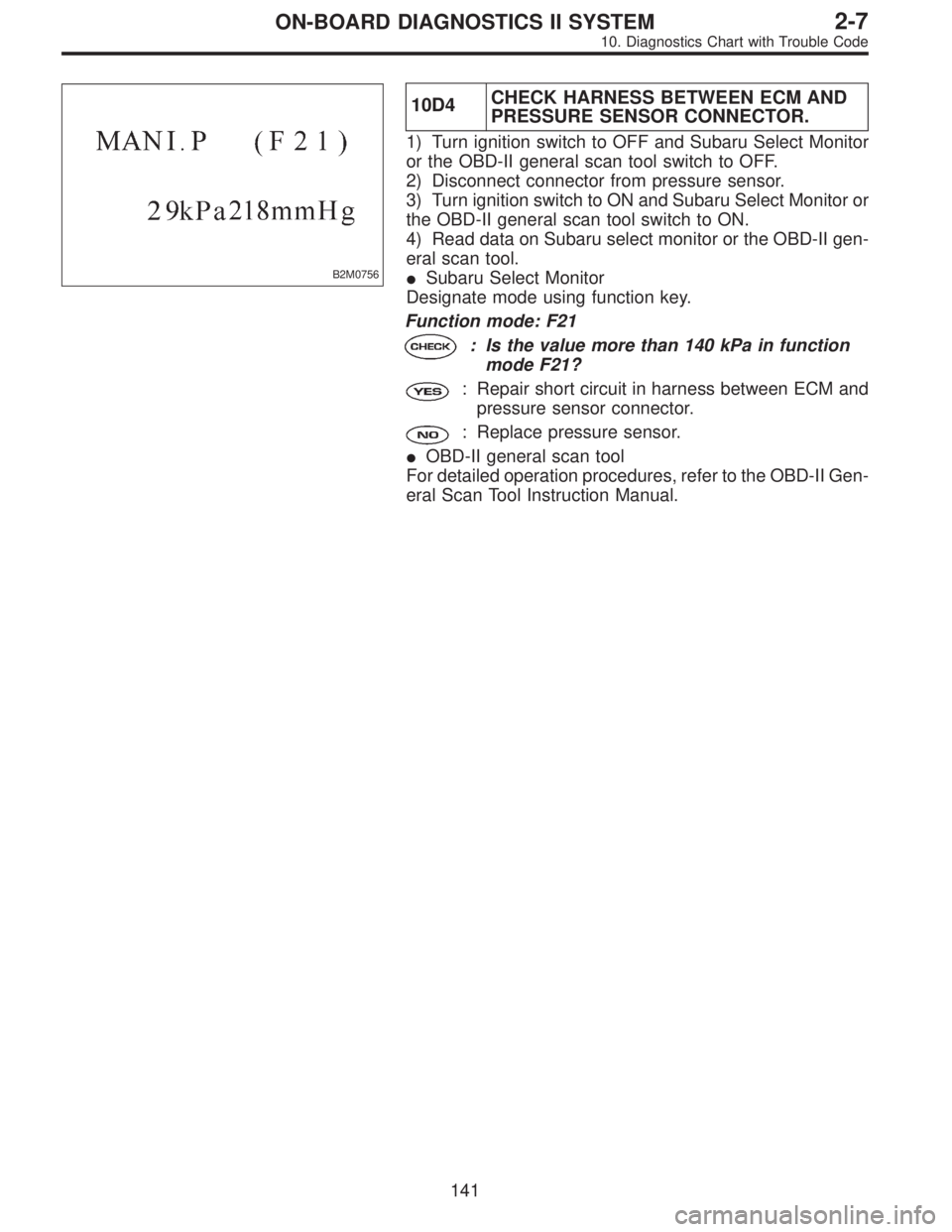

10D4CHECK HARNESS BETWEEN ECM AND
PRESSURE SENSOR CONNECTOR.
1) Turn ignition switch to OFF and Subaru Select Monitor
or the OBD-II general scan tool switch to OFF.
2) Disconnect connector from pressure sensor.
3) Turn ignition switch to ON and Subaru Select Monitor or
the OBD-II general scan tool switch to ON.
4) Read data on Subaru select monitor or the OBD-II gen-
eral scan tool.
Subaru Select Monitor
Designate mode using function key.
Function mode: F21
: Is the value more than 140 kPa in function
mode F21?
: Repair short circuit in harness between ECM and
pressure sensor connector.
: Replace pressure sensor.
OBD-II general scan tool
For detailed operation procedures, refer to the OBD-II Gen-
eral Scan Tool Instruction Manual.
141
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
Page 1910 of 2890
B2M0654

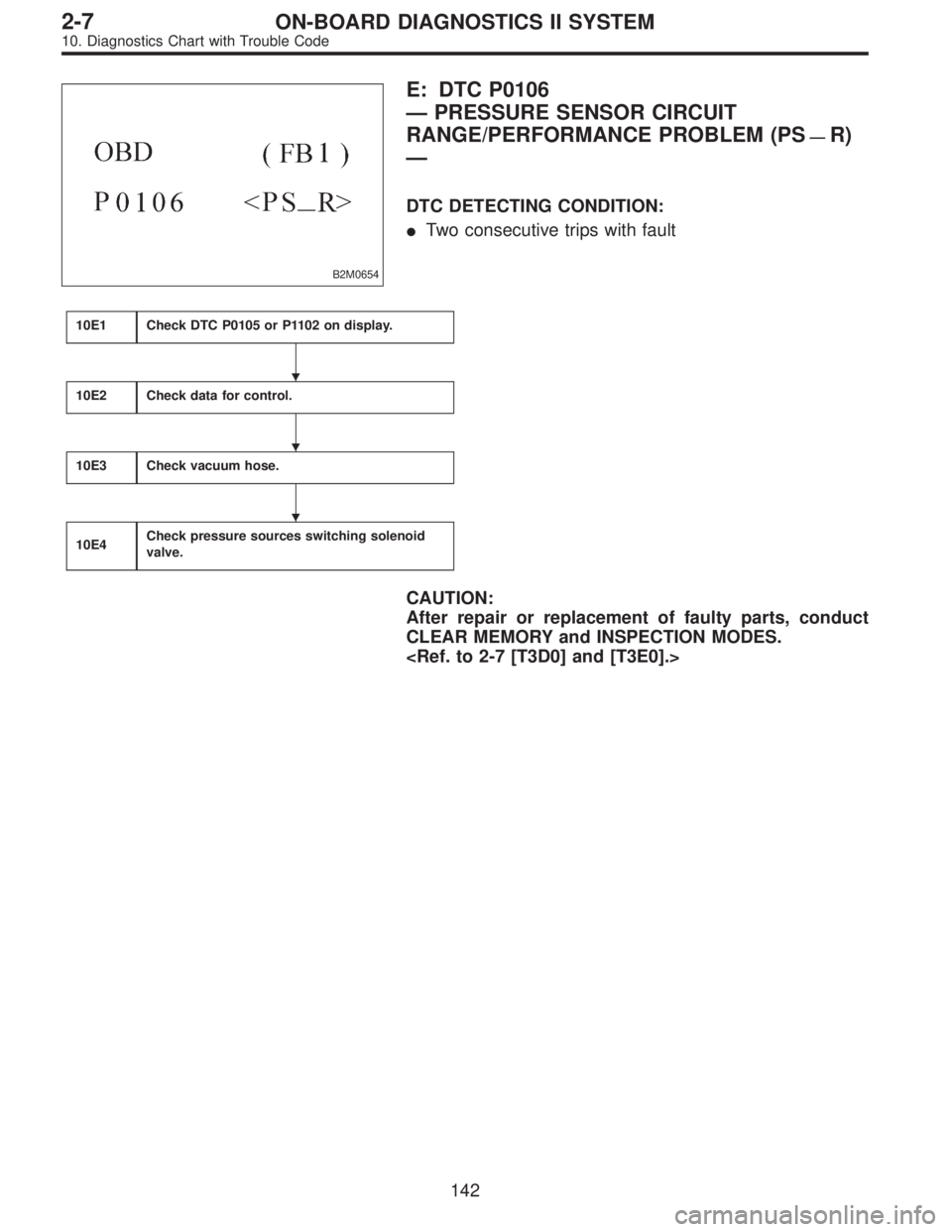

E: DTC P0106
—PRESSURE SENSOR CIRCUIT
RANGE/PERFORMANCE PROBLEM (PS
—R)
—
DTC DETECTING CONDITION:
Two consecutive trips with fault
10E1Check DTC P0105 or P1102 on display.
10E2Check data for control.
10E3Check vacuum hose.
10E4Check pressure sources switching solenoid
valve.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.
142
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
Page 1911 of 2890

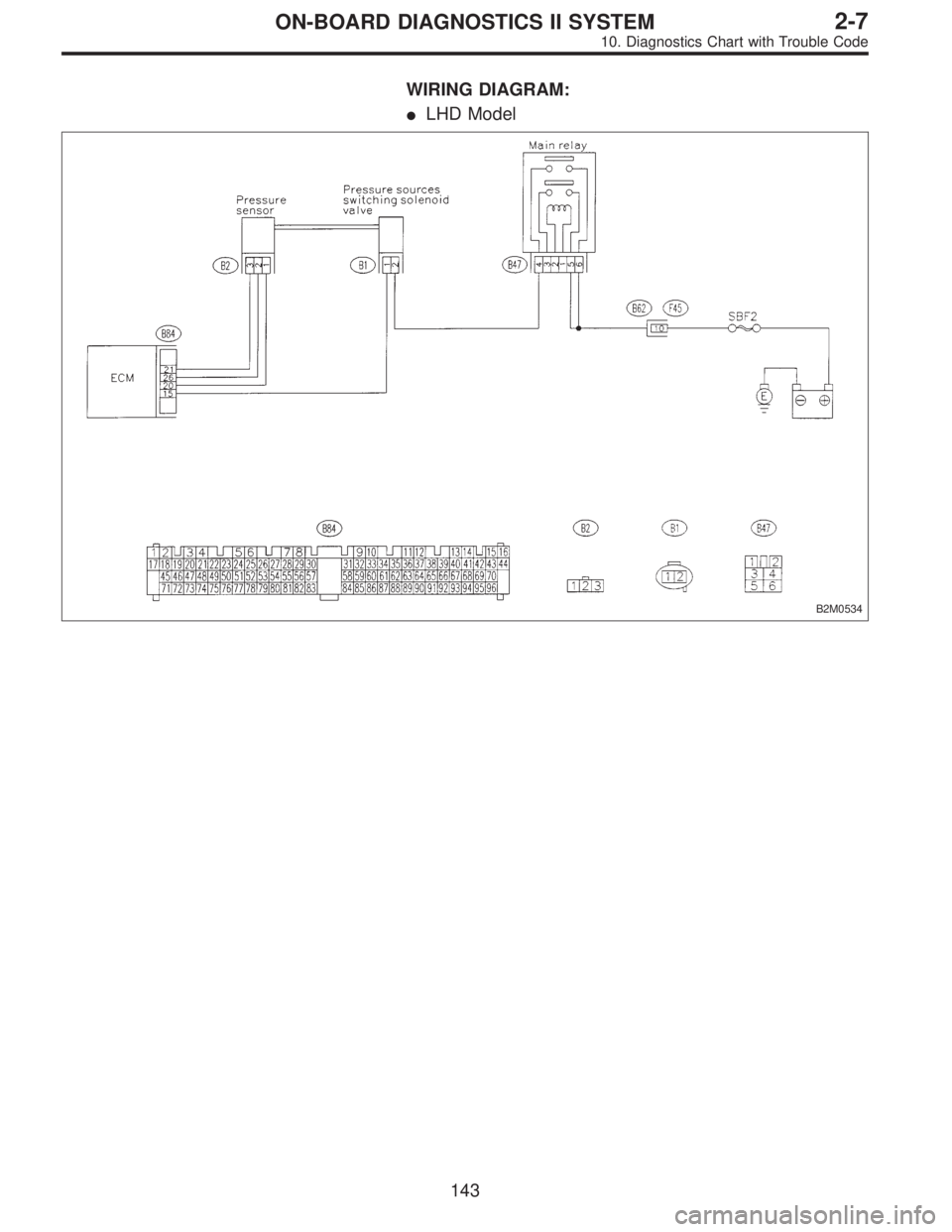

WIRING DIAGRAM:
LHD Model
B2M0534
143
2-7ON-BOARD DIAGNOSTICS II SYSTEM
10. Diagnostics Chart with Trouble Code
Page 1912 of 2890

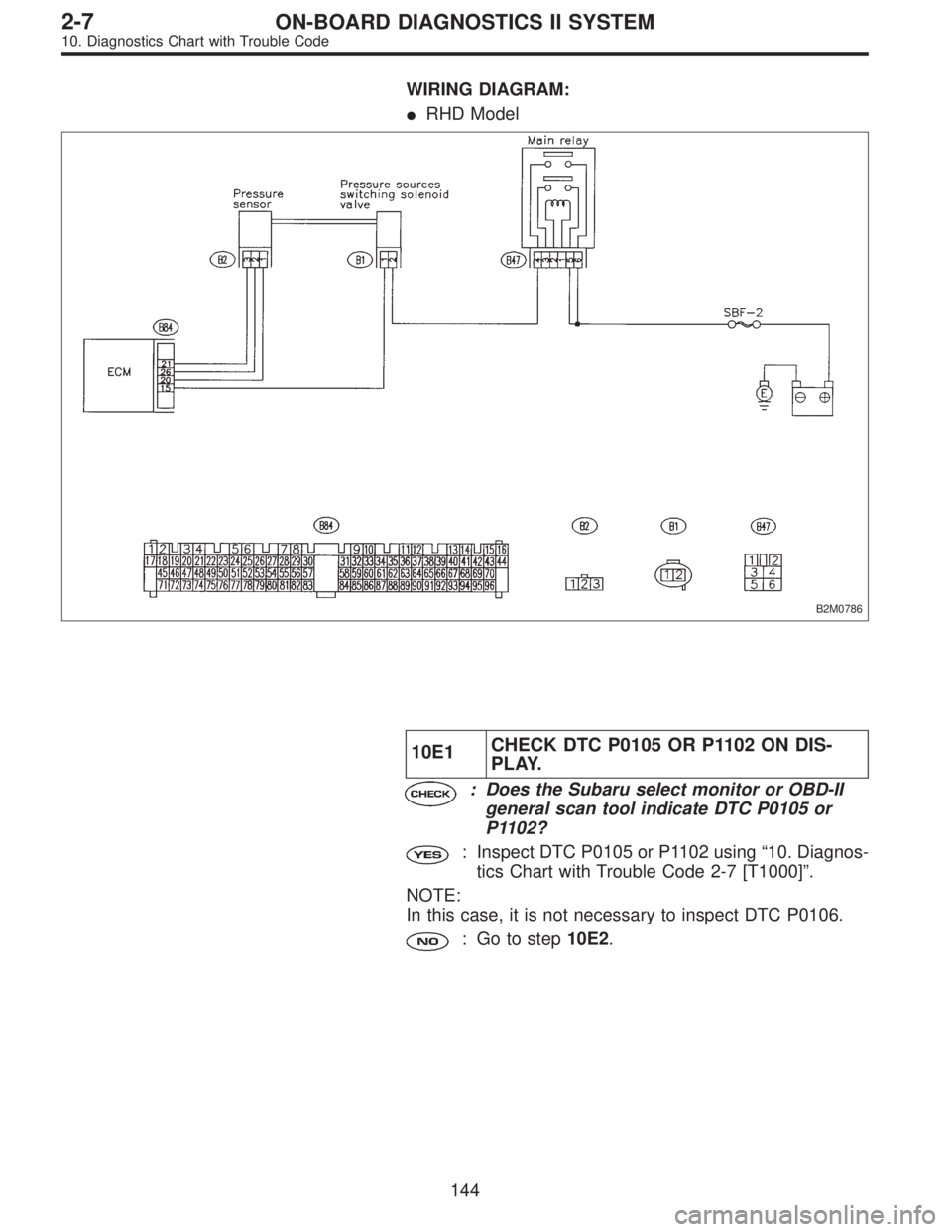

WIRING DIAGRAM:
RHD Model
B2M0786
10E1CHECK DTC P0105 OR P1102 ON DIS-
PLAY.
: Does the Subaru select monitor or OBD-II
general scan tool indicate DTC P0105 or
P1102?
: Inspect DTC P0105 or P1102 using“10. Diagnos-
tics Chart with Trouble Code 2-7 [T1000]”.
NOTE:
In this case, it is not necessary to inspect DTC P0106.
: Go to step10E2.
