Page 337 of 2890

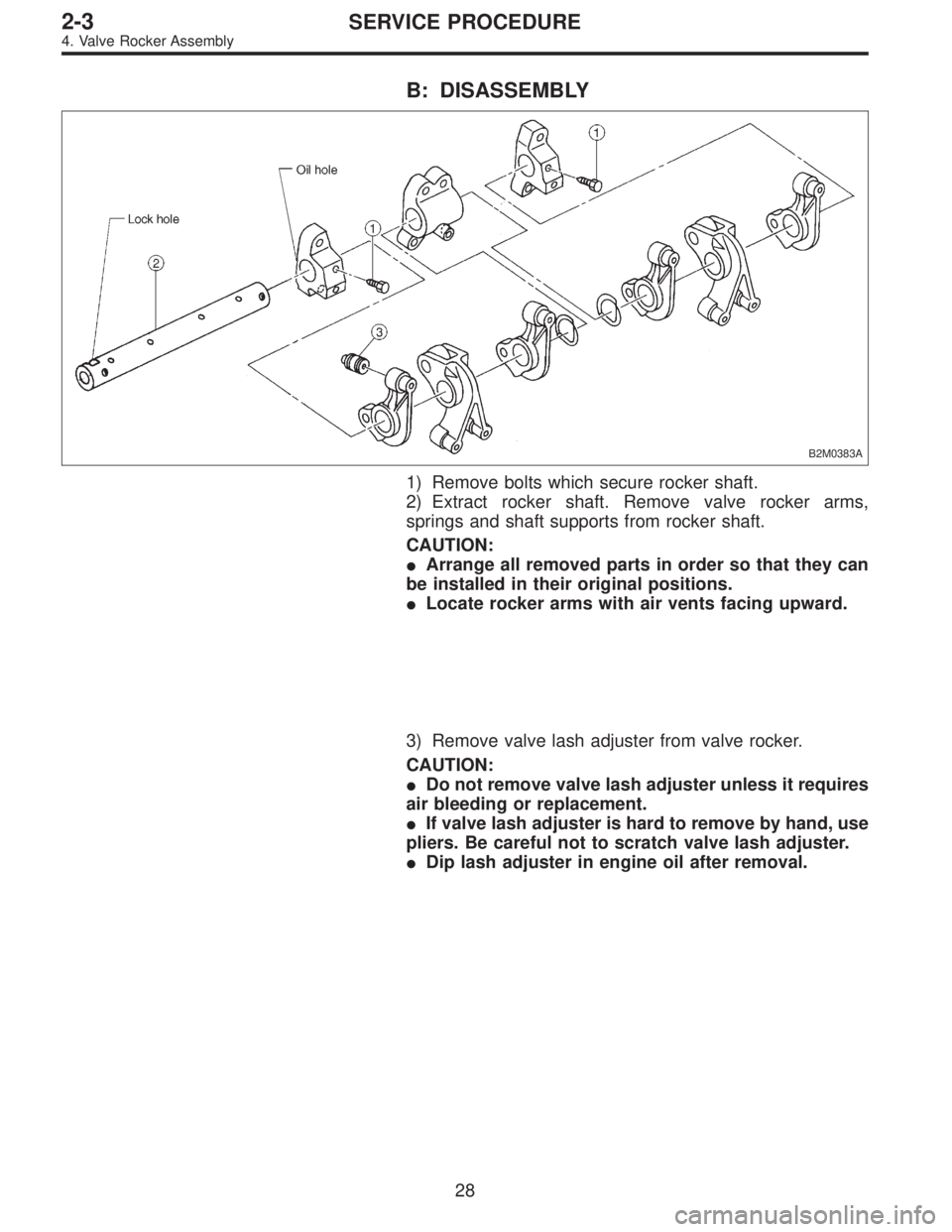

SUBARU LEGACY 1996 Service Repair Manual B: DISASSEMBLY B2M0383A 1) Remove bolts which secure rocker shaft. 2) Extract rocker shaft. Remove valve rocker arms, springs and shaft supports from rocker shaft. CAUTION: Arrange all removed parts

Page 338 of 2890

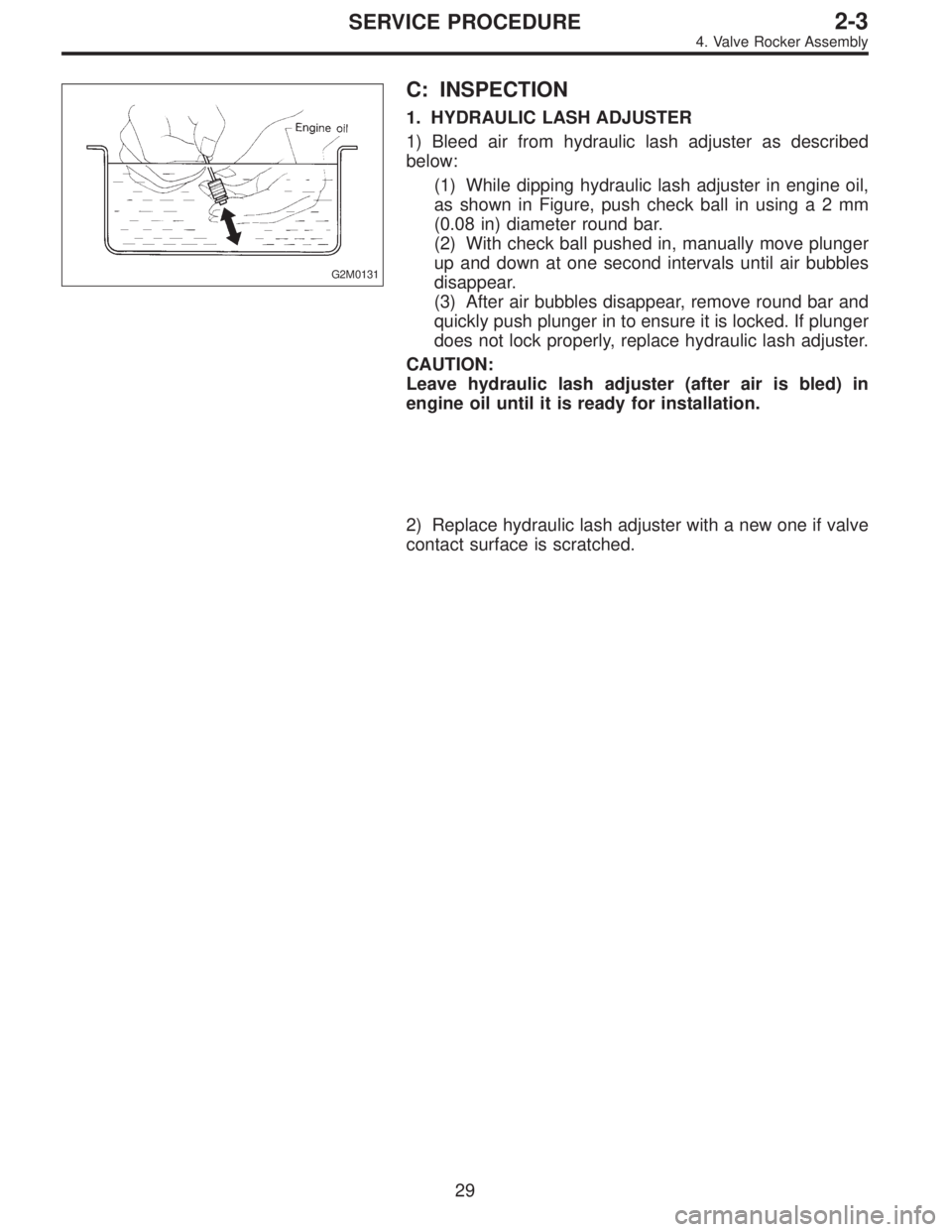

SUBARU LEGACY 1996 Service Repair Manual G2M0131 C: INSPECTION 1. HYDRAULIC LASH ADJUSTER 1) Bleed air from hydraulic lash adjuster as described below: (1) While dipping hydraulic lash adjuster in engine oil, as shown in Figure, push check b

Page 339 of 2890

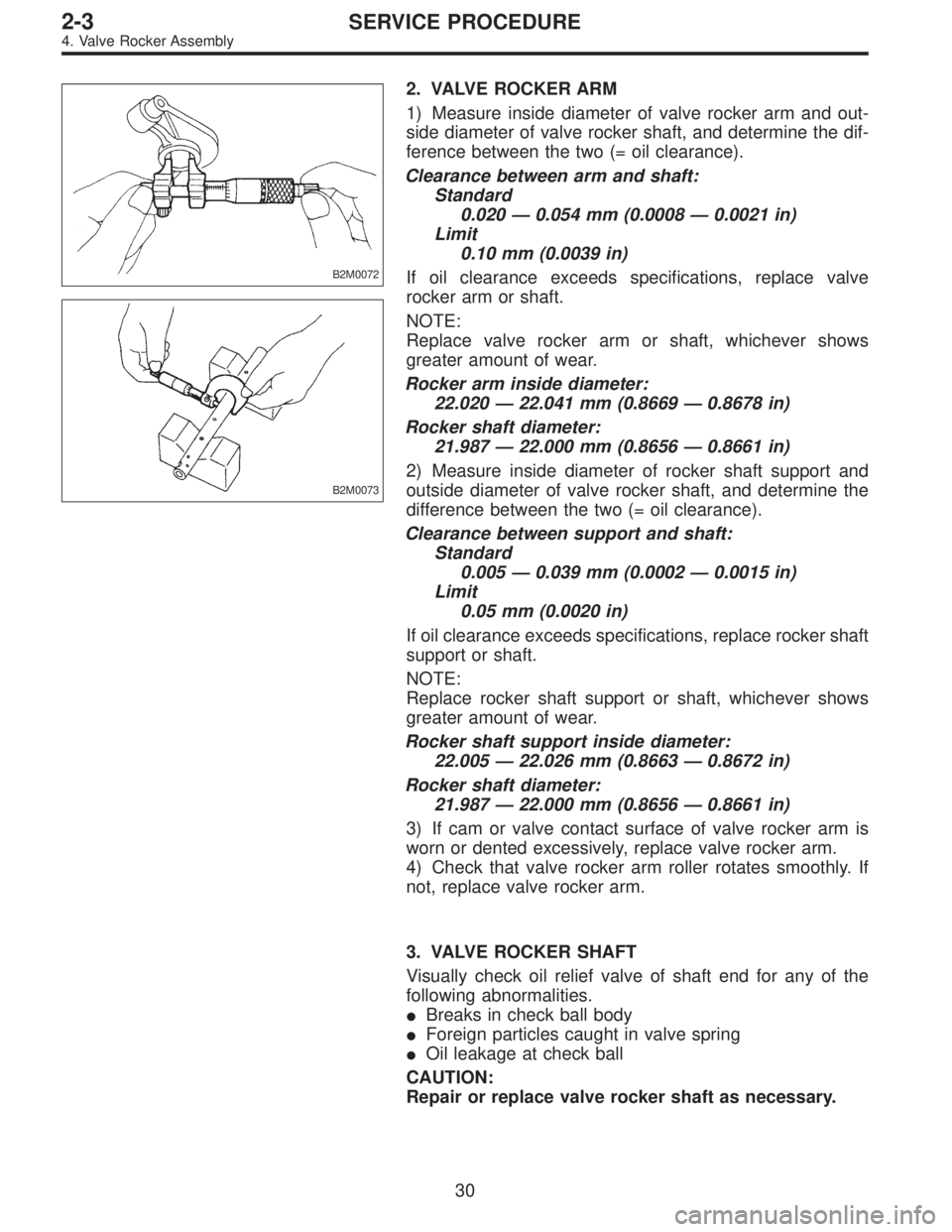

SUBARU LEGACY 1996 Service Repair Manual B2M0072 B2M0073 2. VALVE ROCKER ARM 1) Measure inside diameter of valve rocker arm and out- side diameter of valve rocker shaft, and determine the dif- ference between the two (= oil clearance). Clear

Page 340 of 2890

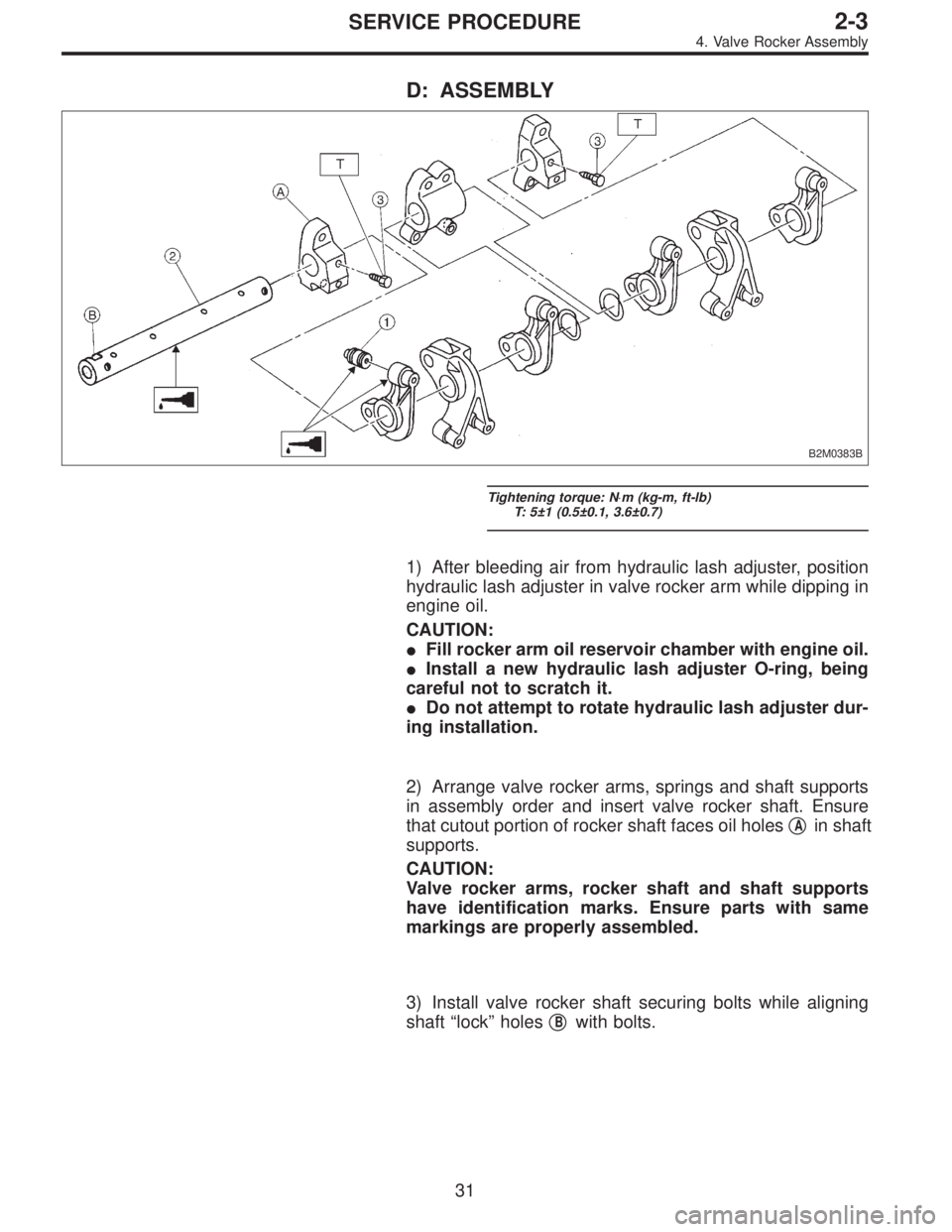

SUBARU LEGACY 1996 Service Repair Manual D: ASSEMBLY B2M0383B Tightening torque: N⋅m (kg-m, ft-lb) T: 5±1 (0.5±0.1, 3.6±0.7) 1) After bleeding air from hydraulic lash adjuster, position hydraulic lash adjuster in valve rocker arm while

Page 341 of 2890

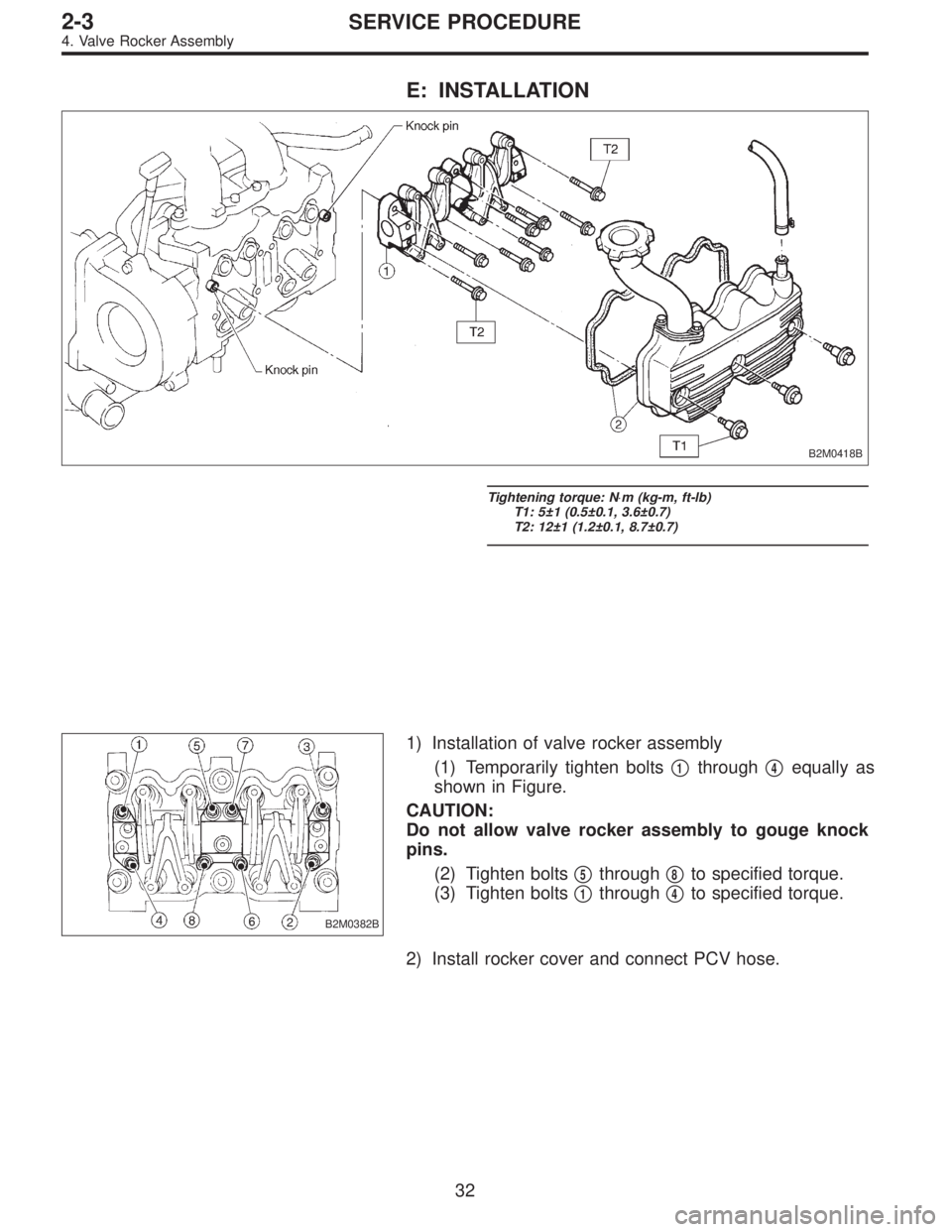

SUBARU LEGACY 1996 Service Repair Manual E: INSTALLATION B2M0418B Tightening torque: N⋅m (kg-m, ft-lb) T1: 5±1 (0.5±0.1, 3.6±0.7) T2: 12±1 (1.2±0.1, 8.7±0.7) B2M0382B 1) Installation of valve rocker assembly (1) Temporarily tighten b

Page 342 of 2890

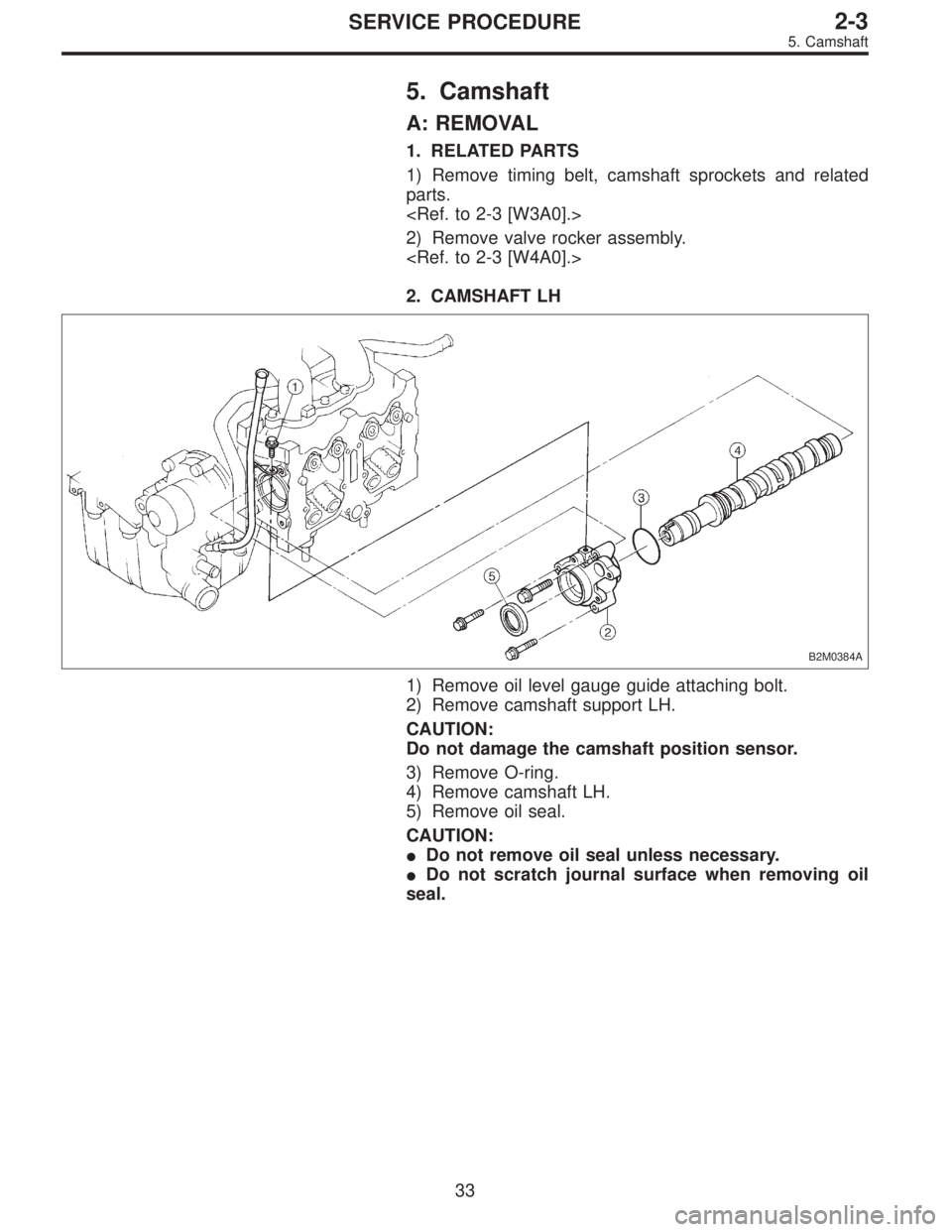

SUBARU LEGACY 1996 Service Repair Manual 5. Camshaft A: REMOVAL 1. RELATED PARTS 1) Remove timing belt, camshaft sprockets and related parts. <Ref. to 2-3 [W3A0].> 2) Remove valve rocker assembly. <Ref. to 2-3 [W4A0].> 2. CAMSHAFT LH B2M0384

Page 343 of 2890

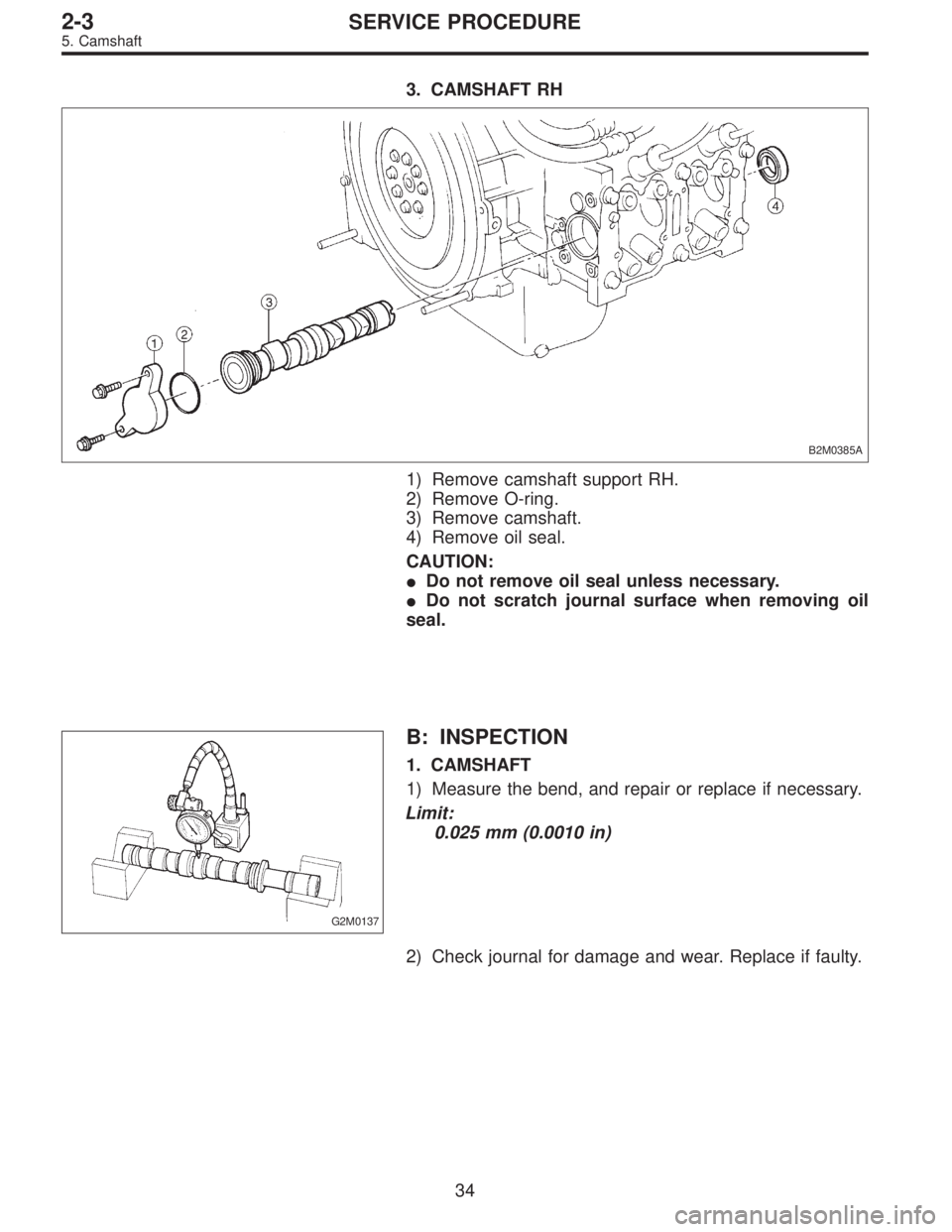

SUBARU LEGACY 1996 Service Repair Manual 3. CAMSHAFT RH B2M0385A 1) Remove camshaft support RH. 2) Remove O-ring. 3) Remove camshaft. 4) Remove oil seal. CAUTION: Do not remove oil seal unless necessary. Do not scratch journal surface when

Page 344 of 2890

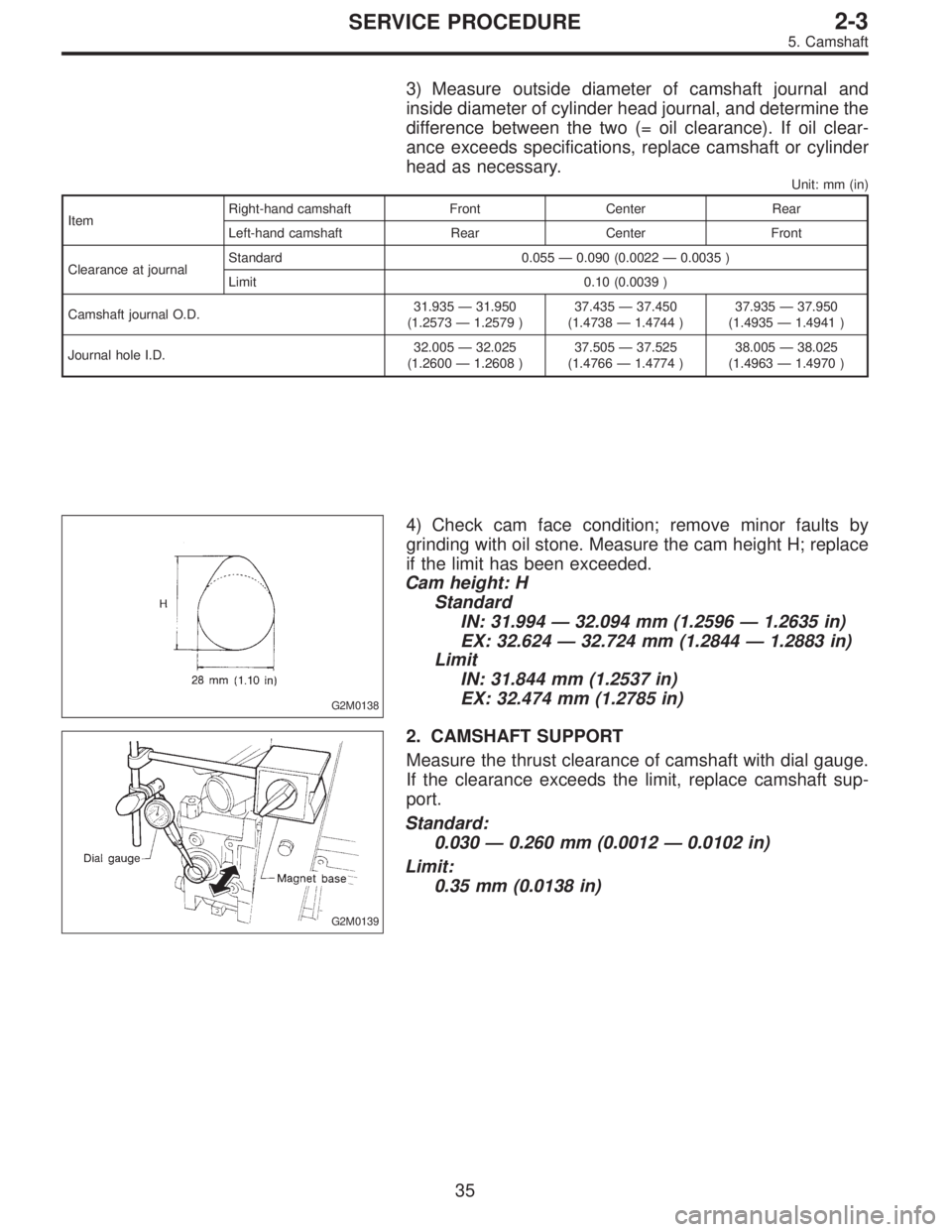

SUBARU LEGACY 1996 Service Repair Manual 3) Measure outside diameter of camshaft journal and inside diameter of cylinder head journal, and determine the difference between the two (= oil clearance). If oil clear- ance exceeds specifications,
