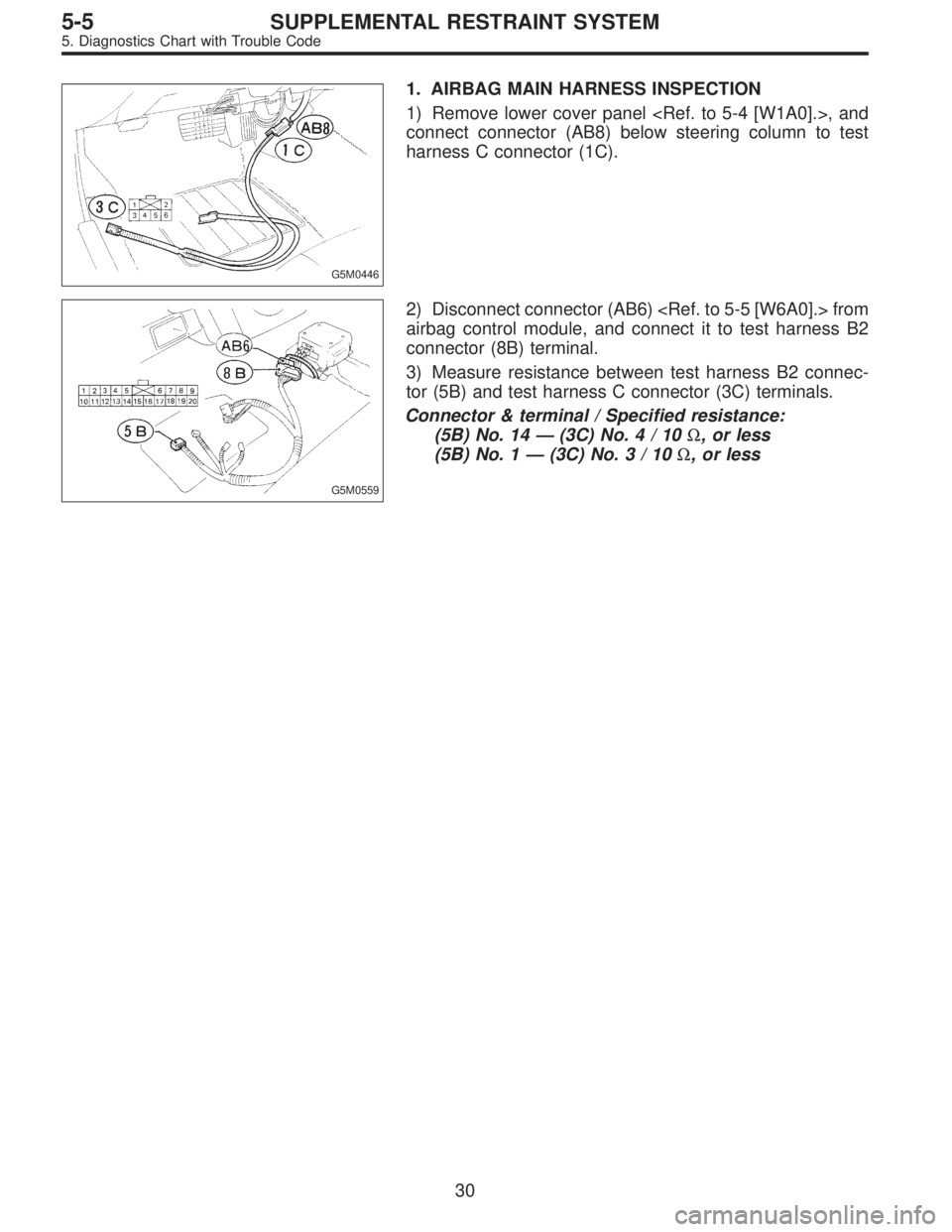

1. AIRBAG MAIN HARNESS INSPECTION
1) Remove lower cover panel , and
connect connector (AB8) below steering column to test
harness C connector (1C).
G5M0559
2) Disconnect connector (AB6) from
airbag control module, and connect it to test harness B2
connector (8B) terminal.
3) Measure resistance between test harness B2 connec-
tor (5B) and test harness C connector (3C) terminals.
Connector & terminal / Specified resistance:
(5B) No. 14—(3C) No.4/10Ω, or less
(5B) No. 1—(3C) No.3/10Ω, or less
30
5-5SUPPLEMENTAL RESTRAINT SYSTEM
5. Diagnostics Chart with Trouble Code
Page 2642 of 2890

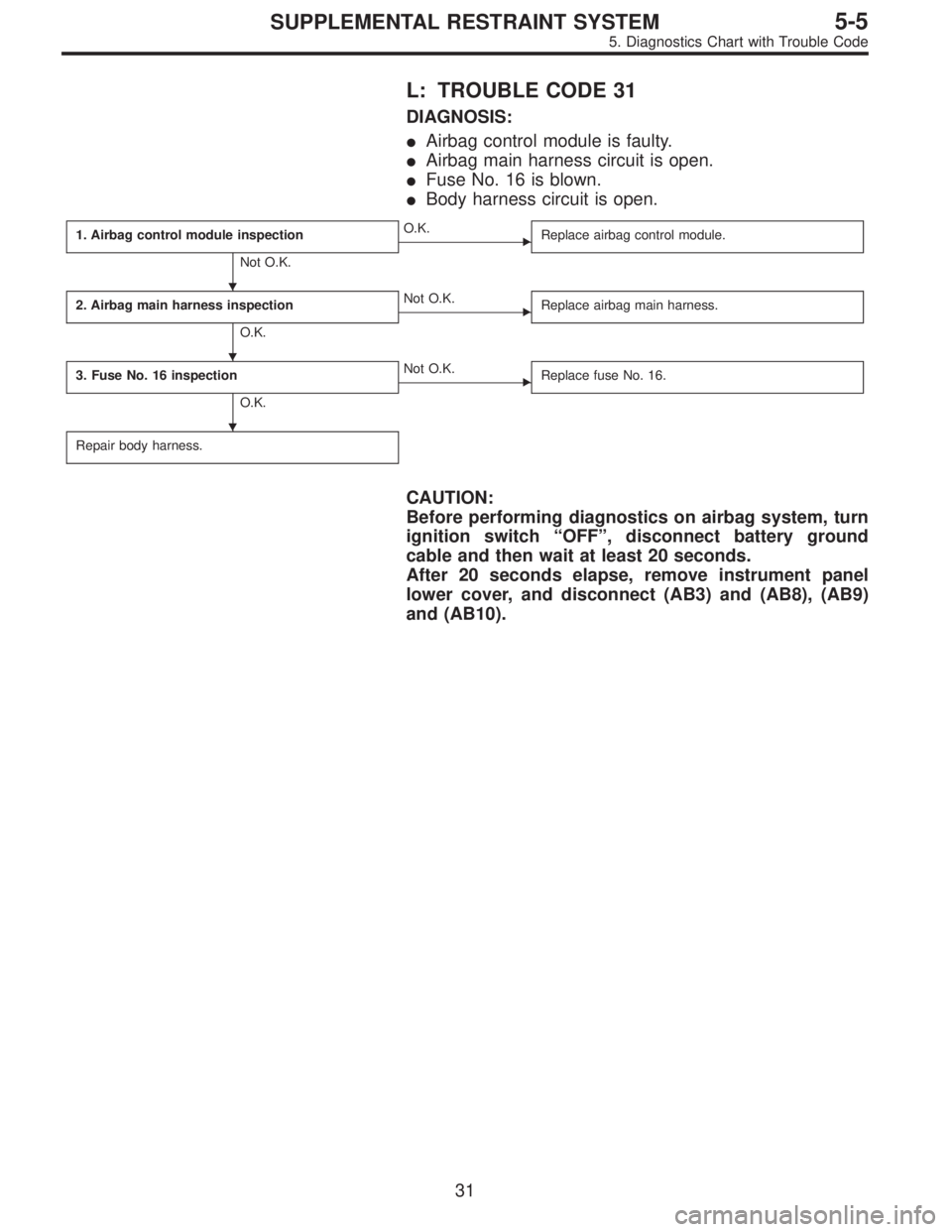

L: TROUBLE CODE 31
DIAGNOSIS:
Airbag control module is faulty.
Airbag main harness circuit is open.
Fuse No. 16 is blown.
Body harness circuit is open.
1. Airbag control module inspection
Not O.K.
O.K.
Replace airbag control module.
2. Airbag main harness inspection
O.K.
Not O.K.
Replace airbag main harness.
3. Fuse No. 16 inspection
O.K.
Not O.K.
Replace fuse No. 16.
Repair body harness.
CAUTION:
Before performing diagnostics on airbag system, turn
ignition switch“OFF”, disconnect battery ground
cable and then wait at least 20 seconds.
After 20 seconds elapse, remove instrument panel
lower cover, and disconnect (AB3) and (AB8), (AB9)
and (AB10).
31
5-5SUPPLEMENTAL RESTRAINT SYSTEM
5. Diagnostics Chart with Trouble Code
Page 2643 of 2890
![SUBARU LEGACY 1996 Service Repair Manual G5M0559
1. AIRBAG CONTROL MODULE INSPECTION
1) Disconnect connector (AB6) from airbag control module
<Ref. to 5-5 [W6A0].>, and connect it to test harness B2
connector (8B).
2) Connect battery ground SUBARU LEGACY 1996 Service Repair Manual G5M0559
1. AIRBAG CONTROL MODULE INSPECTION
1) Disconnect connector (AB6) from airbag control module
<Ref. to 5-5 [W6A0].>, and connect it to test harness B2
connector (8B).
2) Connect battery ground](/manual-img/17/57433/w960_57433-2642.png)
G5M0559

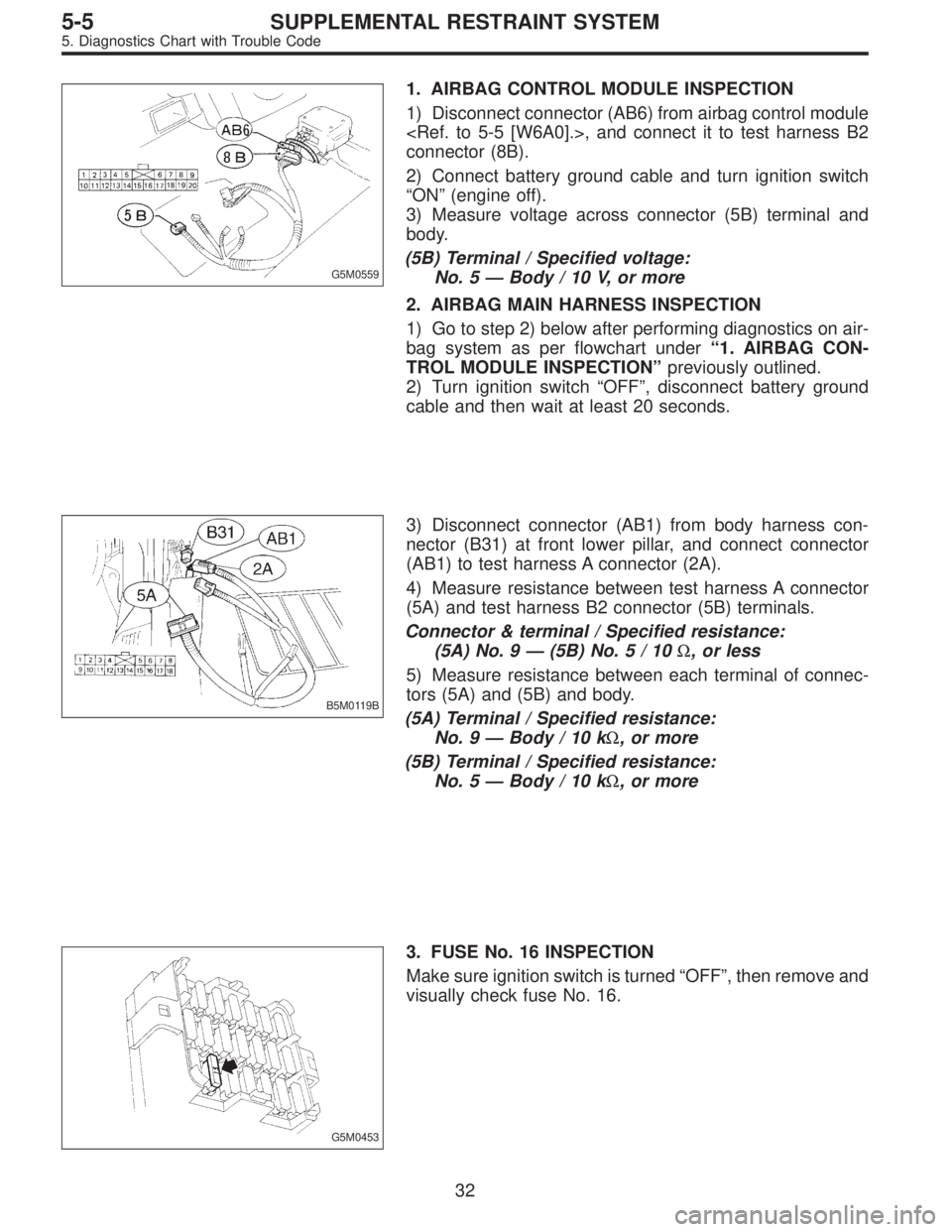

1. AIRBAG CONTROL MODULE INSPECTION
1) Disconnect connector (AB6) from airbag control module
, and connect it to test harness B2
connector (8B).
2) Connect battery ground cable and turn ignition switch
“ON”(engine off).
3) Measure voltage across connector (5B) terminal and
body.
(5B) Terminal / Specified voltage:
No. 5—Body / 10 V, or more
2. AIRBAG MAIN HARNESS INSPECTION
1) Go to step 2) below after performing diagnostics on air-
bag system as per flowchart under“1. AIRBAG CON-
TROL MODULE INSPECTION”previously outlined.
2) Turn ignition switch“OFF”, disconnect battery ground
cable and then wait at least 20 seconds.
B5M0119B
3) Disconnect connector (AB1) from body harness con-
nector (B31) at front lower pillar, and connect connector
(AB1) to test harness A connector (2A).
4) Measure resistance between test harness A connector
(5A) and test harness B2 connector (5B) terminals.
Connector & terminal / Specified resistance:
(5A) No. 9—(5B) No.5/10Ω, or less
5) Measure resistance between each terminal of connec-
tors (5A) and (5B) and body.
(5A) Terminal / Specified resistance:
No. 9—Body/10kΩ, or more
(5B) Terminal / Specified resistance:
No. 5—Body/10kΩ, or more
G5M0453
3. FUSE No. 16 INSPECTION
Make sure ignition switch is turned“OFF”, then remove and
visually check fuse No. 16.
32
5-5SUPPLEMENTAL RESTRAINT SYSTEM
5. Diagnostics Chart with Trouble Code
Page 2644 of 2890

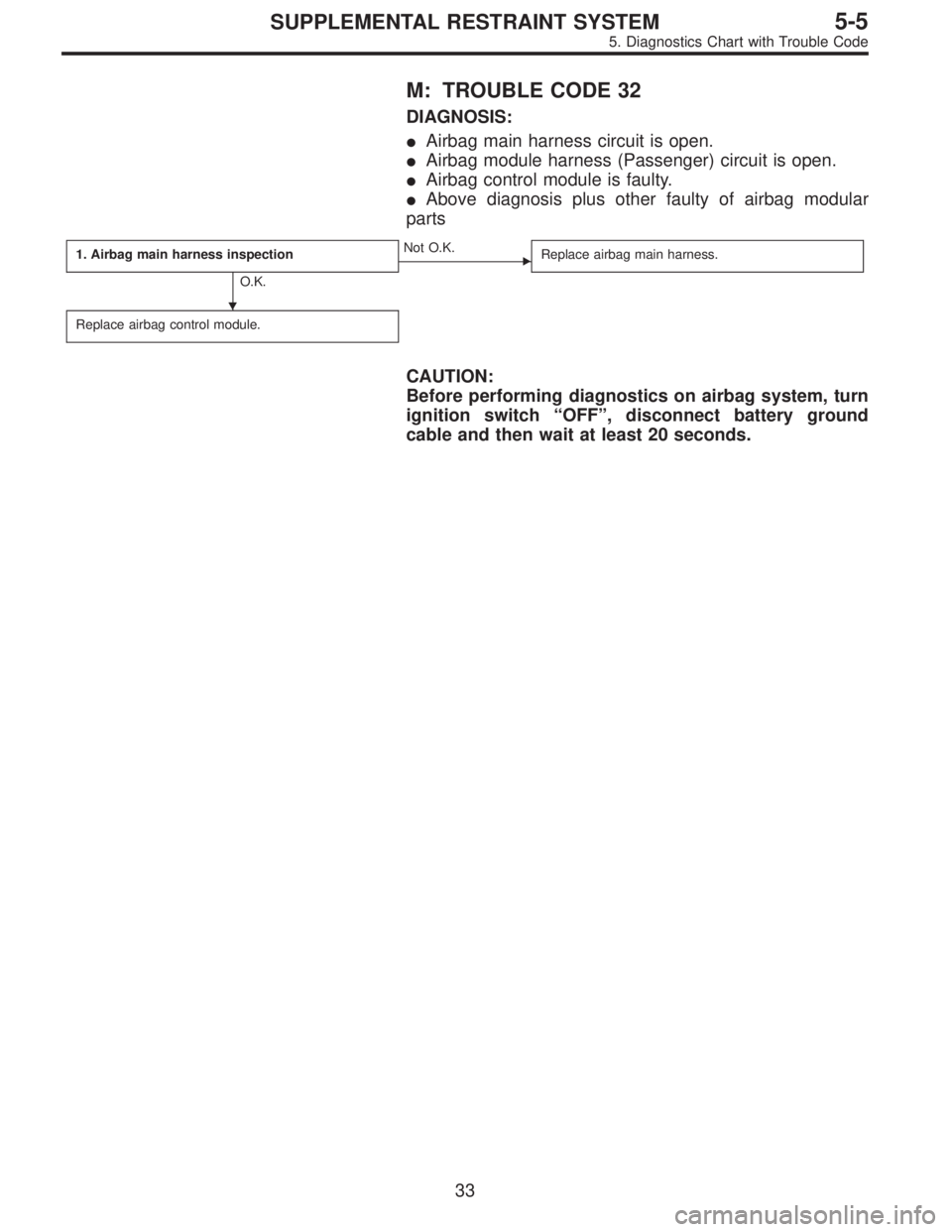

M: TROUBLE CODE 32
DIAGNOSIS:
Airbag main harness circuit is open.
Airbag module harness (Passenger) circuit is open.
Airbag control module is faulty.
Above diagnosis plus other faulty of airbag modular
parts
1. Airbag main harness inspection
O.K.
Not O.K.
Replace airbag main harness.
Replace airbag control module.
CAUTION:
Before performing diagnostics on airbag system, turn
ignition switch“OFF”, disconnect battery ground
cable and then wait at least 20 seconds.
33
5-5SUPPLEMENTAL RESTRAINT SYSTEM
5. Diagnostics Chart with Trouble Code
Page 2645 of 2890
B5M0120A

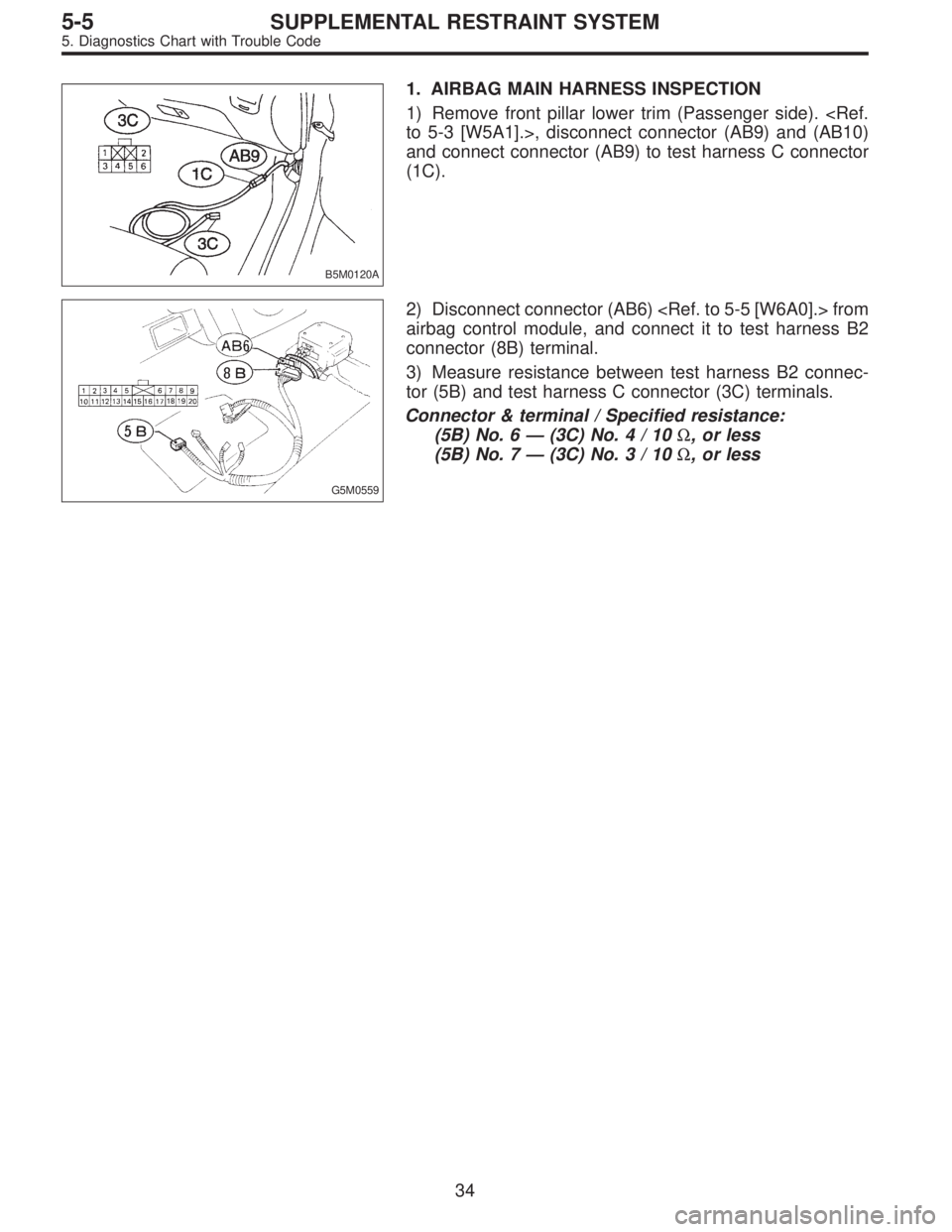

1. AIRBAG MAIN HARNESS INSPECTION
1) Remove front pillar lower trim (Passenger side).
to 5-3 [W5A1].>, disconnect connector (AB9) and (AB10)
and connect connector (AB9) to test harness C connector
(1C).
G5M0559
2) Disconnect connector (AB6) from
airbag control module, and connect it to test harness B2
connector (8B) terminal.
3) Measure resistance between test harness B2 connec-
tor (5B) and test harness C connector (3C) terminals.
Connector & terminal / Specified resistance:
(5B) No. 6—(3C) No.4/10Ω, or less
(5B) No. 7—(3C) No.3/10Ω, or less
34
5-5SUPPLEMENTAL RESTRAINT SYSTEM
5. Diagnostics Chart with Trouble Code
Page 2646 of 2890

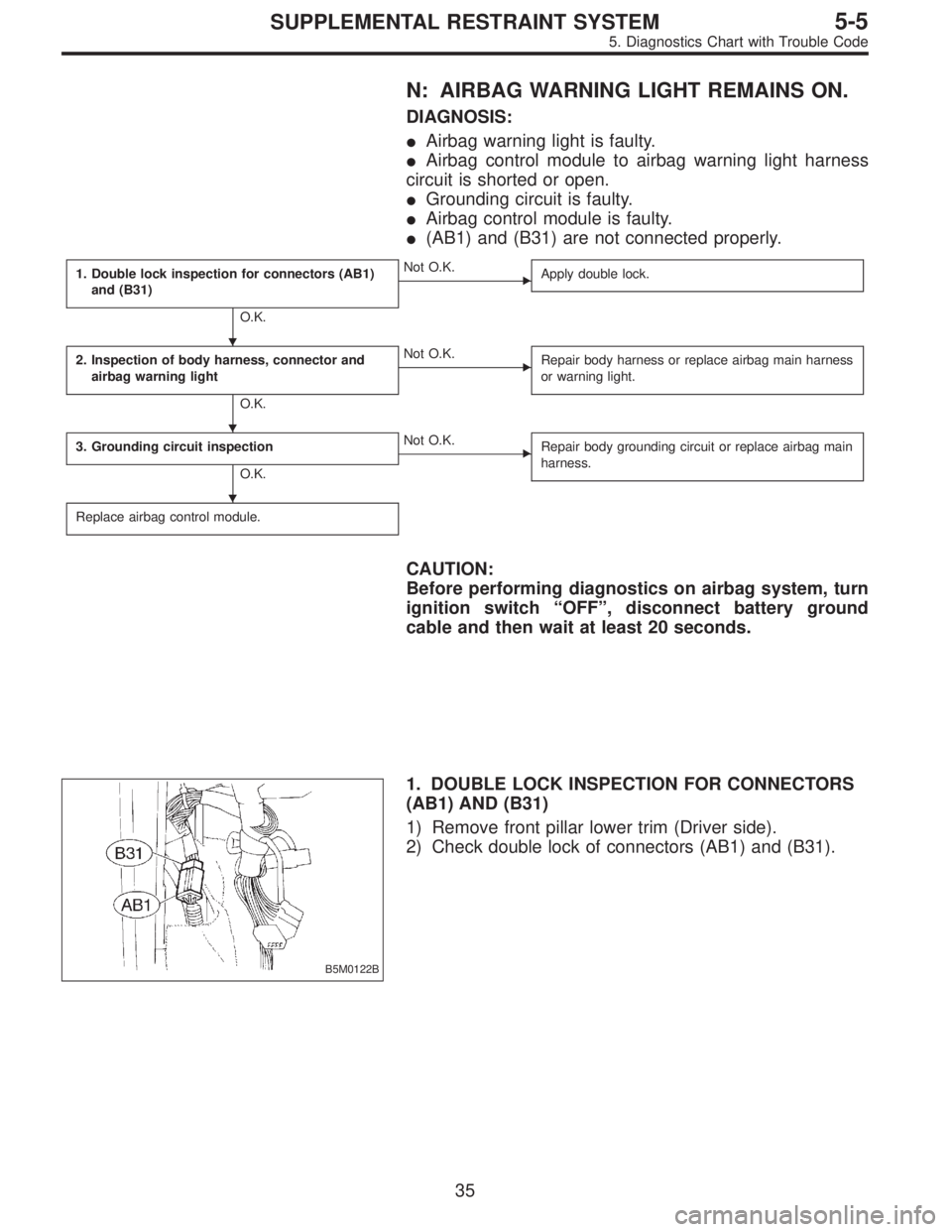

N: AIRBAG WARNING LIGHT REMAINS ON.
DIAGNOSIS:
Airbag warning light is faulty.
Airbag control module to airbag warning light harness
circuit is shorted or open.
Grounding circuit is faulty.
Airbag control module is faulty.
(AB1) and (B31) are not connected properly.
1. Double lock inspection for connectors (AB1)
and (B31)
O.K.
Not O.K.
Apply double lock.
2. Inspection of body harness, connector and
airbag warning light
O.K.
Not O.K.
Repair body harness or replace airbag main harness
or warning light.
3. Grounding circuit inspection
O.K.
Not O.K.
Repair body grounding circuit or replace airbag main
harness.
Replace airbag control module.
CAUTION:
Before performing diagnostics on airbag system, turn
ignition switch“OFF”, disconnect battery ground
cable and then wait at least 20 seconds.
B5M0122B
1. DOUBLE LOCK INSPECTION FOR CONNECTORS
(AB1) AND (B31)
1) Remove front pillar lower trim (Driver side).
2) Check double lock of connectors (AB1) and (B31).
35
5-5SUPPLEMENTAL RESTRAINT SYSTEM
5. Diagnostics Chart with Trouble Code
Page 2647 of 2890

B5M0123B

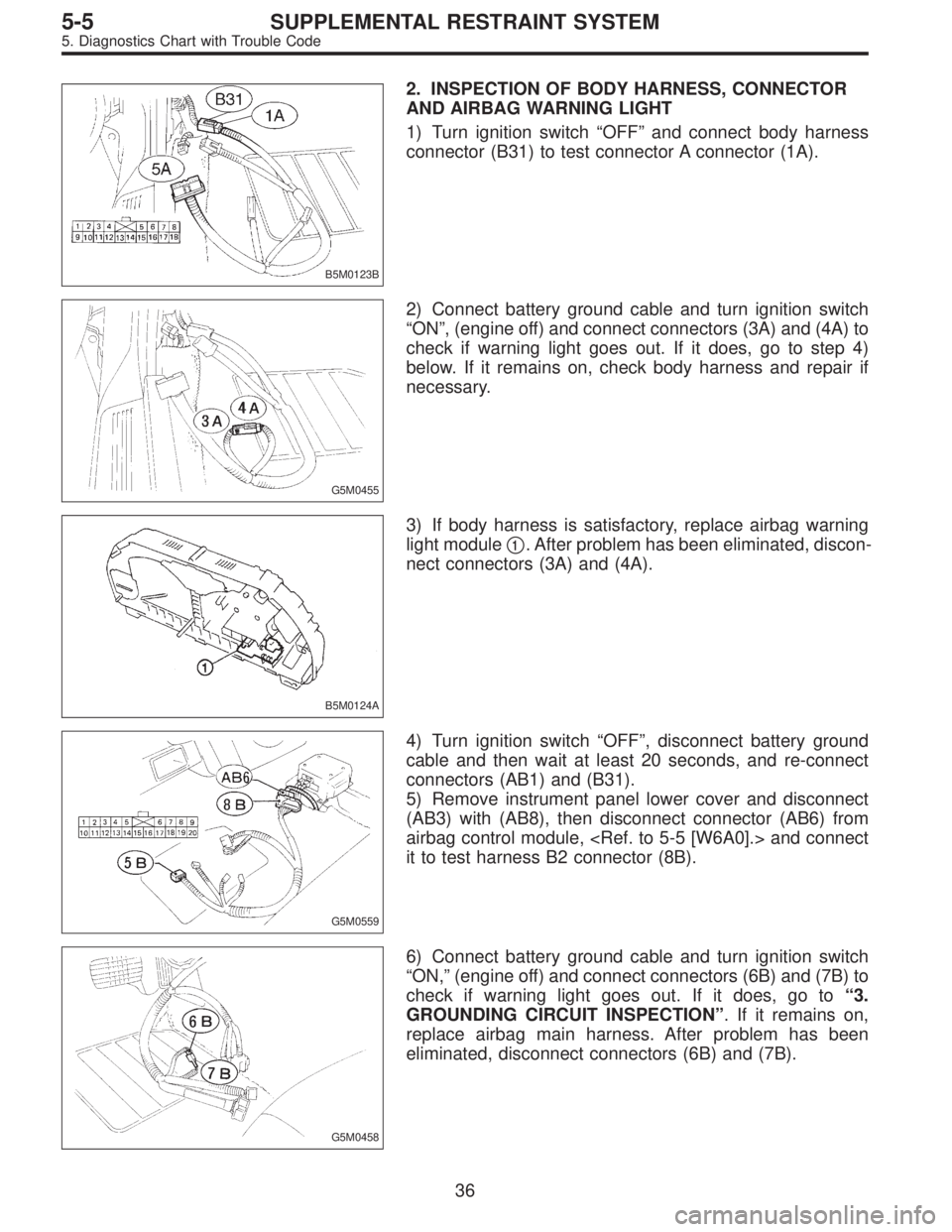

2. INSPECTION OF BODY HARNESS, CONNECTOR
AND AIRBAG WARNING LIGHT
1) Turn ignition switch“OFF”and connect body harness
connector (B31) to test connector A connector (1A).
G5M0455
2) Connect battery ground cable and turn ignition switch
“ON”, (engine off) and connect connectors (3A) and (4A) to
check if warning light goes out. If it does, go to step 4)
below. If it remains on, check body harness and repair if
necessary.
B5M0124A
3) If body harness is satisfactory, replace airbag warning
light module
1. After problem has been eliminated, discon-
nect connectors (3A) and (4A).
G5M0559
4) Turn ignition switch“OFF”, disconnect battery ground
cable and then wait at least 20 seconds, and re-connect
connectors (AB1) and (B31).
5) Remove instrument panel lower cover and disconnect
(AB3) with (AB8), then disconnect connector (AB6) from
airbag control module, and connect
it to test harness B2 connector (8B).
G5M0458
6) Connect battery ground cable and turn ignition switch
“ON,”(engine off) and connect connectors (6B) and (7B) to
check if warning light goes out. If it does, go to“3.
GROUNDING CIRCUIT INSPECTION”. If it remains on,
replace airbag main harness. After problem has been
eliminated, disconnect connectors (6B) and (7B).
36
5-5SUPPLEMENTAL RESTRAINT SYSTEM
5. Diagnostics Chart with Trouble Code
Page 2648 of 2890

B5M0123B

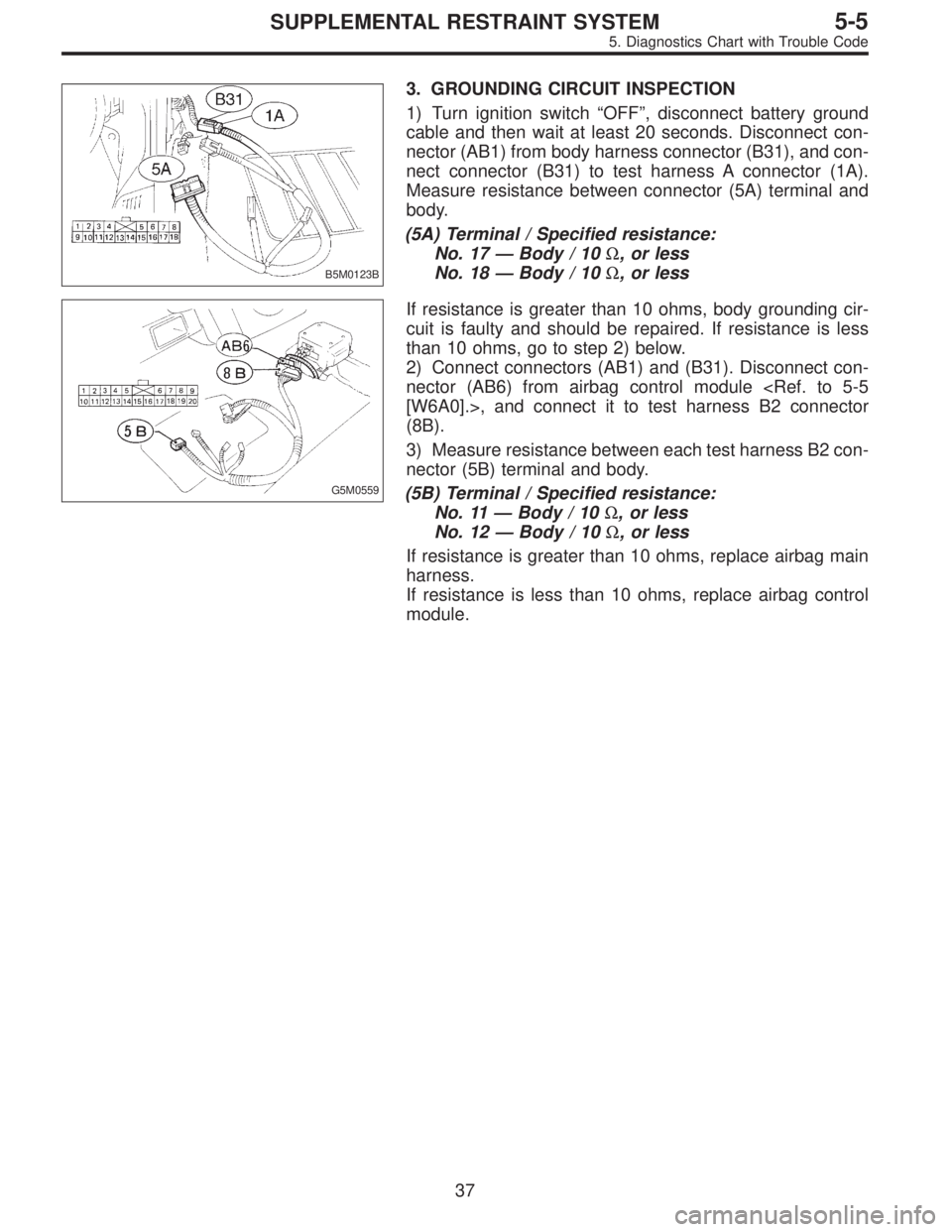

3. GROUNDING CIRCUIT INSPECTION
1) Turn ignition switch“OFF”, disconnect battery ground
cable and then wait at least 20 seconds. Disconnect con-
nector (AB1) from body harness connector (B31), and con-
nect connector (B31) to test harness A connector (1A).
Measure resistance between connector (5A) terminal and
body.
(5A) Terminal / Specified resistance:
No. 17—Body / 10Ω, or less
No. 18—Body / 10Ω, or less
G5M0559
If resistance is greater than 10 ohms, body grounding cir-
cuit is faulty and should be repaired. If resistance is less
than 10 ohms, go to step 2) below.
2) Connect connectors (AB1) and (B31). Disconnect con-
nector (AB6) from airbag control module
[W6A0].>, and connect it to test harness B2 connector
(8B).
3) Measure resistance between each test harness B2 con-
nector (5B) terminal and body.
(5B) Terminal / Specified resistance:
No. 11—Body / 10Ω, or less
No. 12—Body / 10Ω, or less
If resistance is greater than 10 ohms, replace airbag main
harness.
If resistance is less than 10 ohms, replace airbag control
module.
37
5-5SUPPLEMENTAL RESTRAINT SYSTEM
5. Diagnostics Chart with Trouble Code
