1996 SUBARU LEGACY Service Repair Manual

Page 505 of 2890

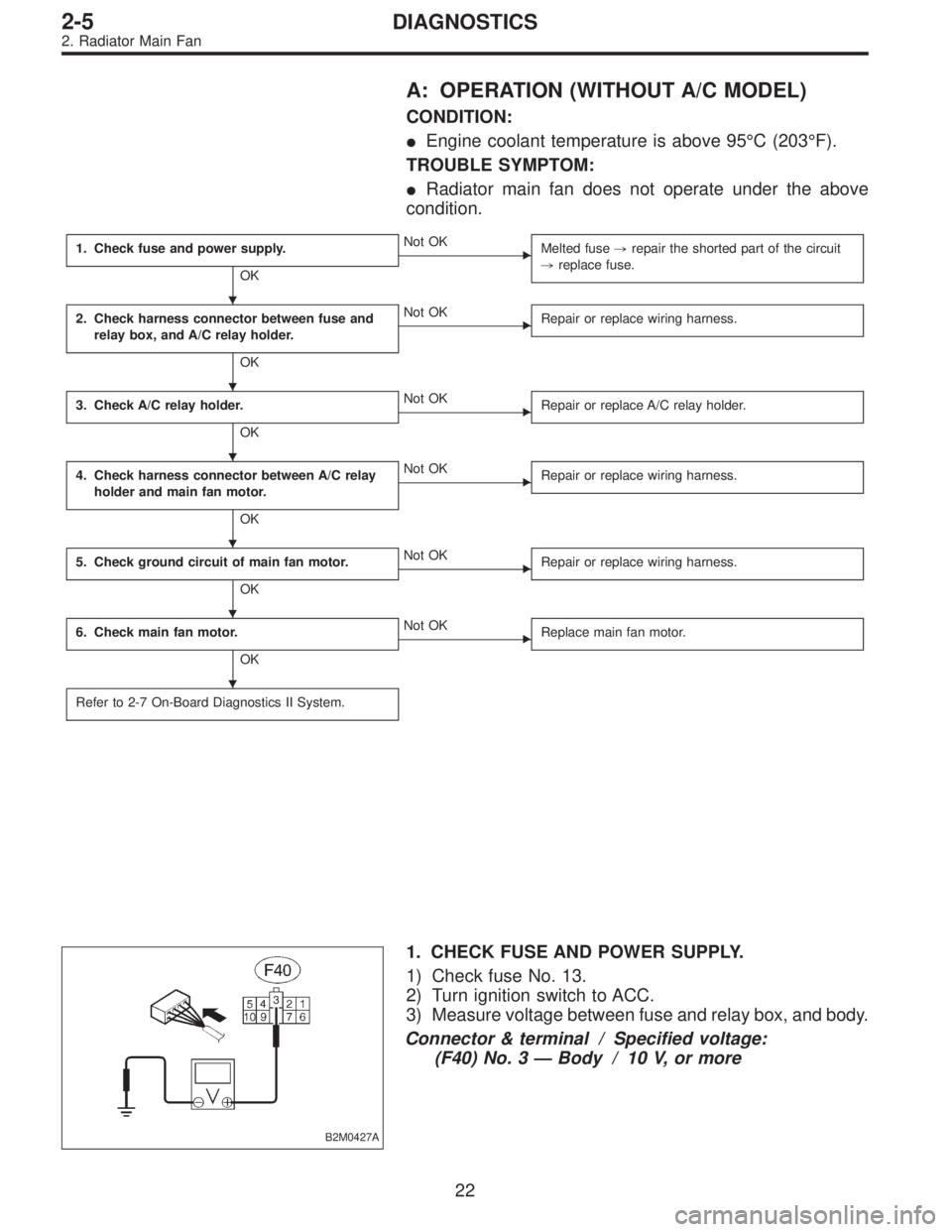

SUBARU LEGACY 1996  Service Repair Manual A: OPERATION (WITHOUT A/C MODEL)
CONDITION:
Engine coolant temperature is above 95°C (203°F).
TROUBLE SYMPTOM:
Radiator main fan does not operate under the above
condition.
1. Check fuse and power

Page 506 of 2890

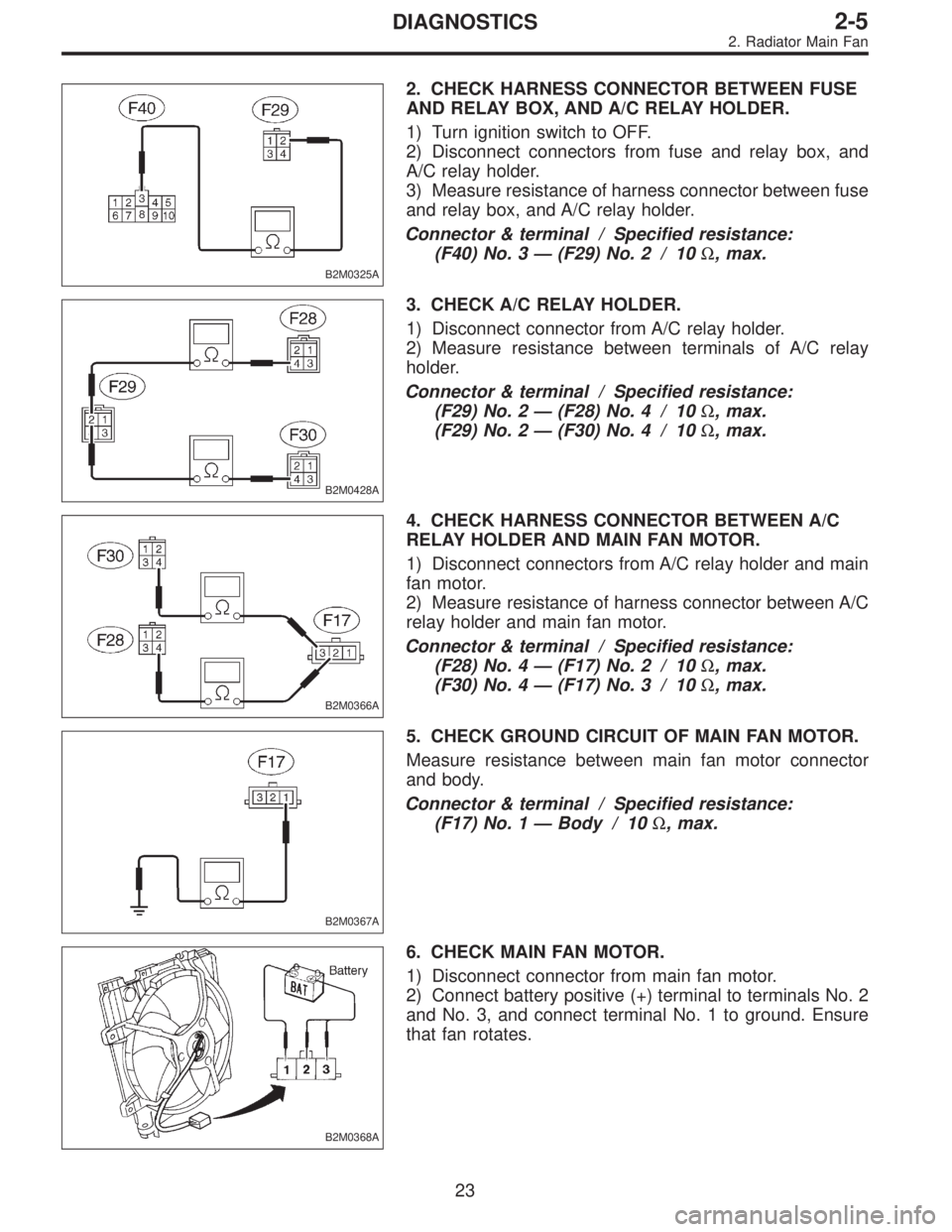

SUBARU LEGACY 1996  Service Repair Manual B2M0325A
2. CHECK HARNESS CONNECTOR BETWEEN FUSE
AND RELAY BOX, AND A/C RELAY HOLDER.
1) Turn ignition switch to OFF.
2) Disconnect connectors from fuse and relay box, and
A/C relay holder.
3) Measure

Page 507 of 2890

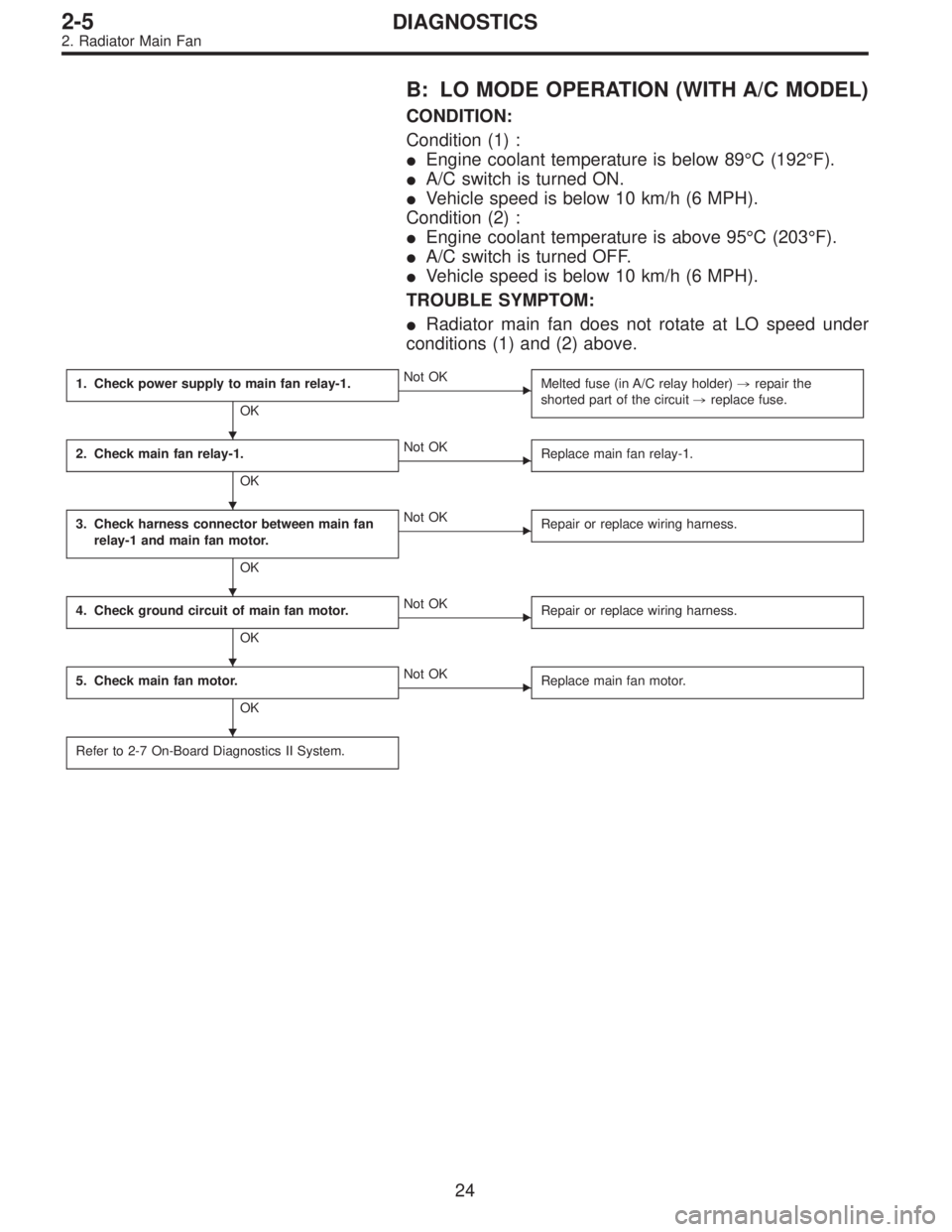

SUBARU LEGACY 1996  Service Repair Manual B: LO MODE OPERATION (WITH A/C MODEL)
CONDITION:
Condition (1) :
Engine coolant temperature is below 89°C (192°F).
A/C switch is turned ON.
Vehicle speed is below 10 km/h (6 MPH).
Condition (2) :

Page 508 of 2890

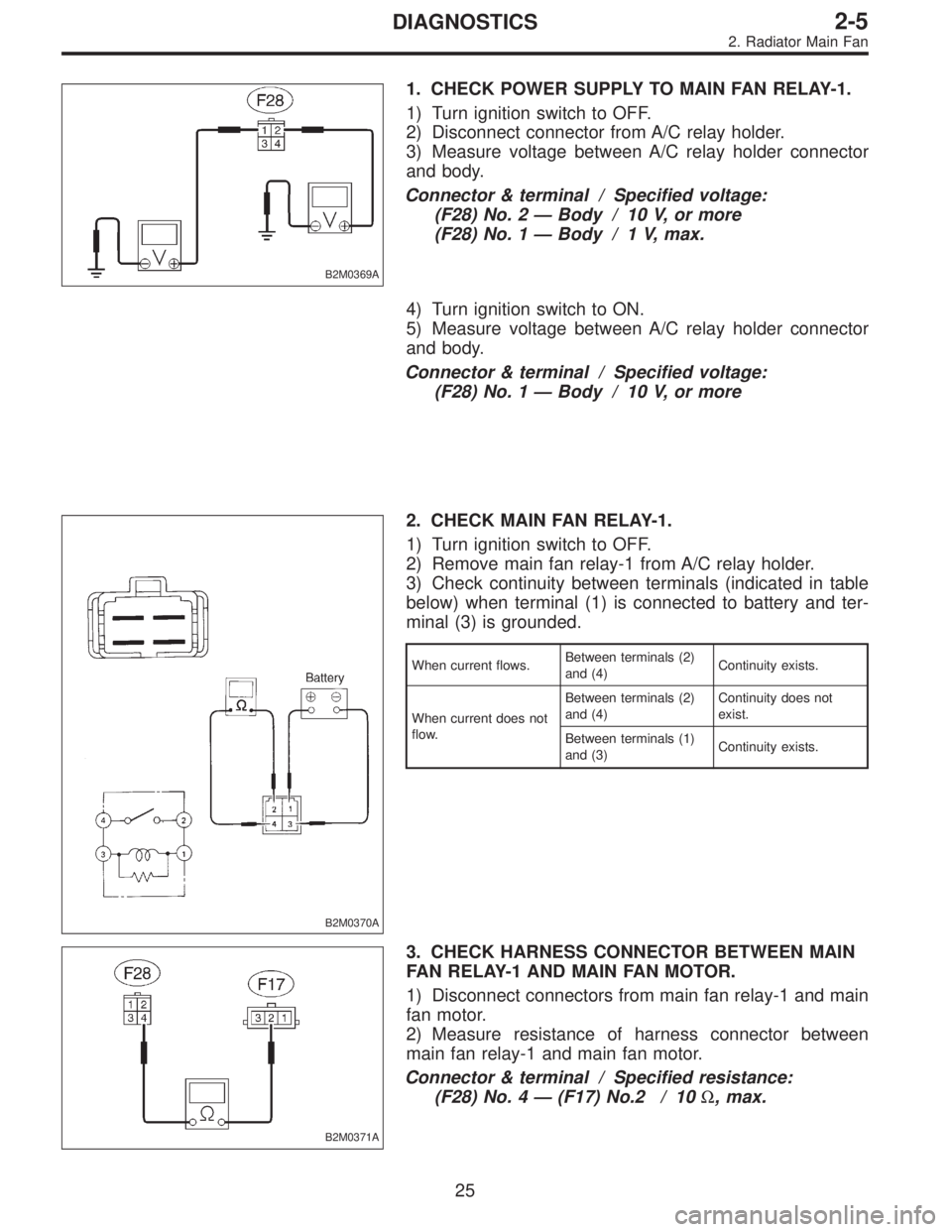

SUBARU LEGACY 1996  Service Repair Manual B2M0369A
1. CHECK POWER SUPPLY TO MAIN FAN RELAY-1.
1) Turn ignition switch to OFF.
2) Disconnect connector from A/C relay holder.
3) Measure voltage between A/C relay holder connector
and body.
Conne

Page 509 of 2890

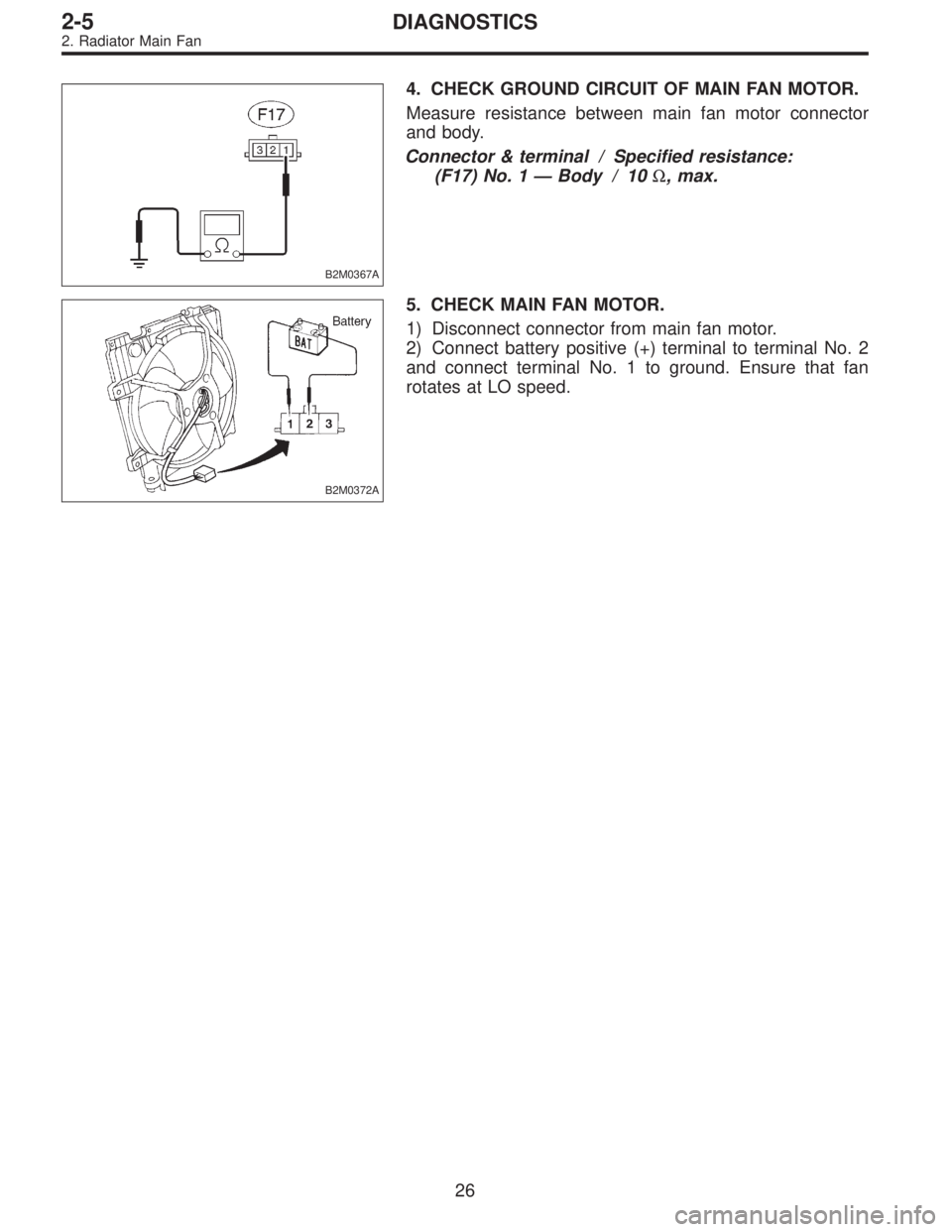

SUBARU LEGACY 1996  Service Repair Manual B2M0367A
4. CHECK GROUND CIRCUIT OF MAIN FAN MOTOR.
Measure resistance between main fan motor connector
and body.
Connector & terminal / Specified resistance:
(F17) No. 1—Body / 10Ω, max.
B2M0372A

Page 510 of 2890

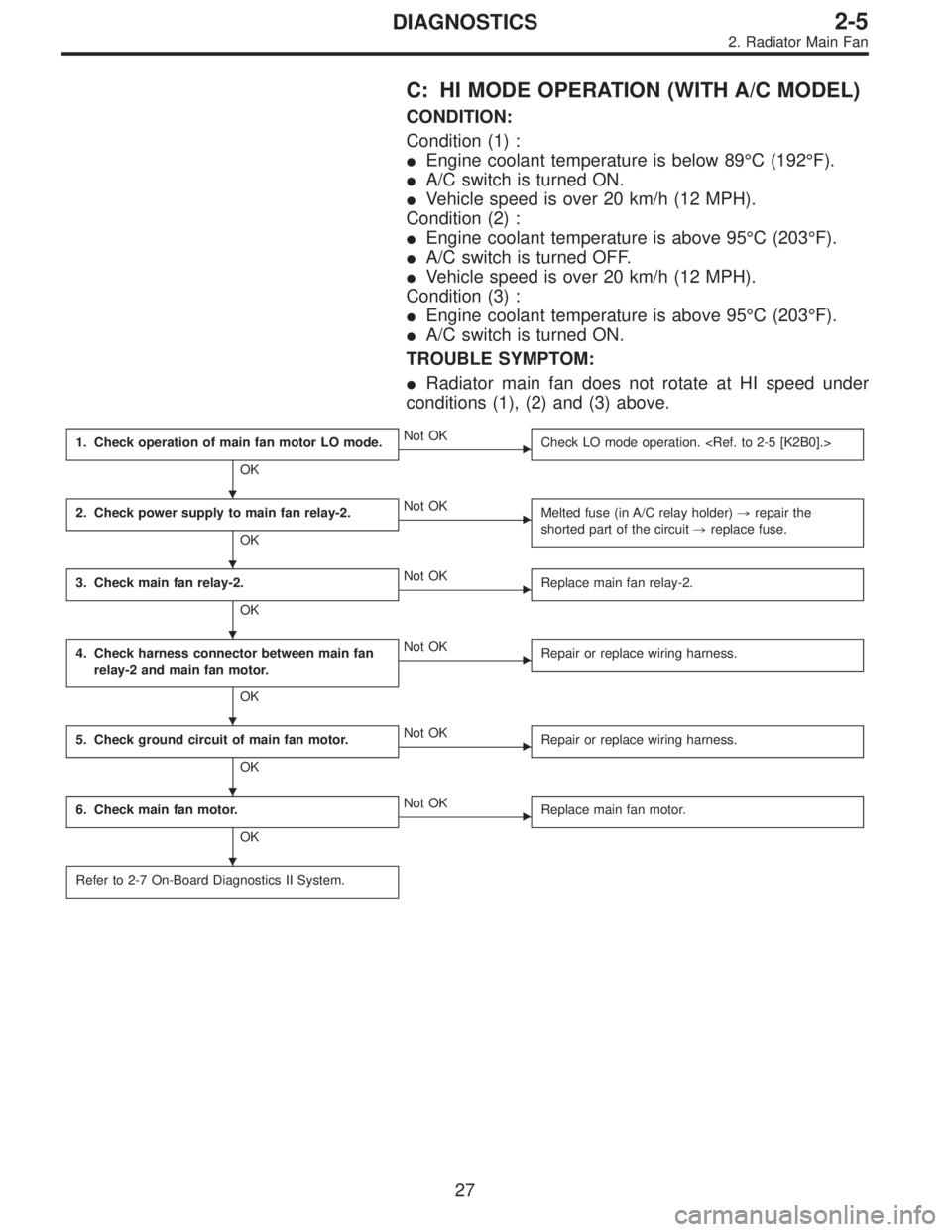

SUBARU LEGACY 1996  Service Repair Manual C: HI MODE OPERATION (WITH A/C MODEL)
CONDITION:
Condition (1) :
Engine coolant temperature is below 89°C (192°F).
A/C switch is turned ON.
Vehicle speed is over 20 km/h (12 MPH).
Condition (2) :

Page 511 of 2890

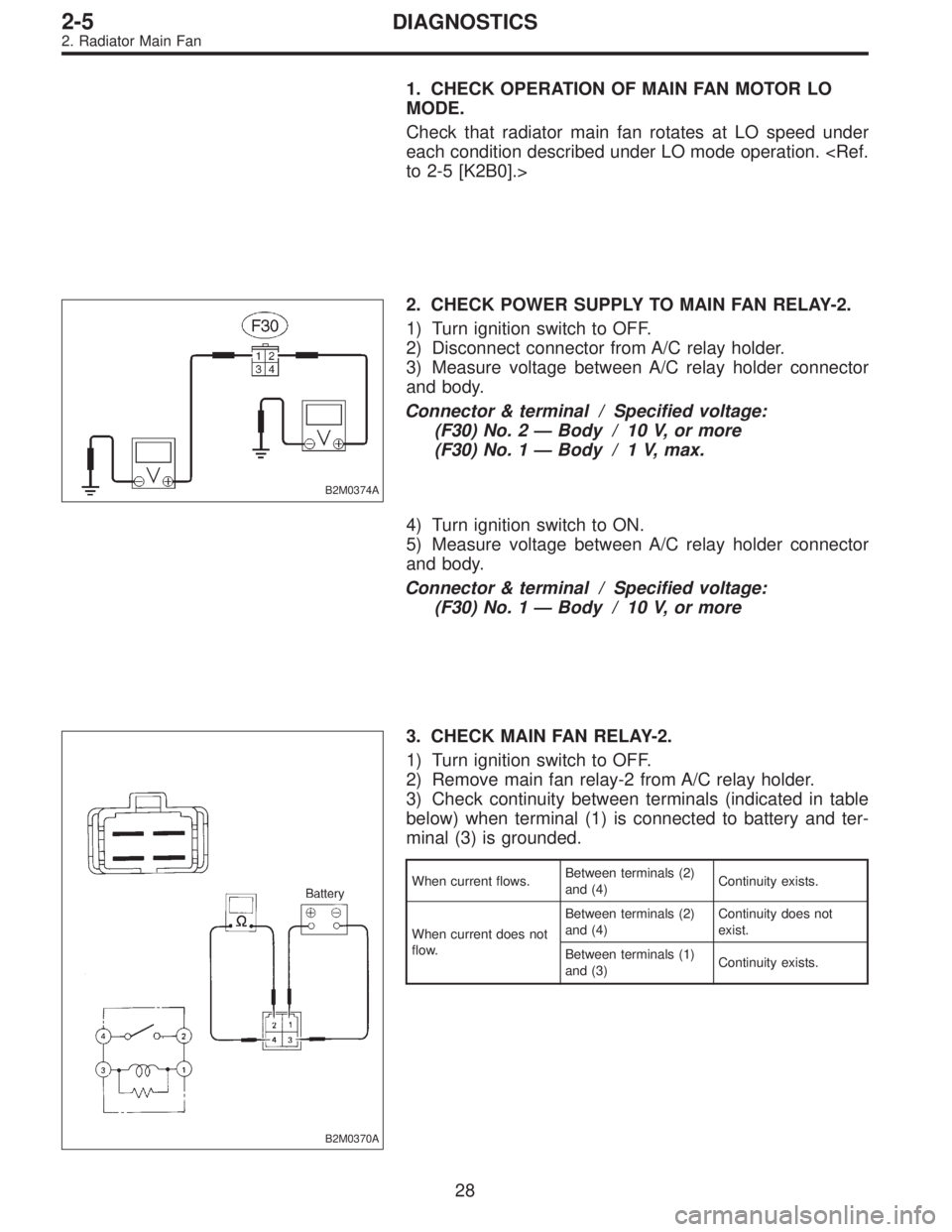

SUBARU LEGACY 1996  Service Repair Manual 1. CHECK OPERATION OF MAIN FAN MOTOR LO
MODE.
Check that radiator main fan rotates at LO speed under
each condition described under LO mode operation. <Ref.
to 2-5 [K2B0].>
B2M0374A
2. CHECK POWER SUP

Page 512 of 2890

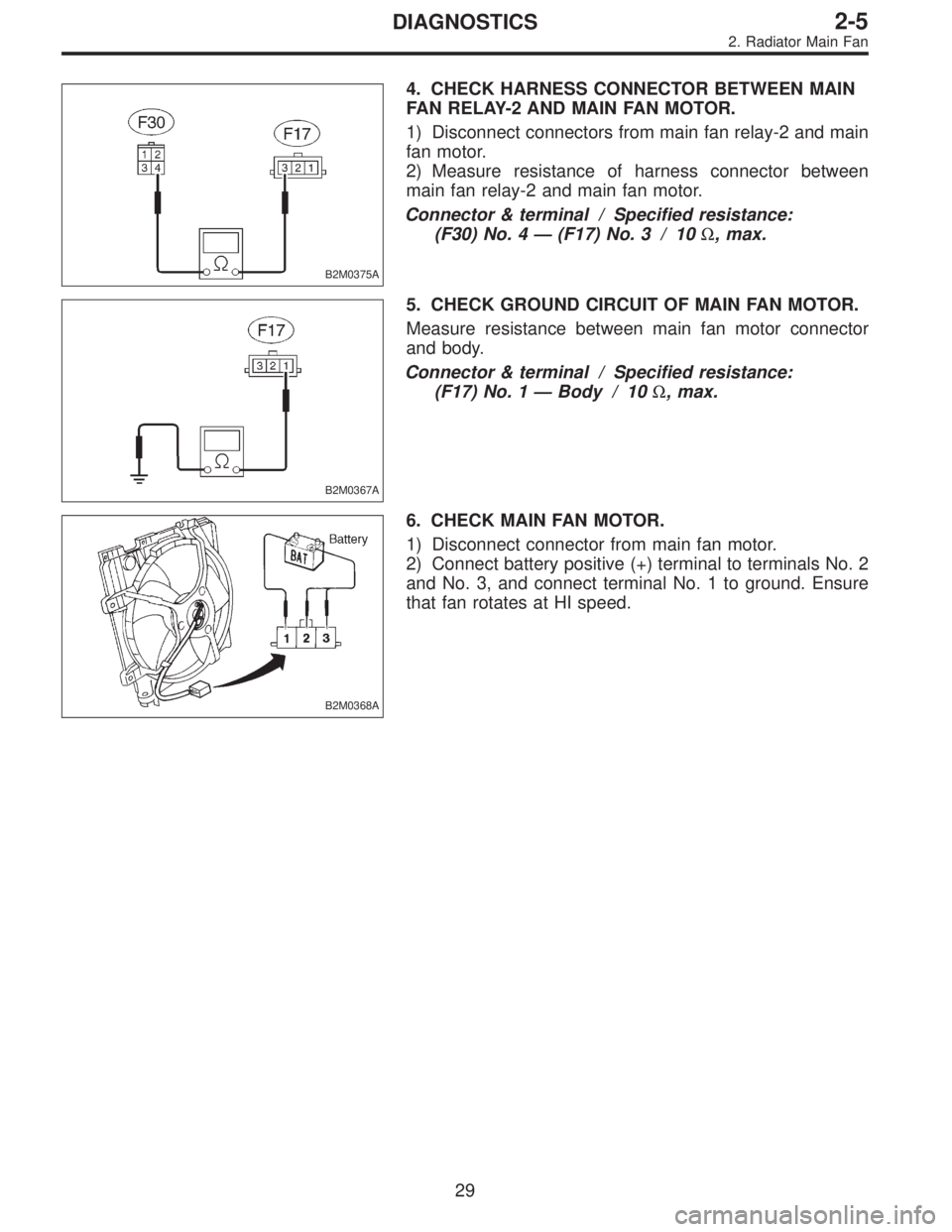

SUBARU LEGACY 1996  Service Repair Manual B2M0375A
4. CHECK HARNESS CONNECTOR BETWEEN MAIN
FAN RELAY-2 AND MAIN FAN MOTOR.
1) Disconnect connectors from main fan relay-2 and main
fan motor.
2) Measure resistance of harness connector between
m
