1996 SUBARU LEGACY Service Repair Manual

Page 673 of 2890

SUBARU LEGACY 1996  Service Repair Manual G2M0357

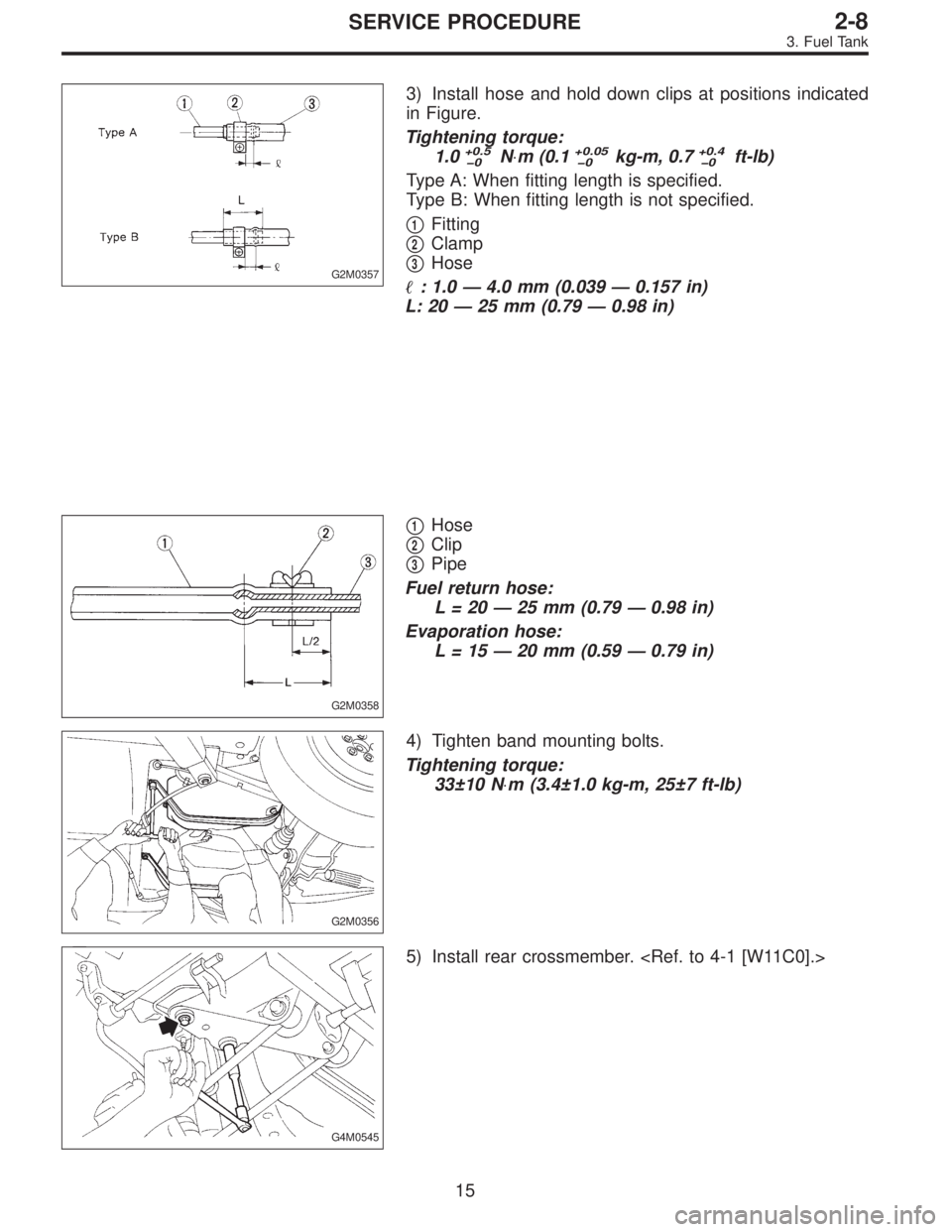

3) Install hose and hold down clips at positions indicated
in Figure.
Tightening torque:
1.0
+0.5
�0N⋅m (0.1+0.05
�0kg-m, 0.7+0.4
�0ft-lb)
Type A: When fitting length is specified.
Type B: W

Page 674 of 2890

SUBARU LEGACY 1996  Service Repair Manual G3M0059

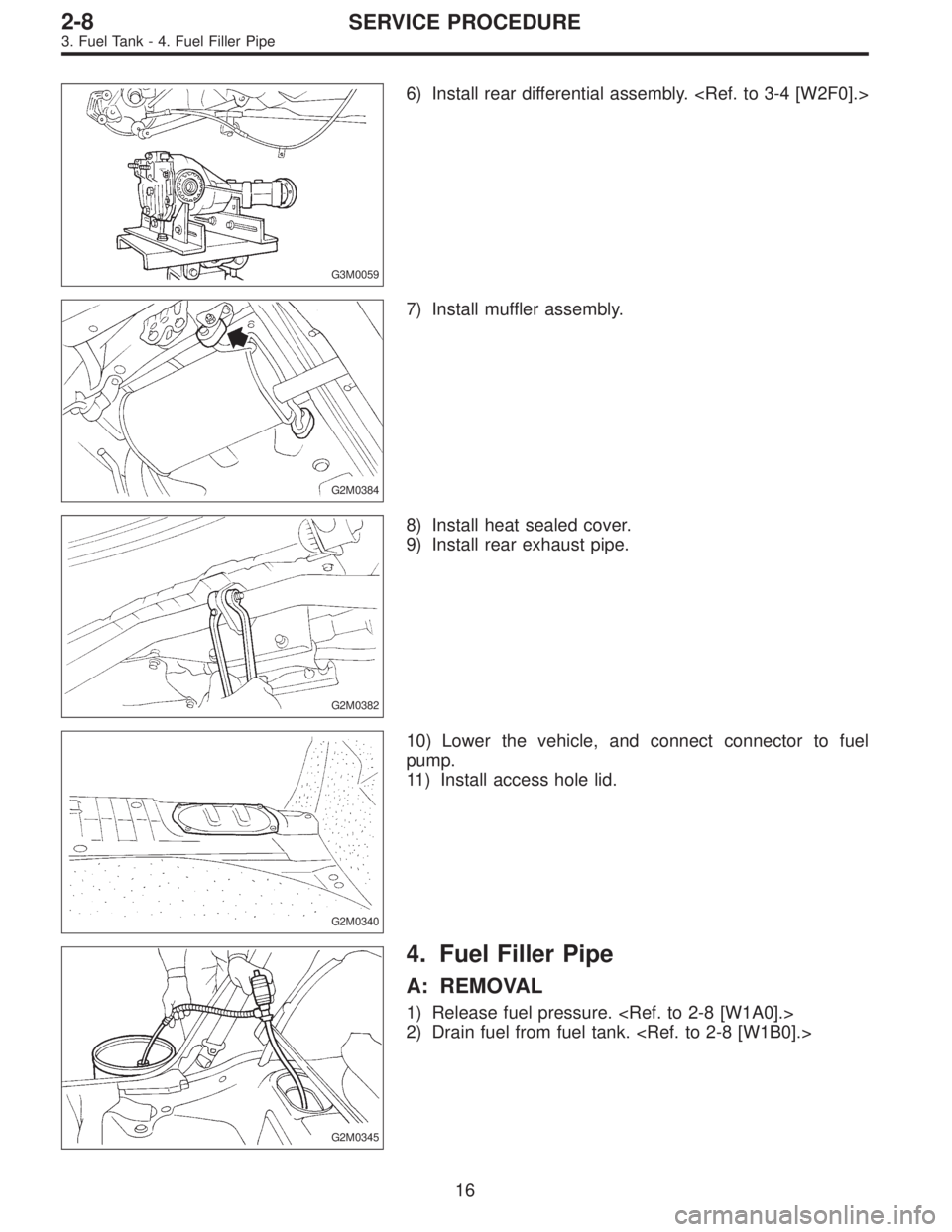

6) Install rear differential assembly. <Ref. to 3-4 [W2F0].>
G2M0384
7) Install muffler assembly.
G2M0382
8) Install heat sealed cover.
9) Install rear exhaust pipe.
G2M0340
10) Lower the vehi

Page 675 of 2890

SUBARU LEGACY 1996  Service Repair Manual G3M0059
6) Install rear differential assembly. <Ref. to 3-4 [W2F0].>
G2M0384
7) Install muffler assembly.
G2M0382
8) Install heat sealed cover.
9) Install rear exhaust pipe.
G2M0340
10) Lower the vehi

Page 676 of 2890

SUBARU LEGACY 1996  Service Repair Manual G2M0360

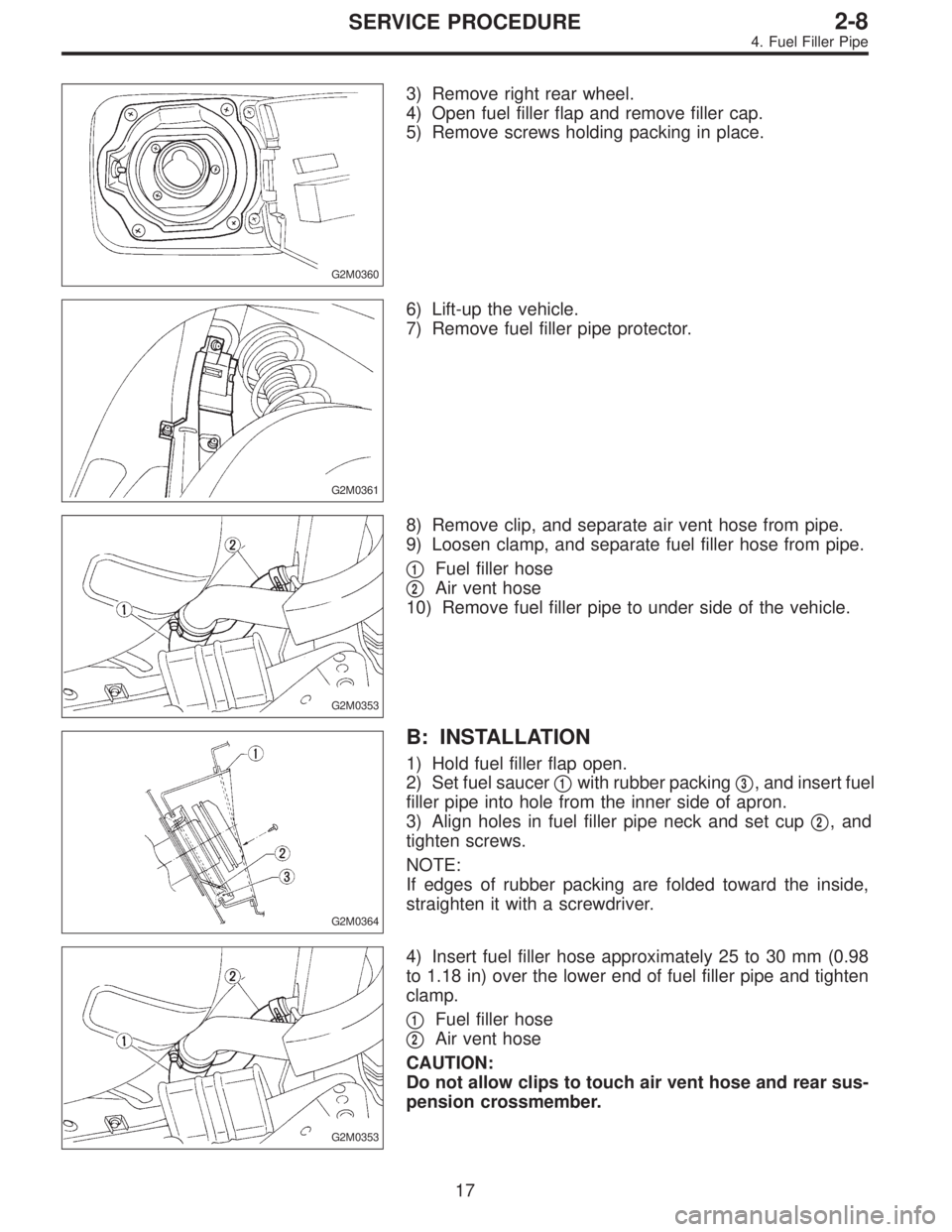

3) Remove right rear wheel.
4) Open fuel filler flap and remove filler cap.
5) Remove screws holding packing in place.
G2M0361
6) Lift-up the vehicle.
7) Remove fuel filler pipe protector.
G2M

Page 677 of 2890

SUBARU LEGACY 1996  Service Repair Manual G2M0358

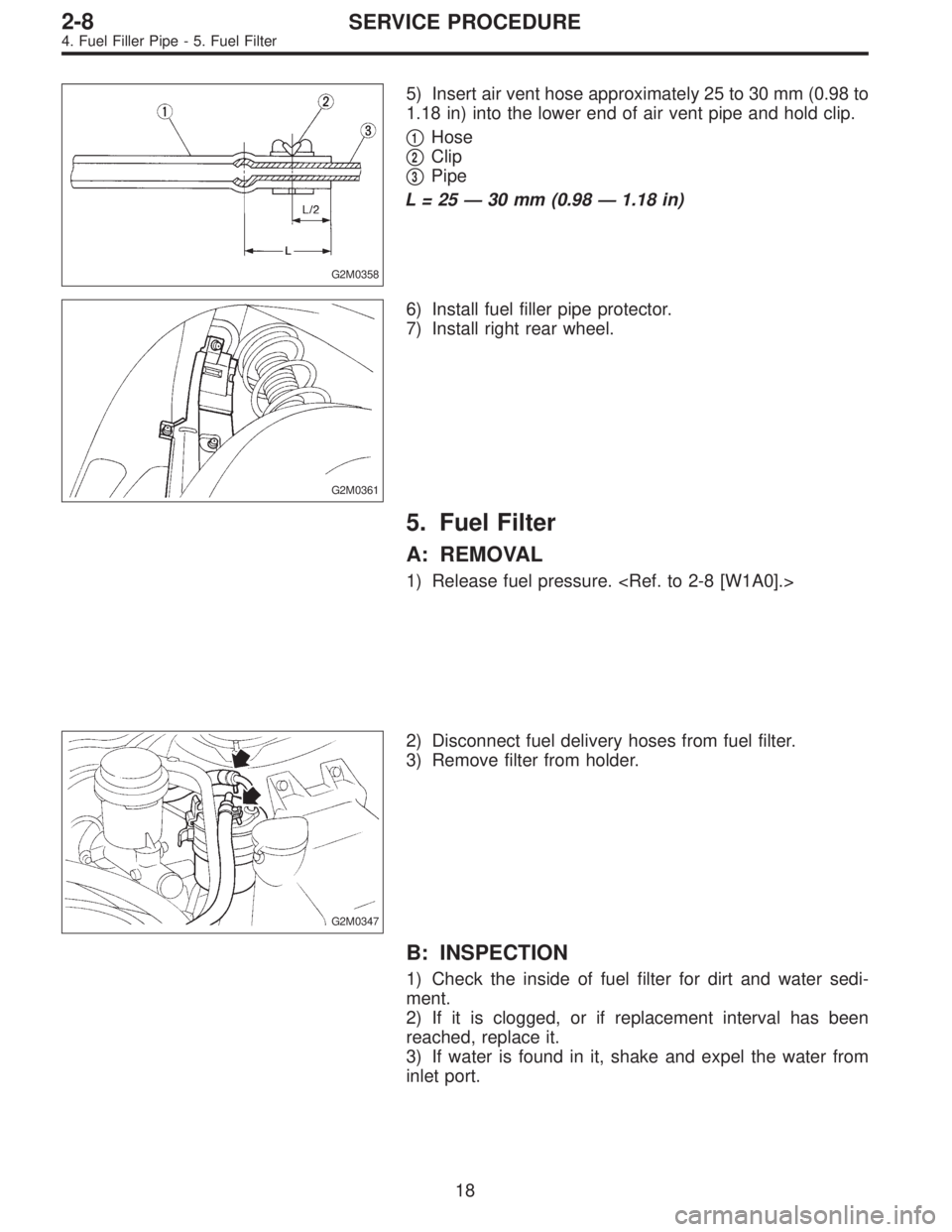

5) Insert air vent hose approximately 25 to 30 mm (0.98 to
1.18 in) into the lower end of air vent pipe and hold clip.

1Hose

2Clip

3Pipe
L=25—30 mm (0.98—1.18 in)
G2M0361
6) Install

Page 678 of 2890

SUBARU LEGACY 1996  Service Repair Manual G2M0358
5) Insert air vent hose approximately 25 to 30 mm (0.98 to
1.18 in) into the lower end of air vent pipe and hold clip.

1Hose

2Clip

3Pipe
L=25—30 mm (0.98—1.18 in)
G2M0361
6) Install

Page 679 of 2890

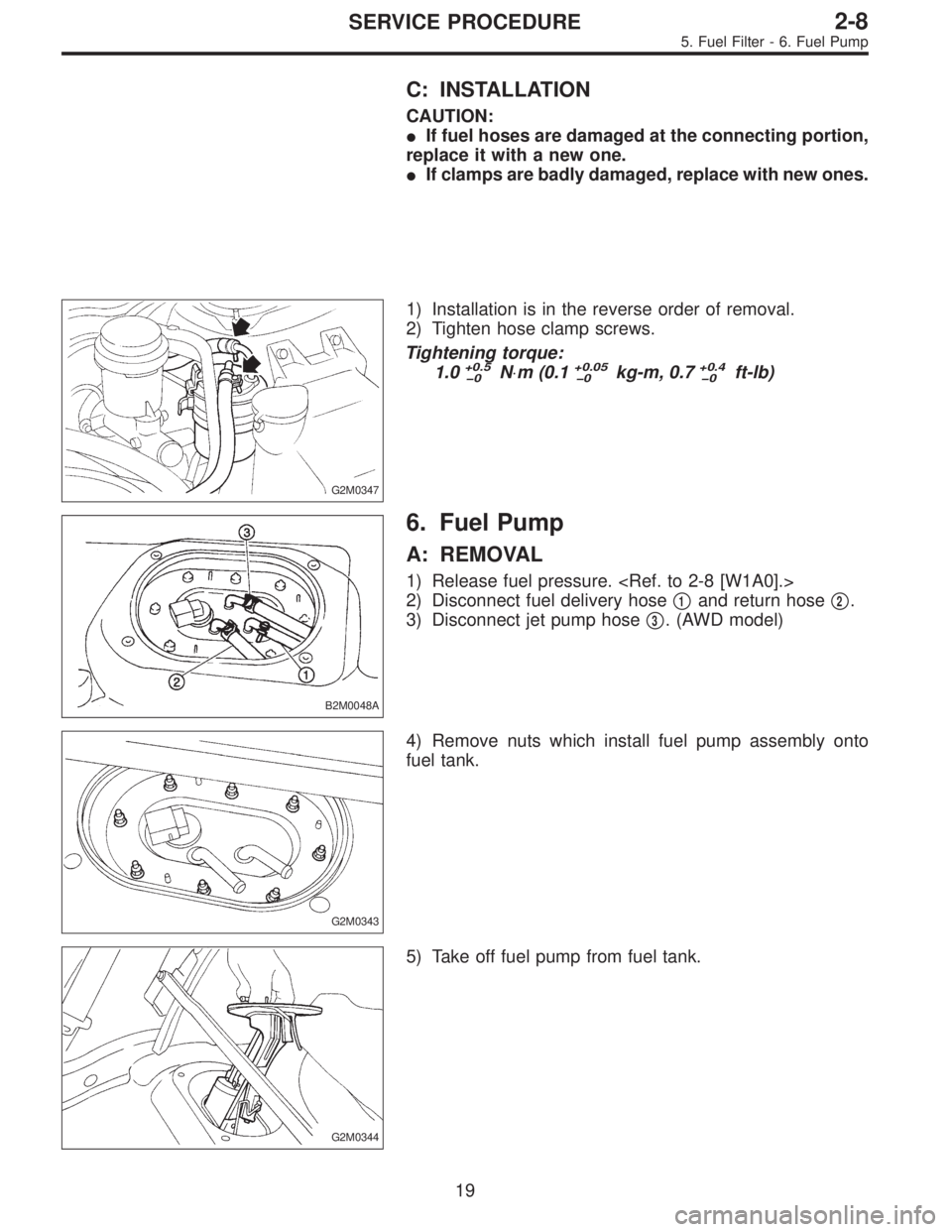

SUBARU LEGACY 1996  Service Repair Manual C: INSTALLATION
CAUTION:
If fuel hoses are damaged at the connecting portion,
replace it with a new one.
If clamps are badly damaged, replace with new ones.
G2M0347
1) Installation is in the reverse

Page 680 of 2890

SUBARU LEGACY 1996  Service Repair Manual C: INSTALLATION
CAUTION:
If fuel hoses are damaged at the connecting portion,
replace it with a new one.
If clamps are badly damaged, replace with new ones.
G2M0347
1) Installation is in the reverse
