Page 657 of 2890
G6M0095

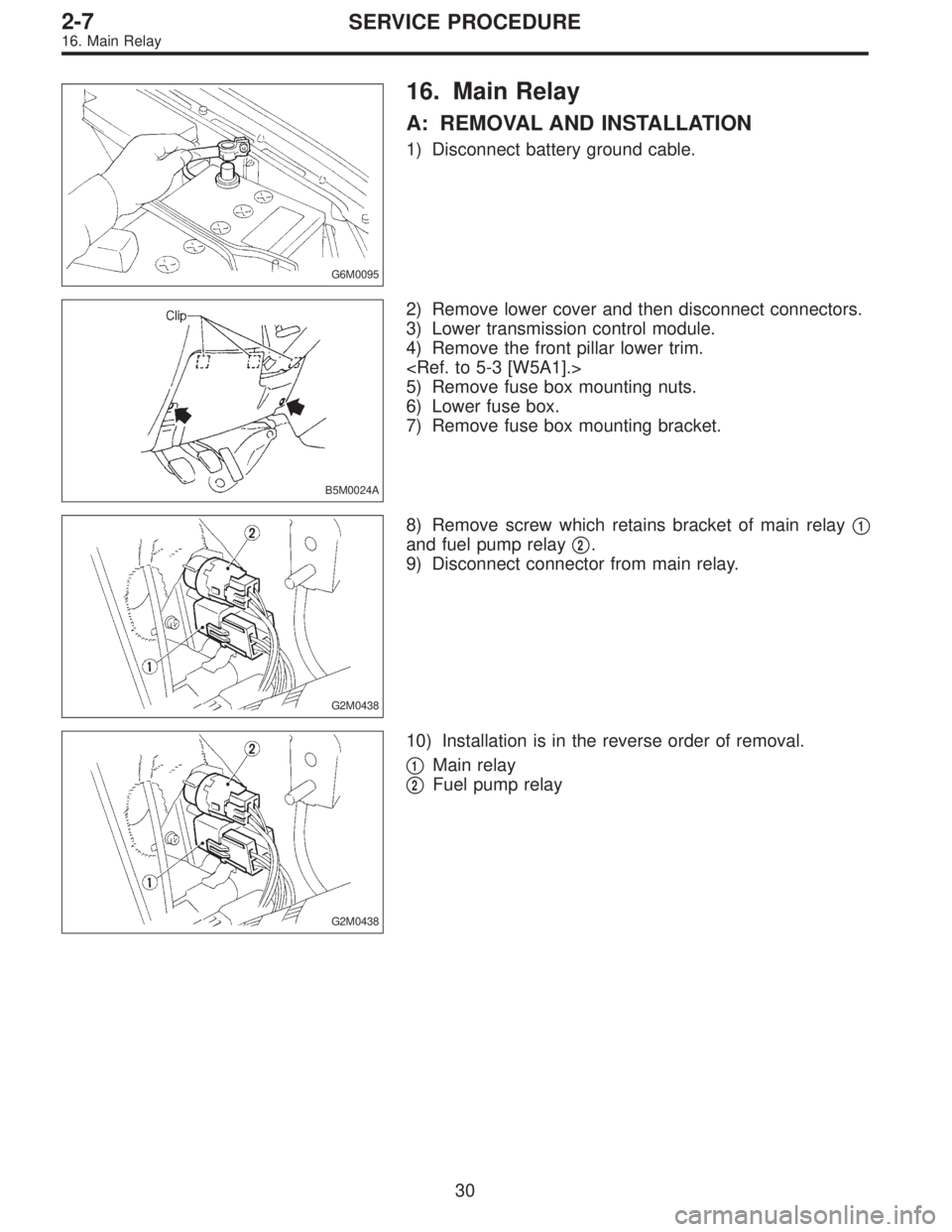

16. Main Relay
A: REMOVAL AND INSTALLATION
1) Disconnect battery ground cable.
B5M0024A
2) Remove lower cover and then disconnect connectors.
3) Lower transmission control module.
4) Remove the front pillar lower trim.
5) Remove fuse box mounting nuts.
6) Lower fuse box.
7) Remove fuse box mounting bracket.
G2M0438
8) Remove screw which retains bracket of main relay1
and fuel pump relay2.
9) Disconnect connector from main relay.
G2M0438
10) Installation is in the reverse order of removal.
1Main relay
2Fuel pump relay
30
2-7SERVICE PROCEDURE
16. Main Relay
Page 658 of 2890
G6M0095

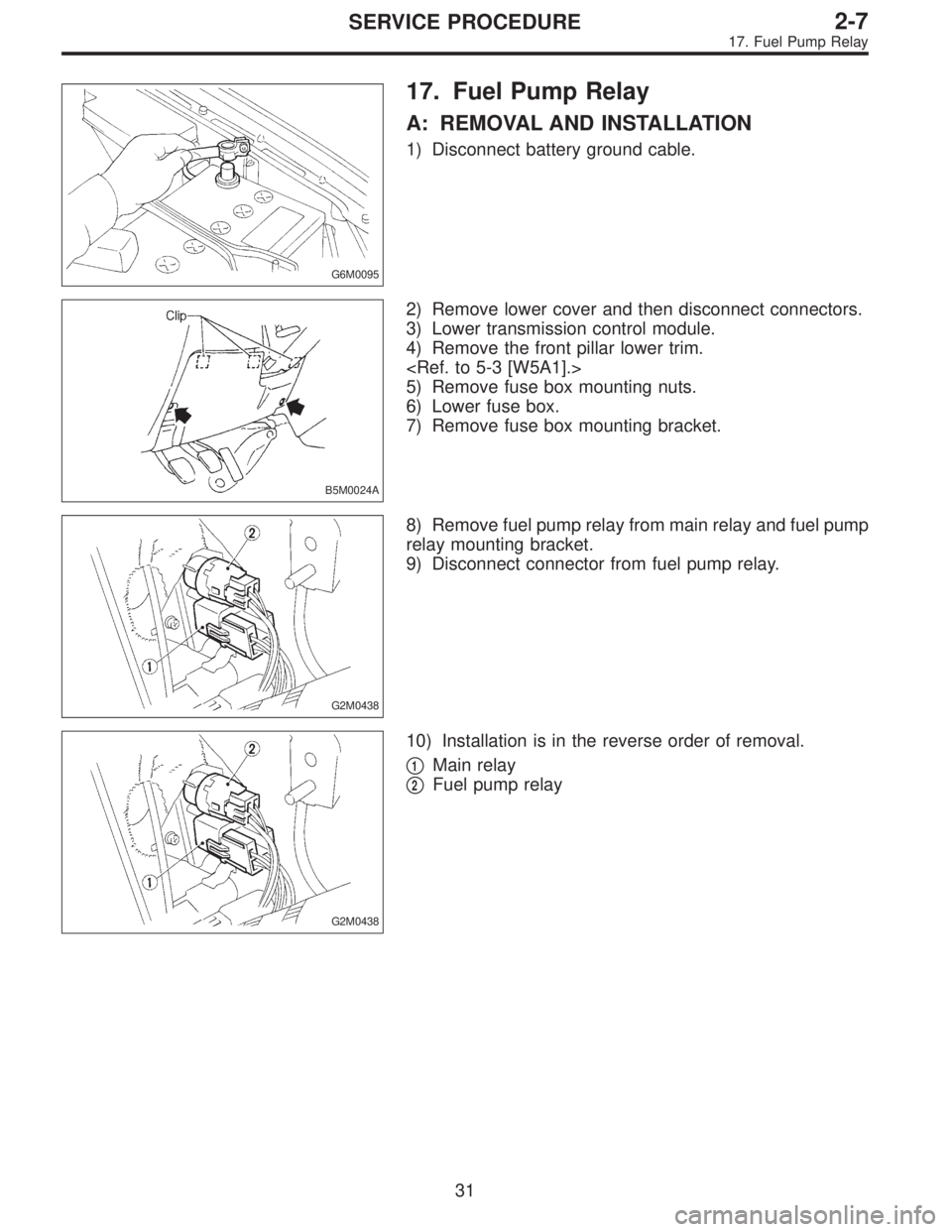

17. Fuel Pump Relay
A: REMOVAL AND INSTALLATION
1) Disconnect battery ground cable.
B5M0024A
2) Remove lower cover and then disconnect connectors.
3) Lower transmission control module.
4) Remove the front pillar lower trim.
5) Remove fuse box mounting nuts.
6) Lower fuse box.
7) Remove fuse box mounting bracket.
G2M0438
8) Remove fuel pump relay from main relay and fuel pump
relay mounting bracket.
9) Disconnect connector from fuel pump relay.
G2M0438
10) Installation is in the reverse order of removal.
1Main relay
2Fuel pump relay
31
2-7SERVICE PROCEDURE
17. Fuel Pump Relay
Page 659 of 2890

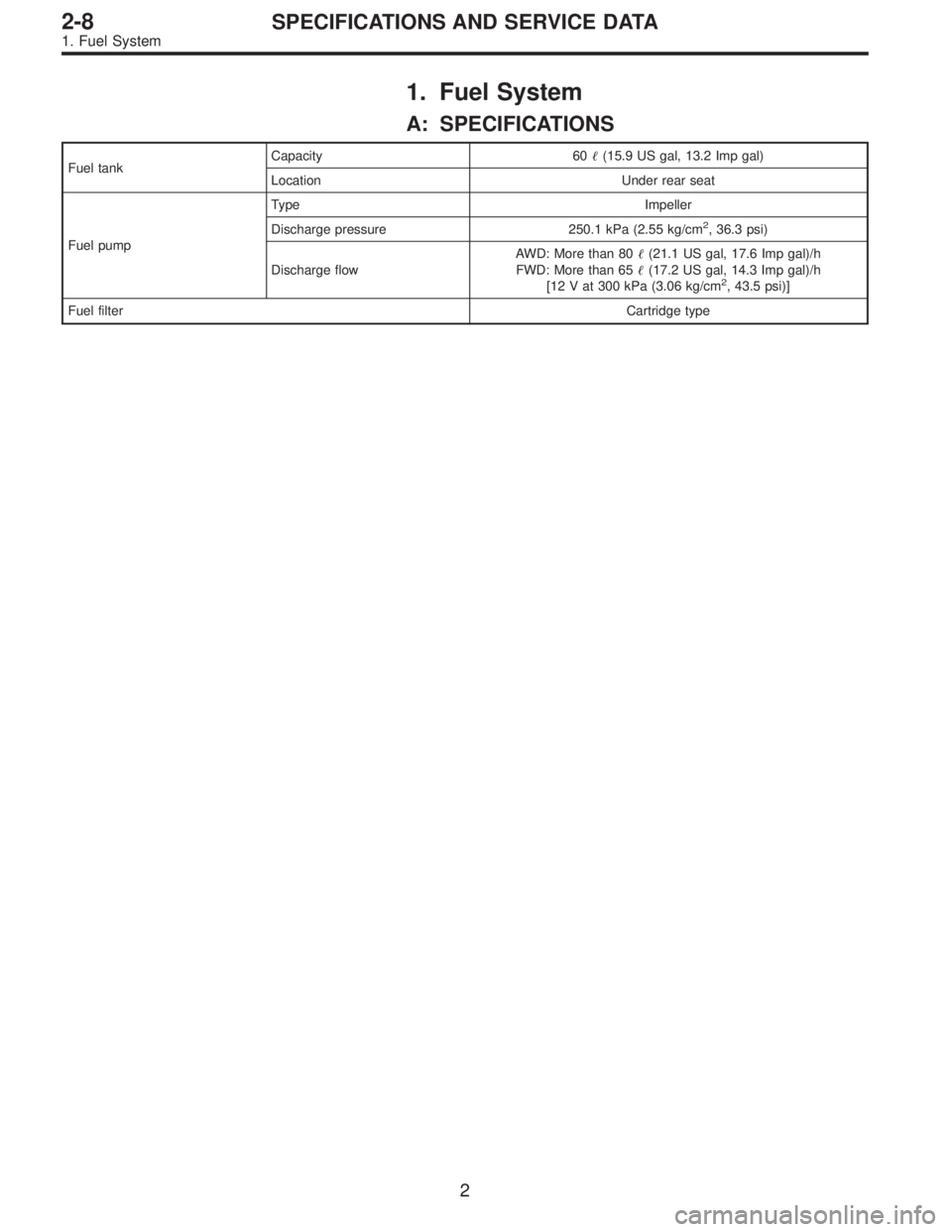

1. Fuel System
A: SPECIFICATIONS
Fuel tankCapacity 60(15.9 US gal, 13.2 Imp gal)
Location Under rear seat
Fuel pumpType Impeller
Discharge pressure 250.1 kPa (2.55 kg/cm
2, 36.3 psi)
Discharge flowAWD: More than 80(21.1 US gal, 17.6 Imp gal)/h
FWD: More than 65(17.2 US gal, 14.3 Imp gal)/h
[12 V at 300 kPa (3.06 kg/cm
2, 43.5 psi)]
Fuel filterCartridge type
2
2-8SPECIFICATIONS AND SERVICE DATA
1. Fuel System
Page 660 of 2890

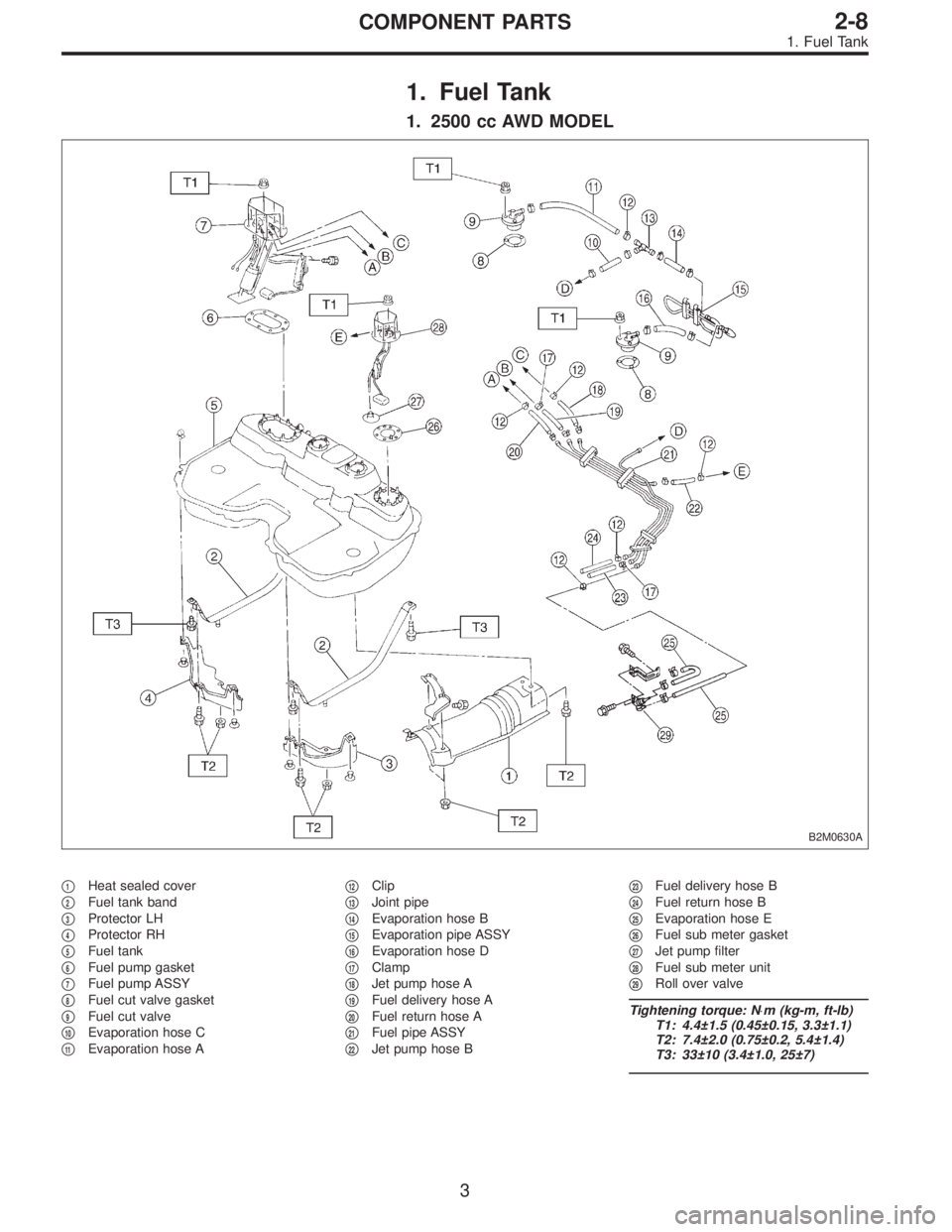

1. Fuel Tank
1. 2500 cc AWD MODEL
B2M0630A
1Heat sealed cover
2Fuel tank band
3Protector LH
4Protector RH
5Fuel tank
6Fuel pump gasket
7Fuel pump ASSY
8Fuel cut valve gasket
9Fuel cut valve
10Evaporation hose C
11Evaporation hose A
12Clip
13Joint pipe
14Evaporation hose B
15Evaporation pipe ASSY
16Evaporation hose D
17Clamp
18Jet pump hose A
19Fuel delivery hose A
20Fuel return hose A
21Fuel pipe ASSY
22Jet pump hose B
23Fuel delivery hose B
24Fuel return hose B
25Evaporation hose E
26Fuel sub meter gasket
27Jet pump filter
28Fuel sub meter unit
29Roll over valve
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T2: 7.4±2.0 (0.75±0.2, 5.4±1.4)
T3: 33±10 (3.4±1.0, 25±7)
3
2-8COMPONENT PARTS
1. Fuel Tank
Page 661 of 2890

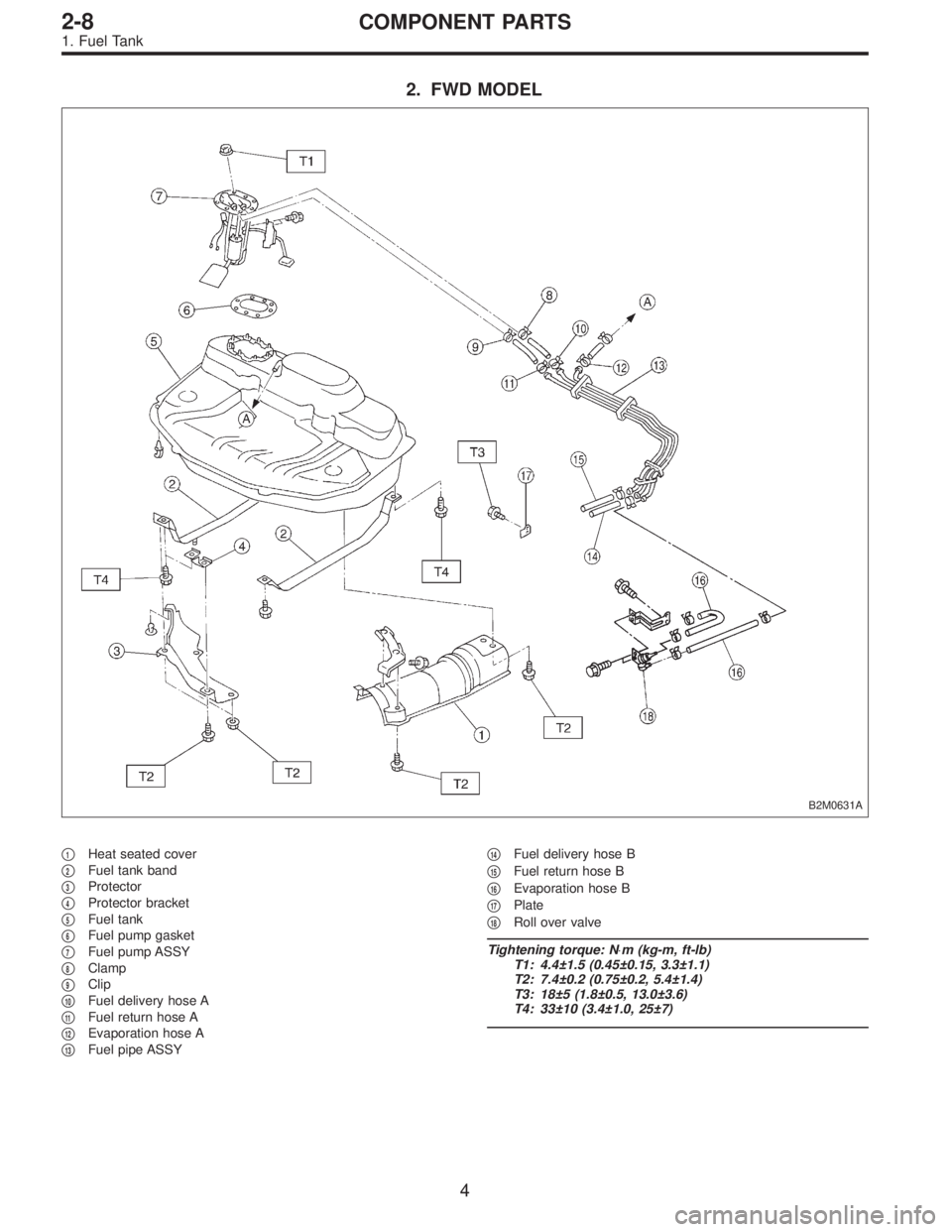

2. FWD MODEL
B2M0631A
1Heat seated cover
2Fuel tank band
3Protector
4Protector bracket
5Fuel tank
6Fuel pump gasket
7Fuel pump ASSY
8Clamp
9Clip
10Fuel delivery hose A
11Fuel return hose A
12Evaporation hose A
13Fuel pipe ASSY
14Fuel delivery hose B
15Fuel return hose B
16Evaporation hose B
17Plate
18Roll over valve
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T2: 7.4±0.2 (0.75±0.2, 5.4±1.4)
T3: 18±5 (1.8±0.5, 13.0±3.6)
T4: 33±10 (3.4±1.0, 25±7)
4
2-8COMPONENT PARTS
1. Fuel Tank
Page 662 of 2890

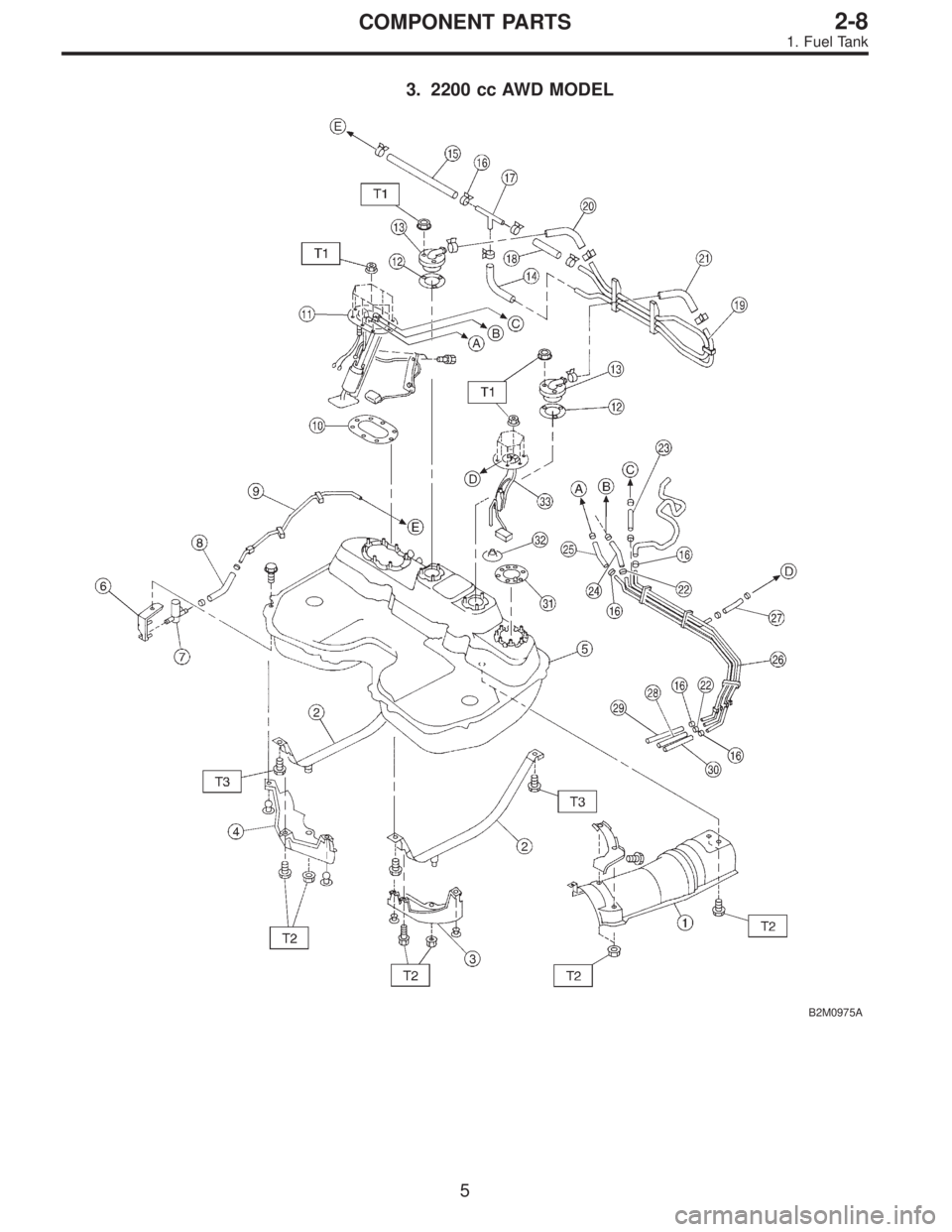

3. 2200 cc AWD MODEL
B2M0975A
5
2-8COMPONENT PARTS
1. Fuel Tank
Page 663 of 2890

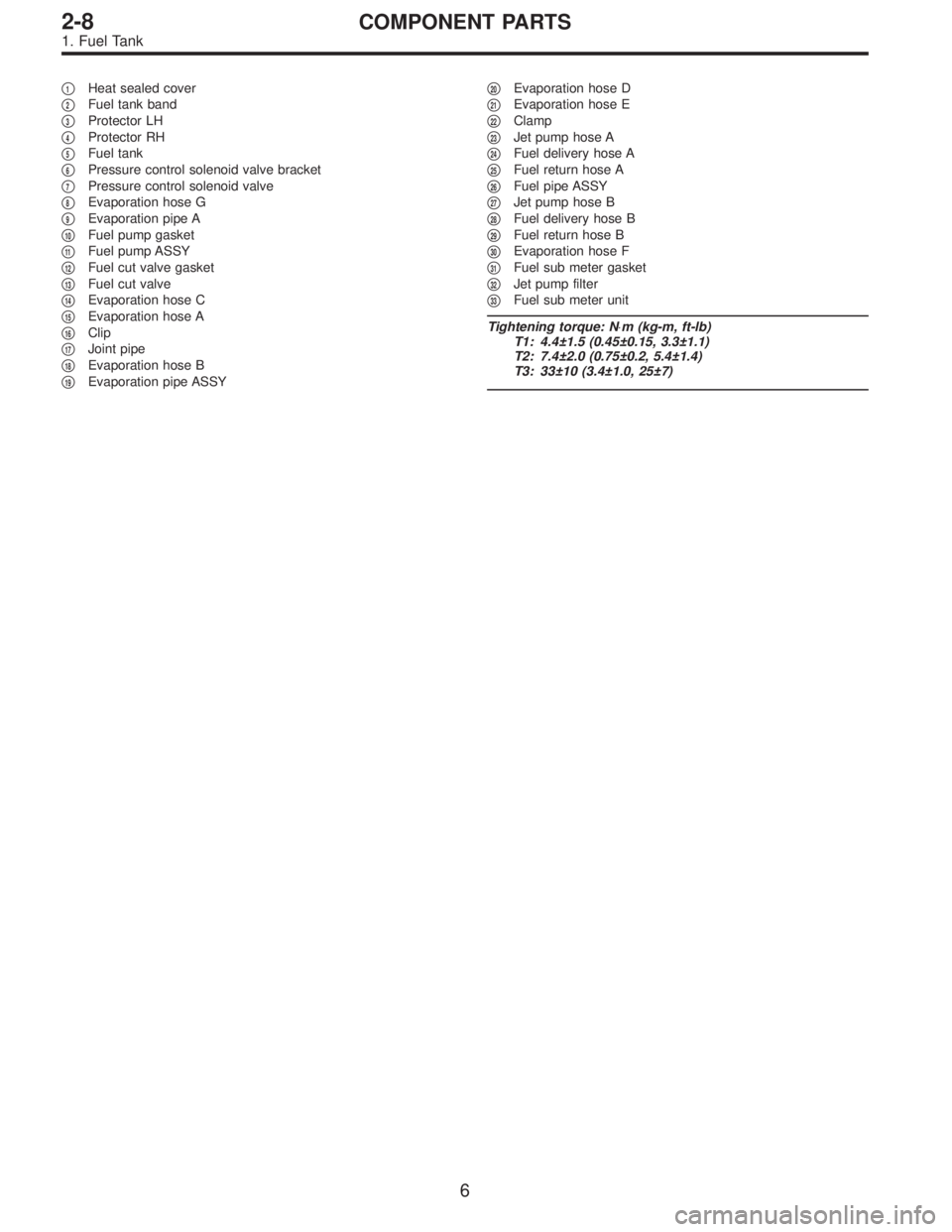

1Heat sealed cover
2Fuel tank band
3Protector LH
4Protector RH
5Fuel tank
6Pressure control solenoid valve bracket
7Pressure control solenoid valve
8Evaporation hose G
9Evaporation pipe A
10Fuel pump gasket
11Fuel pump ASSY
12Fuel cut valve gasket
13Fuel cut valve
14Evaporation hose C
15Evaporation hose A
16Clip
17Joint pipe
18Evaporation hose B
19Evaporation pipe ASSY
20Evaporation hose D
21Evaporation hose E
22Clamp
23Jet pump hose A
24Fuel delivery hose A
25Fuel return hose A
26Fuel pipe ASSY
27Jet pump hose B
28Fuel delivery hose B
29Fuel return hose B
30Evaporation hose F
31Fuel sub meter gasket
32Jet pump filter
33Fuel sub meter unit
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T2: 7.4±2.0 (0.75±0.2, 5.4±1.4)
T3: 33±10 (3.4±1.0, 25±7)
6
2-8COMPONENT PARTS
1. Fuel Tank
Page 664 of 2890

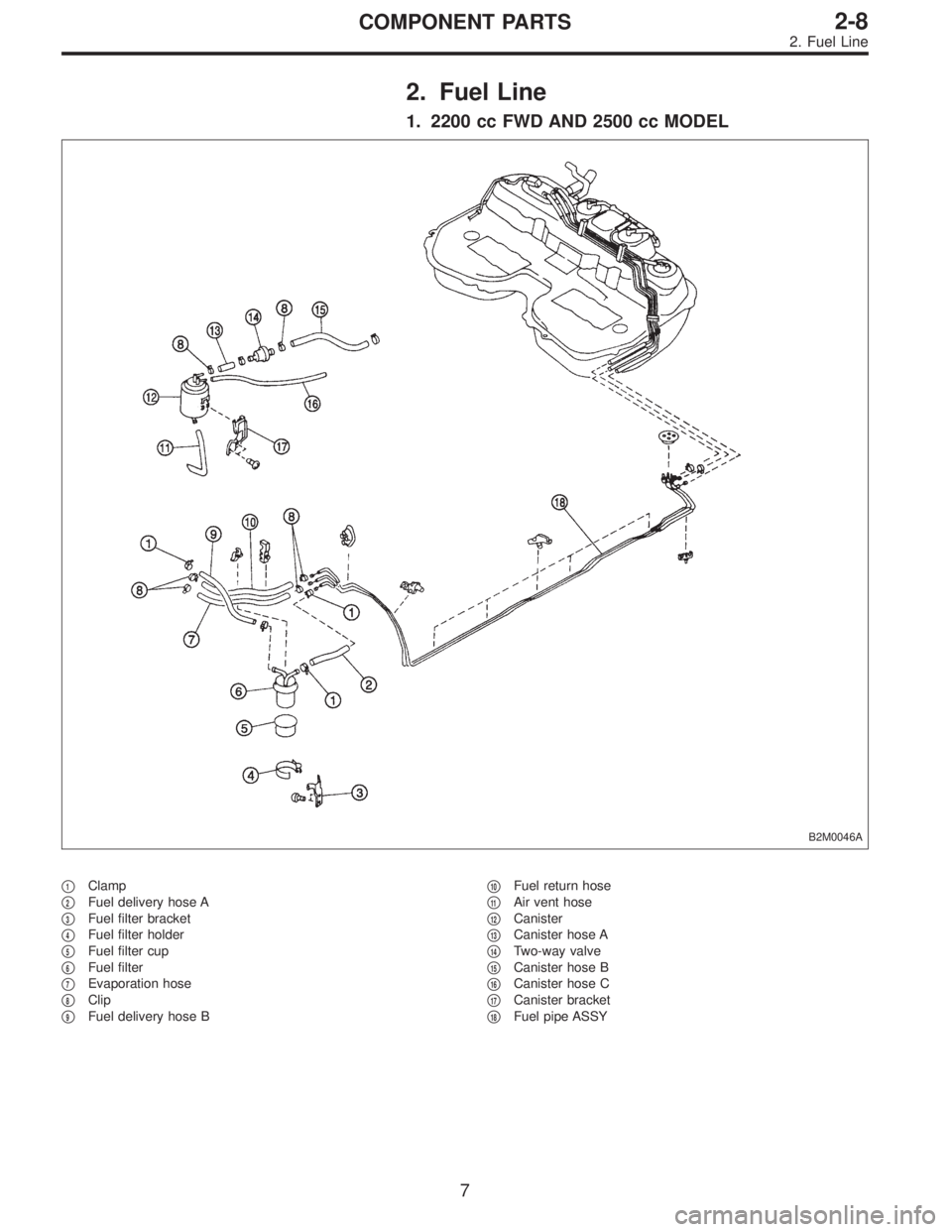

2. Fuel Line
1. 2200 cc FWD AND 2500 cc MODEL
B2M0046A
1Clamp
2Fuel delivery hose A
3Fuel filter bracket
4Fuel filter holder
5Fuel filter cup
6Fuel filter
7Evaporation hose
8Clip
9Fuel delivery hose B
10Fuel return hose
11Air vent hose
12Canister
13Canister hose A
14Two-way valve
15Canister hose B
16Canister hose C
17Canister bracket
18Fuel pipe ASSY
7
2-8COMPONENT PARTS
2. Fuel Line
