Page 2873 of 2890
9. REAR END WIRING HARNESS AND GROUND POINT OF WAGON
LHD model
EPA0093
143
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point
Page 2874 of 2890

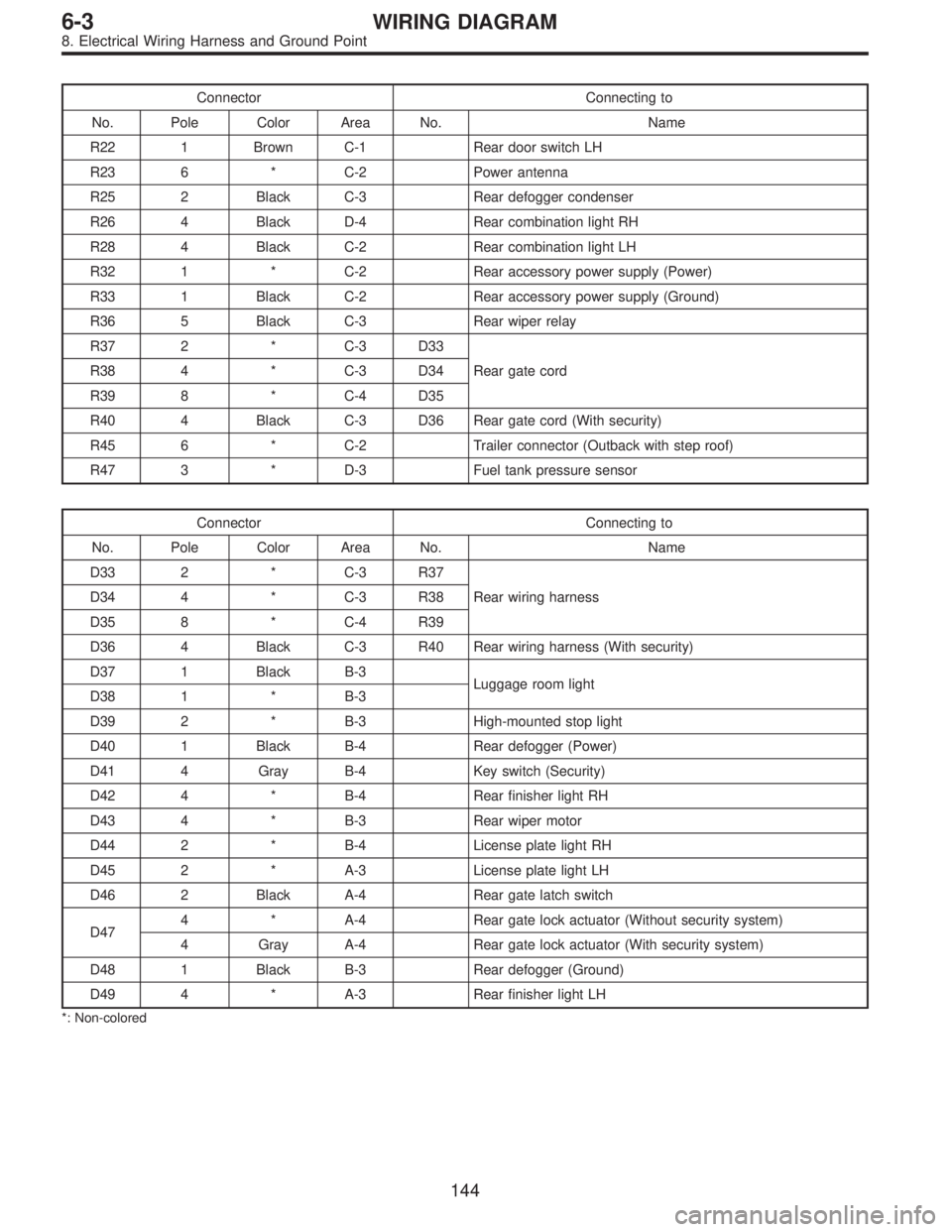

Connector Connecting to
No. Pole Color Area No. Name
R22 1 Brown C-1 Rear door switch LH
R23 6 * C-2 Power antenna
R25 2 Black C-3 Rear defogger condenser
R26 4 Black D-4 Rear combination light RH
R28 4 Black C-2 Rear combination light LH
R32 1 * C-2 Rear accessory power supply (Power)
R33 1 Black C-2 Rear accessory power supply (Ground)
R36 5 Black C-3 Rear wiper relay
R37 2 * C-3 D33
Rear gate cord R38 4 * C-3 D34
R39 8 * C-4 D35
R40 4 Black C-3 D36 Rear gate cord (With security)
R45 6 * C-2 Trailer connector (Outback with step roof)
R47 3 * D-3 Fuel tank pressure sensor
Connector Connecting to
No. Pole Color Area No. Name
D33 2 * C-3 R37
Rear wiring harness D34 4 * C-3 R38
D35 8 * C-4 R39
D36 4 Black C-3 R40 Rear wiring harness (With security)
D37 1 Black B-3
Luggage room light
D38 1 * B-3
D39 2 * B-3 High-mounted stop light
D40 1 Black B-4 Rear defogger (Power)
D41 4 Gray B-4 Key switch (Security)
D42 4 * B-4 Rear finisher light RH
D43 4 * B-3 Rear wiper motor
D44 2 * B-4 License plate light RH
D45 2 * A-3 License plate light LH
D46 2 Black A-4 Rear gate latch switch
D474 * A-4 Rear gate lock actuator (Without security system)
4 Gray A-4 Rear gate lock actuator (With security system)
D48 1 Black B-3 Rear defogger (Ground)
D49 4 * A-3 Rear finisher light LH
*: Non-colored
144
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point
Page 2875 of 2890
9. REAR END WIRING HARNESS AND GROUND POINT OF WAGON
RHD model
EPA0093
145
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point
Page 2876 of 2890

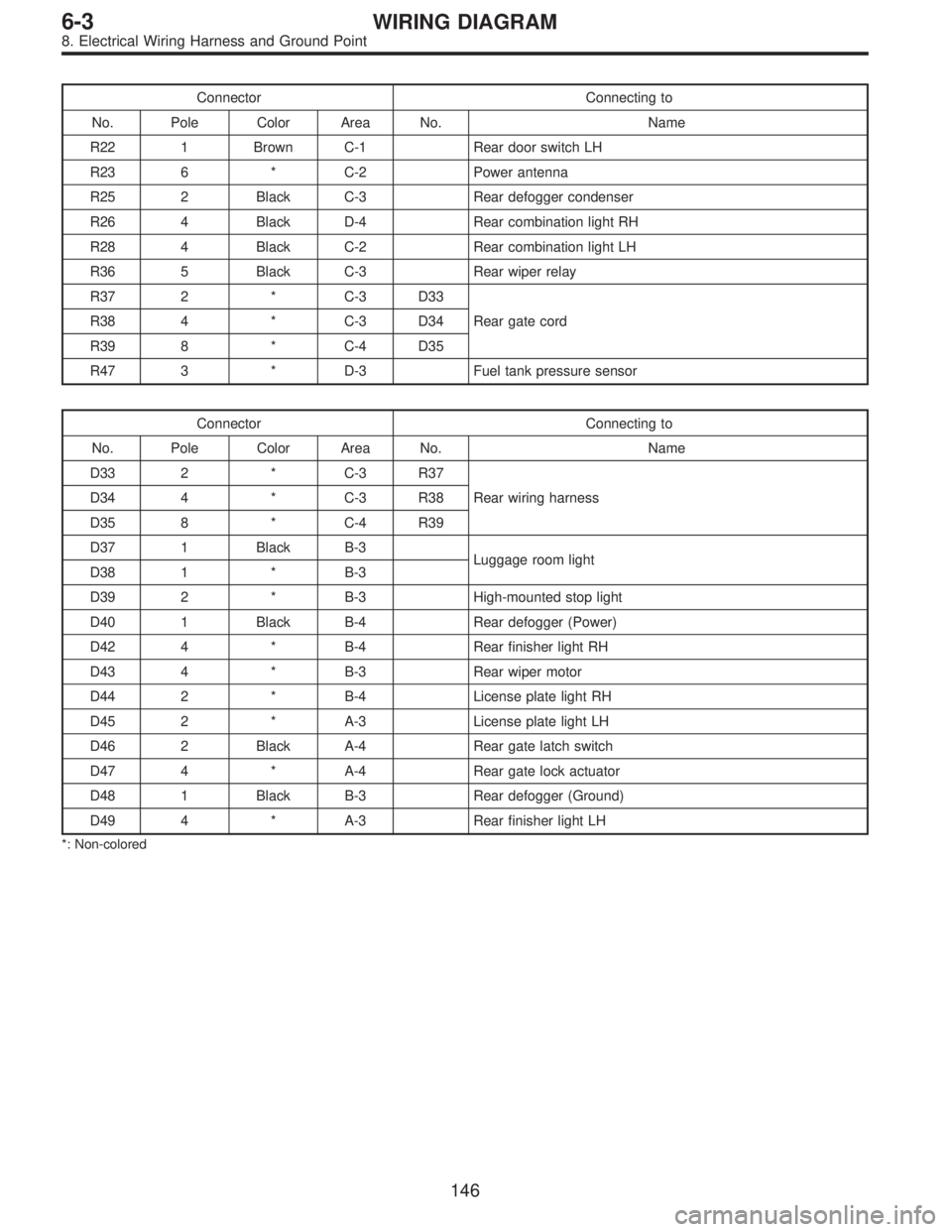

Connector Connecting to
No. Pole Color Area No. Name
R22 1 Brown C-1 Rear door switch LH
R23 6 * C-2 Power antenna
R25 2 Black C-3 Rear defogger condenser
R26 4 Black D-4 Rear combination light RH
R28 4 Black C-2 Rear combination light LH
R36 5 Black C-3 Rear wiper relay
R37 2 * C-3 D33
Rear gate cord R38 4 * C-3 D34
R39 8 * C-4 D35
R47 3 * D-3 Fuel tank pressure sensor
Connector Connecting to
No. Pole Color Area No. Name
D33 2 * C-3 R37
Rear wiring harness D34 4 * C-3 R38
D35 8 * C-4 R39
D37 1 Black B-3
Luggage room light
D38 1 * B-3
D39 2 * B-3 High-mounted stop light
D40 1 Black B-4 Rear defogger (Power)
D42 4 * B-4 Rear finisher light RH
D43 4 * B-3 Rear wiper motor
D44 2 * B-4 License plate light RH
D45 2 * A-3 License plate light LH
D46 2 Black A-4 Rear gate latch switch
D47 4 * A-4 Rear gate lock actuator
D48 1 Black B-3 Rear defogger (Ground)
D49 4 * A-3 Rear finisher light LH
*: Non-colored
146
6-3WIRING DIAGRAM
8. Electrical Wiring Harness and Ground Point
Page 2877 of 2890

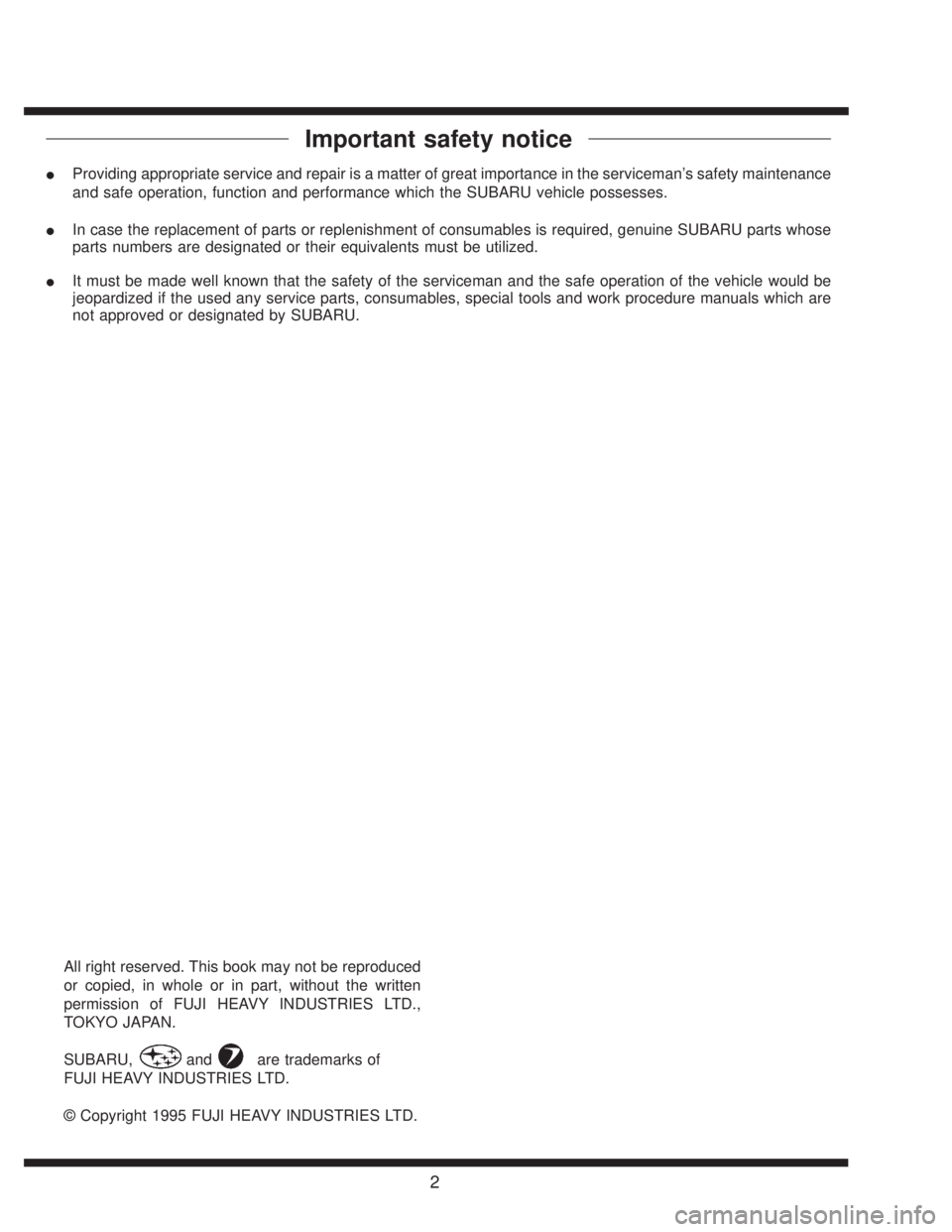

Important safety notice
Providing appropriate service and repair is a matter of great importance in the serviceman’s safety maintenance
and safe operation, function and performance which the SUBARU vehicle possesses.
In case the replacement of parts or replenishment of consumables is required, genuine SUBARU parts whose
parts numbers are designated or their equivalents must be utilized.
It must be made well known that the safety of the serviceman and the safe operation of the vehicle would be
jeopardized if the used any service parts, consumables, special tools and work procedure manuals which are
not approved or designated by SUBARU.
All right reserved. This book may not be reproduced
or copied, in whole or in part, without the written
permission of FUJI HEAVY INDUSTRIES LTD.,
TOKYO JAPAN.
SUBARU,
andare trademarks of
FUJI HEAVY INDUSTRIES LTD.
© Copyright 1995 FUJI HEAVY INDUSTRIES LTD.
2
Page 2878 of 2890

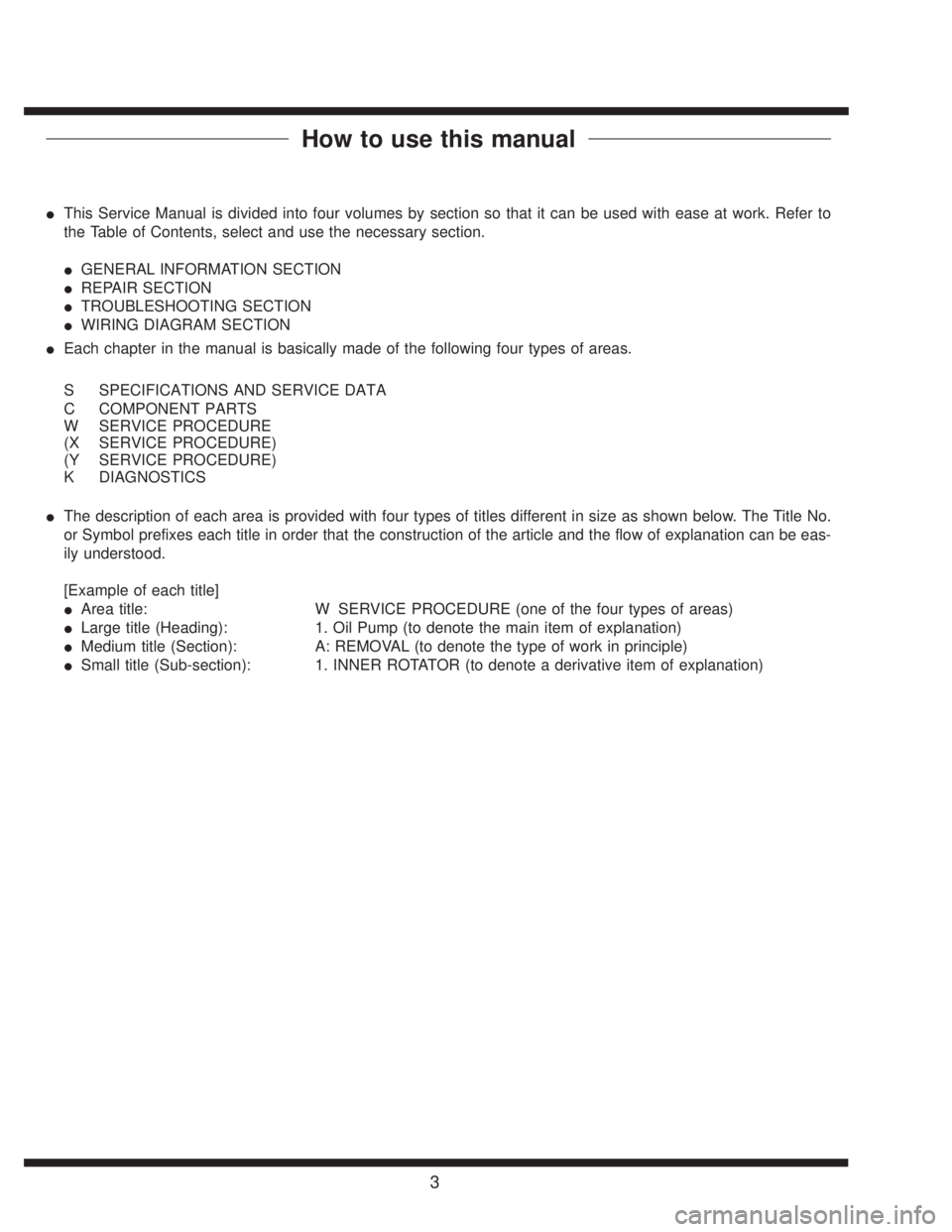

How to use this manual
This Service Manual is divided into four volumes by section so that it can be used with ease at work. Refer to
the Table of Contents, select and use the necessary section.
GENERAL INFORMATION SECTION
REPAIR SECTION
TROUBLESHOOTING SECTION
WIRING DIAGRAM SECTION
Each chapter in the manual is basically made of the following four types of areas.
S SPECIFICATIONS AND SERVICE DATA
C COMPONENT PARTS
W SERVICE PROCEDURE
(X SERVICE PROCEDURE)
(Y SERVICE PROCEDURE)
K DIAGNOSTICS
The description of each area is provided with four types of titles different in size as shown below. The Title No.
or Symbol prefixes each title in order that the construction of the article and the flow of explanation can be eas-
ily understood.
[Example of each title]
Area title: W SERVICE PROCEDURE (one of the four types of areas)
Large title (Heading): 1. Oil Pump (to denote the main item of explanation)
Medium title (Section): A: REMOVAL (to denote the type of work in principle)
Small title (Sub-section): 1. INNER ROTATOR (to denote a derivative item of explanation)
3
Page 2879 of 2890

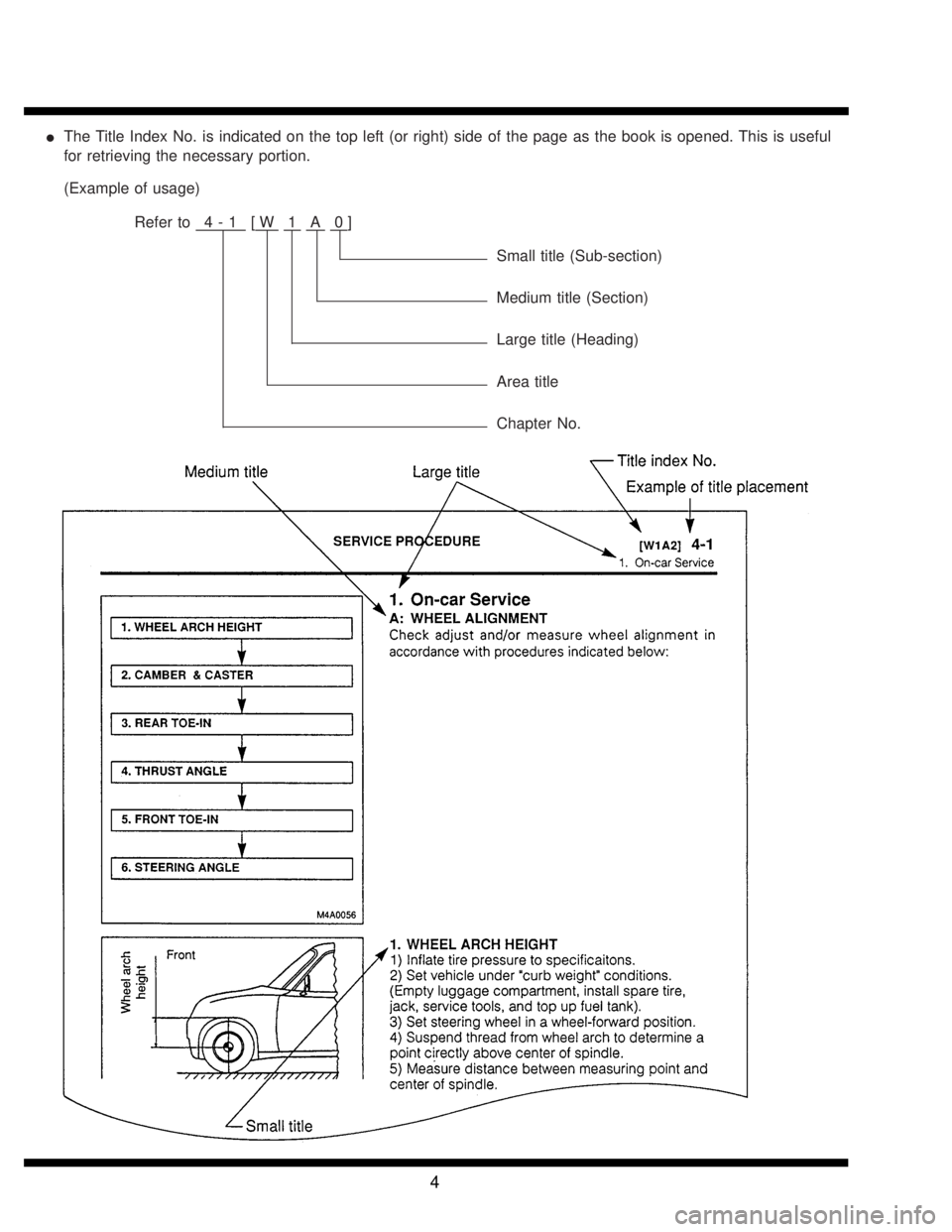

The Title Index No. is indicated on the top left (or right) side of the page as the book is opened. This is useful
for retrieving the necessary portion.
(Example of usage)
Refer to 4 - 1
[W1A0]
Small title (Sub-section)
Medium title (Section)
Large title (Heading)
Area title
Chapter No.
4
Page 2880 of 2890

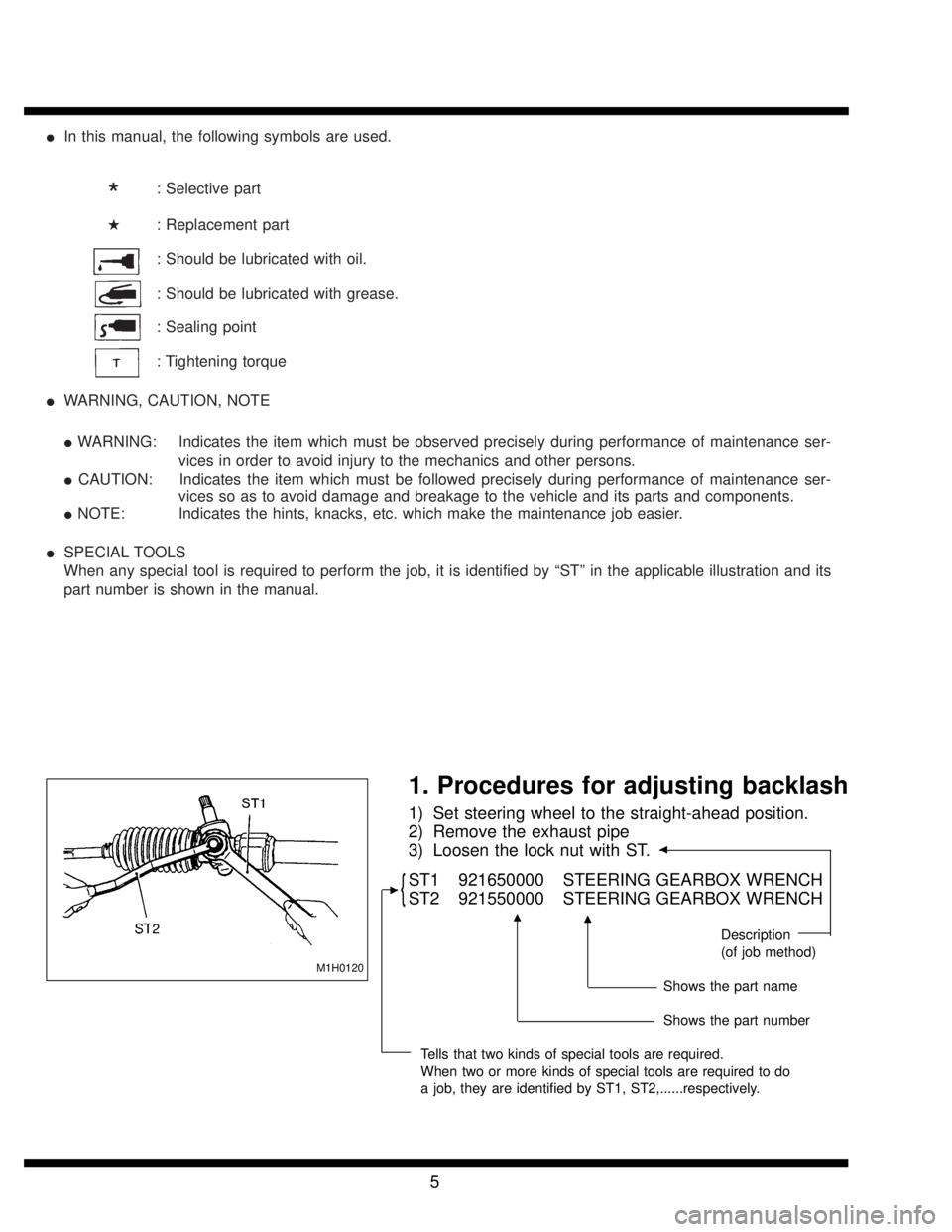

In this manual, the following symbols are used.
*: Selective part
: Replacement part
: Should be lubricated with oil.
: Should be lubricated with grease.
: Sealing point
: Tightening torque
WARNING, CAUTION, NOTE
WARNING: Indicates the item which must be observed precisely during performance of maintenance ser-
vices in order to avoid injury to the mechanics and other persons.
CAUTION: Indicates the item which must be followed precisely during performance of maintenance ser-
vices so as to avoid damage and breakage to the vehicle and its parts and components.
NOTE: Indicates the hints, knacks, etc. which make the maintenance job easier.
SPECIAL TOOLS
When any special tool is required to perform the job, it is identified by“ST”in the applicable illustration and its
part number is shown in the manual.
M1H0120
1. Procedures for adjusting backlash
1) Set steering wheel to the straight-ahead position.
2) Remove the exhaust pipe
3) Loosen the lock nut with ST.
{ST1 921650000 STEERING GEARBOX WRENCH
ST2 921550000 STEERING GEARBOX WRENCH
Description
(of job method)
Shows the part name
Shows the part number
Tells that two kinds of special tools are required.
When two or more kinds of special tools are required to do
a job, they are identified by ST1, ST2,......respectively.
5
