Page 2753 of 2890
BUR01-01B
23
6-3WIRING DIAGRAM
6. Wiring Diagram
Page 2754 of 2890

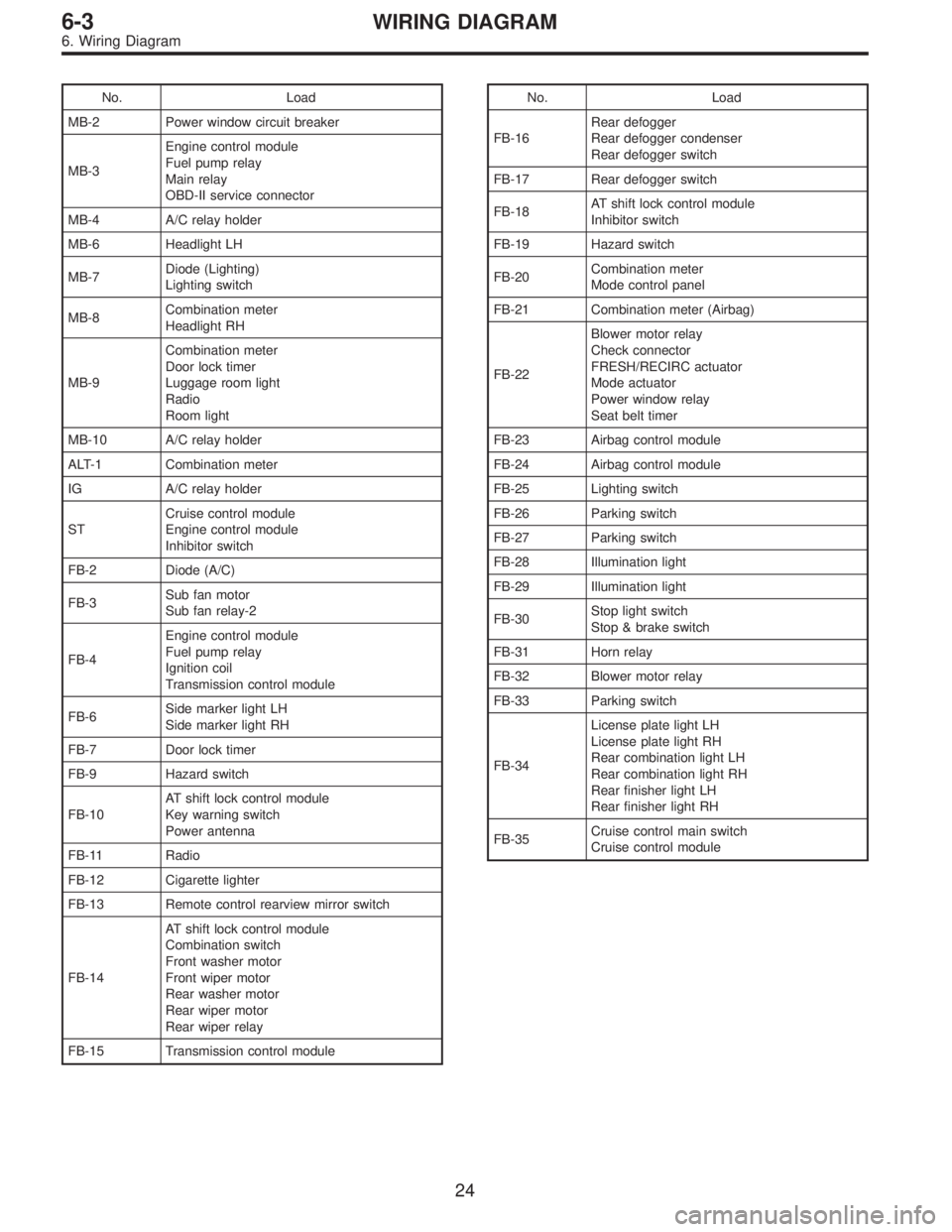

No. Load
MB-2 Power window circuit breaker
MB-3Engine control module
Fuel pump relay
Main relay
OBD-II service connector
MB-4 A/C relay holder
MB-6 Headlight LH
MB-7Diode (Lighting)
Lighting switch
MB-8Combination meter
Headlight RH
MB-9Combination meter
Door lock timer
Luggage room light
Radio
Room light
MB-10 A/C relay holder
ALT-1 Combination meter
IG A/C relay holder
STCruise control module
Engine control module
Inhibitor switch
FB-2 Diode (A/C)
FB-3Sub fan motor
Sub fan relay-2
FB-4Engine control module
Fuel pump relay
Ignition coil
Transmission control module
FB-6Side marker light LH
Side marker light RH
FB-7 Door lock timer
FB-9 Hazard switch
FB-10AT shift lock control module
Key warning switch
Power antenna
FB-11 Radio
FB-12 Cigarette lighter
FB-13 Remote control rearview mirror switch
FB-14AT shift lock control module
Combination switch
Front washer motor
Front wiper motor
Rear washer motor
Rear wiper motor
Rear wiper relay
FB-15 Transmission control moduleNo. Load
FB-16Rear defogger
Rear defogger condenser
Rear defogger switch
FB-17 Rear defogger switch
FB-18AT shift lock control module
Inhibitor switch
FB-19 Hazard switch
FB-20Combination meter
Mode control panel
FB-21 Combination meter (Airbag)
FB-22Blower motor relay
Check connector
FRESH/RECIRC actuator
Mode actuator
Power window relay
Seat belt timer
FB-23 Airbag control module
FB-24 Airbag control module
FB-25 Lighting switch
FB-26 Parking switch
FB-27 Parking switch
FB-28 Illumination light
FB-29 Illumination light
FB-30Stop light switch
Stop & brake switch
FB-31 Horn relay
FB-32 Blower motor relay
FB-33 Parking switch
FB-34License plate light LH
License plate light RH
Rear combination light LH
Rear combination light RH
Rear finisher light LH
Rear finisher light RH
FB-35Cruise control main switch
Cruise control module
24
6-3WIRING DIAGRAM
6. Wiring Diagram
Page 2755 of 2890
2. GROUND DISTRIBUTION
LHD model
BU04-05A
25
6-3WIRING DIAGRAM
6. Wiring Diagram
Page 2756 of 2890
BU04-05B
26
6-3WIRING DIAGRAM
6. Wiring Diagram
Page 2757 of 2890
BU04-05C
27
6-3WIRING DIAGRAM
6. Wiring Diagram
Page 2758 of 2890
2. GROUND DISTRIBUTION
RHD model
BUR04-03A
28
6-3WIRING DIAGRAM
6. Wiring Diagram
Page 2759 of 2890
BUR04-03B
29
6-3WIRING DIAGRAM
6. Wiring Diagram
Page 2760 of 2890
BUR04-03C
30
6-3WIRING DIAGRAM
6. Wiring Diagram
