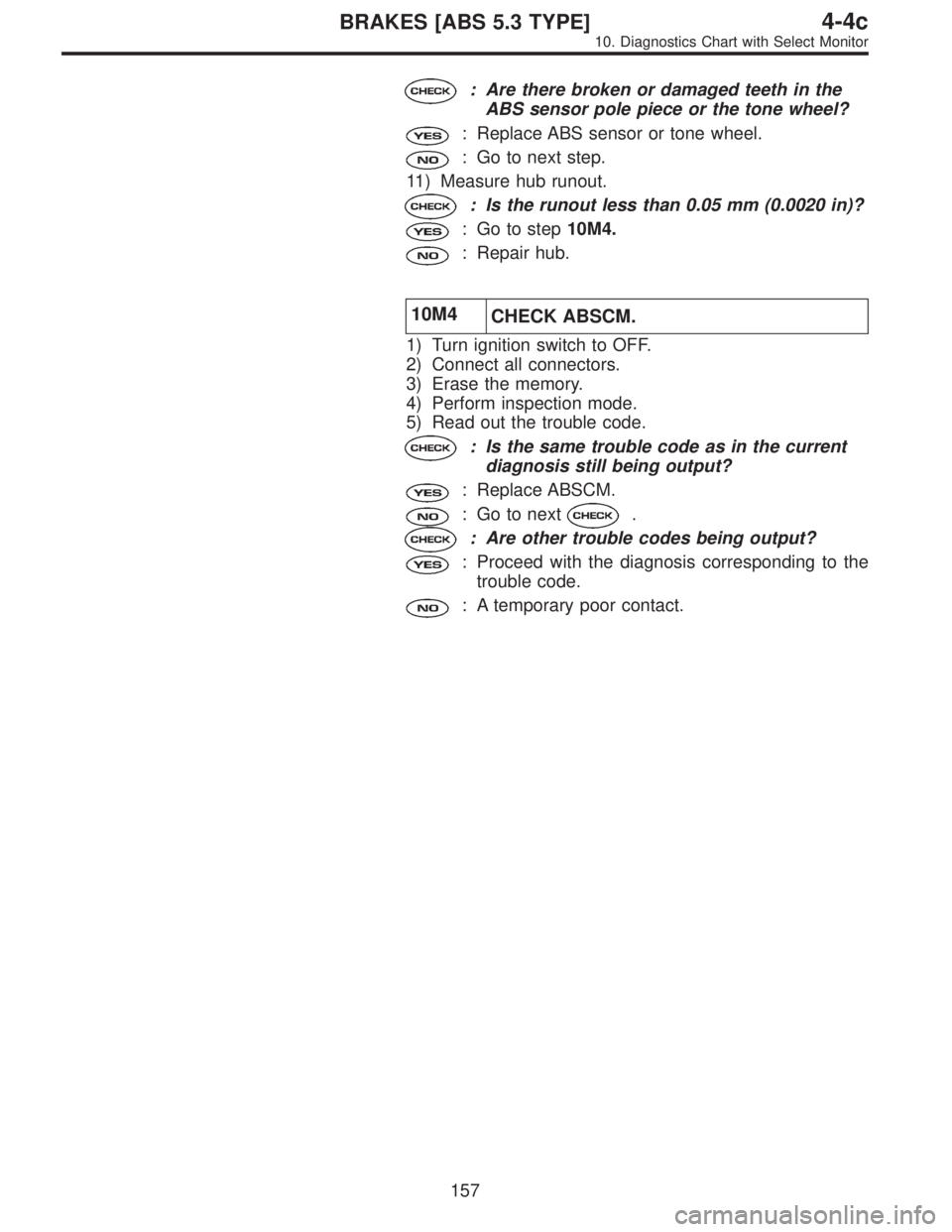

SUBARU LEGACY 1996 Service Repair Manual : Are there broken or damaged teeth in the ABS sensor pole piece or the tone wheel? : Replace ABS sensor or tone wheel. : Go to next step. 11) Measure hub runout. : Is the runout less than 0.05 mm (0.

Page 2498 of 2890

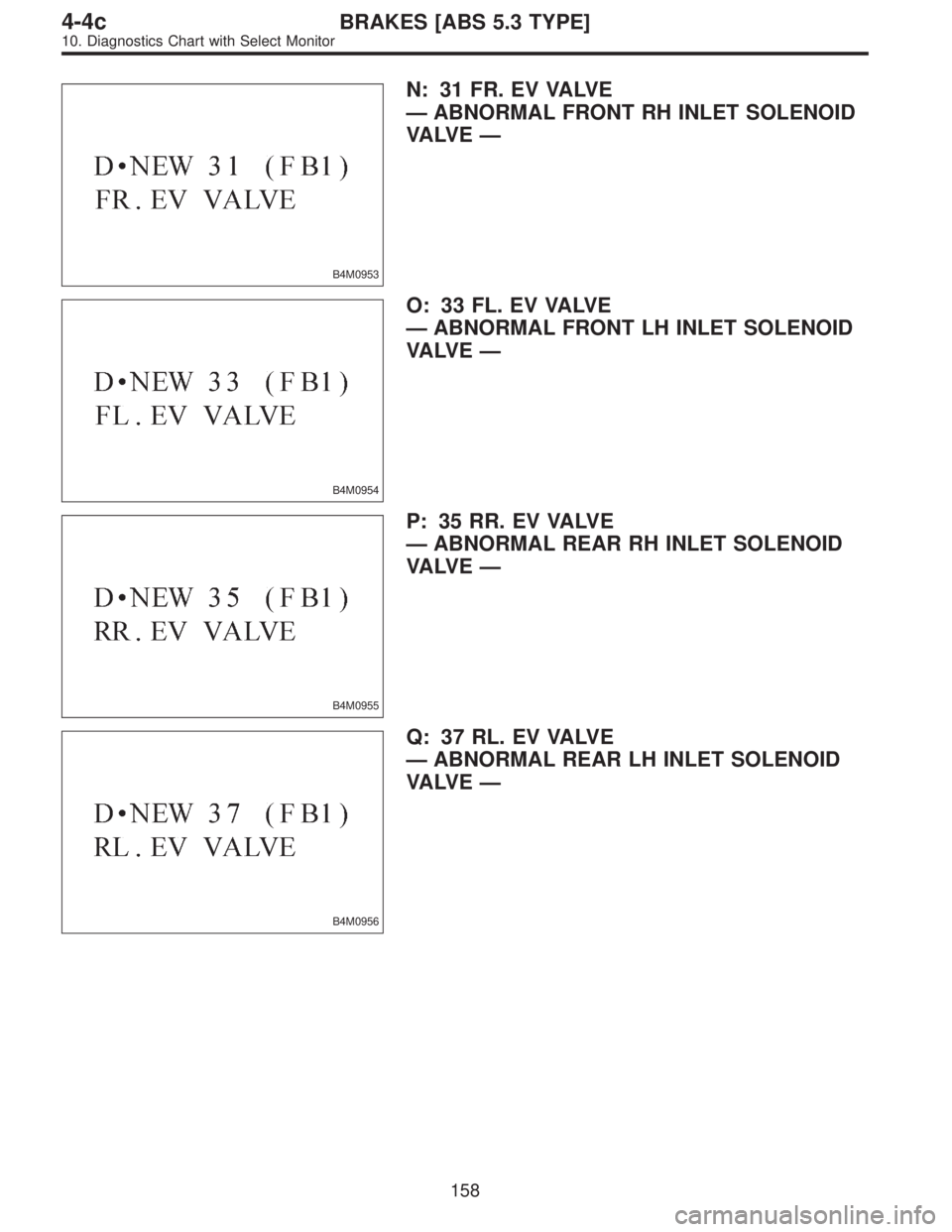

SUBARU LEGACY 1996 Service Repair Manual B4M0953 N: 31 FR. EV VALVE —ABNORMAL FRONT RH INLET SOLENOID VA LV E— B4M0954 O: 33 FL. EV VALVE —ABNORMAL FRONT LH INLET SOLENOID VA LV E— B4M0955 P: 35 RR. EV VALVE —ABNORMAL REAR RH INLET

Page 2499 of 2890

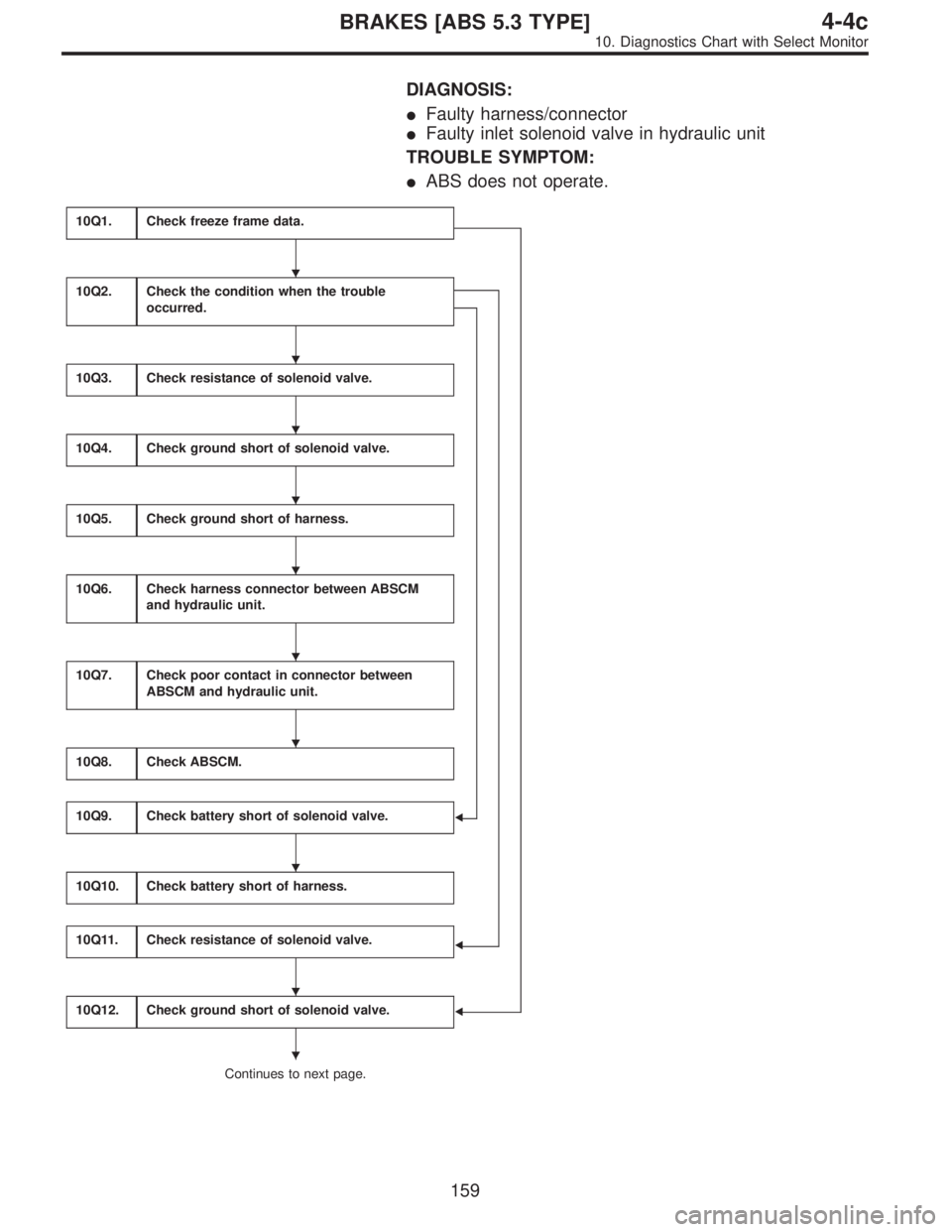

SUBARU LEGACY 1996 Service Repair Manual DIAGNOSIS: Faulty harness/connector Faulty inlet solenoid valve in hydraulic unit TROUBLE SYMPTOM: ABS does not operate. 10Q1.Check freeze frame data.    10Q2.Check the condition when the troubl

Page 2500 of 2890

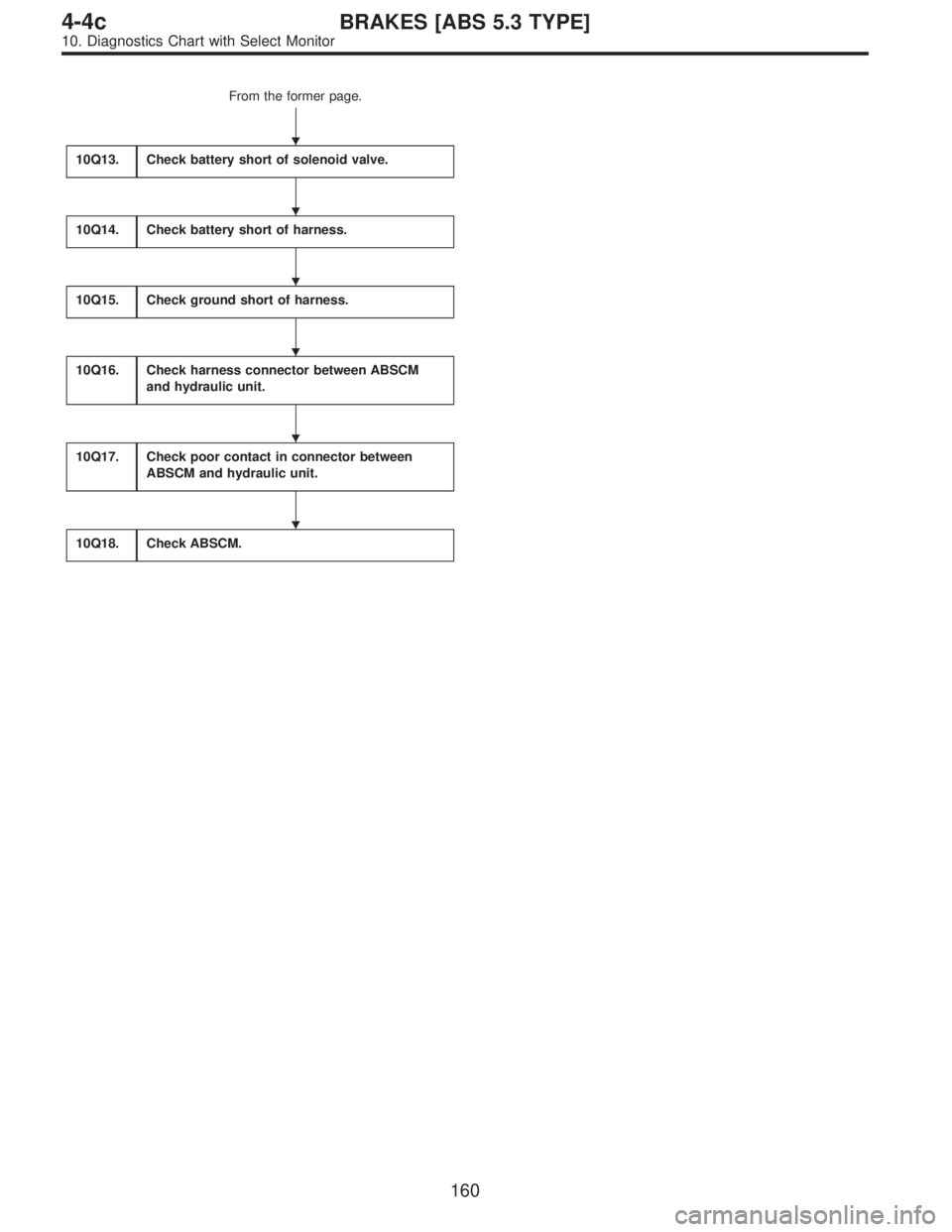

SUBARU LEGACY 1996 Service Repair Manual From the former page. 10Q13. Check battery short of solenoid valve. 10Q14.Check battery short of harness. 10Q15.Check ground short of harness. 10Q16.Check harness connector between ABSCM and hydraulic

Page 2501 of 2890

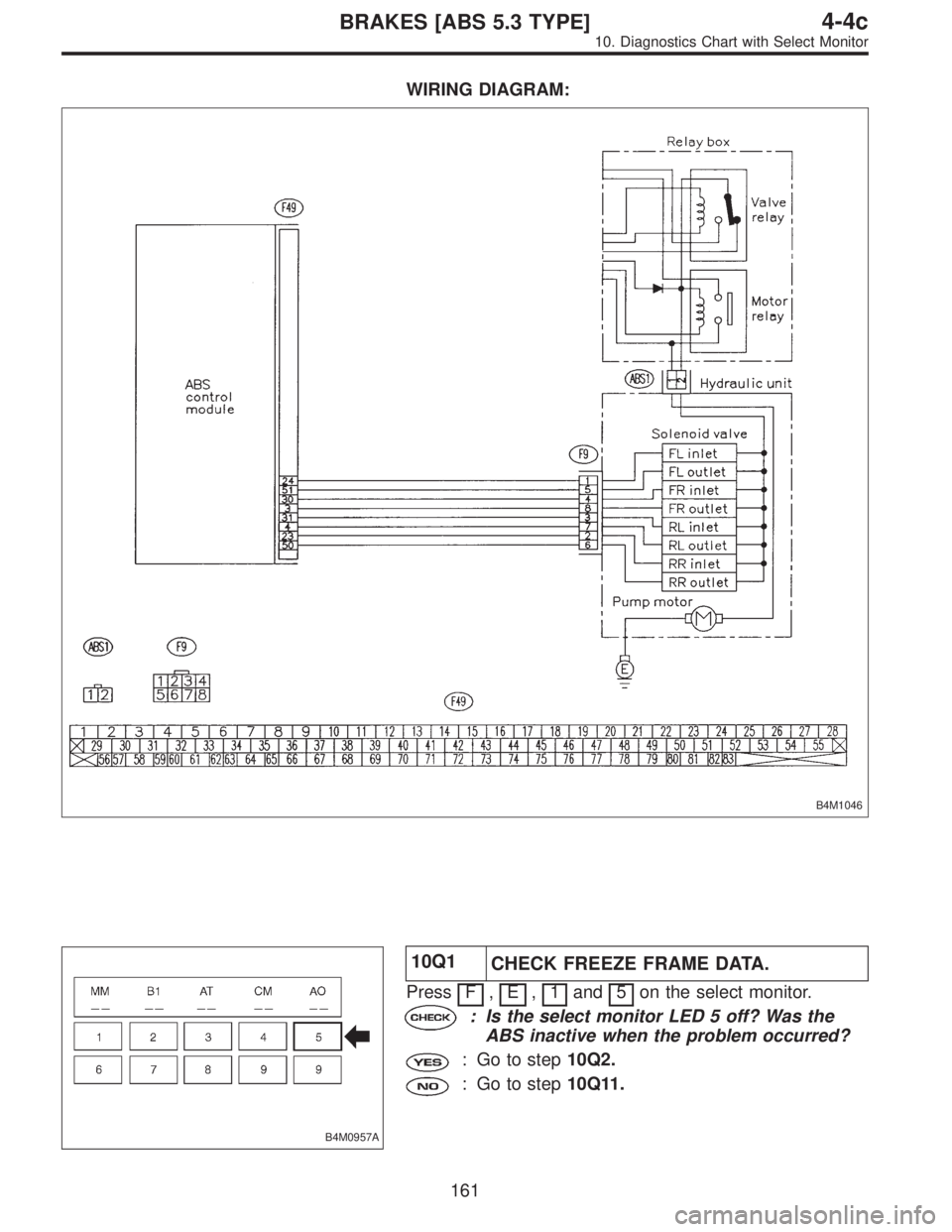

SUBARU LEGACY 1996 Service Repair Manual WIRING DIAGRAM: B4M1046 B4M0957A 10Q1 CHECK FREEZE FRAME DATA. Press F,E,1and 5on the select monitor. : Is the select monitor LED 5 off? Was the ABS inactive when the problem occurred? : Go to step10Q

Page 2502 of 2890

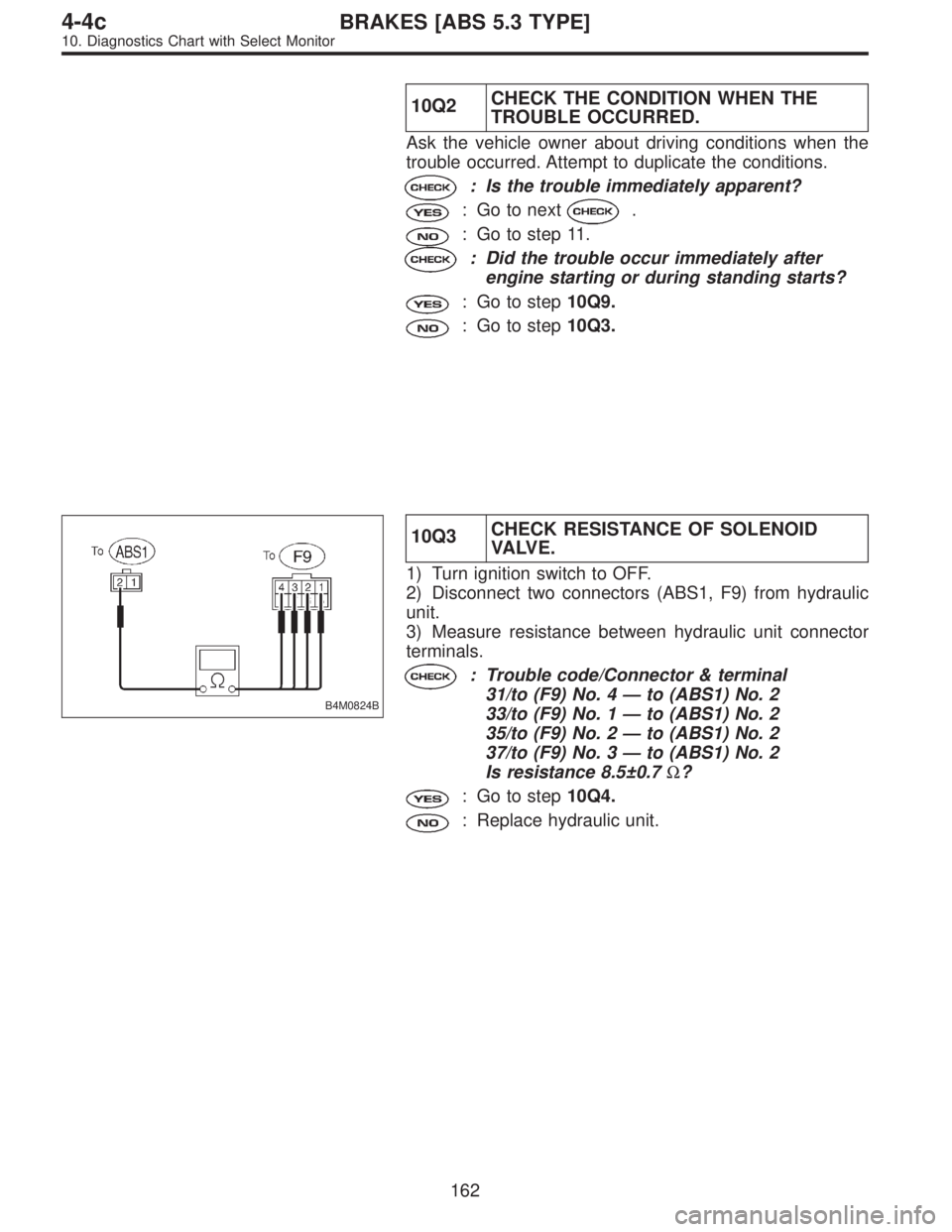

SUBARU LEGACY 1996 Service Repair Manual 10Q2CHECK THE CONDITION WHEN THE TROUBLE OCCURRED. Ask the vehicle owner about driving conditions when the trouble occurred. Attempt to duplicate the conditions. : Is the trouble immediately apparent?

Page 2503 of 2890

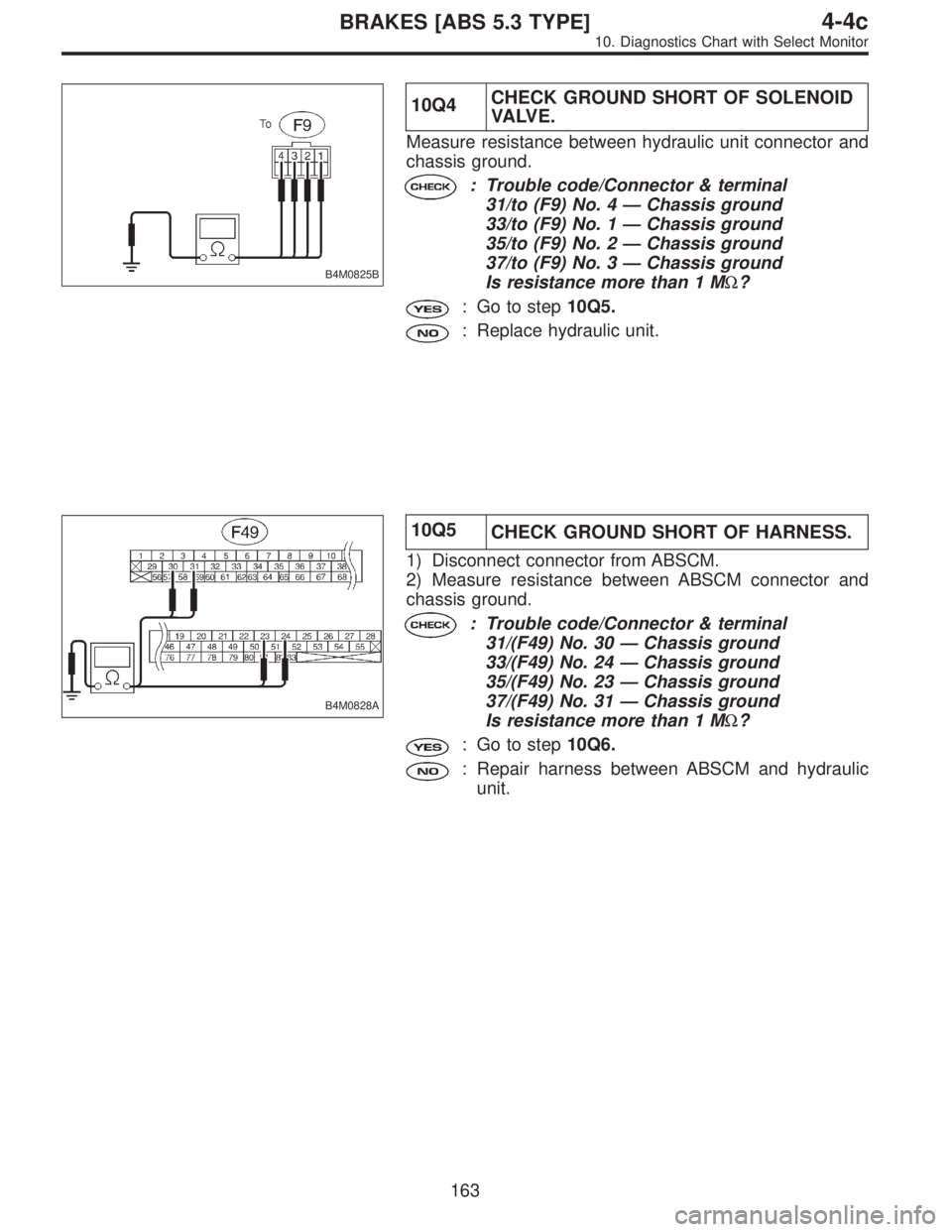

SUBARU LEGACY 1996 Service Repair Manual B4M0825B 10Q4CHECK GROUND SHORT OF SOLENOID VA LV E . Measure resistance between hydraulic unit connector and chassis ground. : Trouble code/Connector & terminal 31/to (F9) No. 4—Chassis ground 33/t

Page 2504 of 2890

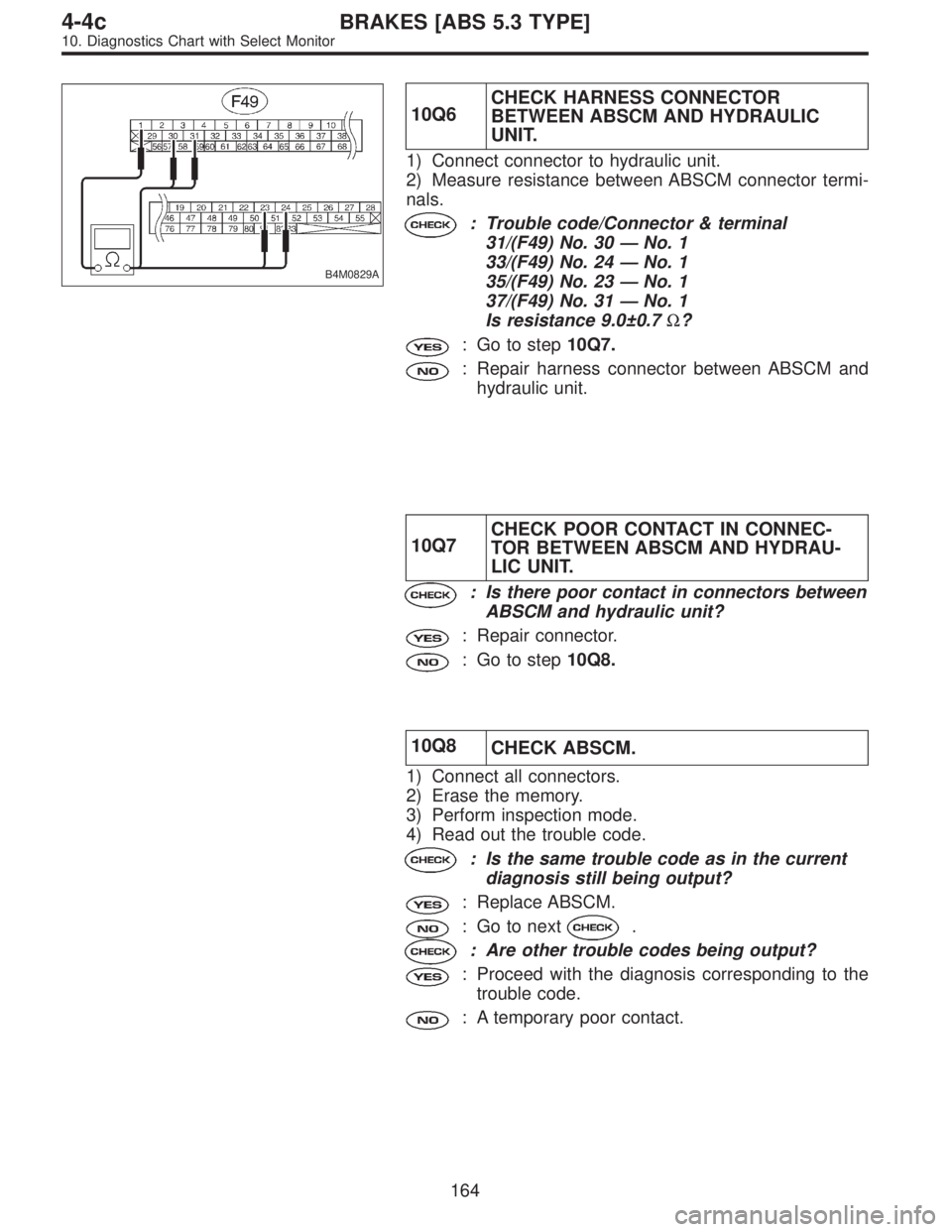

SUBARU LEGACY 1996 Service Repair Manual B4M0829A 10Q6CHECK HARNESS CONNECTOR BETWEEN ABSCM AND HYDRAULIC UNIT. 1) Connect connector to hydraulic unit. 2) Measure resistance between ABSCM connector termi- nals. : Trouble code/Connector & ter
