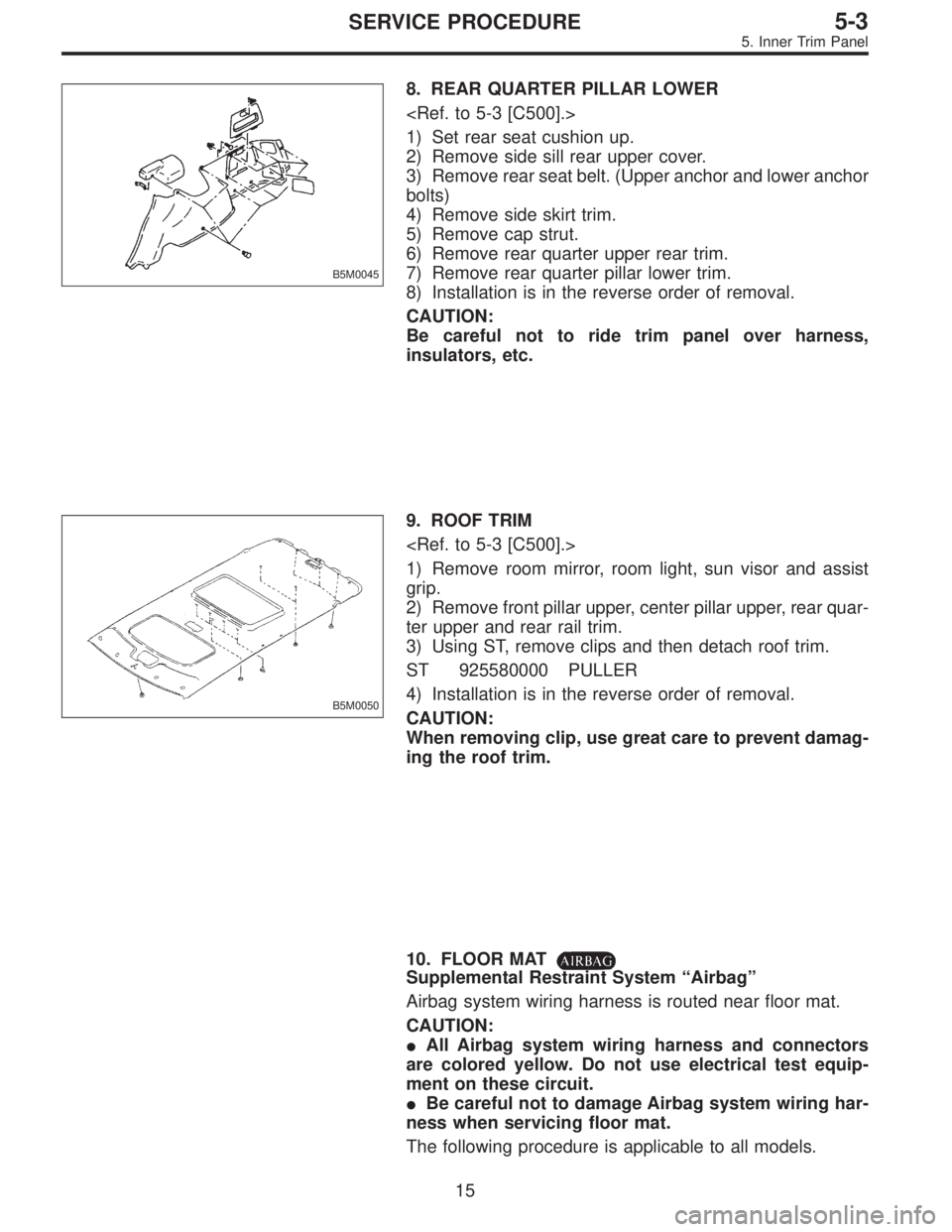

B5M0045
8. REAR QUARTER PILLAR LOWER
1) Set rear seat cushion up.
2) Remove side sill rear upper cover.
3) Remove rear seat belt. (Upper anchor and lower anchor
bolts)
4) Remove side skirt trim.
5) Remove cap strut.
6) Remove rear quarter upper rear trim.
7) Remove rear quarter pillar lower trim.
8) Installation is in the reverse order of removal.
CAUTION:
Be careful not to ride trim panel over harness,
insulators, etc.
B5M0050
9. ROOF TRIM
1) Remove room mirror, room light, sun visor and assist
grip.
2) Remove front pillar upper, center pillar upper, rear quar-
ter upper and rear rail trim.
3) Using ST, remove clips and then detach roof trim.
ST 925580000 PULLER
4) Installation is in the reverse order of removal.
CAUTION:
When removing clip, use great care to prevent damag-
ing the roof trim.
10. FLOOR MAT
Supplemental Restraint System“Airbag”
Airbag system wiring harness is routed near floor mat.
CAUTION:
All Airbag system wiring harness and connectors
are colored yellow. Do not use electrical test equip-
ment on these circuit.
Be careful not to damage Airbag system wiring har-
ness when servicing floor mat.
The following procedure is applicable to all models.
15
5-3SERVICE PROCEDURE
5. Inner Trim Panel
Page 1562 of 2890

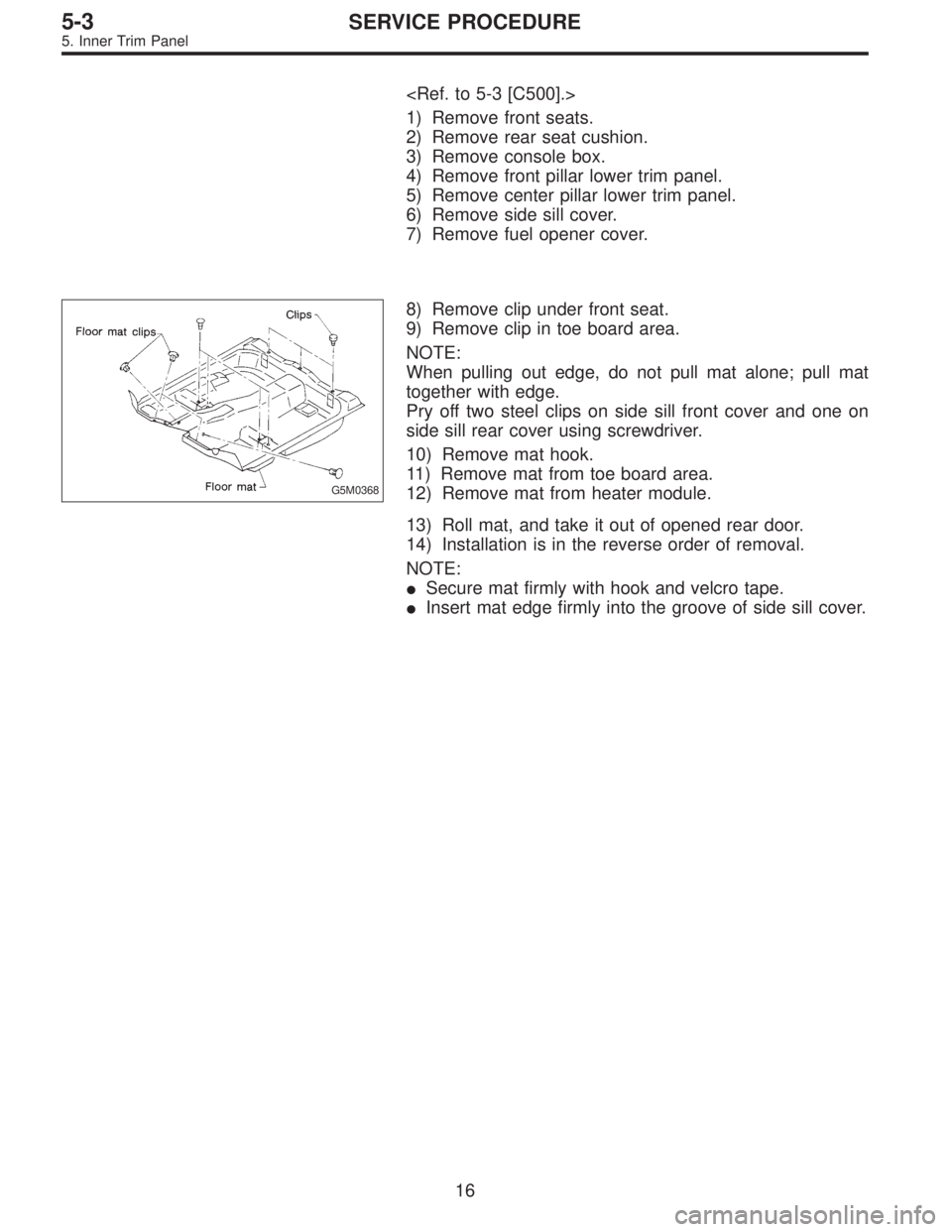

1) Remove front seats.
2) Remove rear seat cushion.
3) Remove console box.
4) Remove front pillar lower trim panel.
5) Remove center pillar lower trim panel.
6) Remove side sill cover.
7) Remove fuel opener cover.
G5M0368
8) Remove clip under front seat.
9) Remove clip in toe board area.
NOTE:
When pulling out edge, do not pull mat alone; pull mat
together with edge.
Pry off two steel clips on side sill front cover and one on
side sill rear cover using screwdriver.
10) Remove mat hook.
11) Remove mat from toe board area.
12) Remove mat from heater module.
13) Roll mat, and take it out of opened rear door.
14) Installation is in the reverse order of removal.
NOTE:
Secure mat firmly with hook and velcro tape.
Insert mat edge firmly into the groove of side sill cover.
16
5-3SERVICE PROCEDURE
5. Inner Trim Panel
Page 1563 of 2890

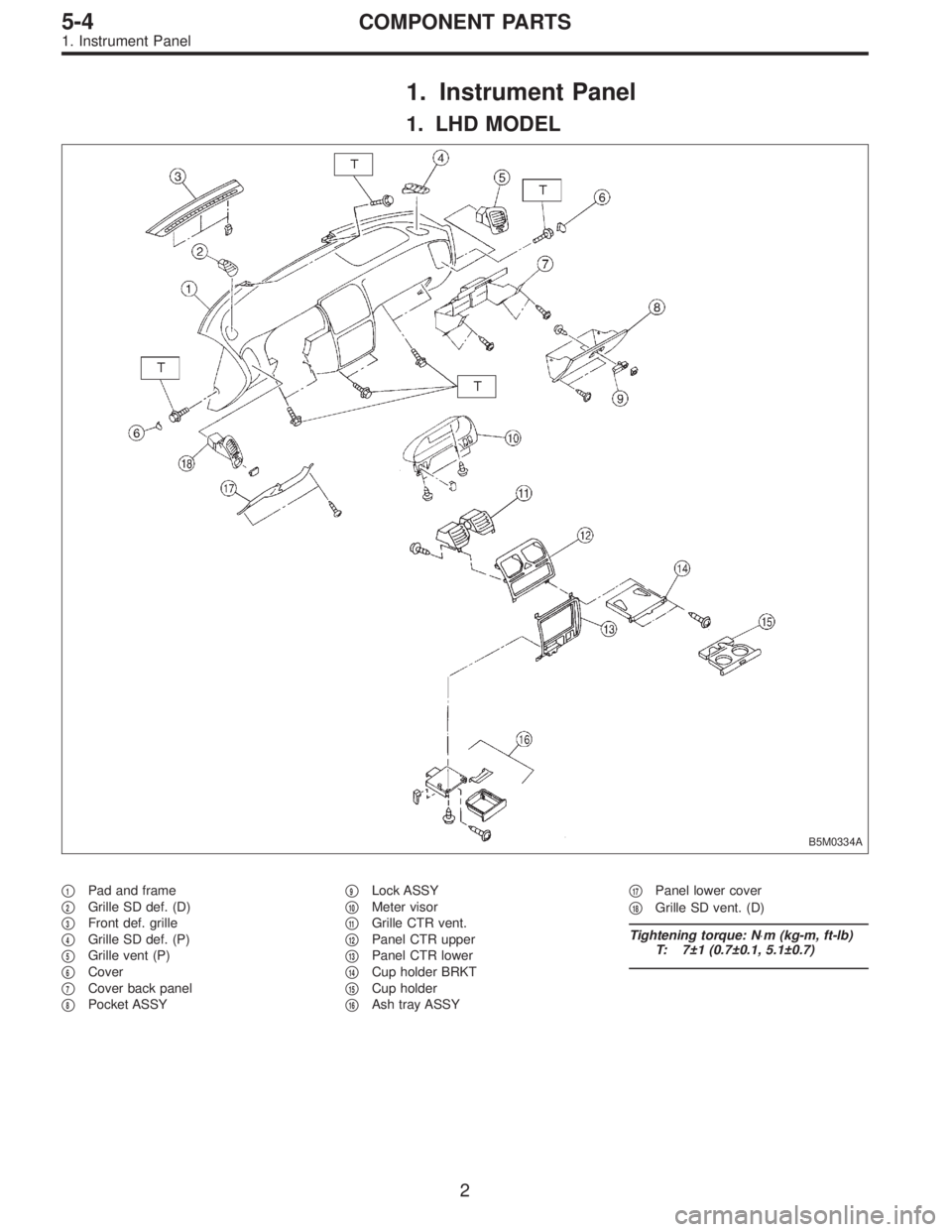

1. Instrument Panel
1. LHD MODEL
B5M0334A
1Pad and frame
2Grille SD def. (D)
3Front def. grille
4Grille SD def. (P)
5Grille vent (P)
6Cover
7Cover back panel
8Pocket ASSY
9Lock ASSY
10Meter visor
11Grille CTR vent.
12Panel CTR upper
13Panel CTR lower
14Cup holder BRKT
15Cup holder
16Ash tray ASSY
17Panel lower cover
18Grille SD vent. (D)
Tightening torque: N⋅m (kg-m, ft-lb)
T: 7±1 (0.7±0.1, 5.1±0.7)
2
5-4COMPONENT PARTS
1. Instrument Panel
Page 1564 of 2890

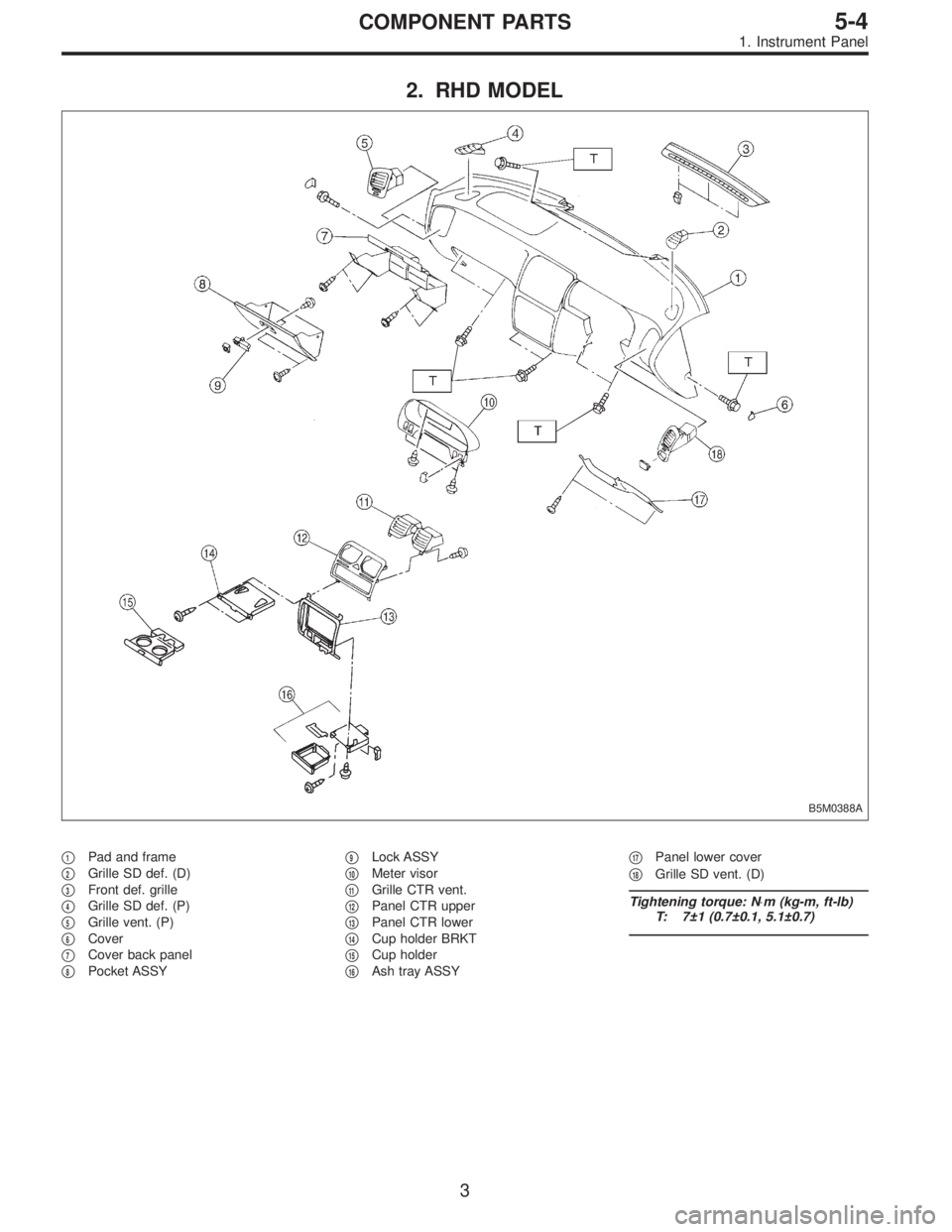

2. RHD MODEL
B5M0388A
1Pad and frame
2Grille SD def. (D)
3Front def. grille
4Grille SD def. (P)
5Grille vent. (P)
6Cover
7Cover back panel
8Pocket ASSY
9Lock ASSY
10Meter visor
11Grille CTR vent.
12Panel CTR upper
13Panel CTR lower
14Cup holder BRKT
15Cup holder
16Ash tray ASSY
17Panel lower cover
18Grille SD vent. (D)
Tightening torque: N⋅m (kg-m, ft-lb)
T: 7±1 (0.7±0.1, 5.1±0.7)
3
5-4COMPONENT PARTS
1. Instrument Panel
Page 1565 of 2890

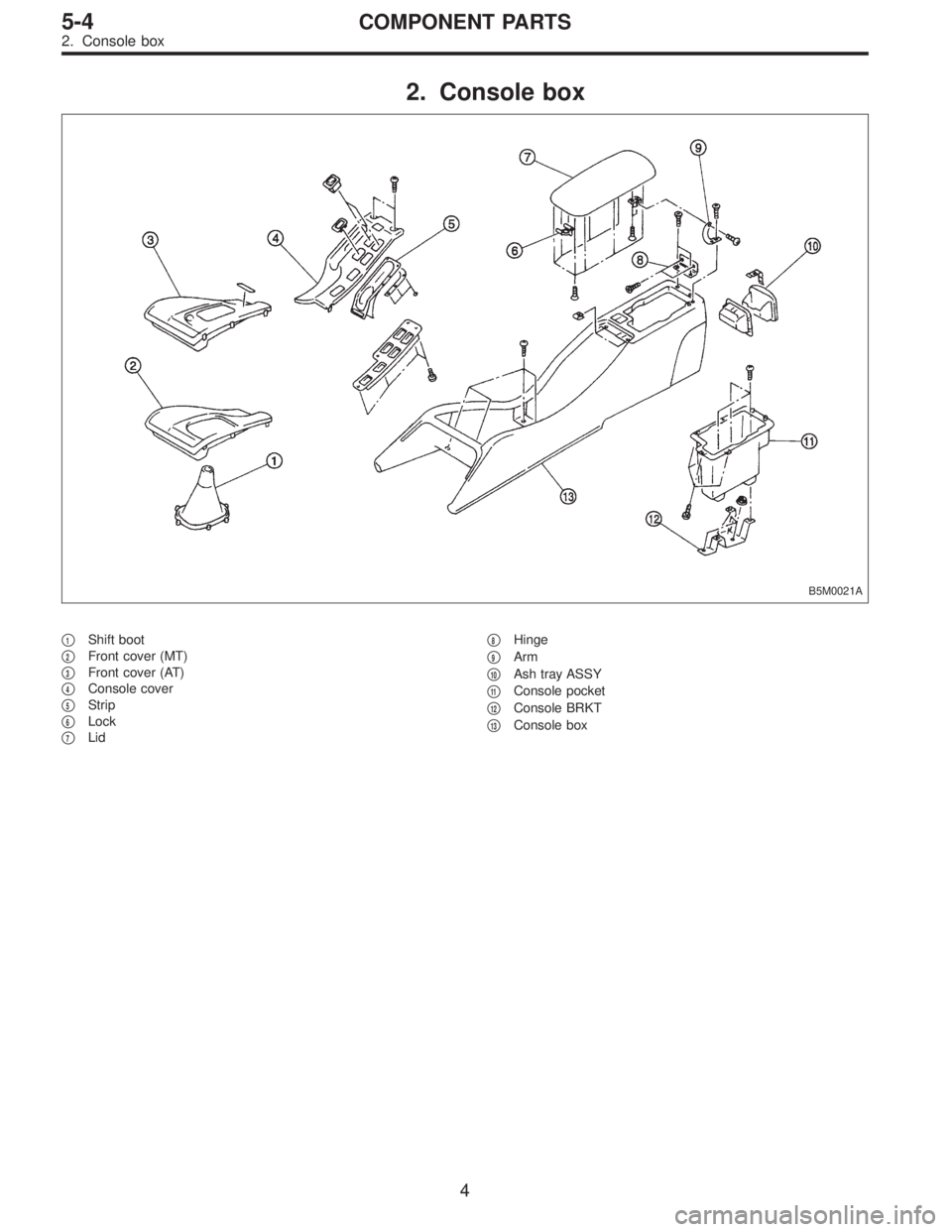

2. Console box
B5M0021A
1Shift boot
2Front cover (MT)
3Front cover (AT)
4Console cover
5Strip
6Lock
7Lid
8Hinge
9Arm
10Ash tray ASSY
11Console pocket
12Console BRKT
13Console box
4
5-4COMPONENT PARTS
2. Console box
Page 1566 of 2890

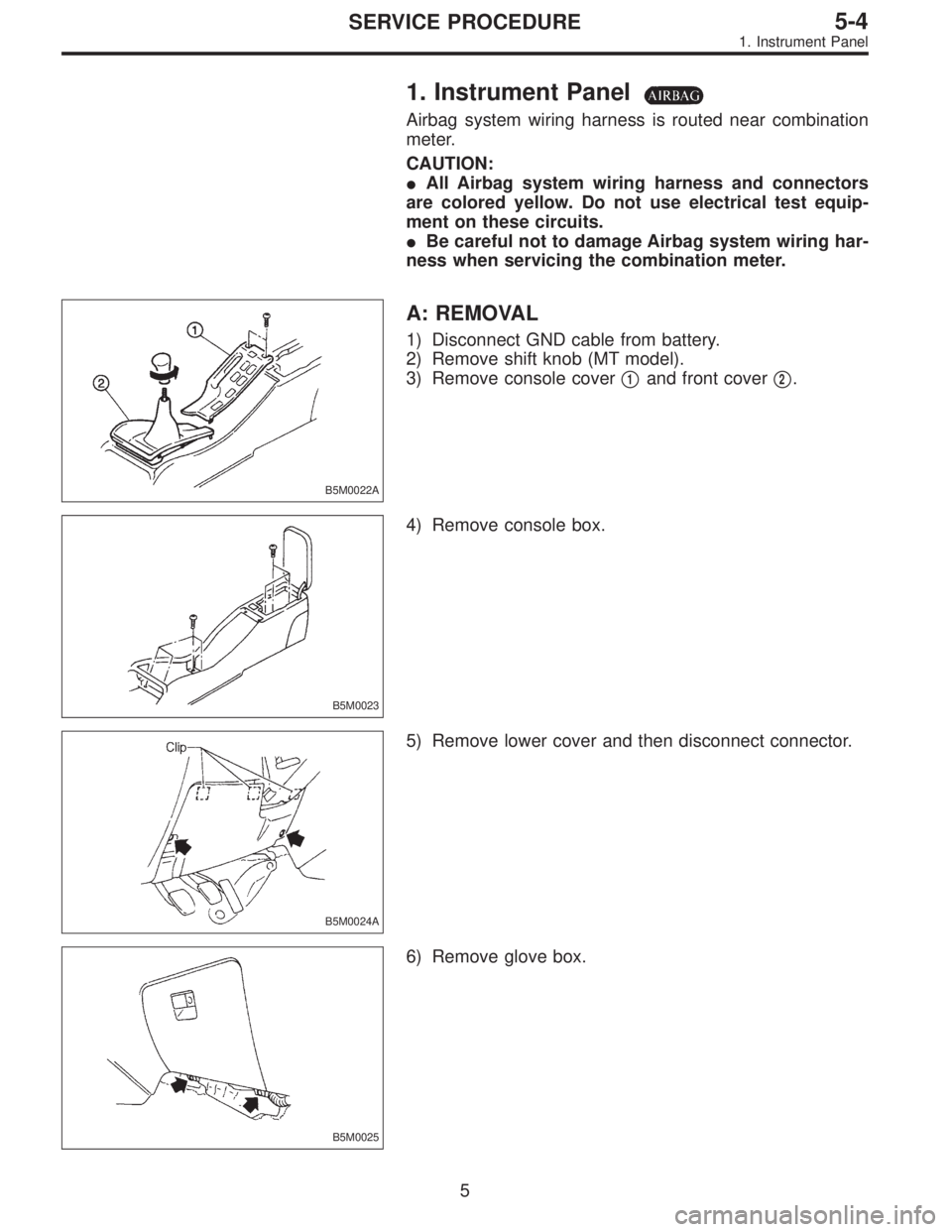

1. Instrument Panel
Airbag system wiring harness is routed near combination
meter.
CAUTION:
All Airbag system wiring harness and connectors
are colored yellow. Do not use electrical test equip-
ment on these circuits.
Be careful not to damage Airbag system wiring har-
ness when servicing the combination meter.
B5M0022A
A: REMOVAL
1) Disconnect GND cable from battery.
2) Remove shift knob (MT model).
3) Remove console cover
1and front cover2.
B5M0023
4) Remove console box.
B5M0024A
5) Remove lower cover and then disconnect connector.
B5M0025
6) Remove glove box.
5
5-4SERVICE PROCEDURE
1. Instrument Panel
Page 1567 of 2890

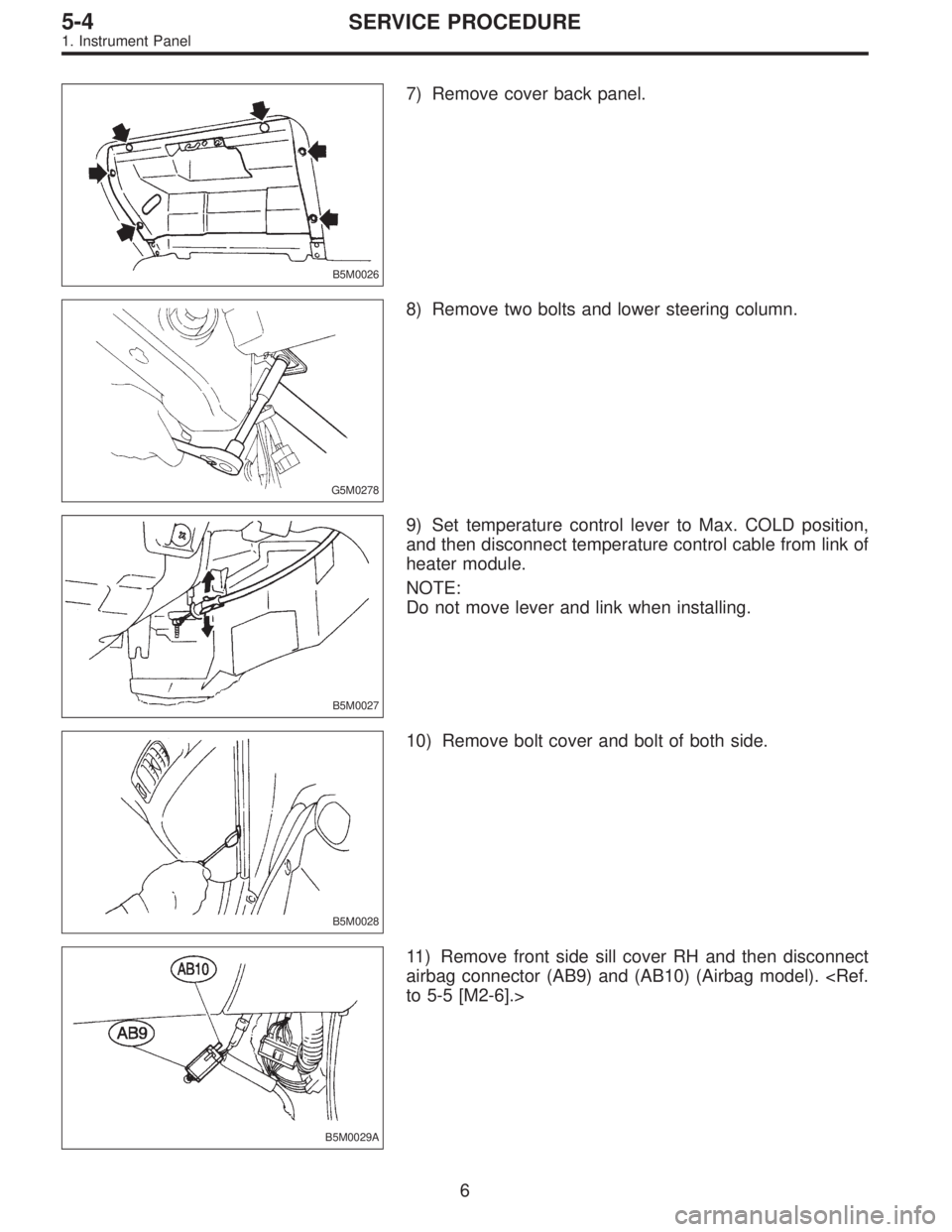

B5M0026
7) Remove cover back panel.
G5M0278
8) Remove two bolts and lower steering column.
B5M0027
9) Set temperature control lever to Max. COLD position,
and then disconnect temperature control cable from link of
heater module.
NOTE:
Do not move lever and link when installing.
B5M0028
10) Remove bolt cover and bolt of both side.
B5M0029A
11) Remove front side sill cover RH and then disconnect
airbag connector (AB9) and (AB10) (Airbag model).
to 5-5 [M2-6].>
6
5-4SERVICE PROCEDURE
1. Instrument Panel
Page 1568 of 2890

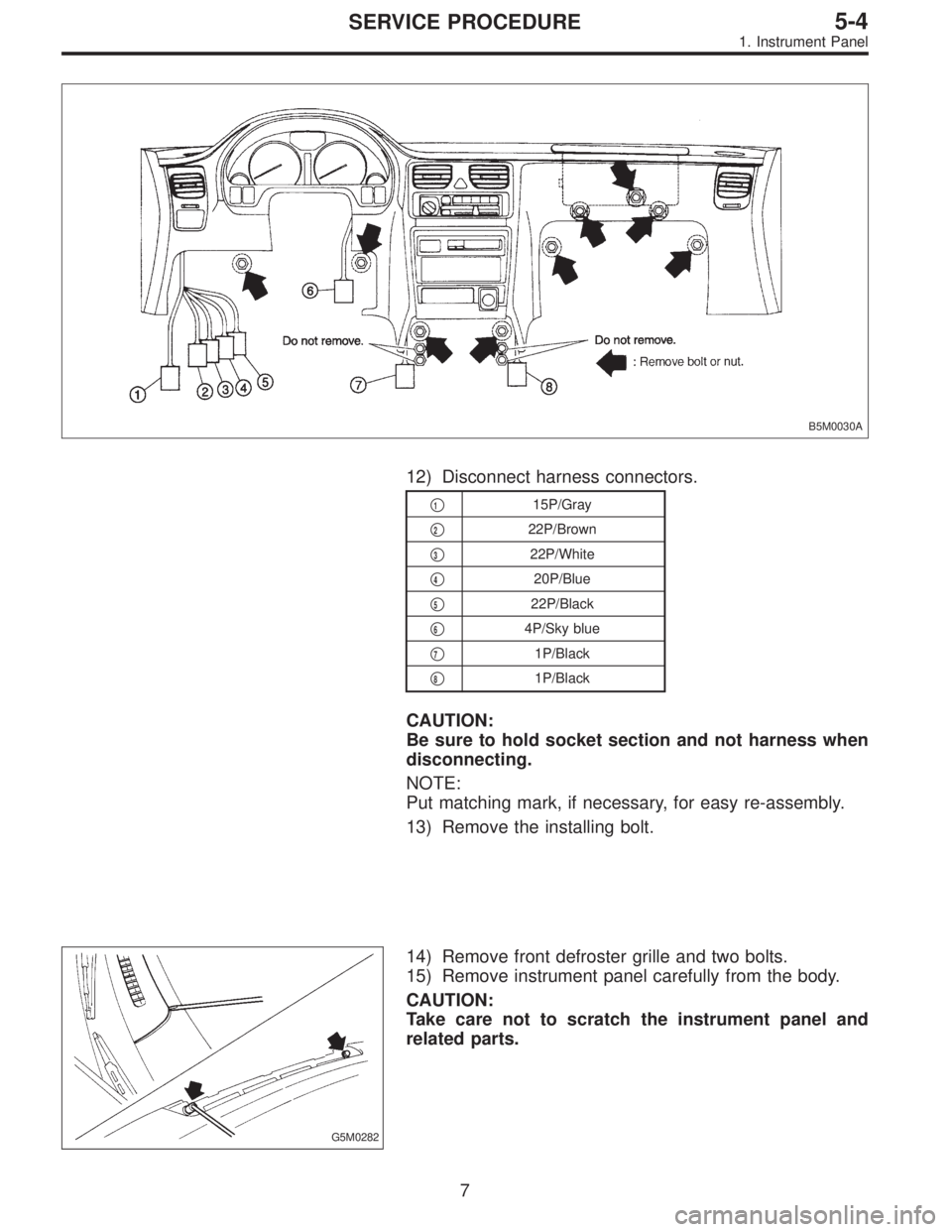

B5M0030A
12) Disconnect harness connectors.
115P/Gray
222P/Brown
322P/White
420P/Blue
522P/Black
64P/Sky blue
71P/Black
81P/Black
CAUTION:
Be sure to hold socket section and not harness when
disconnecting.
NOTE:
Put matching mark, if necessary, for easy re-assembly.
13) Remove the installing bolt.
G5M0282
14) Remove front defroster grille and two bolts.
15) Remove instrument panel carefully from the body.
CAUTION:
Take care not to scratch the instrument panel and
related parts.
7
5-4SERVICE PROCEDURE
1. Instrument Panel
