Page 1865 of 2890

B2M0521A
8C3

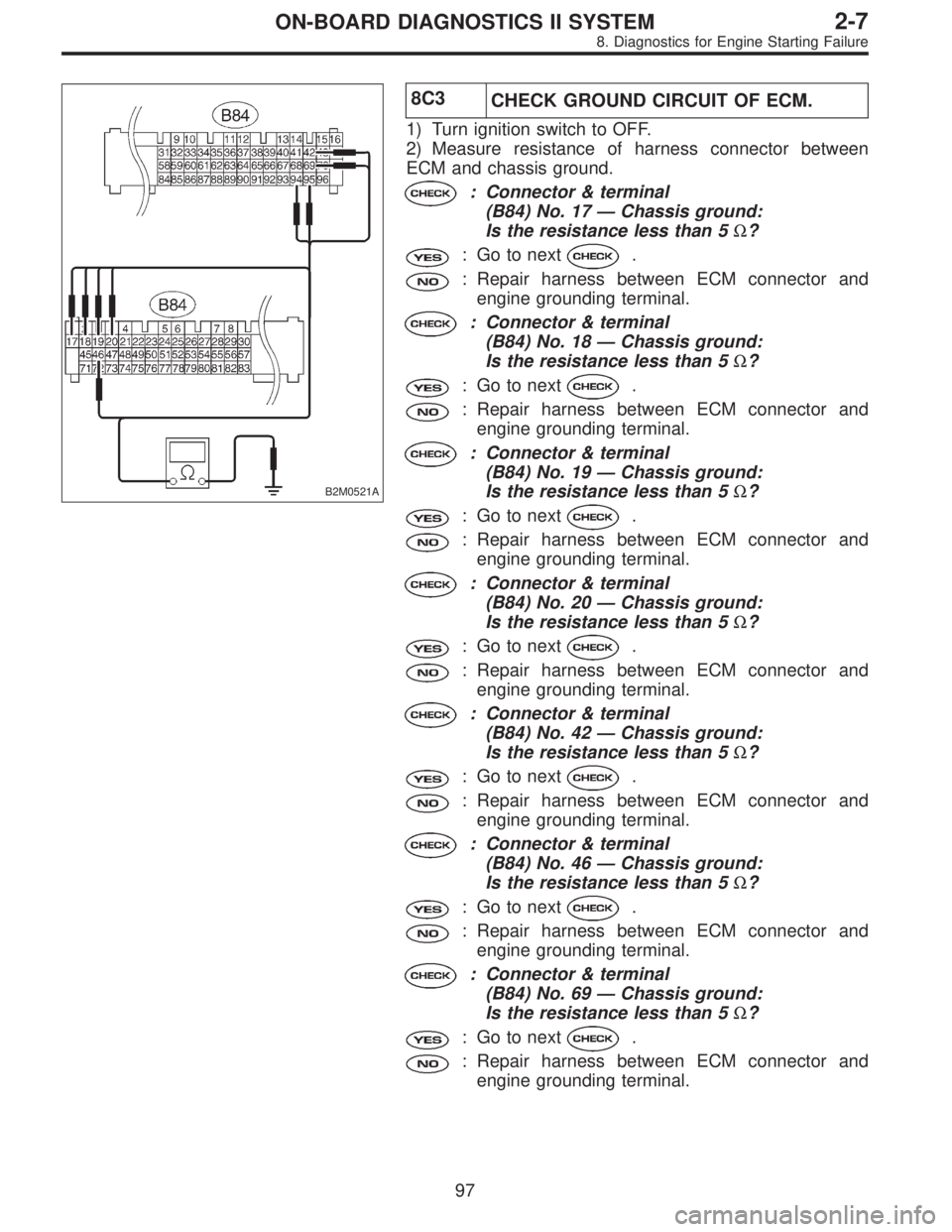

CHECK GROUND CIRCUIT OF ECM.
1) Turn ignition switch to OFF.
2) Measure resistance of harness connector between
ECM and chassis ground.
: Connector & terminal
(B84) No. 17—Chassis ground:
Is the resistance less than 5Ω?
: Go to next.
: Repair harness between ECM connector and
engine grounding terminal.
: Connector & terminal
(B84) No. 18—Chassis ground:
Is the resistance less than 5Ω?
: Go to next.
: Repair harness between ECM connector and
engine grounding terminal.
: Connector & terminal
(B84) No. 19—Chassis ground:
Is the resistance less than 5Ω?
: Go to next.
: Repair harness between ECM connector and
engine grounding terminal.
: Connector & terminal
(B84) No. 20—Chassis ground:
Is the resistance less than 5Ω?
: Go to next.
: Repair harness between ECM connector and
engine grounding terminal.
: Connector & terminal
(B84) No. 42—Chassis ground:
Is the resistance less than 5Ω?
: Go to next.
: Repair harness between ECM connector and
engine grounding terminal.
: Connector & terminal
(B84) No. 46—Chassis ground:
Is the resistance less than 5Ω?
: Go to next.
: Repair harness between ECM connector and
engine grounding terminal.
: Connector & terminal
(B84) No. 69—Chassis ground:
Is the resistance less than 5Ω?
: Go to next.
: Repair harness between ECM connector and
engine grounding terminal.
97
2-7ON-BOARD DIAGNOSTICS II SYSTEM
8. Diagnostics for Engine Starting Failure
Page 1866 of 2890

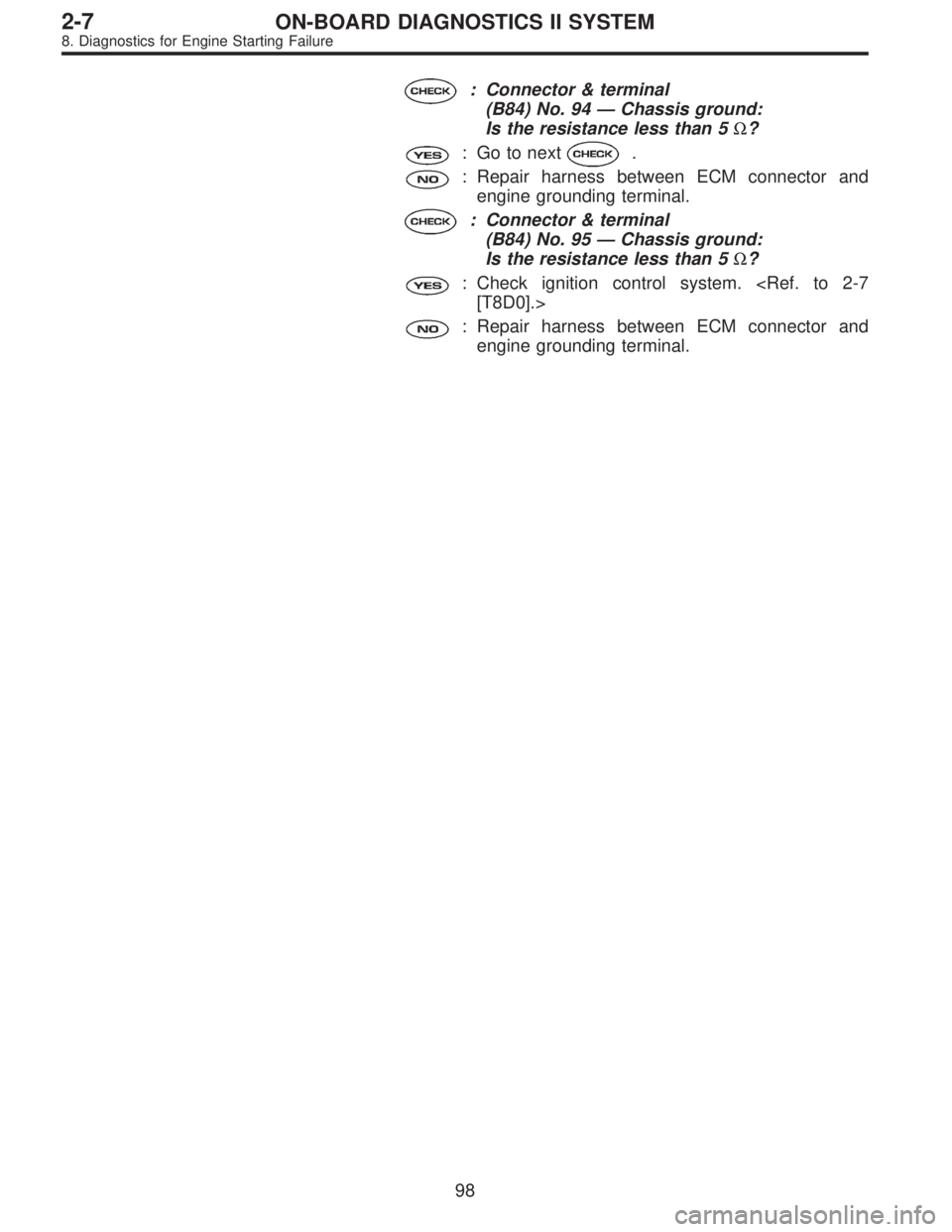

: Connector & terminal
(B84) No. 94—Chassis ground:
Is the resistance less than 5Ω?
: Go to next.
: Repair harness between ECM connector and
engine grounding terminal.
: Connector & terminal
(B84) No. 95—Chassis ground:
Is the resistance less than 5Ω?
: Check ignition control system.
[T8D0].>
: Repair harness between ECM connector and
engine grounding terminal.
98
2-7ON-BOARD DIAGNOSTICS II SYSTEM
8. Diagnostics for Engine Starting Failure
Page 1867 of 2890

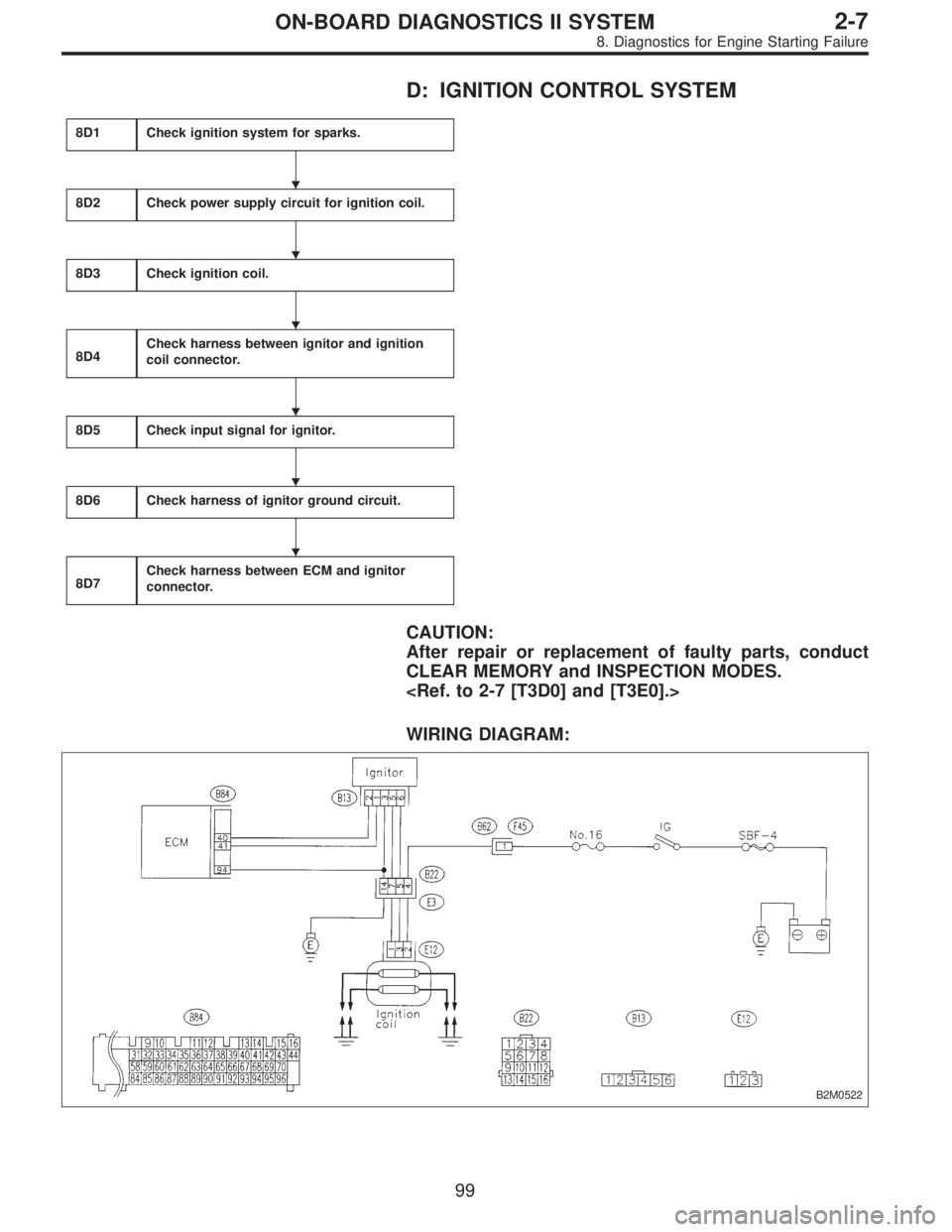

D: IGNITION CONTROL SYSTEM
8D1Check ignition system for sparks.
8D2Check power supply circuit for ignition coil.
8D3Check ignition coil.
8D4Check harness between ignitor and ignition
coil connector.
8D5Check input signal for ignitor.
8D6Check harness of ignitor ground circuit.
8D7Check harness between ECM and ignitor
connector.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.
WIRING DIAGRAM:
B2M0522
99
2-7ON-BOARD DIAGNOSTICS II SYSTEM
8. Diagnostics for Engine Starting Failure
Page 1868 of 2890

OBD0727A
B2M0644A
8D1

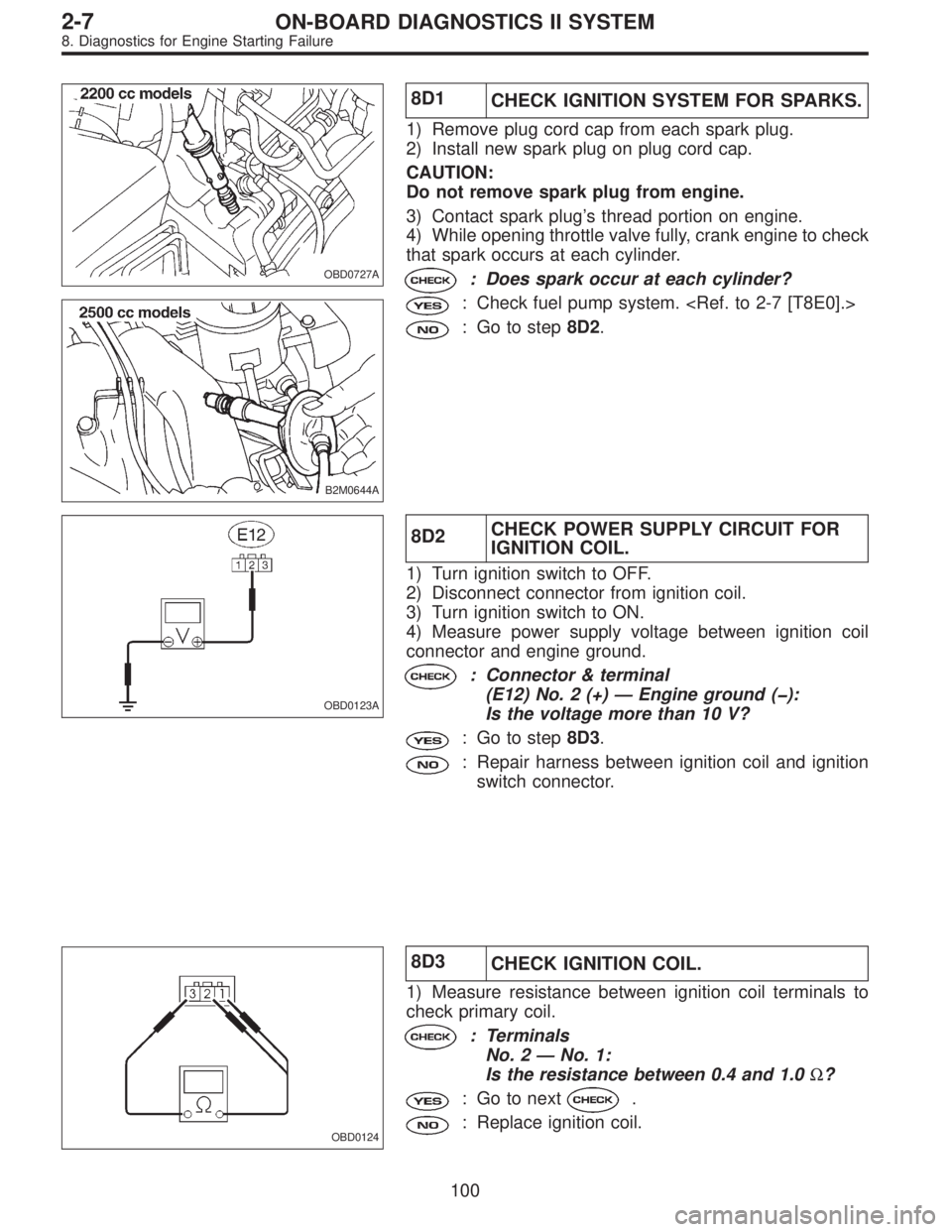

CHECK IGNITION SYSTEM FOR SPARKS.
1) Remove plug cord cap from each spark plug.
2) Install new spark plug on plug cord cap.
CAUTION:
Do not remove spark plug from engine.
3) Contact spark plug’s thread portion on engine.
4) While opening throttle valve fully, crank engine to check
that spark occurs at each cylinder.
: Does spark occur at each cylinder?
: Check fuel pump system.
: Go to step8D2.
OBD0123A
8D2CHECK POWER SUPPLY CIRCUIT FOR
IGNITION COIL.
1) Turn ignition switch to OFF.
2) Disconnect connector from ignition coil.
3) Turn ignition switch to ON.
4) Measure power supply voltage between ignition coil
connector and engine ground.
: Connector & terminal
(E12) No. 2 (+)—Engine ground ( ):
Is the voltage more than 10 V?
: Go to step8D3.
: Repair harness between ignition coil and ignition
switch connector.
OBD0124
8D3
CHECK IGNITION COIL.
1) Measure resistance between ignition coil terminals to
check primary coil.
: Terminals
No. 2—No. 1:
Is the resistance between 0.4 and 1.0Ω?
: Go to next.
: Replace ignition coil.
100
2-7ON-BOARD DIAGNOSTICS II SYSTEM
8. Diagnostics for Engine Starting Failure
Page 1869 of 2890

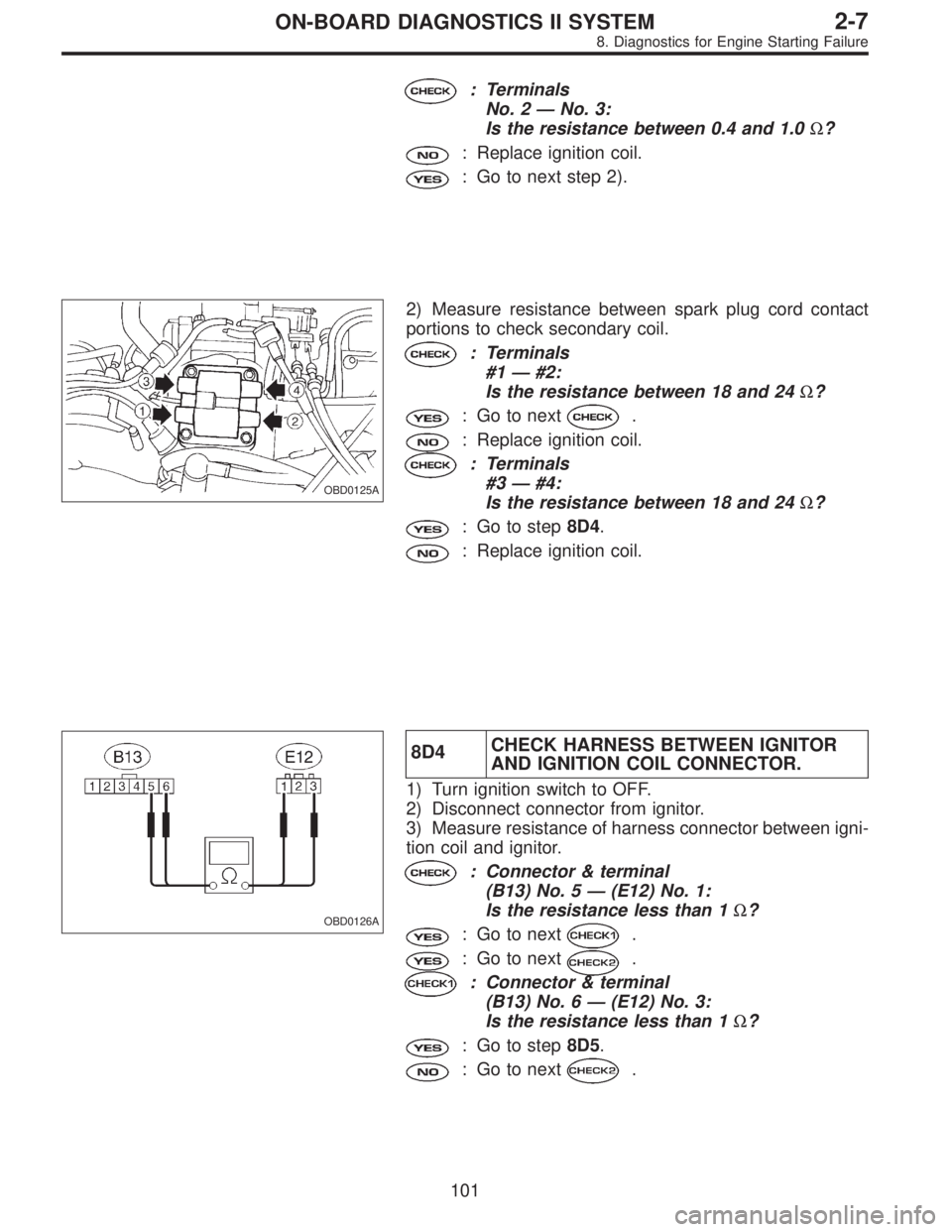

: Terminals
No. 2—No. 3:
Is the resistance between 0.4 and 1.0Ω?
: Replace ignition coil.
: Go to next step 2).
OBD0125A
2) Measure resistance between spark plug cord contact
portions to check secondary coil.
: Terminals
#1—#2:
Is the resistance between 18 and 24Ω?
: Go to next.
: Replace ignition coil.
: Terminals
#3—#4:
Is the resistance between 18 and 24Ω?
: Go to step8D4.
: Replace ignition coil.
OBD0126A
8D4CHECK HARNESS BETWEEN IGNITOR
AND IGNITION COIL CONNECTOR.
1) Turn ignition switch to OFF.
2) Disconnect connector from ignitor.
3) Measure resistance of harness connector between igni-
tion coil and ignitor.
: Connector & terminal
(B13) No. 5—(E12) No. 1:
Is the resistance less than 1Ω?
: Go to next.
: Go to next.
: Connector & terminal
(B13) No. 6—(E12) No. 3:
Is the resistance less than 1Ω?
: Go to step8D5.
: Go to next.
101
2-7ON-BOARD DIAGNOSTICS II SYSTEM
8. Diagnostics for Engine Starting Failure
Page 1870 of 2890

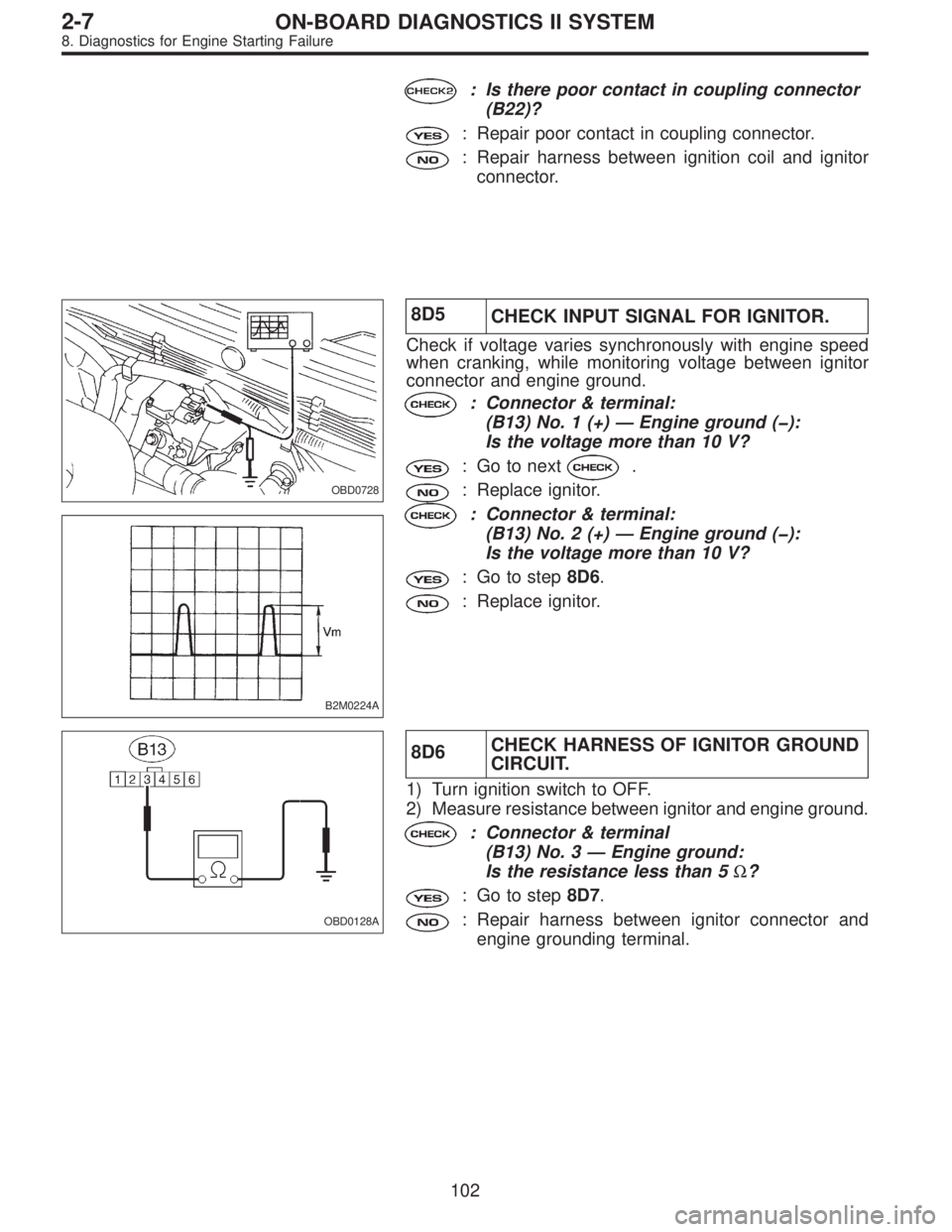

: Is there poor contact in coupling connector
(B22)?
: Repair poor contact in coupling connector.
: Repair harness between ignition coil and ignitor
connector.
OBD0728
B2M0224A
8D5
CHECK INPUT SIGNAL FOR IGNITOR.
Check if voltage varies synchronously with engine speed
when cranking, while monitoring voltage between ignitor
connector and engine ground.
: Connector & terminal:
(B13) No. 1 (+)—Engine ground ( ):
Is the voltage more than 10 V?
: Go to next.
: Replace ignitor.
: Connector & terminal:
(B13) No. 2 (+)—Engine ground ( ):
Is the voltage more than 10 V?
: Go to step8D6.
: Replace ignitor.
OBD0128A
8D6CHECK HARNESS OF IGNITOR GROUND
CIRCUIT.
1) Turn ignition switch to OFF.
2) Measure resistance between ignitor and engine ground.
: Connector & terminal
(B13) No. 3—Engine ground:
Is the resistance less than 5Ω?
: Go to step8D7.
: Repair harness between ignitor connector and
engine grounding terminal.
102
2-7ON-BOARD DIAGNOSTICS II SYSTEM
8. Diagnostics for Engine Starting Failure
Page 1871 of 2890

B2M0523A

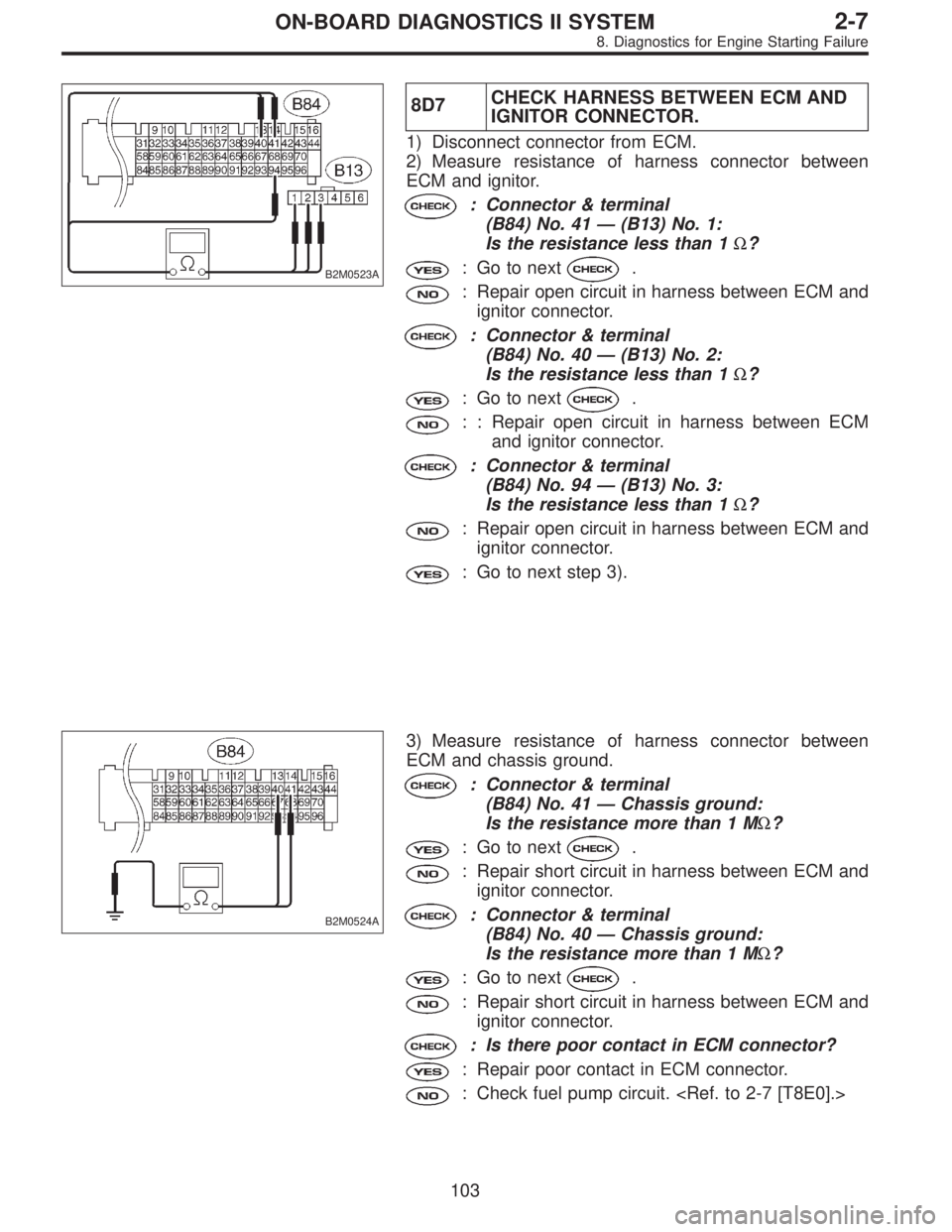

8D7CHECK HARNESS BETWEEN ECM AND
IGNITOR CONNECTOR.
1) Disconnect connector from ECM.
2) Measure resistance of harness connector between
ECM and ignitor.
: Connector & terminal
(B84) No. 41—(B13) No. 1:
Is the resistance less than 1Ω?
: Go to next.
: Repair open circuit in harness between ECM and
ignitor connector.
: Connector & terminal
(B84) No. 40—(B13) No. 2:
Is the resistance less than 1Ω?
: Go to next.
: : Repair open circuit in harness between ECM
and ignitor connector.
: Connector & terminal
(B84) No. 94—(B13) No. 3:
Is the resistance less than 1Ω?
: Repair open circuit in harness between ECM and
ignitor connector.
: Go to next step 3).
B2M0524A
3) Measure resistance of harness connector between
ECM and chassis ground.
: Connector & terminal
(B84) No. 41—Chassis ground:
Is the resistance more than 1 MΩ?
: Go to next.
: Repair short circuit in harness between ECM and
ignitor connector.
: Connector & terminal
(B84) No. 40—Chassis ground:
Is the resistance more than 1 MΩ?
: Go to next.
: Repair short circuit in harness between ECM and
ignitor connector.
: Is there poor contact in ECM connector?
: Repair poor contact in ECM connector.
: Check fuel pump circuit.
103
2-7ON-BOARD DIAGNOSTICS II SYSTEM
8. Diagnostics for Engine Starting Failure
Page 1872 of 2890

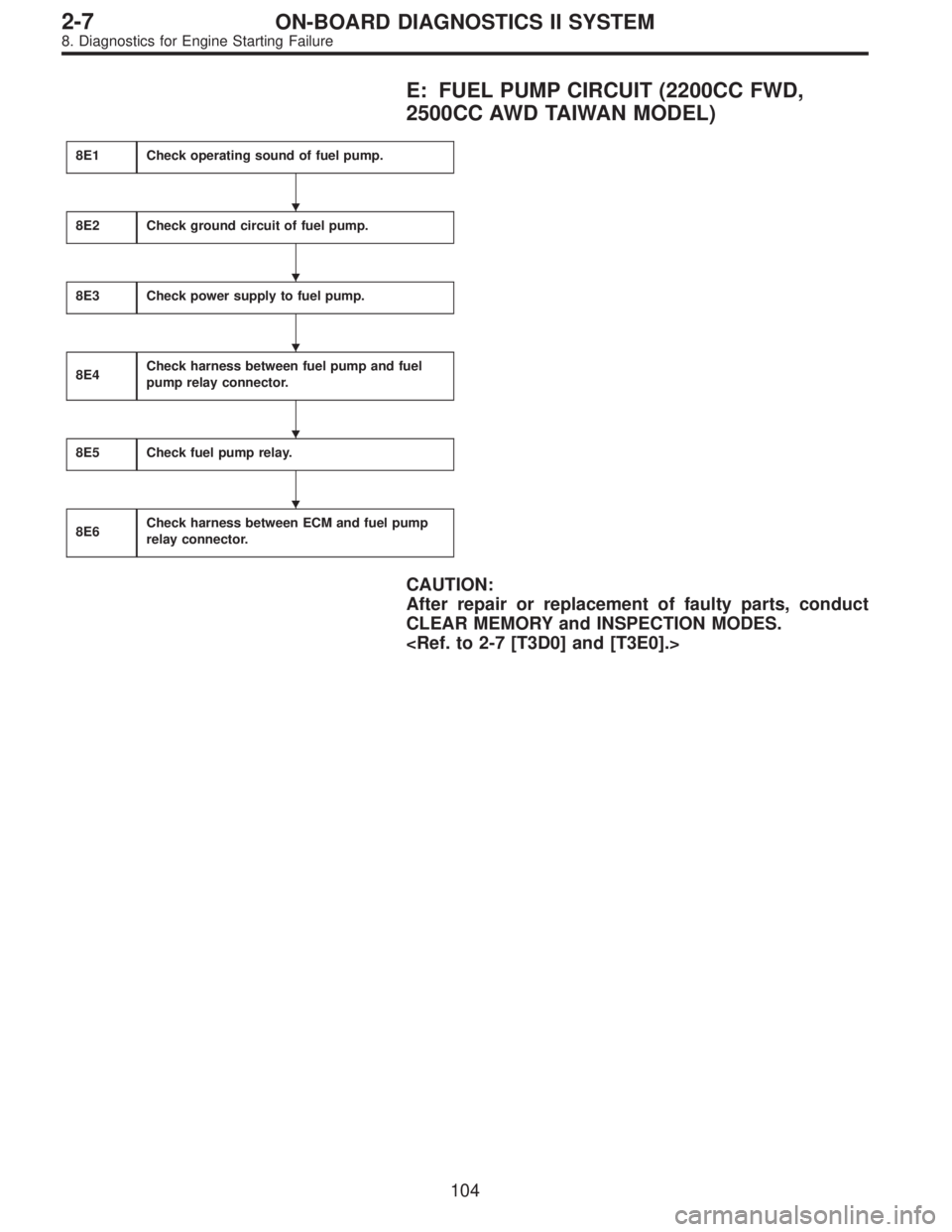

E: FUEL PUMP CIRCUIT (2200CC FWD,
2500CC AWD TAIWAN MODEL)
8E1Check operating sound of fuel pump.
8E2Check ground circuit of fuel pump.
8E3Check power supply to fuel pump.
8E4Check harness between fuel pump and fuel
pump relay connector.
8E5Check fuel pump relay.
8E6Check harness between ECM and fuel pump
relay connector.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.
