1. Manual Transmission

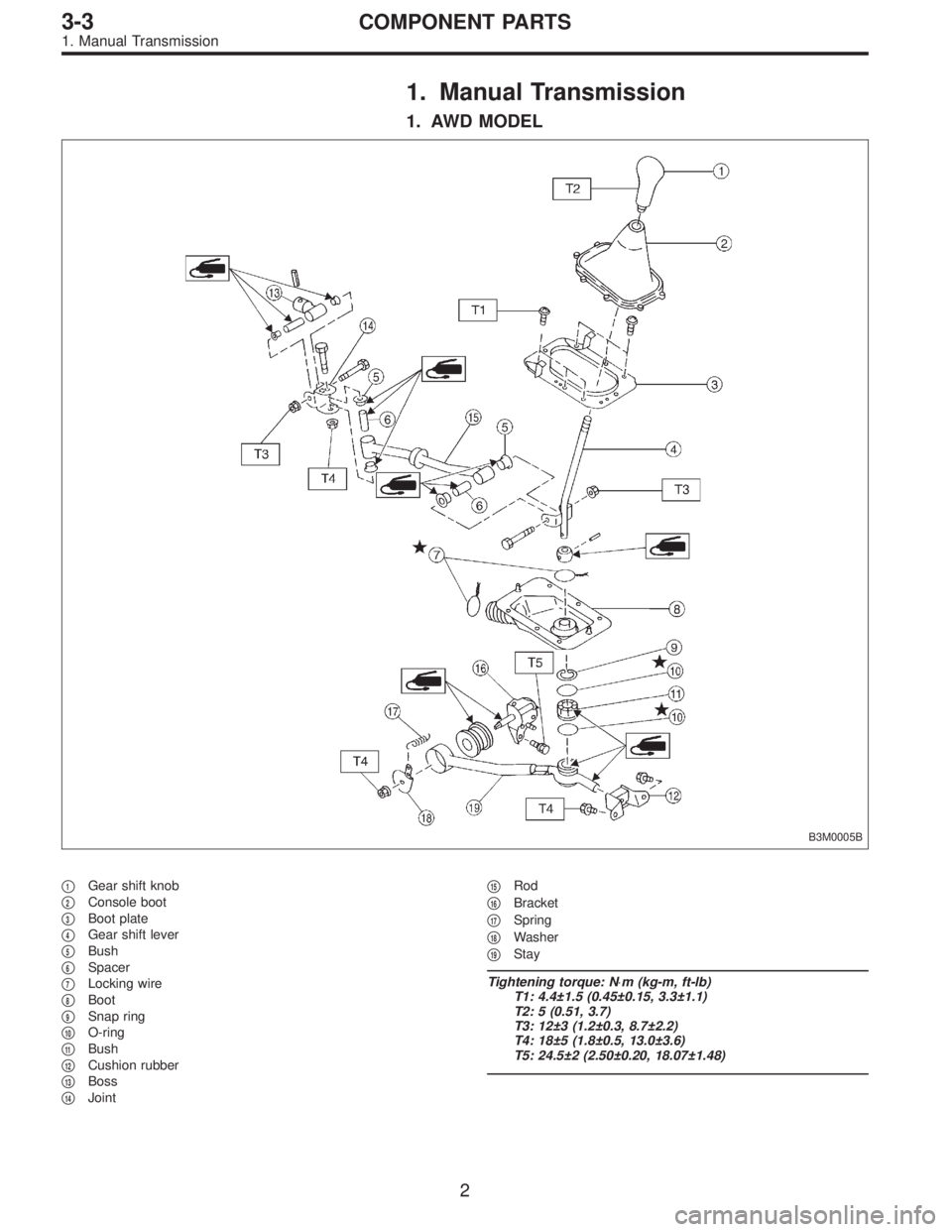

1. AWD MODEL
B3M0005B
1Gear shift knob
2Console boot
3Boot plate
4Gear shift lever
5Bush
6Spacer
7Locking wire
8Boot
9Snap ring
10O-ring
11Bush
12Cushion rubber
13Boss
14Joint
15Rod
16Bracket
17Spring
18Washer
19Stay
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T2: 5 (0.51, 3.7)
T3: 12±3 (1.2±0.3, 8.7±2.2)
T4: 18±5 (1.8±0.5, 13.0±3.6)
T5: 24.5±2 (2.50±0.20, 18.07±1.48)
2
3-3COMPONENT PARTS
1. Manual Transmission
Page 946 of 2890

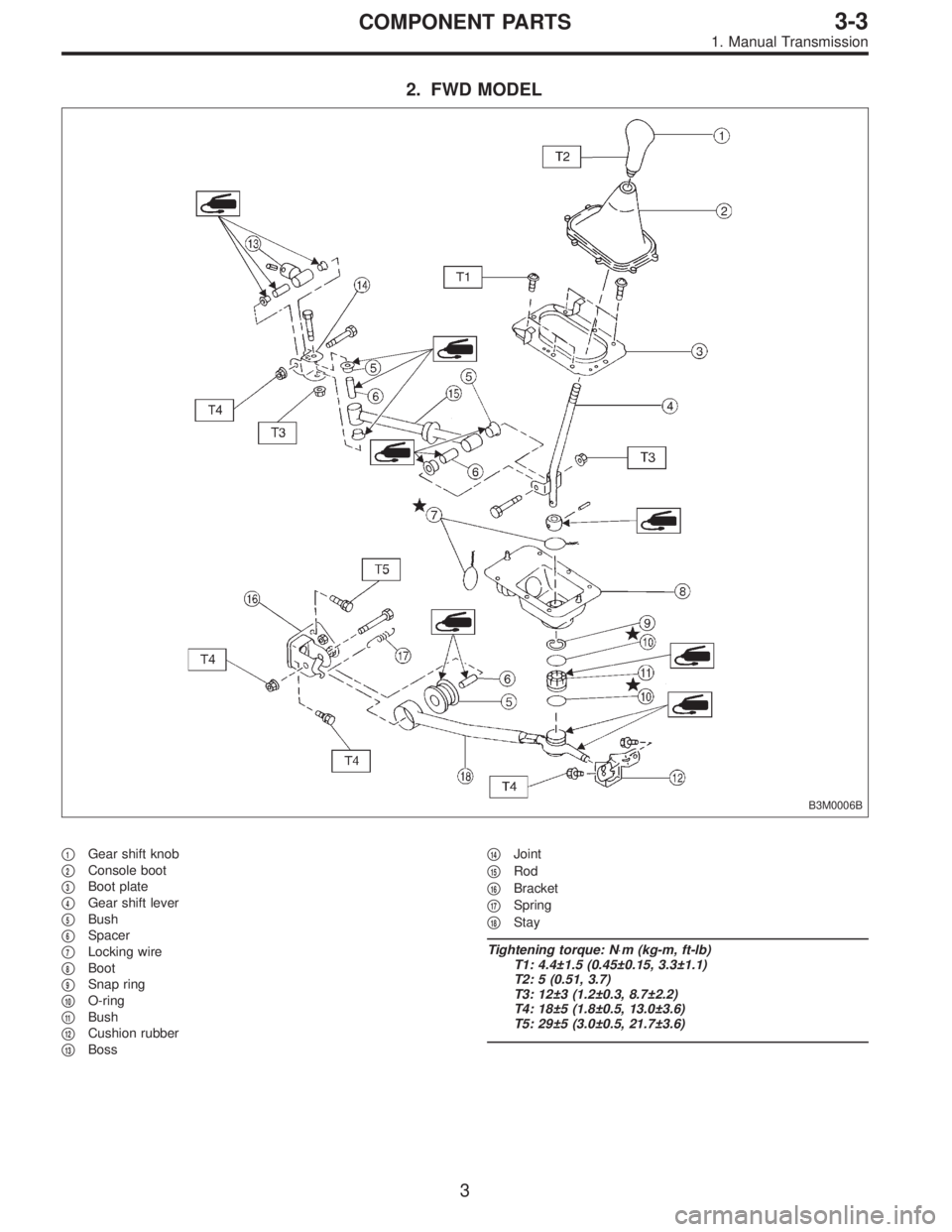

2. FWD MODEL
B3M0006B
1Gear shift knob
2Console boot
3Boot plate
4Gear shift lever
5Bush
6Spacer
7Locking wire
8Boot
9Snap ring
10O-ring
11Bush
12Cushion rubber
13Boss
14Joint
15Rod
16Bracket
17Spring
18Stay
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T2: 5 (0.51, 3.7)
T3: 12±3 (1.2±0.3, 8.7±2.2)
T4: 18±5 (1.8±0.5, 13.0±3.6)
T5: 29±5 (3.0±0.5, 21.7±3.6)
3
3-3COMPONENT PARTS
1. Manual Transmission
Page 947 of 2890
2. Automatic Transmission
1. LHD MODEL
B3M0415A
1Button
2Spring
3Grip
4Indicator cover
5“P” position switch
6Indicator light bulb
7Shift-lock solenoid
8Plate
9Packing
10Outer cable
11Nut
12Nut
13Inner cable
14Clip
15Rod
16Selector lever
17Lock plate
18Detention spring
19Pin
20Spacer
21Washer
22Boot
23Spacer
24Snap pin
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 2.0±0.7 (0.2±0.07, 1.4±0.5)
T2: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T3: 12±3 (1.2±0.3, 8.7±2.2)
T4: 18±5 (1.8±0.5, 13.0±3.6)
4
3-3COMPONENT PARTS

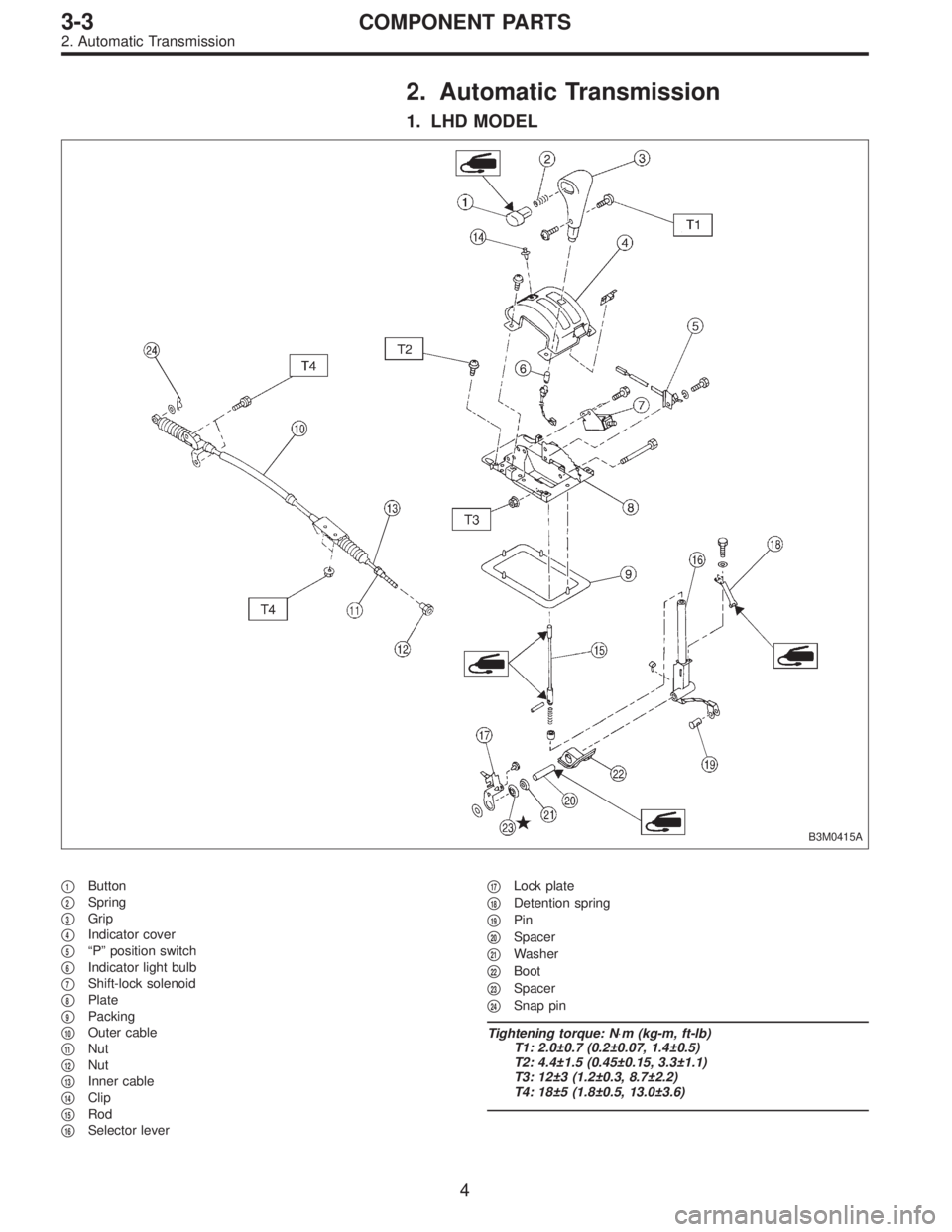

2. Automatic Transmission
Page 948 of 2890
2. RHD MODEL
B3M0385A
1Grip
2Spring
3Button
4Indicator cover
5“P”position switch
6Indicator light bulb
7Shift-lock solenoid
8Plate
9Packing
10Outer cable
11Nut
12Nut
13Inner cable
14Clip
15Rod
16Selector lever
17Lock plate
18Detention spring
19Pin
20Spacer
21Washer
22Boot
23Spacer
24Snap pin
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T2: 12±3 (1.2±0.3, 8.7±2.2)
T3: 18±5 (1.8±0.5, 13.0±3.6)
5
3-3COMPONENT PARTS
2. Automatic Transmission
Page 949 of 2890
1. Manual Transmission

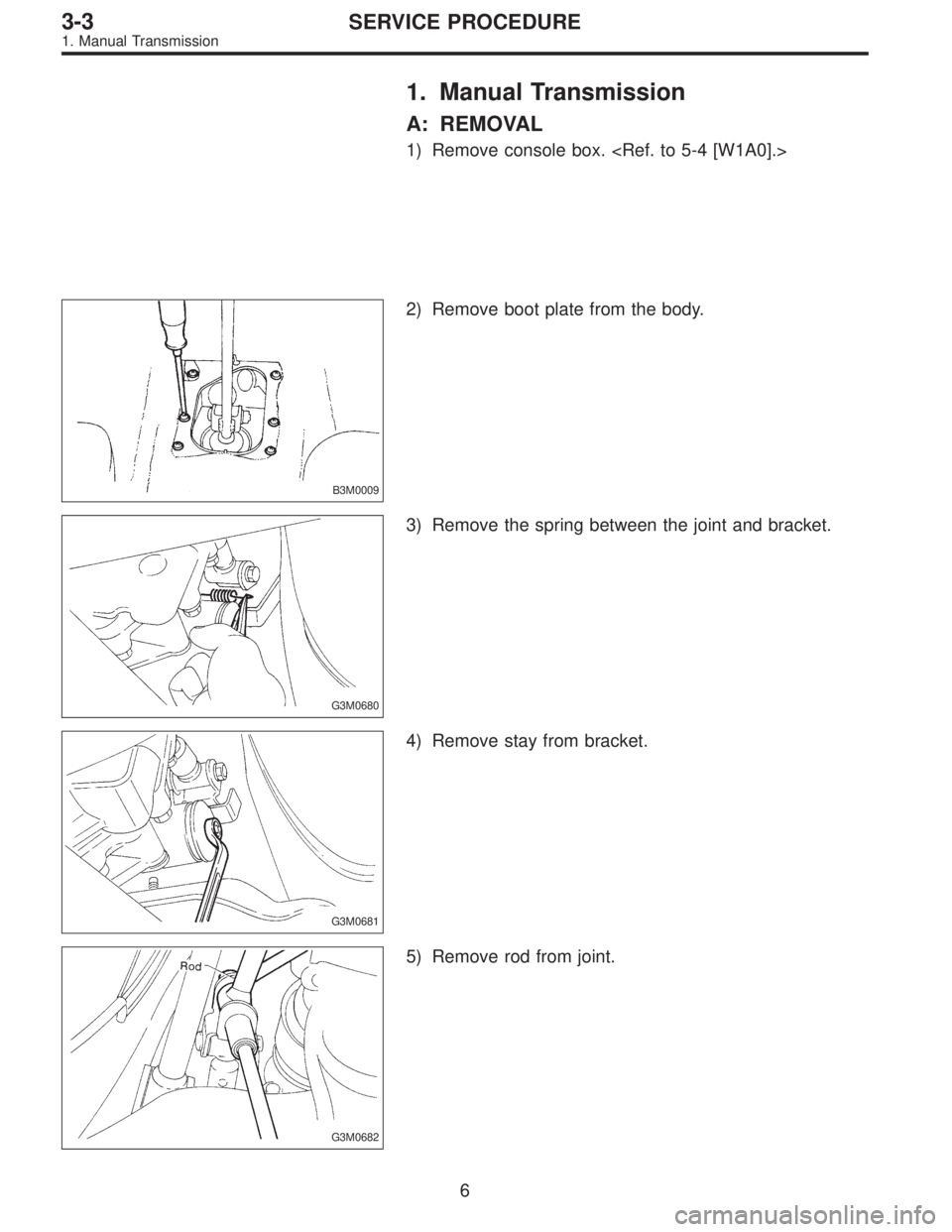

A: REMOVAL
1) Remove console box.
B3M0009
2) Remove boot plate from the body.
G3M0680
3) Remove the spring between the joint and bracket.
G3M0681
4) Remove stay from bracket.
G3M0682
5) Remove rod from joint.
6
3-3SERVICE PROCEDURE
1. Manual Transmission
Page 950 of 2890

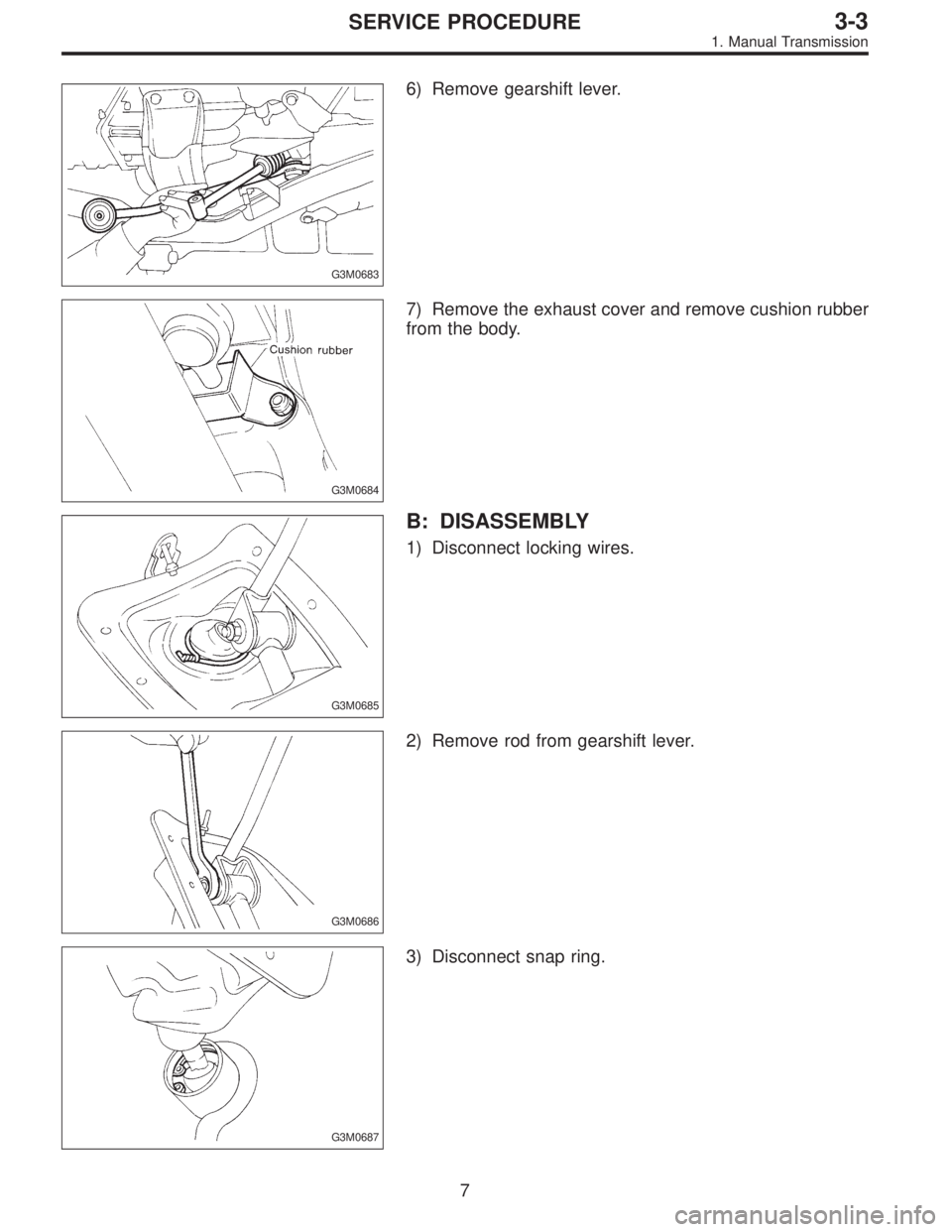

G3M0683
6) Remove gearshift lever.
G3M0684
7) Remove the exhaust cover and remove cushion rubber
from the body.
G3M0685
B: DISASSEMBLY
1) Disconnect locking wires.
G3M0686
2) Remove rod from gearshift lever.
G3M0687
3) Disconnect snap ring.
7
3-3SERVICE PROCEDURE
1. Manual Transmission

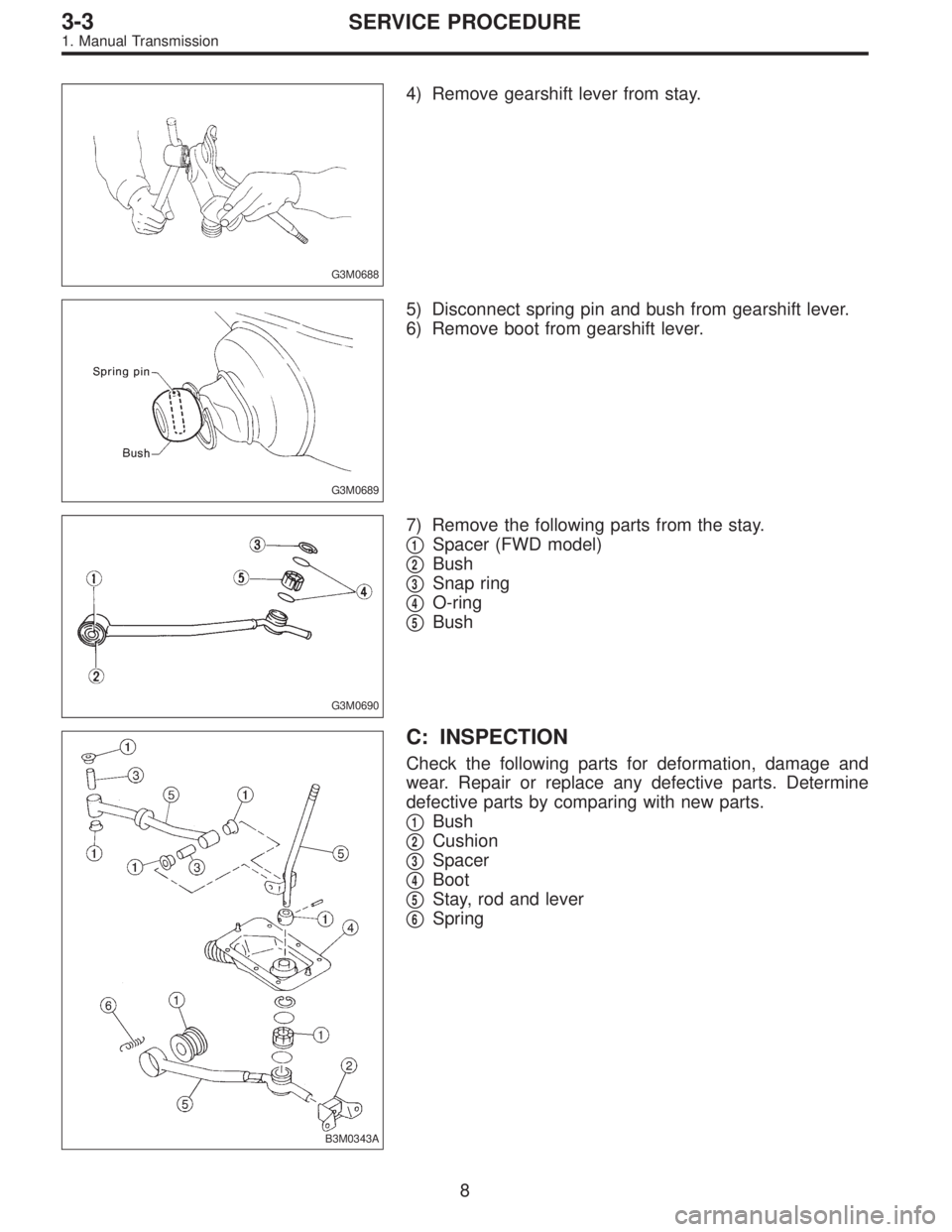

Page 951 of 2890
G3M0688
4) Remove gearshift lever from stay.
G3M0689
5) Disconnect spring pin and bush from gearshift lever.
6) Remove boot from gearshift lever.
G3M0690
7) Remove the following parts from the stay.
1Spacer (FWD model)
2Bush
3Snap ring
4O-ring
5Bush
B3M0343A
C: INSPECTION
Check the following parts for deformation, damage and
wear. Repair or replace any defective parts. Determine
defective parts by comparing with new parts.
1Bush
2Cushion
3Spacer
4Boot
5Stay, rod and lever
6Spring
8
3-3SERVICE PROCEDURE
1. Manual Transmission
Page 952 of 2890

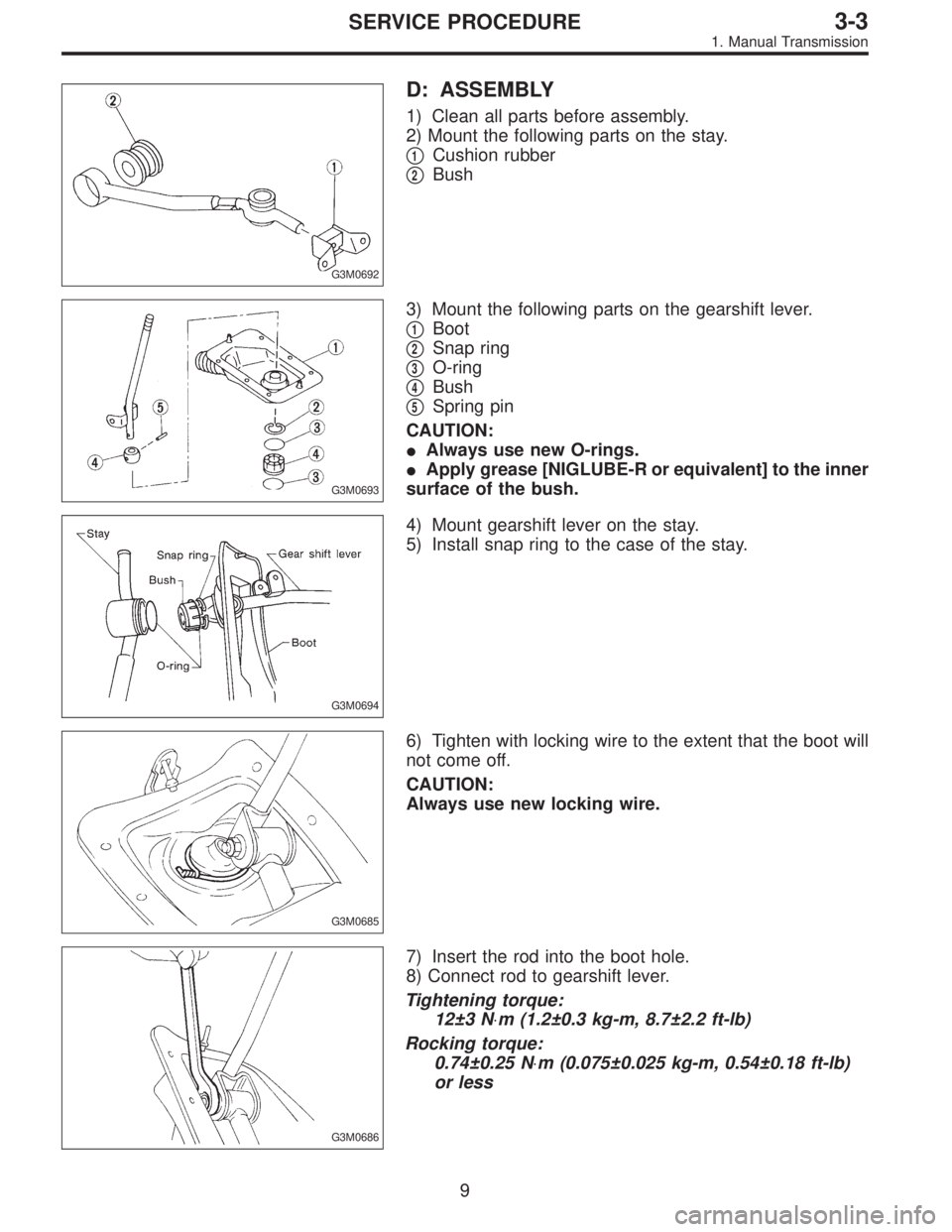

G3M0692
D: ASSEMBLY
1) Clean all parts before assembly.
2) Mount the following parts on the stay.
1Cushion rubber
2Bush
G3M0693
3) Mount the following parts on the gearshift lever.
1Boot
2Snap ring
3O-ring
4Bush
5Spring pin
CAUTION:
Always use new O-rings.
Apply grease [NIGLUBE-R or equivalent] to the inner
surface of the bush.
G3M0694
4) Mount gearshift lever on the stay.
5) Install snap ring to the case of the stay.
G3M0685
6) Tighten with locking wire to the extent that the boot will
not come off.
CAUTION:
Always use new locking wire.
G3M0686
7) Insert the rod into the boot hole.
8) Connect rod to gearshift lever.
Tightening torque:
12±3 N⋅m (1.2±0.3 kg-m, 8.7±2.2 ft-lb)
Rocking torque:
0.74±0.25 N⋅m (0.075±0.025 kg-m, 0.54±0.18 ft-lb)
or less
9
3-3SERVICE PROCEDURE
1. Manual Transmission
