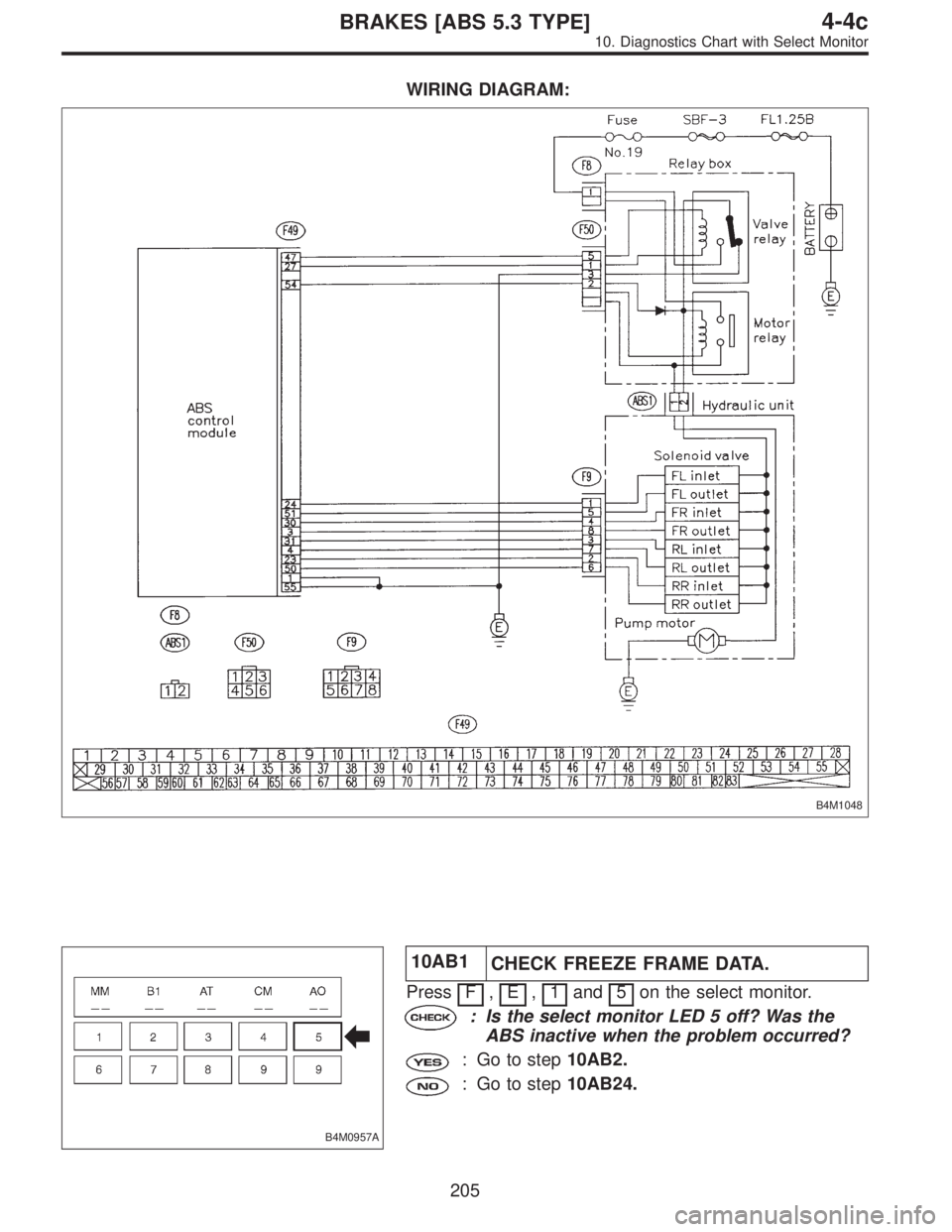

WIRING DIAGRAM:
B4M1048
B4M0957A
10AB1
CHECK FREEZE FRAME DATA.
Press F,E,1and 5on the select monitor.
: Is the select monitor LED 5 off? Was the
ABS inactive when the problem occurred?
: Go to step10AB2.
: Go to step10AB24.
205
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2546 of 2890

B4M0858A
10AB2

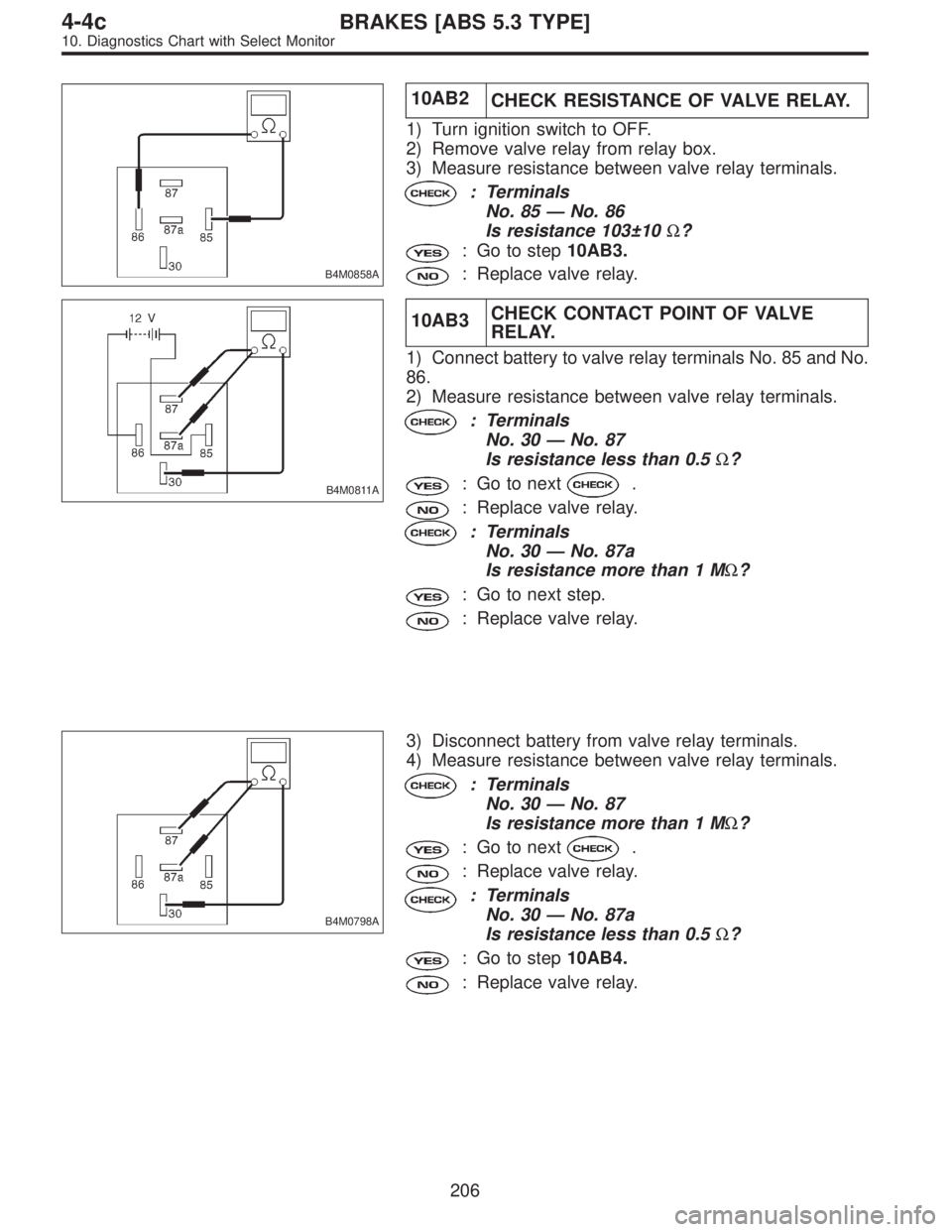

CHECK RESISTANCE OF VALVE RELAY.
1) Turn ignition switch to OFF.
2) Remove valve relay from relay box.
3) Measure resistance between valve relay terminals.
: Terminals
No. 85—No. 86
Is resistance 103±10Ω?
: Go to step10AB3.
: Replace valve relay.
B4M0811A
10AB3CHECK CONTACT POINT OF VALVE
RELAY.
1) Connect battery to valve relay terminals No. 85 and No.
86.
2) Measure resistance between valve relay terminals.
: Terminals
No. 30—No. 87
Is resistance less than 0.5Ω?
: Go to next.
: Replace valve relay.
: Terminals
No. 30—No. 87a
Is resistance more than 1 MΩ?
: Go to next step.
: Replace valve relay.
B4M0798A
3) Disconnect battery from valve relay terminals.
4) Measure resistance between valve relay terminals.
: Terminals
No. 30—No. 87
Is resistance more than 1 MΩ?
: Go to next.
: Replace valve relay.
: Terminals
No. 30—No. 87a
Is resistance less than 0.5Ω?
: Go to step10AB4.
: Replace valve relay.
206
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2547 of 2890

B4M0861A

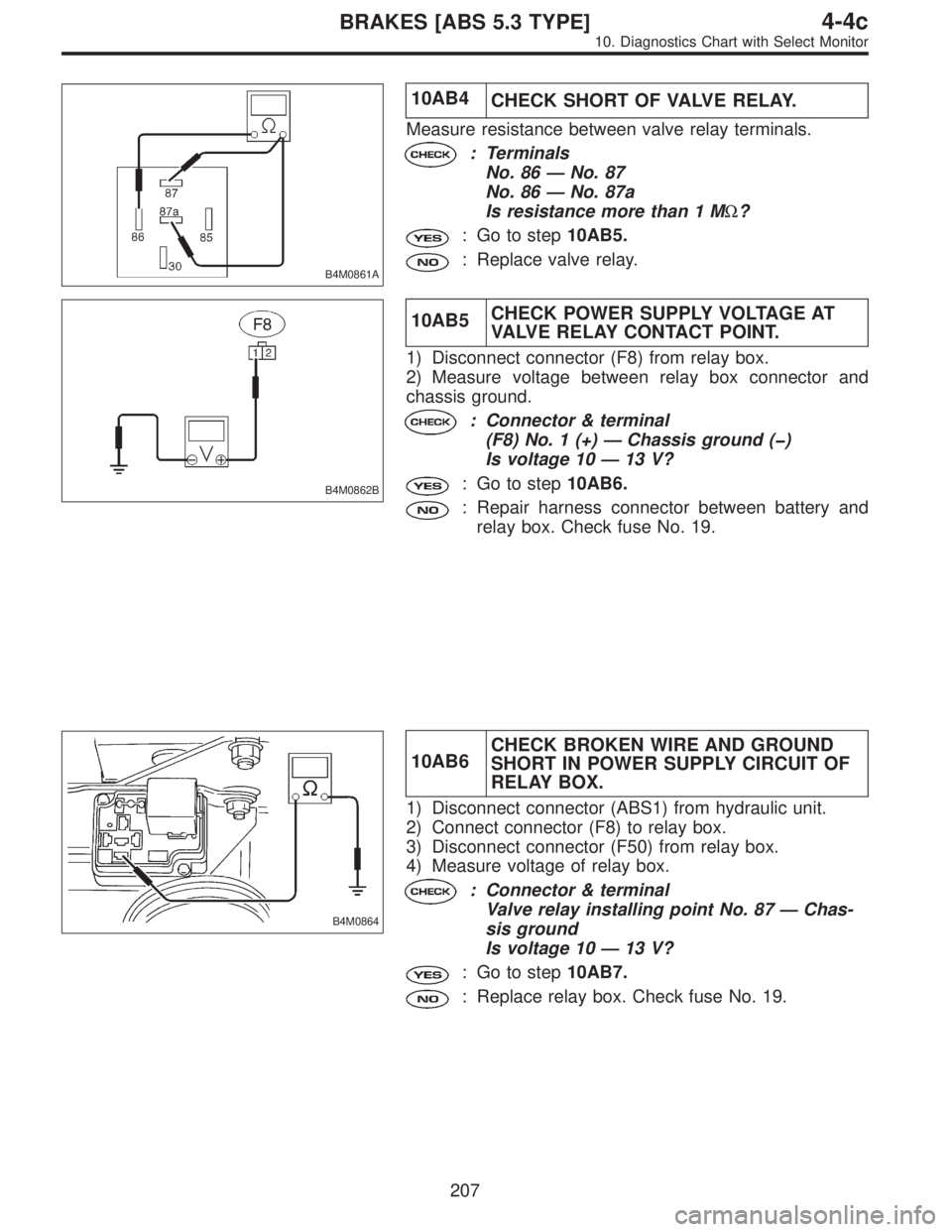

10AB4
CHECK SHORT OF VALVE RELAY.
Measure resistance between valve relay terminals.
: Terminals
No. 86—No. 87
No. 86—No. 87a
Is resistance more than 1 MΩ?
: Go to step10AB5.
: Replace valve relay.
B4M0862B
10AB5CHECK POWER SUPPLY VOLTAGE AT
VALVE RELAY CONTACT POINT.
1) Disconnect connector (F8) from relay box.
2) Measure voltage between relay box connector and
chassis ground.
: Connector & terminal
(F8) No. 1 (+)—Chassis ground ( )
Is voltage 10—13 V?
: Go to step10AB6.
: Repair harness connector between battery and
relay box. Check fuse No. 19.
B4M0864
10AB6CHECK BROKEN WIRE AND GROUND
SHORT IN POWER SUPPLY CIRCUIT OF
RELAY BOX.
1) Disconnect connector (ABS1) from hydraulic unit.
2) Connect connector (F8) to relay box.
3) Disconnect connector (F50) from relay box.
4) Measure voltage of relay box.
: Connector & terminal
Valve relay installing point No. 87—Chas-
sis ground
Is voltage 10—13 V?
: Go to step10AB7.
: Replace relay box. Check fuse No. 19.
207
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2548 of 2890
B4M0865A

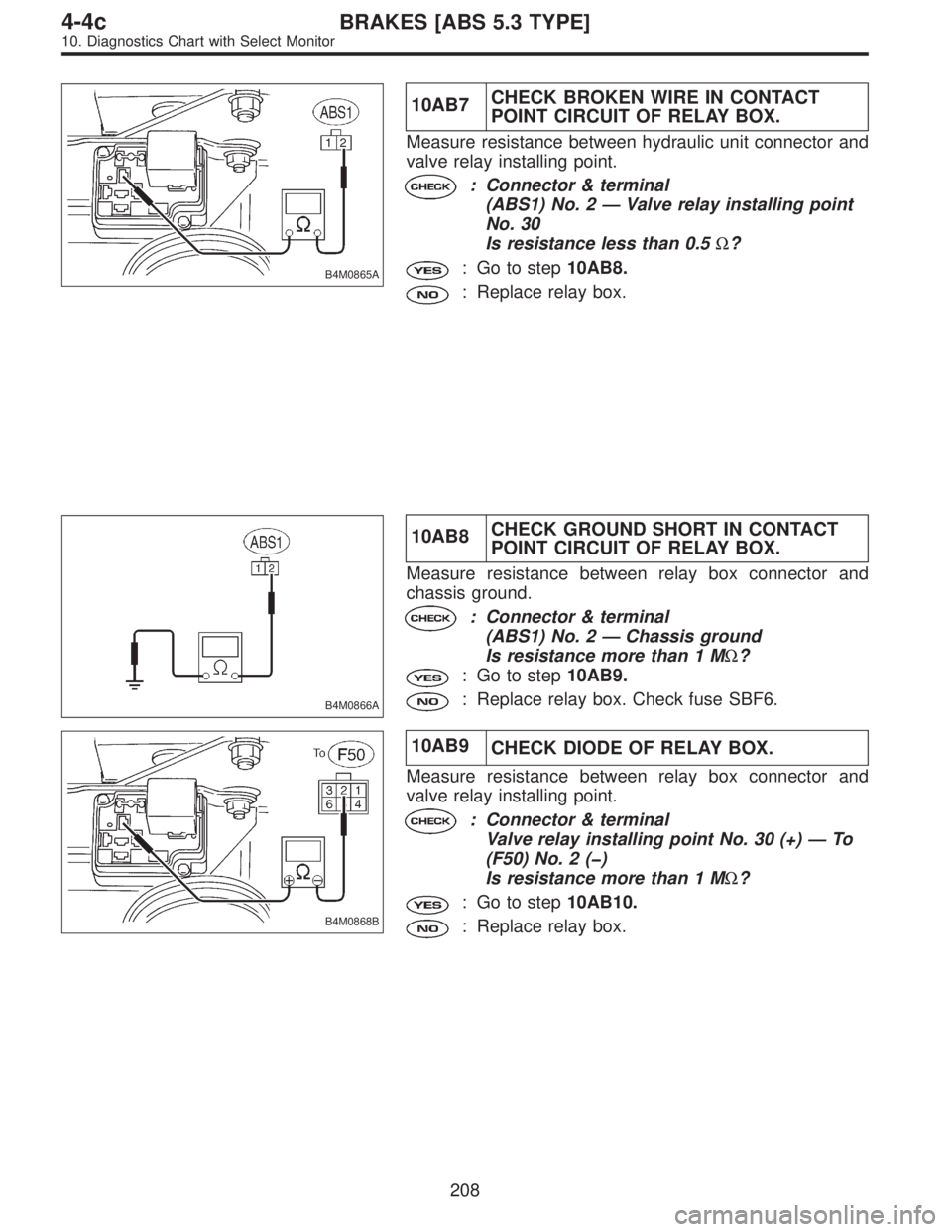

10AB7CHECK BROKEN WIRE IN CONTACT
POINT CIRCUIT OF RELAY BOX.
Measure resistance between hydraulic unit connector and
valve relay installing point.
: Connector & terminal
(ABS1) No. 2—Valve relay installing point
No. 30
Is resistance less than 0.5Ω?
: Go to step10AB8.
: Replace relay box.
B4M0866A
10AB8CHECK GROUND SHORT IN CONTACT
POINT CIRCUIT OF RELAY BOX.
Measure resistance between relay box connector and
chassis ground.
: Connector & terminal
(ABS1) No. 2—Chassis ground
Is resistance more than 1 MΩ?
: Go to step10AB9.
: Replace relay box. Check fuse SBF6.
B4M0868B
10AB9
CHECK DIODE OF RELAY BOX.
Measure resistance between relay box connector and
valve relay installing point.
: Connector & terminal
Valve relay installing point No. 30 (+)—To
(F50) No. 2 ( )
Is resistance more than 1 MΩ?
: Go to step10AB10.
: Replace relay box.
208
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2549 of 2890
B4M0870B

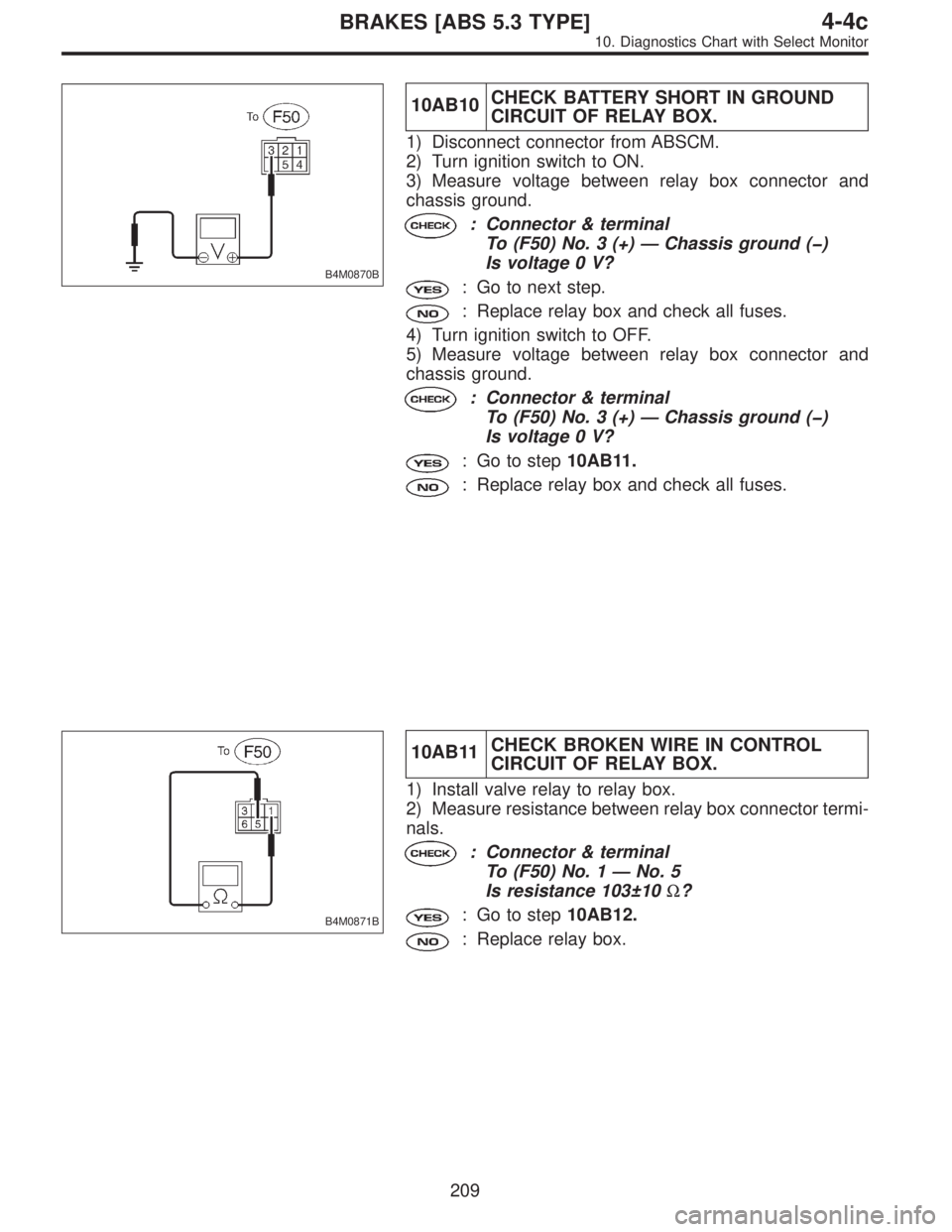

10AB10CHECK BATTERY SHORT IN GROUND
CIRCUIT OF RELAY BOX.
1) Disconnect connector from ABSCM.
2) Turn ignition switch to ON.
3) Measure voltage between relay box connector and
chassis ground.
: Connector & terminal
To (F50) No. 3 (+)—Chassis ground ( )
Is voltage 0 V?
: Go to next step.
: Replace relay box and check all fuses.
4) Turn ignition switch to OFF.
5) Measure voltage between relay box connector and
chassis ground.
: Connector & terminal
To (F50) No. 3 (+)—Chassis ground ( )
Is voltage 0 V?
: Go to step10AB11.
: Replace relay box and check all fuses.
B4M0871B
10AB11CHECK BROKEN WIRE IN CONTROL
CIRCUIT OF RELAY BOX.
1) Install valve relay to relay box.
2) Measure resistance between relay box connector termi-
nals.
: Connector & terminal
To (F50) No. 1—No. 5
Is resistance 103±10Ω?
: Go to step10AB12.
: Replace relay box.
209
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2550 of 2890

B4M0872B

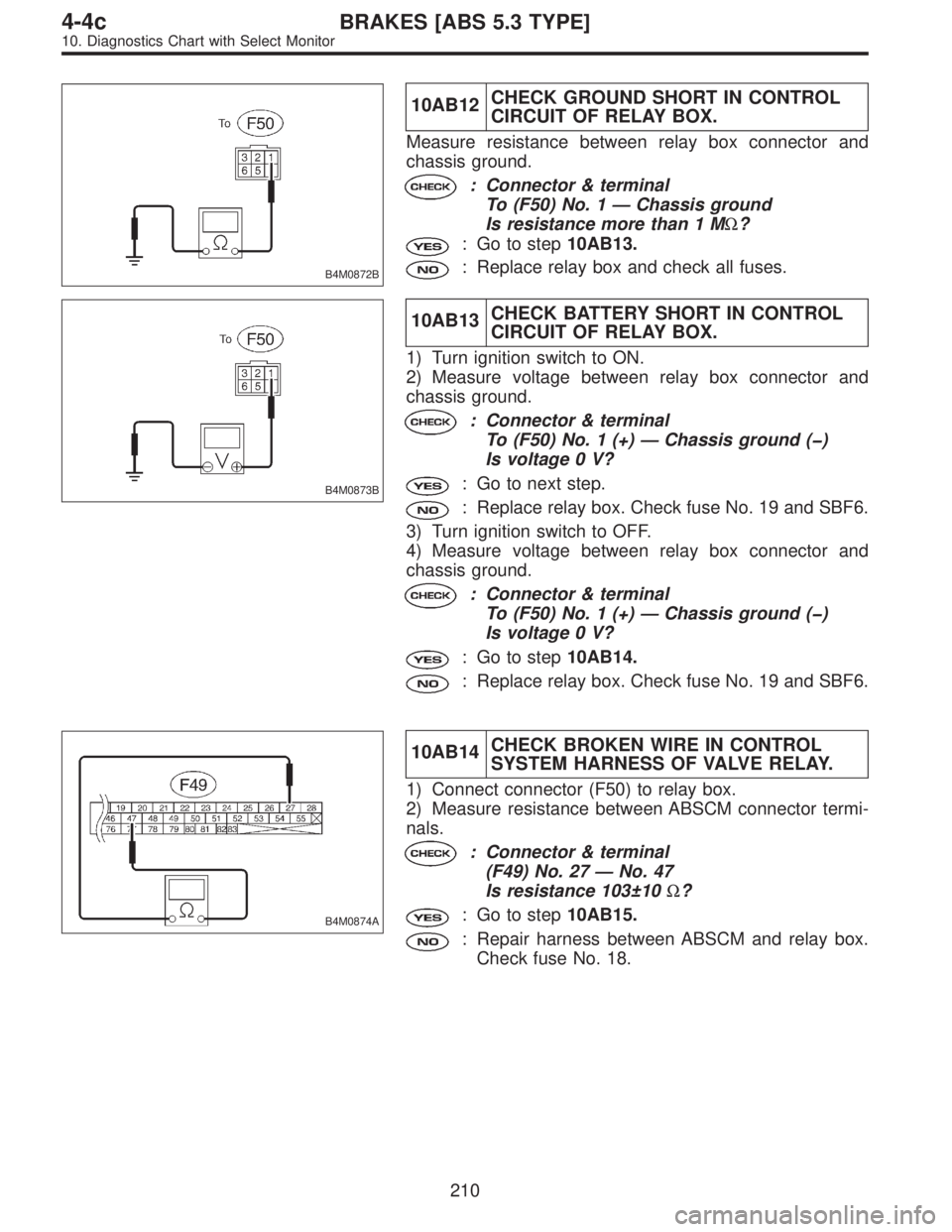

10AB12CHECK GROUND SHORT IN CONTROL
CIRCUIT OF RELAY BOX.
Measure resistance between relay box connector and
chassis ground.
: Connector & terminal
To (F50) No. 1—Chassis ground
Is resistance more than 1 MΩ?
: Go to step10AB13.
: Replace relay box and check all fuses.
B4M0873B
10AB13CHECK BATTERY SHORT IN CONTROL
CIRCUIT OF RELAY BOX.
1) Turn ignition switch to ON.
2) Measure voltage between relay box connector and
chassis ground.
: Connector & terminal
To (F50) No. 1 (+)—Chassis ground ( )
Is voltage 0 V?
: Go to next step.
: Replace relay box. Check fuse No. 19 and SBF6.
3) Turn ignition switch to OFF.
4) Measure voltage between relay box connector and
chassis ground.
: Connector & terminal
To (F50) No. 1 (+)—Chassis ground ( )
Is voltage 0 V?
: Go to step10AB14.
: Replace relay box. Check fuse No. 19 and SBF6.
B4M0874A
10AB14CHECK BROKEN WIRE IN CONTROL
SYSTEM HARNESS OF VALVE RELAY.
1) Connect connector (F50) to relay box.
2) Measure resistance between ABSCM connector termi-
nals.
: Connector & terminal
(F49) No. 27—No. 47
Is resistance 103±10Ω?
: Go to step10AB15.
: Repair harness between ABSCM and relay box.
Check fuse No. 18.
210
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2551 of 2890

B4M0875A

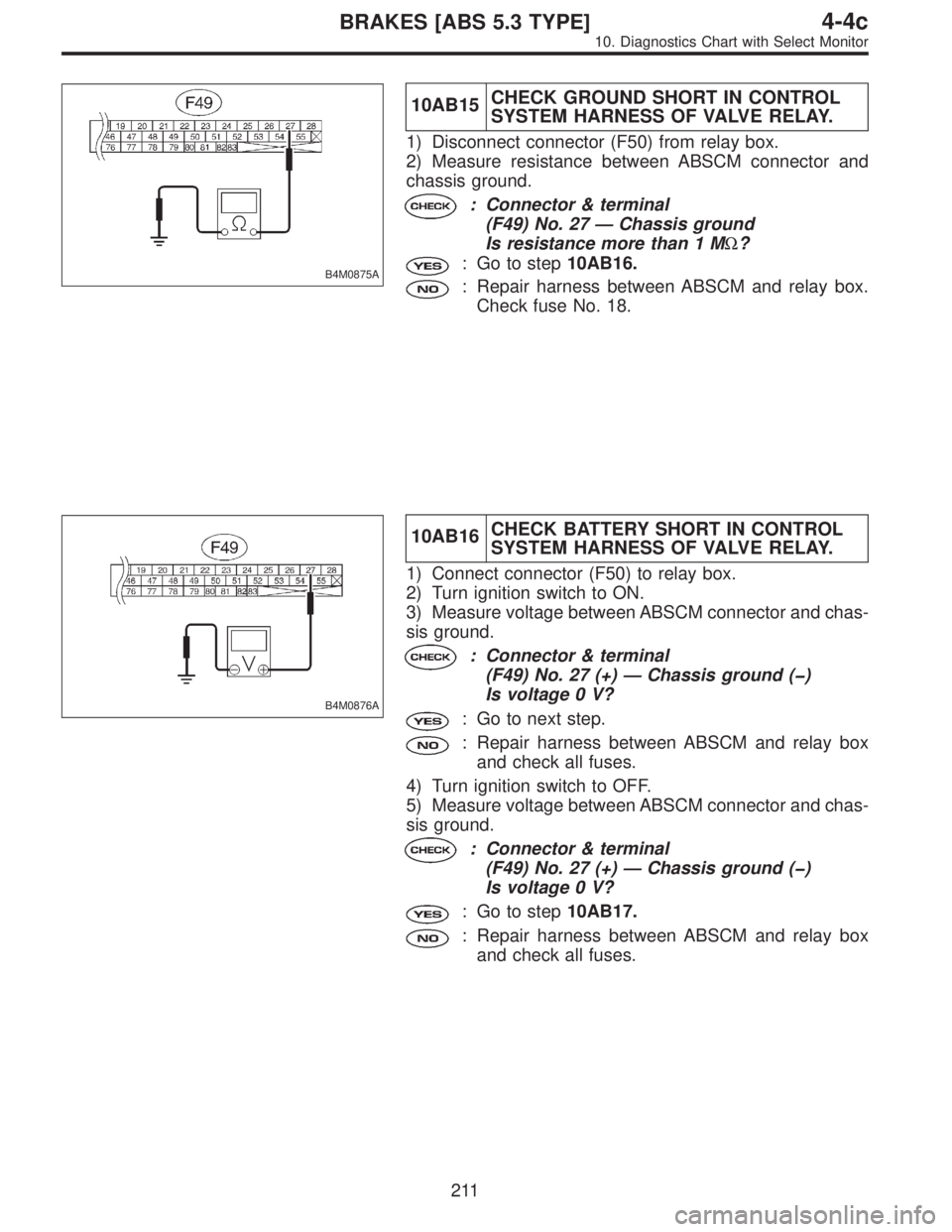

10AB15CHECK GROUND SHORT IN CONTROL
SYSTEM HARNESS OF VALVE RELAY.
1) Disconnect connector (F50) from relay box.
2) Measure resistance between ABSCM connector and
chassis ground.
: Connector & terminal
(F49) No. 27—Chassis ground
Is resistance more than 1 MΩ?
: Go to step10AB16.
: Repair harness between ABSCM and relay box.
Check fuse No. 18.
B4M0876A
10AB16CHECK BATTERY SHORT IN CONTROL
SYSTEM HARNESS OF VALVE RELAY.
1) Connect connector (F50) to relay box.
2) Turn ignition switch to ON.
3) Measure voltage between ABSCM connector and chas-
sis ground.
: Connector & terminal
(F49) No. 27 (+)—Chassis ground ( )
Is voltage 0 V?
: Go to next step.
: Repair harness between ABSCM and relay box
and check all fuses.
4) Turn ignition switch to OFF.
5) Measure voltage between ABSCM connector and chas-
sis ground.
: Connector & terminal
(F49) No. 27 (+)—Chassis ground ( )
Is voltage 0 V?
: Go to step10AB17.
: Repair harness between ABSCM and relay box
and check all fuses.
211
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2552 of 2890

B4M0824B

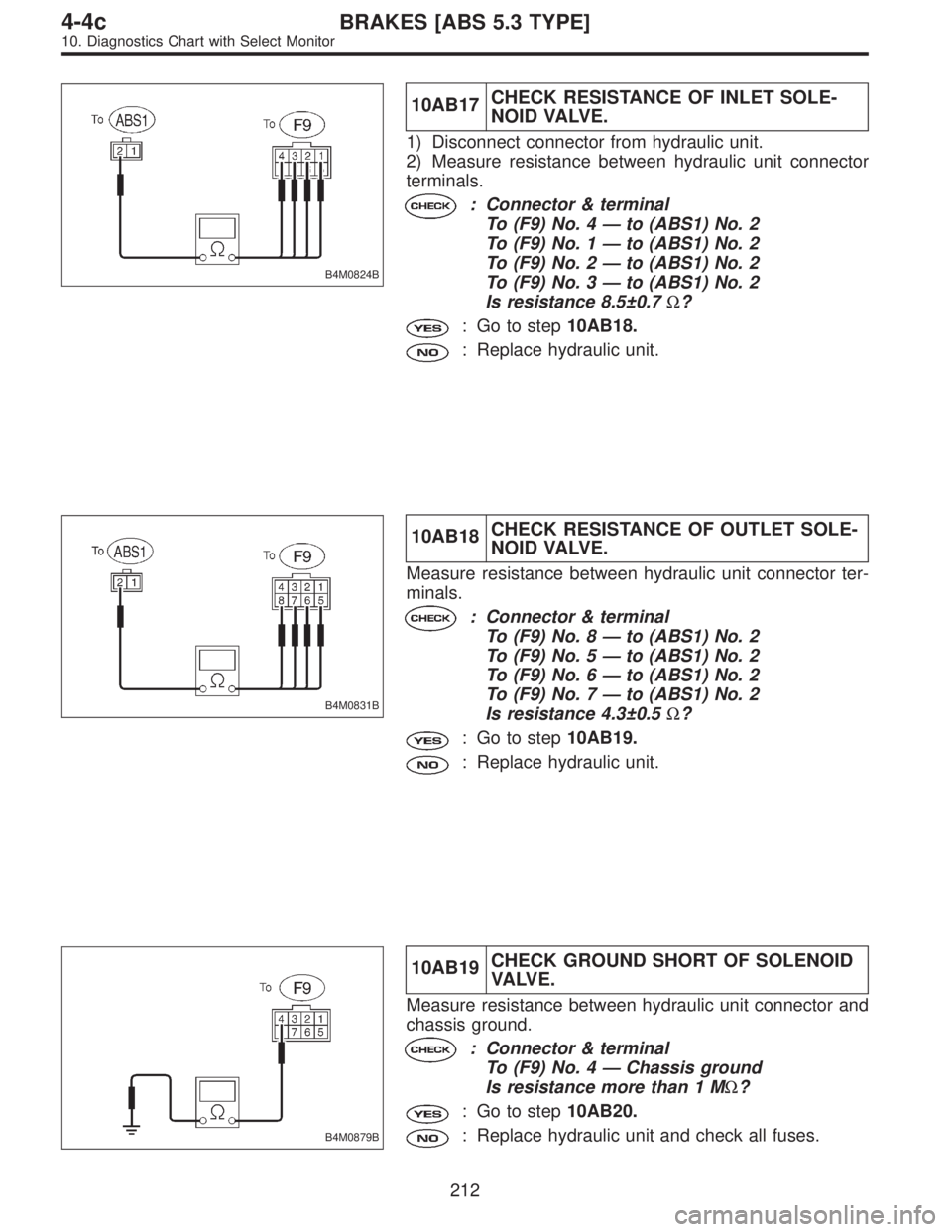

10AB17CHECK RESISTANCE OF INLET SOLE-
NOID VALVE.
1) Disconnect connector from hydraulic unit.
2) Measure resistance between hydraulic unit connector
terminals.
: Connector & terminal
To (F9) No. 4—to (ABS1) No. 2
To (F9) No. 1—to (ABS1) No. 2
To (F9) No. 2—to (ABS1) No. 2
To (F9) No. 3—to (ABS1) No. 2
Is resistance 8.5±0.7Ω?
: Go to step10AB18.
: Replace hydraulic unit.
B4M0831B
10AB18CHECK RESISTANCE OF OUTLET SOLE-
NOID VALVE.
Measure resistance between hydraulic unit connector ter-
minals.
: Connector & terminal
To (F9) No. 8—to (ABS1) No. 2
To (F9) No. 5—to (ABS1) No. 2
To (F9) No. 6—to (ABS1) No. 2
To (F9) No. 7—to (ABS1) No. 2
Is resistance 4.3±0.5Ω?
: Go to step10AB19.
: Replace hydraulic unit.
B4M0879B
10AB19CHECK GROUND SHORT OF SOLENOID
VA LV E .
Measure resistance between hydraulic unit connector and
chassis ground.
: Connector & terminal
To (F9) No. 4—Chassis ground
Is resistance more than 1 MΩ?
: Go to step10AB20.
: Replace hydraulic unit and check all fuses.
212
