LED No. Signal name Display
1 Catalyst CA
2 EGR system E1
3California model
identification signalFC
4——
5——
6——
7——
8 Rear oxygen sensor signal OR
9 Front oxygen sensor signal O2
0——
CA E1 FC——
——OR O2—
1
2345
67890

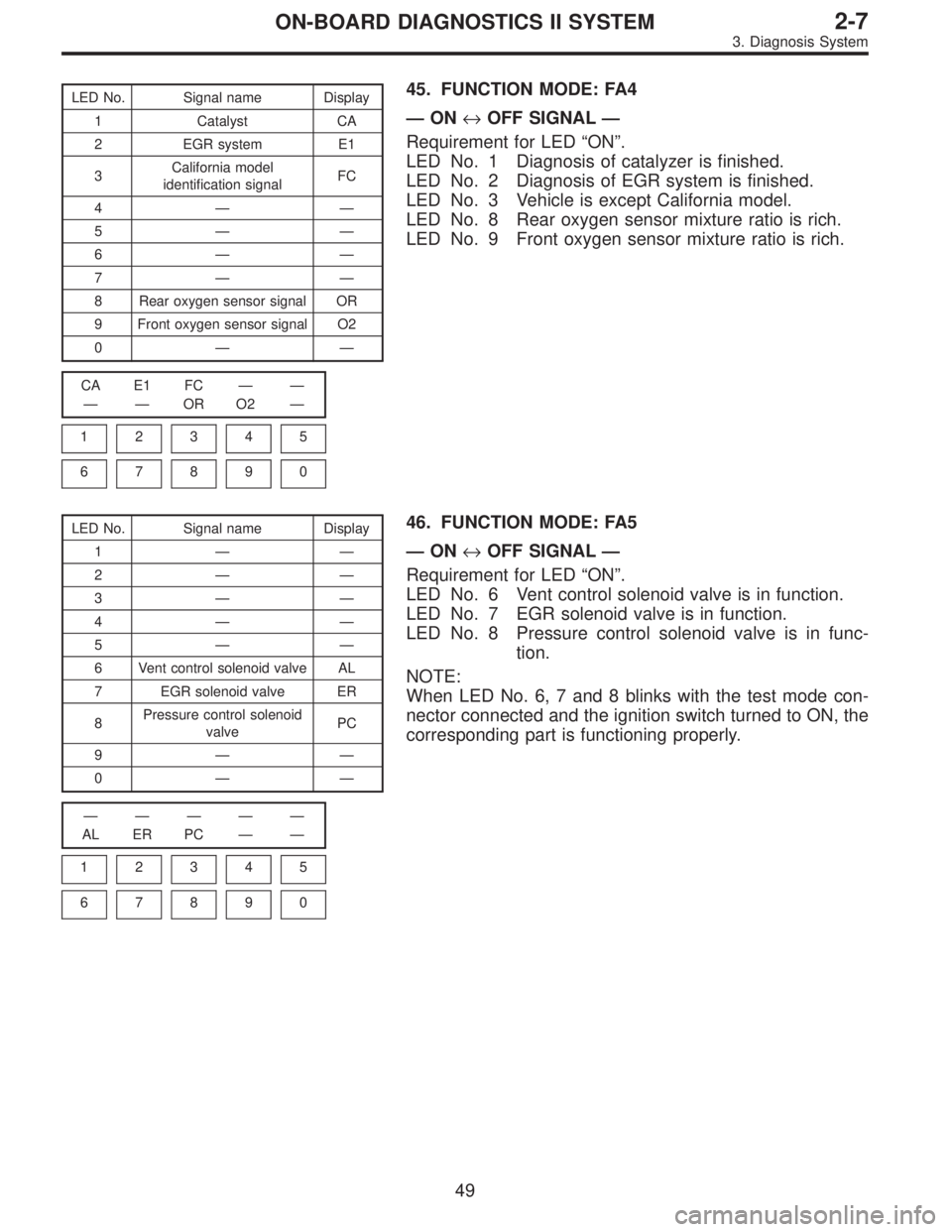

45. FUNCTION MODE: FA4
—ON↔OFF SIGNAL—
Requirement for LED“ON”.
LED No. 1 Diagnosis of catalyzer is finished.
LED No. 2 Diagnosis of EGR system is finished.
LED No. 3 Vehicle is except California model.
LED No. 8 Rear oxygen sensor mixture ratio is rich.
LED No. 9 Front oxygen sensor mixture ratio is rich.
LED No. Signal name Display
1——
2——
3——
4——
5——
6 Vent control solenoid valve AL
7 EGR solenoid valve ER
8Pressure control solenoid
valvePC
9——
0——
—————
AL ER PC——
1
2345
67890
46. FUNCTION MODE: FA5
—ON↔OFF SIGNAL—
Requirement for LED“ON”.
LED No. 6 Vent control solenoid valve is in function.
LED No. 7 EGR solenoid valve is in function.
LED No. 8 Pressure control solenoid valve is in func-
tion.
NOTE:
When LED No. 6, 7 and 8 blinks with the test mode con-
nector connected and the ignition switch turned to ON, the
corresponding part is functioning properly.
49
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
Page 1818 of 2890

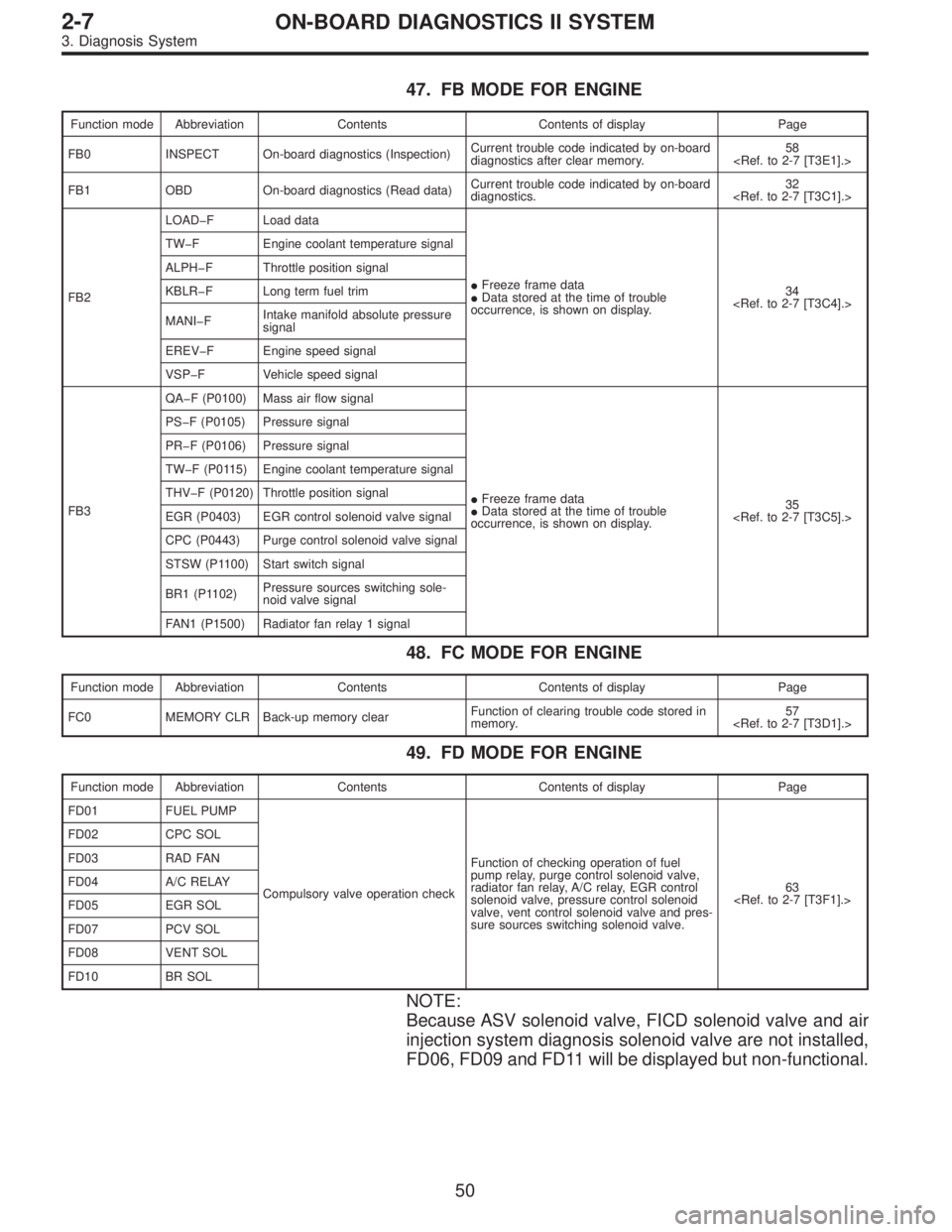

47. FB MODE FOR ENGINE
Function mode Abbreviation Contents Contents of display Page
FB0 INSPECT On-board diagnostics (Inspection)Current trouble code indicated by on-board
diagnostics after clear memory.58
FB1 OBD On-board diagnostics (Read data)Current trouble code indicated by on-board
diagnostics.32
FB2LOAD F Load data
Freeze frame data
Data stored at the time of trouble
occurrence, is shown on display.34
TW F Engine coolant temperature signal
ALPH F Throttle position signal
KBLR F Long term fuel trim
MANI FIntake manifold absolute pressure
signal
EREV F Engine speed signal
VSP F Vehicle speed signal
FB3QA F (P0100) Mass air flow signal
Freeze frame data
Data stored at the time of trouble
occurrence, is shown on display.35
PS F (P0105) Pressure signal
PR F (P0106) Pressure signal
TW F (P0115) Engine coolant temperature signal
THV F (P0120) Throttle position signal
EGR (P0403) EGR control solenoid valve signal
CPC (P0443) Purge control solenoid valve signal
STSW (P1100) Start switch signal
BR1 (P1102)Pressure sources switching sole-
noid valve signal
FAN1 (P1500) Radiator fan relay 1 signal
48. FC MODE FOR ENGINE
Function mode Abbreviation Contents Contents of display Page
FC0 MEMORY CLR Back-up memory clearFunction of clearing trouble code stored in
memory.57
49. FD MODE FOR ENGINE
Function mode Abbreviation Contents Contents of display Page
FD01 FUEL PUMP
Compulsory valve operation checkFunction of checking operation of fuel
pump relay, purge control solenoid valve,
radiator fan relay, A/C relay, EGR control
solenoid valve, pressure control solenoid
valve, vent control solenoid valve and pres-
sure sources switching solenoid valve.63
FD02 CPC SOL
FD03 RAD FAN
FD04 A/C RELAY
FD05 EGR SOL
FD07 PCV SOL
FD08 VENT SOL
FD10 BR SOL
NOTE:
Because ASV solenoid valve, FICD solenoid valve and air
injection system diagnosis solenoid valve are not installed,
FD06, FD09 and FD11 will be displayed but non-functional.
50
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
Page 1819 of 2890
H2M1150

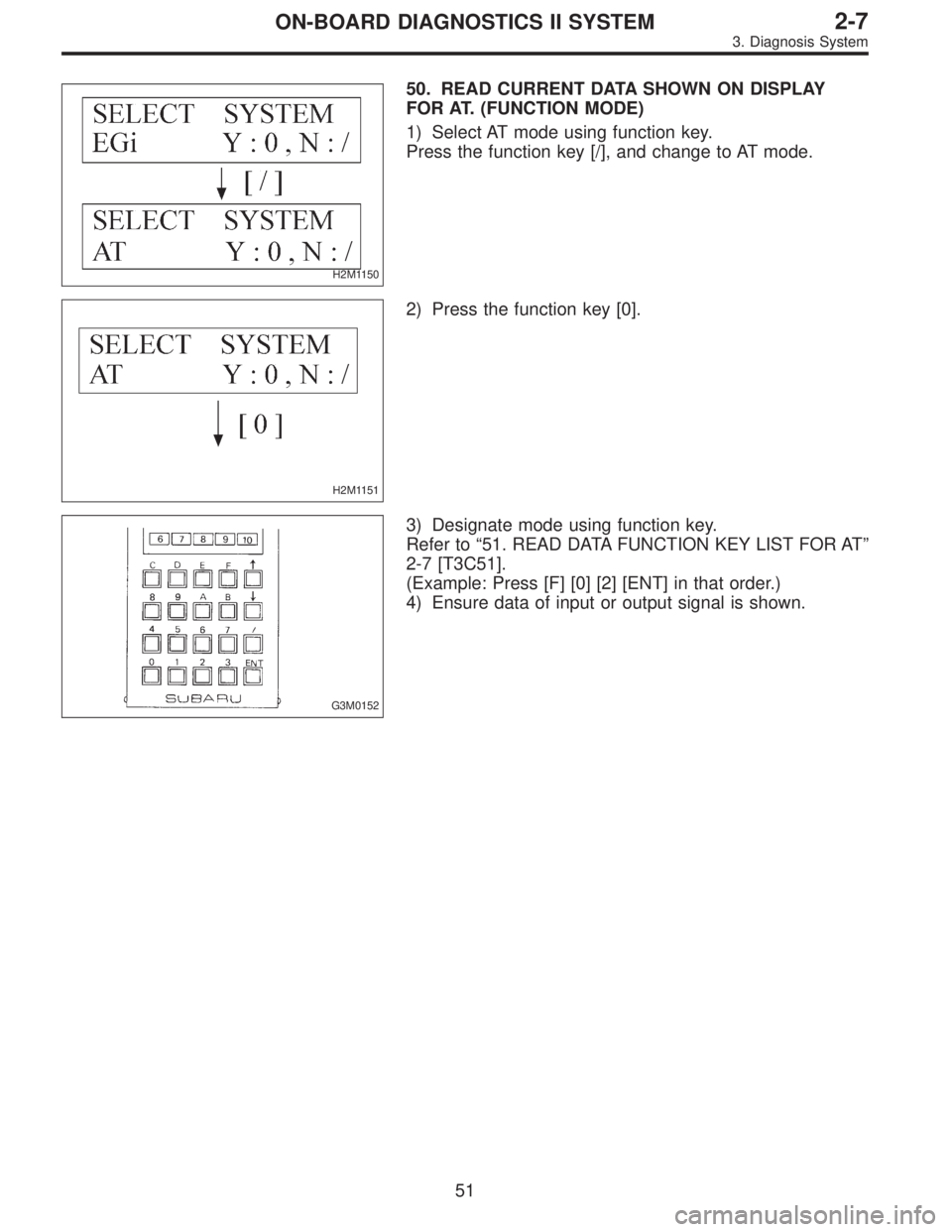

50. READ CURRENT DATA SHOWN ON DISPLAY
FOR AT. (FUNCTION MODE)
1) Select AT mode using function key.
Press the function key [/], and change to AT mode.
H2M1151
2) Press the function key [0].
G3M0152
3) Designate mode using function key.
Refer to“51. READ DATA FUNCTION KEY LIST FOR AT”
2-7 [T3C51].
(Example: Press [F] [0] [2] [ENT] in that order.)
4) Ensure data of input or output signal is shown.
51
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
Page 1820 of 2890

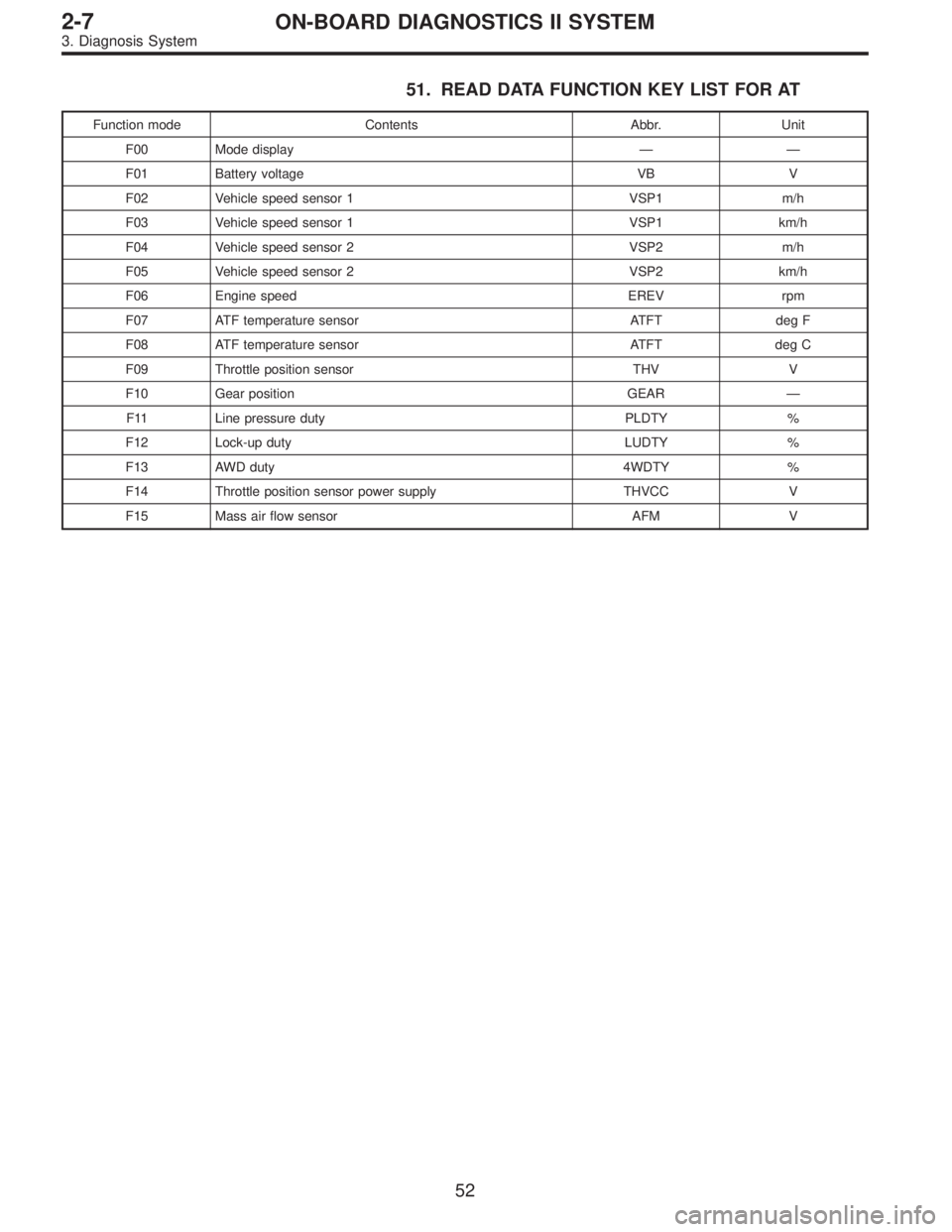

51. READ DATA FUNCTION KEY LIST FOR AT
Function mode Contents Abbr. Unit
F00 Mode display——
F01 Battery voltage VB V
F02 Vehicle speed sensor 1 VSP1 m/h
F03 Vehicle speed sensor 1 VSP1 km/h
F04 Vehicle speed sensor 2 VSP2 m/h
F05 Vehicle speed sensor 2 VSP2 km/h
F06 Engine speed EREV rpm
F07 ATF temperature sensor ATFT deg F
F08 ATF temperature sensor ATFT deg C
F09 Throttle position sensor THV V
F10 Gear position GEAR—
F11 Line pressure duty PLDTY %
F12 Lock-up duty LUDTY %
F13 AWD duty 4WDTY %
F14 Throttle position sensor power supply THVCC V
F15 Mass air flow sensor AFM V
52
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
Page 1821 of 2890
G3M0723
52. FUNCTION MODE: F00
—MODE DISPLAY—
SPECIFIED DATA:
Data at the left should be indicated.
Probable cause (if outside“specified data”)
1. Communication failure
(No communication method can be confirmed
with power ON.)
(1)Check loose or poor connectors, or
shortcircuit.
(2) Check type of cartridge.
2. Vehicle types cannot be identified (due to
communication failure).Check improper cartridge.
Replace with proper one.
OBD0673
53. FUNCTION MODE: F01
—BATTERY VOLTAGE (VB)—
CONDITION:
(1) Ignition switch ON
(2) Engine idling after warm-up
SPECIFIED DATA:
(1) 12±1 V
(2) 13±1 V
1. BatteryCheck battery voltage and specific gravity of
electrolyte.
2. Charging system(1)Measure regulating voltage under no loads.
(2) Check generator (as a single unit).
53
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
Page 1822 of 2890
G3M0725

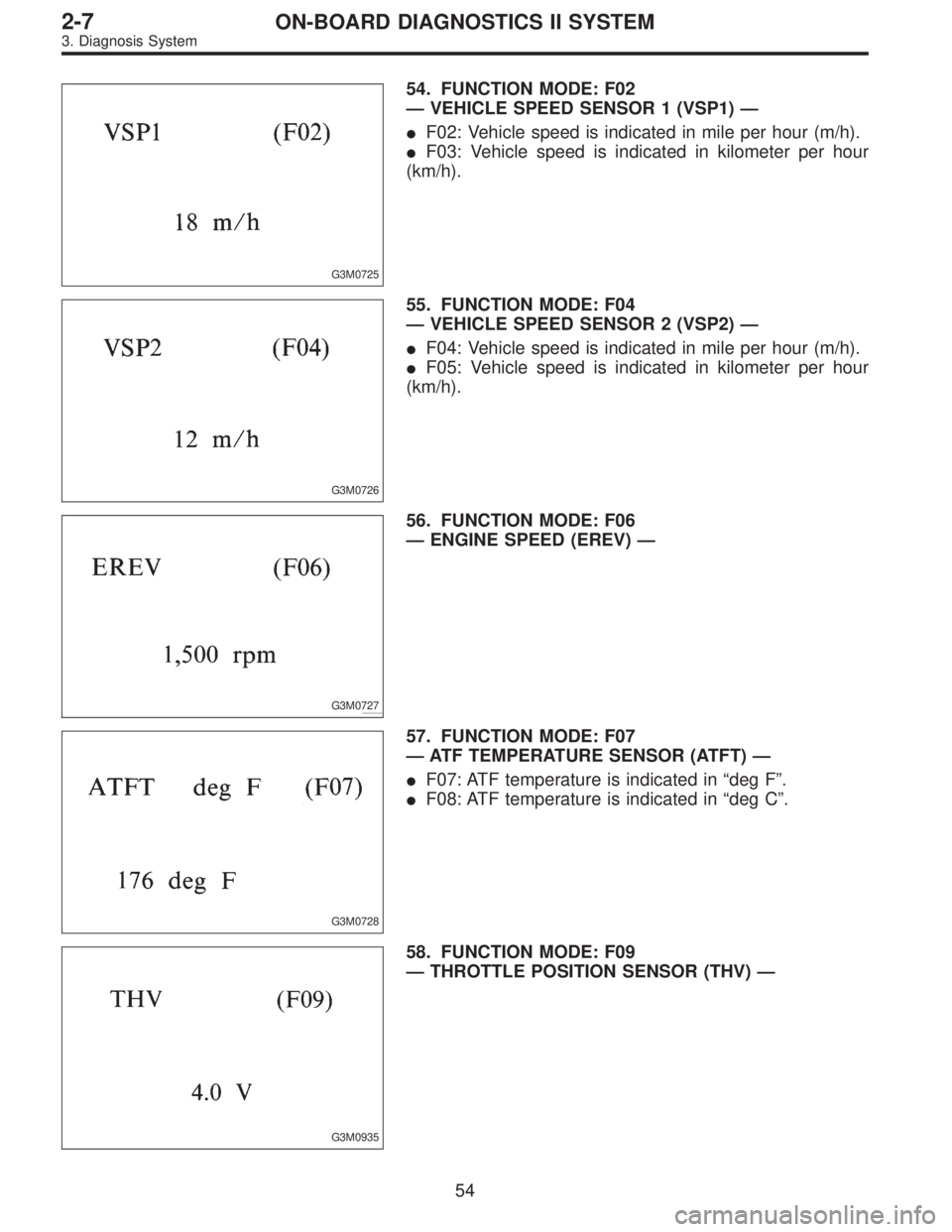

54. FUNCTION MODE: F02
—VEHICLE SPEED SENSOR 1 (VSP1)—
F02: Vehicle speed is indicated in mile per hour (m/h).
F03: Vehicle speed is indicated in kilometer per hour
(km/h).
G3M0726
55. FUNCTION MODE: F04
—VEHICLE SPEED SENSOR 2 (VSP2)—
F04: Vehicle speed is indicated in mile per hour (m/h).
F05: Vehicle speed is indicated in kilometer per hour
(km/h).
G3M0727
56. FUNCTION MODE: F06
—ENGINE SPEED (EREV)—
G3M0728
57. FUNCTION MODE: F07
—ATF TEMPERATURE SENSOR (ATFT)—
F07: ATF temperature is indicated in“deg F”.
F08: ATF temperature is indicated in“deg C”.
G3M0935
58. FUNCTION MODE: F09
—THROTTLE POSITION SENSOR (THV)—
54
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
Page 1823 of 2890
G3M0730

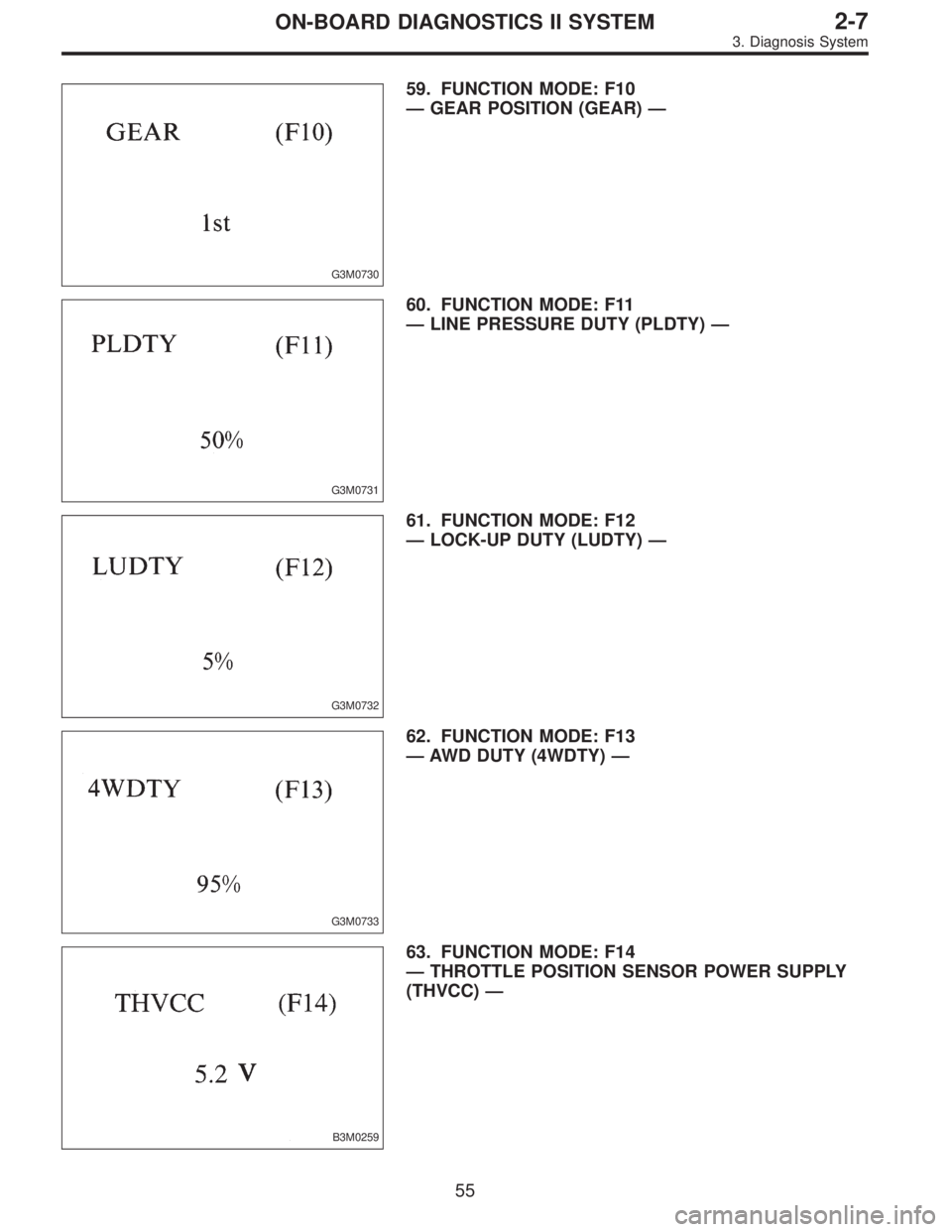

59. FUNCTION MODE: F10
—GEAR POSITION (GEAR)—
G3M0731
60. FUNCTION MODE: F11
—LINE PRESSURE DUTY (PLDTY)—
G3M0732
61. FUNCTION MODE: F12
—LOCK-UP DUTY (LUDTY)—
G3M0733
62. FUNCTION MODE: F13
—AWD DUTY (4WDTY)—
B3M0259
63. FUNCTION MODE: F14
—THROTTLE POSITION SENSOR POWER SUPPLY
(THVCC)—
55
2-7ON-BOARD DIAGNOSTICS II SYSTEM
3. Diagnosis System
Page 1824 of 2890

LED No. Signal name Display
1 FWD switch FF
2 Kick-down switch KD
3——
4——
5 Brake switch BR
6 ABS switch AB
7 Cruise control set CR
8 Power switch PW
9——
10——
FF KD——BR
AB CR PW——
1
2345
678910

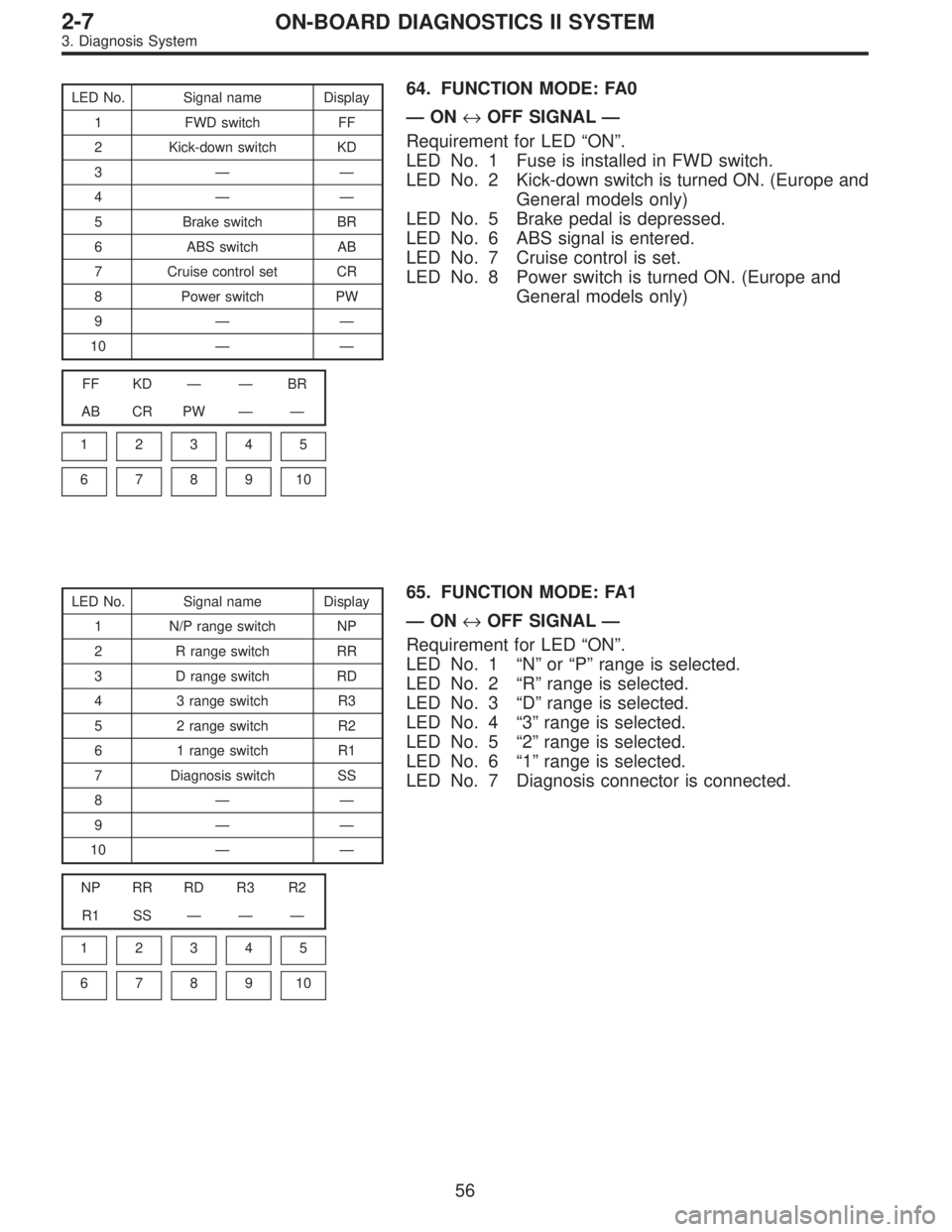

64. FUNCTION MODE: FA0
