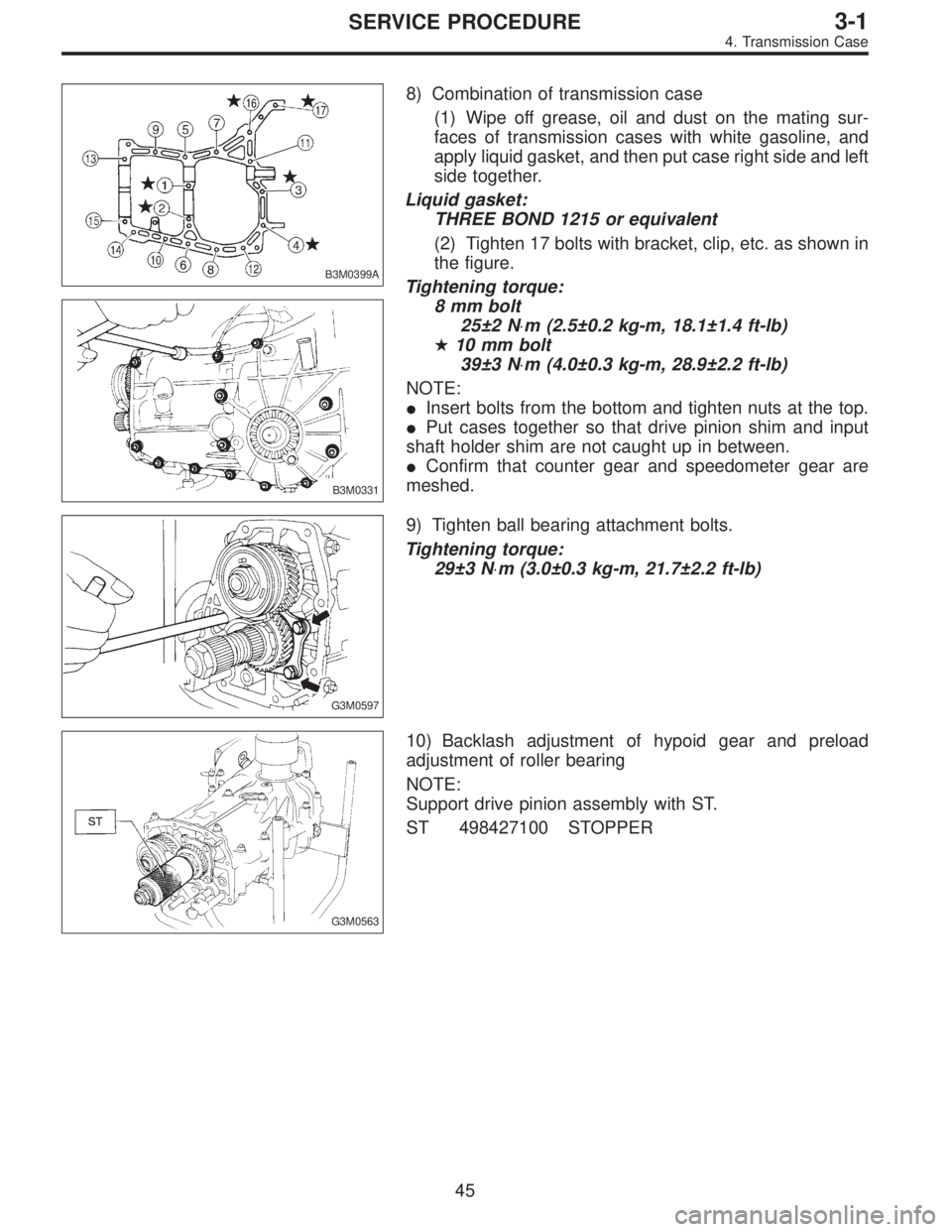

8) Combination of transmission case
(1) Wipe off grease, oil and dust on the mating sur-
faces of transmission cases with white gasoline, and
apply liquid gasket, and then put case right side and left
side together.
Liquid gasket:
THREE BOND 1215 or equivalent
(2) Tighten 17 bolts with bracket, clip, etc. as shown in
the figure.
Tightening torque:
8 mm bolt
25±2 N⋅m (2.5±0.2 kg-m, 18.1±1.4 ft-lb)
10 mm bolt
39±3 N⋅m (4.0±0.3 kg-m, 28.9±2.2 ft-lb)
NOTE:
Insert bolts from the bottom and tighten nuts at the top.
Put cases together so that drive pinion shim and input
shaft holder shim are not caught up in between.
Confirm that counter gear and speedometer gear are
meshed.
G3M0597
9) Tighten ball bearing attachment bolts.
Tightening torque:
29±3 N⋅m (3.0±0.3 kg-m, 21.7±2.2 ft-lb)
G3M0563
10) Backlash adjustment of hypoid gear and preload
adjustment of roller bearing
NOTE:
Support drive pinion assembly with ST.
ST 498427100 STOPPER
45
3-1SERVICE PROCEDURE
4. Transmission Case
Page 802 of 2890

G3M0564

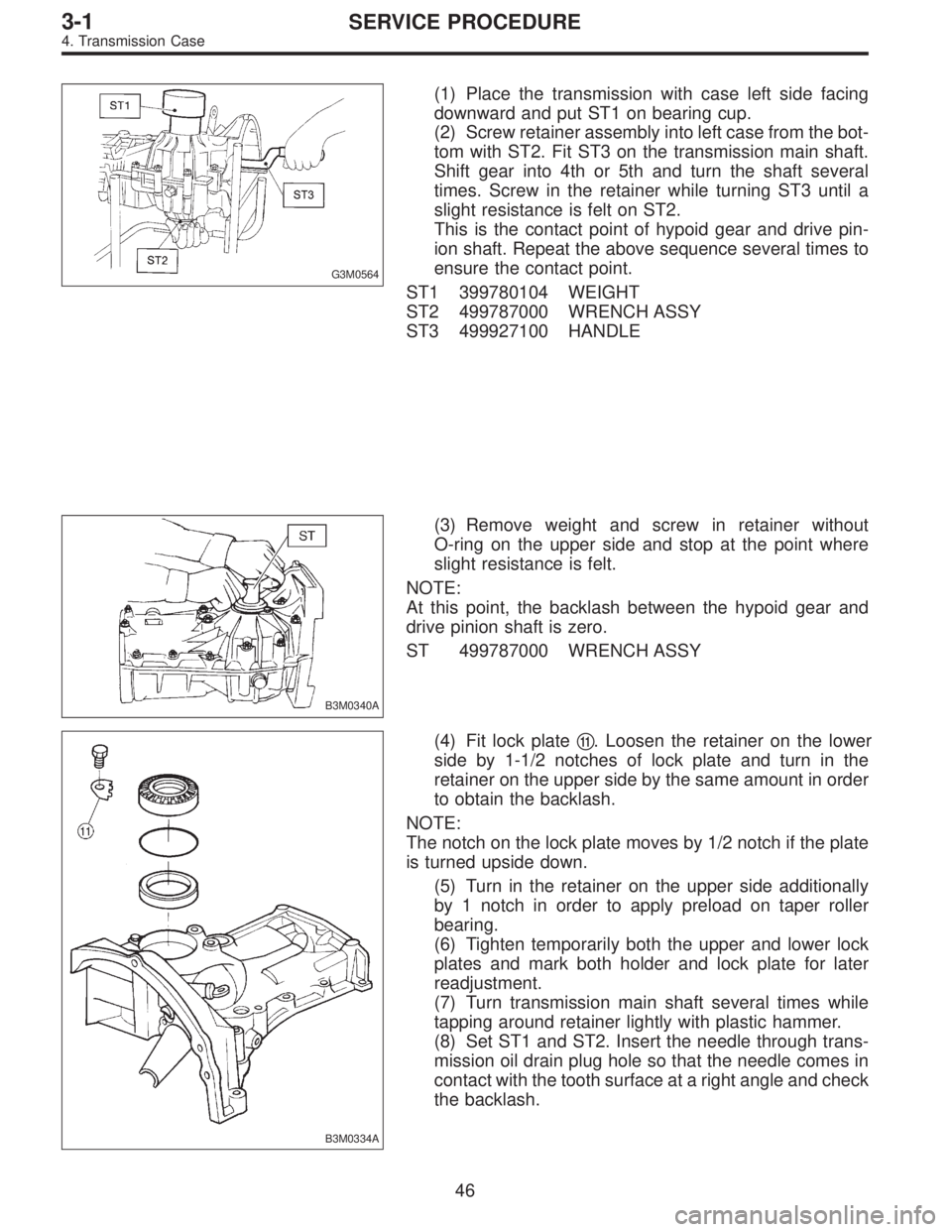

(1) Place the transmission with case left side facing
downward and put ST1 on bearing cup.
(2) Screw retainer assembly into left case from the bot-
tom with ST2. Fit ST3 on the transmission main shaft.
Shift gear into 4th or 5th and turn the shaft several
times. Screw in the retainer while turning ST3 until a
slight resistance is felt on ST2.
This is the contact point of hypoid gear and drive pin-
ion shaft. Repeat the above sequence several times to
ensure the contact point.
ST1 399780104 WEIGHT
ST2 499787000 WRENCH ASSY
ST3 499927100 HANDLE
B3M0340A
(3) Remove weight and screw in retainer without
O-ring on the upper side and stop at the point where
slight resistance is felt.
NOTE:
At this point, the backlash between the hypoid gear and
drive pinion shaft is zero.
ST 499787000 WRENCH ASSY
B3M0334A
(4) Fit lock plate11. Loosen the retainer on the lower
side by 1-1/2 notches of lock plate and turn in the
retainer on the upper side by the same amount in order
to obtain the backlash.
NOTE:
The notch on the lock plate moves by 1/2 notch if the plate
is turned upside down.
(5) Turn in the retainer on the upper side additionally
by 1 notch in order to apply preload on taper roller
bearing.
(6) Tighten temporarily both the upper and lower lock
plates and mark both holder and lock plate for later
readjustment.
(7) Turn transmission main shaft several times while
tapping around retainer lightly with plastic hammer.
(8) Set ST1 and ST2. Insert the needle through trans-
mission oil drain plug hole so that the needle comes in
contact with the tooth surface at a right angle and check
the backlash.
46
3-1SERVICE PROCEDURE
4. Transmission Case
Page 803 of 2890

B3M0335A

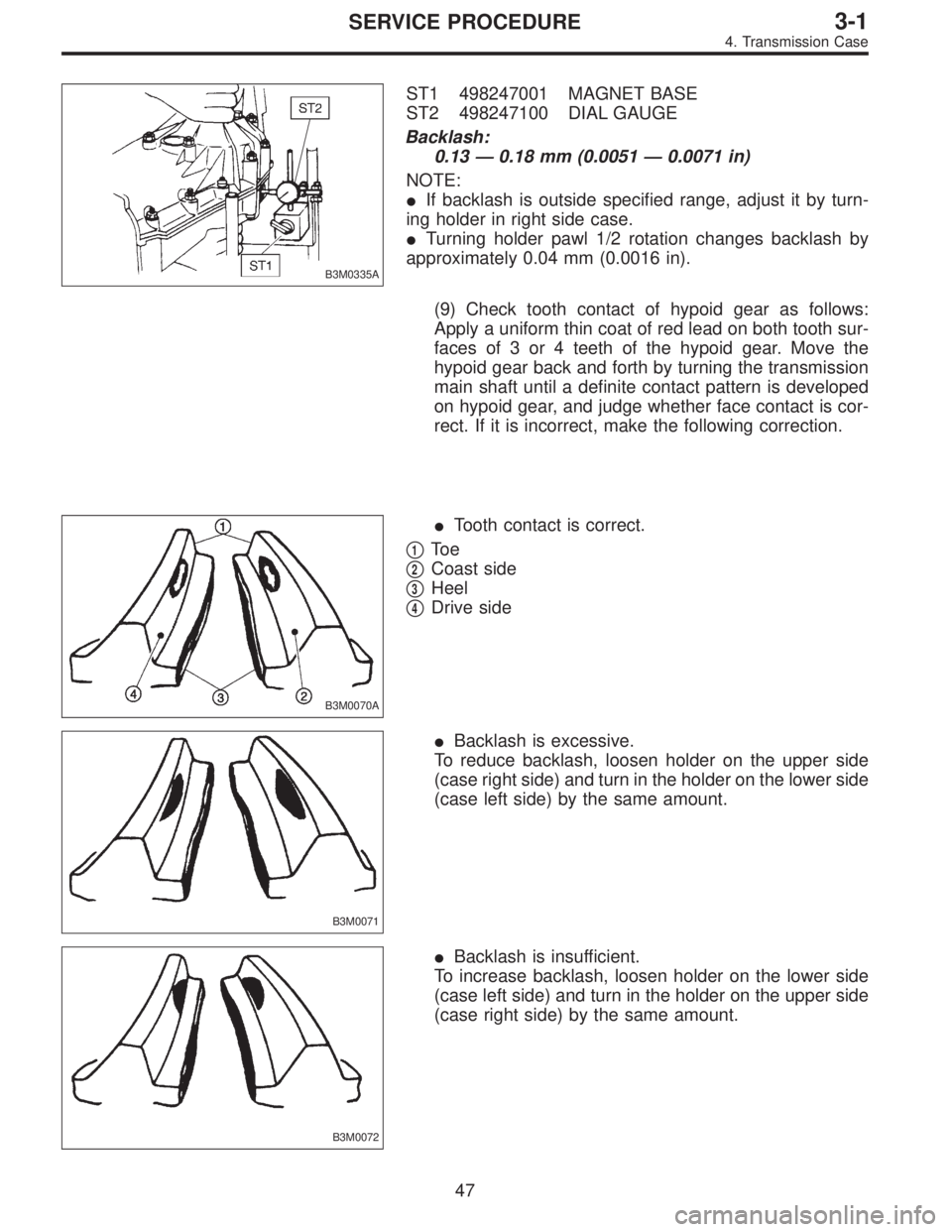

ST1 498247001 MAGNET BASE
ST2 498247100 DIAL GAUGE
Backlash:
0.13—0.18 mm (0.0051—0.0071 in)
NOTE:
If backlash is outside specified range, adjust it by turn-
ing holder in right side case.
Turning holder pawl 1/2 rotation changes backlash by
approximately 0.04 mm (0.0016 in).
(9) Check tooth contact of hypoid gear as follows:
Apply a uniform thin coat of red lead on both tooth sur-
faces of 3 or 4 teeth of the hypoid gear. Move the
hypoid gear back and forth by turning the transmission
main shaft until a definite contact pattern is developed
on hypoid gear, and judge whether face contact is cor-
rect. If it is incorrect, make the following correction.
B3M0070A
Tooth contact is correct.
1To e
2Coast side
3Heel
4Drive side
B3M0071
Backlash is excessive.
To reduce backlash, loosen holder on the upper side
(case right side) and turn in the holder on the lower side
(case left side) by the same amount.
B3M0072
Backlash is insufficient.
To increase backlash, loosen holder on the lower side
(case left side) and turn in the holder on the upper side
(case right side) by the same amount.
47
3-1SERVICE PROCEDURE
4. Transmission Case
Page 804 of 2890
B3M0073

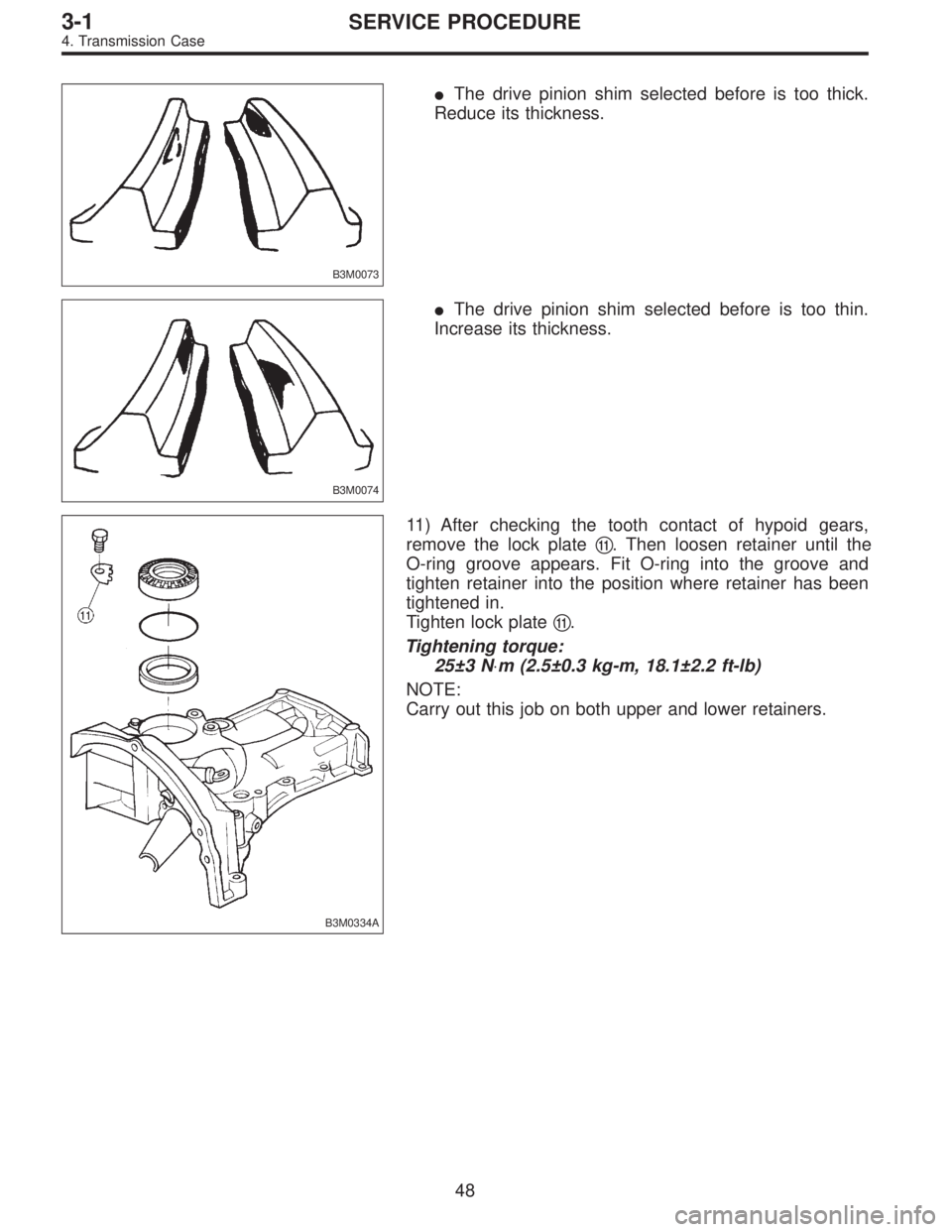

The drive pinion shim selected before is too thick.
Reduce its thickness.
B3M0074
The drive pinion shim selected before is too thin.
Increase its thickness.
B3M0334A
11) After checking the tooth contact of hypoid gears,
remove the lock plate
11. Then loosen retainer until the
O-ring groove appears. Fit O-ring into the groove and
tighten retainer into the position where retainer has been
tightened in.
Tighten lock plate
11.
Tightening torque:
25±3 N⋅m (2.5±0.3 kg-m, 18.1±2.2 ft-lb)
NOTE:
Carry out this job on both upper and lower retainers.
48
3-1SERVICE PROCEDURE
4. Transmission Case
Page 805 of 2890
G3M0573

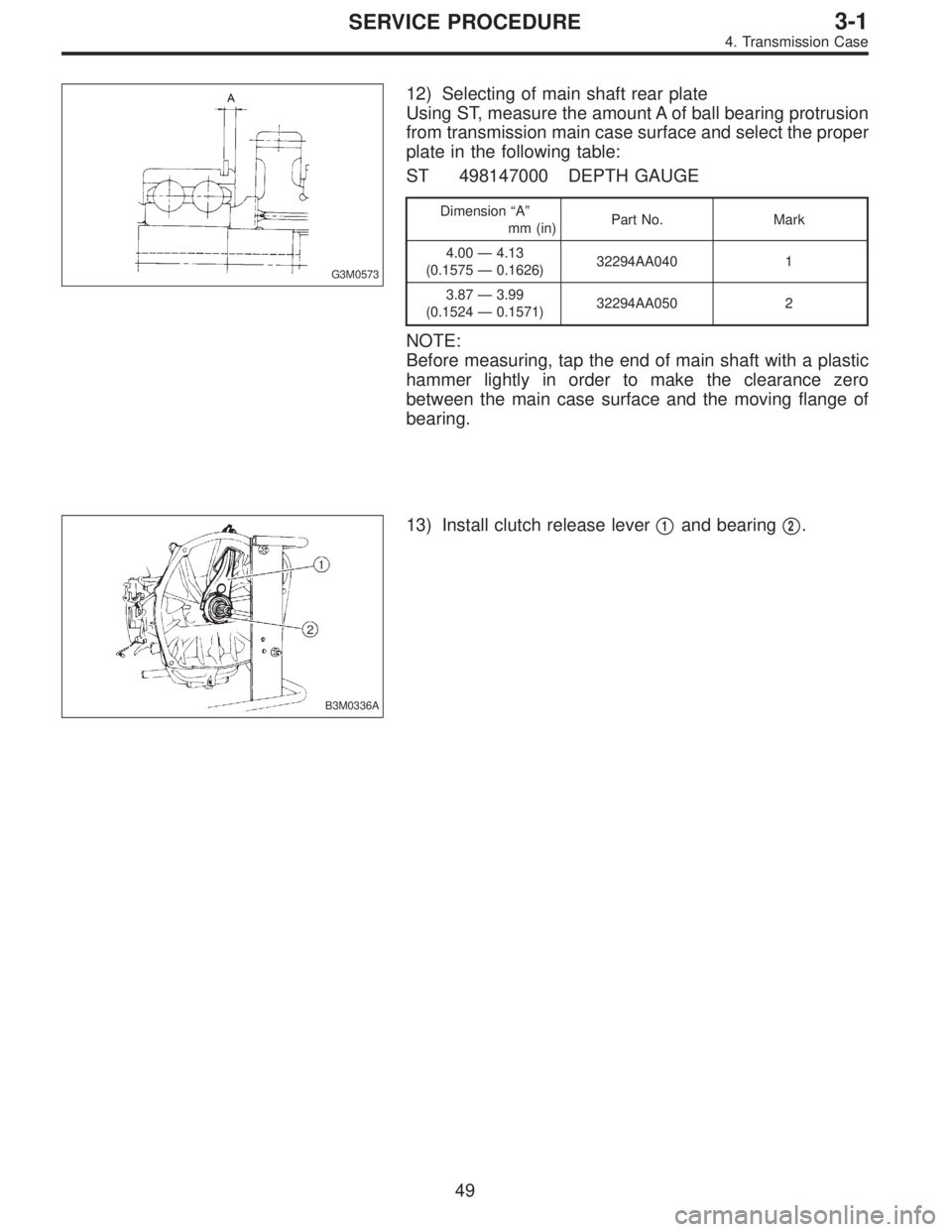

12) Selecting of main shaft rear plate
Using ST, measure the amount A of ball bearing protrusion
from transmission main case surface and select the proper
plate in the following table:
ST 498147000 DEPTH GAUGE
Dimension“A”
mm (in)Part No. Mark
4.00—4.13
(0.1575—0.1626)32294AA040 1
3.87—3.99
(0.1524—0.1571)32294AA050 2
NOTE:
Before measuring, tap the end of main shaft with a plastic
hammer lightly in order to make the clearance zero
between the main case surface and the moving flange of
bearing.
B3M0336A
13) Install clutch release lever1and bearing2.
49
3-1SERVICE PROCEDURE
4. Transmission Case
Page 806 of 2890

G3M0595

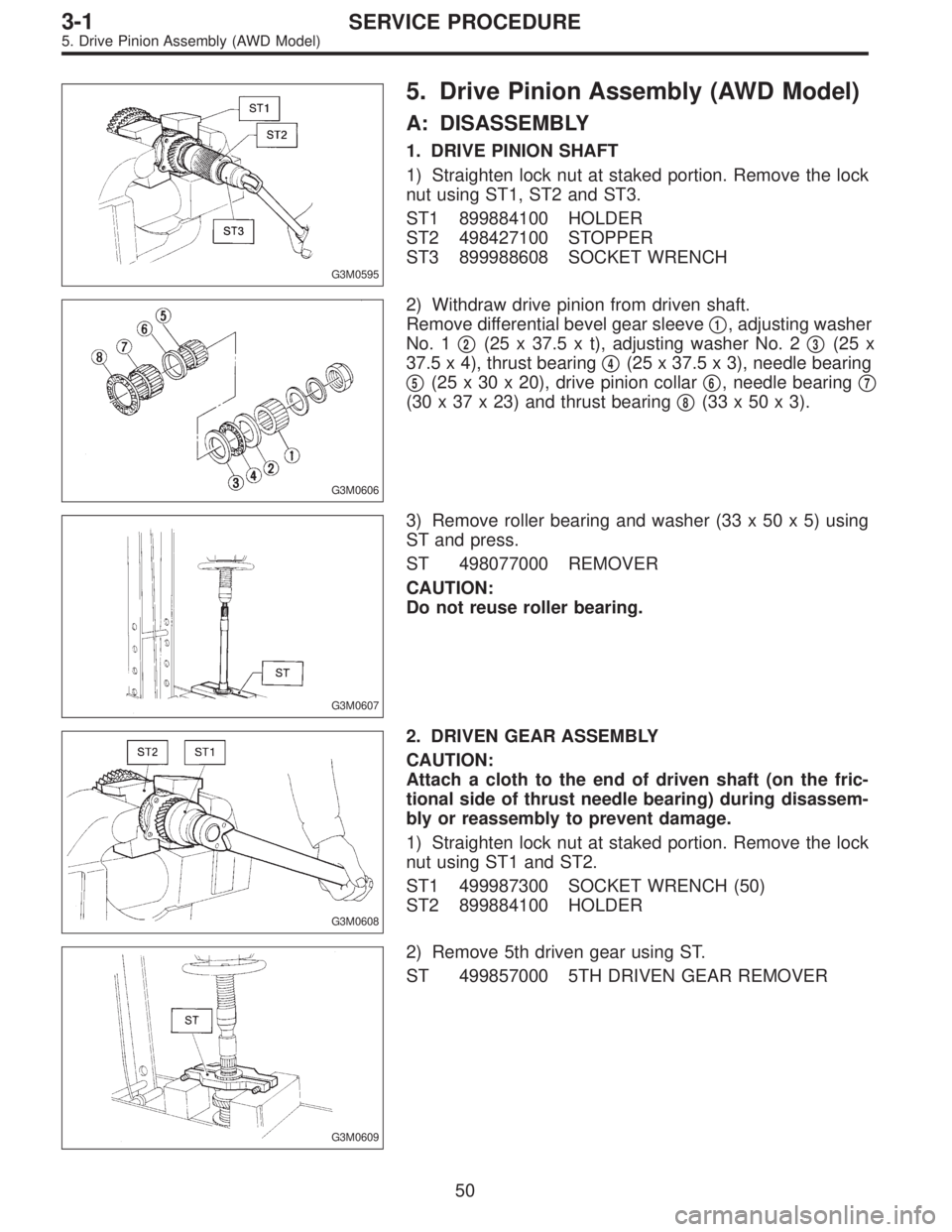

5. Drive Pinion Assembly (AWD Model)
A: DISASSEMBLY
1. DRIVE PINION SHAFT
1) Straighten lock nut at staked portion. Remove the lock
nut using ST1, ST2 and ST3.
ST1 899884100 HOLDER
ST2 498427100 STOPPER
ST3 899988608 SOCKET WRENCH
G3M0606
2) Withdraw drive pinion from driven shaft.
Remove differential bevel gear sleeve
1, adjusting washer
No. 1
2(25 x 37.5 x t), adjusting washer No. 23(25 x
37.5 x 4), thrust bearing
4(25 x 37.5 x 3), needle bearing
5(25 x 30 x 20), drive pinion collar6, needle bearing7
(30 x 37 x 23) and thrust bearing8(33x50x3).
G3M0607
3) Remove roller bearing and washer (33 x 50 x 5) using
ST and press.
ST 498077000 REMOVER
CAUTION:
Do not reuse roller bearing.
G3M0608
2. DRIVEN GEAR ASSEMBLY
CAUTION:
Attach a cloth to the end of driven shaft (on the fric-
tional side of thrust needle bearing) during disassem-
bly or reassembly to prevent damage.
1) Straighten lock nut at staked portion. Remove the lock
nut using ST1 and ST2.
ST1 499987300 SOCKET WRENCH (50)
ST2 899884100 HOLDER
G3M0609
2) Remove 5th driven gear using ST.
ST 499857000 5TH DRIVEN GEAR REMOVER
50
3-1SERVICE PROCEDURE
5. Drive Pinion Assembly (AWD Model)
Page 807 of 2890

G3M0610
3) Remove woodruff key.

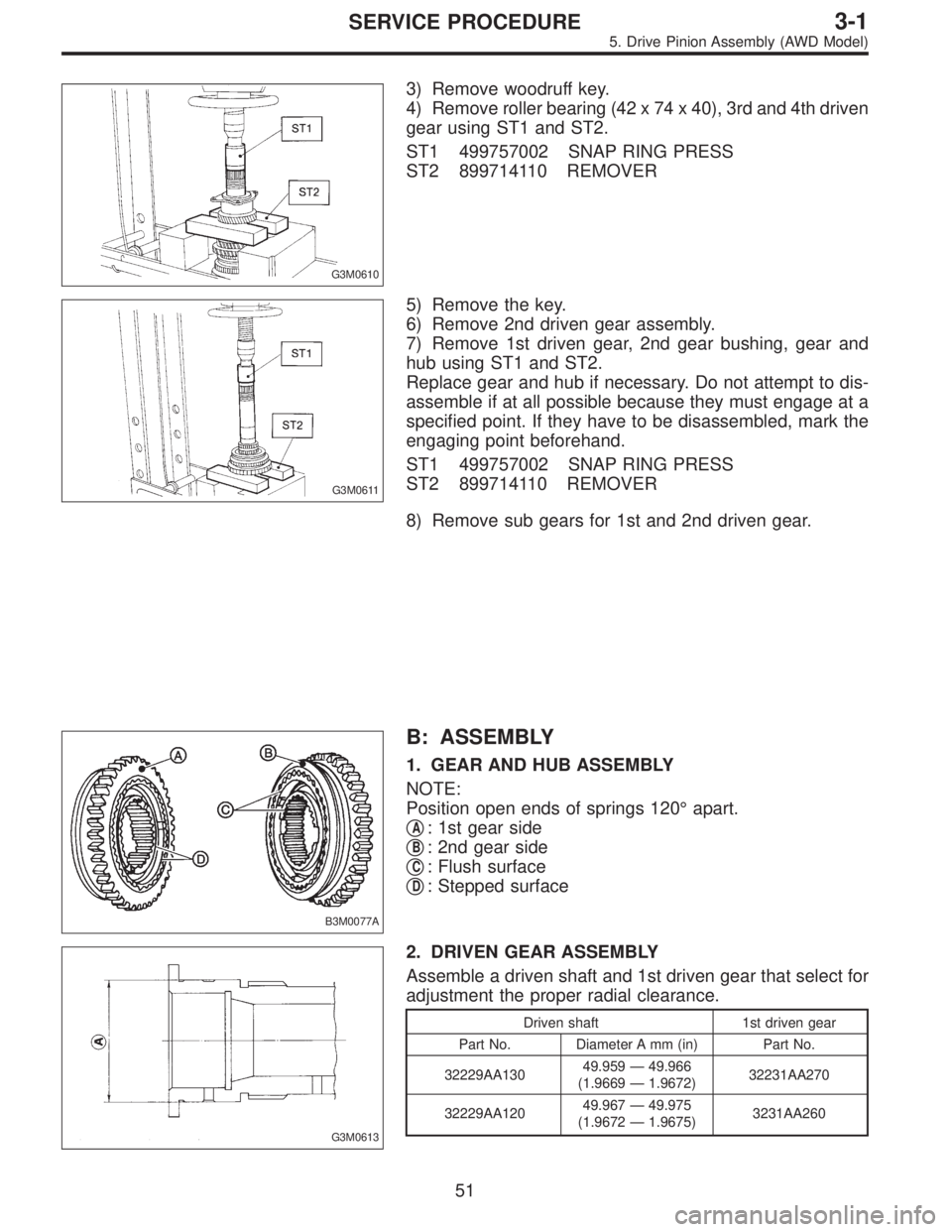

4) Remove roller bearing (42 x 74 x 40), 3rd and 4th driven
gear using ST1 and ST2.
ST1 499757002 SNAP RING PRESS
ST2 899714110 REMOVER
G3M0611
5) Remove the key.
6) Remove 2nd driven gear assembly.
7) Remove 1st driven gear, 2nd gear bushing, gear and
hub using ST1 and ST2.
Replace gear and hub if necessary. Do not attempt to dis-
assemble if at all possible because they must engage at a
specified point. If they have to be disassembled, mark the
engaging point beforehand.
ST1 499757002 SNAP RING PRESS
ST2 899714110 REMOVER
8) Remove sub gears for 1st and 2nd driven gear.
B3M0077A
B: ASSEMBLY
1. GEAR AND HUB ASSEMBLY
NOTE:
Position open ends of springs 120°apart.
A: 1st gear side
B: 2nd gear side
C: Flush surface
D: Stepped surface
G3M0613
2. DRIVEN GEAR ASSEMBLY
Assemble a driven shaft and 1st driven gear that select for
adjustment the proper radial clearance.
Driven shaft 1st driven gear
Part No. Diameter A mm (in) Part No.
32229AA13049.959—49.966
(1.9669—1.9672)32231AA270
32229AA12049.967—49.975
(1.9672—1.9675)3231AA260
51
3-1SERVICE PROCEDURE
5. Drive Pinion Assembly (AWD Model)
Page 808 of 2890
B3M0078A

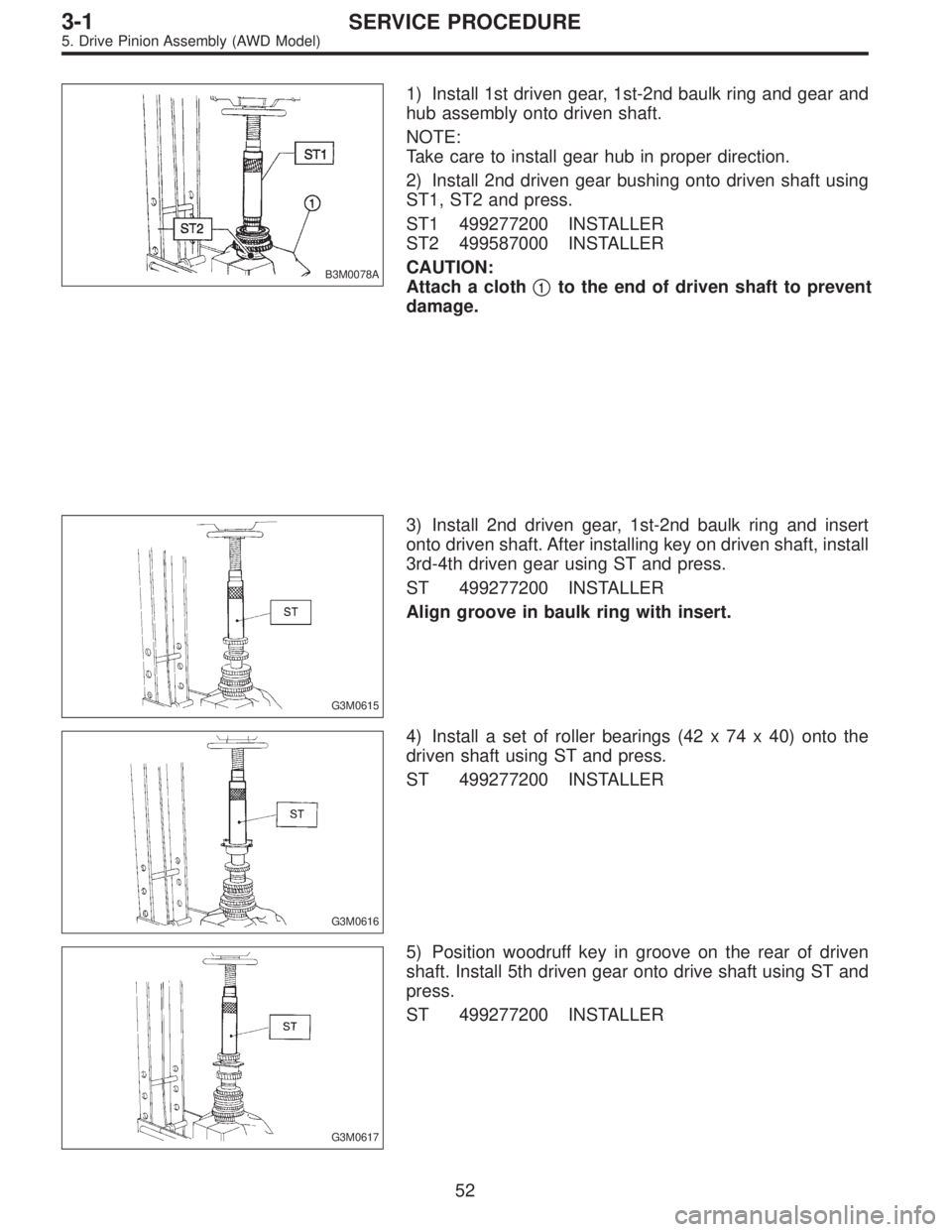

1) Install 1st driven gear, 1st-2nd baulk ring and gear and
hub assembly onto driven shaft.
NOTE:
Take care to install gear hub in proper direction.
2) Install 2nd driven gear bushing onto driven shaft using
ST1, ST2 and press.
ST1 499277200 INSTALLER
ST2 499587000 INSTALLER
CAUTION:
Attach a cloth
1to the end of driven shaft to prevent
damage.
G3M0615
3) Install 2nd driven gear, 1st-2nd baulk ring and insert
onto driven shaft. After installing key on driven shaft, install
3rd-4th driven gear using ST and press.
ST 499277200 INSTALLER
Align groove in baulk ring with insert.
G3M0616
4) Install a set of roller bearings (42 x 74 x 40) onto the
driven shaft using ST and press.
ST 499277200 INSTALLER
G3M0617
5) Position woodruff key in groove on the rear of driven
shaft. Install 5th driven gear onto drive shaft using ST and
press.
ST 499277200 INSTALLER
52
3-1SERVICE PROCEDURE
