Page 1545 of 2890

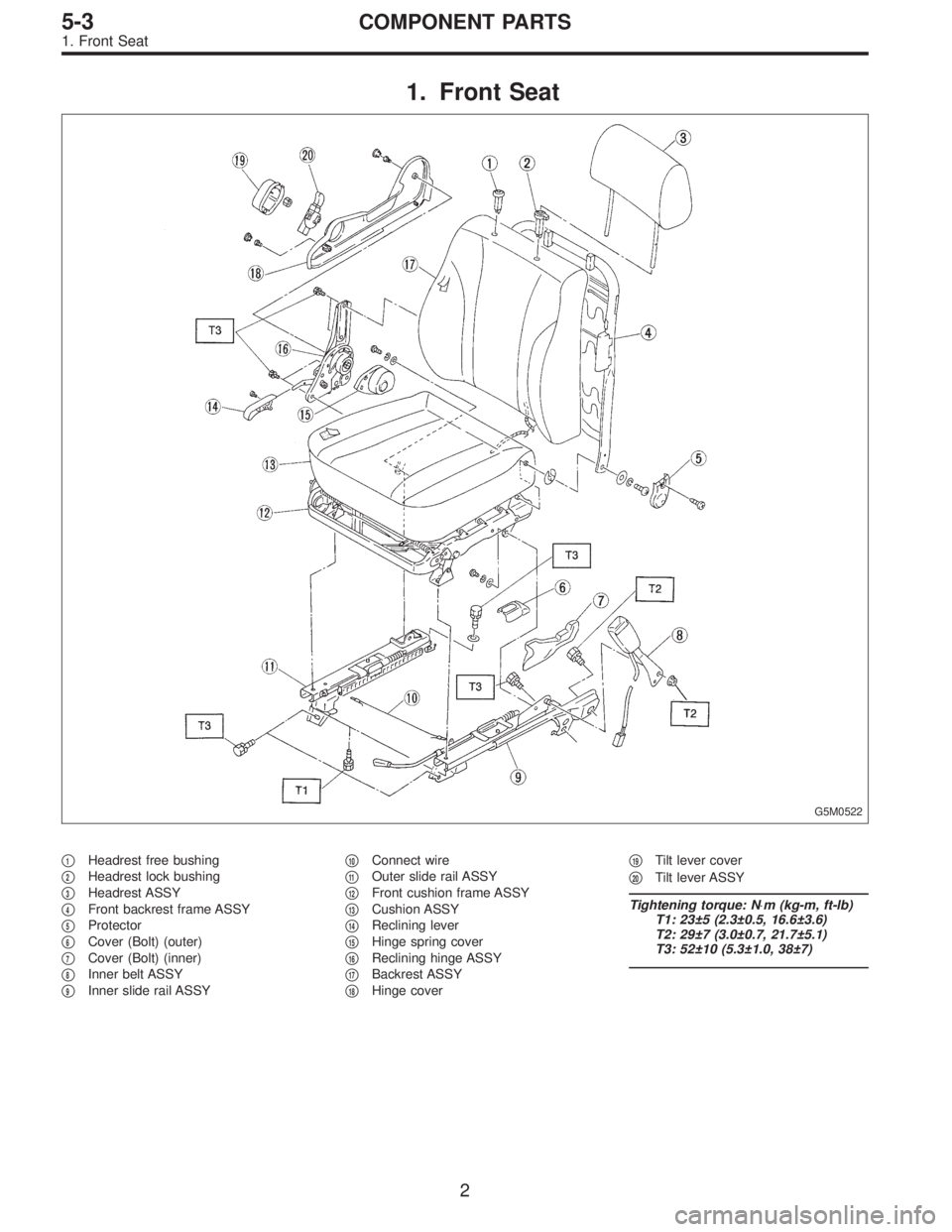

1. Front Seat
G5M0522
1Headrest free bushing
2Headrest lock bushing
3Headrest ASSY
4Front backrest frame ASSY
5Protector
6Cover (Bolt) (outer)
7Cover (Bolt) (inner)
8Inner belt ASSY
9Inner slide rail ASSY
10Connect wire
11Outer slide rail ASSY
12Front cushion frame ASSY
13Cushion ASSY
14Reclining lever
15Hinge spring cover
16Reclining hinge ASSY
17Backrest ASSY
18Hinge cover
19Tilt lever cover
20Tilt lever ASSY
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 23±5 (2.3±0.5, 16.6±3.6)
T2: 29±7 (3.0±0.7, 21.7±5.1)
T3: 52±10 (5.3±1.0, 38±7)
2
5-3COMPONENT PARTS
1. Front Seat
Page 1546 of 2890

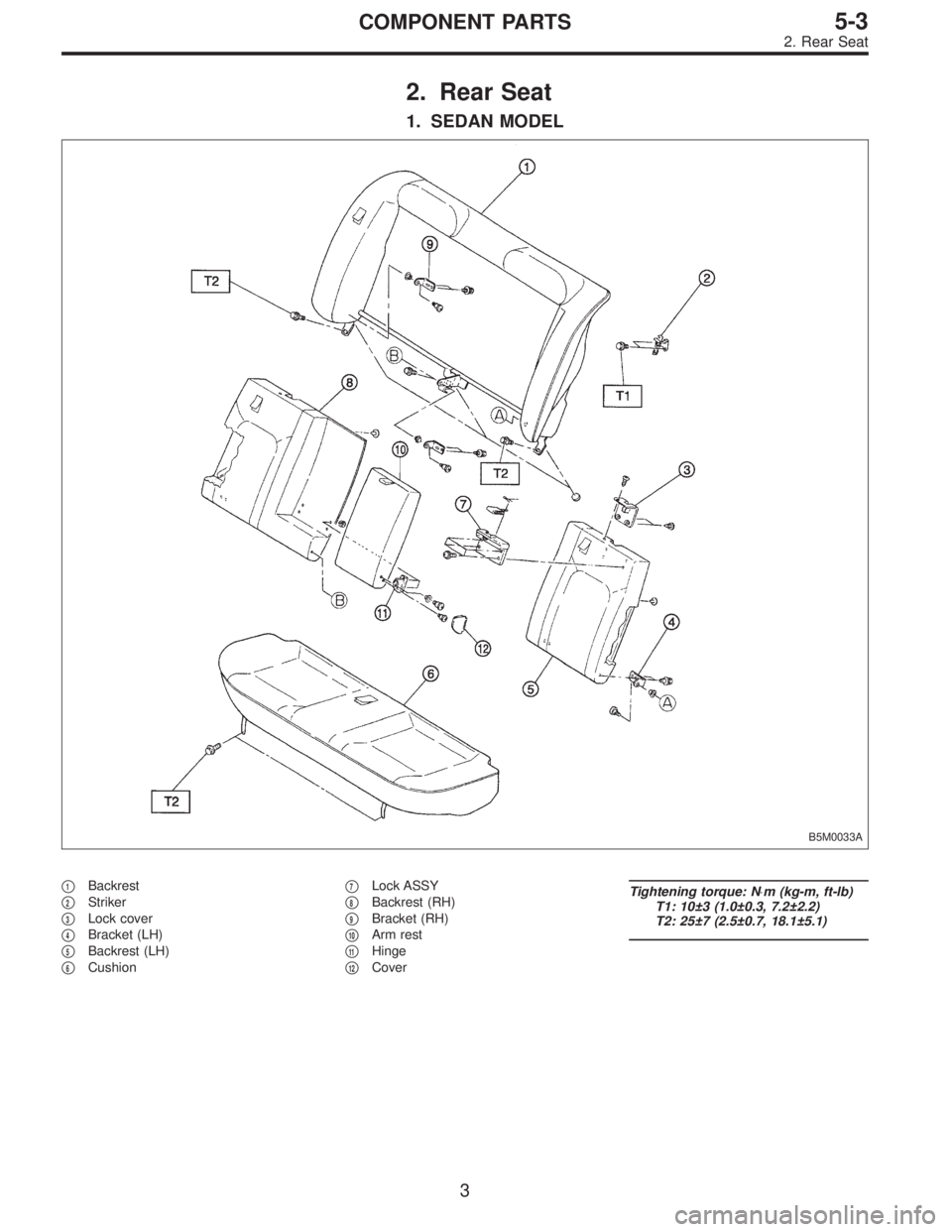

2. Rear Seat
1. SEDAN MODEL
B5M0033A
1Backrest
2Striker
3Lock cover
4Bracket (LH)
5Backrest (LH)
6Cushion
7Lock ASSY
8Backrest (RH)
9Bracket (RH)
10Arm rest
11Hinge
12Cover
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 10±3 (1.0±0.3, 7.2±2.2)
T2: 25±7 (2.5±0.7, 18.1±5.1)
3
5-3COMPONENT PARTS
2. Rear Seat
Page 1547 of 2890

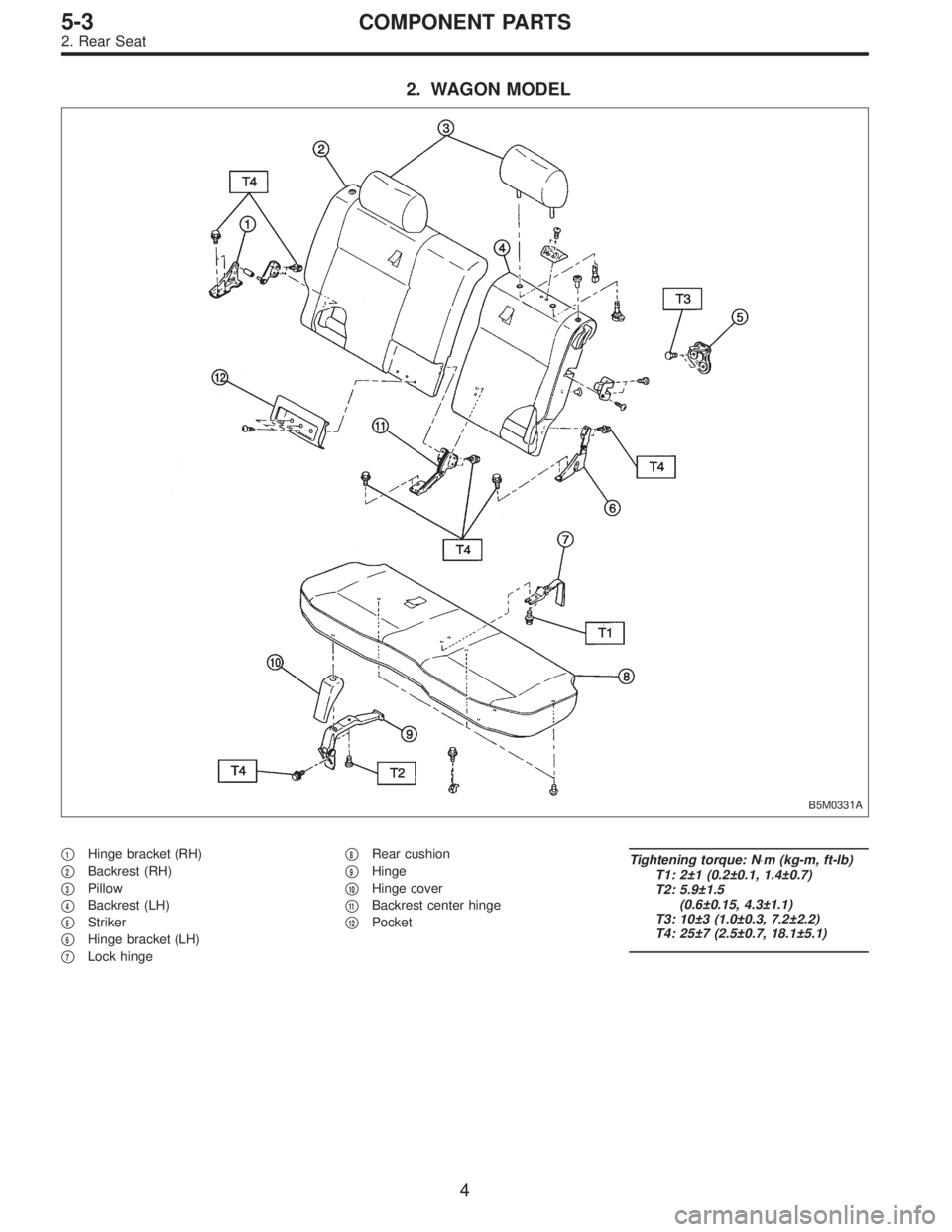

2. WAGON MODEL
B5M0331A
1Hinge bracket (RH)
2Backrest (RH)
3Pillow
4Backrest (LH)
5Striker
6Hinge bracket (LH)
7Lock hinge
8Rear cushion
9Hinge
10Hinge cover
11Backrest center hinge
12Pocket
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 2±1 (0.2±0.1, 1.4±0.7)
T2: 5.9±1.5
(0.6±0.15, 4.3±1.1)
T3: 10±3 (1.0±0.3, 7.2±2.2)
T4: 25±7 (2.5±0.7, 18.1±5.1)
4
5-3COMPONENT PARTS
2. Rear Seat
Page 1548 of 2890

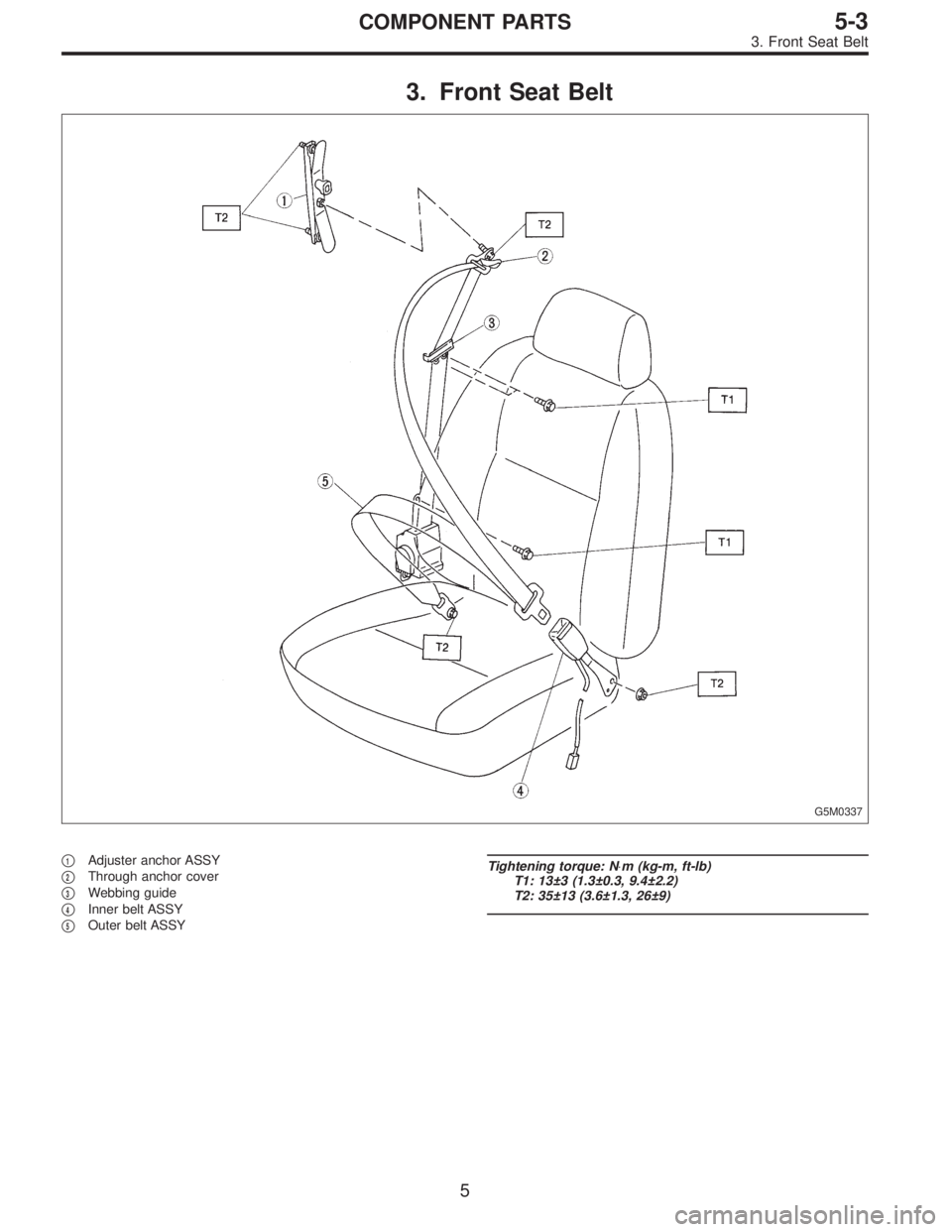

3. Front Seat Belt
G5M0337
1Adjuster anchor ASSY
2Through anchor cover
3Webbing guide
4Inner belt ASSY
5Outer belt ASSY
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 13±3 (1.3±0.3, 9.4±2.2)
T2: 35±13 (3.6±1.3, 26±9)
5
5-3COMPONENT PARTS
3. Front Seat Belt
Page 1549 of 2890

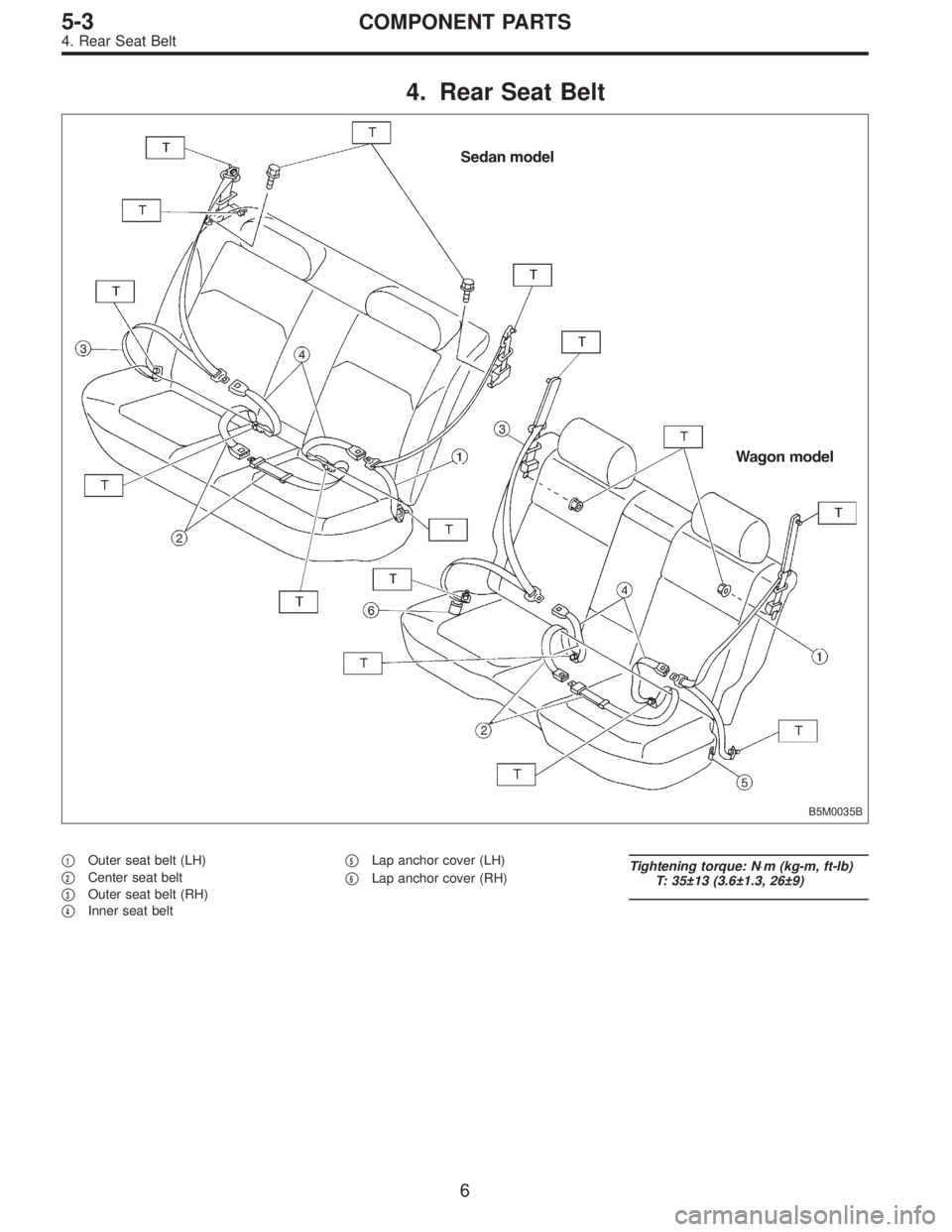

4. Rear Seat Belt
B5M0035B
1Outer seat belt (LH)
2Center seat belt
3Outer seat belt (RH)
4Inner seat belt
5Lap anchor cover (LH)
6Lap anchor cover (RH)Tightening torque: N⋅m (kg-m, ft-lb)
T: 35±13 (3.6±1.3, 26±9)
6
5-3COMPONENT PARTS
4. Rear Seat Belt
Page 1550 of 2890

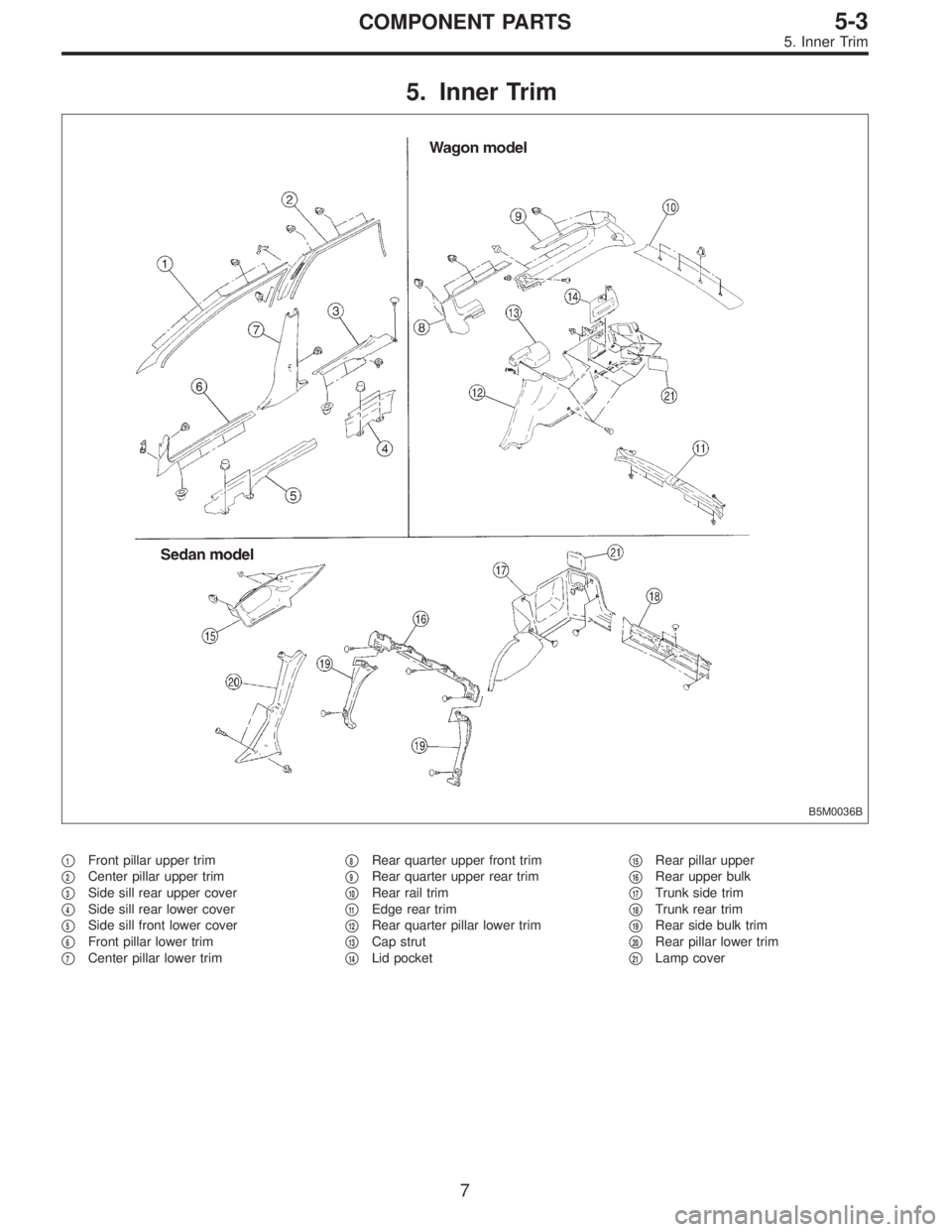

5. Inner Trim
B5M0036B
1Front pillar upper trim
2Center pillar upper trim
3Side sill rear upper cover
4Side sill rear lower cover
5Side sill front lower cover
6Front pillar lower trim
7Center pillar lower trim
8Rear quarter upper front trim
9Rear quarter upper rear trim
10Rear rail trim
11Edge rear trim
12Rear quarter pillar lower trim
13Cap strut
14Lid pocket
15Rear pillar upper
16Rear upper bulk
17Trunk side trim
18Trunk rear trim
19Rear side bulk trim
20Rear pillar lower trim
21Lamp cover
7
5-3COMPONENT PARTS
5. Inner Trim
Page 1551 of 2890

G5M0342

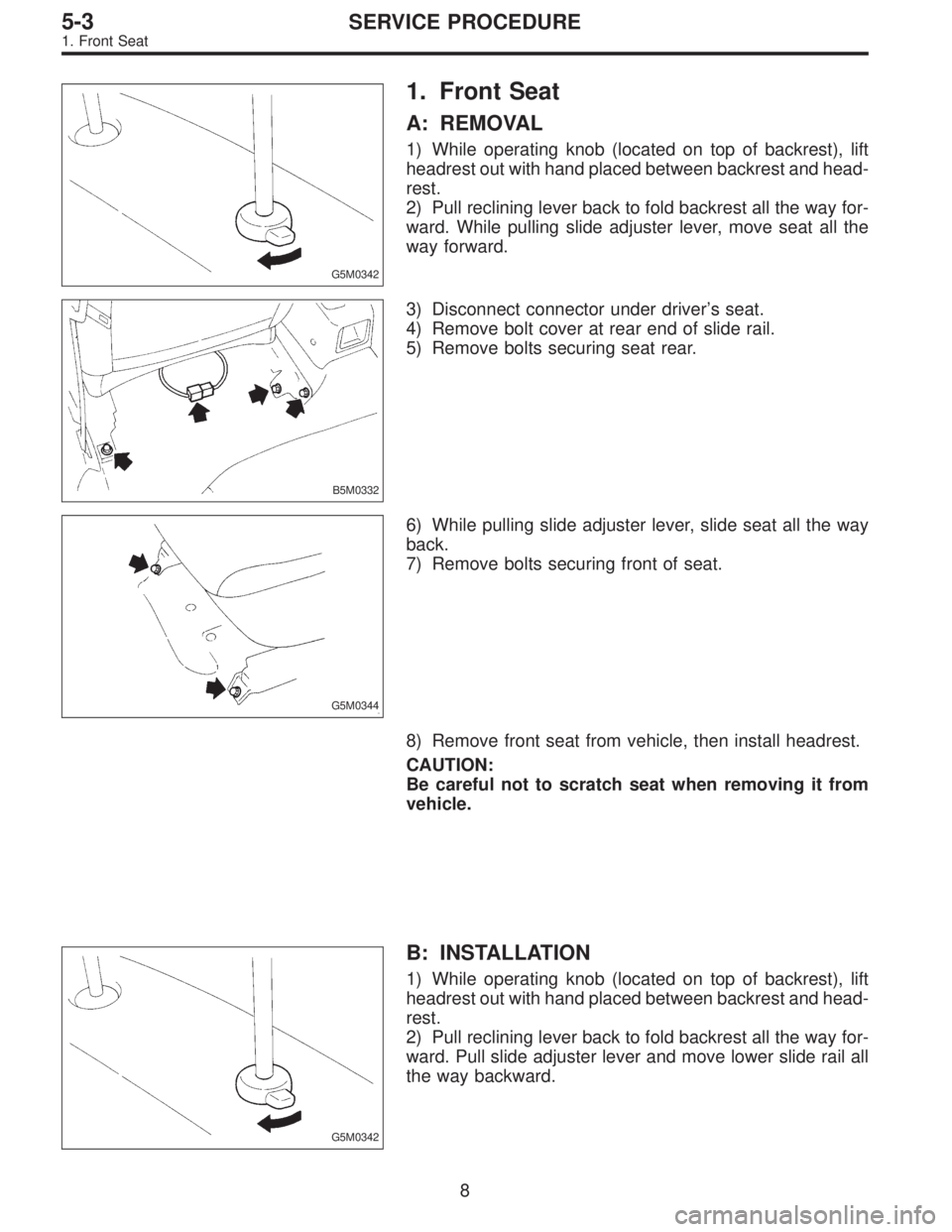

1. Front Seat
A: REMOVAL
1) While operating knob (located on top of backrest), lift
headrest out with hand placed between backrest and head-
rest.
2) Pull reclining lever back to fold backrest all the way for-
ward. While pulling slide adjuster lever, move seat all the
way forward.
B5M0332
3) Disconnect connector under driver’s seat.
4) Remove bolt cover at rear end of slide rail.
5) Remove bolts securing seat rear.
G5M0344
6) While pulling slide adjuster lever, slide seat all the way
back.
7) Remove bolts securing front of seat.
8) Remove front seat from vehicle, then install headrest.
CAUTION:
Be careful not to scratch seat when removing it from
vehicle.
G5M0342
B: INSTALLATION
1) While operating knob (located on top of backrest), lift
headrest out with hand placed between backrest and head-
rest.
2) Pull reclining lever back to fold backrest all the way for-
ward. Pull slide adjuster lever and move lower slide rail all
the way backward.
8
5-3SERVICE PROCEDURE
1. Front Seat
Page 1552 of 2890

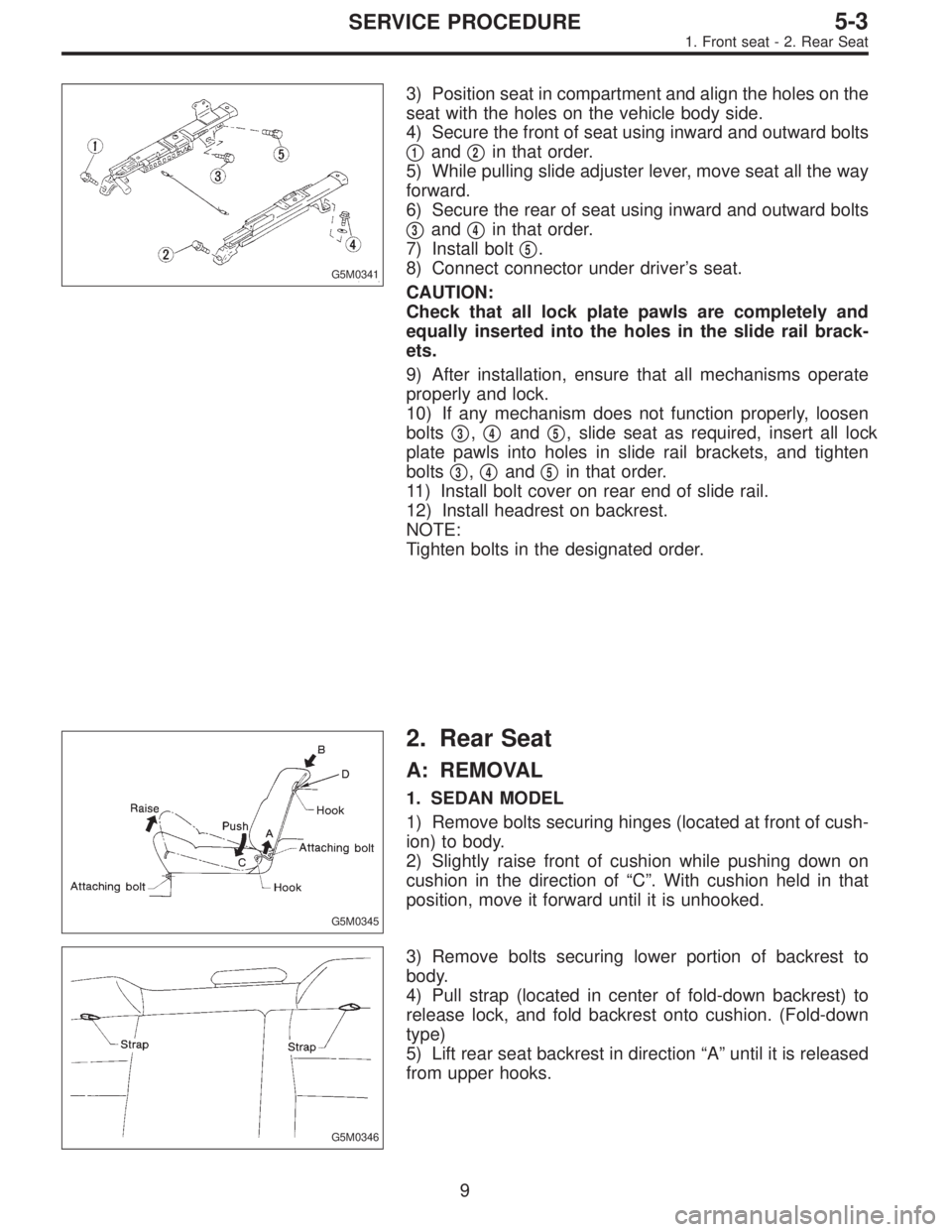

G5M0341
3) Position seat in compartment and align the holes on the
seat with the holes on the vehicle body side.
4) Secure the front of seat using inward and outward bolts
1and2in that order.
5) While pulling slide adjuster lever, move seat all the way
forward.
6) Secure the rear of seat using inward and outward bolts
3and4in that order.
7) Install bolt
5.
8) Connect connector under driver’s seat.
CAUTION:
Check that all lock plate pawls are completely and
equally inserted into the holes in the slide rail brack-
ets.
9) After installation, ensure that all mechanisms operate
properly and lock.
10) If any mechanism does not function properly, loosen
bolts
3,4and5, slide seat as required, insert all lock
plate pawls into holes in slide rail brackets, and tighten
bolts
3,4and5in that order.
11) Install bolt cover on rear end of slide rail.
12) Install headrest on backrest.
NOTE:
Tighten bolts in the designated order.
G5M0345
2. Rear Seat
A: REMOVAL
1. SEDAN MODEL
1) Remove bolts securing hinges (located at front of cush-
ion) to body.
2) Slightly raise front of cushion while pushing down on
cushion in the direction of“C”. With cushion held in that
position, move it forward until it is unhooked.
G5M0346
3) Remove bolts securing lower portion of backrest to
body.
4) Pull strap (located in center of fold-down backrest) to
release lock, and fold backrest onto cushion. (Fold-down
type)
5) Lift rear seat backrest in direction“A”until it is released
from upper hooks.
9
5-3SERVICE PROCEDURE
1. Front seat - 2. Rear Seat
