10AE2CHECK CONTACT POINT OF MOTOR
RELAY.
1) Connect battery to motor relay terminals No. 85 and No.
86.
2) Measure resistance between motor relay terminals.
: Terminals
No. 30—No. 87
Is resistance less than 0.5Ω?
: Go to next step.
: Replace motor relay.
B4M0888A
3) Disconnect battery from motor relay terminals.
4) Measure resistance between motor relay terminals.
: Terminals
No. 30—No. 87
Is resistance more than 1 MΩ?
: Go to step10AE3.
: Replace motor relay.
B4M0889A
10AE3
CHECK SHORT OF MOTOR RELAY.
Measure resistance between motor relay terminals.
: Terminals
No. 85—No. 30
No. 85—No. 87
Is resistance more than 1 MΩ?
: Go to step10AE4.
: Replace motor relay.
237
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2578 of 2890

B4M0793A

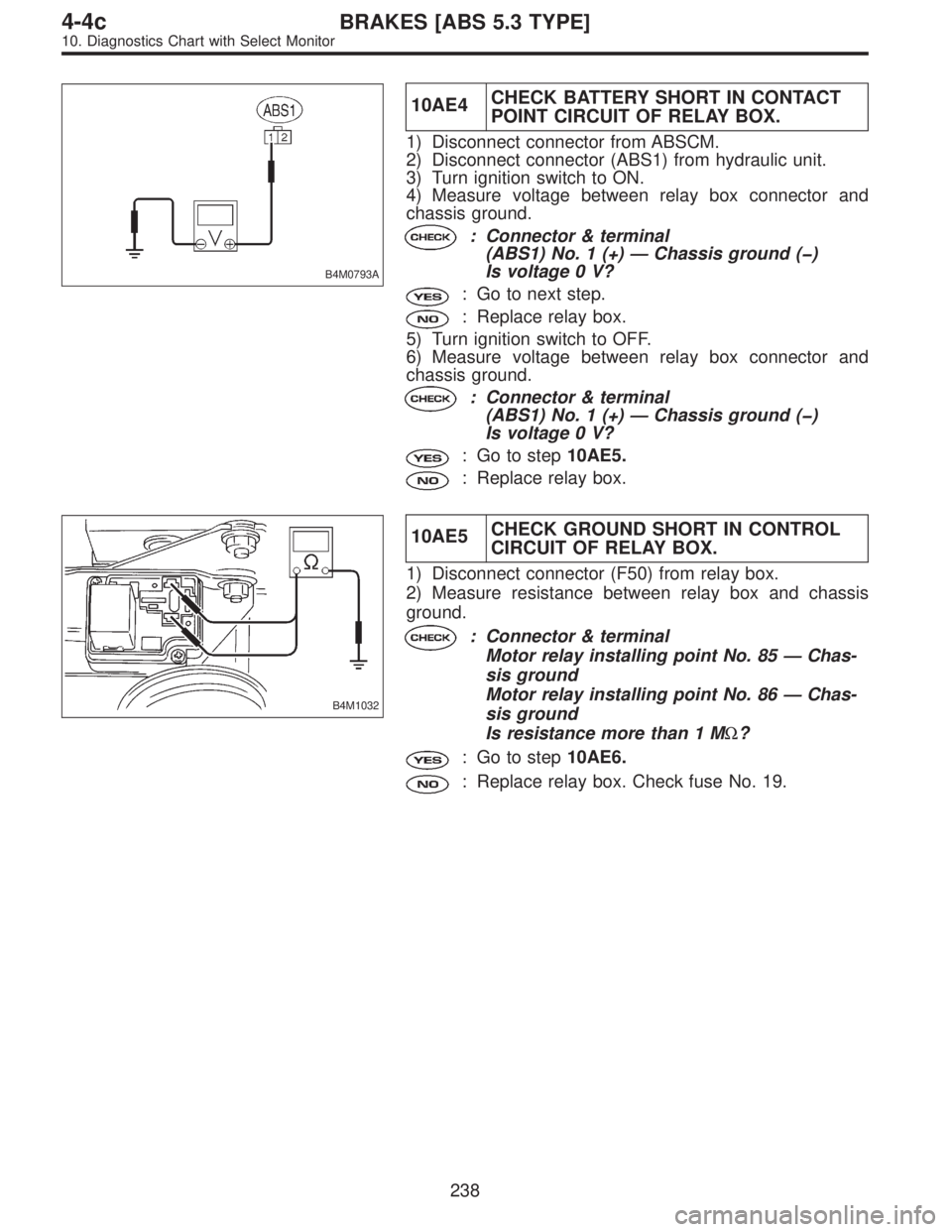

10AE4CHECK BATTERY SHORT IN CONTACT
POINT CIRCUIT OF RELAY BOX.
1) Disconnect connector from ABSCM.
2) Disconnect connector (ABS1) from hydraulic unit.
3) Turn ignition switch to ON.
4) Measure voltage between relay box connector and
chassis ground.
: Connector & terminal
(ABS1) No. 1 (+)—Chassis ground ( )
Is voltage 0 V?
: Go to next step.
: Replace relay box.
5) Turn ignition switch to OFF.
6) Measure voltage between relay box connector and
chassis ground.
: Connector & terminal
(ABS1) No. 1 (+)—Chassis ground ( )
Is voltage 0 V?
: Go to step10AE5.
: Replace relay box.
B4M1032
10AE5CHECK GROUND SHORT IN CONTROL
CIRCUIT OF RELAY BOX.
1) Disconnect connector (F50) from relay box.
2) Measure resistance between relay box and chassis
ground.
: Connector & terminal
Motor relay installing point No. 85—Chas-
sis ground
Motor relay installing point No. 86—Chas-
sis ground
Is resistance more than 1 MΩ?
: Go to step10AE6.
: Replace relay box. Check fuse No. 19.
238
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2579 of 2890

B4M0900A

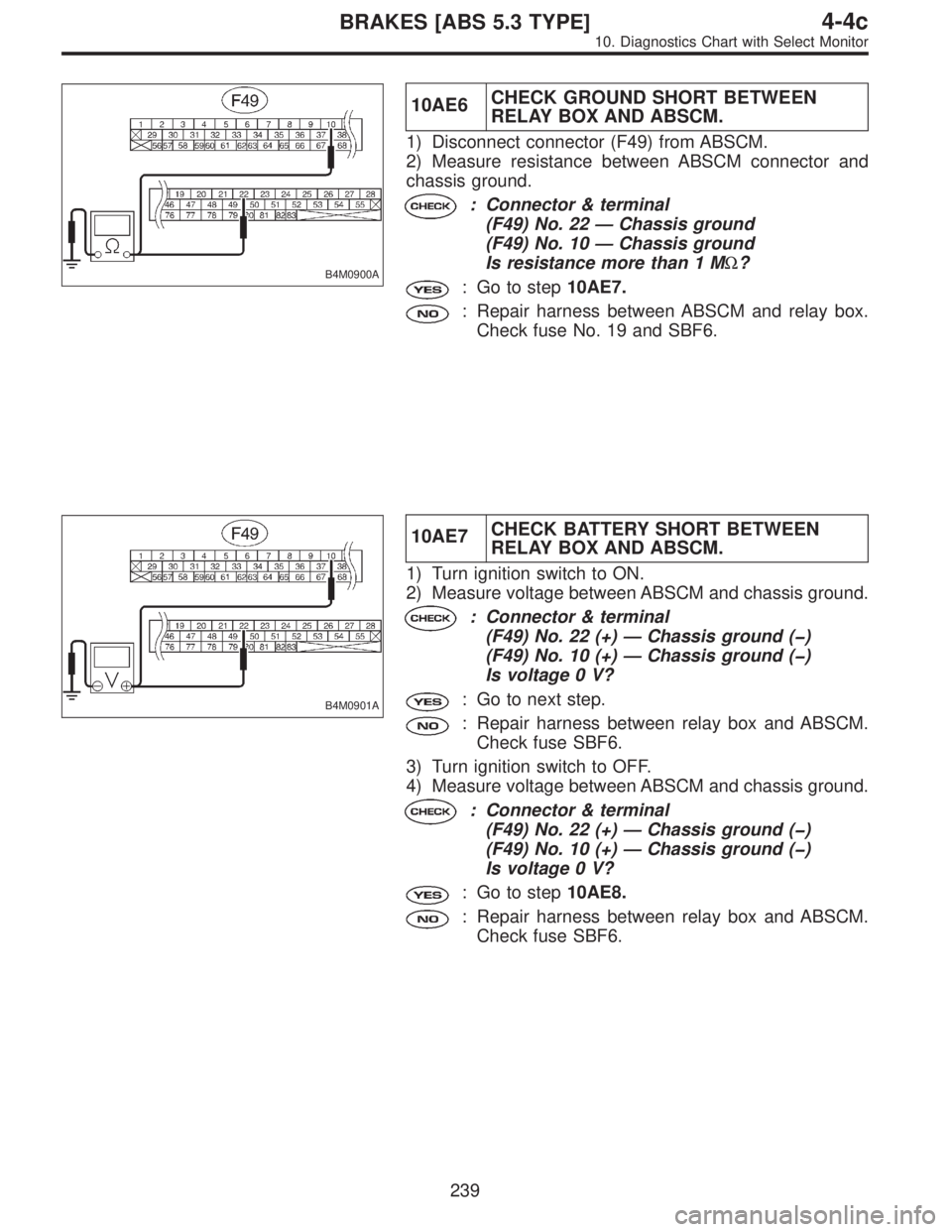

10AE6CHECK GROUND SHORT BETWEEN
RELAY BOX AND ABSCM.
1) Disconnect connector (F49) from ABSCM.
2) Measure resistance between ABSCM connector and
chassis ground.
: Connector & terminal
(F49) No. 22—Chassis ground
(F49) No. 10—Chassis ground
Is resistance more than 1 MΩ?
: Go to step10AE7.
: Repair harness between ABSCM and relay box.
Check fuse No. 19 and SBF6.
B4M0901A
10AE7CHECK BATTERY SHORT BETWEEN
RELAY BOX AND ABSCM.
1) Turn ignition switch to ON.
2) Measure voltage between ABSCM and chassis ground.
: Connector & terminal
(F49) No. 22 (+)—Chassis ground ( )
(F49) No. 10 (+)—Chassis ground ( )
Is voltage 0 V?
: Go to next step.
: Repair harness between relay box and ABSCM.
Check fuse SBF6.
3) Turn ignition switch to OFF.
4) Measure voltage between ABSCM and chassis ground.
: Connector & terminal
(F49) No. 22 (+)—Chassis ground ( )
(F49) No. 10 (+)—Chassis ground ( )
Is voltage 0 V?
: Go to step10AE8.
: Repair harness between relay box and ABSCM.
Check fuse SBF6.
239
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2580 of 2890
![SUBARU LEGACY 1996 Service Repair Manual B4M0903A
10AE8CHECK BATTERY SHORT AT ABSCM
MONITOR TERMINAL.
1) Disconnect connector cover from ABSCM connector.
<Ref. to 4-4c [T8C1] steps 5) to 8).>
2) Connect all connectors.
3) Turn ignition switc SUBARU LEGACY 1996 Service Repair Manual B4M0903A
10AE8CHECK BATTERY SHORT AT ABSCM
MONITOR TERMINAL.
1) Disconnect connector cover from ABSCM connector.
<Ref. to 4-4c [T8C1] steps 5) to 8).>
2) Connect all connectors.
3) Turn ignition switc](/manual-img/17/57433/w960_57433-2579.png)
B4M0903A

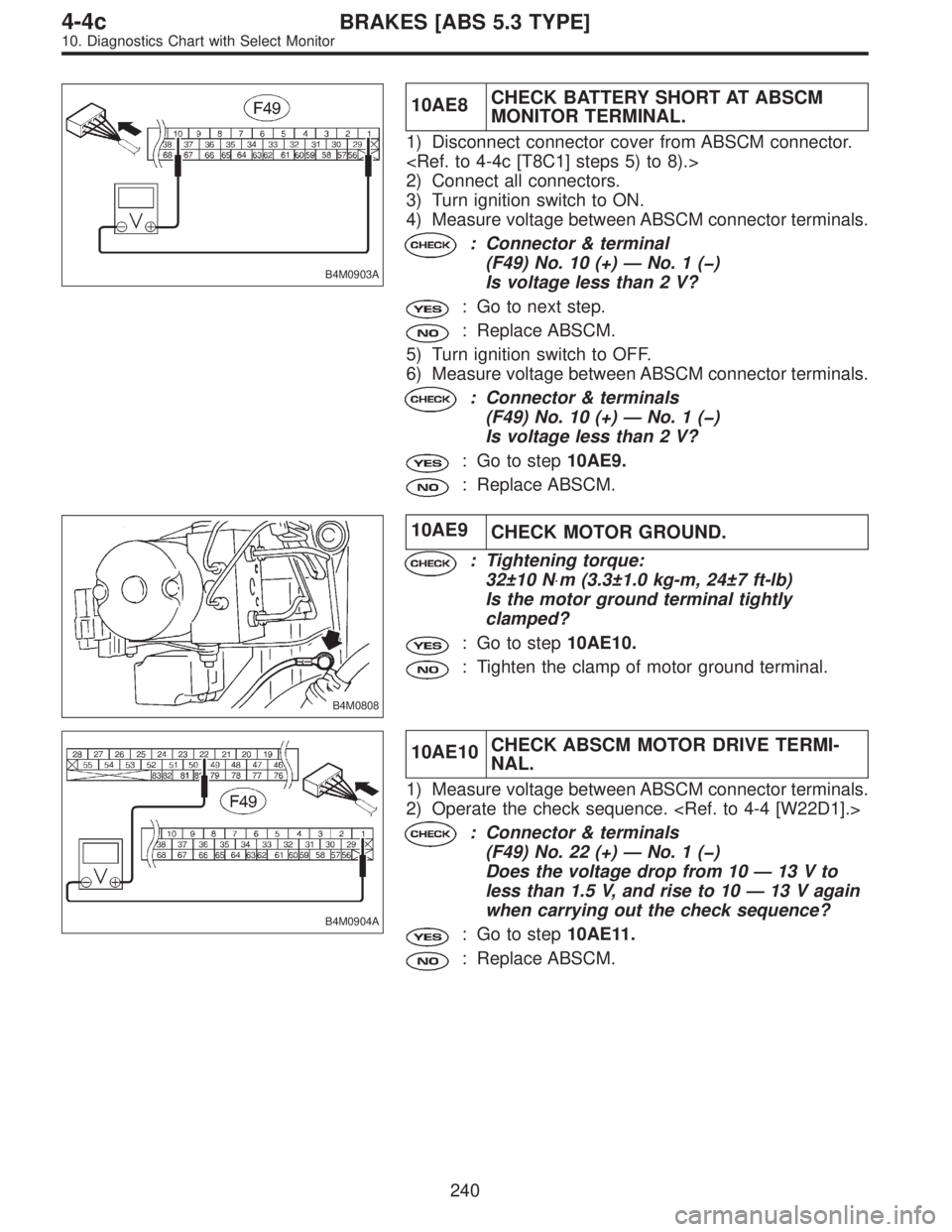

10AE8CHECK BATTERY SHORT AT ABSCM
MONITOR TERMINAL.
1) Disconnect connector cover from ABSCM connector.
2) Connect all connectors.
3) Turn ignition switch to ON.
4) Measure voltage between ABSCM connector terminals.
: Connector & terminal
(F49) No. 10 (+)—No.1( )
Is voltage less than 2 V?
: Go to next step.
: Replace ABSCM.
5) Turn ignition switch to OFF.
6) Measure voltage between ABSCM connector terminals.
: Connector & terminals
(F49) No. 10 (+)—No.1( )
Is voltage less than 2 V?
: Go to step10AE9.
: Replace ABSCM.
B4M0808
10AE9
CHECK MOTOR GROUND.
: Tightening torque:
32±10 N⋅m (3.3±1.0 kg-m, 24±7 ft-lb)
Is the motor ground terminal tightly
clamped?
: Go to step10AE10.
: Tighten the clamp of motor ground terminal.
B4M0904A
10AE10CHECK ABSCM MOTOR DRIVE TERMI-
NAL.
1) Measure voltage between ABSCM connector terminals.
2) Operate the check sequence.
: Connector & terminals
(F49) No. 22 (+)—No.1( )
Does the voltage drop from 10—13Vto
less than 1.5 V, and rise to 10—13 V again
when carrying out the check sequence?
: Go to step10AE11.
: Replace ABSCM.
240
