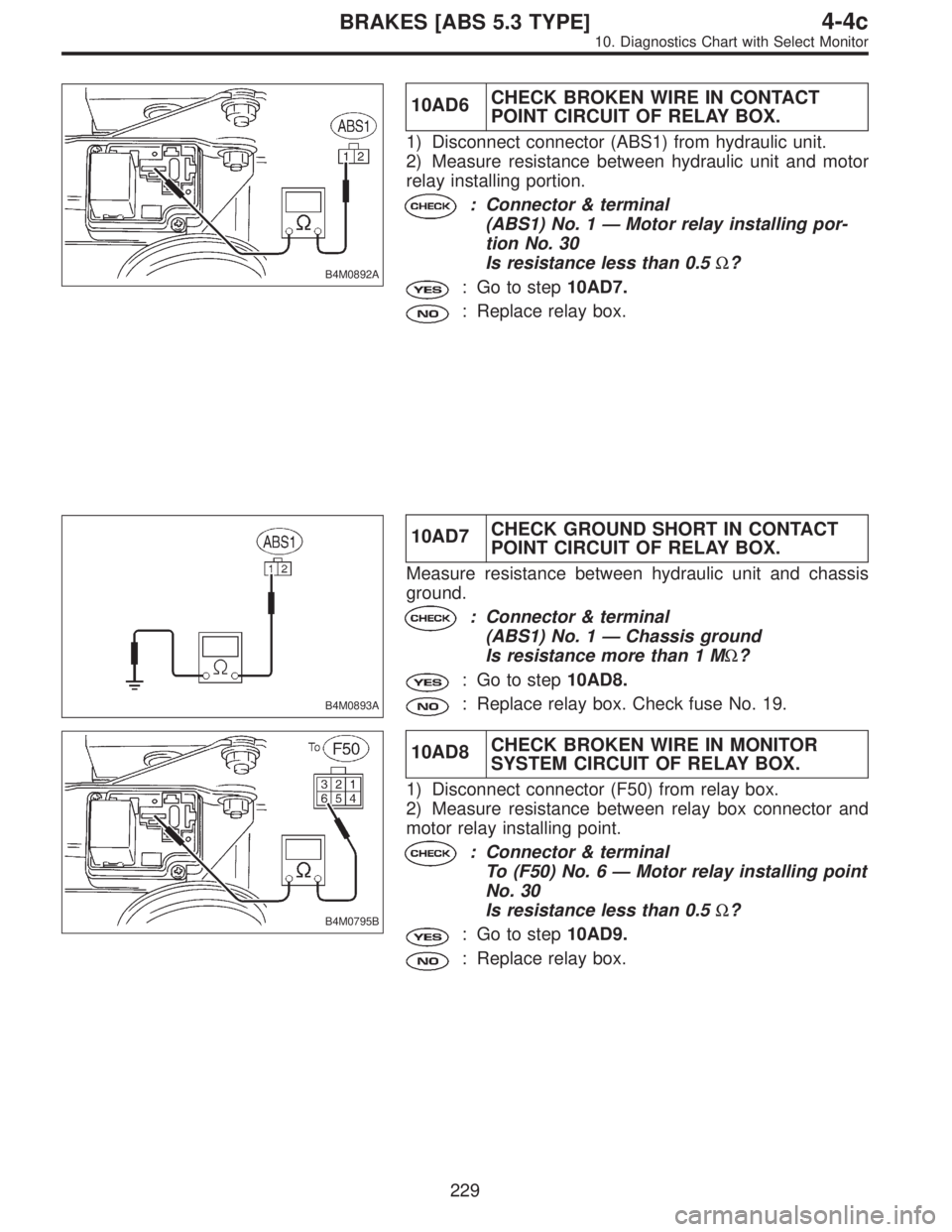

10AD6CHECK BROKEN WIRE IN CONTACT
POINT CIRCUIT OF RELAY BOX.
1) Disconnect connector (ABS1) from hydraulic unit.
2) Measure resistance between hydraulic unit and motor
relay installing portion.
: Connector & terminal
(ABS1) No. 1—Motor relay installing por-
tion No. 30
Is resistance less than 0.5Ω?
: Go to step10AD7.
: Replace relay box.
B4M0893A
10AD7CHECK GROUND SHORT IN CONTACT
POINT CIRCUIT OF RELAY BOX.
Measure resistance between hydraulic unit and chassis
ground.
: Connector & terminal
(ABS1) No. 1—Chassis ground
Is resistance more than 1 MΩ?
: Go to step10AD8.
: Replace relay box. Check fuse No. 19.
B4M0795B
10AD8CHECK BROKEN WIRE IN MONITOR
SYSTEM CIRCUIT OF RELAY BOX.
1) Disconnect connector (F50) from relay box.
2) Measure resistance between relay box connector and
motor relay installing point.
: Connector & terminal
To (F50) No. 6—Motor relay installing point
No. 30
Is resistance less than 0.5Ω?
: Go to step10AD9.
: Replace relay box.
229
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2570 of 2890

B4M0894

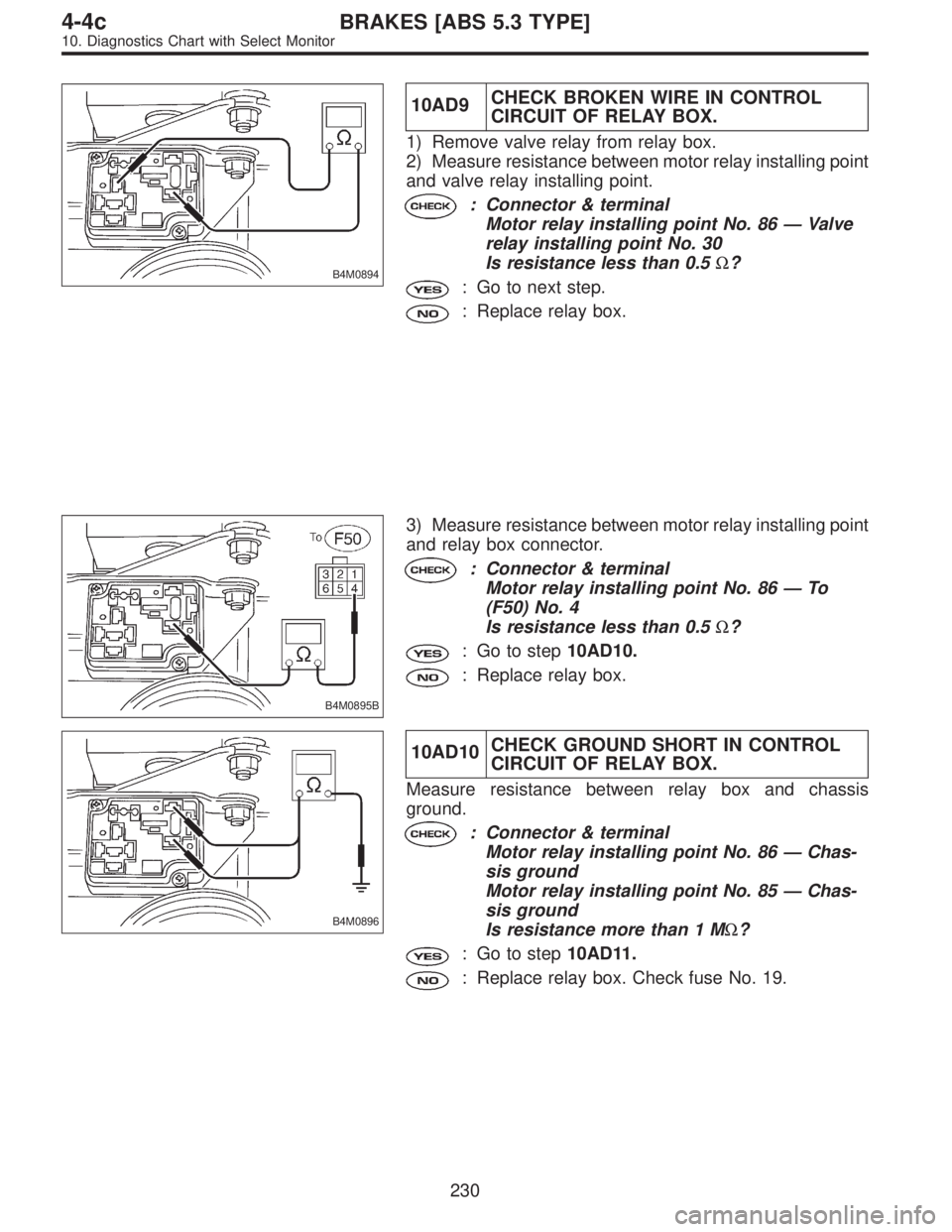

10AD9CHECK BROKEN WIRE IN CONTROL
CIRCUIT OF RELAY BOX.
1) Remove valve relay from relay box.
2) Measure resistance between motor relay installing point
and valve relay installing point.
: Connector & terminal
Motor relay installing point No. 86—Valve
relay installing point No. 30
Is resistance less than 0.5Ω?
: Go to next step.
: Replace relay box.
B4M0895B
3) Measure resistance between motor relay installing point
and relay box connector.
: Connector & terminal
Motor relay installing point No. 86—To
(F50) No. 4
Is resistance less than 0.5Ω?
: Go to step10AD10.
: Replace relay box.
B4M0896
10AD10CHECK GROUND SHORT IN CONTROL
CIRCUIT OF RELAY BOX.
Measure resistance between relay box and chassis
ground.
: Connector & terminal
Motor relay installing point No. 86—Chas-
sis ground
Motor relay installing point No. 85—Chas-
sis ground
Is resistance more than 1 MΩ?
: Go to step10AD11.
: Replace relay box. Check fuse No. 19.
230
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2571 of 2890

B4M0897

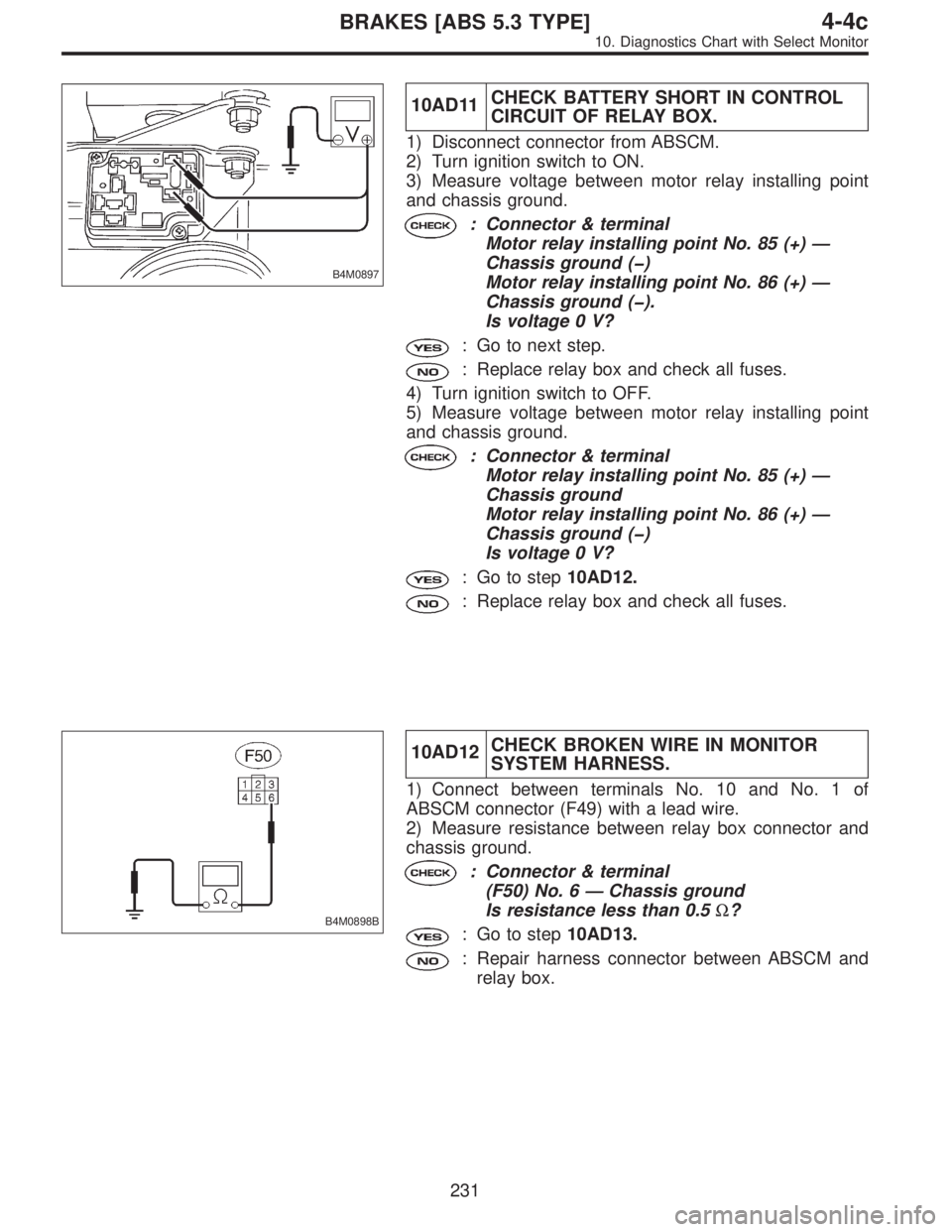

10AD11CHECK BATTERY SHORT IN CONTROL
CIRCUIT OF RELAY BOX.
1) Disconnect connector from ABSCM.
2) Turn ignition switch to ON.
3) Measure voltage between motor relay installing point
and chassis ground.
: Connector & terminal
Motor relay installing point No. 85 (+)—
Chassis ground ( )
Motor relay installing point No. 86 (+)—
Chassis ground ( ).
Is voltage 0 V?
: Go to next step.
: Replace relay box and check all fuses.
4) Turn ignition switch to OFF.
5) Measure voltage between motor relay installing point
and chassis ground.
: Connector & terminal
Motor relay installing point No. 85 (+)—
Chassis ground
Motor relay installing point No. 86 (+)—
Chassis ground ( )
Is voltage 0 V?
: Go to step10AD12.
: Replace relay box and check all fuses.
B4M0898B
10AD12CHECK BROKEN WIRE IN MONITOR
SYSTEM HARNESS.
1) Connect between terminals No. 10 and No. 1 of
ABSCM connector (F49) with a lead wire.
2) Measure resistance between relay box connector and
chassis ground.
: Connector & terminal
(F50) No. 6—Chassis ground
Is resistance less than 0.5Ω?
: Go to step10AD13.
: Repair harness connector between ABSCM and
relay box.
231
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2572 of 2890
B4M0899A

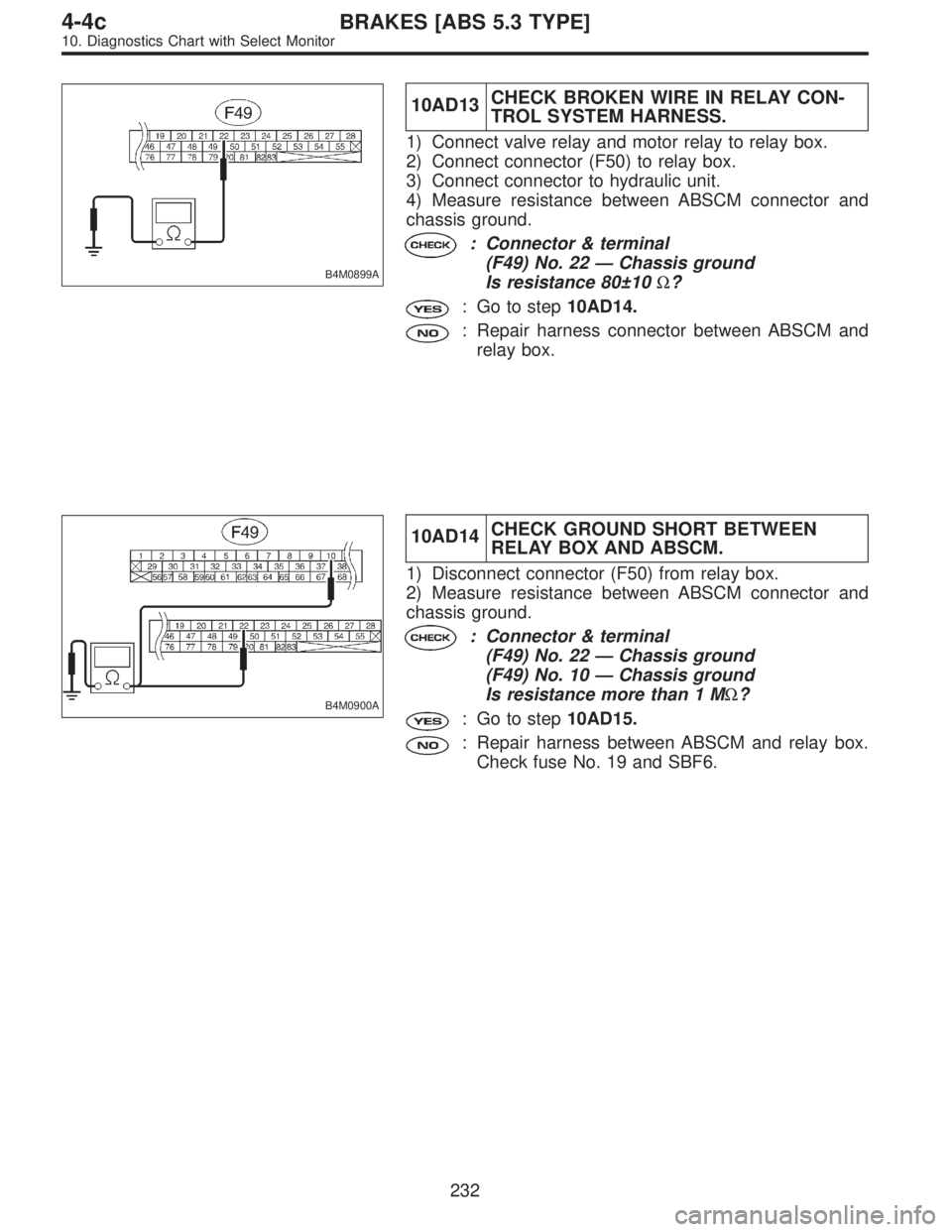

10AD13CHECK BROKEN WIRE IN RELAY CON-
TROL SYSTEM HARNESS.
1) Connect valve relay and motor relay to relay box.
2) Connect connector (F50) to relay box.
3) Connect connector to hydraulic unit.
4) Measure resistance between ABSCM connector and
chassis ground.
: Connector & terminal
(F49) No. 22—Chassis ground
Is resistance 80±10Ω?
: Go to step10AD14.
: Repair harness connector between ABSCM and
relay box.
B4M0900A
10AD14CHECK GROUND SHORT BETWEEN
RELAY BOX AND ABSCM.
1) Disconnect connector (F50) from relay box.
2) Measure resistance between ABSCM connector and
chassis ground.
: Connector & terminal
(F49) No. 22—Chassis ground
(F49) No. 10—Chassis ground
Is resistance more than 1 MΩ?
: Go to step10AD15.
: Repair harness between ABSCM and relay box.
Check fuse No. 19 and SBF6.
232
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2573 of 2890

B4M0901A

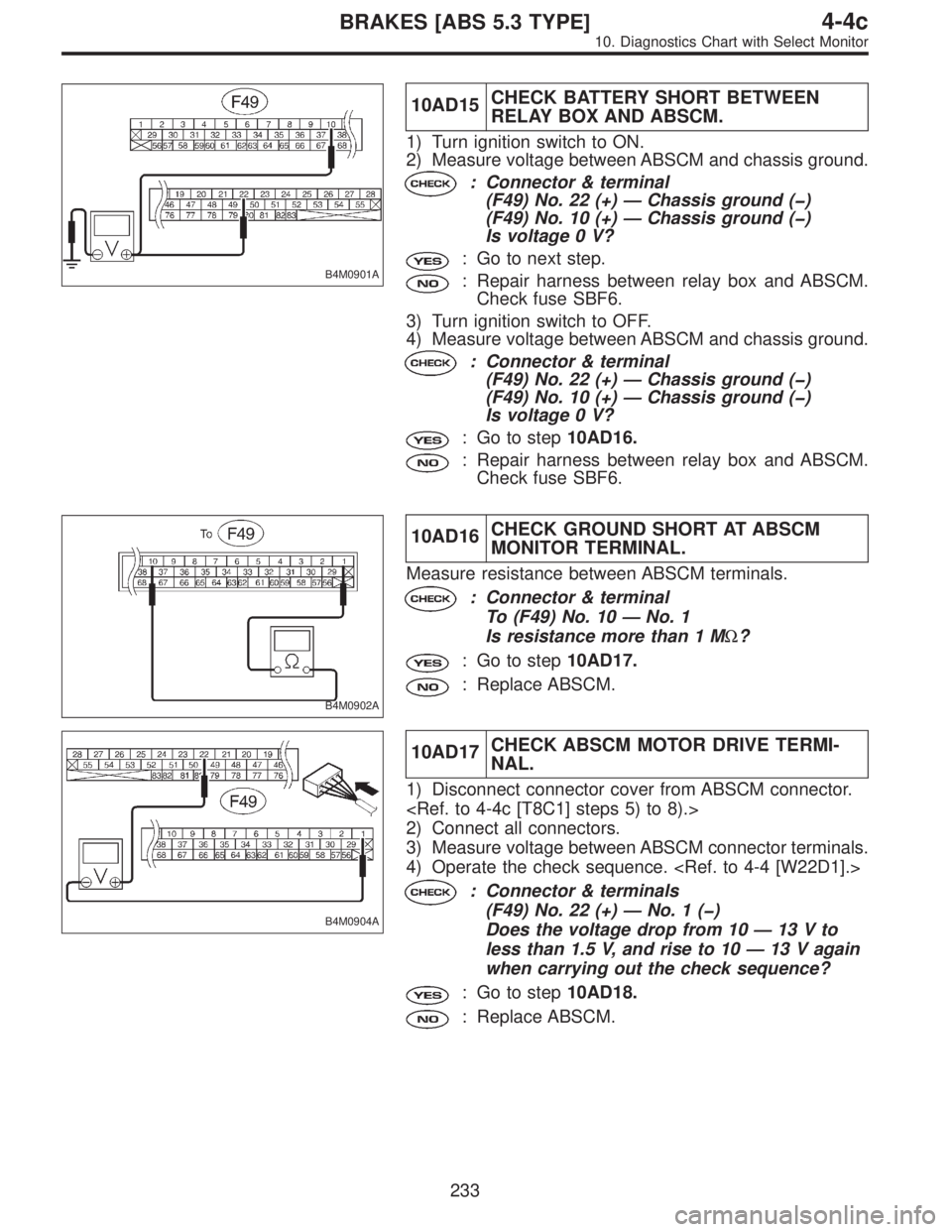

10AD15CHECK BATTERY SHORT BETWEEN
