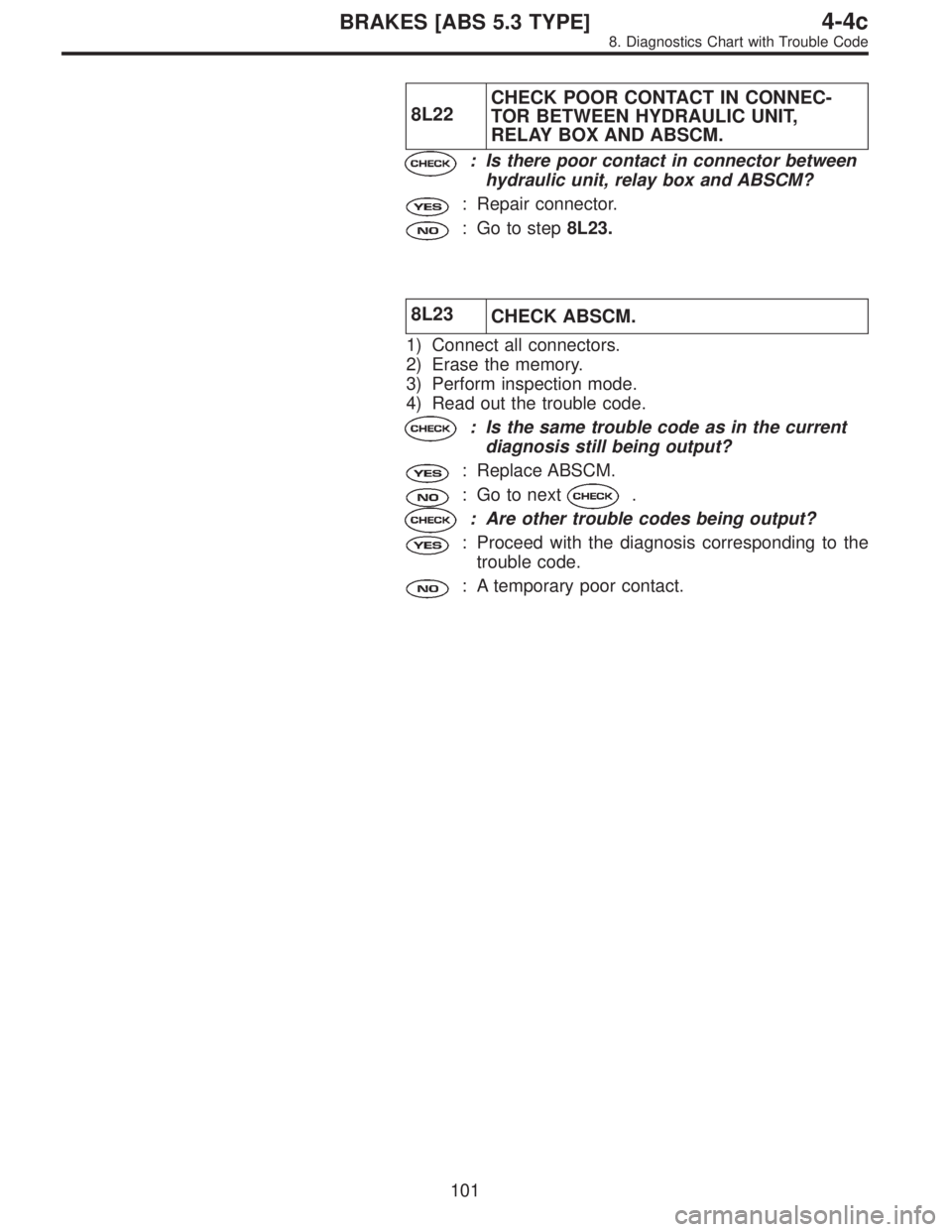

Page 2441 of 2890
8L22CHECK POOR CONTACT IN CONNEC-
TOR BETWEEN HYDRAULIC UNIT,
RELAY BOX AND ABSCM.
: Is there poor contact in connector between
hydraulic unit, relay box and ABSCM?
: Repair connector.
: Go to step8L23.
8L23
CHECK ABSCM.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM.
: Go to next.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
101
4-4cBRAKES [ABS 5.3 TYPE]
8. Diagnostics Chart with Trouble Code

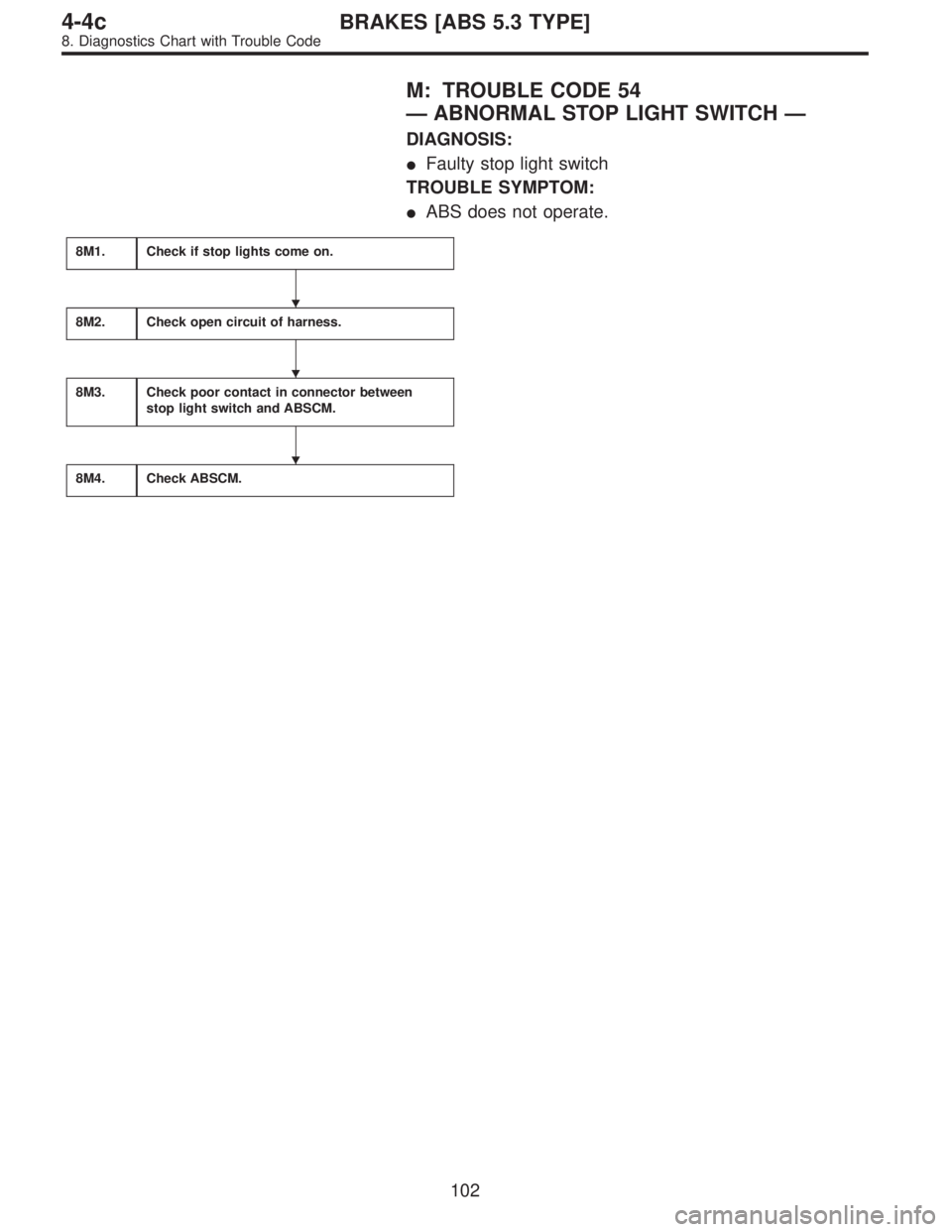

Page 2442 of 2890
M: TROUBLE CODE 54
—ABNORMAL STOP LIGHT SWITCH—
DIAGNOSIS:
Faulty stop light switch
TROUBLE SYMPTOM:
ABS does not operate.
8M1.Check if stop lights come on.
8M2.Check open circuit of harness.
8M3.Check poor contact in connector between
stop light switch and ABSCM.
8M4.Check ABSCM.
102
4-4cBRAKES [ABS 5.3 TYPE]
8. Diagnostics Chart with Trouble Code

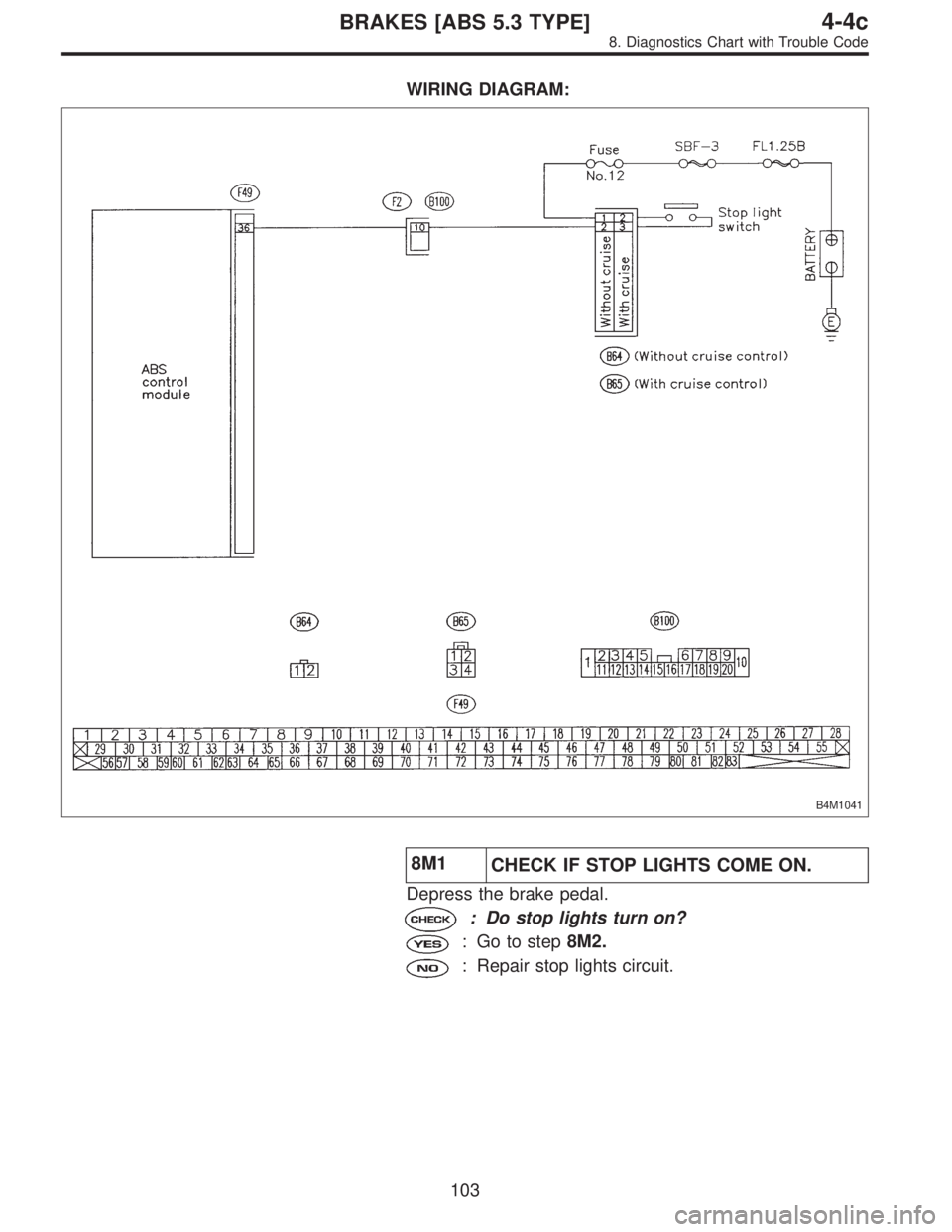

Page 2443 of 2890
WIRING DIAGRAM:
B4M1041
8M1
CHECK IF STOP LIGHTS COME ON.
Depress the brake pedal.
: Do stop lights turn on?
: Go to step8M2.
: Repair stop lights circuit.
103
4-4cBRAKES [ABS 5.3 TYPE]
8. Diagnostics Chart with Trouble Code

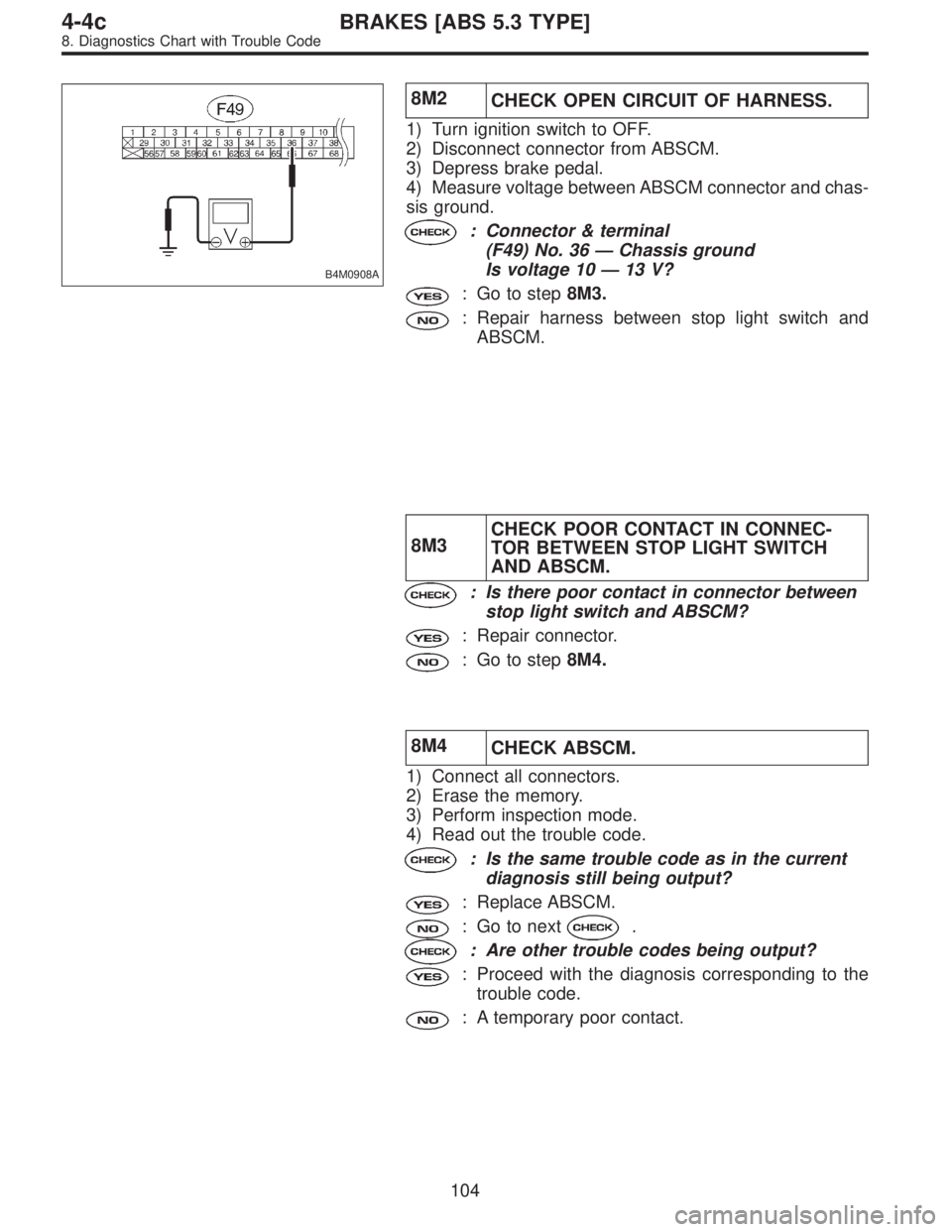

Page 2444 of 2890
B4M0908A
8M2
CHECK OPEN CIRCUIT OF HARNESS.
1) Turn ignition switch to OFF.
2) Disconnect connector from ABSCM.
3) Depress brake pedal.
4) Measure voltage between ABSCM connector and chas-
sis ground.
: Connector & terminal
(F49) No. 36—Chassis ground
Is voltage 10—13 V?
: Go to step8M3.
: Repair harness between stop light switch and
ABSCM.
8M3CHECK POOR CONTACT IN CONNEC-
TOR BETWEEN STOP LIGHT SWITCH
AND ABSCM.
: Is there poor contact in connector between
stop light switch and ABSCM?
: Repair connector.
: Go to step8M4.
8M4
CHECK ABSCM.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM.
: Go to next.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
104
4-4cBRAKES [ABS 5.3 TYPE]
8. Diagnostics Chart with Trouble Code

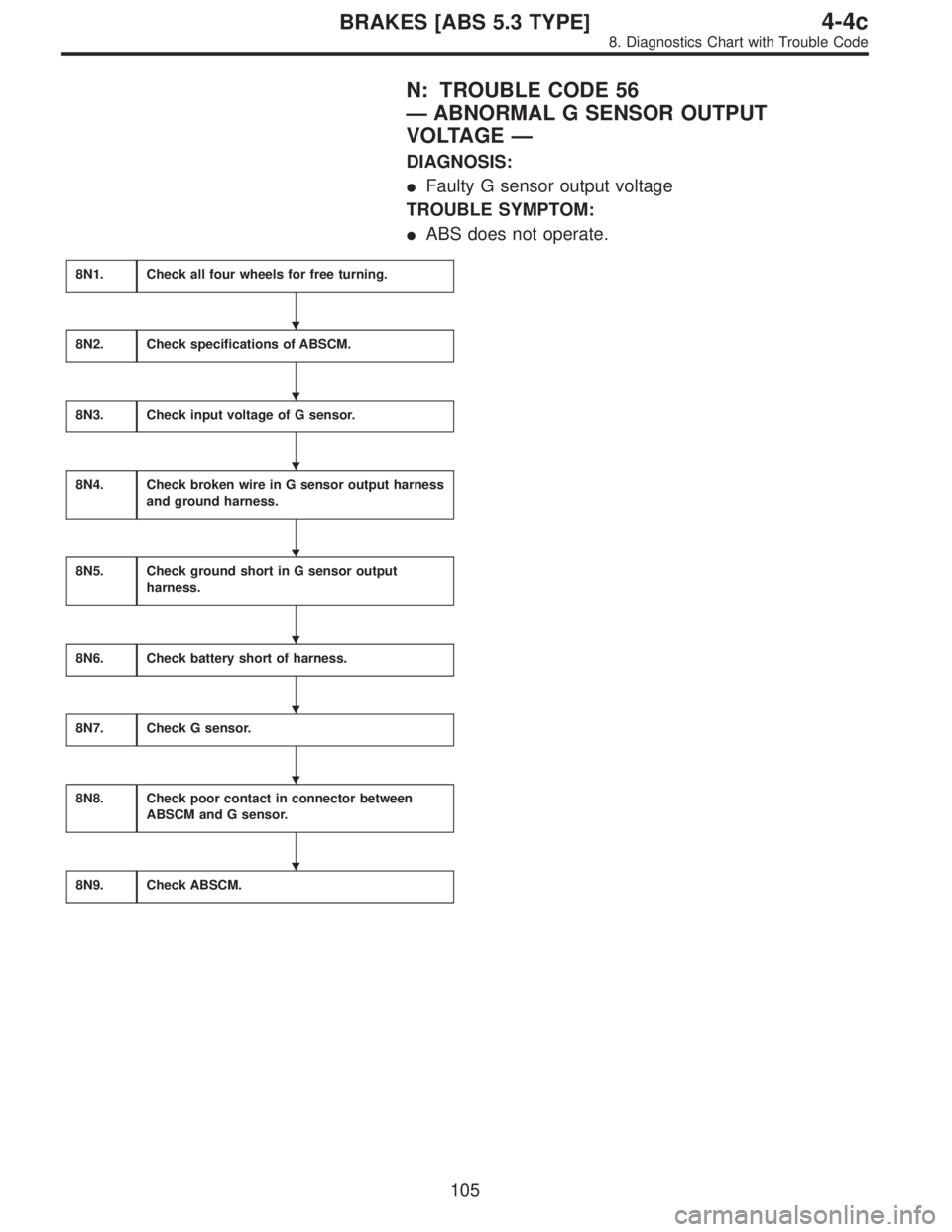

Page 2445 of 2890
N: TROUBLE CODE 56
—ABNORMAL G SENSOR OUTPUT
VOLTAGE—
DIAGNOSIS:
Faulty G sensor output voltage
TROUBLE SYMPTOM:
ABS does not operate.
8N1.Check all four wheels for free turning.
8N2.Check specifications of ABSCM.
8N3.Check input voltage of G sensor.
8N4.Check broken wire in G sensor output harness
and ground harness.
8N5.Check ground short in G sensor output
harness.
8N6.Check battery short of harness.
8N7.Check G sensor.
8N8.Check poor contact in connector between
ABSCM and G sensor.
8N9.Check ABSCM.
105
4-4cBRAKES [ABS 5.3 TYPE]
8. Diagnostics Chart with Trouble Code

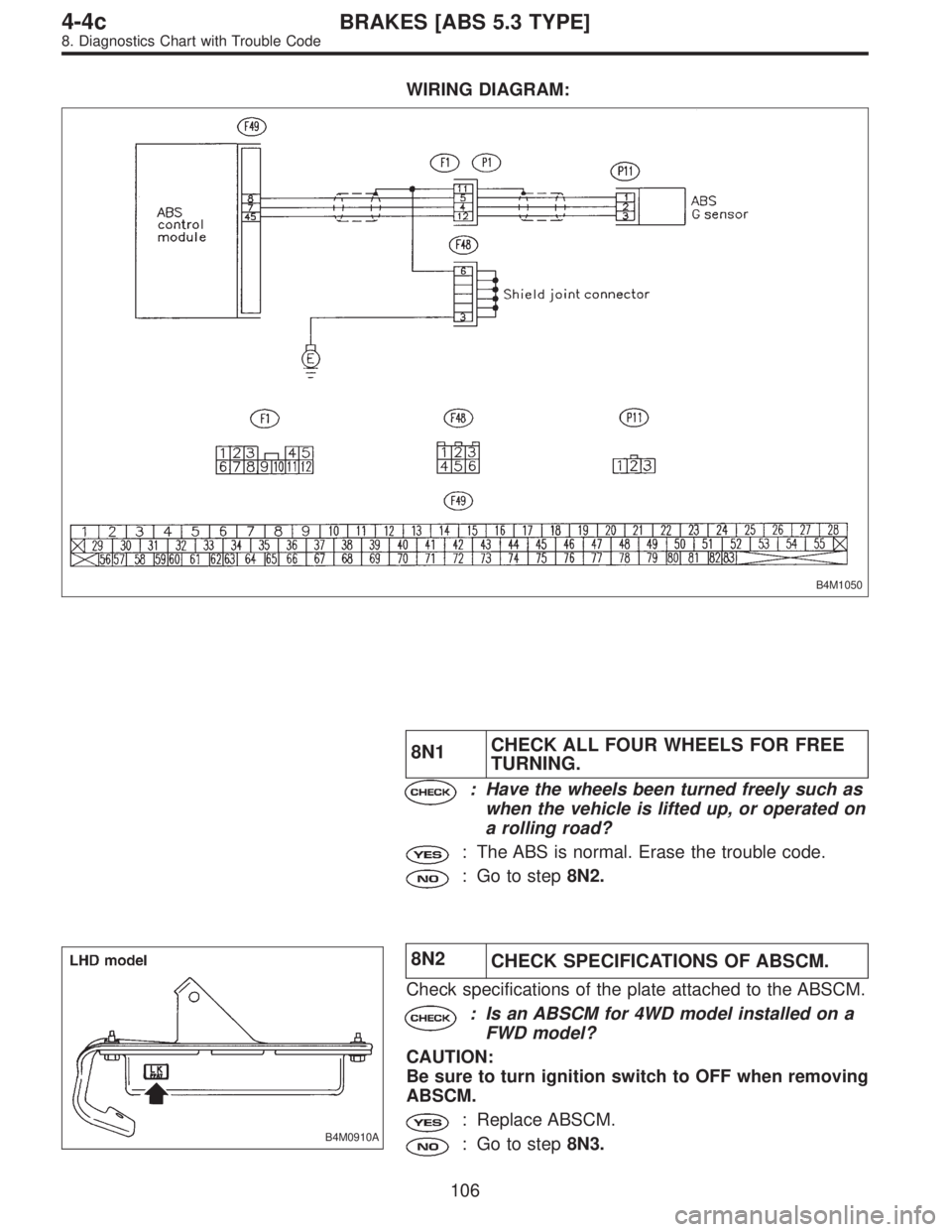

Page 2446 of 2890
WIRING DIAGRAM:
B4M1050
8N1CHECK ALL FOUR WHEELS FOR FREE
TURNING.
: Have the wheels been turned freely such as
when the vehicle is lifted up, or operated on
a rolling road?
: The ABS is normal. Erase the trouble code.
: Go to step8N2.
B4M0910A
8N2
CHECK SPECIFICATIONS OF ABSCM.
Check specifications of the plate attached to the ABSCM.
: Is an ABSCM for 4WD model installed on a
FWD model?
CAUTION:
Be sure to turn ignition switch to OFF when removing
ABSCM.
: Replace ABSCM.
: Go to step8N3.
106
4-4cBRAKES [ABS 5.3 TYPE]
8. Diagnostics Chart with Trouble Code

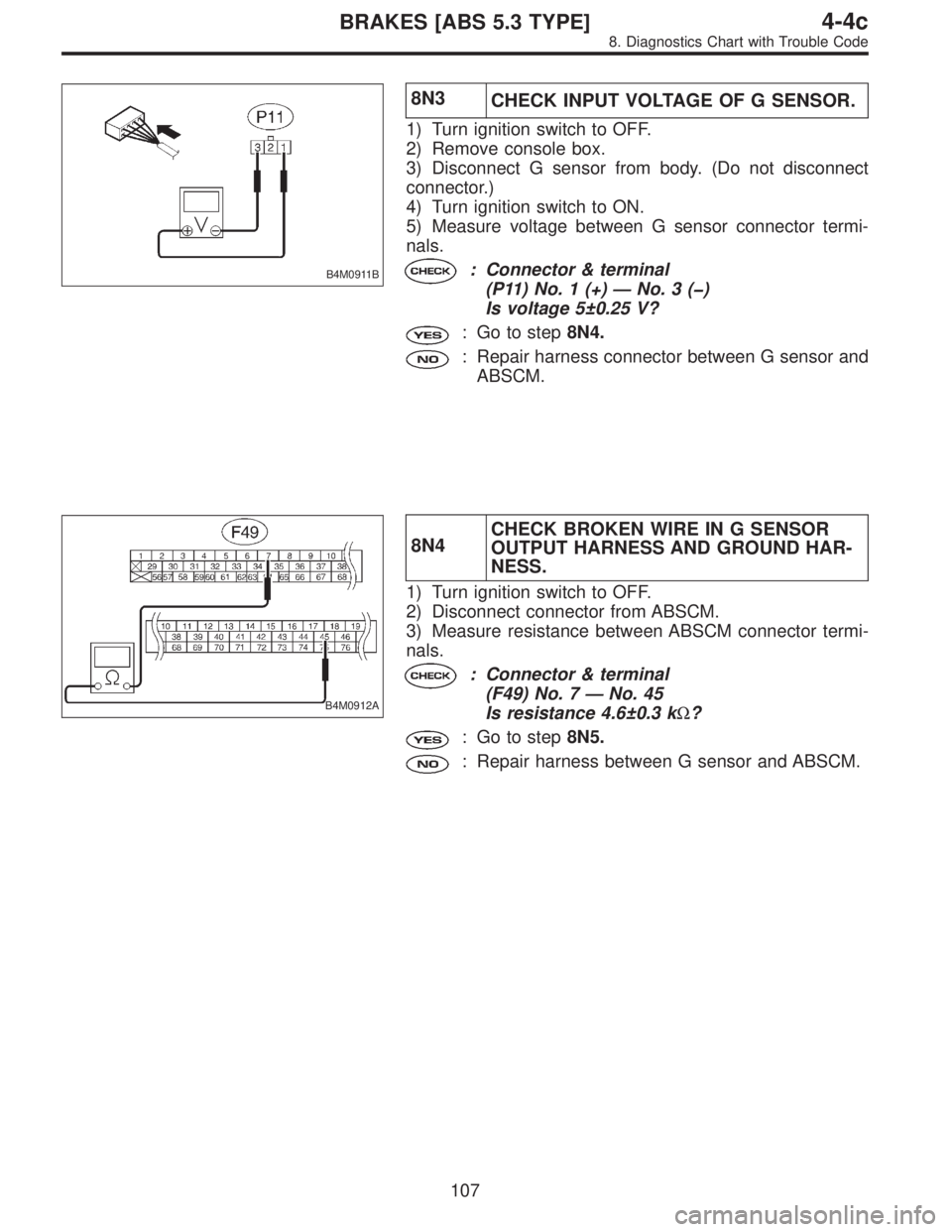

Page 2447 of 2890
B4M0911B
8N3
CHECK INPUT VOLTAGE OF G SENSOR.
1) Turn ignition switch to OFF.
2) Remove console box.
3) Disconnect G sensor from body. (Do not disconnect
connector.)
4) Turn ignition switch to ON.
5) Measure voltage between G sensor connector termi-
nals.
: Connector & terminal
(P11) No. 1 (+)—No.3( )
Is voltage 5±0.25 V?
: Go to step8N4.
: Repair harness connector between G sensor and
ABSCM.
B4M0912A
8N4CHECK BROKEN WIRE IN G SENSOR
OUTPUT HARNESS AND GROUND HAR-
NESS.
1) Turn ignition switch to OFF.
2) Disconnect connector from ABSCM.
3) Measure resistance between ABSCM connector termi-
nals.
: Connector & terminal
(F49) No. 7—No. 45
Is resistance 4.6±0.3 kΩ?
: Go to step8N5.
: Repair harness between G sensor and ABSCM.
107
4-4cBRAKES [ABS 5.3 TYPE]
8. Diagnostics Chart with Trouble Code

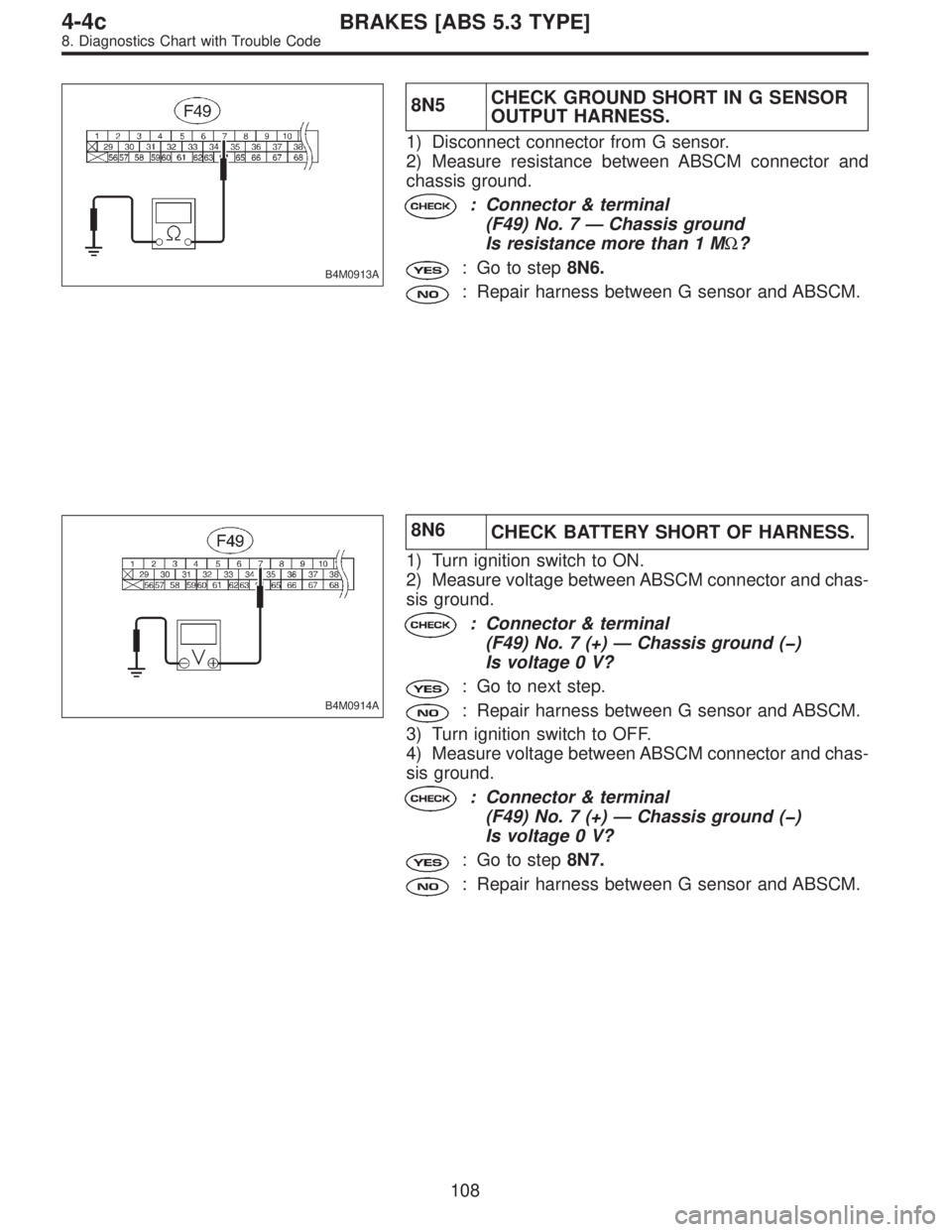

Page 2448 of 2890
B4M0913A
8N5CHECK GROUND SHORT IN G SENSOR
OUTPUT HARNESS.
1) Disconnect connector from G sensor.
2) Measure resistance between ABSCM connector and
chassis ground.
: Connector & terminal
(F49) No. 7—Chassis ground
Is resistance more than 1 MΩ?
: Go to step8N6.
: Repair harness between G sensor and ABSCM.
B4M0914A
8N6
CHECK BATTERY SHORT OF HARNESS.
1) Turn ignition switch to ON.
2) Measure voltage between ABSCM connector and chas-
sis ground.
: Connector & terminal
(F49) No. 7 (+)—Chassis ground ( )
Is voltage 0 V?
: Go to next step.
: Repair harness between G sensor and ABSCM.
3) Turn ignition switch to OFF.
4) Measure voltage between ABSCM connector and chas-
sis ground.
: Connector & terminal
(F49) No. 7 (+)—Chassis ground ( )
Is voltage 0 V?
: Go to step8N7.
: Repair harness between G sensor and ABSCM.
108
4-4cBRAKES [ABS 5.3 TYPE]
8. Diagnostics Chart with Trouble Code
