Page 2393 of 2890

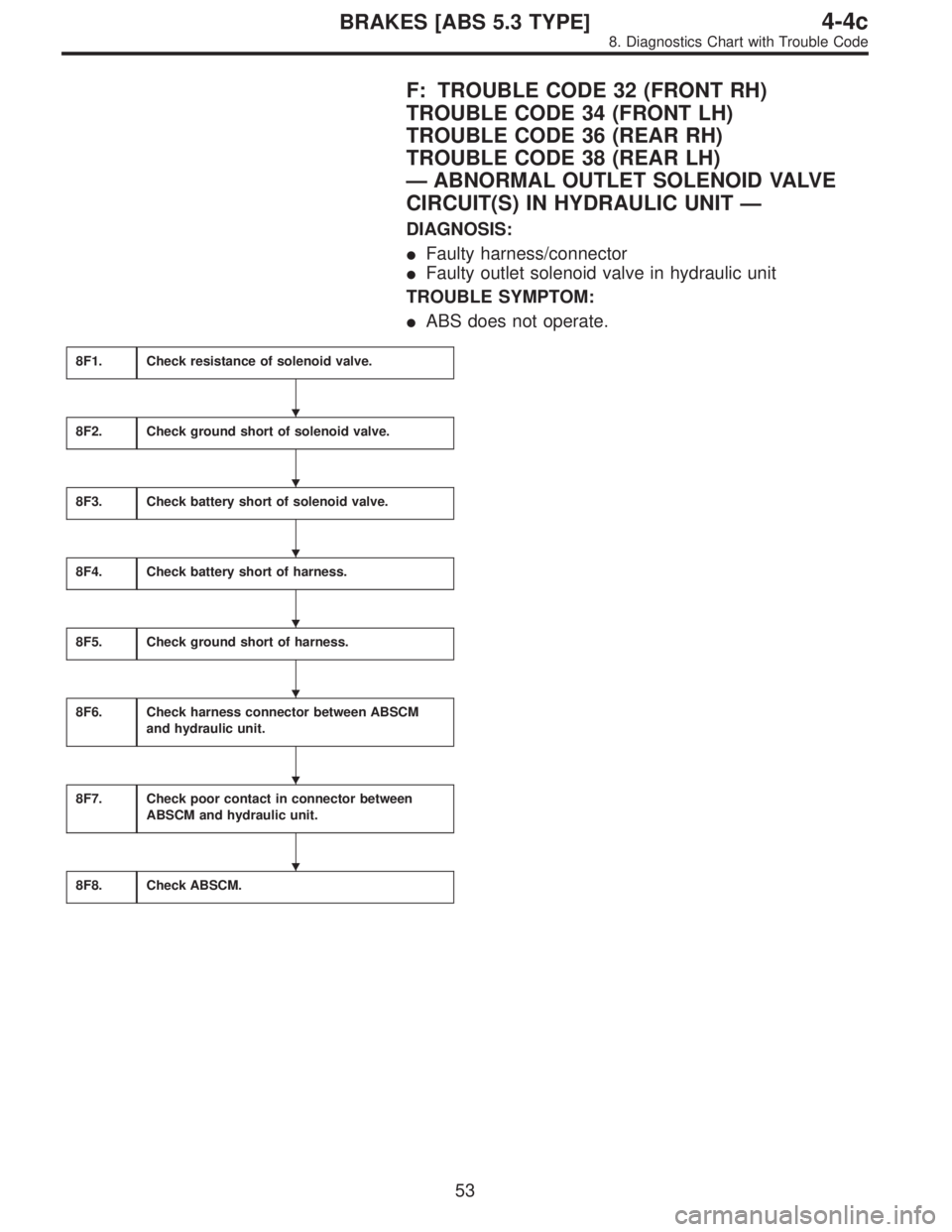

SUBARU LEGACY 1996 Service Repair Manual F: TROUBLE CODE 32 (FRONT RH) TROUBLE CODE 34 (FRONT LH) TROUBLE CODE 36 (REAR RH) TROUBLE CODE 38 (REAR LH) —ABNORMAL OUTLET SOLENOID VALVE CIRCUIT(S) IN HYDRAULIC UNIT— DIAGNOSIS: Faulty harnes

Page 2394 of 2890

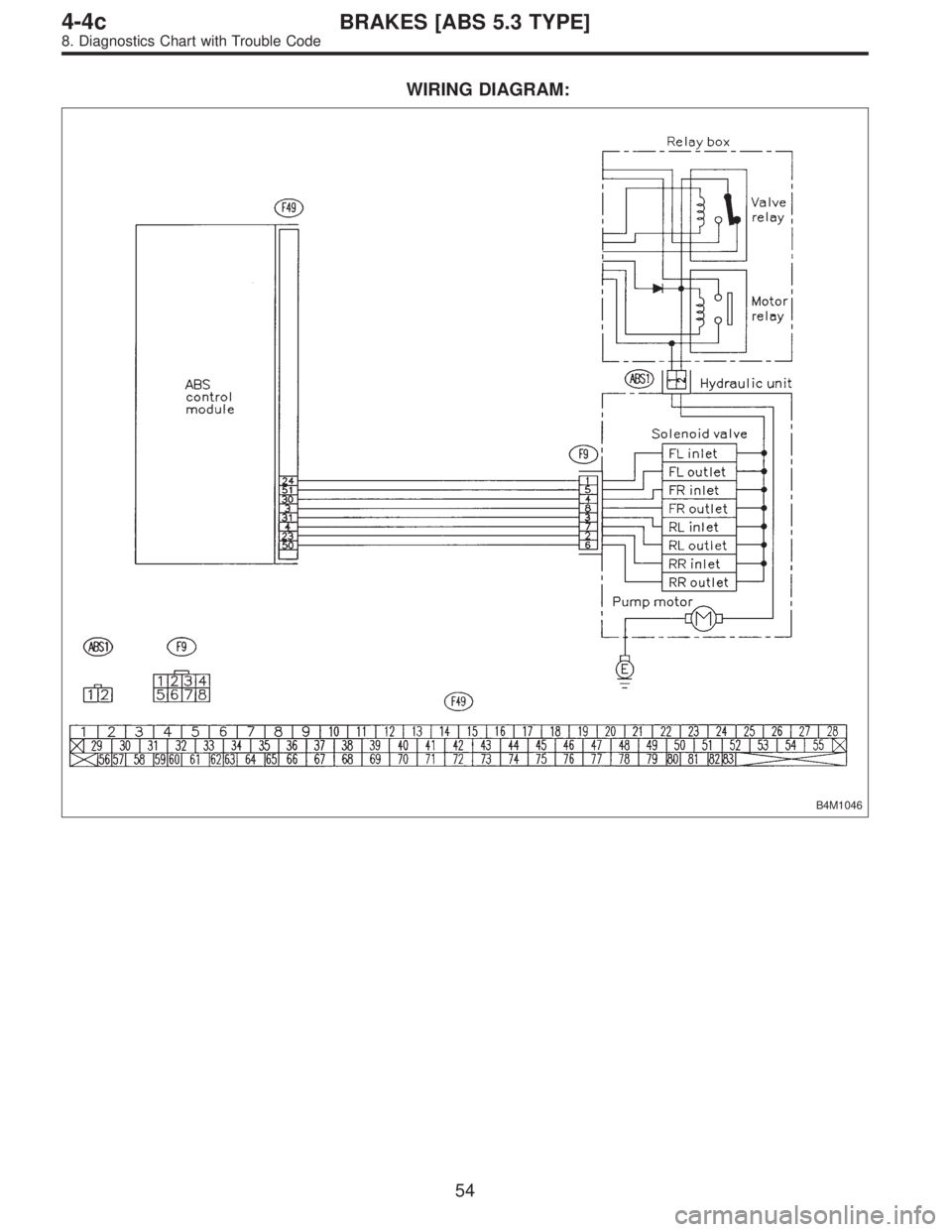

SUBARU LEGACY 1996 Service Repair Manual WIRING DIAGRAM: B4M1046 54 4-4cBRAKES [ABS 5.3 TYPE] 8. Diagnostics Chart with Trouble Code

Page 2395 of 2890

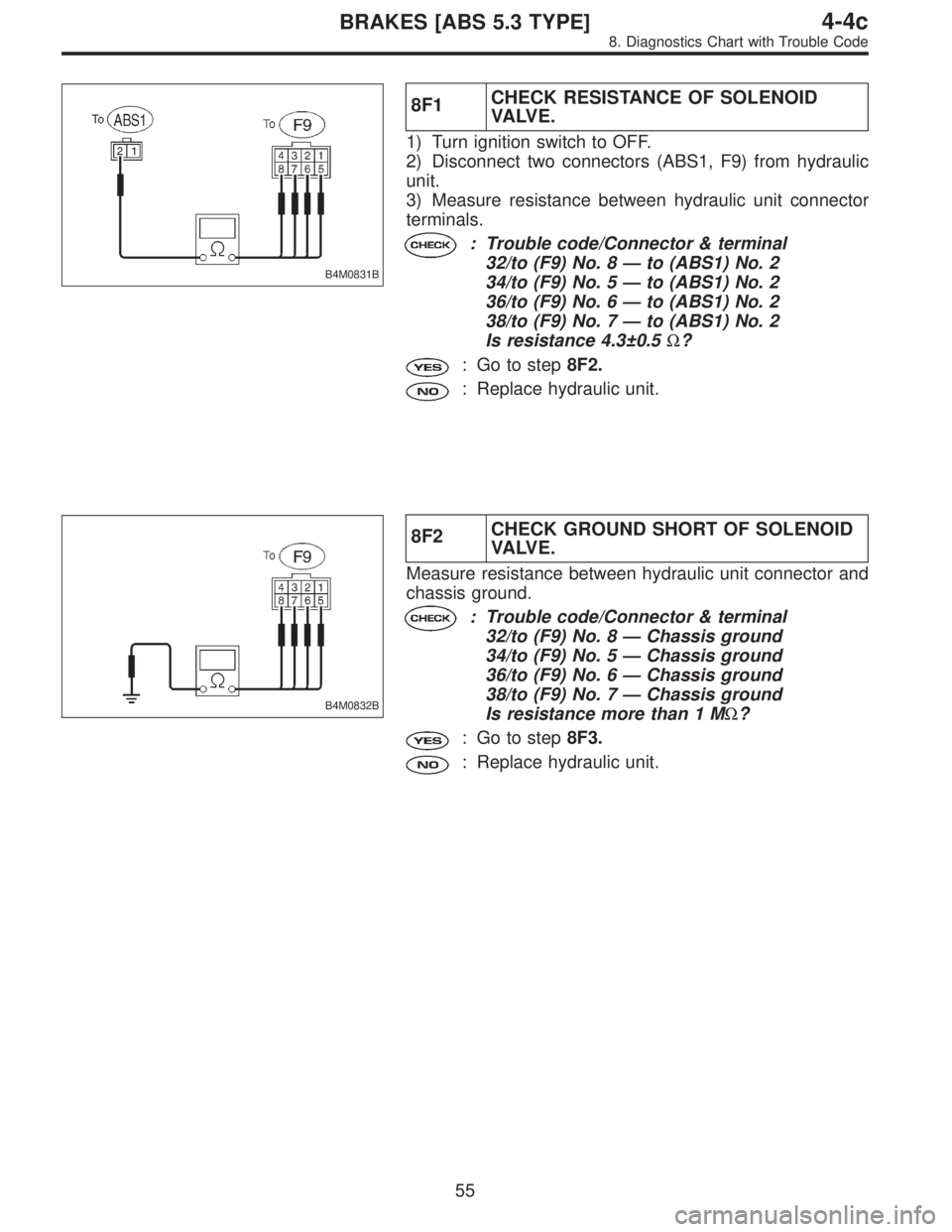

SUBARU LEGACY 1996 Service Repair Manual B4M0831B 8F1CHECK RESISTANCE OF SOLENOID VA LV E . 1) Turn ignition switch to OFF. 2) Disconnect two connectors (ABS1, F9) from hydraulic unit. 3) Measure resistance between hydraulic unit connector t

Page 2396 of 2890

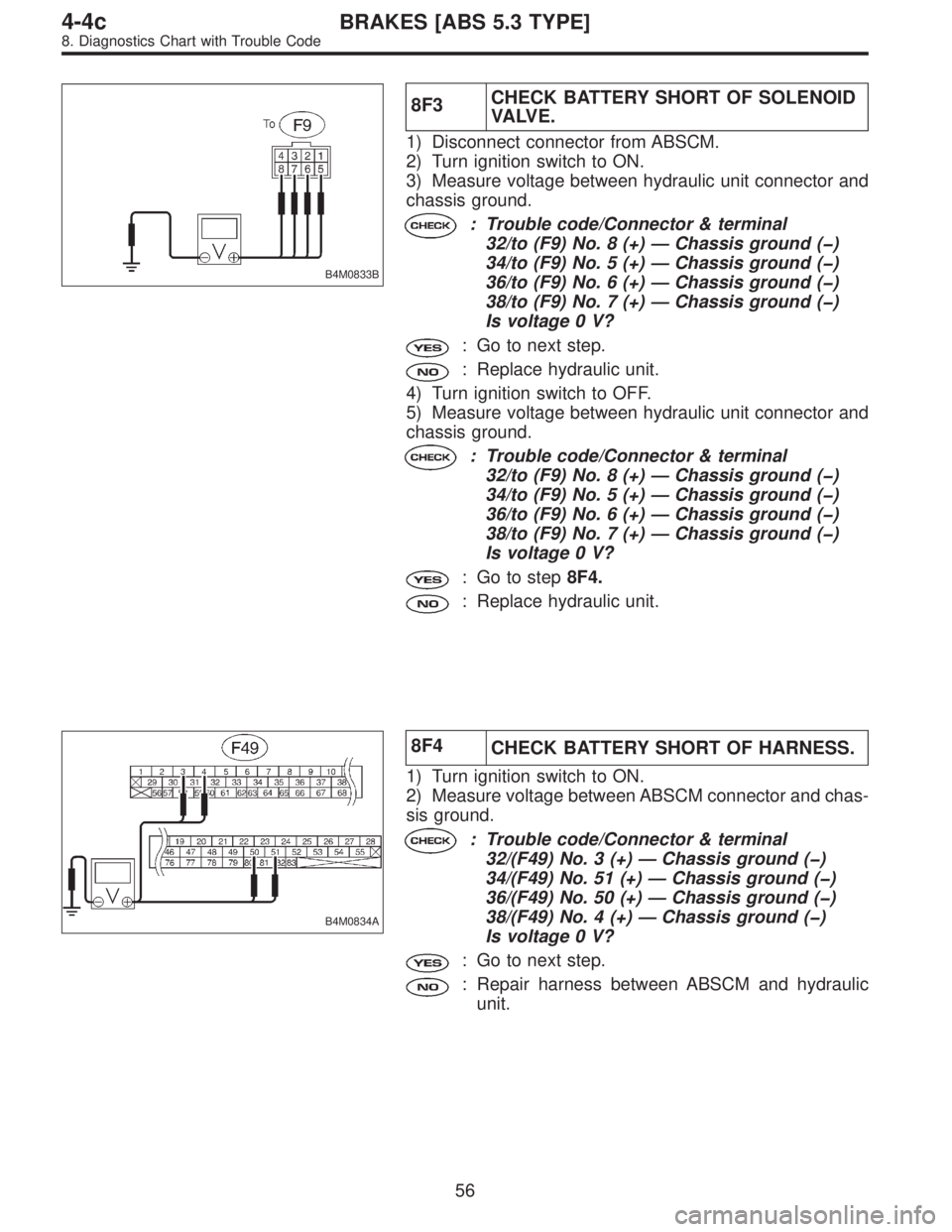

SUBARU LEGACY 1996 Service Repair Manual B4M0833B 8F3CHECK BATTERY SHORT OF SOLENOID VA LV E . 1) Disconnect connector from ABSCM. 2) Turn ignition switch to ON. 3) Measure voltage between hydraulic unit connector and chassis ground. : Troub

Page 2397 of 2890

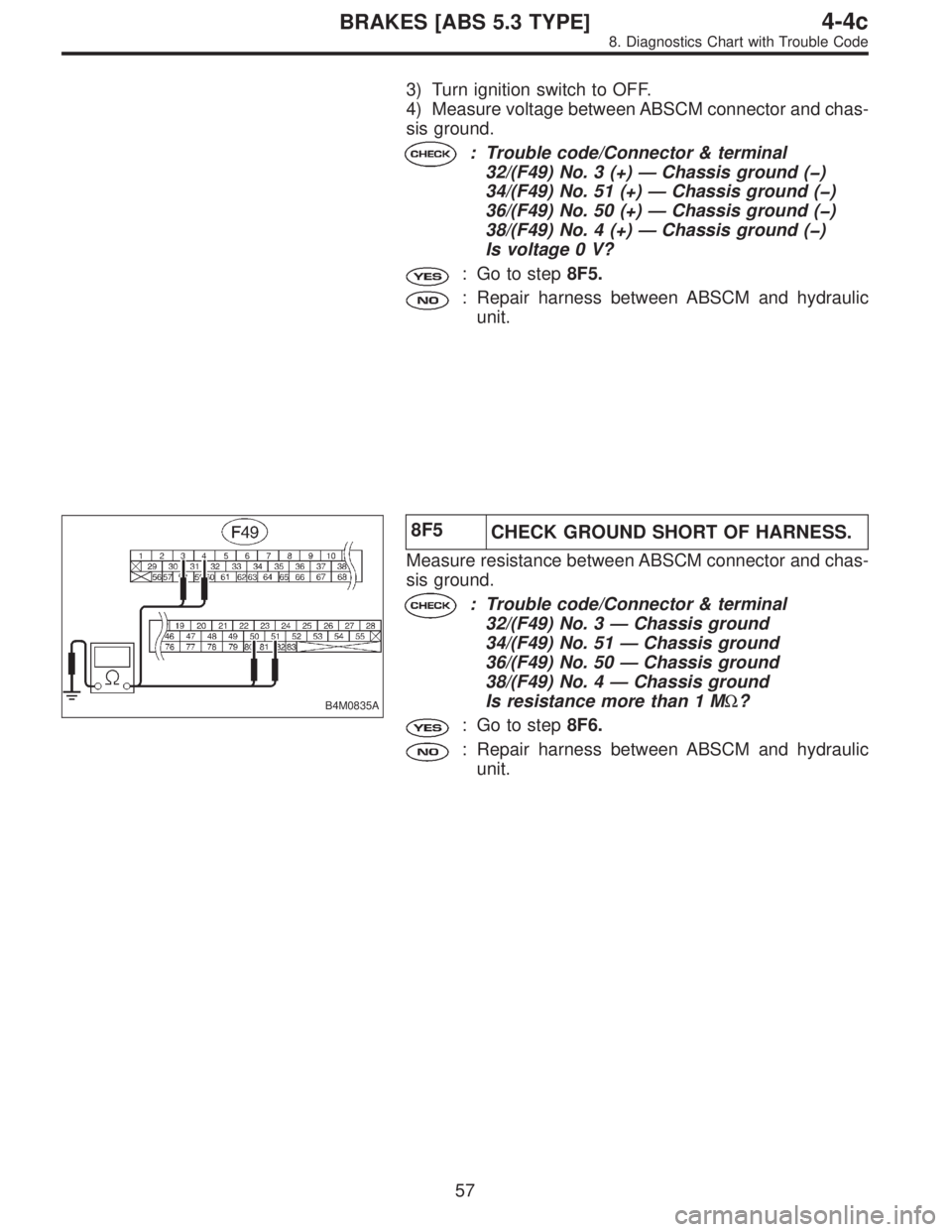

SUBARU LEGACY 1996 Service Repair Manual 3) Turn ignition switch to OFF. 4) Measure voltage between ABSCM connector and chas- sis ground. : Trouble code/Connector & terminal 32/(F49) No. 3 (+)—Chassis ground (�) 34/(F49) No. 51 (+)—Chass

Page 2398 of 2890

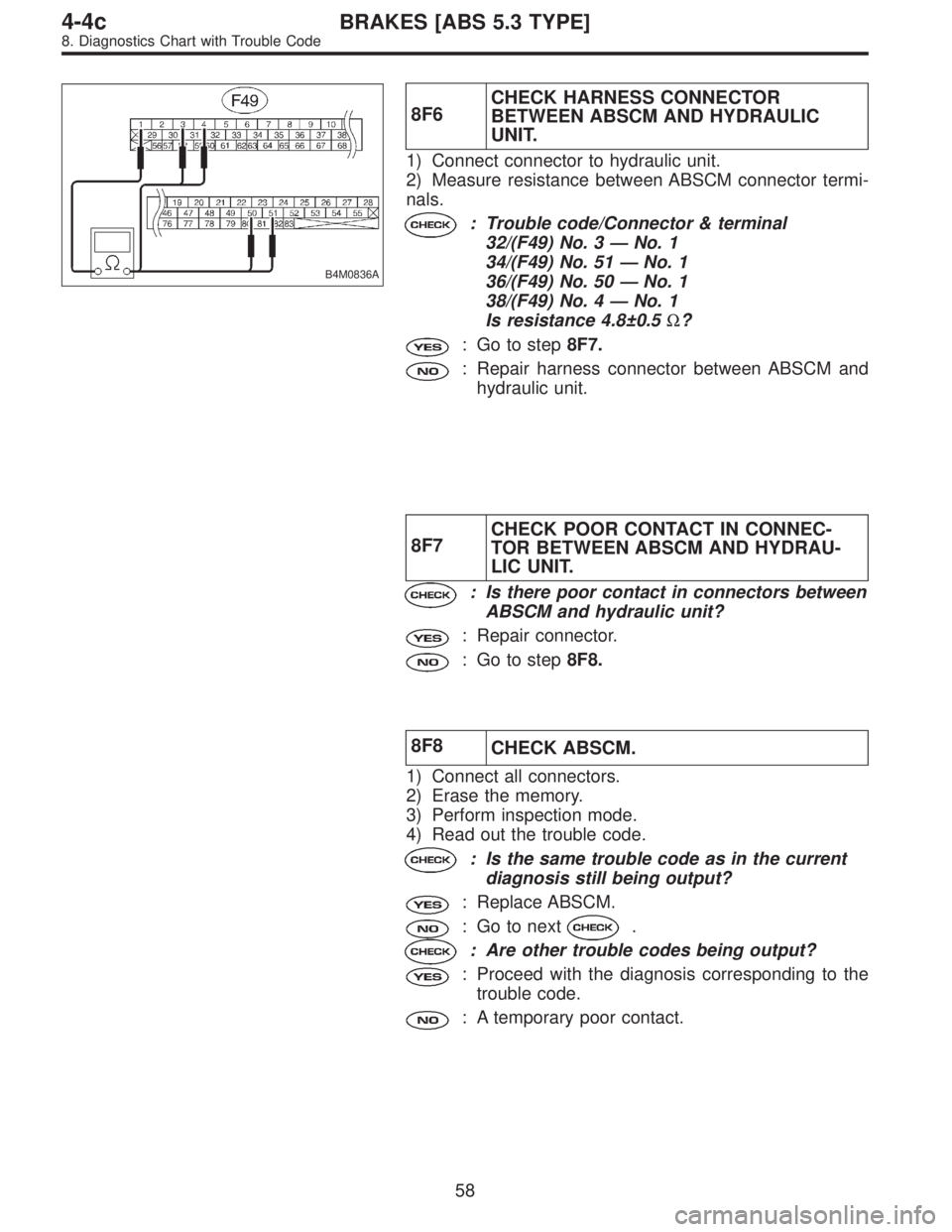

SUBARU LEGACY 1996 Service Repair Manual B4M0836A 8F6CHECK HARNESS CONNECTOR BETWEEN ABSCM AND HYDRAULIC UNIT. 1) Connect connector to hydraulic unit. 2) Measure resistance between ABSCM connector termi- nals. : Trouble code/Connector & term

Page 2399 of 2890

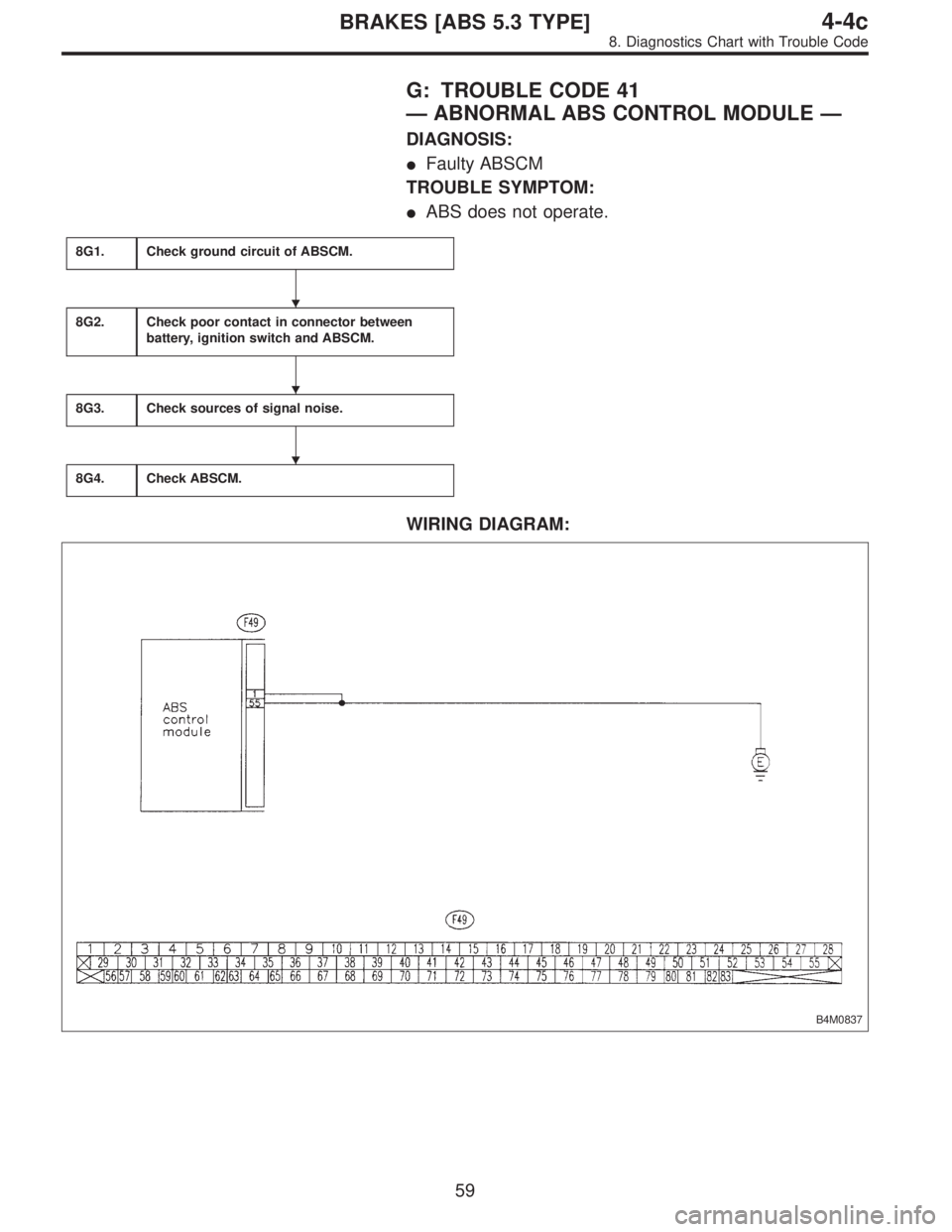

SUBARU LEGACY 1996 Service Repair Manual G: TROUBLE CODE 41 —ABNORMAL ABS CONTROL MODULE— DIAGNOSIS: Faulty ABSCM TROUBLE SYMPTOM: ABS does not operate. 8G1.Check ground circuit of ABSCM. 8G2.Check poor contact in connector between bat

Page 2400 of 2890

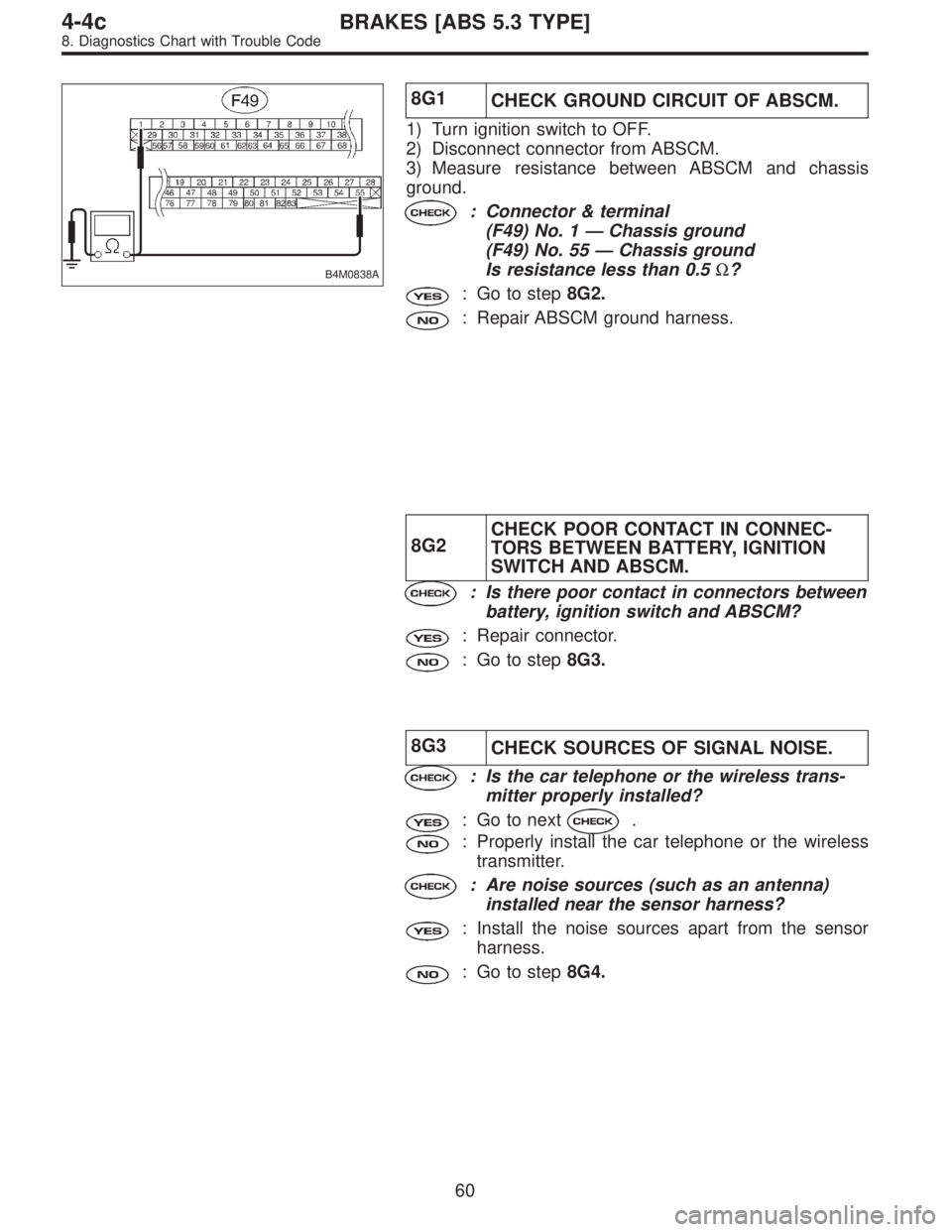

SUBARU LEGACY 1996 Service Repair Manual B4M0838A 8G1 CHECK GROUND CIRCUIT OF ABSCM. 1) Turn ignition switch to OFF. 2) Disconnect connector from ABSCM. 3) Measure resistance between ABSCM and chassis ground. : Connector & terminal (F49) No.
