1996 SUBARU LEGACY Service Repair Manual

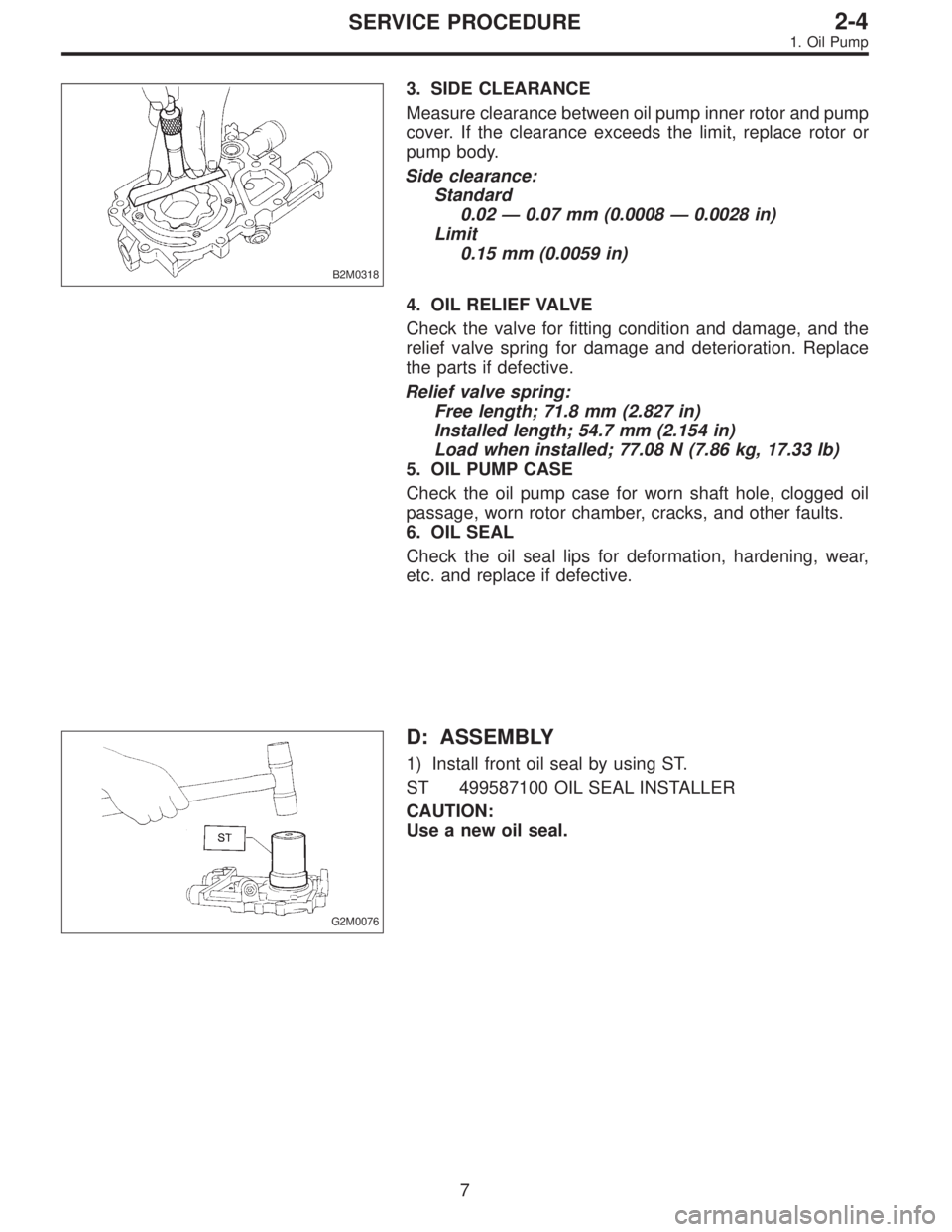

Page 473 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0318
3. SIDE CLEARANCE
Measure clearance between oil pump inner rotor and pump
cover. If the clearance exceeds the limit, replace rotor or
pump body.
Side clearance:
Standard
0.02—0.07 mm (0.0008

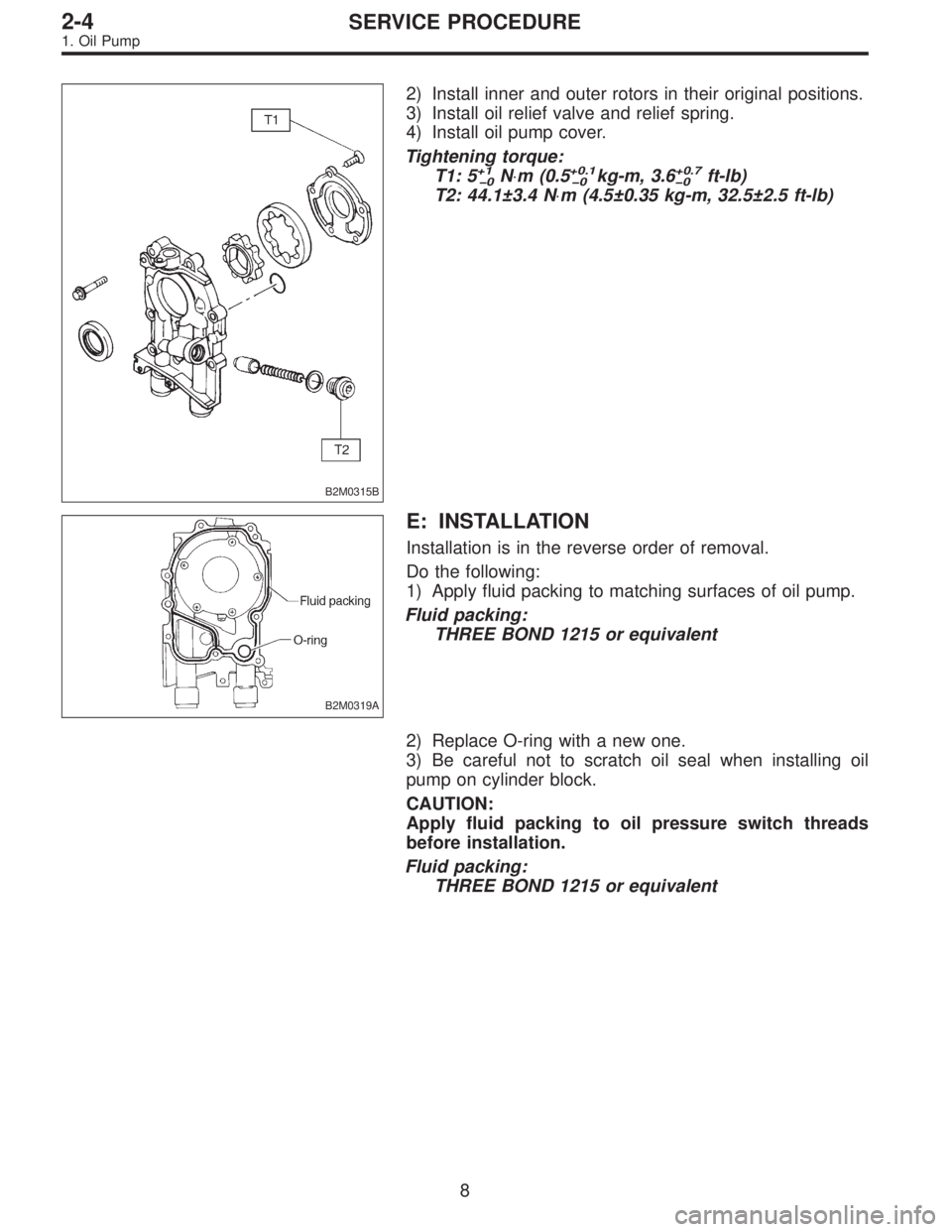

Page 474 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0315B
2) Install inner and outer rotors in their original positions.
3) Install oil relief valve and relief spring.
4) Install oil pump cover.
Tightening torque:
T1: 5
+1
�0N⋅m (0.5+0.1
�0kg-m, 3

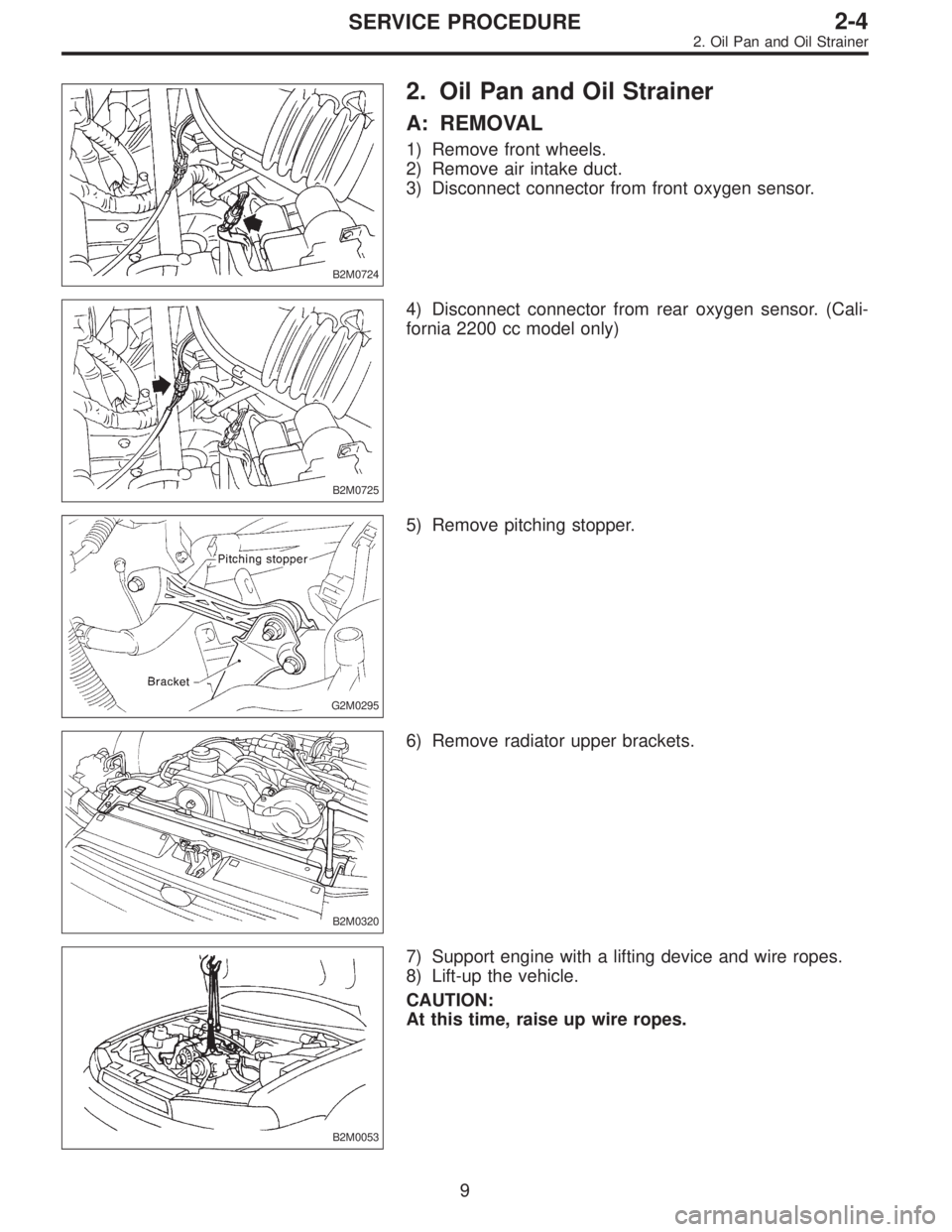

Page 475 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0724
2. Oil Pan and Oil Strainer
A: REMOVAL
1) Remove front wheels.
2) Remove air intake duct.
3) Disconnect connector from front oxygen sensor.
B2M0725
4) Disconnect connector from rear oxygen sen

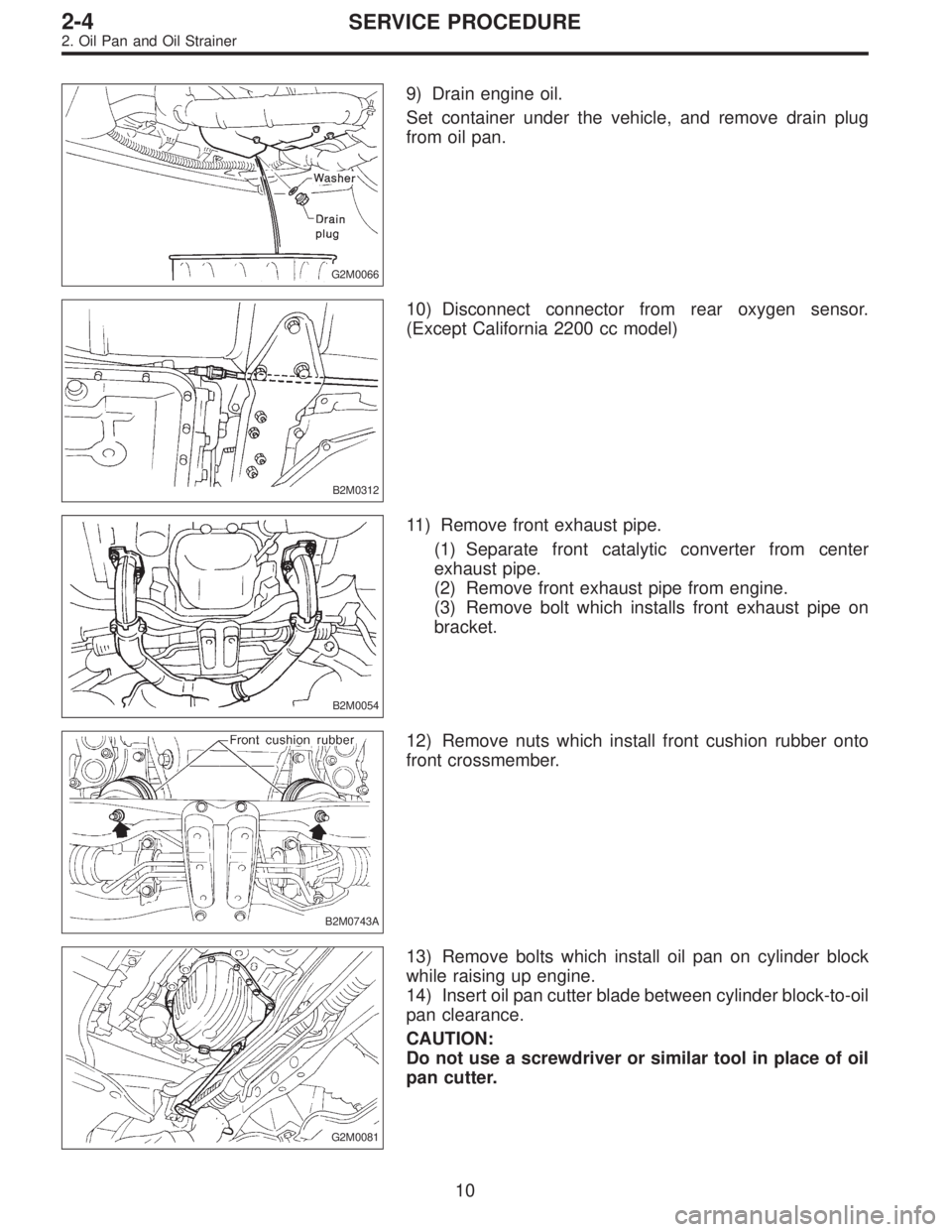

Page 476 of 2890

SUBARU LEGACY 1996  Service Repair Manual G2M0066
9) Drain engine oil.
Set container under the vehicle, and remove drain plug
from oil pan.
B2M0312
10) Disconnect connector from rear oxygen sensor.
(Except California 2200 cc model)
B2M0054
11

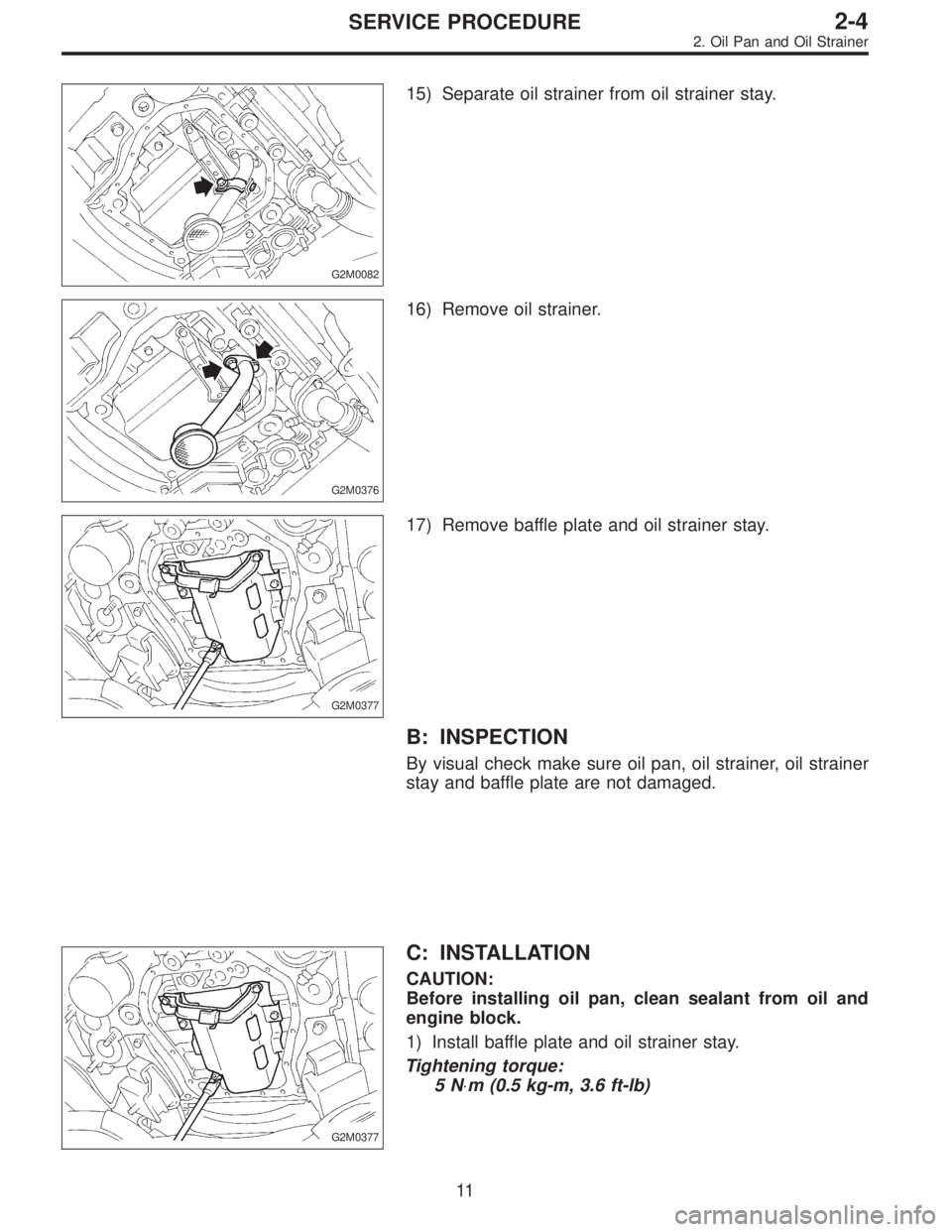

Page 477 of 2890

SUBARU LEGACY 1996  Service Repair Manual G2M0082
15) Separate oil strainer from oil strainer stay.
G2M0376
16) Remove oil strainer.
G2M0377
17) Remove baffle plate and oil strainer stay.
B: INSPECTION
By visual check make sure oil pan, oil s

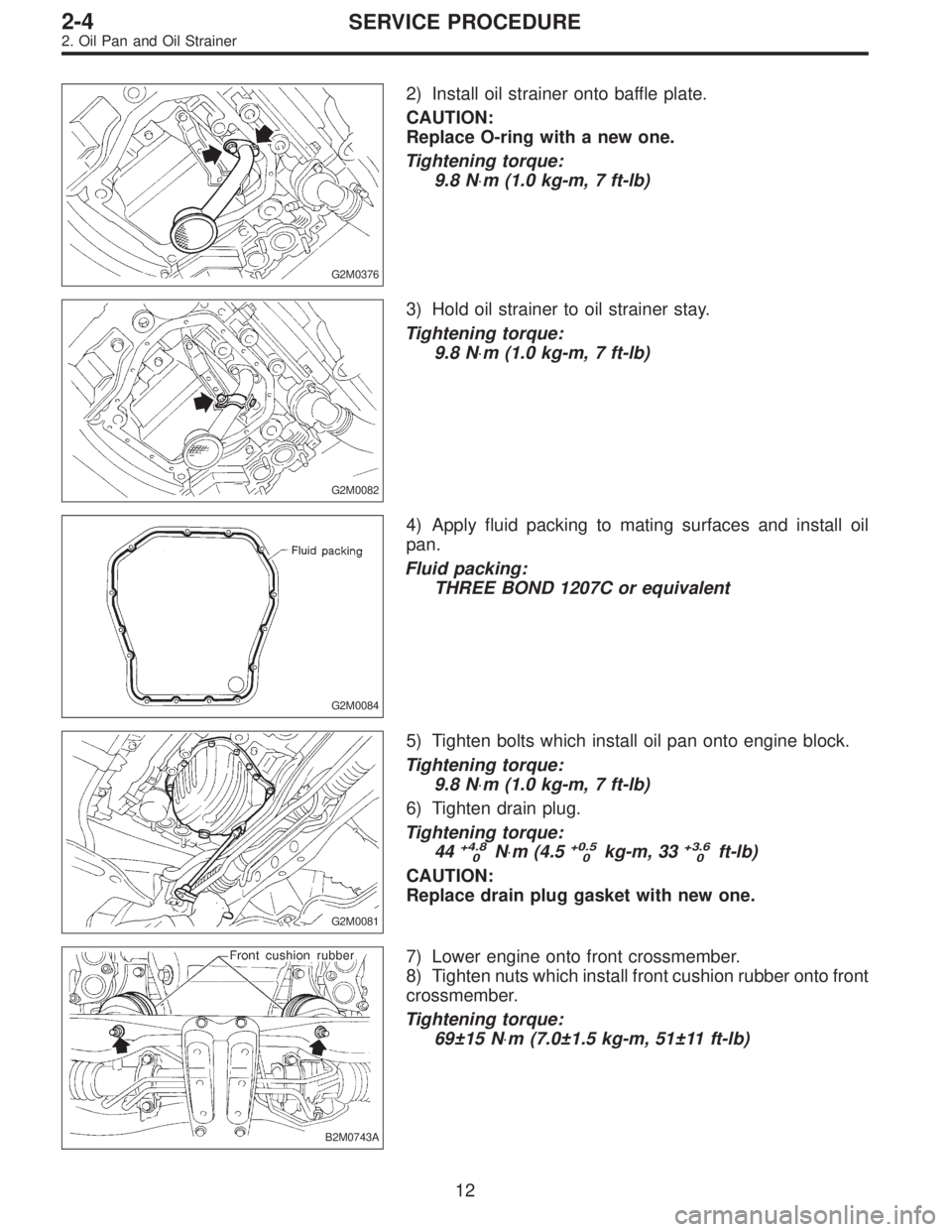

Page 478 of 2890

SUBARU LEGACY 1996  Service Repair Manual G2M0376
2) Install oil strainer onto baffle plate.
CAUTION:
Replace O-ring with a new one.
Tightening torque:
9.8 N⋅m (1.0 kg-m, 7 ft-lb)
G2M0082
3) Hold oil strainer to oil strainer stay.
Tightenin

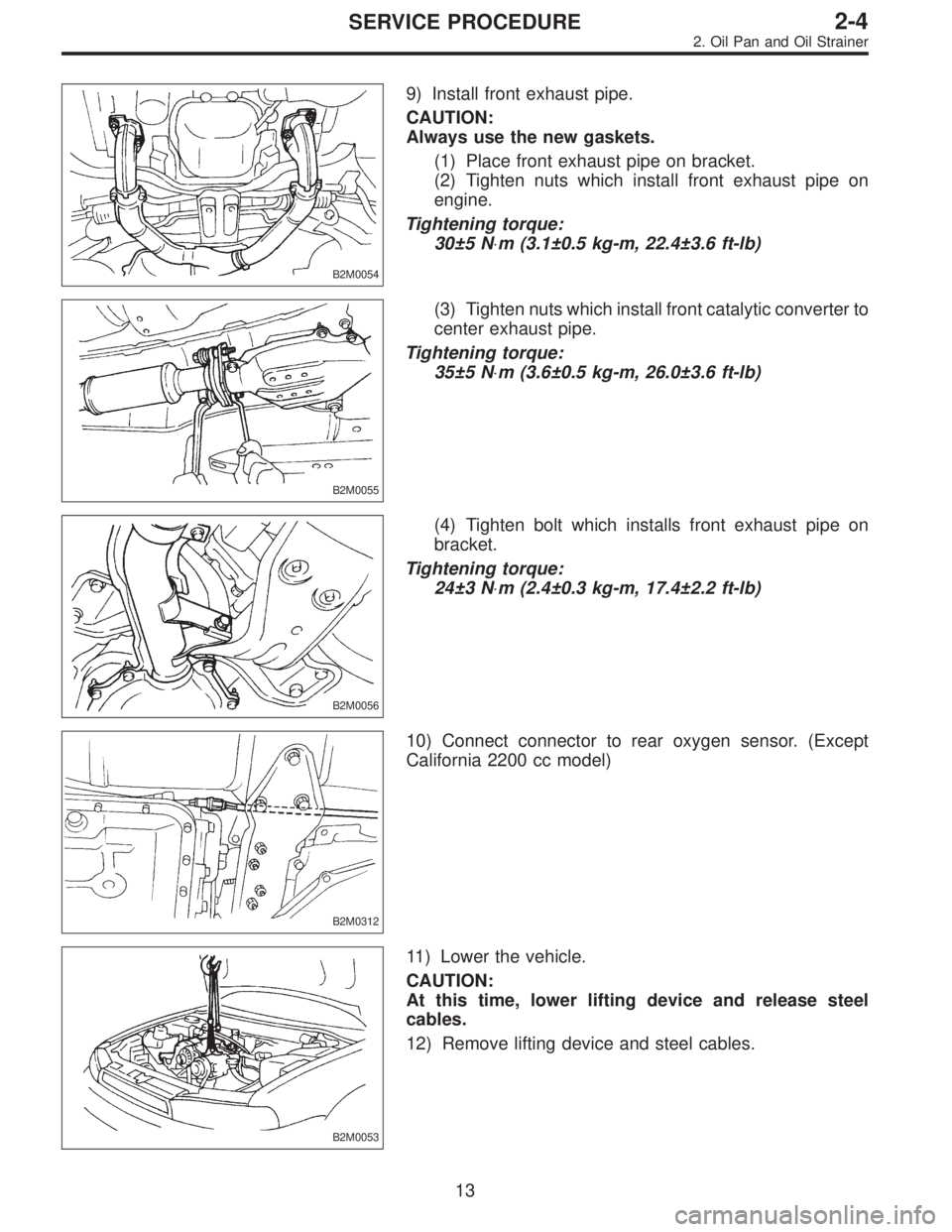

Page 479 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0054
9) Install front exhaust pipe.
CAUTION:
Always use the new gaskets.
(1) Place front exhaust pipe on bracket.
(2) Tighten nuts which install front exhaust pipe on
engine.
Tightening torque:
30

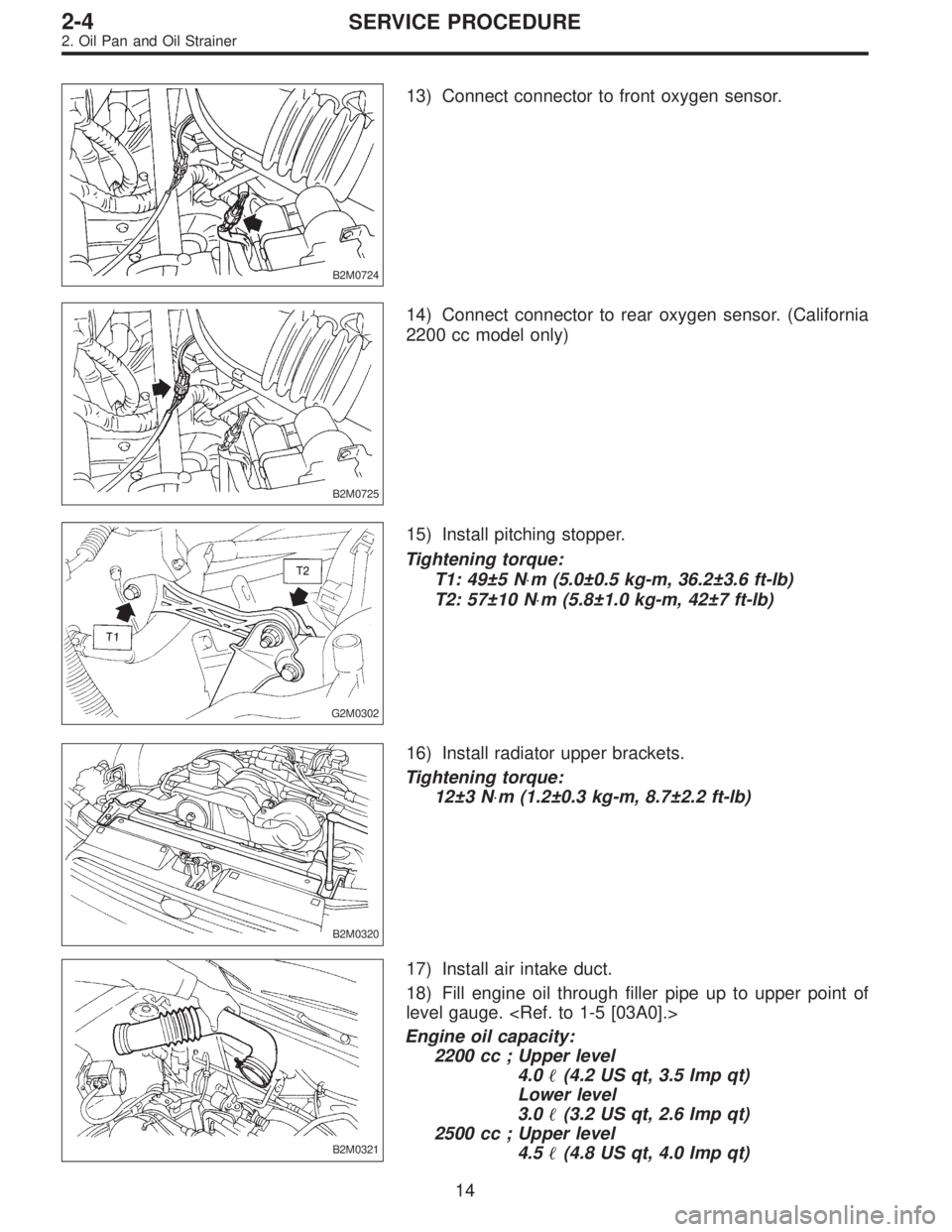

Page 480 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0724
13) Connect connector to front oxygen sensor.
B2M0725
14) Connect connector to rear oxygen sensor. (California
2200 cc model only)
G2M0302
15) Install pitching stopper.
Tightening torque:
T1:
