1996 SUBARU LEGACY Service Repair Manual

Page 1681 of 2890

SUBARU LEGACY 1996  Service Repair Manual B6M0107A

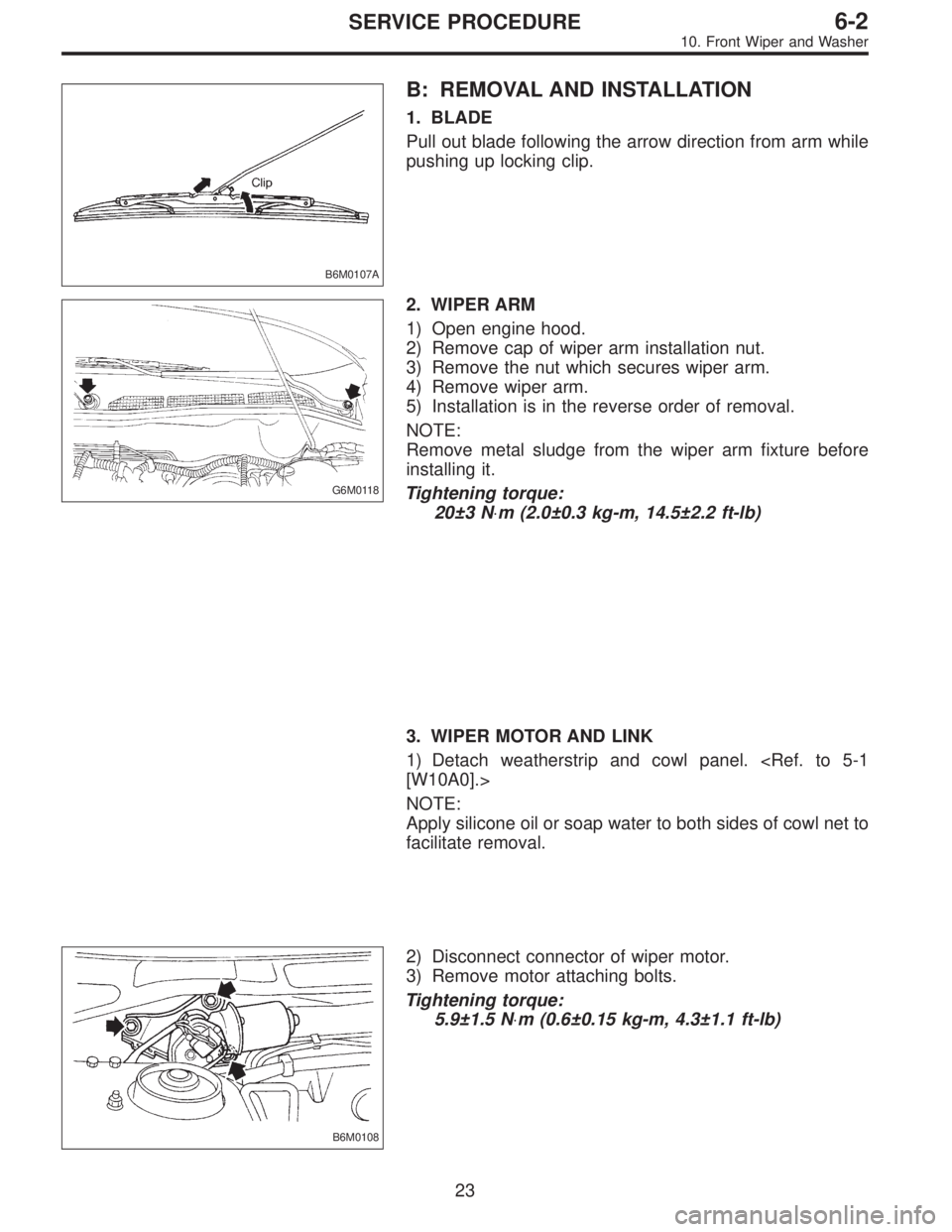

B: REMOVAL AND INSTALLATION
1. BLADE
Pull out blade following the arrow direction from arm while
pushing up locking clip.
G6M0118
2. WIPER ARM
1) Open engine hood.
2) Remove cap of wiper arm

Page 1682 of 2890

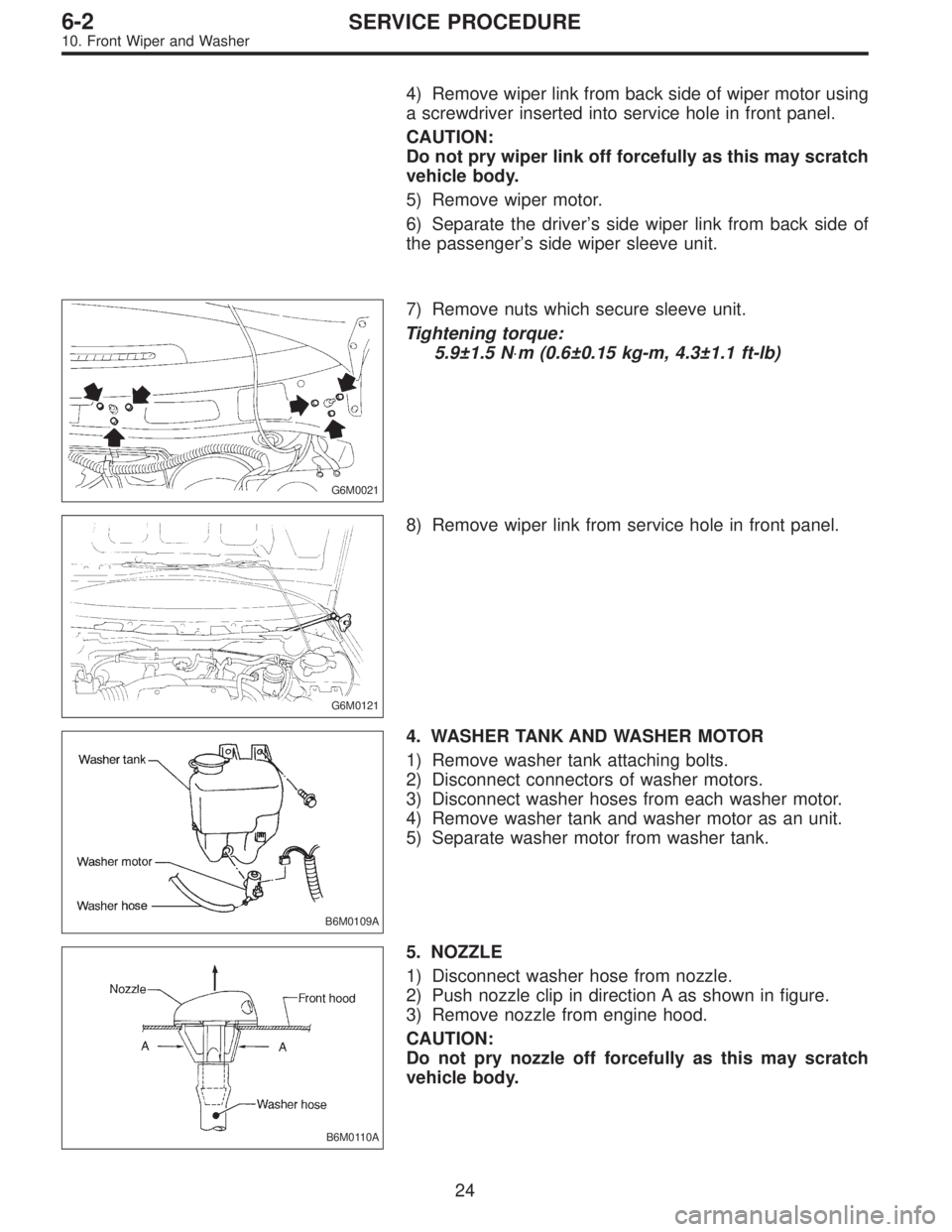

SUBARU LEGACY 1996  Service Repair Manual 4) Remove wiper link from back side of wiper motor using
a screwdriver inserted into service hole in front panel.
CAUTION:
Do not pry wiper link off forcefully as this may scratch
vehicle body.
5) Rem

Page 1683 of 2890

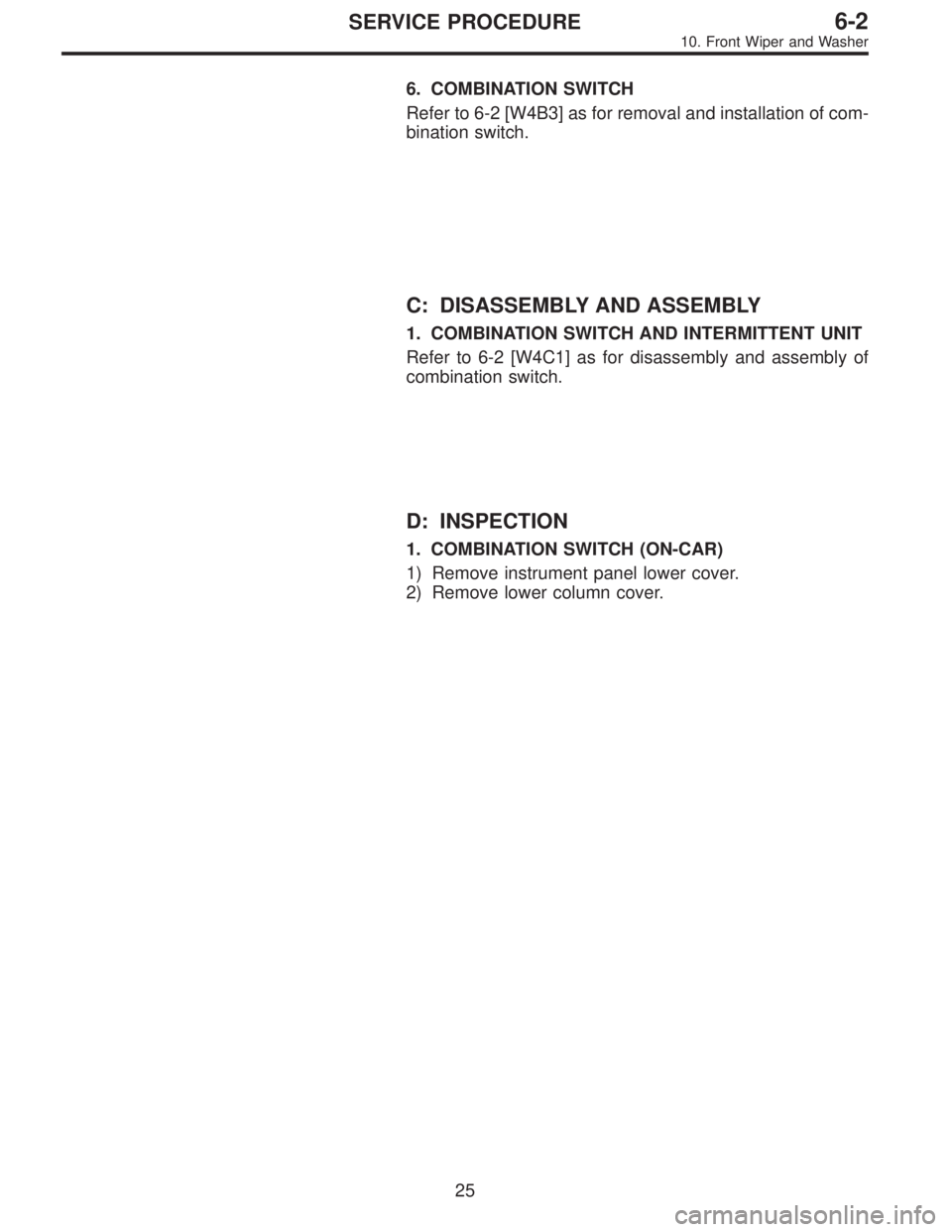

SUBARU LEGACY 1996  Service Repair Manual 6. COMBINATION SWITCH
Refer to 6-2 [W4B3] as for removal and installation of com-
bination switch.
C: DISASSEMBLY AND ASSEMBLY
1. COMBINATION SWITCH AND INTERMITTENT UNIT
Refer to 6-2 [W4C1] as for di

Page 1684 of 2890

SUBARU LEGACY 1996  Service Repair Manual B6M0238

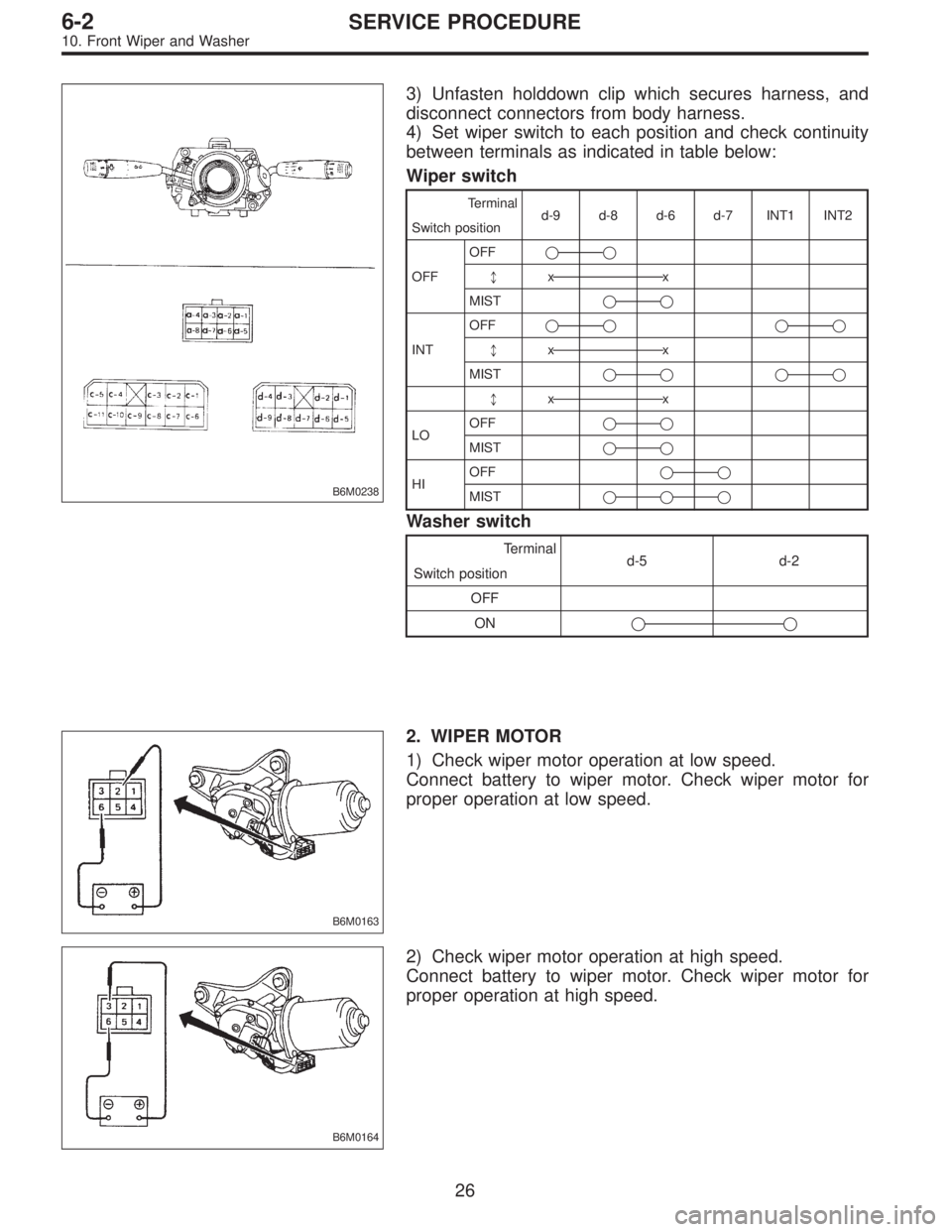

3) Unfasten holddown clip which secures harness, and
disconnect connectors from body harness.
4) Set wiper switch to each position and check continuity
between terminals as indicated in table

Page 1685 of 2890

SUBARU LEGACY 1996  Service Repair Manual B6M0165

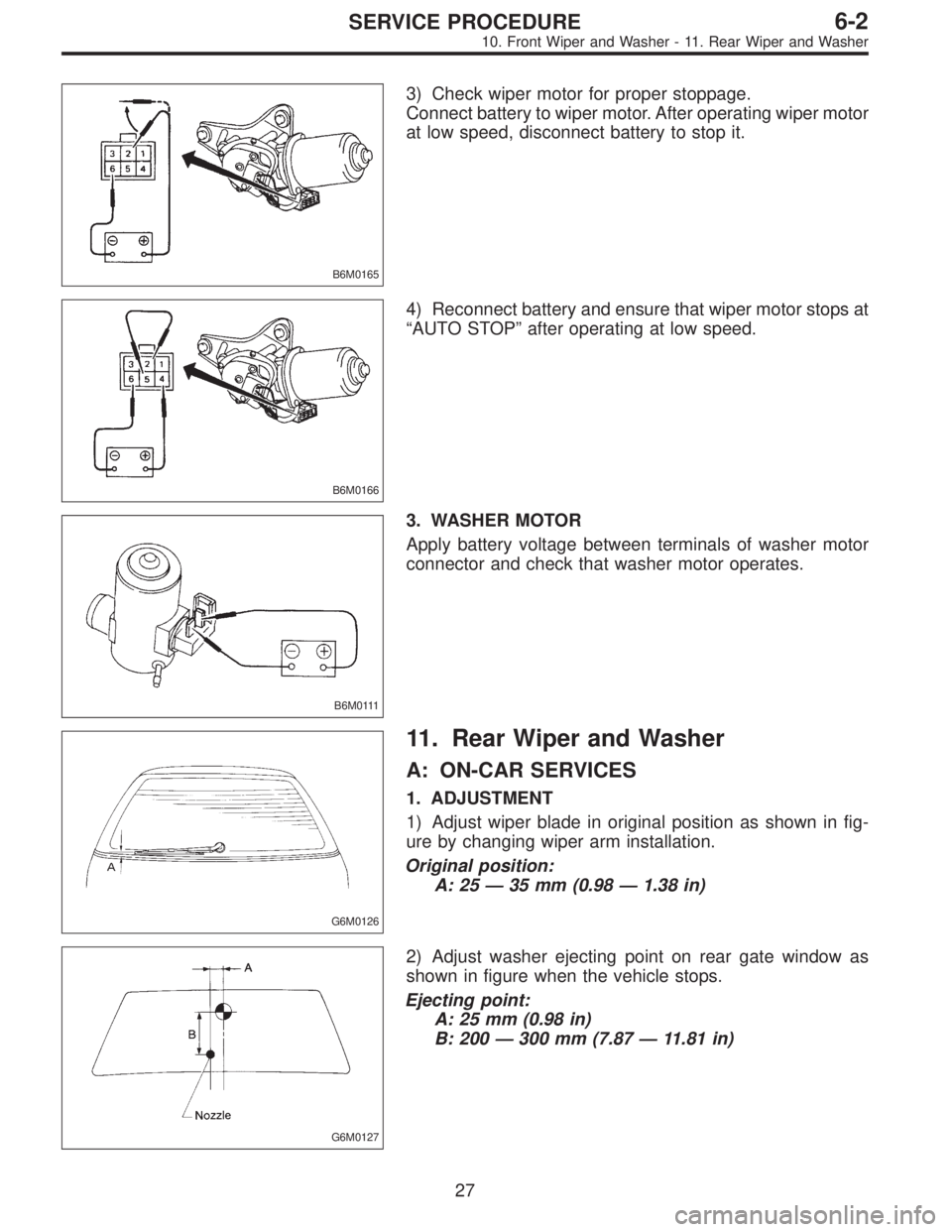

3) Check wiper motor for proper stoppage.
Connect battery to wiper motor. After operating wiper motor
at low speed, disconnect battery to stop it.
B6M0166
4) Reconnect battery and ensure that

Page 1686 of 2890

SUBARU LEGACY 1996  Service Repair Manual B6M0165
3) Check wiper motor for proper stoppage.
Connect battery to wiper motor. After operating wiper motor
at low speed, disconnect battery to stop it.
B6M0166
4) Reconnect battery and ensure that

Page 1687 of 2890

SUBARU LEGACY 1996  Service Repair Manual B6M0107A

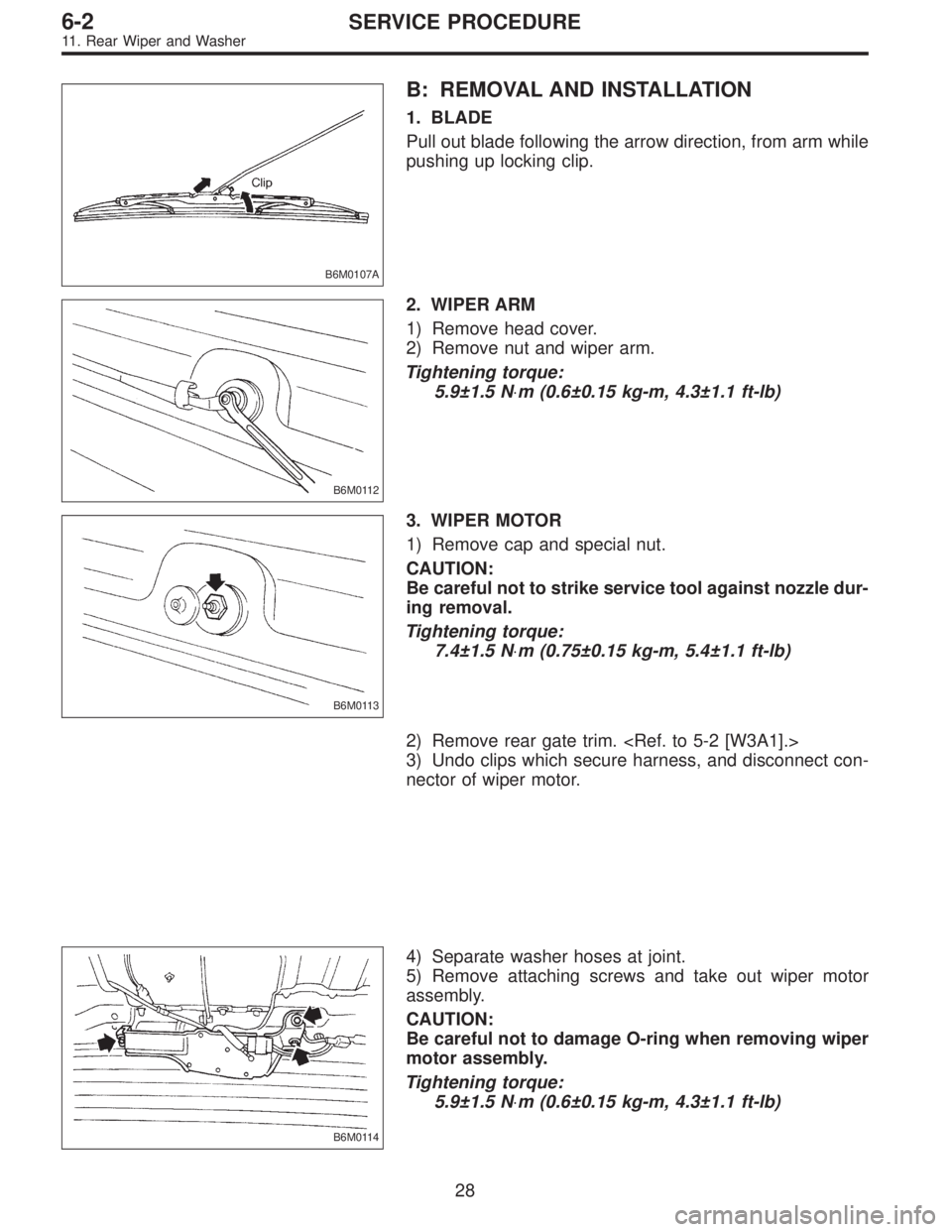

B: REMOVAL AND INSTALLATION
1. BLADE
Pull out blade following the arrow direction, from arm while
pushing up locking clip.
B6M0112
2. WIPER ARM
1) Remove head cover.
2) Remove nut and wiper a

Page 1688 of 2890

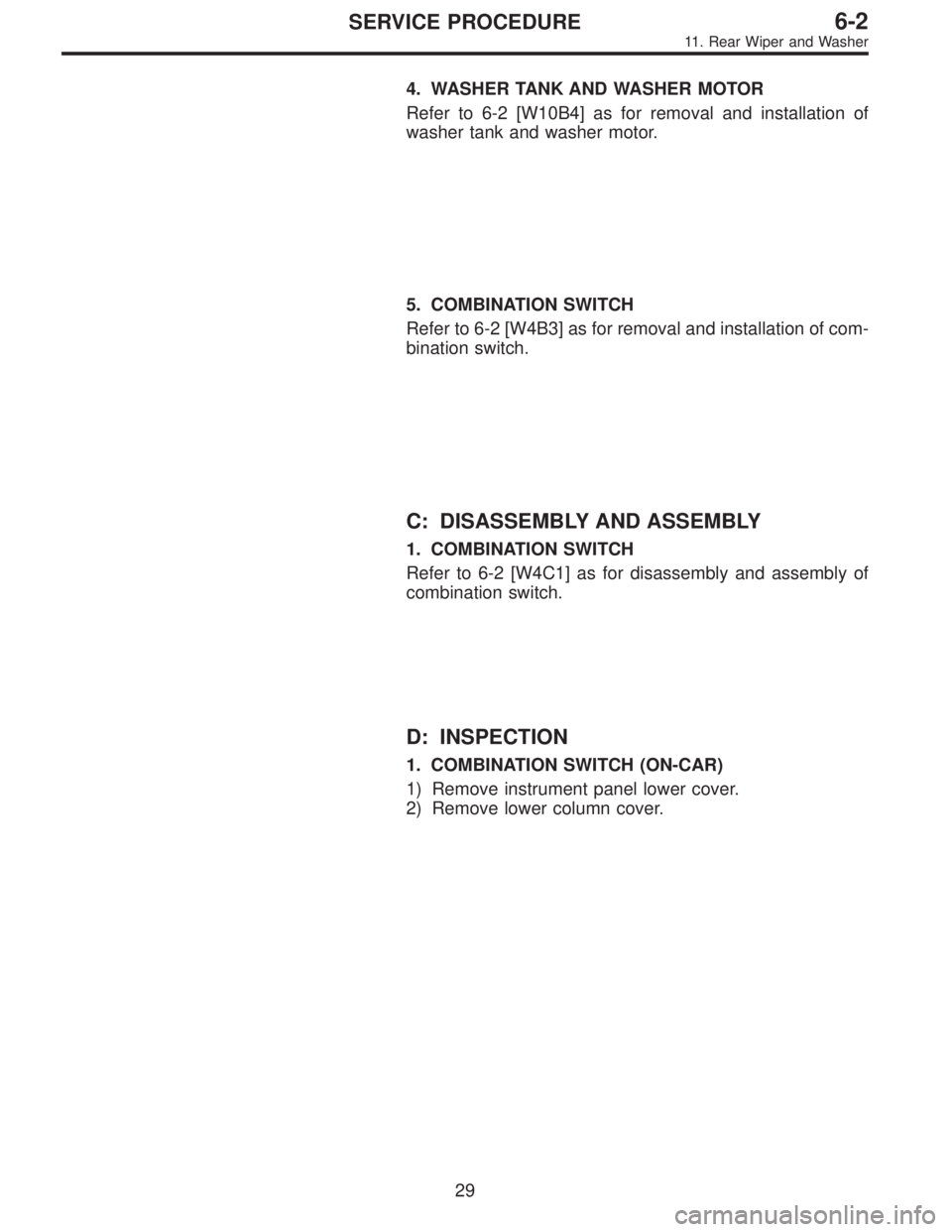

SUBARU LEGACY 1996  Service Repair Manual 4. WASHER TANK AND WASHER MOTOR
Refer to 6-2 [W10B4] as for removal and installation of
washer tank and washer motor.
5. COMBINATION SWITCH
Refer to 6-2 [W4B3] as for removal and installation of com-
