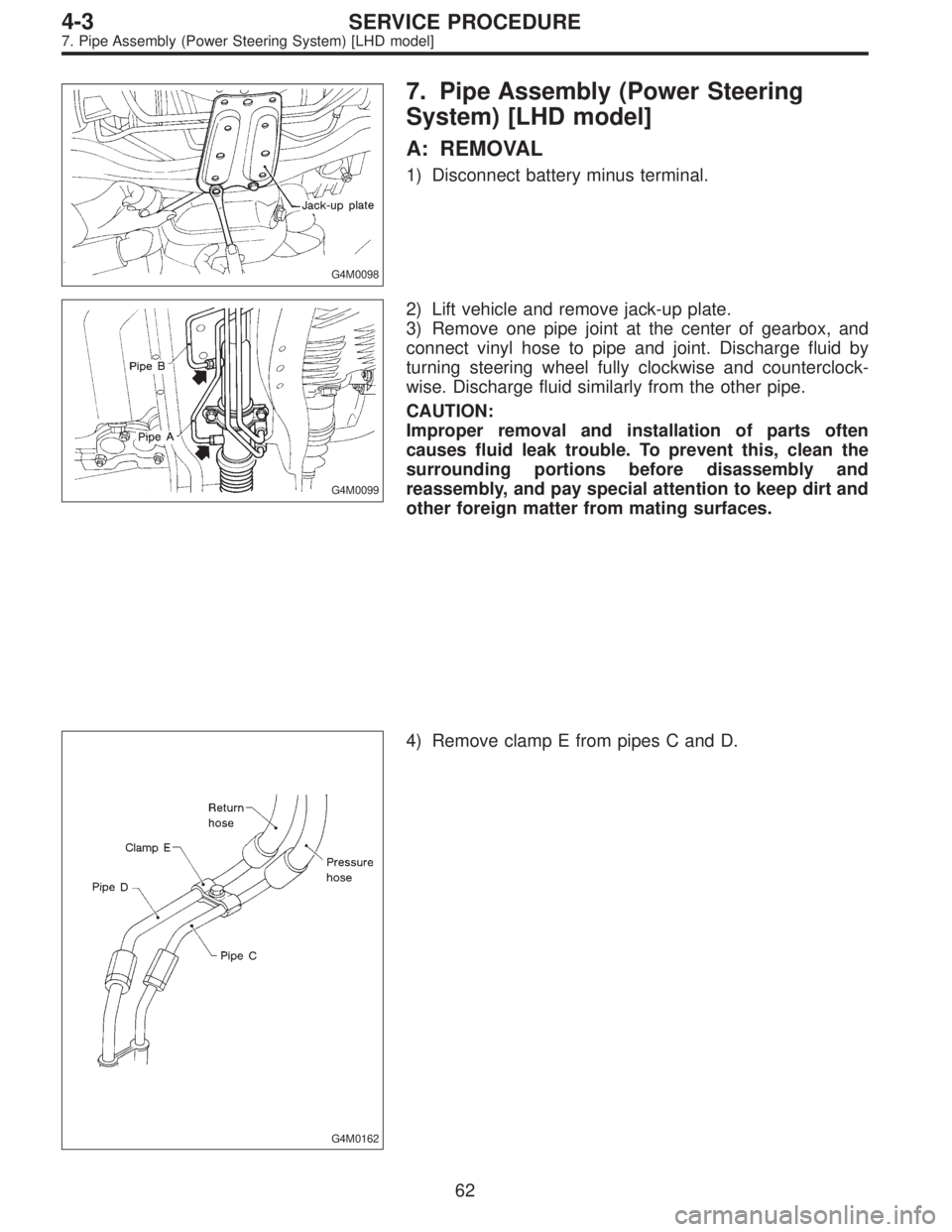

Page 1169 of 2890
G4M0098
7. Pipe Assembly (Power Steering
System) [LHD model]
A: REMOVAL
1) Disconnect battery minus terminal.
G4M0099
2) Lift vehicle and remove jack-up plate.
3) Remove one pipe joint at the center of gearbox, and
connect vinyl hose to pipe and joint. Discharge fluid by
turning steering wheel fully clockwise and counterclock-
wise. Discharge fluid similarly from the other pipe.
CAUTION:
Improper removal and installation of parts often
causes fluid leak trouble. To prevent this, clean the
surrounding portions before disassembly and
reassembly, and pay special attention to keep dirt and
other foreign matter from mating surfaces.
G4M0162
4) Remove clamp E from pipes C and D.
62
4-3SERVICE PROCEDURE
7. Pipe Assembly (Power Steering System) [LHD model]

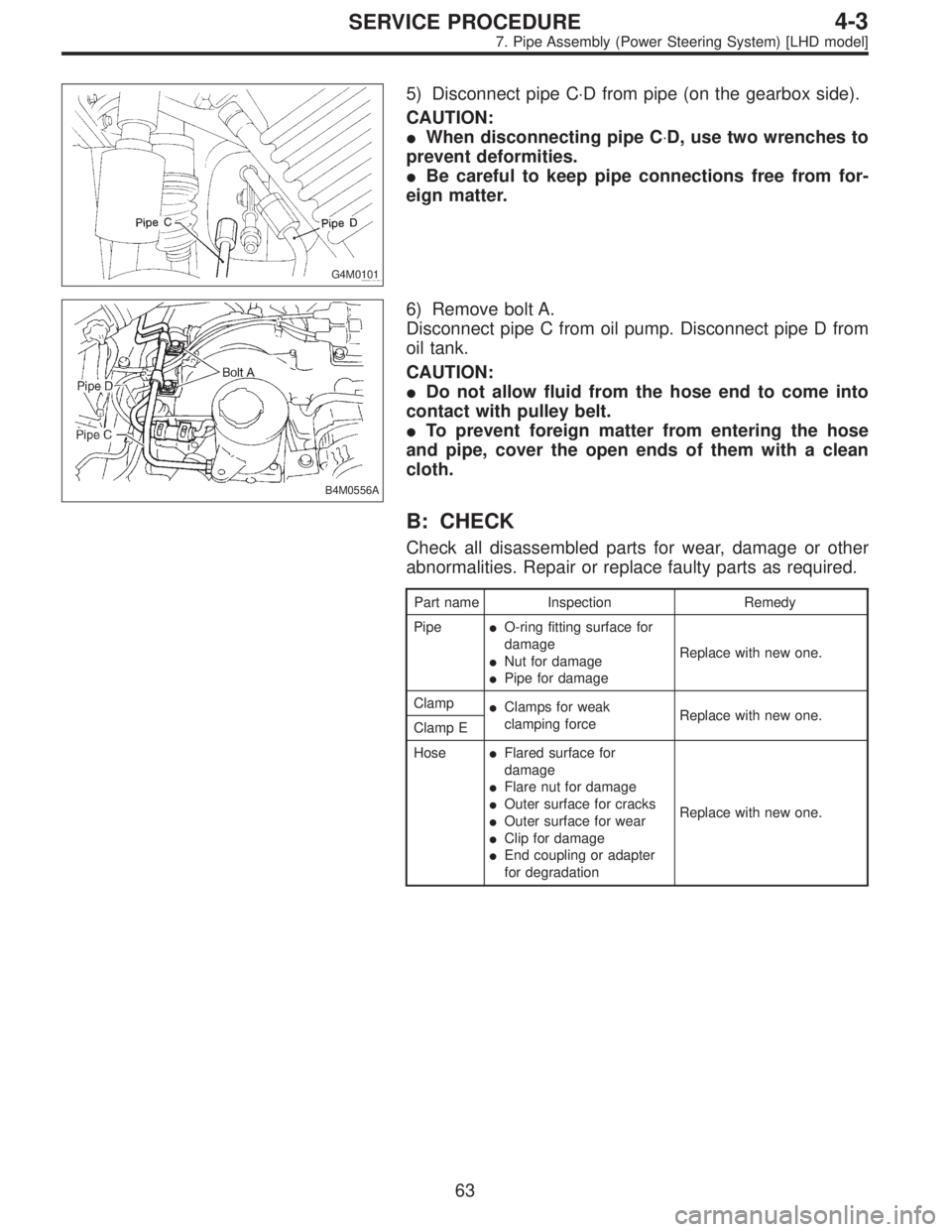

Page 1170 of 2890

G4M0101
5) Disconnect pipe C⋅D from pipe (on the gearbox side).
CAUTION:
When disconnecting pipe C⋅D, use two wrenches to
prevent deformities.
Be careful to keep pipe connections free from for-
eign matter.
B4M0556A
6) Remove bolt A.
Disconnect pipe C from oil pump. Disconnect pipe D from
oil tank.
CAUTION:
Do not allow fluid from the hose end to come into
contact with pulley belt.
To prevent foreign matter from entering the hose
and pipe, cover the open ends of them with a clean
cloth.
B: CHECK
Check all disassembled parts for wear, damage or other
abnormalities. Repair or replace faulty parts as required.
Part name Inspection Remedy
PipeO-ring fitting surface for
damage
Nut for damage
Pipe for damageReplace with new one.
Clamp
Clamps for weak
clamping forceReplace with new one.
Clamp E
HoseFlared surface for
damage
Flare nut for damage
Outer surface for cracks
Outer surface for wear
Clip for damage
End coupling or adapter
for degradationReplace with new one.
63
4-3SERVICE PROCEDURE
7. Pipe Assembly (Power Steering System) [LHD model]

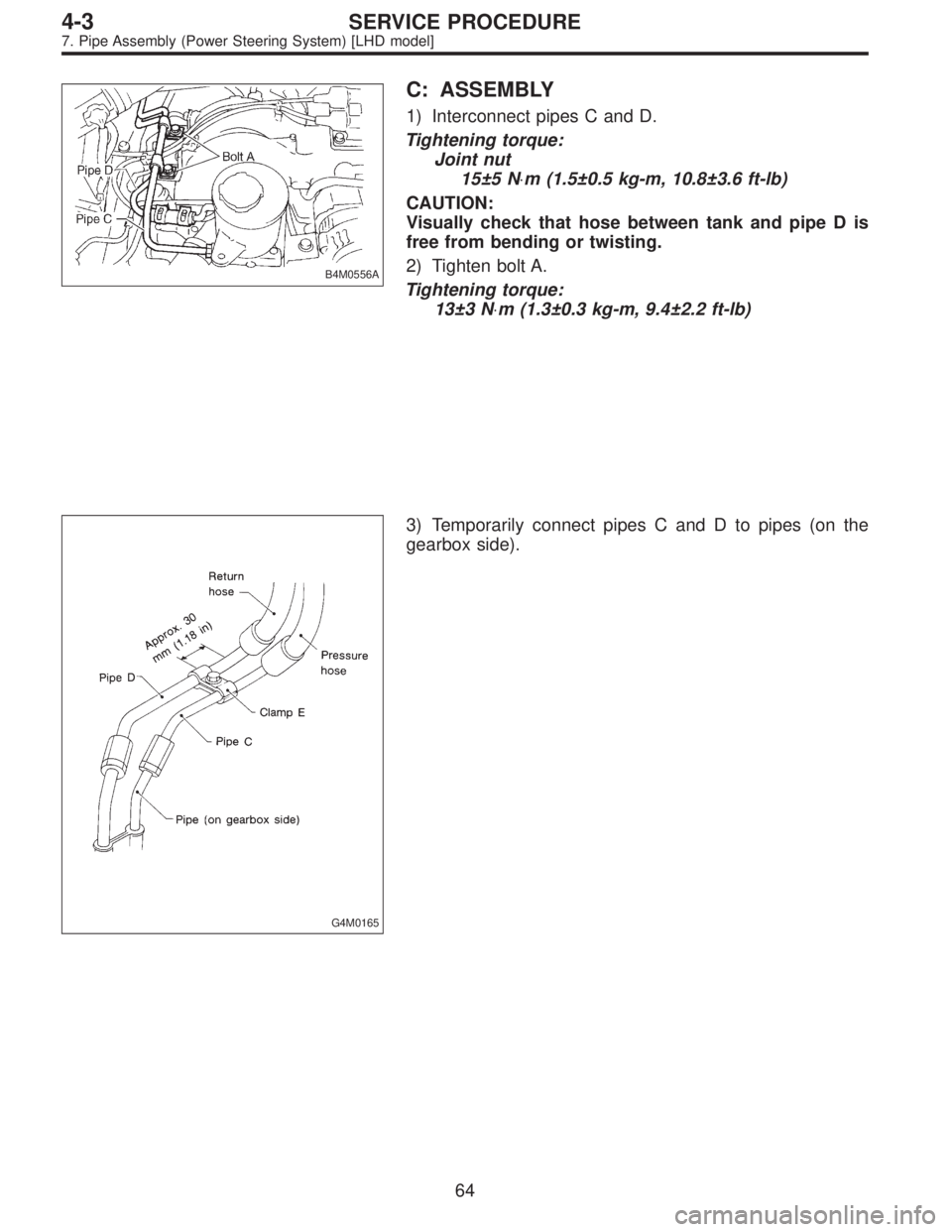

Page 1171 of 2890
B4M0556A
C: ASSEMBLY
1) Interconnect pipes C and D.
Tightening torque:
Joint nut
15±5 N⋅m (1.5±0.5 kg-m, 10.8±3.6 ft-lb)
CAUTION:
Visually check that hose between tank and pipe D is
free from bending or twisting.
2) Tighten bolt A.
Tightening torque:
13±3 N⋅m (1.3±0.3 kg-m, 9.4±2.2 ft-lb)
G4M0165
3) Temporarily connect pipes C and D to pipes (on the
gearbox side).
64
4-3SERVICE PROCEDURE
7. Pipe Assembly (Power Steering System) [LHD model]

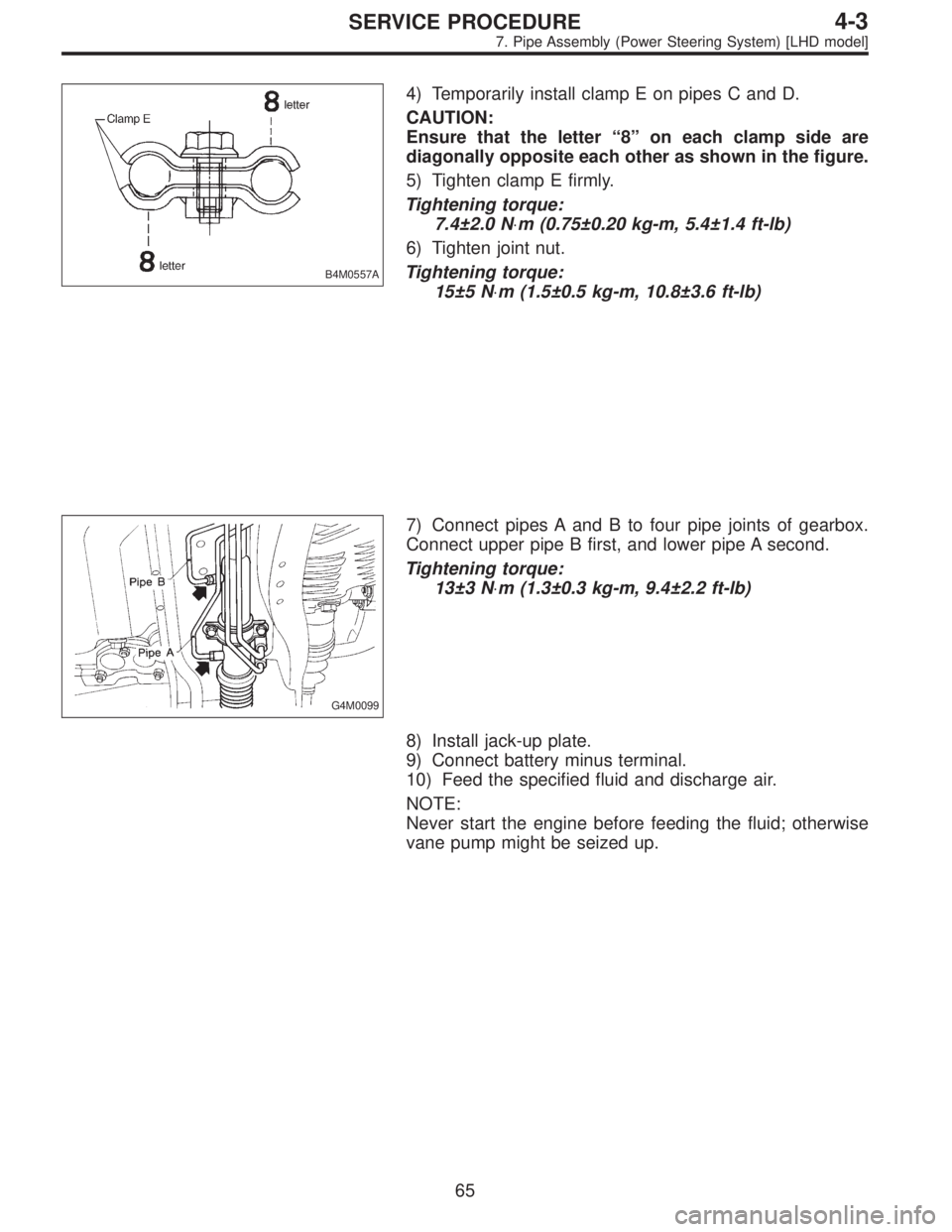

Page 1172 of 2890
B4M0557A
4) Temporarily install clamp E on pipes C and D.
CAUTION:
Ensure that the letter“8”on each clamp side are
diagonally opposite each other as shown in the figure.
5) Tighten clamp E firmly.
Tightening torque:
7.4±2.0 N⋅m (0.75±0.20 kg-m, 5.4±1.4 ft-lb)
6) Tighten joint nut.
Tightening torque:
15±5 N⋅m (1.5±0.5 kg-m, 10.8±3.6 ft-lb)
G4M0099
7) Connect pipes A and B to four pipe joints of gearbox.
Connect upper pipe B first, and lower pipe A second.
Tightening torque:
13±3 N⋅m (1.3±0.3 kg-m, 9.4±2.2 ft-lb)
8) Install jack-up plate.
9) Connect battery minus terminal.
10) Feed the specified fluid and discharge air.
NOTE:
Never start the engine before feeding the fluid; otherwise
vane pump might be seized up.
65
4-3SERVICE PROCEDURE
7. Pipe Assembly (Power Steering System) [LHD model]

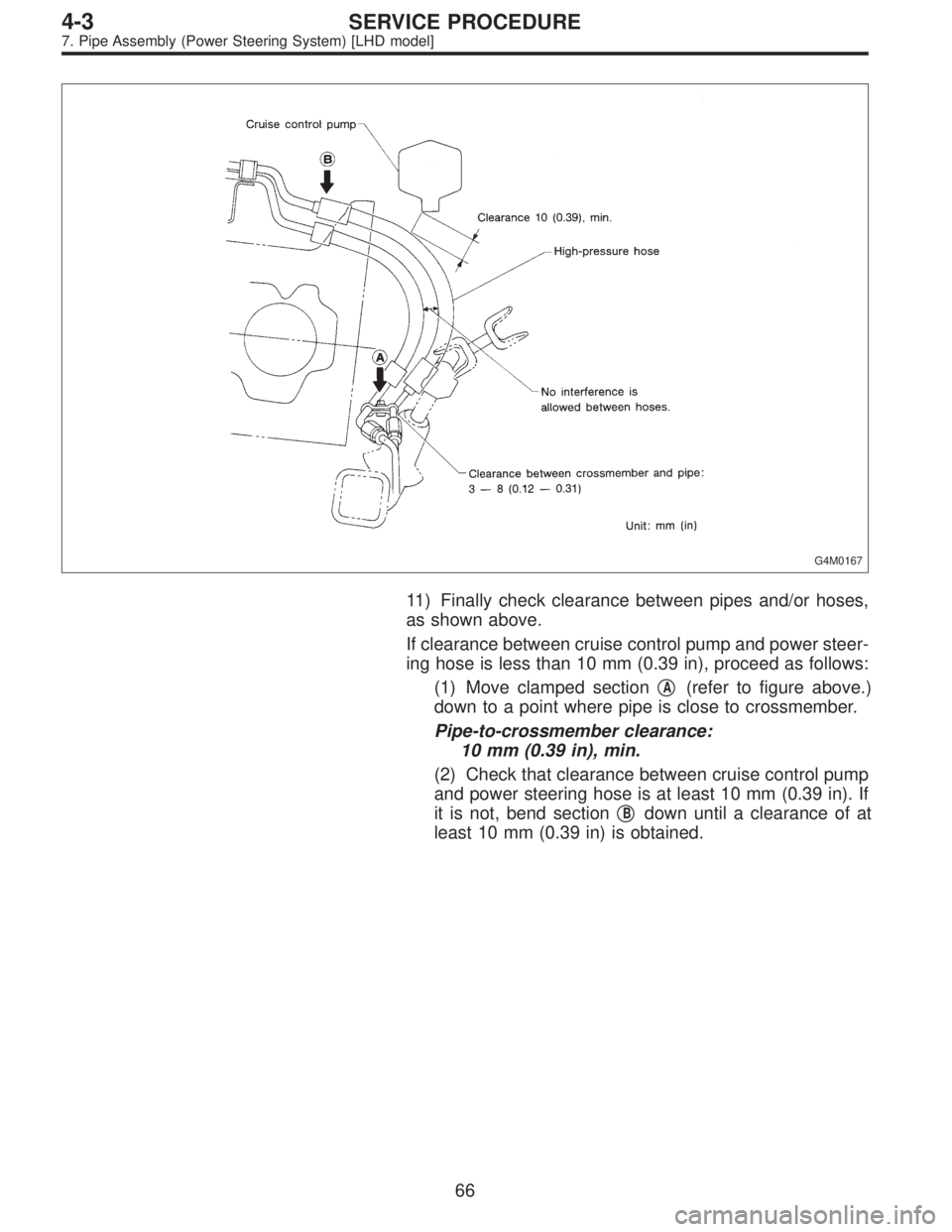

Page 1173 of 2890
G4M0167
11) Finally check clearance between pipes and/or hoses,
as shown above.
If clearance between cruise control pump and power steer-
ing hose is less than 10 mm (0.39 in), proceed as follows:
(1) Move clamped section
A(refer to figure above.)
down to a point where pipe is close to crossmember.
Pipe-to-crossmember clearance:
10 mm (0.39 in), min.
(2) Check that clearance between cruise control pump
and power steering hose is at least 10 mm (0.39 in). If
it is not, bend section
Bdown until a clearance of at
least 10 mm (0.39 in) is obtained.
66
4-3SERVICE PROCEDURE
7. Pipe Assembly (Power Steering System) [LHD model]

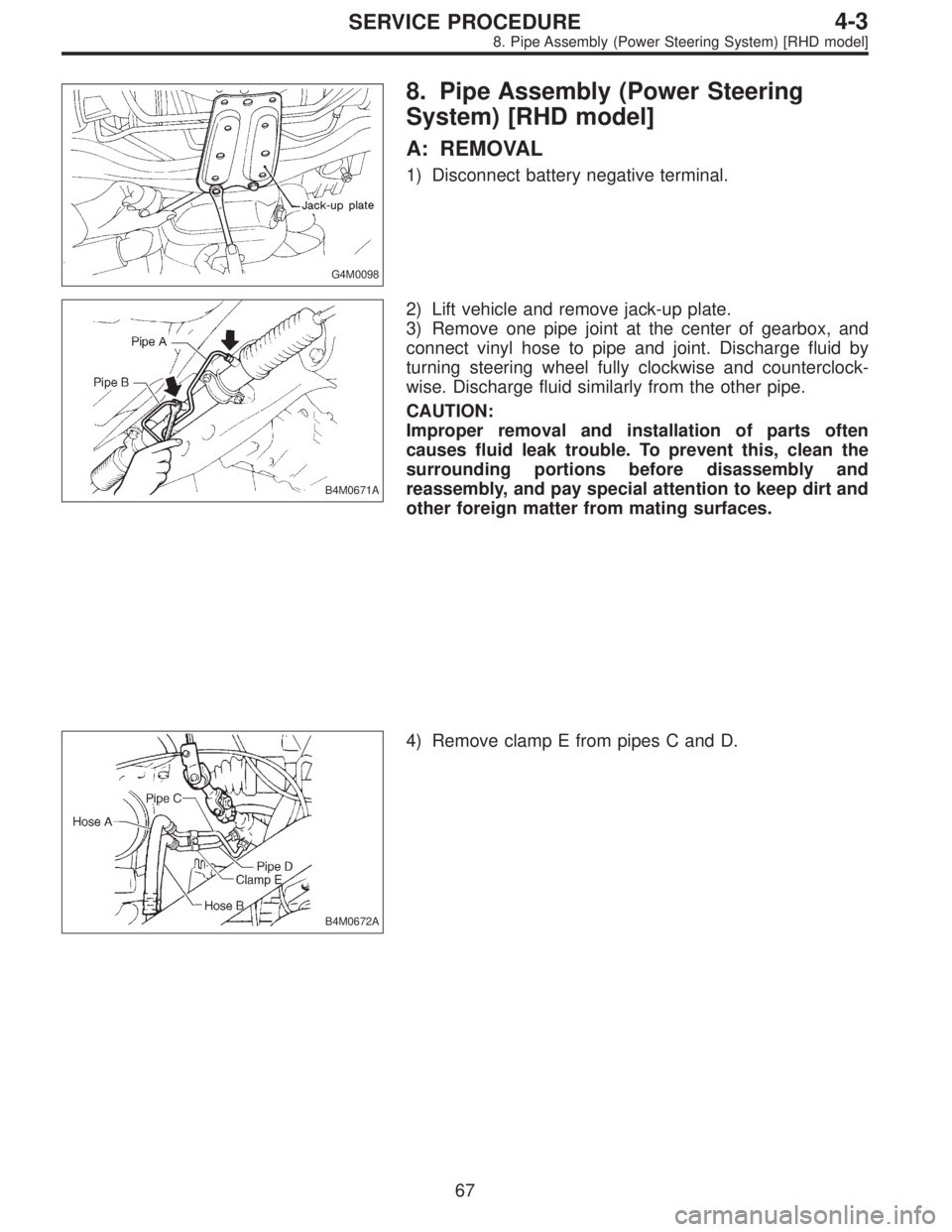

Page 1174 of 2890
G4M0098
8. Pipe Assembly (Power Steering
System) [RHD model]
A: REMOVAL
1) Disconnect battery negative terminal.
B4M0671A
2) Lift vehicle and remove jack-up plate.
3) Remove one pipe joint at the center of gearbox, and
connect vinyl hose to pipe and joint. Discharge fluid by
turning steering wheel fully clockwise and counterclock-
wise. Discharge fluid similarly from the other pipe.
CAUTION:
Improper removal and installation of parts often
causes fluid leak trouble. To prevent this, clean the
surrounding portions before disassembly and
reassembly, and pay special attention to keep dirt and
other foreign matter from mating surfaces.
B4M0672A
4) Remove clamp E from pipes C and D.
67
4-3SERVICE PROCEDURE
8. Pipe Assembly (Power Steering System) [RHD model]

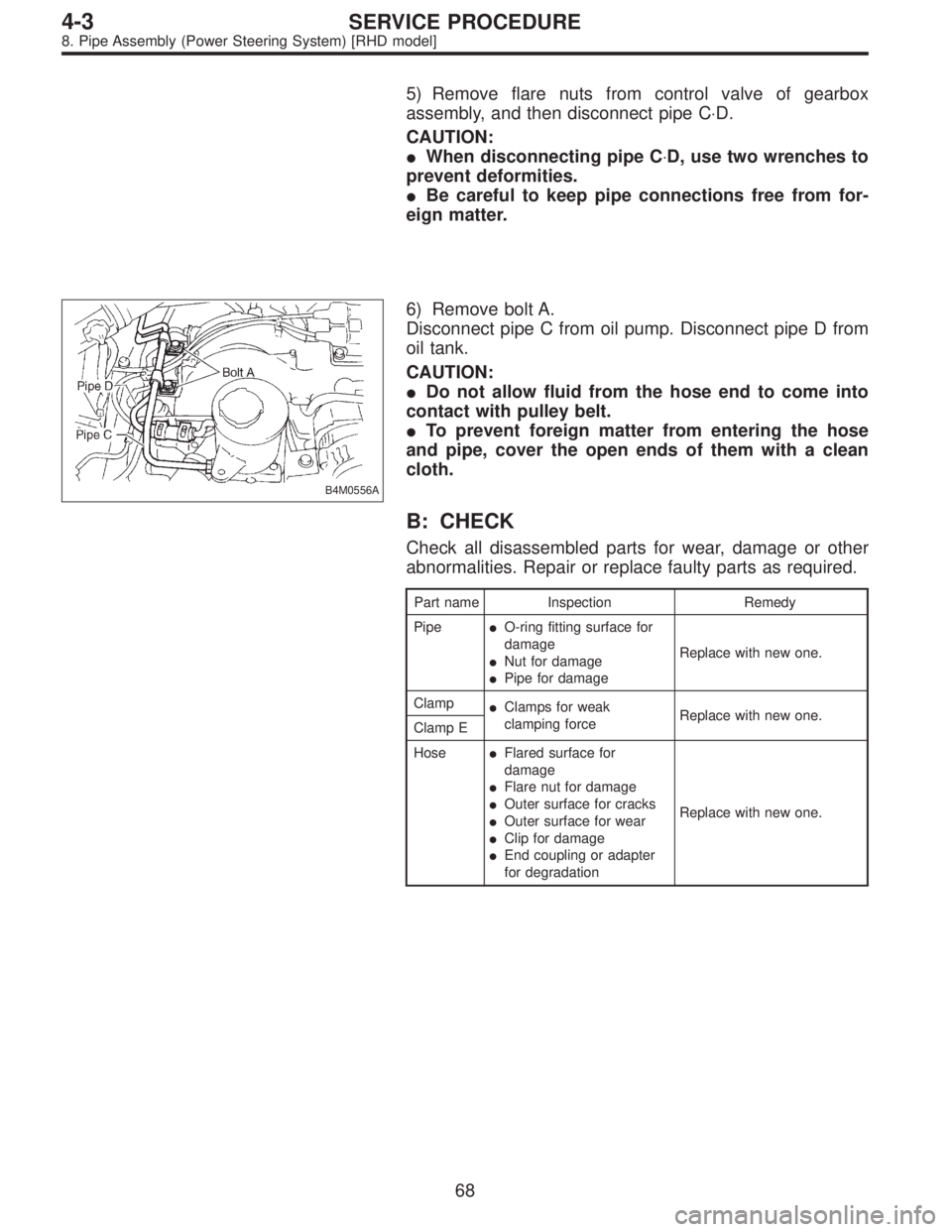

Page 1175 of 2890

5) Remove flare nuts from control valve of gearbox
assembly, and then disconnect pipe C⋅D.
CAUTION:
When disconnecting pipe C⋅D, use two wrenches to
prevent deformities.
Be careful to keep pipe connections free from for-
eign matter.
B4M0556A
6) Remove bolt A.
Disconnect pipe C from oil pump. Disconnect pipe D from
oil tank.
CAUTION:
Do not allow fluid from the hose end to come into
contact with pulley belt.
To prevent foreign matter from entering the hose
and pipe, cover the open ends of them with a clean
cloth.
B: CHECK
Check all disassembled parts for wear, damage or other
abnormalities. Repair or replace faulty parts as required.
Part name Inspection Remedy
PipeO-ring fitting surface for
damage
Nut for damage
Pipe for damageReplace with new one.
Clamp
Clamps for weak
clamping forceReplace with new one.
Clamp E
HoseFlared surface for
damage
Flare nut for damage
Outer surface for cracks
Outer surface for wear
Clip for damage
End coupling or adapter
for degradationReplace with new one.
68
4-3SERVICE PROCEDURE
8. Pipe Assembly (Power Steering System) [RHD model]

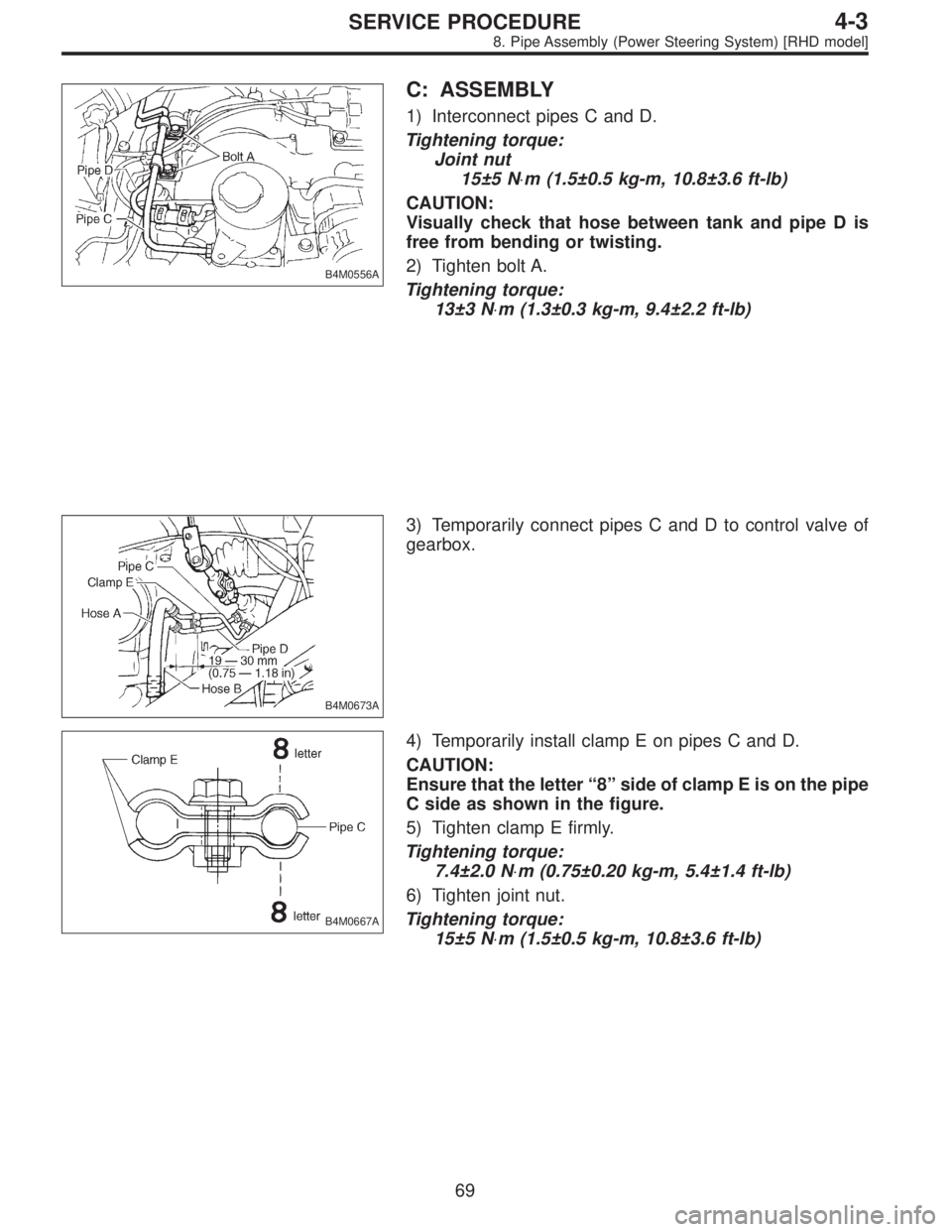

Page 1176 of 2890
B4M0556A
C: ASSEMBLY
1) Interconnect pipes C and D.
Tightening torque:
Joint nut
15±5 N⋅m (1.5±0.5 kg-m, 10.8±3.6 ft-lb)
CAUTION:
Visually check that hose between tank and pipe D is
free from bending or twisting.
2) Tighten bolt A.
Tightening torque:
13±3 N⋅m (1.3±0.3 kg-m, 9.4±2.2 ft-lb)
B4M0673A
3) Temporarily connect pipes C and D to control valve of
gearbox.
B4M0667A
4) Temporarily install clamp E on pipes C and D.
CAUTION:
Ensure that the letter“8”side of clamp E is on the pipe
C side as shown in the figure.
5) Tighten clamp E firmly.
Tightening torque:
7.4±2.0 N⋅m (0.75±0.20 kg-m, 5.4±1.4 ft-lb)
6) Tighten joint nut.
Tightening torque:
15±5 N⋅m (1.5±0.5 kg-m, 10.8±3.6 ft-lb)
69
4-3SERVICE PROCEDURE
8. Pipe Assembly (Power Steering System) [RHD model]
