Page 2561 of 2890

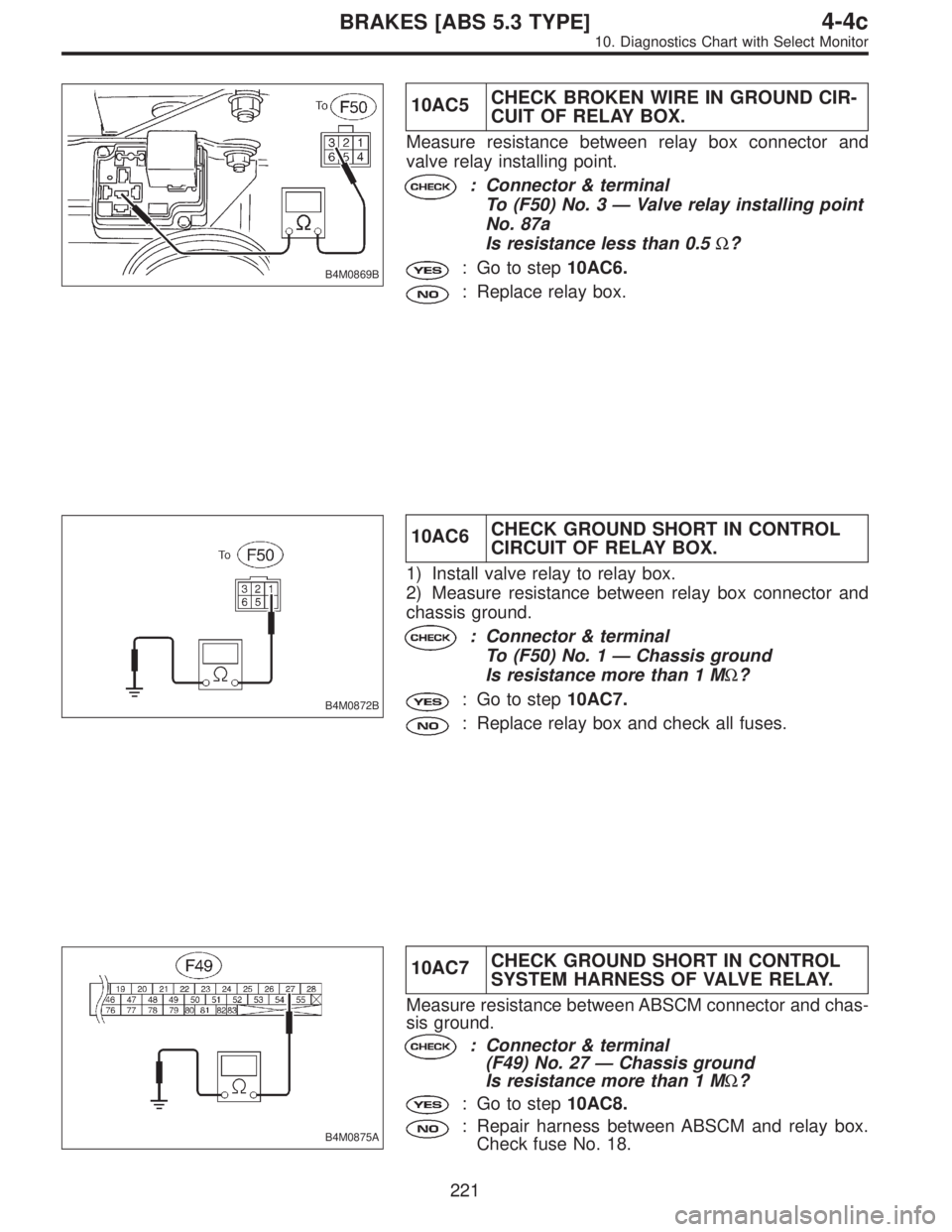

SUBARU LEGACY 1996 Service Repair Manual B4M0869B 10AC5CHECK BROKEN WIRE IN GROUND CIR- CUIT OF RELAY BOX. Measure resistance between relay box connector and valve relay installing point. : Connector & terminal To (F50) No. 3—Valve relay i

Page 2562 of 2890

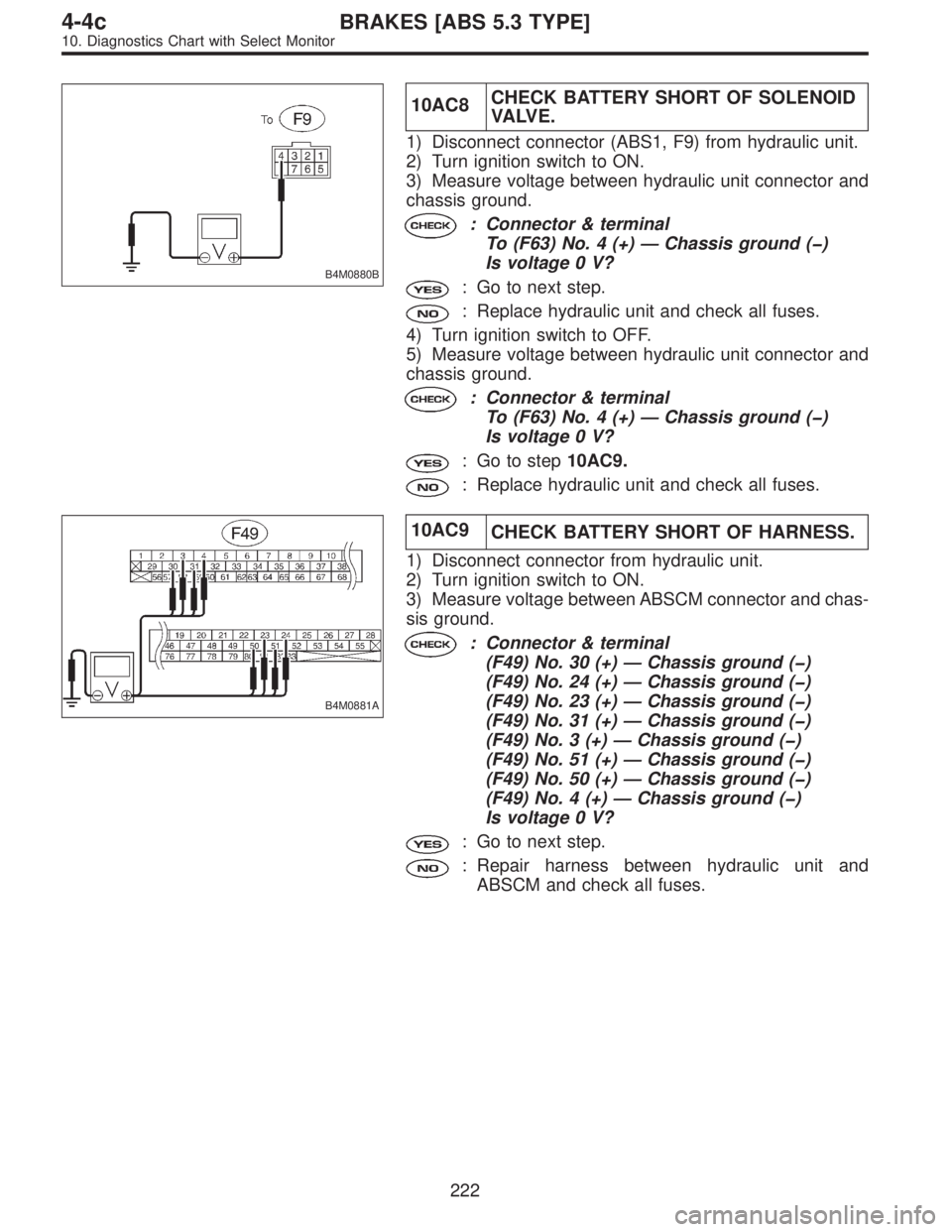

SUBARU LEGACY 1996 Service Repair Manual B4M0880B 10AC8CHECK BATTERY SHORT OF SOLENOID VA LV E . 1) Disconnect connector (ABS1, F9) from hydraulic unit. 2) Turn ignition switch to ON. 3) Measure voltage between hydraulic unit connector and c

Page 2563 of 2890

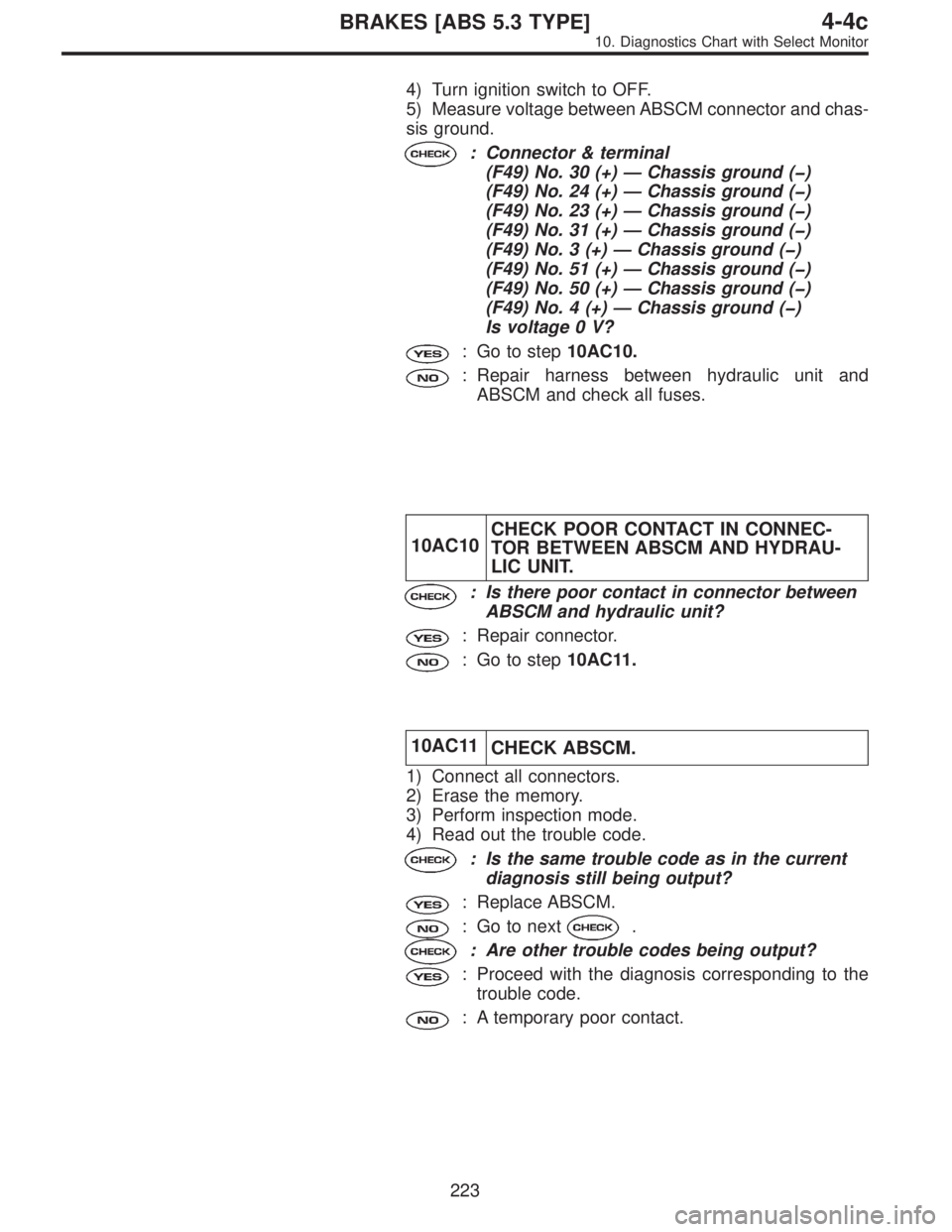

SUBARU LEGACY 1996 Service Repair Manual 4) Turn ignition switch to OFF. 5) Measure voltage between ABSCM connector and chas- sis ground. : Connector & terminal (F49) No. 30 (+)—Chassis ground (�) (F49) No. 24 (+)—Chassis ground (�) (F49

Page 2564 of 2890

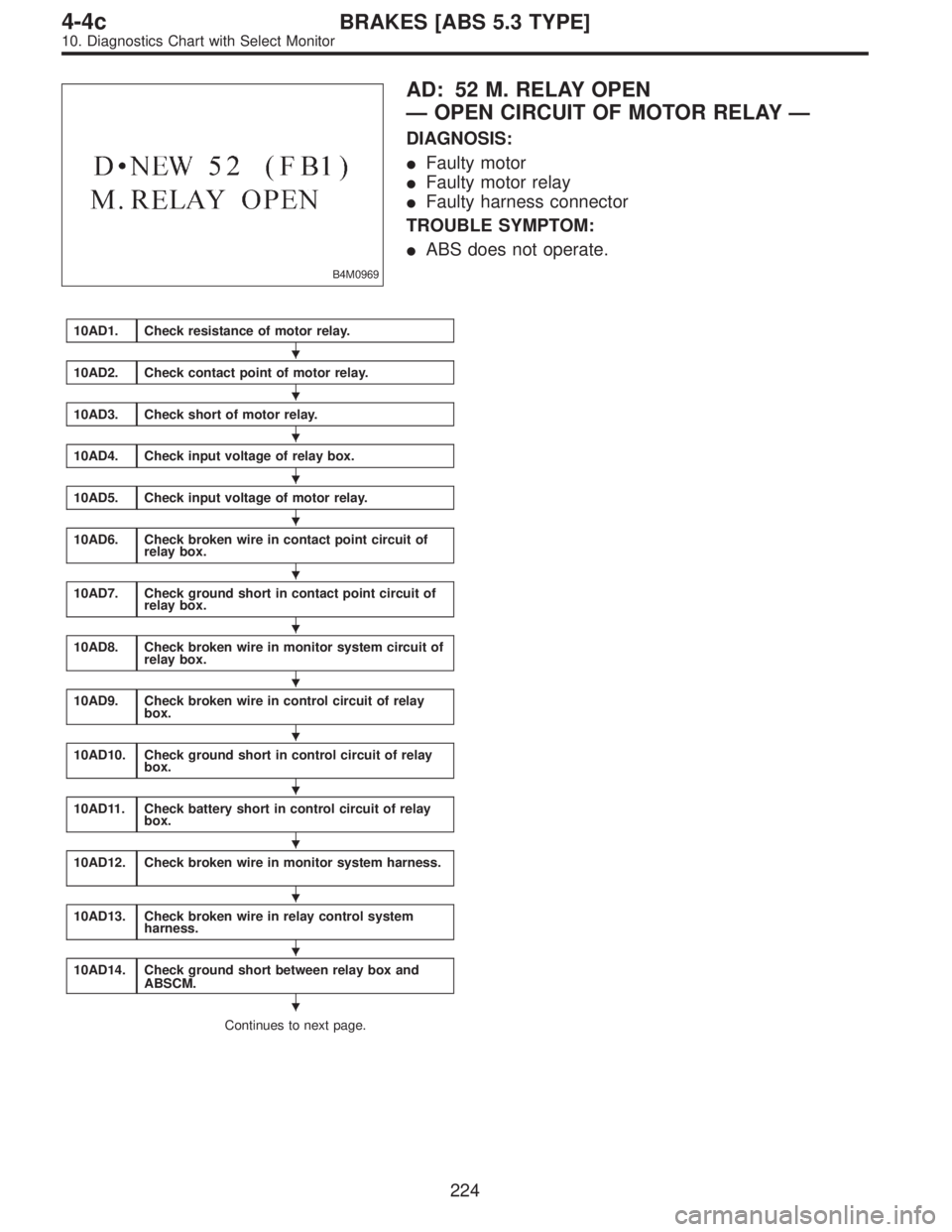

SUBARU LEGACY 1996 Service Repair Manual B4M0969 AD: 52 M. RELAY OPEN —OPEN CIRCUIT OF MOTOR RELAY— DIAGNOSIS: Faulty motor Faulty motor relay Faulty harness connector TROUBLE SYMPTOM: ABS does not operate. 10AD1.Check resistance of

Page 2565 of 2890

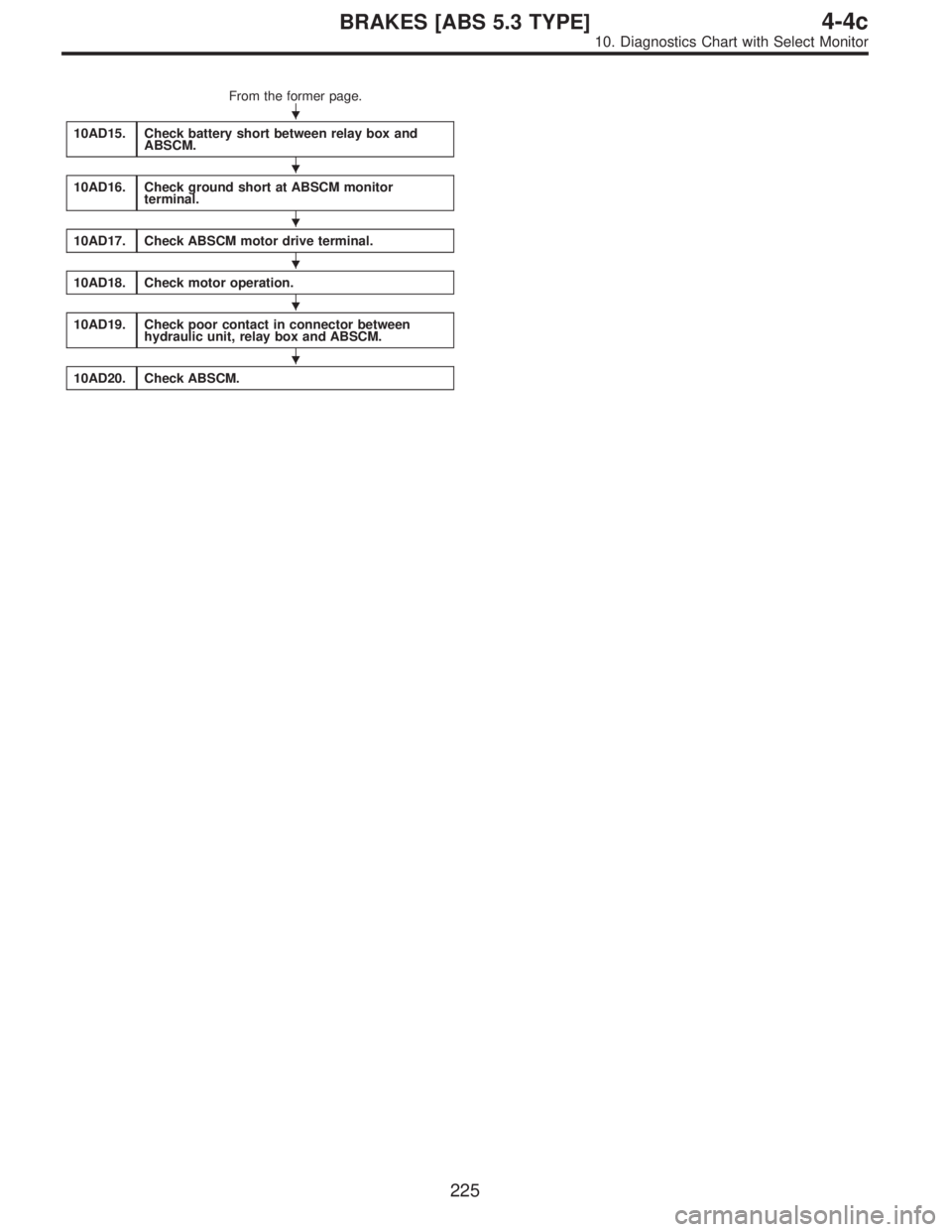

SUBARU LEGACY 1996 Service Repair Manual From the former page. 10AD15. Check battery short between relay box and ABSCM. 10AD16.Check ground short at ABSCM monitor terminal. 10AD17.Check ABSCM motor drive terminal. 10AD18.Check motor operatio

Page 2566 of 2890

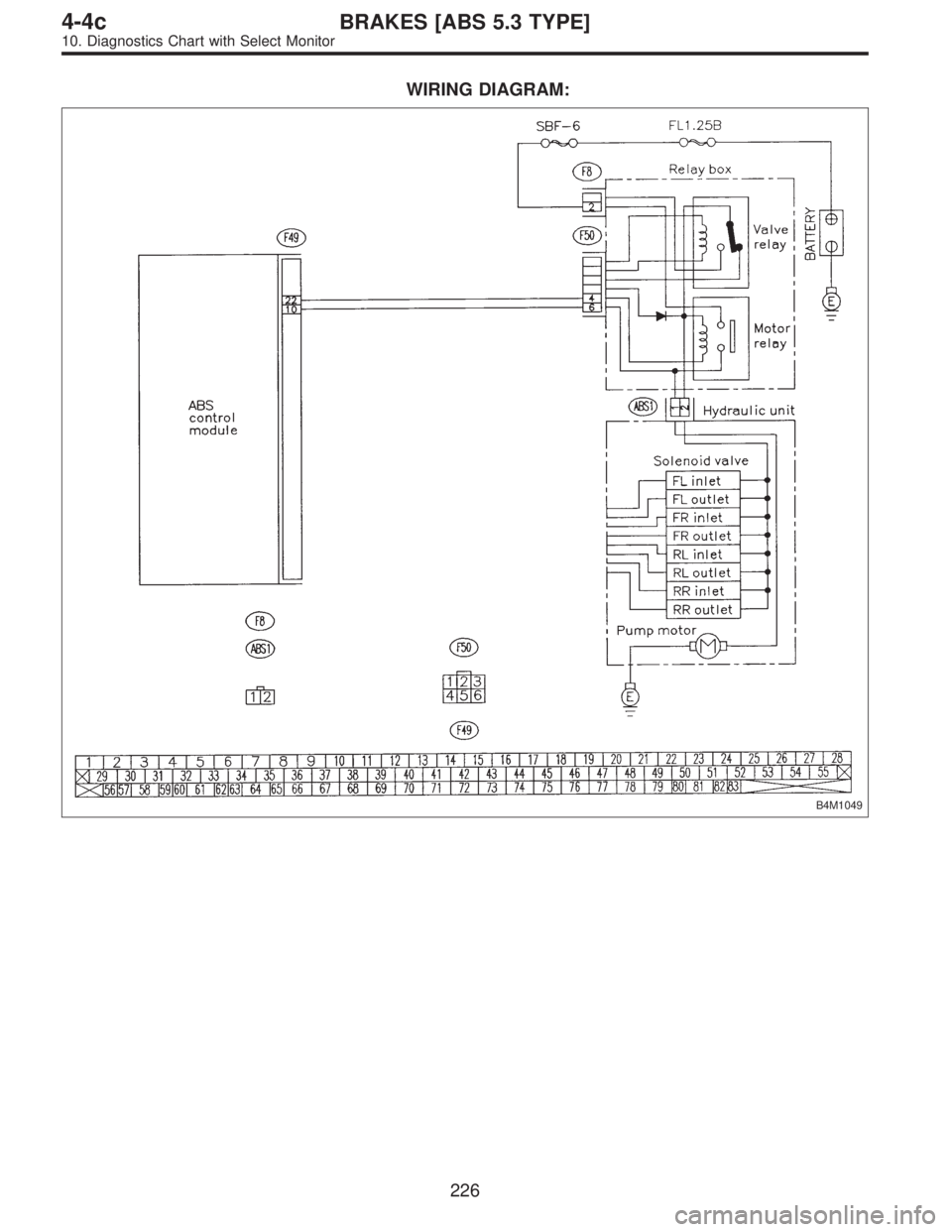

SUBARU LEGACY 1996 Service Repair Manual WIRING DIAGRAM: B4M1049 226 4-4cBRAKES [ABS 5.3 TYPE] 10. Diagnostics Chart with Select Monitor

Page 2567 of 2890

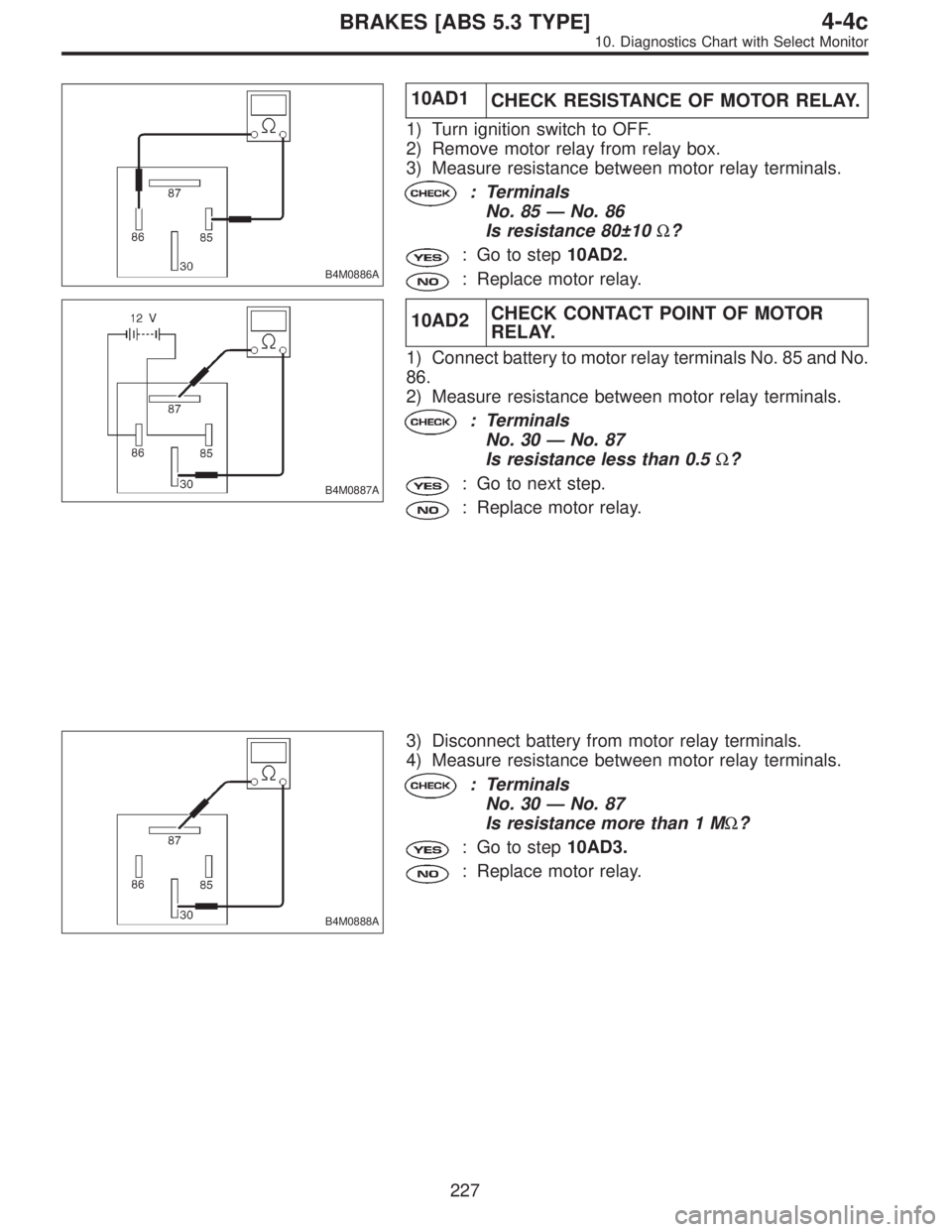

SUBARU LEGACY 1996 Service Repair Manual B4M0886A 10AD1 CHECK RESISTANCE OF MOTOR RELAY. 1) Turn ignition switch to OFF. 2) Remove motor relay from relay box. 3) Measure resistance between motor relay terminals. : Terminals No. 85—No. 86 I

Page 2568 of 2890

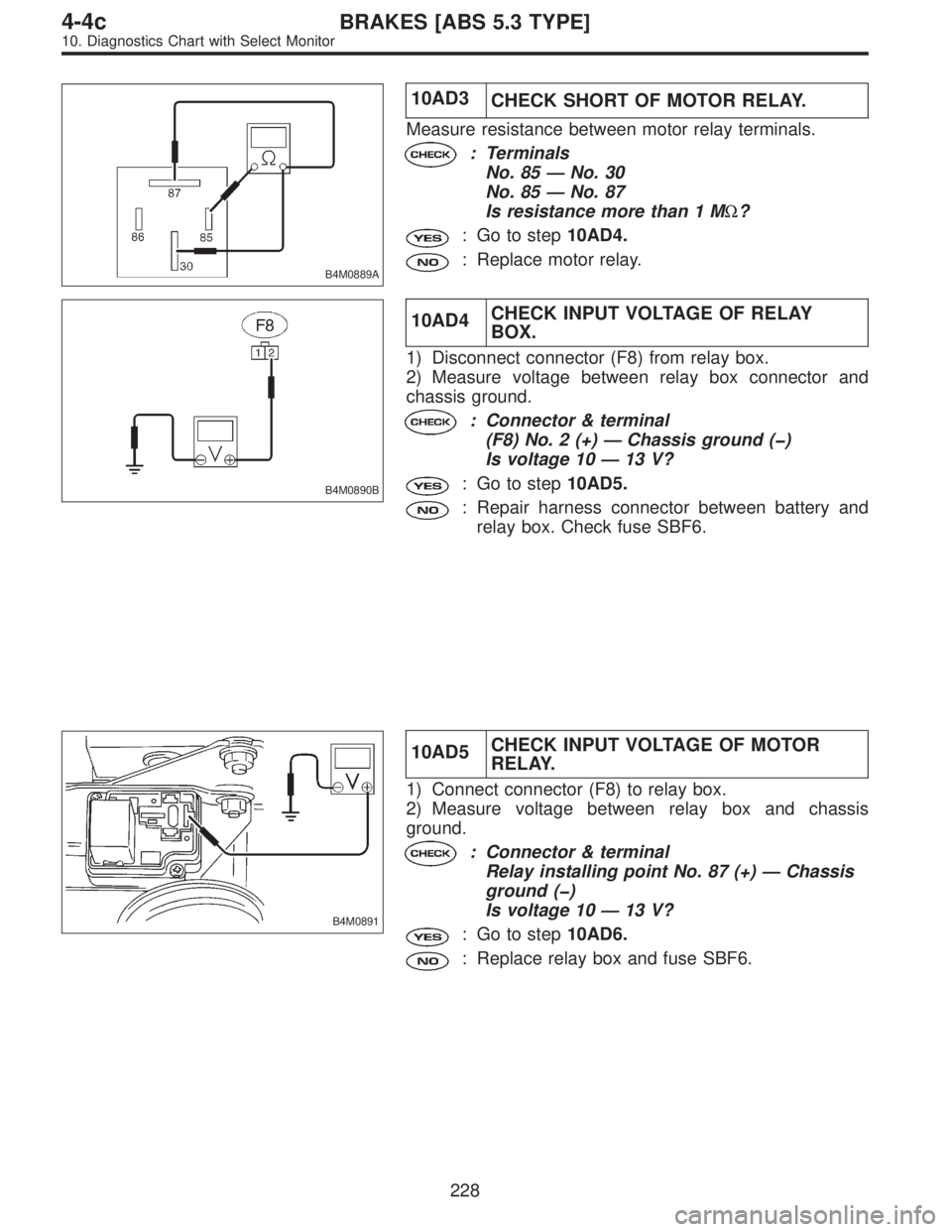

SUBARU LEGACY 1996 Service Repair Manual B4M0889A 10AD3 CHECK SHORT OF MOTOR RELAY. Measure resistance between motor relay terminals. : Terminals No. 85—No. 30 No. 85—No. 87 Is resistance more than 1 MΩ? : Go to step10AD4. : Replace mo
