Page 865 of 2890

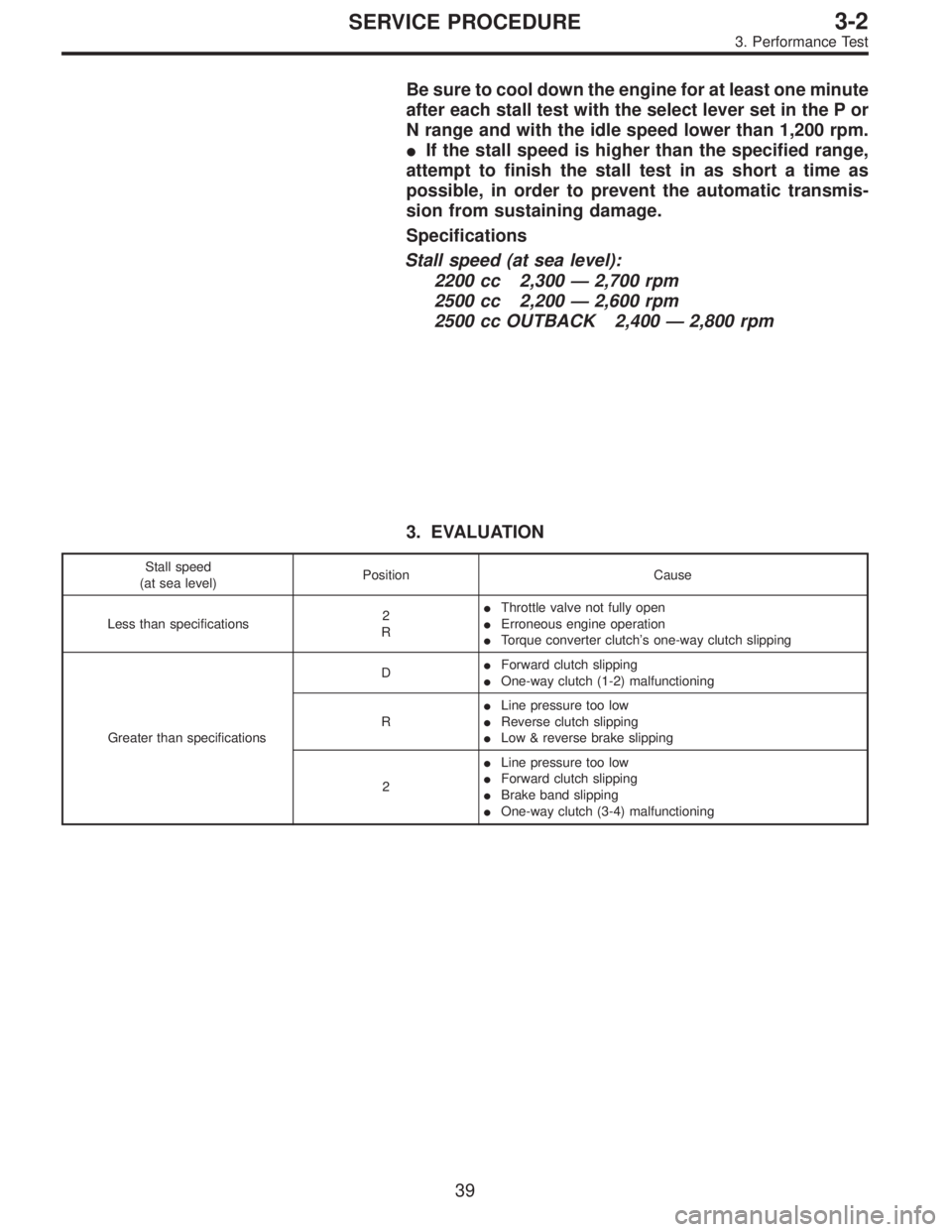

SUBARU LEGACY 1996 Service Repair Manual Be sure to cool down the engine for at least one minute after each stall test with the select lever set in the P or N range and with the idle speed lower than 1,200 rpm. If the stall speed is higher

Page 866 of 2890

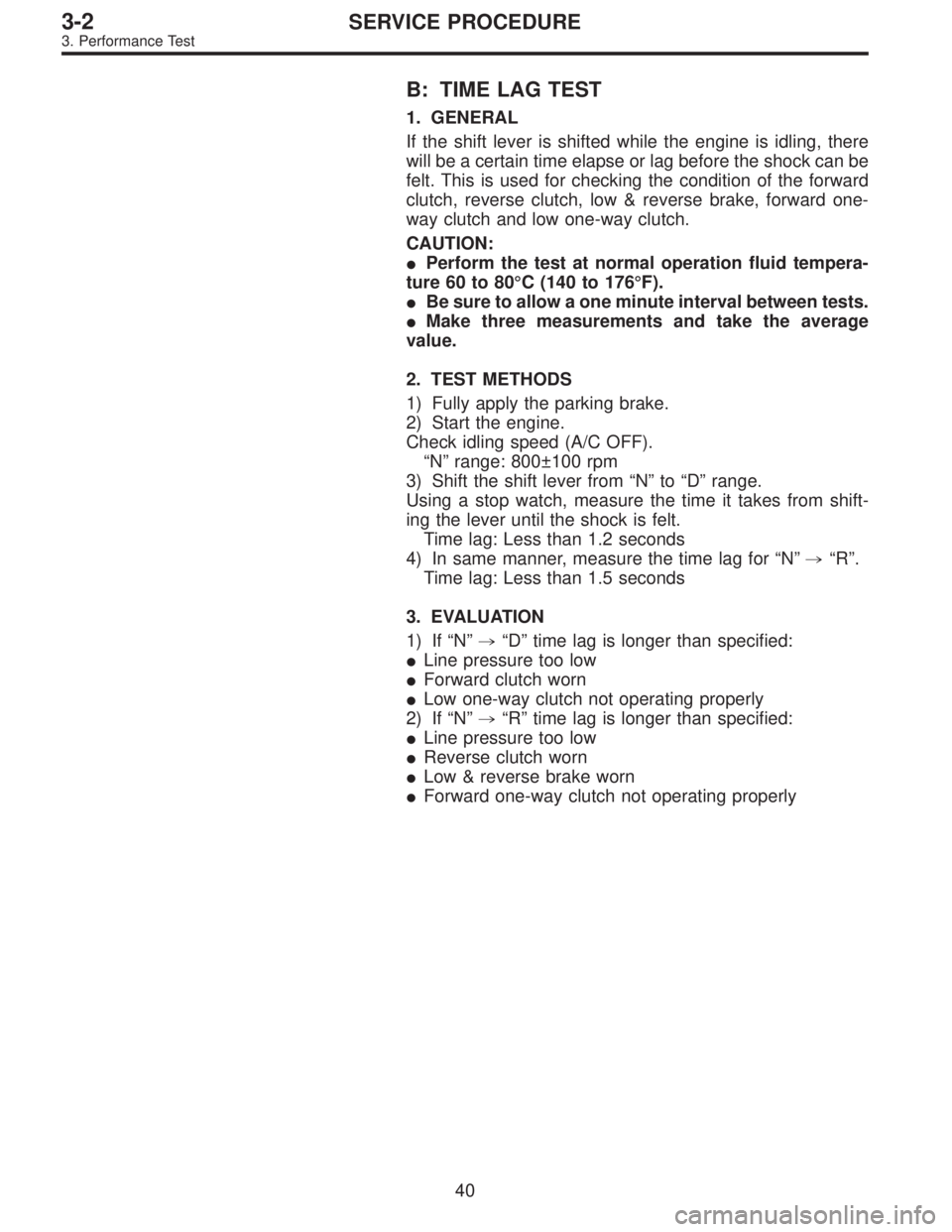

SUBARU LEGACY 1996 Service Repair Manual B: TIME LAG TEST 1. GENERAL If the shift lever is shifted while the engine is idling, there will be a certain time elapse or lag before the shock can be felt. This is used for checking the condition o

Page 867 of 2890

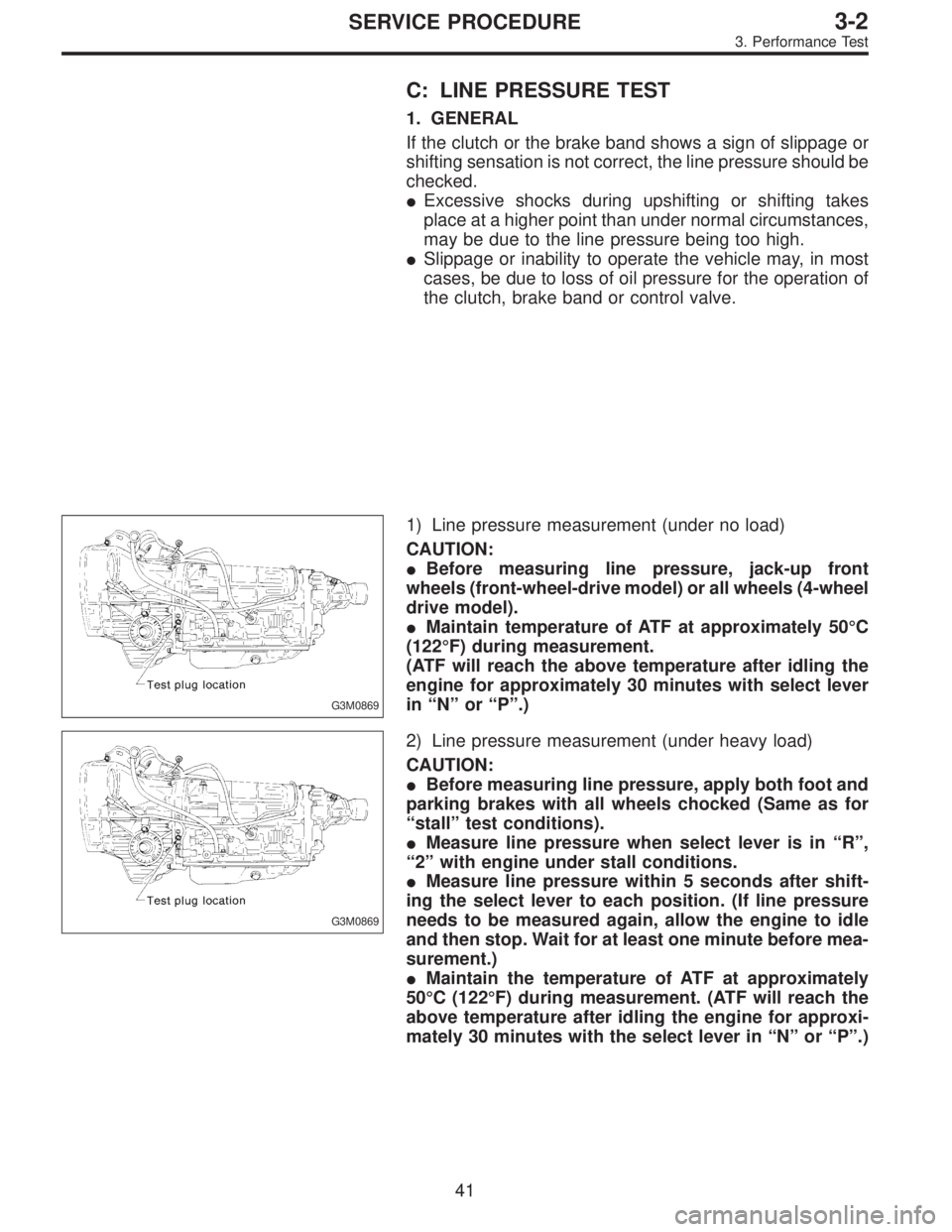

SUBARU LEGACY 1996 Service Repair Manual C: LINE PRESSURE TEST 1. GENERAL If the clutch or the brake band shows a sign of slippage or shifting sensation is not correct, the line pressure should be checked. Excessive shocks during upshifting

Page 868 of 2890

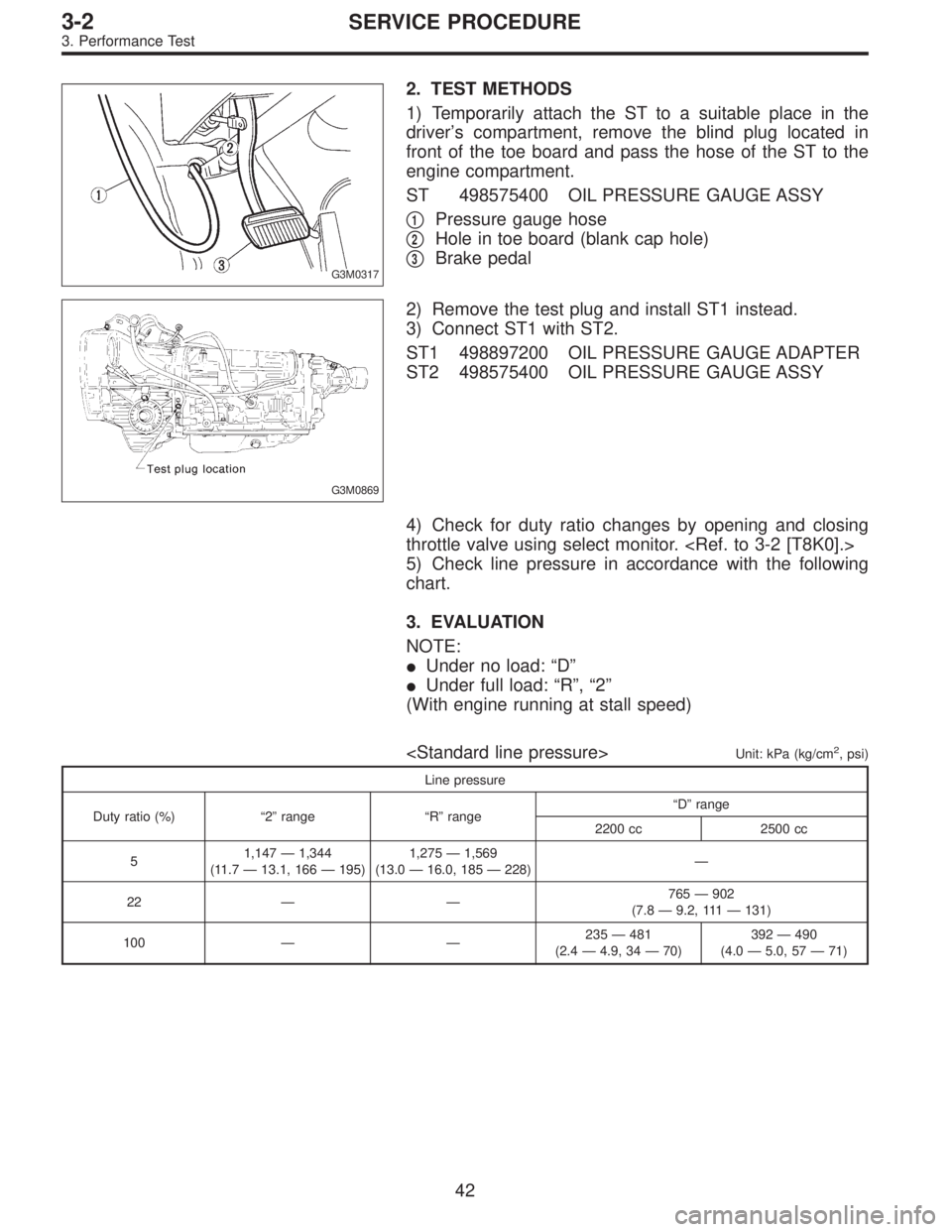

SUBARU LEGACY 1996 Service Repair Manual G3M0317 2. TEST METHODS 1) Temporarily attach the ST to a suitable place in the driver’s compartment, remove the blind plug located in front of the toe board and pass the hose of the ST to the engin

Page 869 of 2890

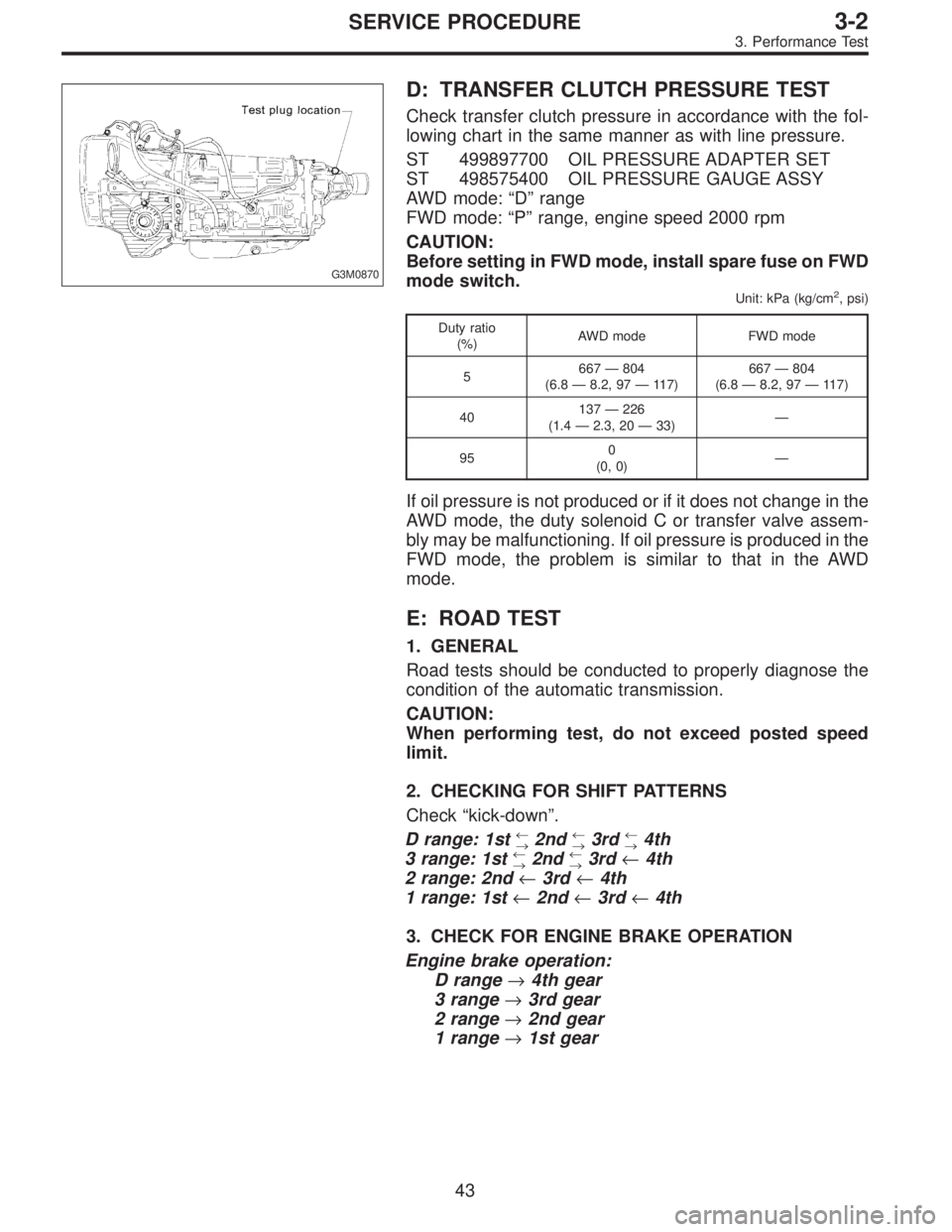

SUBARU LEGACY 1996 Service Repair Manual G3M0870 D: TRANSFER CLUTCH PRESSURE TEST Check transfer clutch pressure in accordance with the fol- lowing chart in the same manner as with line pressure. ST 499897700 OIL PRESSURE ADAPTER SET ST 4985

Page 870 of 2890

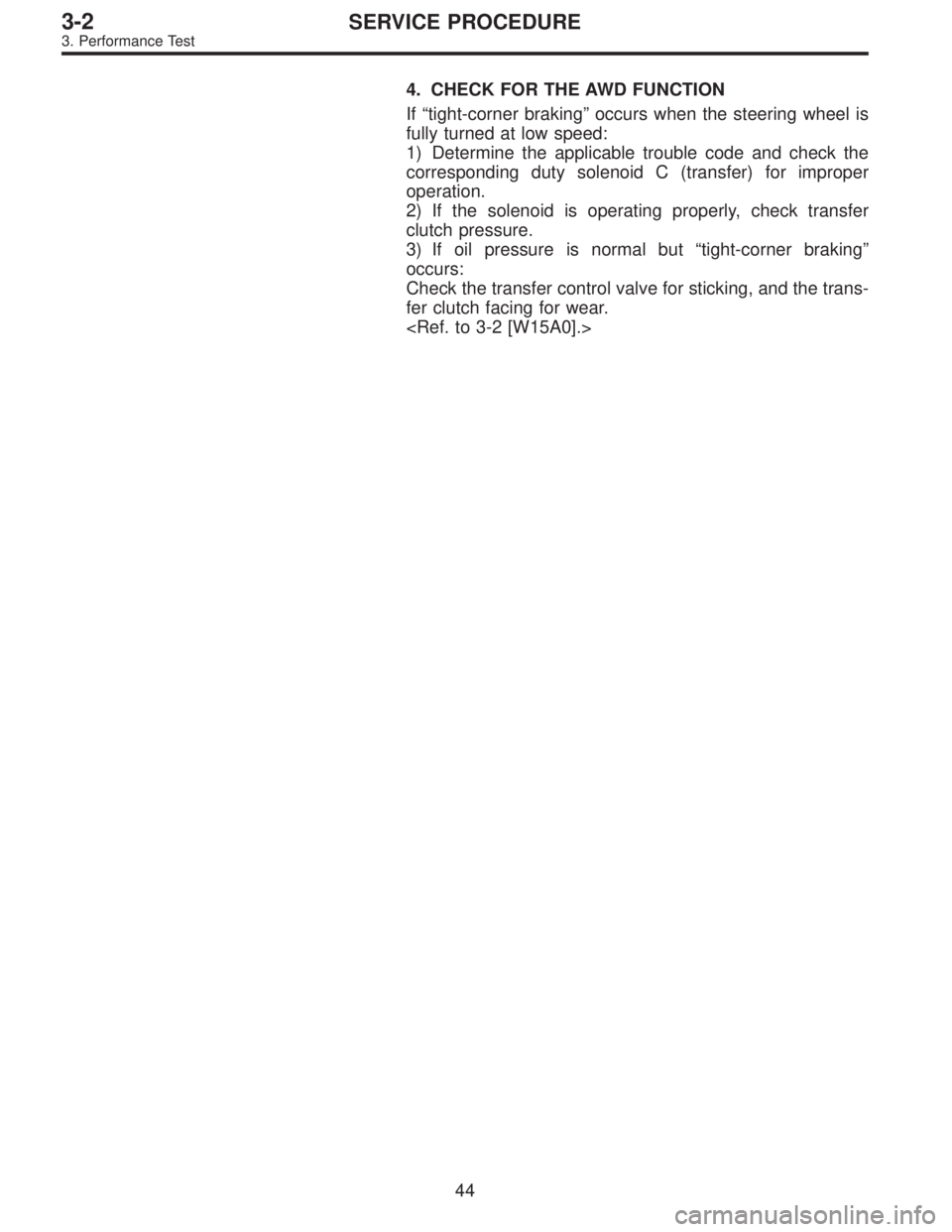

SUBARU LEGACY 1996 Service Repair Manual 4. CHECK FOR THE AWD FUNCTION If“tight-corner braking”occurs when the steering wheel is fully turned at low speed: 1) Determine the applicable trouble code and check the corresponding duty solenoi

Page 871 of 2890

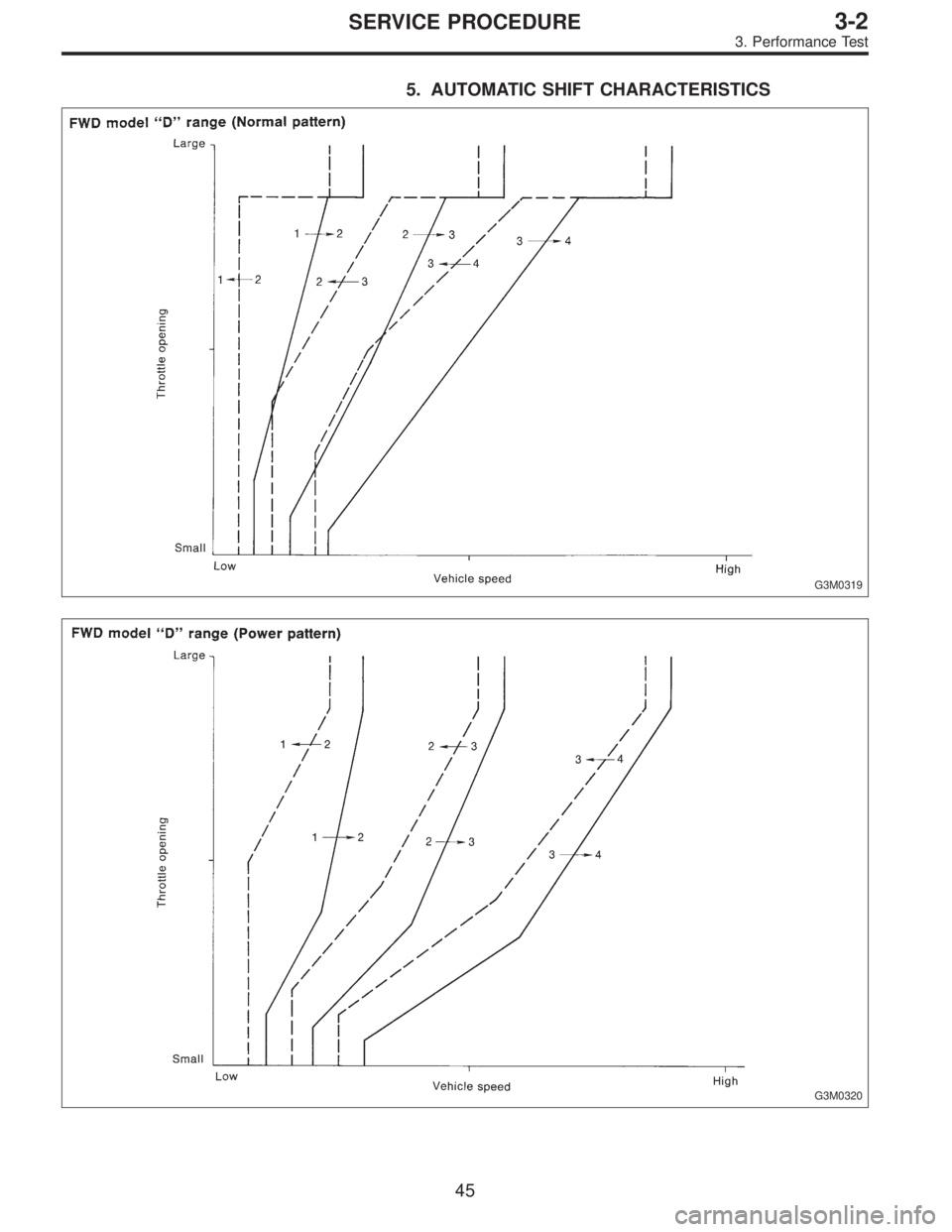

SUBARU LEGACY 1996 Service Repair Manual 5. AUTOMATIC SHIFT CHARACTERISTICS G3M0319 G3M0320 45 3-2SERVICE PROCEDURE 3. Performance Test

Page 872 of 2890

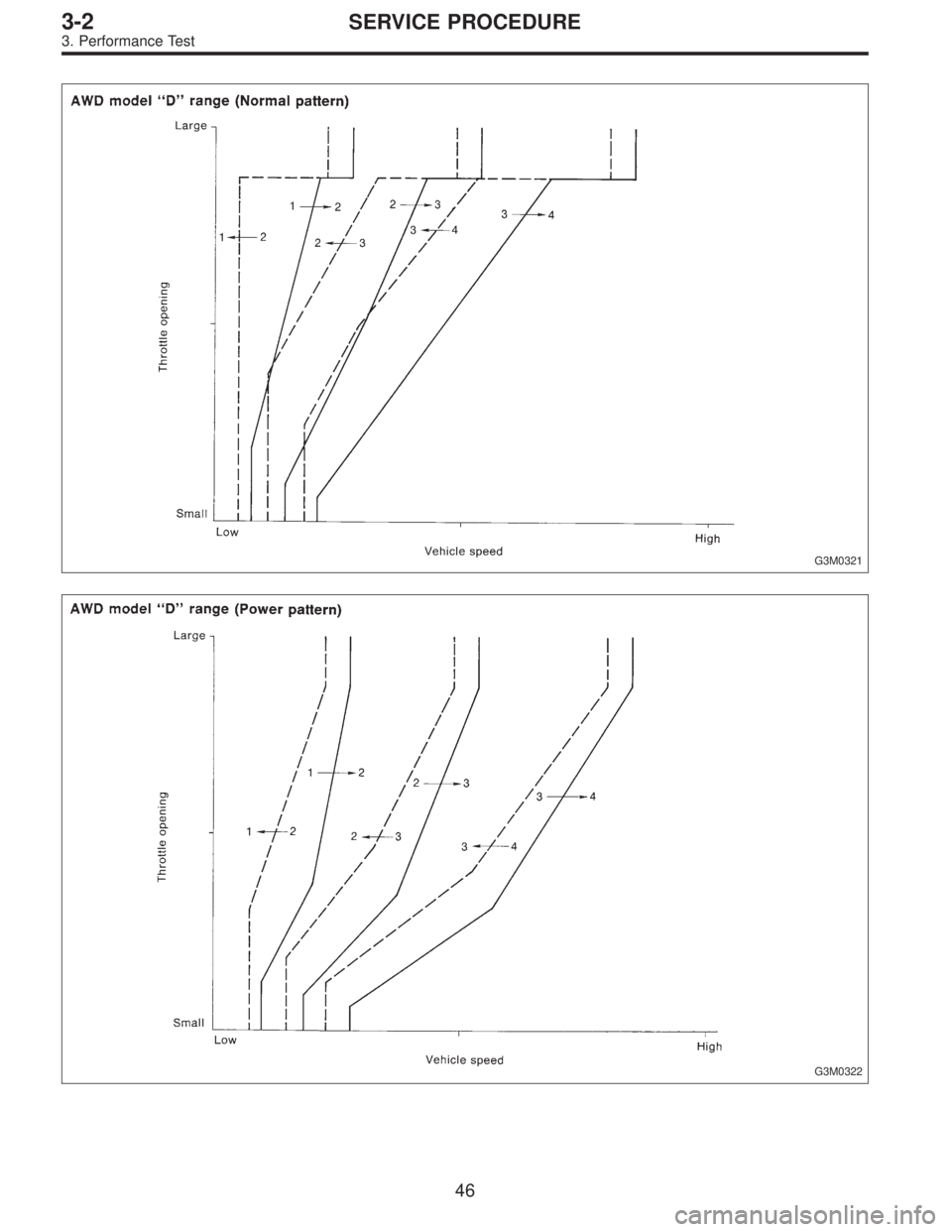

SUBARU LEGACY 1996 Service Repair Manual G3M0321 G3M0322 46 3-2SERVICE PROCEDURE 3. Performance Test
