Page 873 of 2890

SUBARU LEGACY 1996 Service Repair Manual 4. Overall Transmission 1. SECTIONS THAT CAN BE DETACHED/ASSEMBLED G3M0323 47 3-2SERVICE PROCEDURE 4. Overall Transmission

Page 874 of 2890

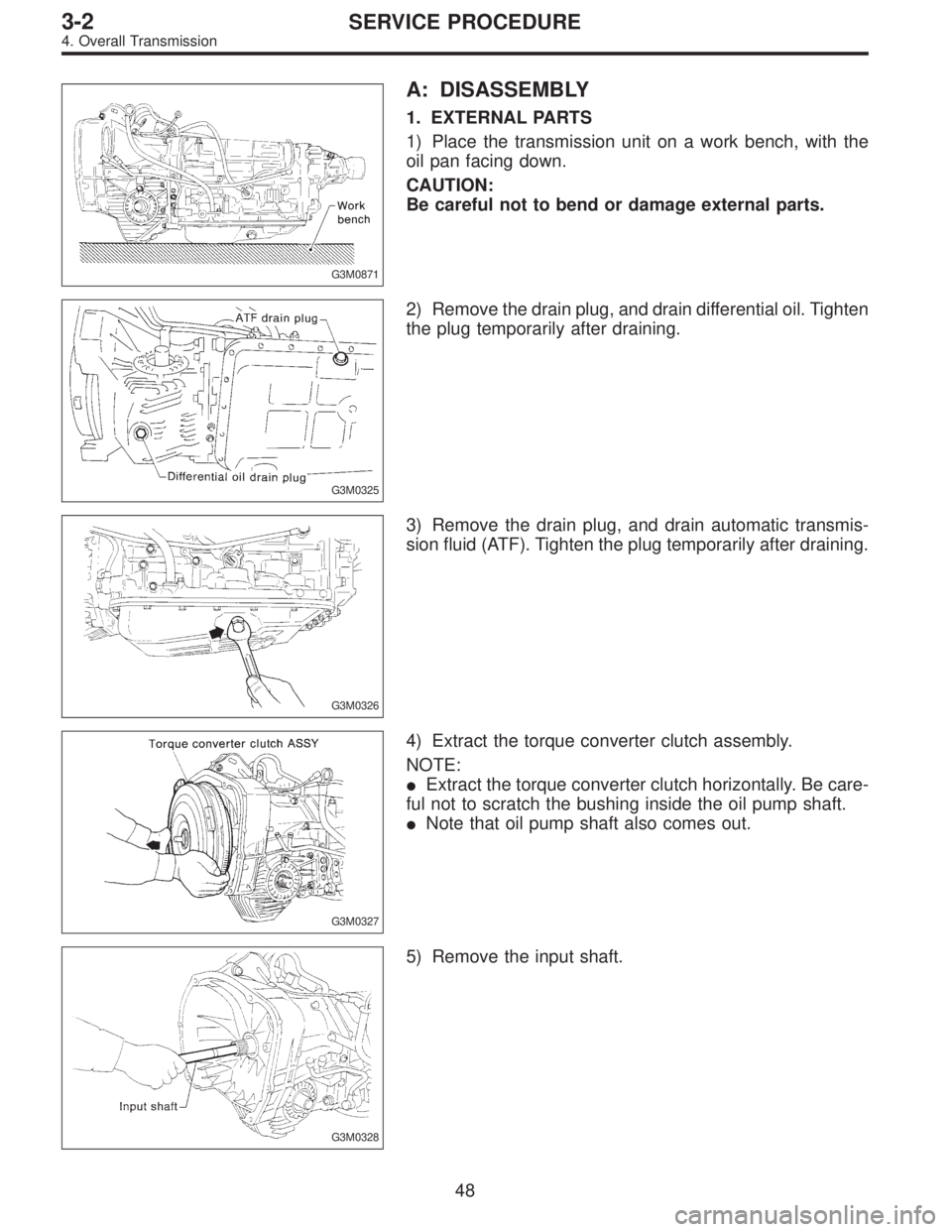

SUBARU LEGACY 1996 Service Repair Manual G3M0871 A: DISASSEMBLY 1. EXTERNAL PARTS 1) Place the transmission unit on a work bench, with the oil pan facing down. CAUTION: Be careful not to bend or damage external parts. G3M0325 2) Remove the d

Page 875 of 2890

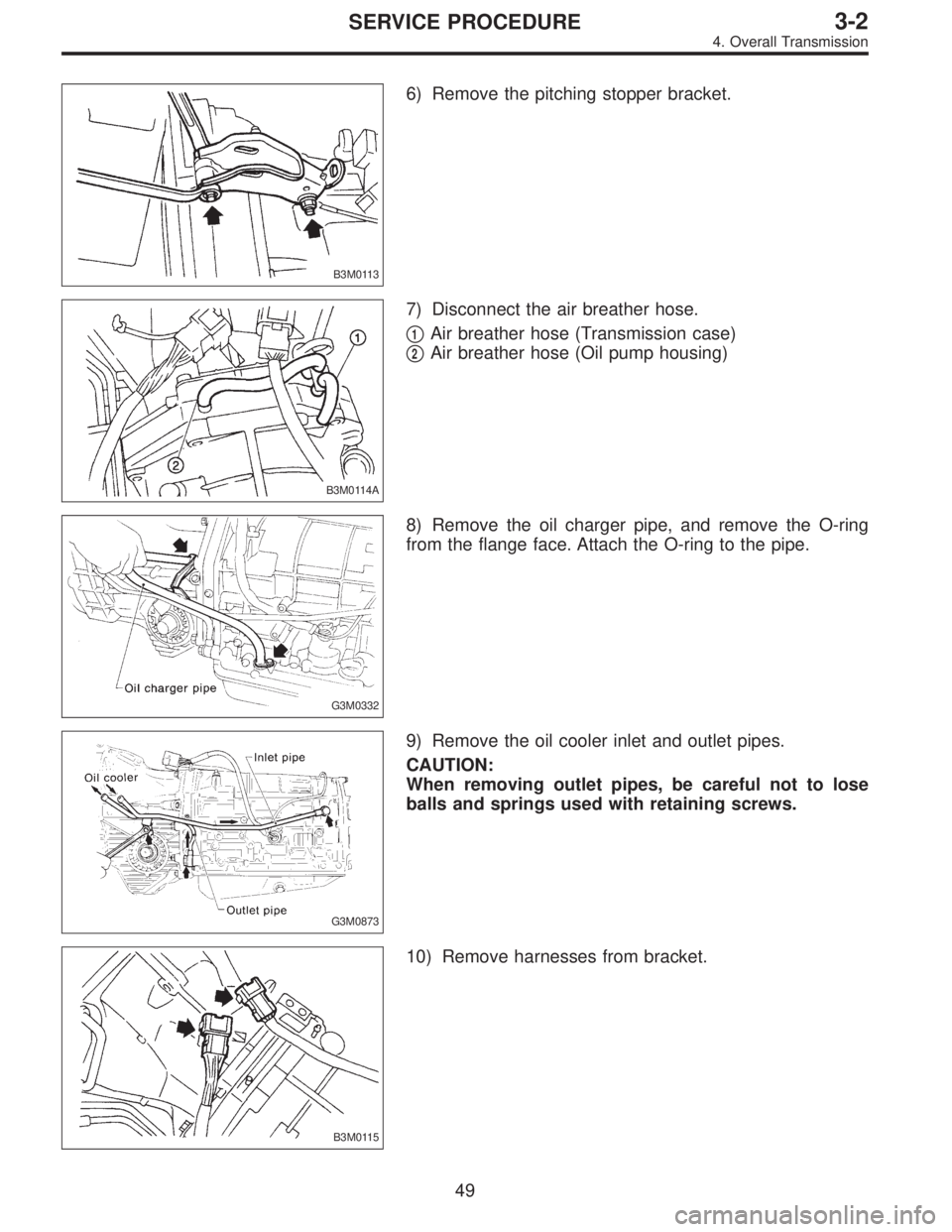

SUBARU LEGACY 1996 Service Repair Manual B3M0113 6) Remove the pitching stopper bracket. B3M0114A 7) Disconnect the air breather hose.  1Air breather hose (Transmission case)  2Air breather hose (Oil pump housing) G3M0332 8) Remove the oil

Page 876 of 2890

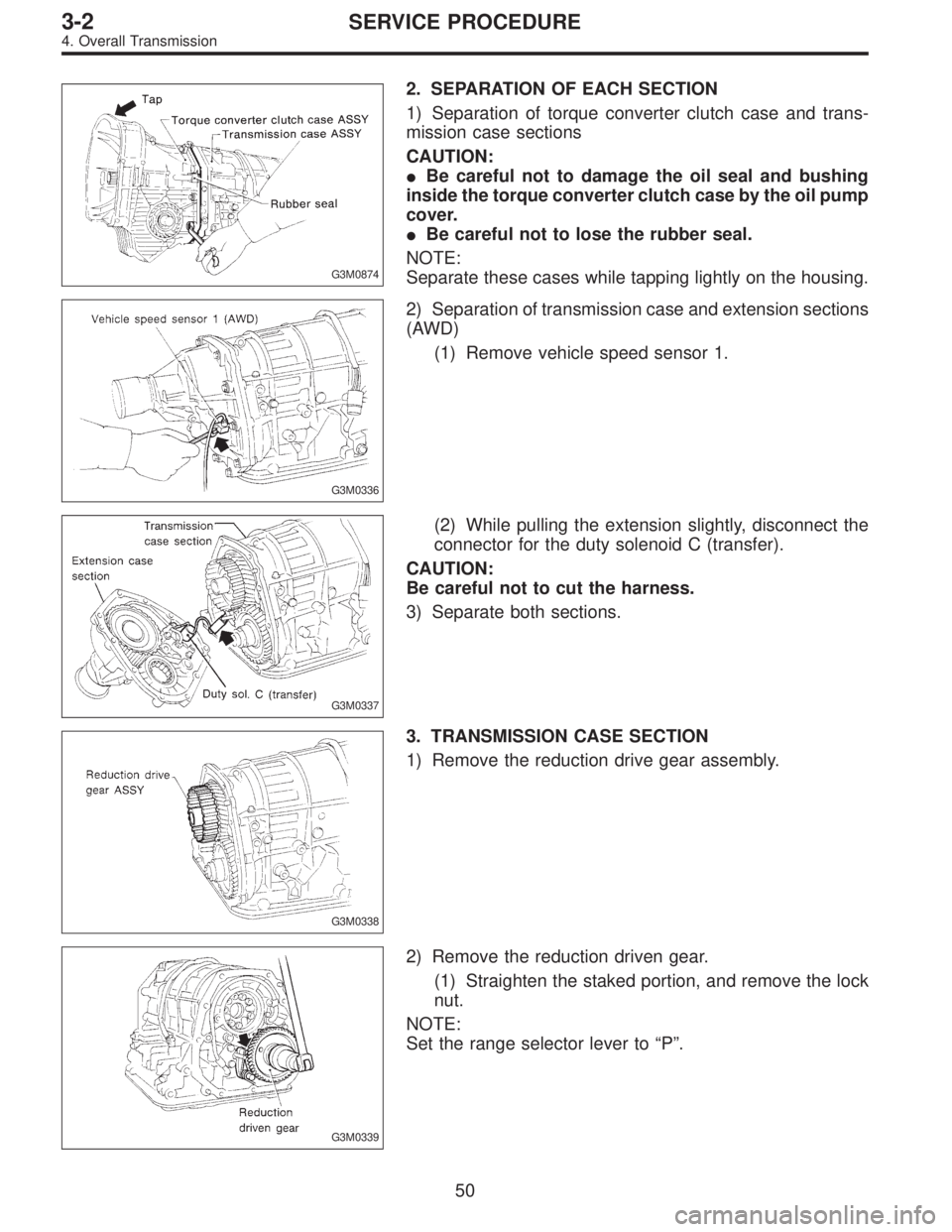

SUBARU LEGACY 1996 Service Repair Manual G3M0874 2. SEPARATION OF EACH SECTION 1) Separation of torque converter clutch case and trans- mission case sections CAUTION: Be careful not to damage the oil seal and bushing inside the torque conve

Page 877 of 2890

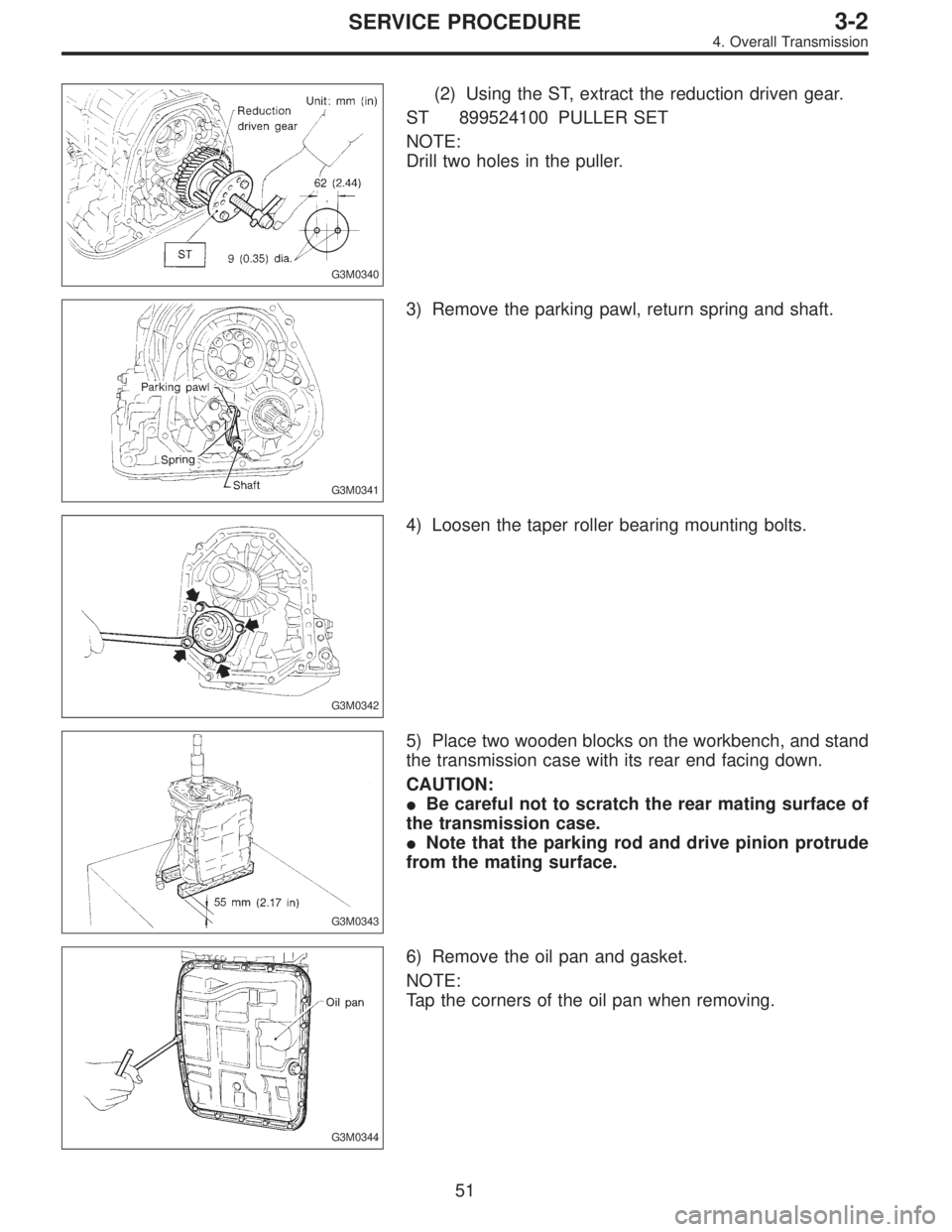

SUBARU LEGACY 1996 Service Repair Manual G3M0340 (2) Using the ST, extract the reduction driven gear. ST 899524100 PULLER SET NOTE: Drill two holes in the puller. G3M0341 3) Remove the parking pawl, return spring and shaft. G3M0342 4) Loosen

Page 878 of 2890

SUBARU LEGACY 1996 Service Repair Manual G3M0345 7) Remove the oil cooler outlet pipe. CAUTION: Be careful not to twist the pipe. G3M0915 8) Disconnect the harness connectors for the solenoids and duty solenoids and the ground cord. G3M0299

Page 879 of 2890

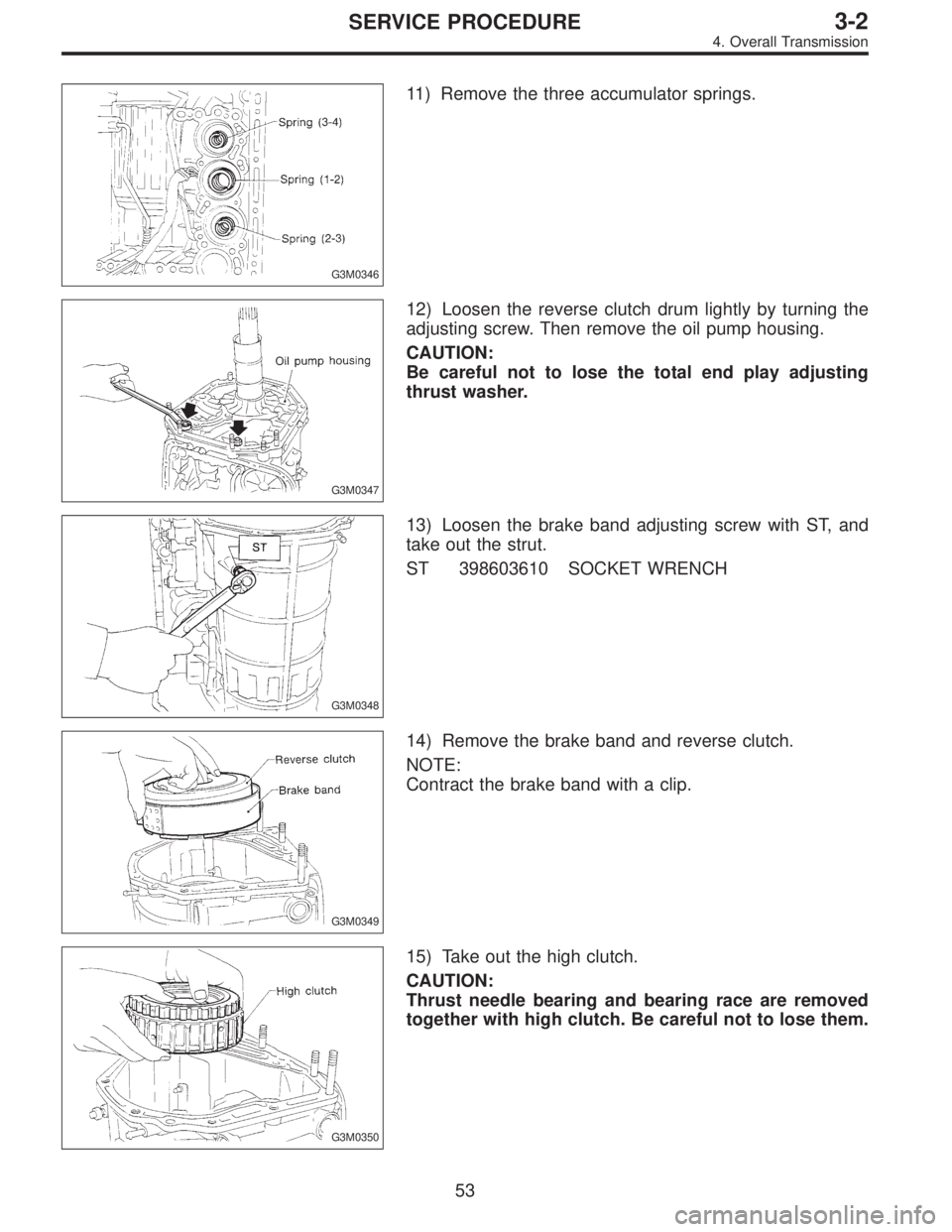

SUBARU LEGACY 1996 Service Repair Manual G3M0346 11) Remove the three accumulator springs. G3M0347 12) Loosen the reverse clutch drum lightly by turning the adjusting screw. Then remove the oil pump housing. CAUTION: Be careful not to lose t

Page 880 of 2890

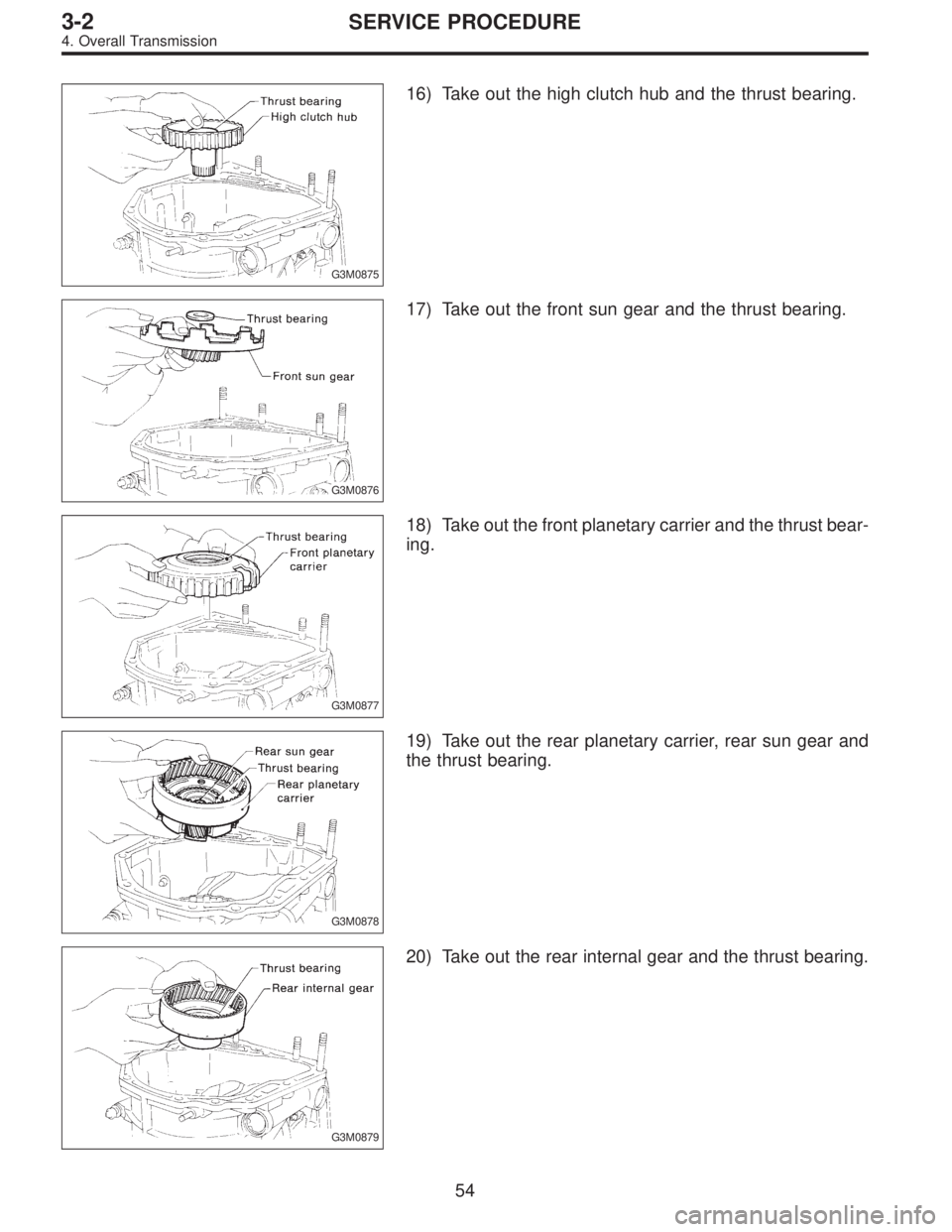

SUBARU LEGACY 1996 Service Repair Manual G3M0875 16) Take out the high clutch hub and the thrust bearing. G3M0876 17) Take out the front sun gear and the thrust bearing. G3M0877 18) Take out the front planetary carrier and the thrust bear- i
