SUBARU LEGACY 1996  Service Repair Manual B: ADJUSTMENT

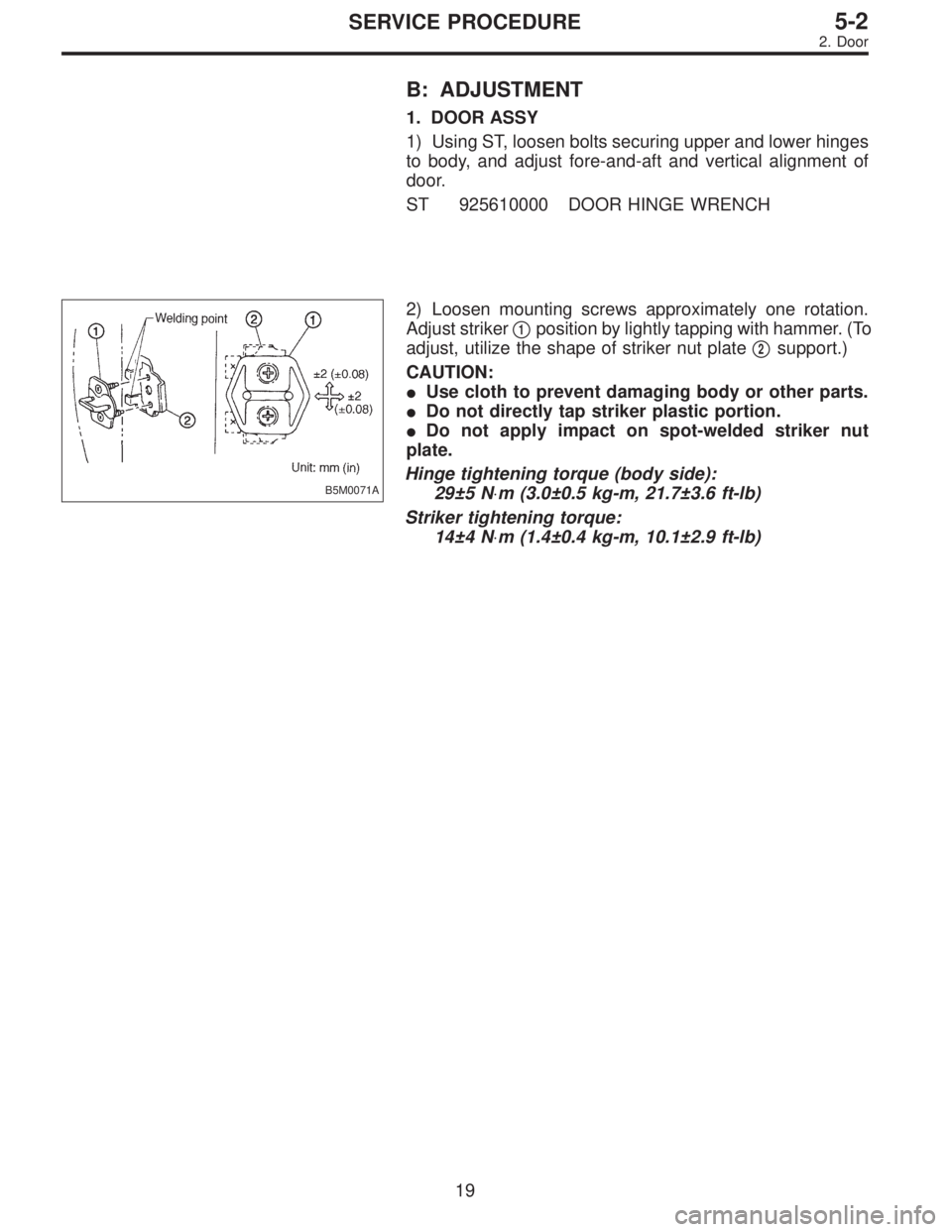

1. DOOR ASSY
1) Using ST, loosen bolts securing upper and lower hinges
to body, and adjust fore-and-aft and vertical alignment of
door.
ST 925610000 DOOR HINGE WRENCH
B5M0071A
2) Loosen

Page 1522 of 2890

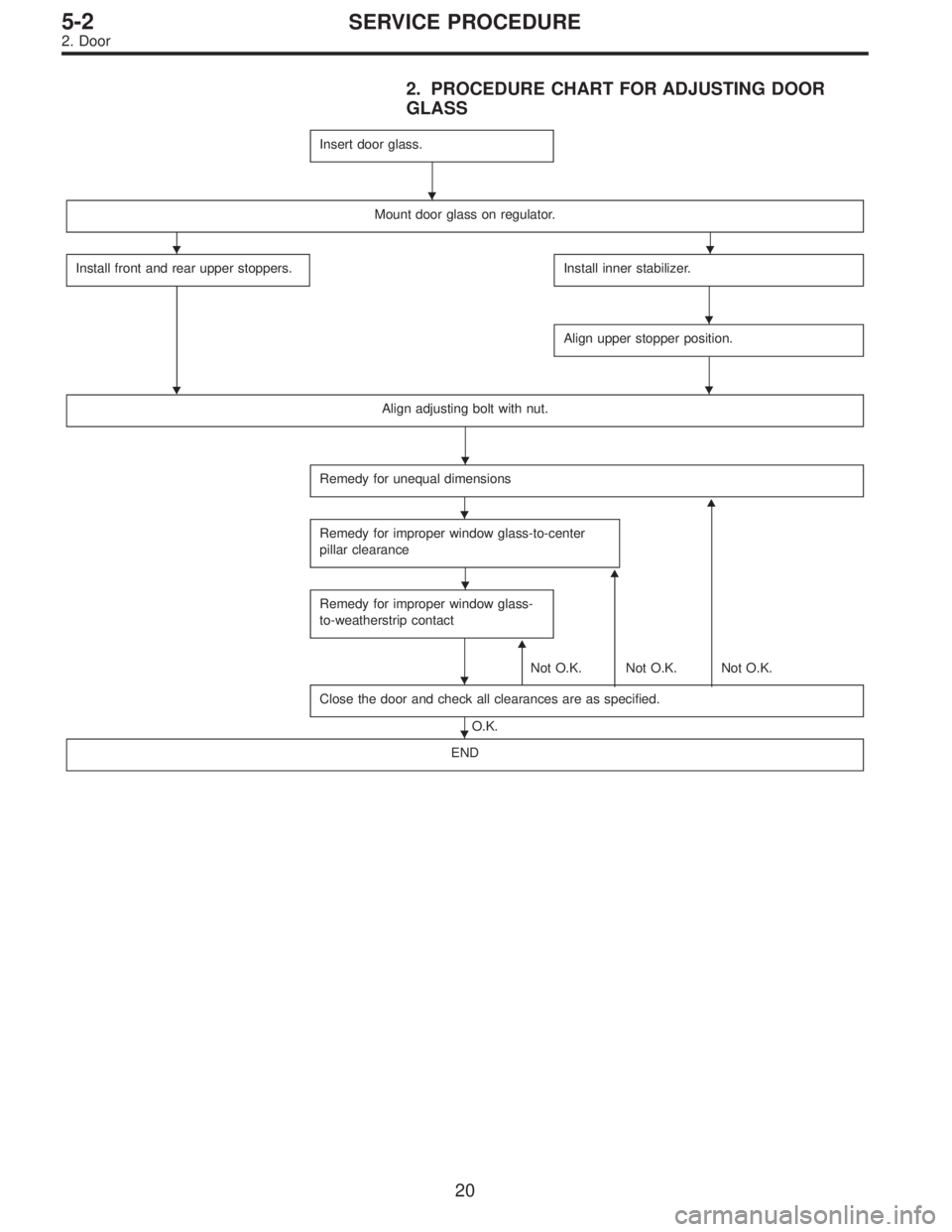

SUBARU LEGACY 1996  Service Repair Manual 2. PROCEDURE CHART FOR ADJUSTING DOOR
GLASS
Insert door glass.
Mount door glass on regulator.
Install front and rear upper stoppers.

Install inner stabilizer.
Align upper stopper position.
Align adj

Page 1523 of 2890

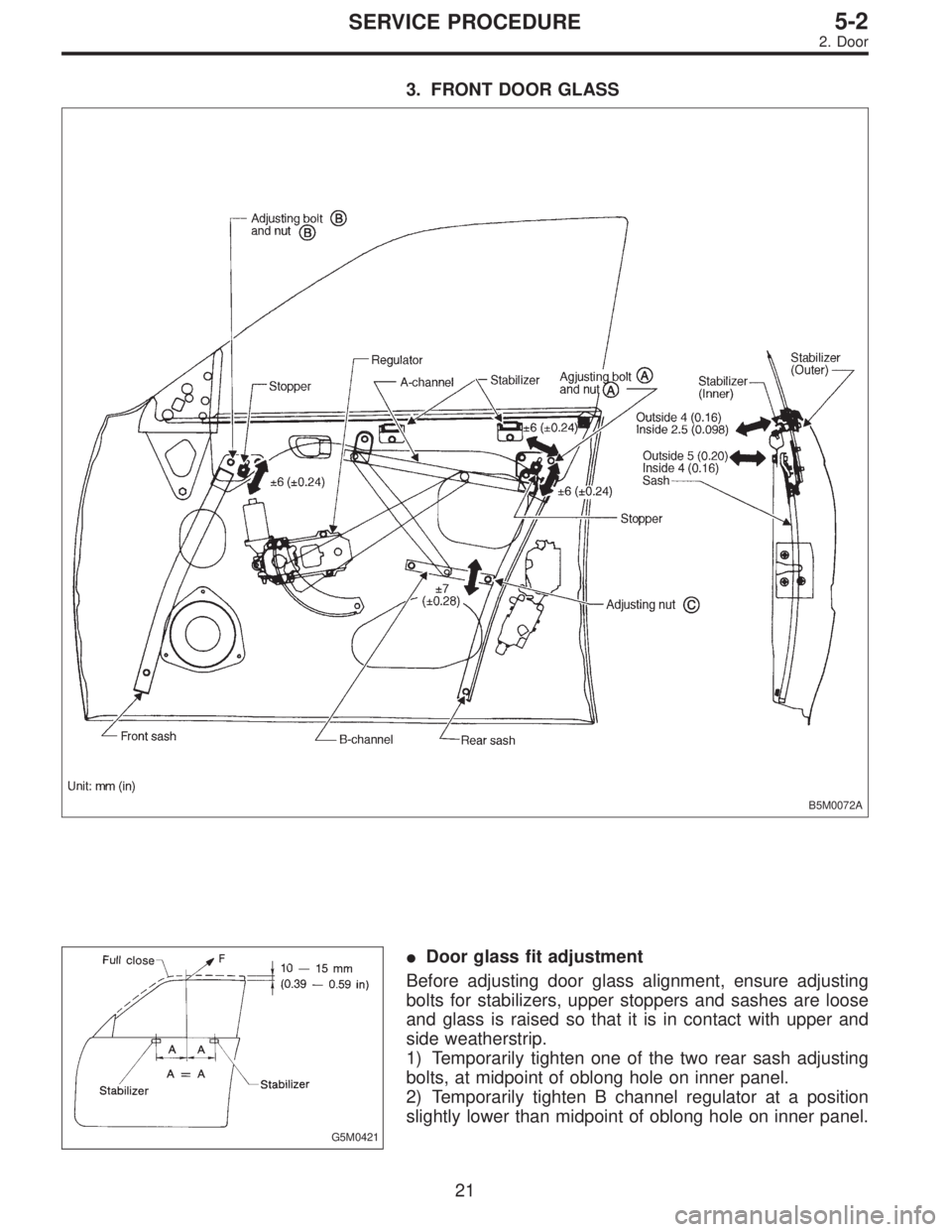

SUBARU LEGACY 1996  Service Repair Manual 3. FRONT DOOR GLASS
B5M0072A
G5M0421
Door glass fit adjustment
Before adjusting door glass alignment, ensure adjusting
bolts for stabilizers, upper stoppers and sashes are loose
and glass is raised s

Page 1524 of 2890

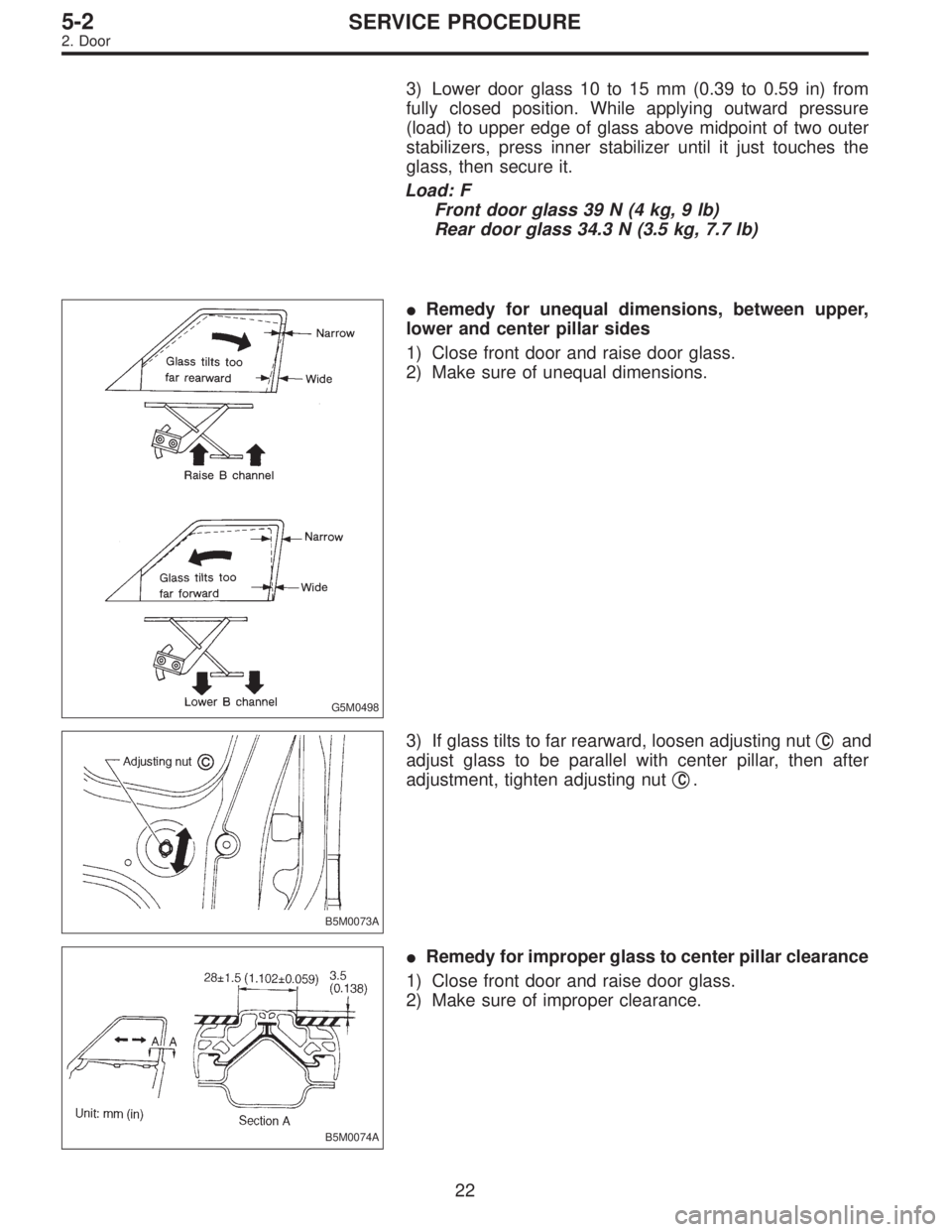

SUBARU LEGACY 1996  Service Repair Manual 3) Lower door glass 10 to 15 mm (0.39 to 0.59 in) from
fully closed position. While applying outward pressure
(load) to upper edge of glass above midpoint of two outer
stabilizers, press inner stabili

Page 1525 of 2890

SUBARU LEGACY 1996  Service Repair Manual B5M0075A
3) If clearance is improper, loosen adjusting nutA, boltA
and adjust glass to center pillar.
G5M0511
Remedy for improper upper stop point of door glass
1) Loosen front and rear sash stoppe

Page 1526 of 2890

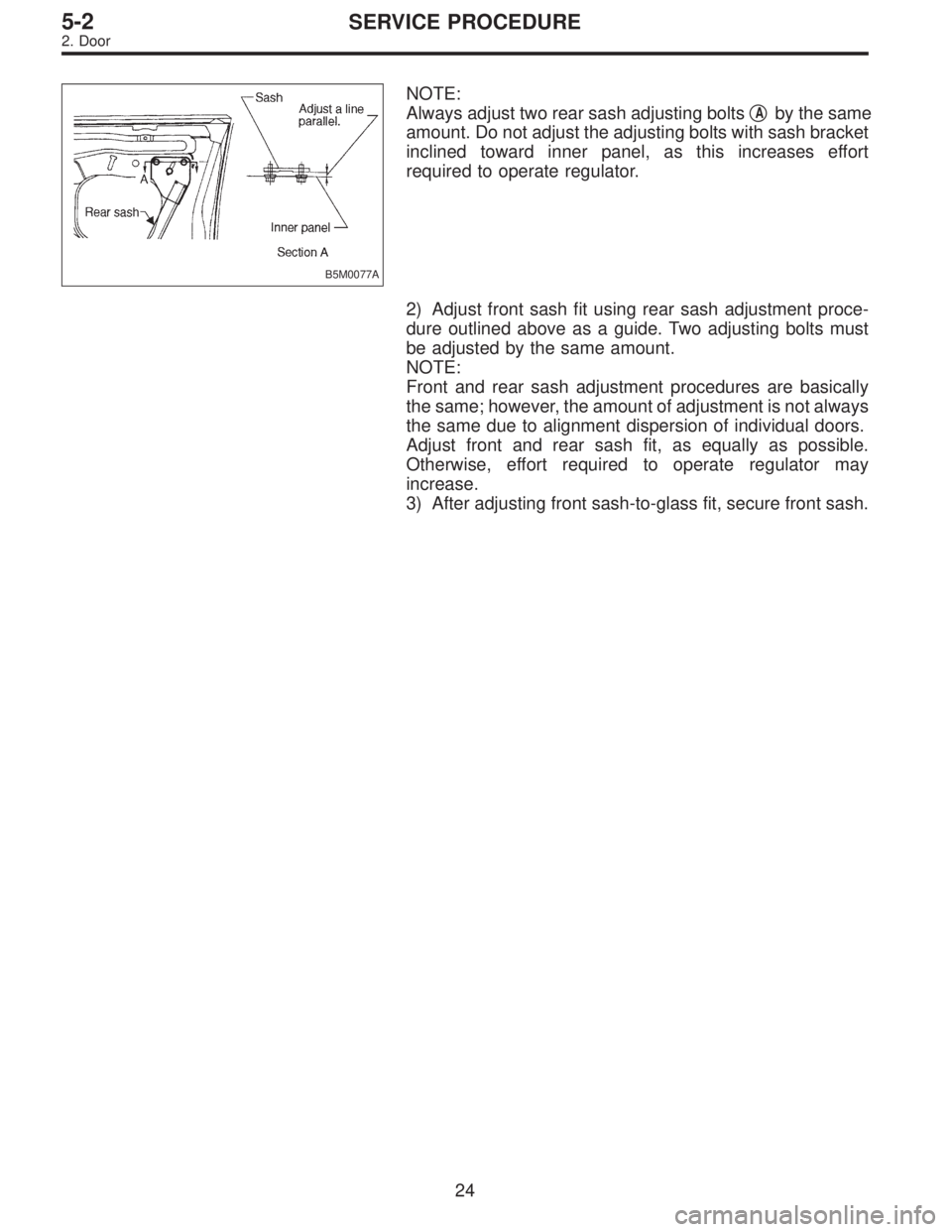

SUBARU LEGACY 1996  Service Repair Manual B5M0077A
NOTE:
Always adjust two rear sash adjusting bolts
Aby the same
amount. Do not adjust the adjusting bolts with sash bracket
inclined toward inner panel, as this increases effort
required to o

Page 1527 of 2890

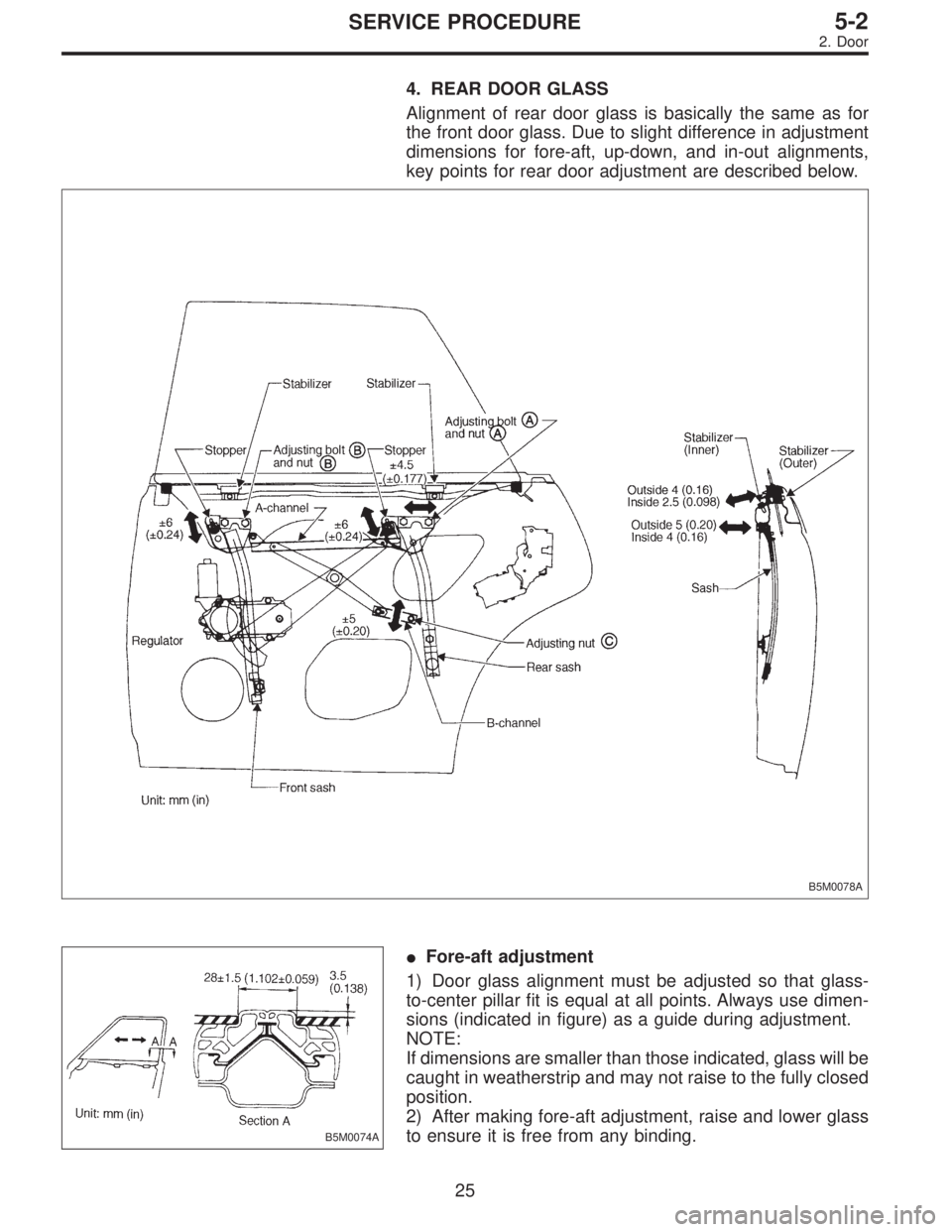

SUBARU LEGACY 1996  Service Repair Manual 4. REAR DOOR GLASS
Alignment of rear door glass is basically the same as for
the front door glass. Due to slight difference in adjustment
dimensions for fore-aft, up-down, and in-out alignments,
key p

Page 1528 of 2890

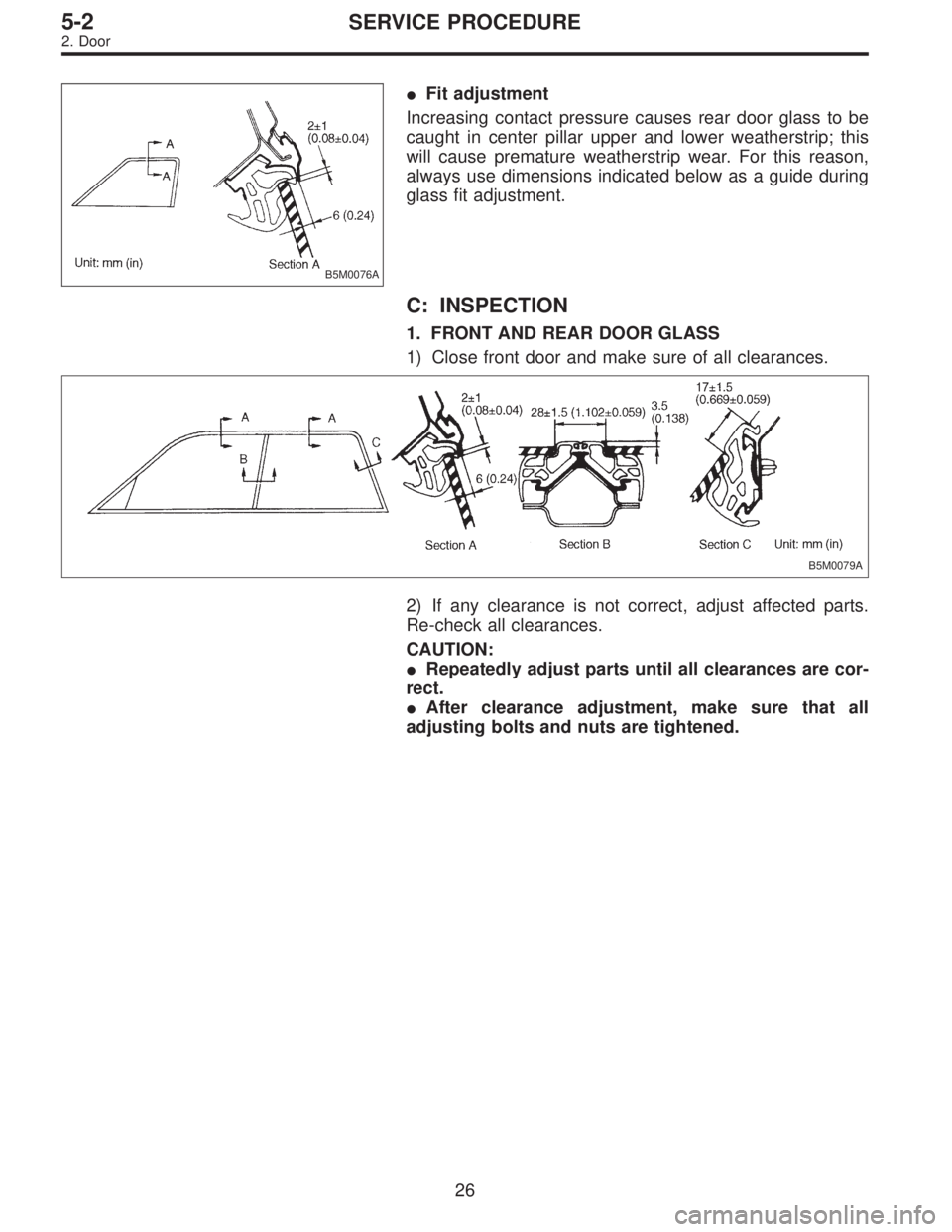

SUBARU LEGACY 1996  Service Repair Manual B5M0076A
Fit adjustment
Increasing contact pressure causes rear door glass to be
caught in center pillar upper and lower weatherstrip; this
will cause premature weatherstrip wear. For this reason,
al
