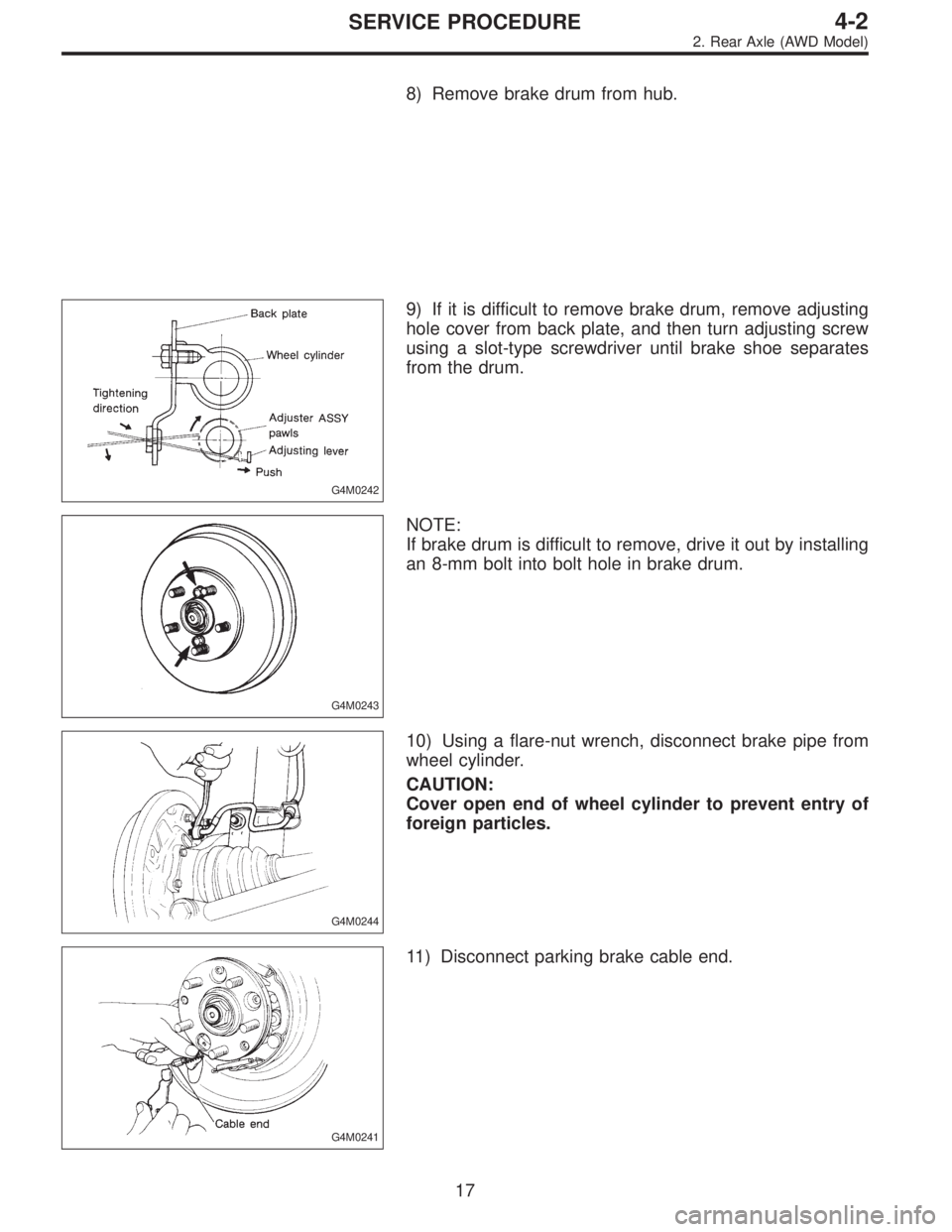

SUBARU LEGACY 1996 Service Repair Manual 8) Remove brake drum from hub.
G4M0242
9) If it is difficult to remove brake drum, remove adjusting
hole cover from back plate, and then turn adjusting screw
using a slot-type screwdriver until brake

Page 1066 of 2890

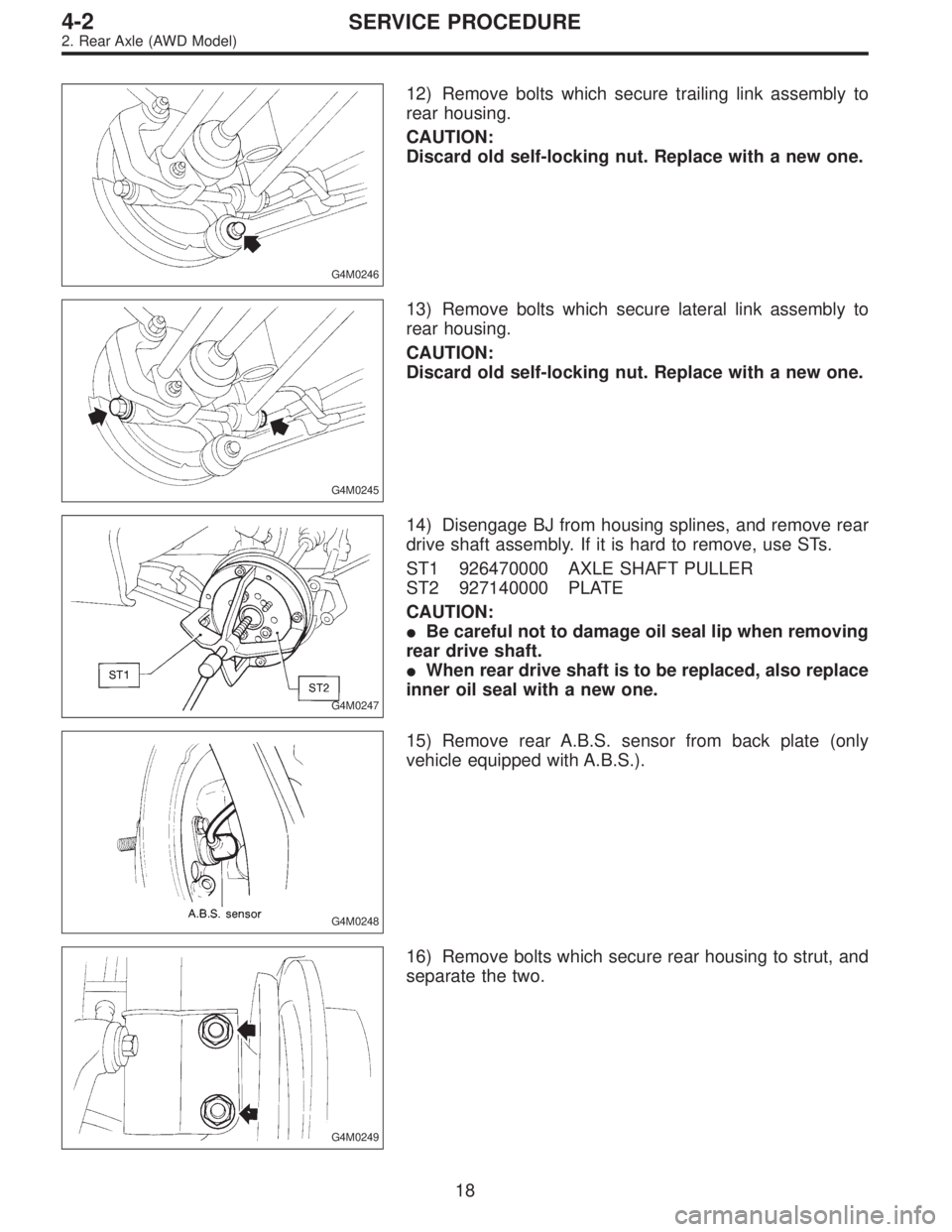

SUBARU LEGACY 1996 Service Repair Manual G4M0246
12) Remove bolts which secure trailing link assembly to
rear housing.
CAUTION:
Discard old self-locking nut. Replace with a new one.
G4M0245
13) Remove bolts which secure lateral link assembly

Page 1067 of 2890

SUBARU LEGACY 1996 Service Repair Manual G4M0250

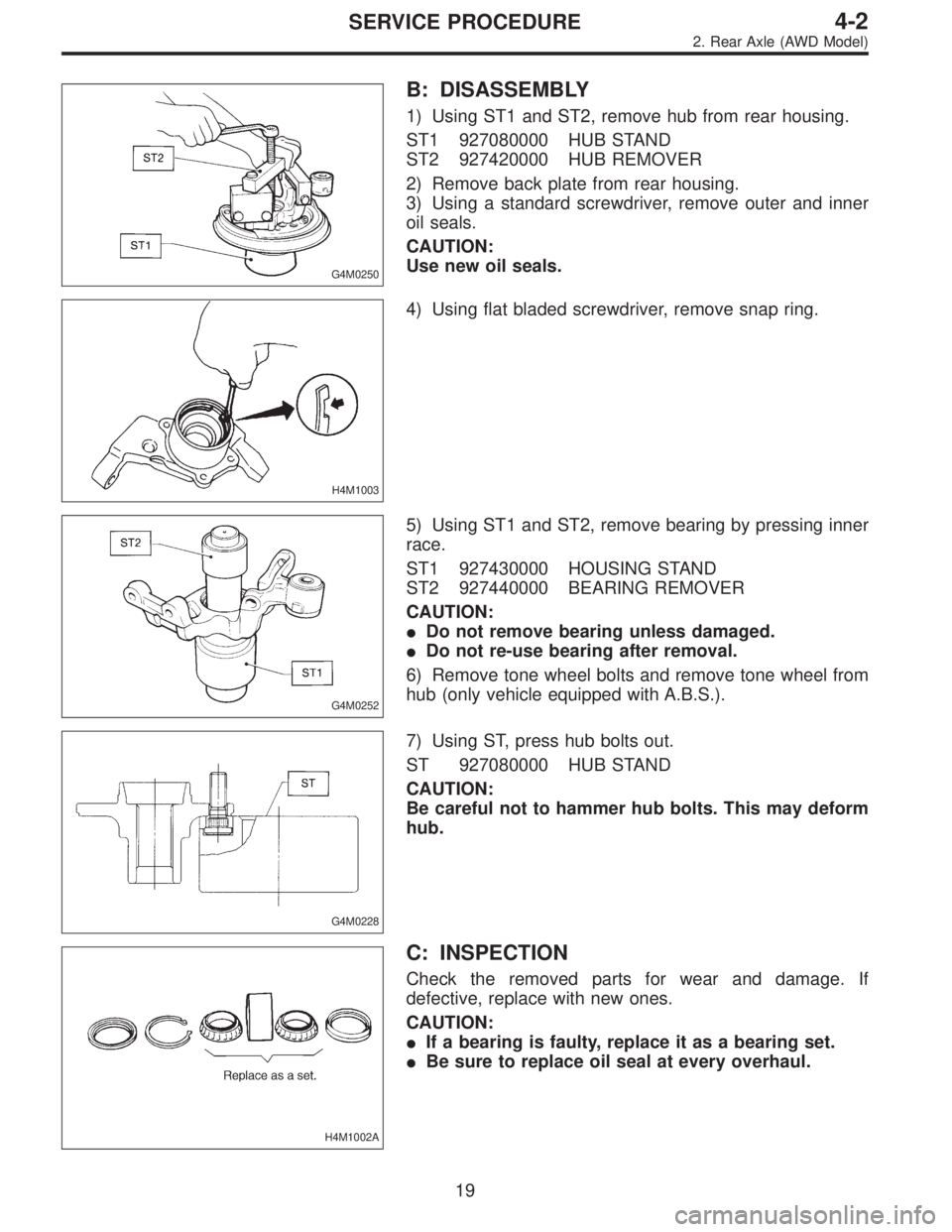

B: DISASSEMBLY
1) Using ST1 and ST2, remove hub from rear housing.
ST1 927080000 HUB STAND
ST2 927420000 HUB REMOVER
2) Remove back plate from rear housing.
3) Using a standard screwdriver, re

Page 1068 of 2890

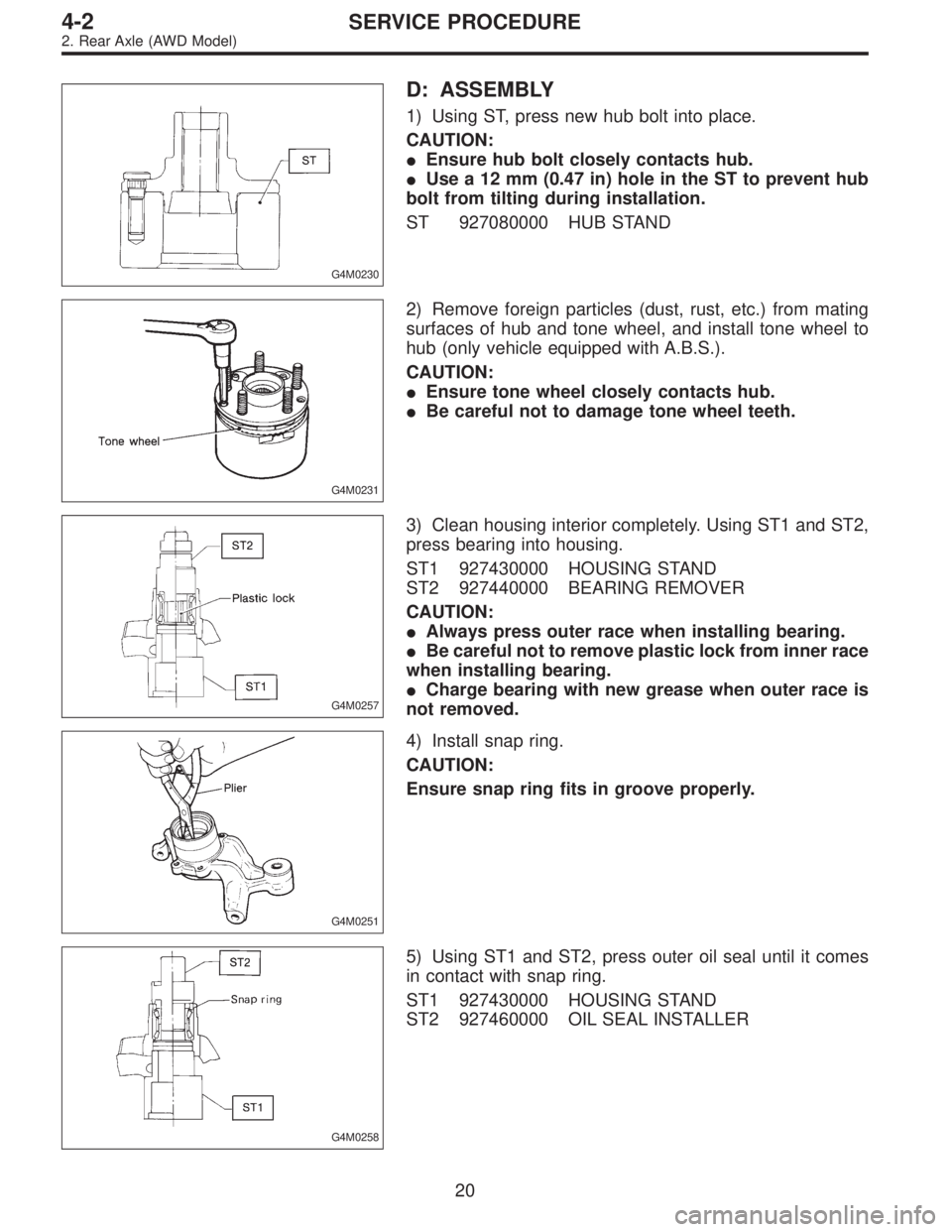

SUBARU LEGACY 1996 Service Repair Manual G4M0230
D: ASSEMBLY
1) Using ST, press new hub bolt into place.
CAUTION:
Ensure hub bolt closely contacts hub.
Use a 12 mm (0.47 in) hole in the ST to prevent hub
bolt from tilting during installati

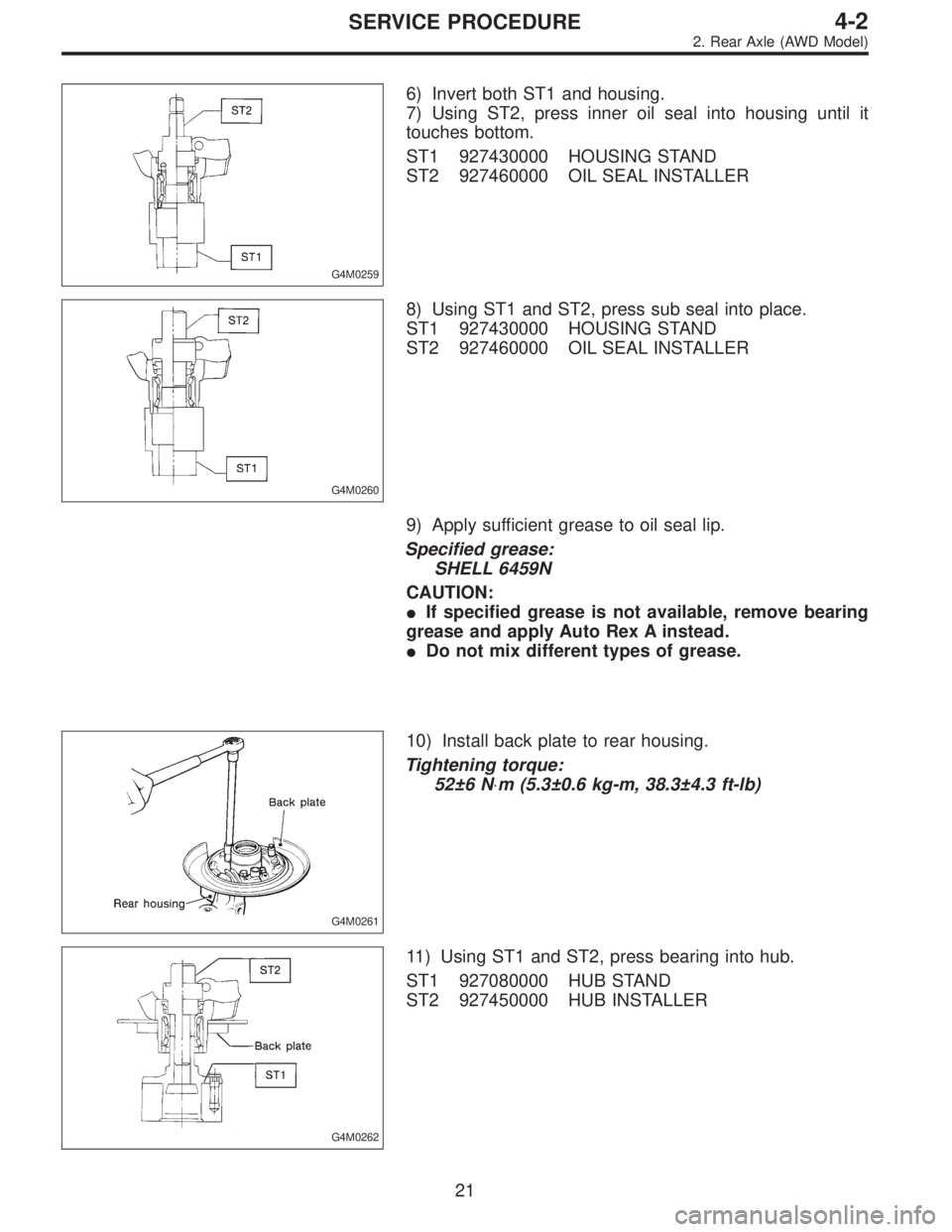

Page 1069 of 2890

SUBARU LEGACY 1996 Service Repair Manual G4M0259
6) Invert both ST1 and housing.
7) Using ST2, press inner oil seal into housing until it
touches bottom.
ST1 927430000 HOUSING STAND
ST2 927460000 OIL SEAL INSTALLER
G4M0260
8) Using ST1 and S

Page 1070 of 2890

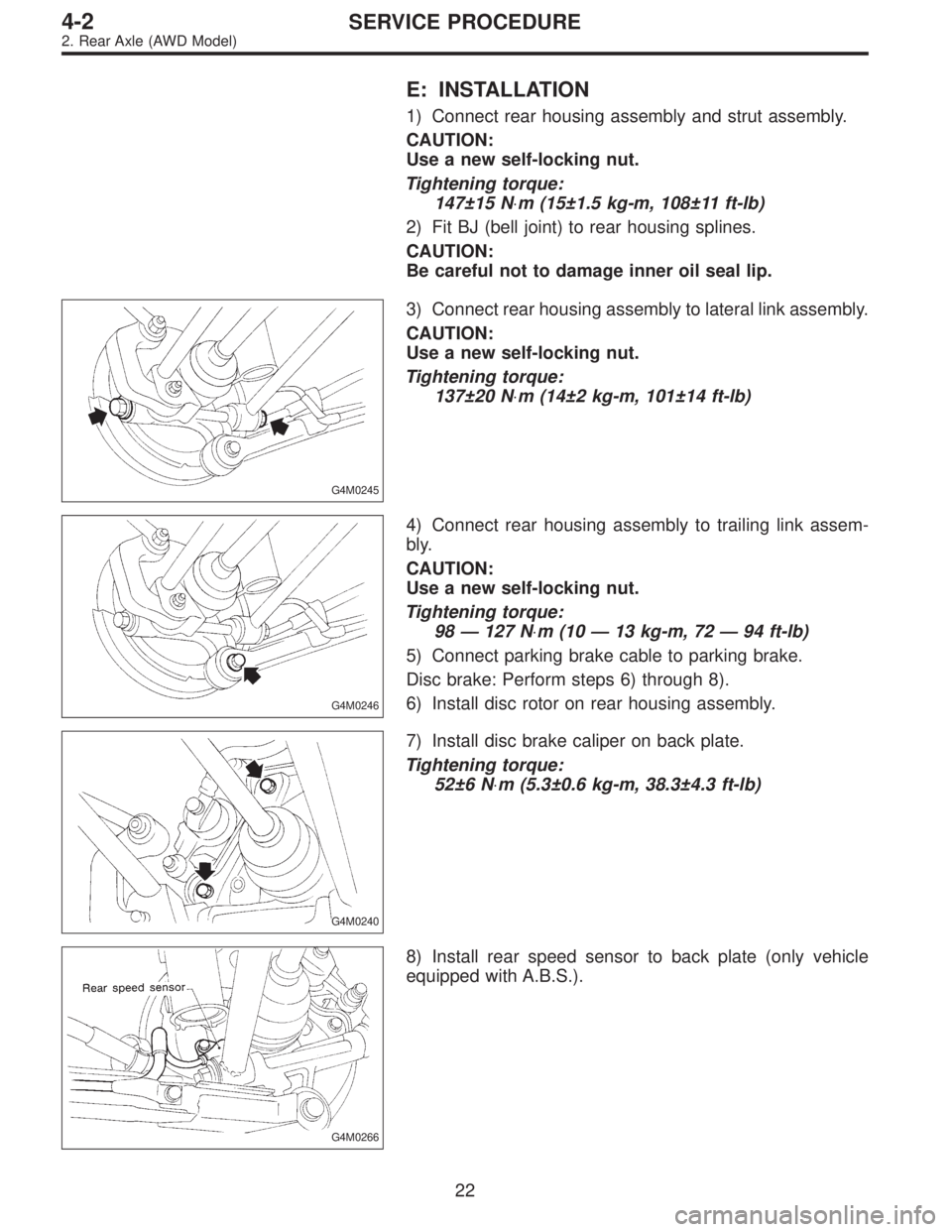

SUBARU LEGACY 1996 Service Repair Manual E: INSTALLATION
1) Connect rear housing assembly and strut assembly.
CAUTION:
Use a new self-locking nut.
Tightening torque:
147±15 N⋅m (15±1.5 kg-m, 108±11 ft-lb)
2) Fit BJ (bell joint) to rear

Page 1071 of 2890

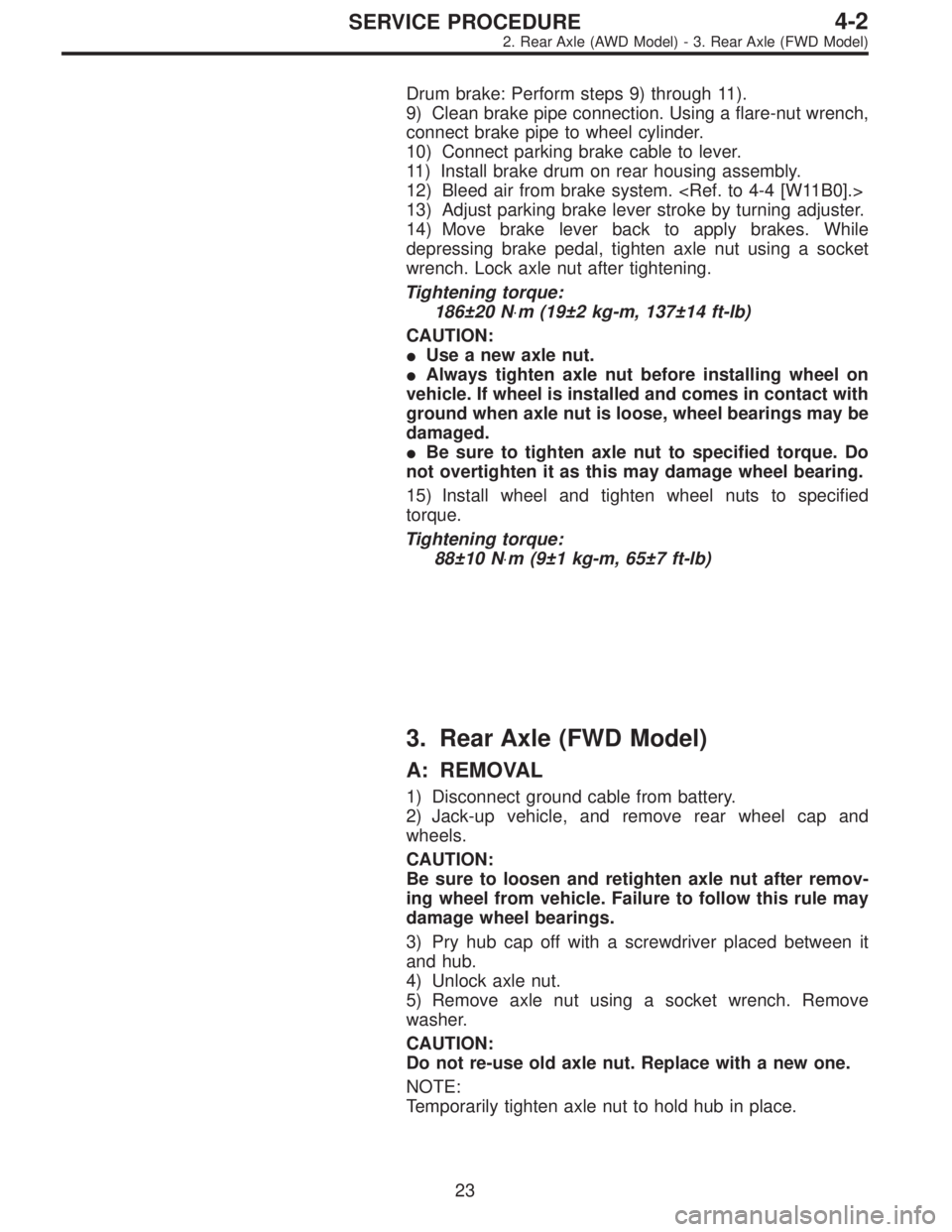

SUBARU LEGACY 1996 Service Repair Manual Drum brake: Perform steps 9) through 11).
9) Clean brake pipe connection. Using a flare-nut wrench,
connect brake pipe to wheel cylinder.
10) Connect parking brake cable to lever.
11) Install brake dr

Page 1072 of 2890

SUBARU LEGACY 1996 Service Repair Manual Drum brake: Perform steps 9) through 11).
9) Clean brake pipe connection. Using a flare-nut wrench,
connect brake pipe to wheel cylinder.
10) Connect parking brake cable to lever.
11) Install brake dr
