1996 SUBARU LEGACY Service Repair Manual

jump start terminalstailgatesunroofturn signalaudiolane assist
Popular search:
batteryfuel tank capacityspark plugsdiagramchild seatBrake caliperelectrical unit location
Previous
Next
Load previous 8 pages

Page 1209 of 2890

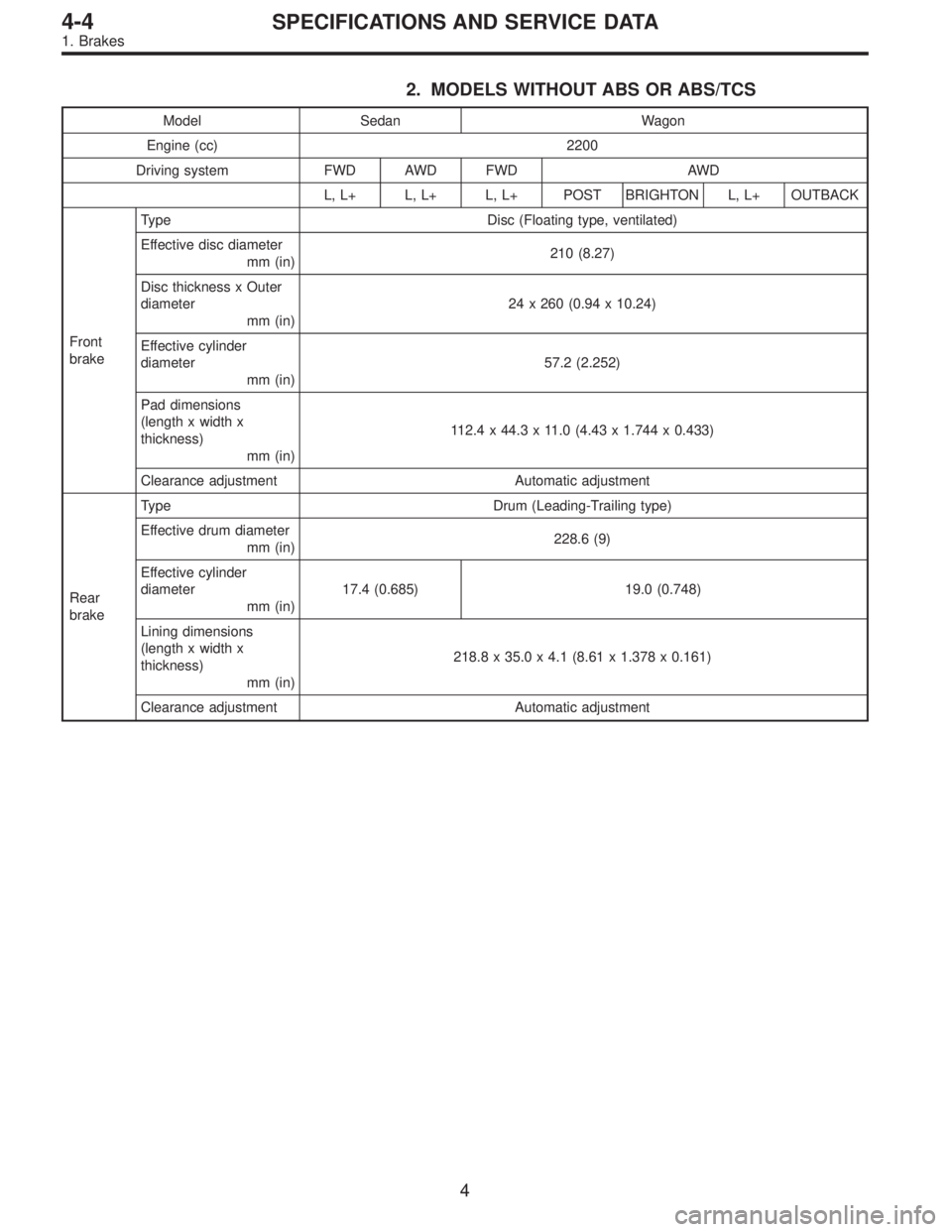

SUBARU LEGACY 1996 Service Repair Manual 2. MODELS WITHOUT ABS OR ABS/TCS Model Sedan Wagon Engine (cc) 2200 Driving system FWD AWD FWD AWD L, L+ L, L+ L, L+ POST BRIGHTON L, L+ OUTBACK Front brakeType Disc (Floating type, ventilated) Effect

Page 1210 of 2890

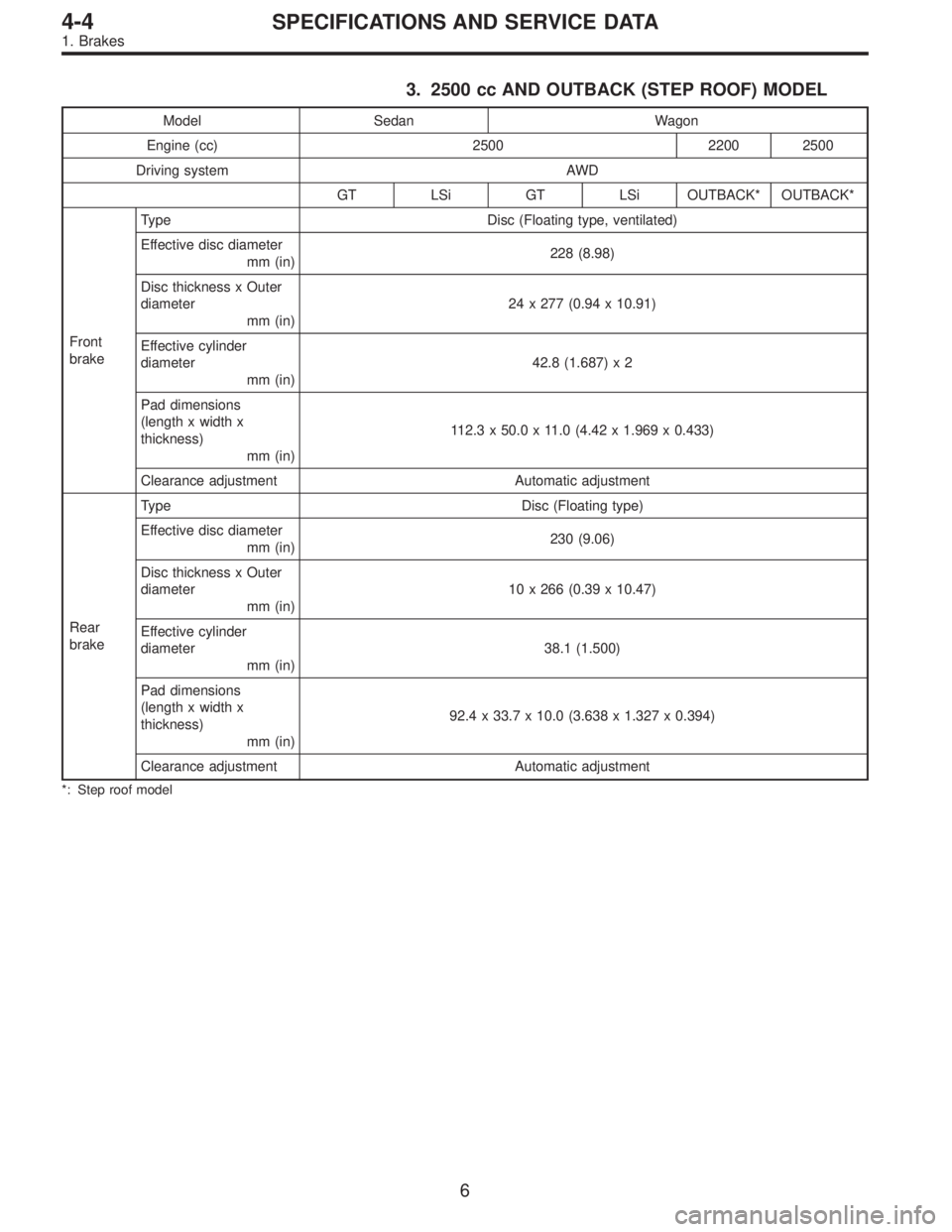

SUBARU LEGACY 1996 Service Repair Manual Model Sedan Wagon Engine (cc) 2200 Driving system FWD AWD FWD AWD L+ L+ L+ POST BRIGHTON L+ OUTBACK Hill holder—— —— Parking brakeType Mechanical on rear brakes, drum in disc Effective drum

Page 1211 of 2890

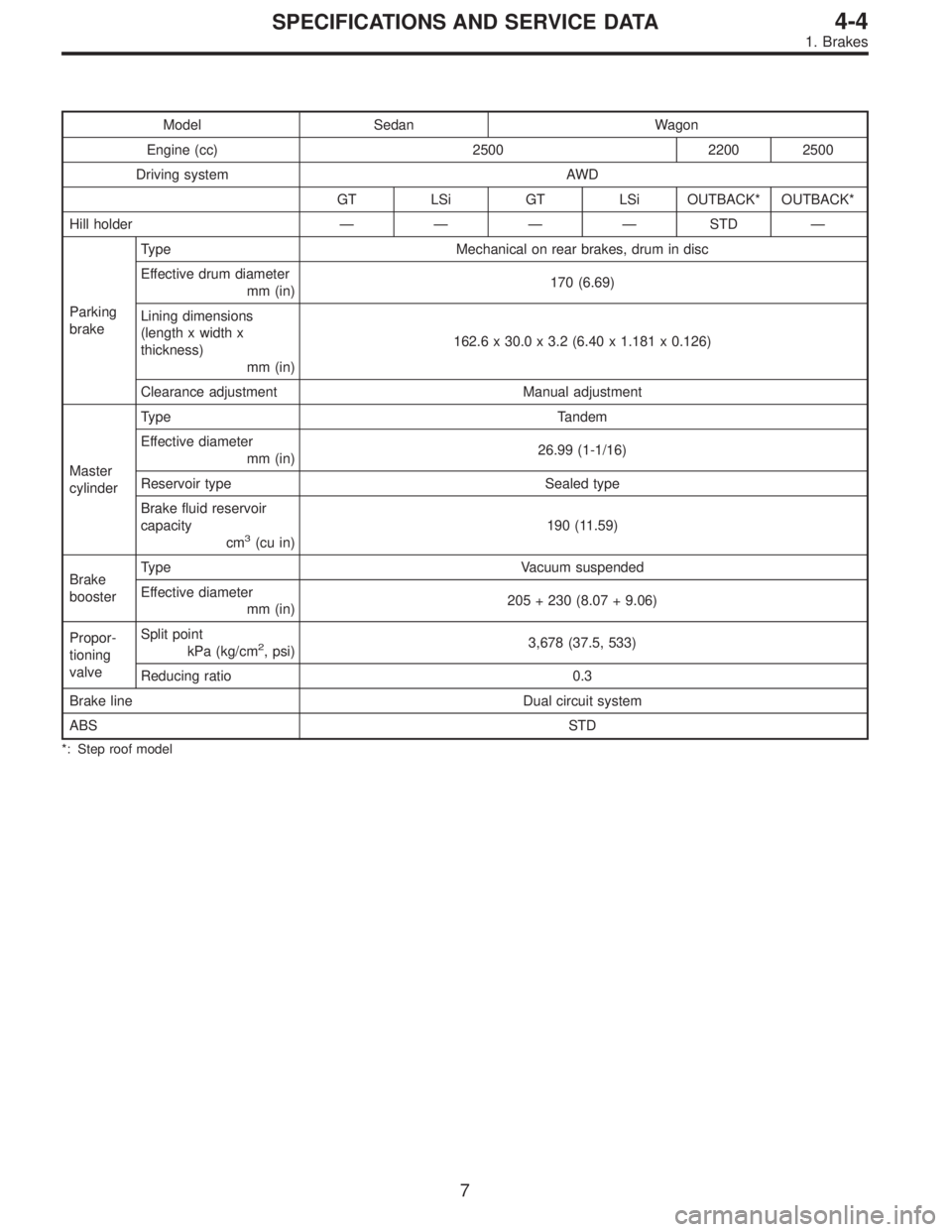

SUBARU LEGACY 1996 Service Repair Manual 3. 2500 cc AND OUTBACK (STEP ROOF) MODEL Model Sedan Wagon Engine (cc) 2500 2200 2500 Driving system AWD GT LSi GT LSi OUTBACK* OUTBACK* Front brakeType Disc (Floating type, ventilated) Effective disc

Page 1212 of 2890

SUBARU LEGACY 1996 Service Repair Manual Model Sedan Wagon Engine (cc) 2500 2200 2500 Driving system AWD GT LSi GT LSi OUTBACK* OUTBACK* Hill holder————STD— Parking brakeType Mechanical on rear brakes, drum in disc Effective drum d

Page 1213 of 2890

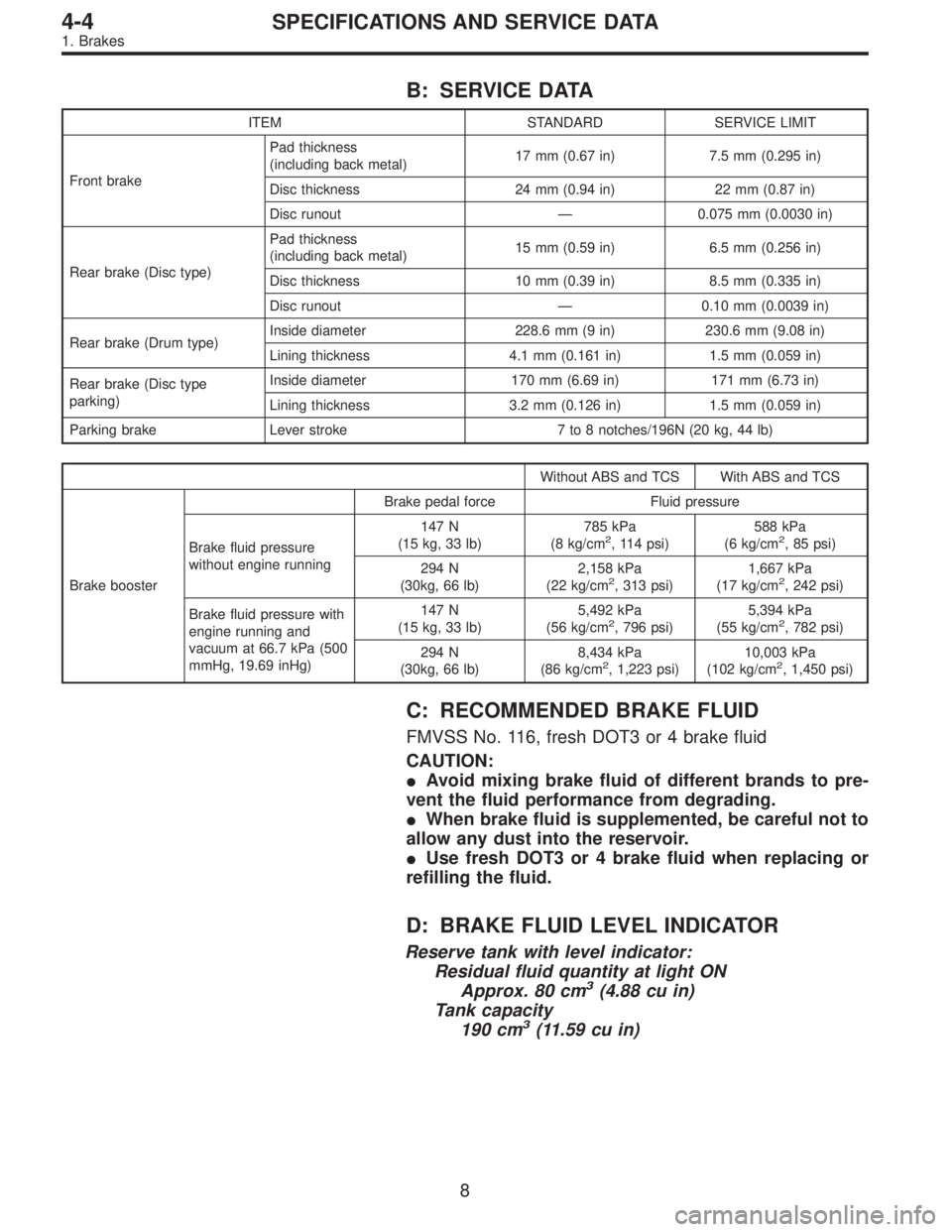

SUBARU LEGACY 1996 Service Repair Manual B: SERVICE DATA ITEM STANDARD SERVICE LIMIT Front brakePad thickness (including back metal)17 mm (0.67 in) 7.5 mm (0.295 in) Disc thickness 24 mm (0.94 in) 22 mm (0.87 in) Disc runout—0.075 mm (0.00

Page 1214 of 2890

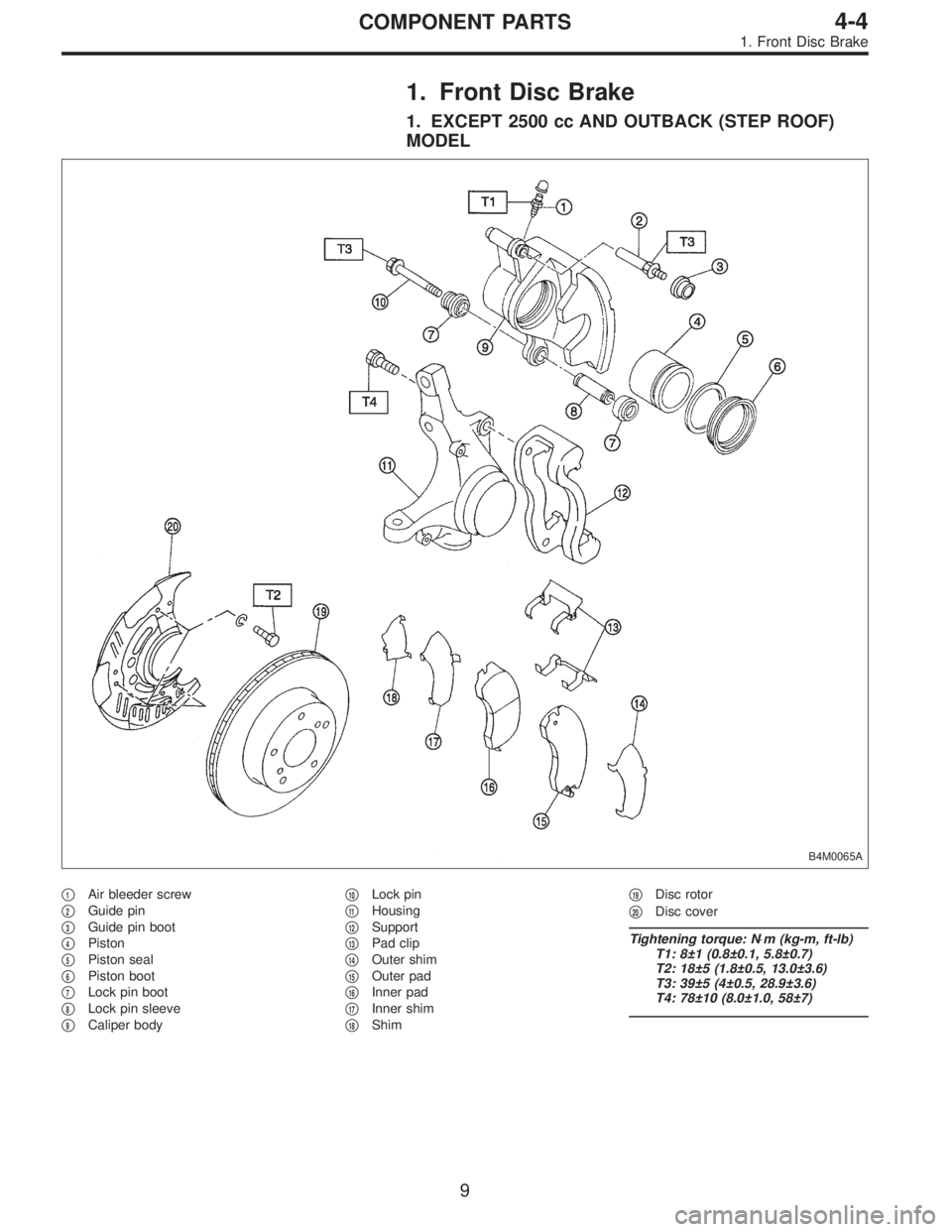

SUBARU LEGACY 1996 Service Repair Manual 1. Front Disc Brake 1. EXCEPT 2500 cc AND OUTBACK (STEP ROOF) MODEL B4M0065A 1Air bleeder screw  2Guide pin  3Guide pin boot  4Piston  5Piston seal  6Piston boot  7Lock pin boot  8Lock pin sle

Page 1215 of 2890

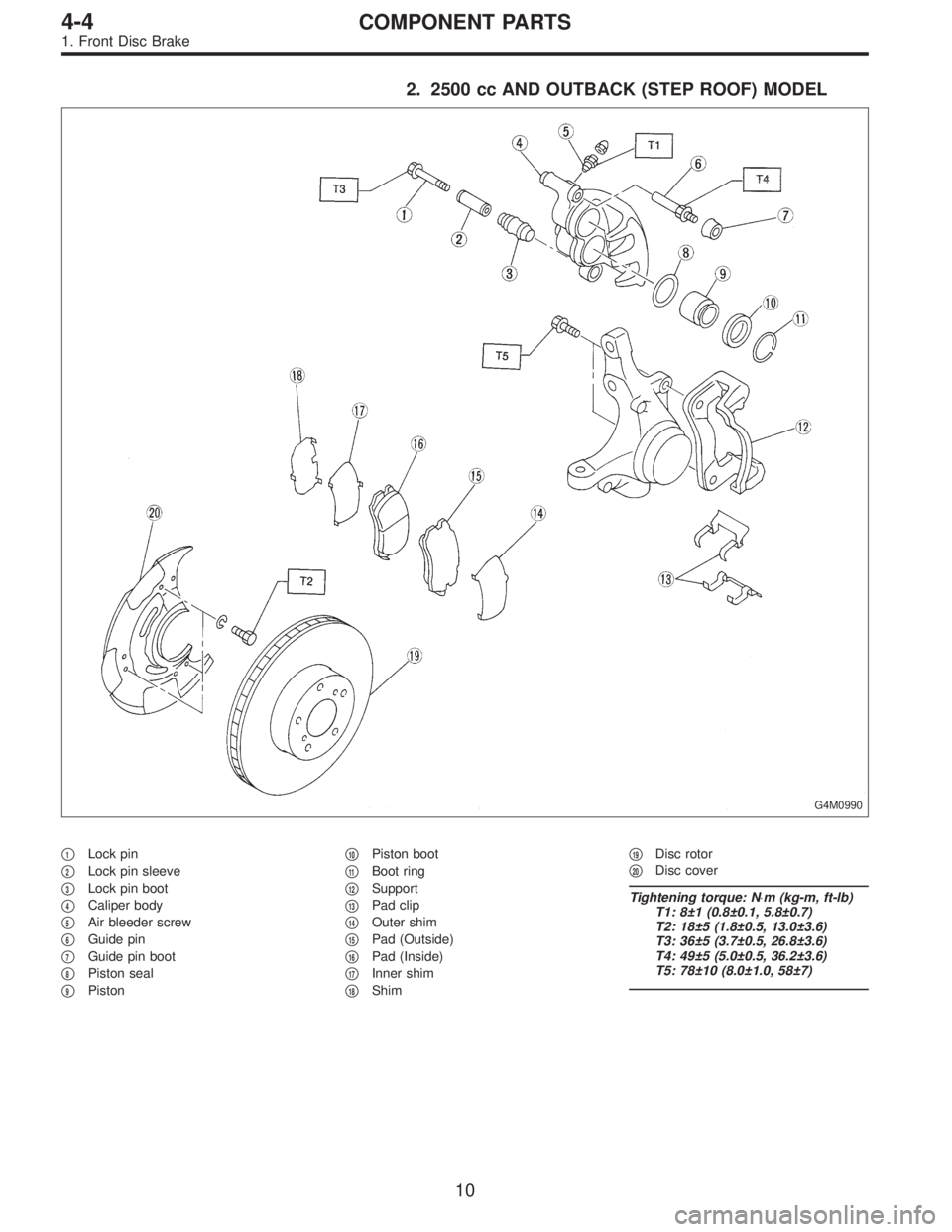

SUBARU LEGACY 1996 Service Repair Manual 2. 2500 cc AND OUTBACK (STEP ROOF) MODEL G4M0990 1Lock pin  2Lock pin sleeve  3Lock pin boot  4Caliper body  5Air bleeder screw  6Guide pin  7Guide pin boot  8Piston seal  9Piston 10Piston b

Page 1216 of 2890

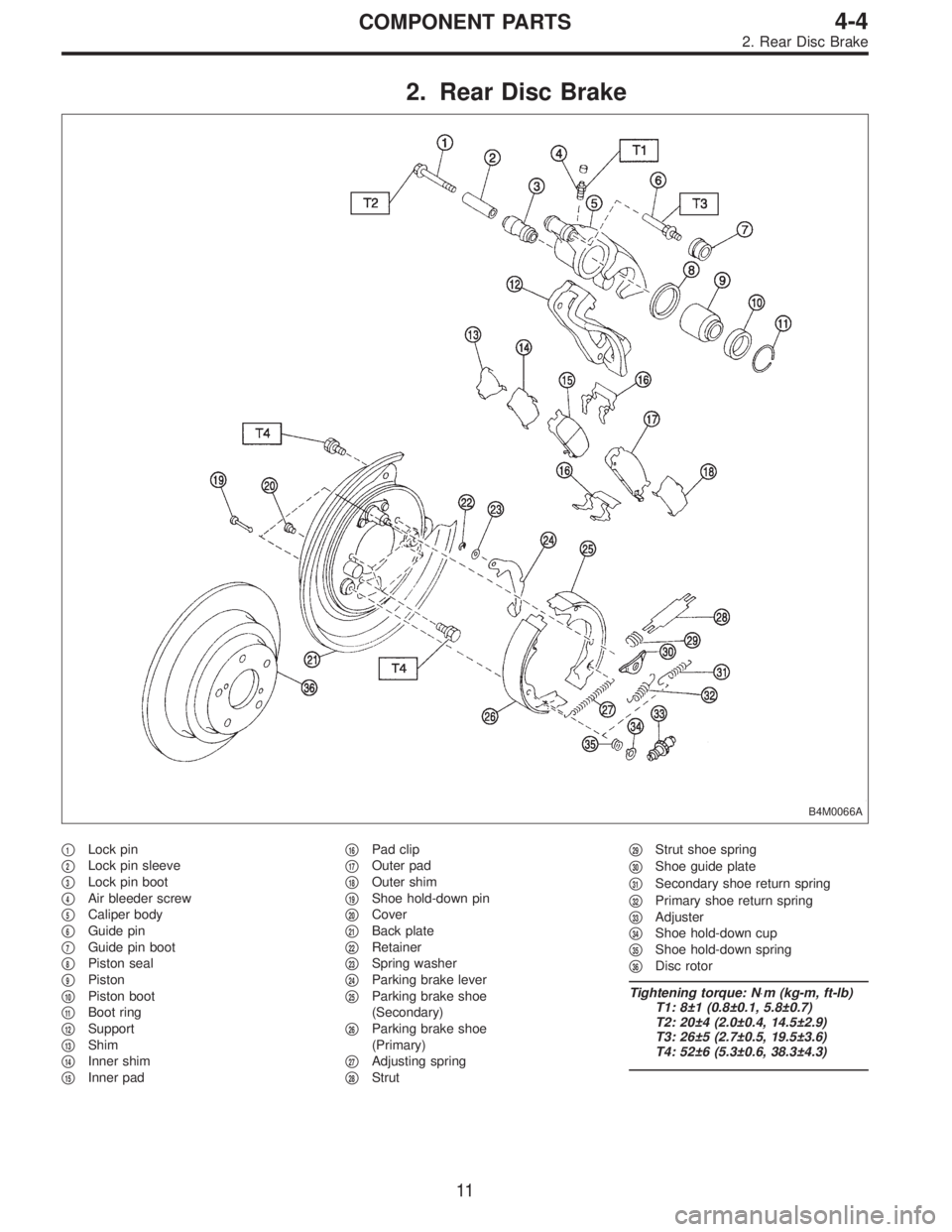

SUBARU LEGACY 1996 Service Repair Manual 2. Rear Disc Brake B4M0066A 1Lock pin  2Lock pin sleeve  3Lock pin boot  4Air bleeder screw  5Caliper body  6Guide pin  7Guide pin boot  8Piston seal  9Piston  10Piston boot  11Boot ring
Load next 8 pages
Page:   < prev 1-10 ... 1177-1184 1185-1192 1193-1200 1201-1208 1209-1216 1217-1224 1225-1232 1233-1240 1241-1248 ... 2896 next >
airbagnight visionoil capacityair conditioningdiagramparking sensors
Popular search:
fuse box locationbatterywheelbrake system warning lightheaterAtf oilkey battery
