Page 2537 of 2890
B4M0966

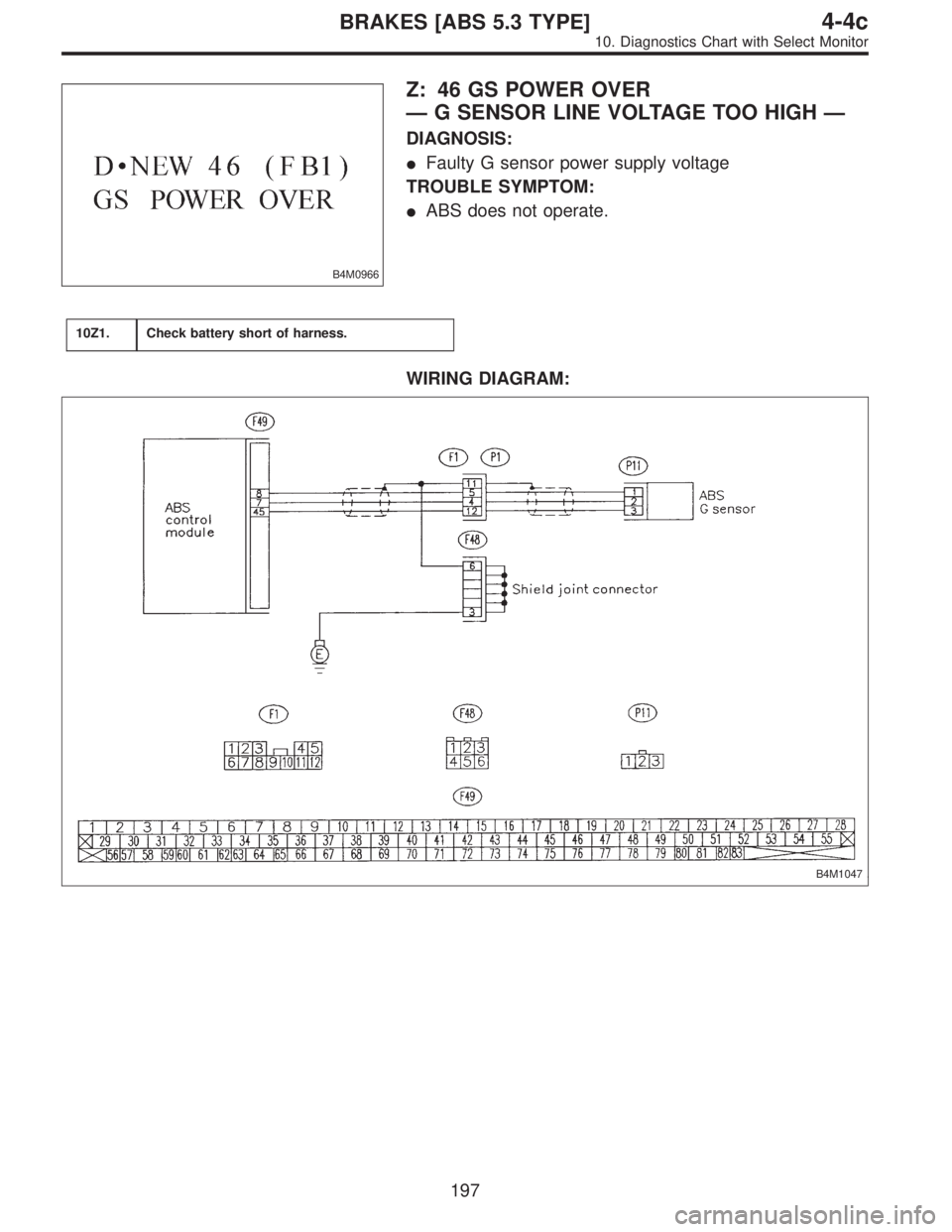

Z: 46 GS POWER OVER
—G SENSOR LINE VOLTAGE TOO HIGH—
DIAGNOSIS:
Faulty G sensor power supply voltage
TROUBLE SYMPTOM:
ABS does not operate.
10Z1.Check battery short of harness.
WIRING DIAGRAM:
B4M1047
197
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2538 of 2890
B4M0855A

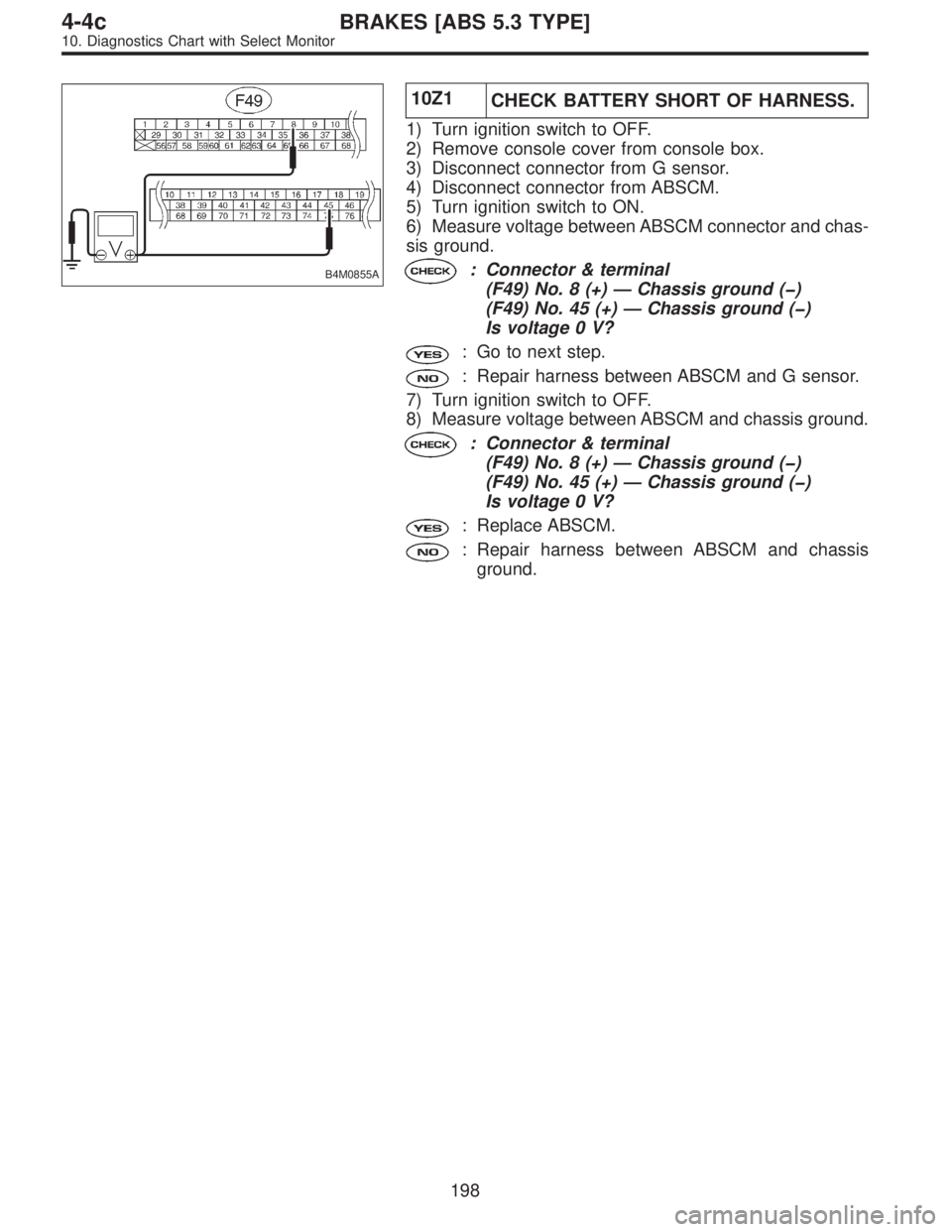

10Z1
CHECK BATTERY SHORT OF HARNESS.
1) Turn ignition switch to OFF.
2) Remove console cover from console box.
3) Disconnect connector from G sensor.
4) Disconnect connector from ABSCM.
5) Turn ignition switch to ON.
6) Measure voltage between ABSCM connector and chas-
sis ground.
: Connector & terminal
(F49) No. 8 (+)—Chassis ground ( )
(F49) No. 45 (+)—Chassis ground ( )
Is voltage 0 V?
: Go to next step.
: Repair harness between ABSCM and G sensor.
7) Turn ignition switch to OFF.
8) Measure voltage between ABSCM and chassis ground.
: Connector & terminal
(F49) No. 8 (+)—Chassis ground ( )
(F49) No. 45 (+)—Chassis ground ( )
Is voltage 0 V?
: Replace ABSCM.
: Repair harness between ABSCM and chassis
ground.
198
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2539 of 2890
B4M0967

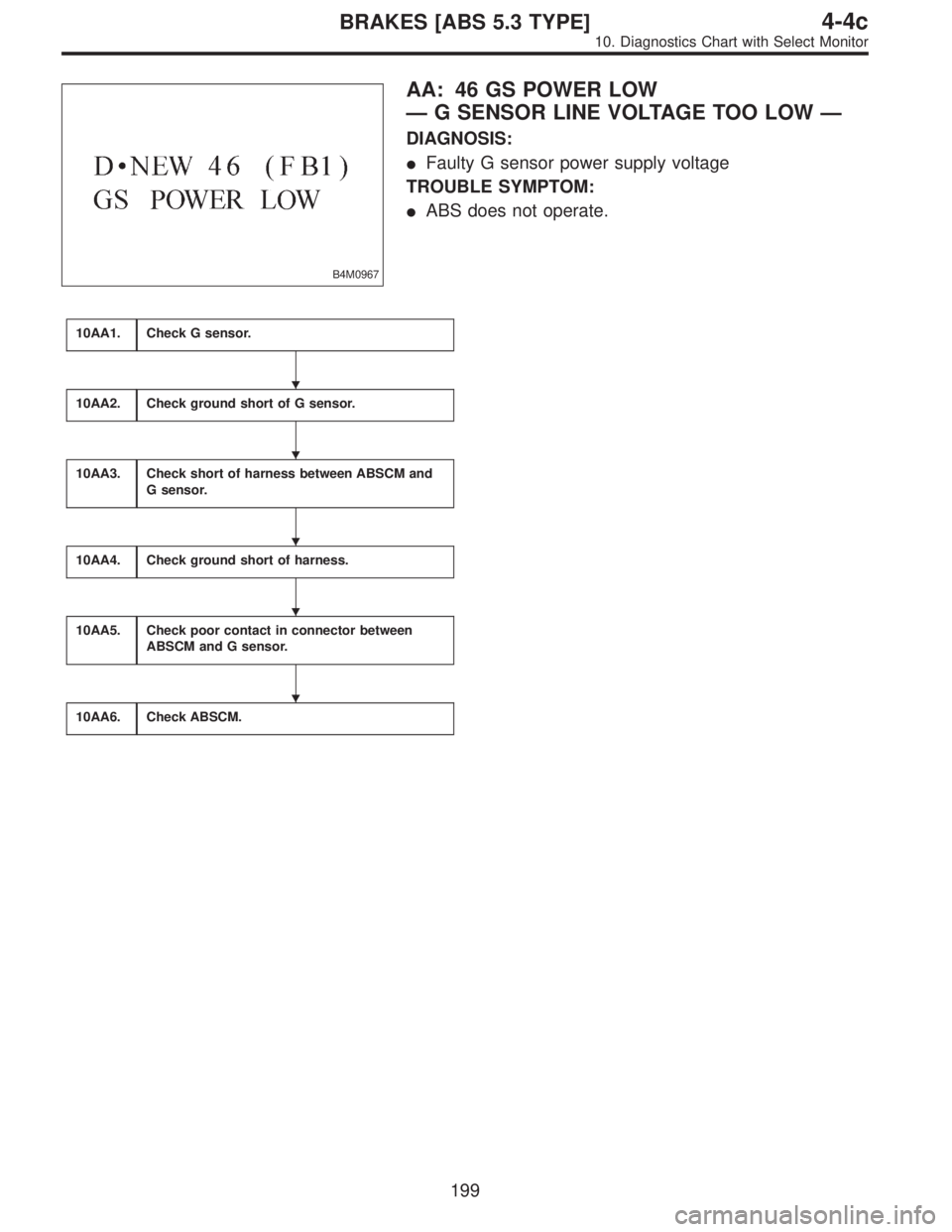

AA: 46 GS POWER LOW
—G SENSOR LINE VOLTAGE TOO LOW—
DIAGNOSIS:
Faulty G sensor power supply voltage
TROUBLE SYMPTOM:
ABS does not operate.
10AA1.Check G sensor.
10AA2.Check ground short of G sensor.
10AA3.Check short of harness between ABSCM and
G sensor.
10AA4.Check ground short of harness.
10AA5.Check poor contact in connector between
ABSCM and G sensor.
10AA6.Check ABSCM.
199
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2540 of 2890

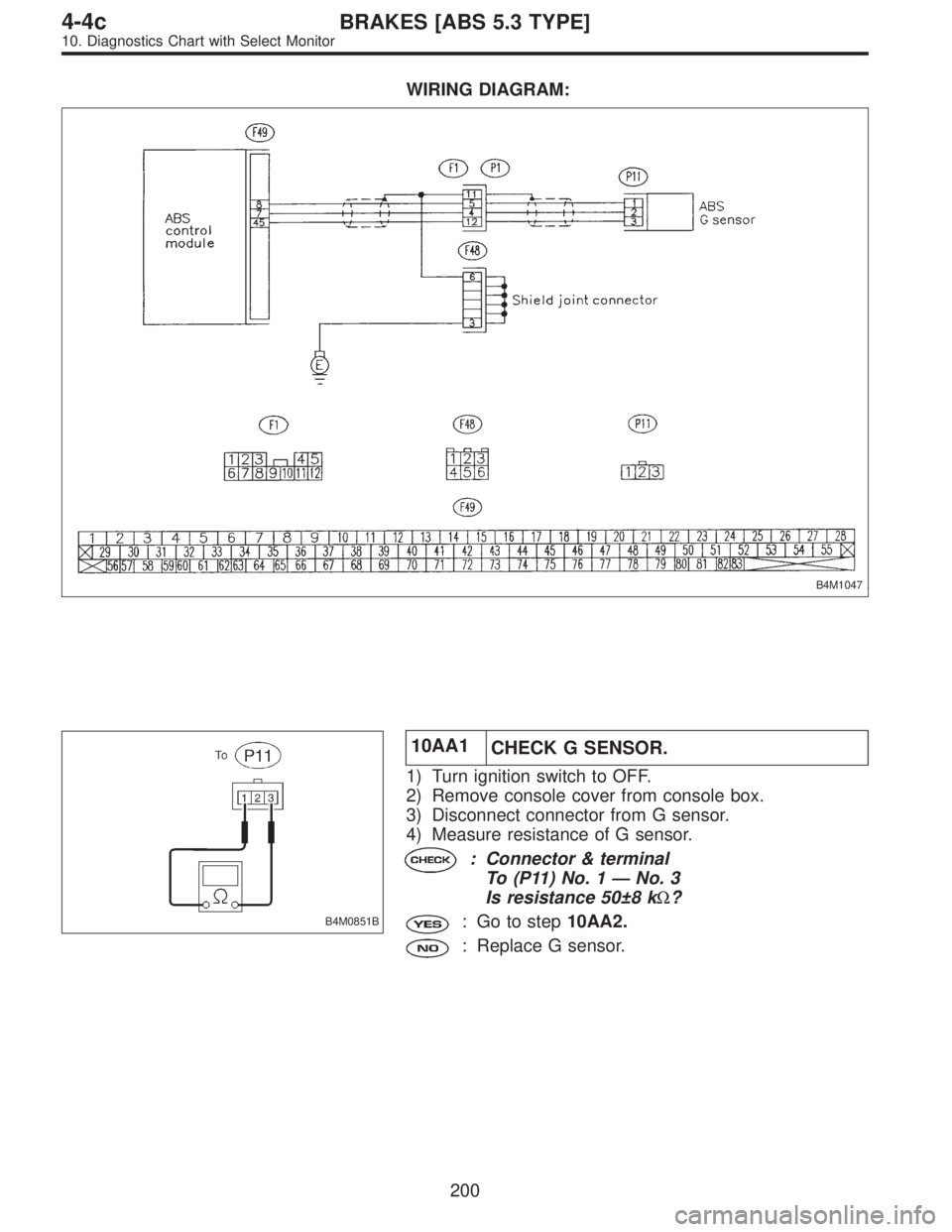

WIRING DIAGRAM:
B4M1047
B4M0851B
10AA1
CHECK G SENSOR.
1) Turn ignition switch to OFF.
2) Remove console cover from console box.
3) Disconnect connector from G sensor.
4) Measure resistance of G sensor.
: Connector & terminal
To (P11) No. 1—No. 3
Is resistance 50±8 kΩ?
: Go to step10AA2.
: Replace G sensor.
200
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2541 of 2890

B4M0852B

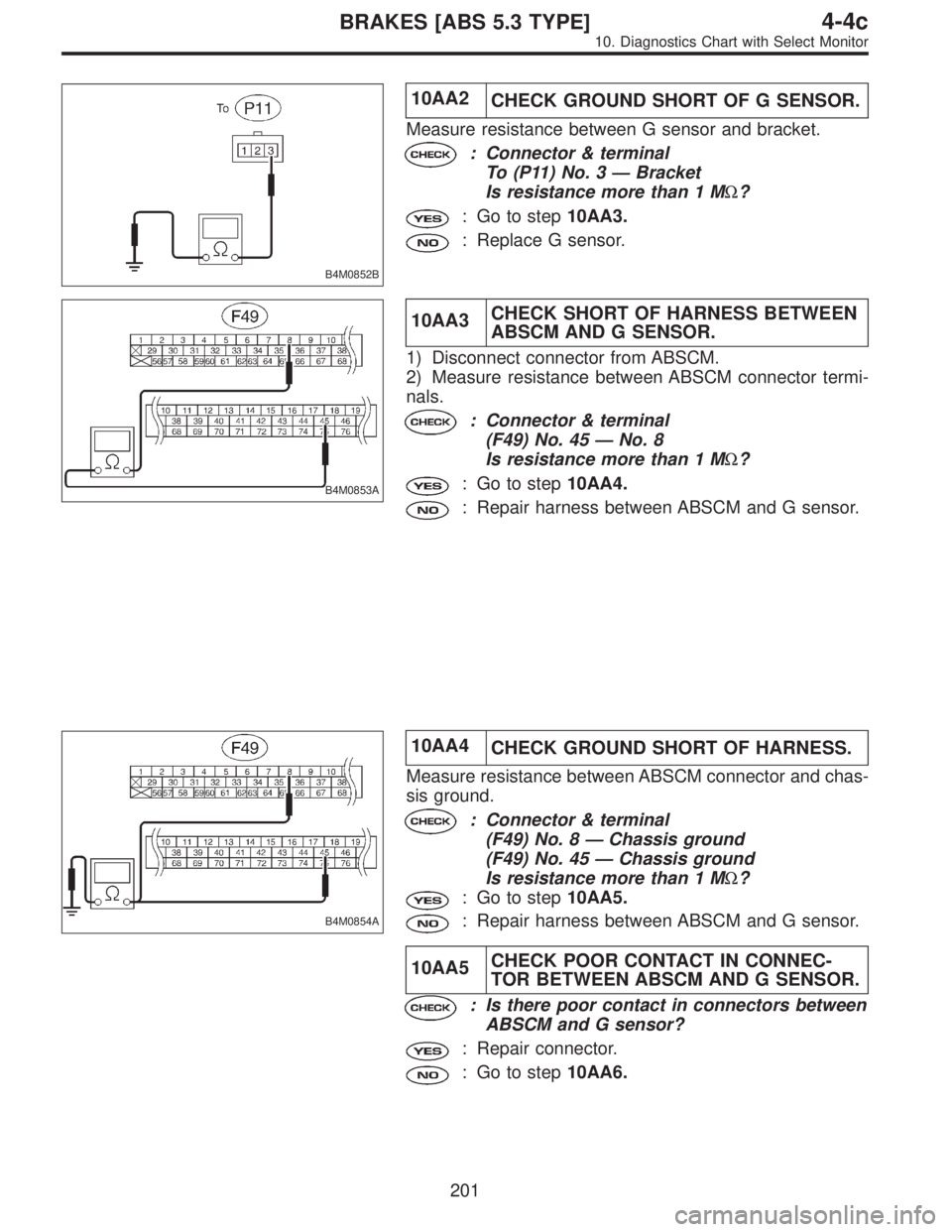

10AA2
CHECK GROUND SHORT OF G SENSOR.
Measure resistance between G sensor and bracket.
: Connector & terminal
To (P11) No. 3—Bracket
Is resistance more than 1 MΩ?
: Go to step10AA3.
: Replace G sensor.
B4M0853A
10AA3CHECK SHORT OF HARNESS BETWEEN
ABSCM AND G SENSOR.
1) Disconnect connector from ABSCM.
2) Measure resistance between ABSCM connector termi-
nals.
: Connector & terminal
(F49) No. 45—No. 8
Is resistance more than 1 MΩ?
: Go to step10AA4.
: Repair harness between ABSCM and G sensor.
B4M0854A
10AA4
CHECK GROUND SHORT OF HARNESS.
Measure resistance between ABSCM connector and chas-
sis ground.
: Connector & terminal
(F49) No. 8—Chassis ground
(F49) No. 45—Chassis ground
Is resistance more than 1 MΩ?
: Go to step10AA5.
: Repair harness between ABSCM and G sensor.
10AA5CHECK POOR CONTACT IN CONNEC-
TOR BETWEEN ABSCM AND G SENSOR.
: Is there poor contact in connectors between
ABSCM and G sensor?
: Repair connector.
: Go to step10AA6.
201
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2542 of 2890

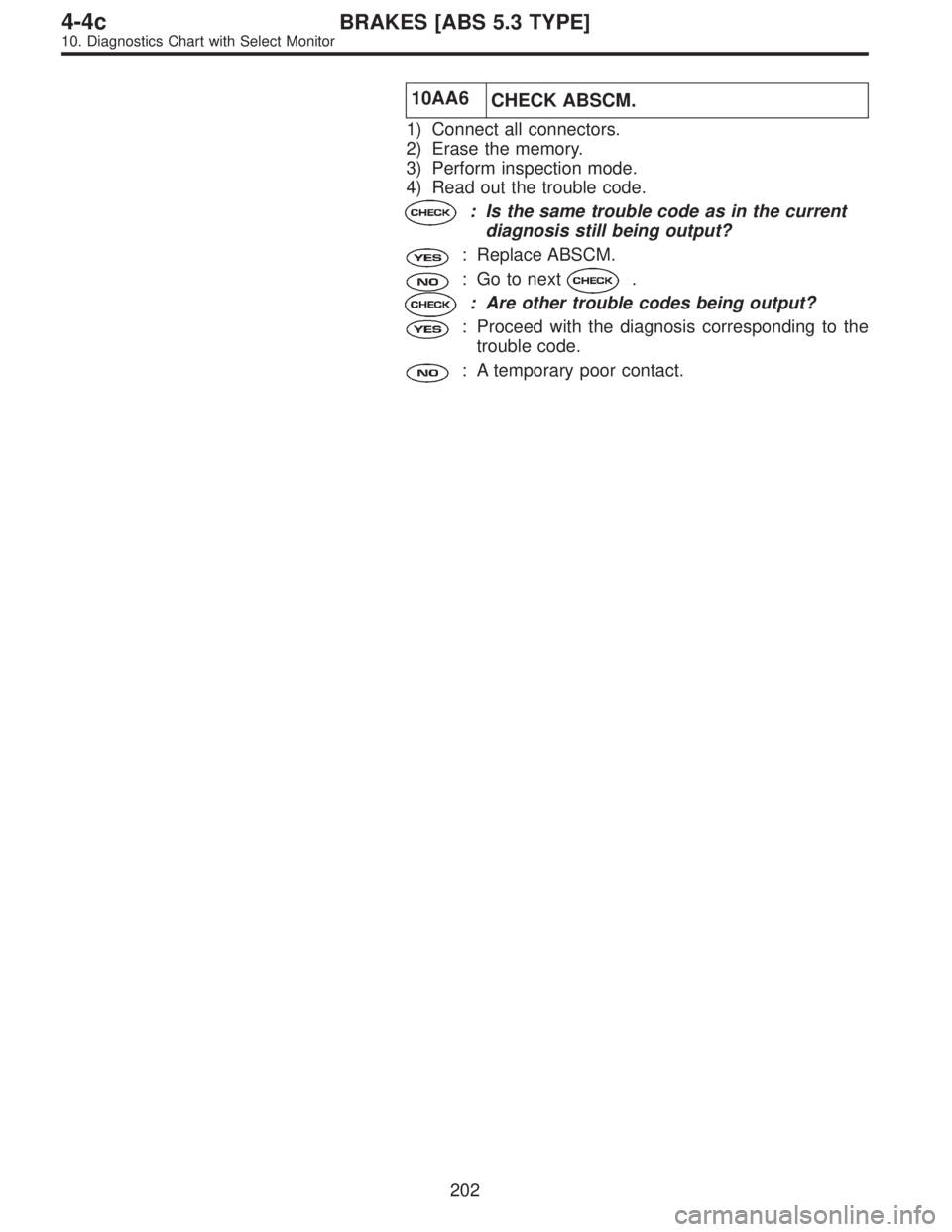

10AA6
CHECK ABSCM.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being output?
: Replace ABSCM.
: Go to next.
: Are other trouble codes being output?
: Proceed with the diagnosis corresponding to the
trouble code.
: A temporary poor contact.
202
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2543 of 2890
B4M0968

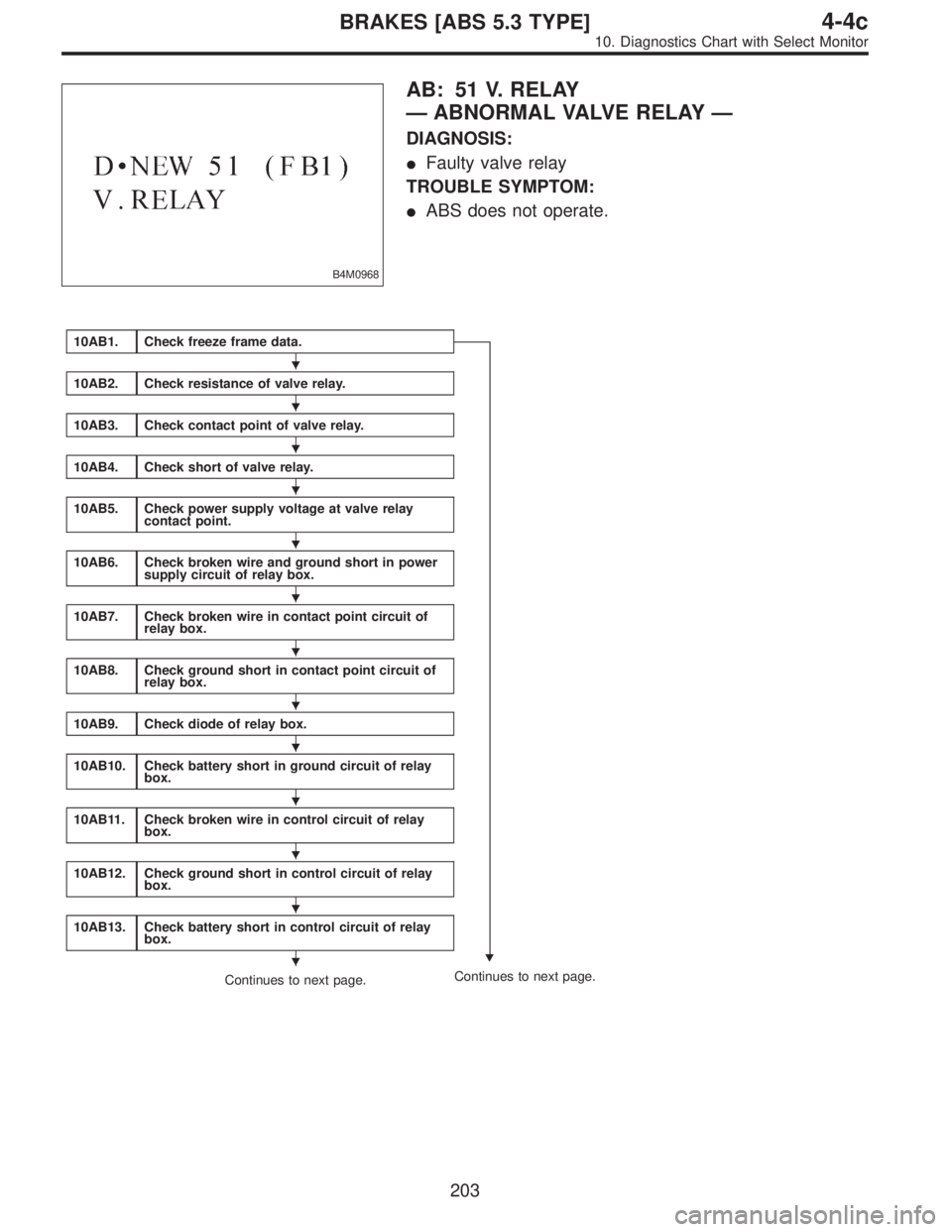

AB: 51 V. RELAY
—ABNORMAL VALVE RELAY—
DIAGNOSIS:
Faulty valve relay
TROUBLE SYMPTOM:
ABS does not operate.
10AB1.Check freeze frame data.
10AB2.Check resistance of valve relay.
10AB3.Check contact point of valve relay.
10AB4.Check short of valve relay.
10AB5.Check power supply voltage at valve relay
contact point.
10AB6.Check broken wire and ground short in power
supply circuit of relay box.
10AB7.Check broken wire in contact point circuit of
relay box.
10AB8.Check ground short in contact point circuit of
relay box.
10AB9.Check diode of relay box.
10AB10.Check battery short in ground circuit of relay
box.
10AB11.Check broken wire in control circuit of relay
box.
10AB12.Check ground short in control circuit of relay
box.
10AB13.Check battery short in control circuit of relay
box.
Continues to next page.Continues to next page.
203
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
Page 2544 of 2890

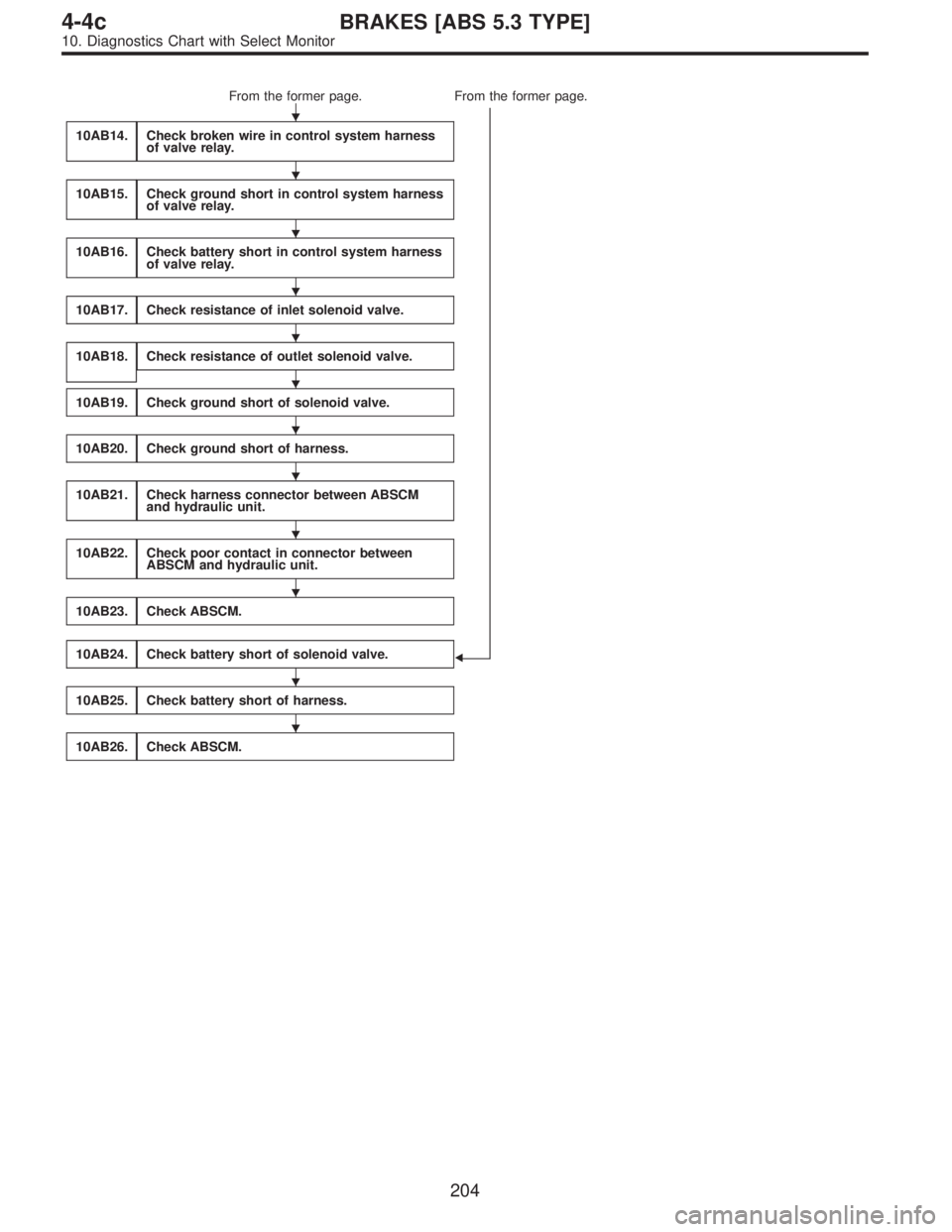

From the former page. From the former page.
10AB14.Check broken wire in control system harness
of valve relay.
10AB15.Check ground short in control system harness
of valve relay.
10AB16.Check battery short in control system harness
of valve relay.
10AB17.Check resistance of inlet solenoid valve.
10AB18.Check resistance of outlet solenoid valve.
10AB19.Check ground short of solenoid valve.
10AB20.Check ground short of harness.
10AB21.Check harness connector between ABSCM
and hydraulic unit.
10AB22.Check poor contact in connector between
ABSCM and hydraulic unit.
10AB23.Check ABSCM.
10AB24.Check battery short of solenoid valve.
10AB25.Check battery short of harness.
10AB26.Check ABSCM.
204
4-4cBRAKES [ABS 5.3 TYPE]
10. Diagnostics Chart with Select Monitor
