1996 SUBARU LEGACY Service Repair Manual

Page 481 of 2890

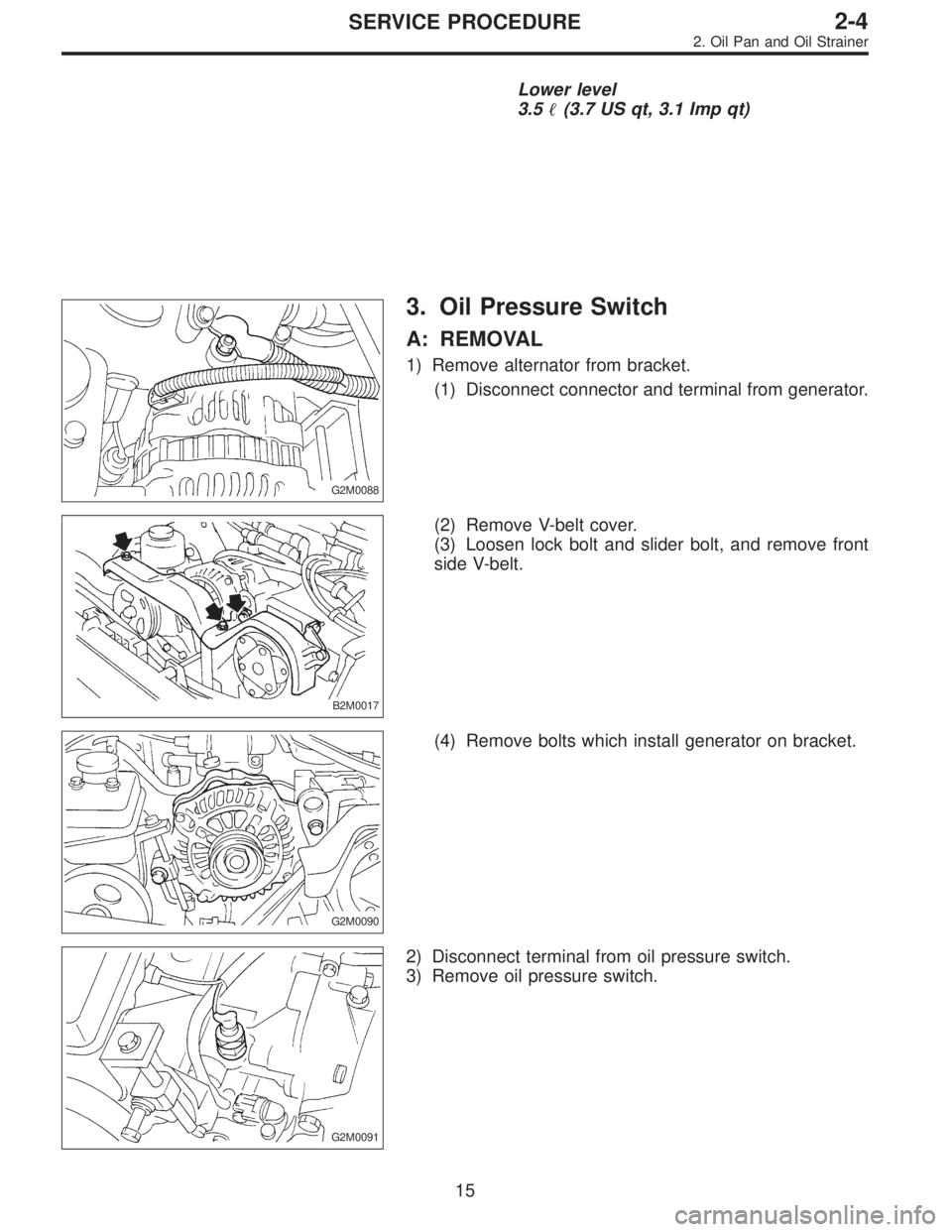

SUBARU LEGACY 1996  Service Repair Manual Lower level
3.5(3.7 US qt, 3.1 Imp qt)
G2M0088
3. Oil Pressure Switch
A: REMOVAL
1) Remove alternator from bracket.
(1) Disconnect connector and terminal from generator.
B2M0017
(2) Remove V-belt cov

Page 482 of 2890

SUBARU LEGACY 1996  Service Repair Manual Lower level
3.5(3.7 US qt, 3.1 Imp qt)
G2M0088
3. Oil Pressure Switch
A: REMOVAL
1) Remove alternator from bracket.
(1) Disconnect connector and terminal from generator.
B2M0017
(2) Remove V-belt cov

Page 483 of 2890

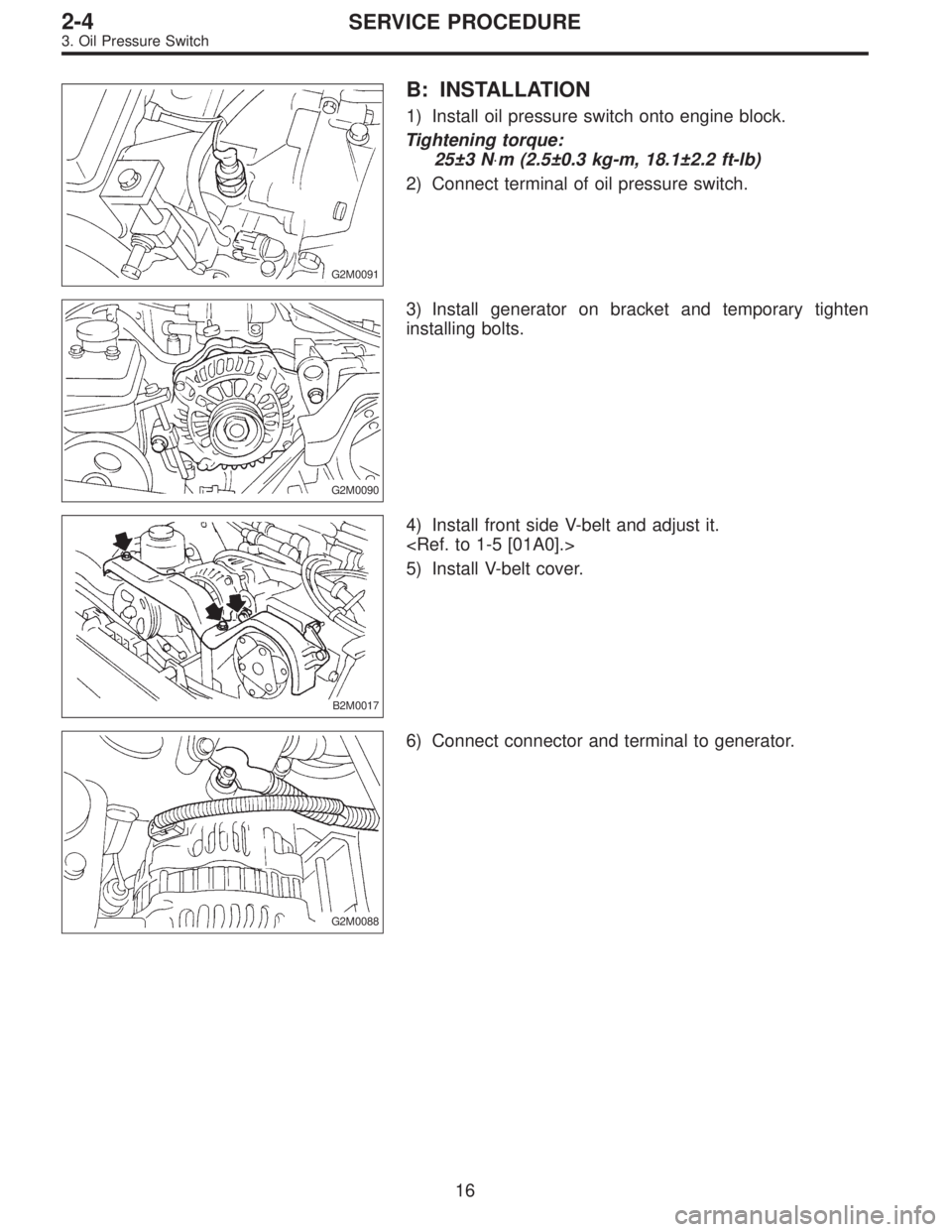

SUBARU LEGACY 1996  Service Repair Manual G2M0091
B: INSTALLATION
1) Install oil pressure switch onto engine block.
Tightening torque:
25±3 N⋅m (2.5±0.3 kg-m, 18.1±2.2 ft-lb)
2) Connect terminal of oil pressure switch.
G2M0090
3) Install

Page 484 of 2890

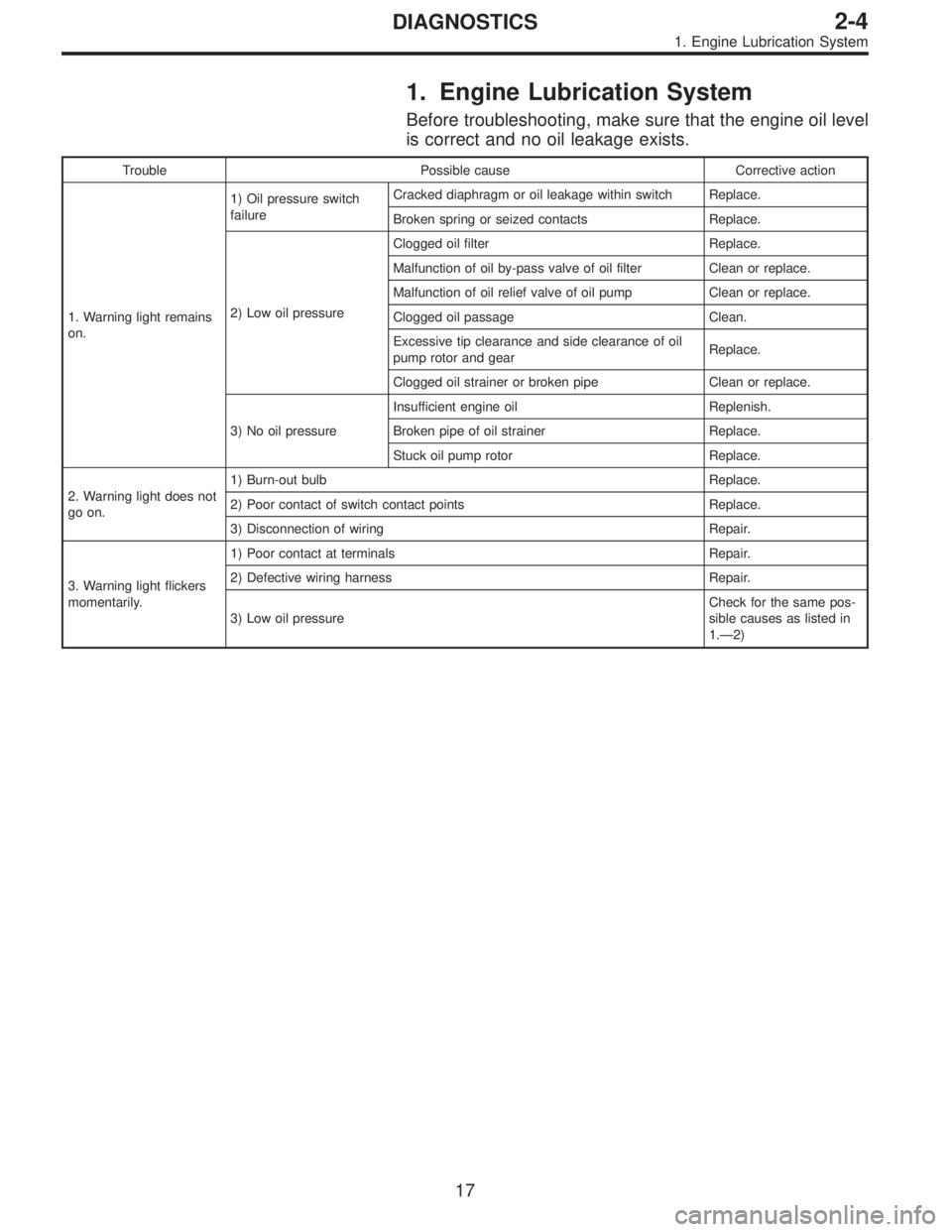

SUBARU LEGACY 1996  Service Repair Manual 1. Engine Lubrication System
Before troubleshooting, make sure that the engine oil level
is correct and no oil leakage exists.
Trouble Possible cause Corrective action
1. Warning light remains
on.1) O

Page 485 of 2890

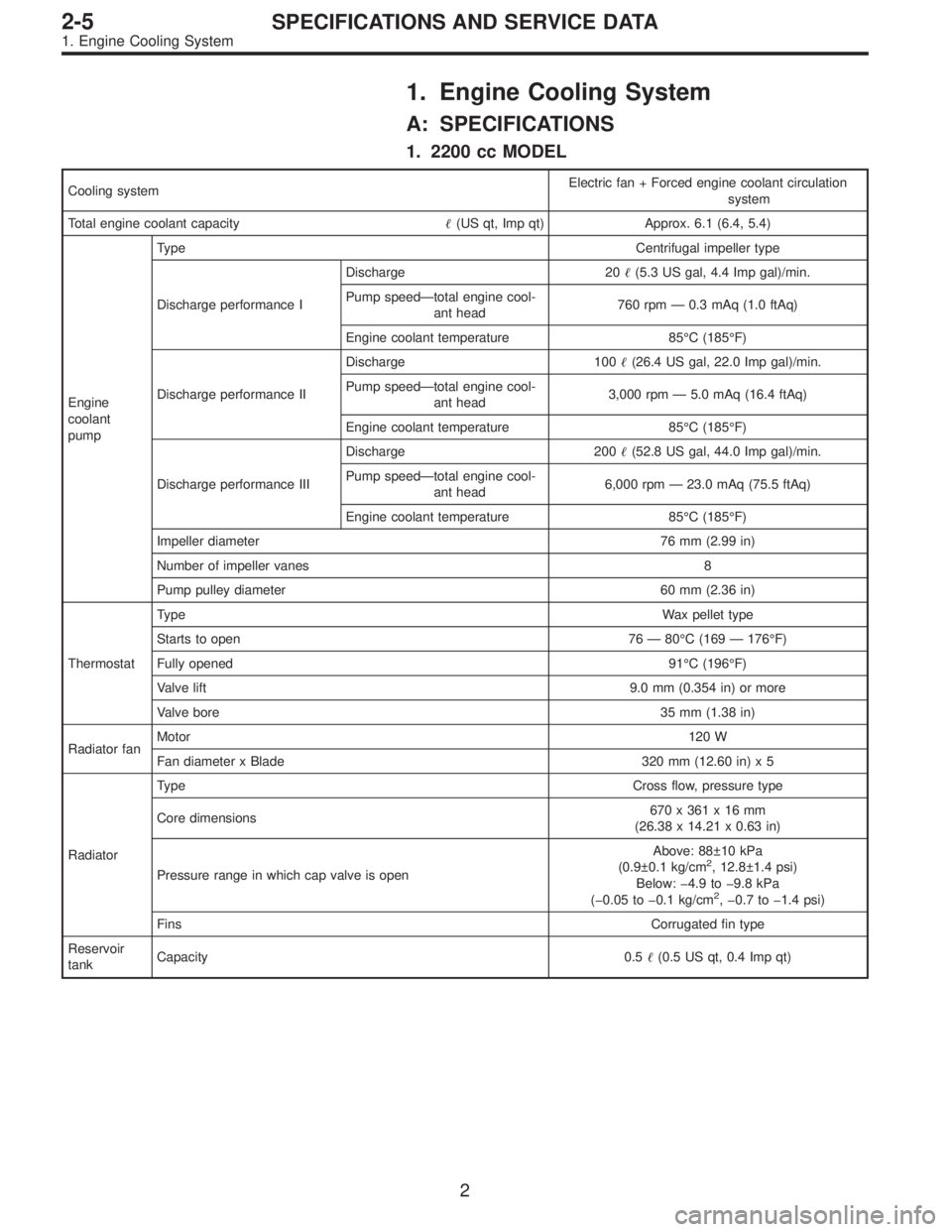

SUBARU LEGACY 1996  Service Repair Manual 1. Engine Cooling System
A: SPECIFICATIONS
1. 2200 cc MODEL
Cooling systemElectric fan + Forced engine coolant circulation
system
Total engine coolant capacity(US qt, Imp qt) Approx. 6.1 (6.4, 5.4)
E

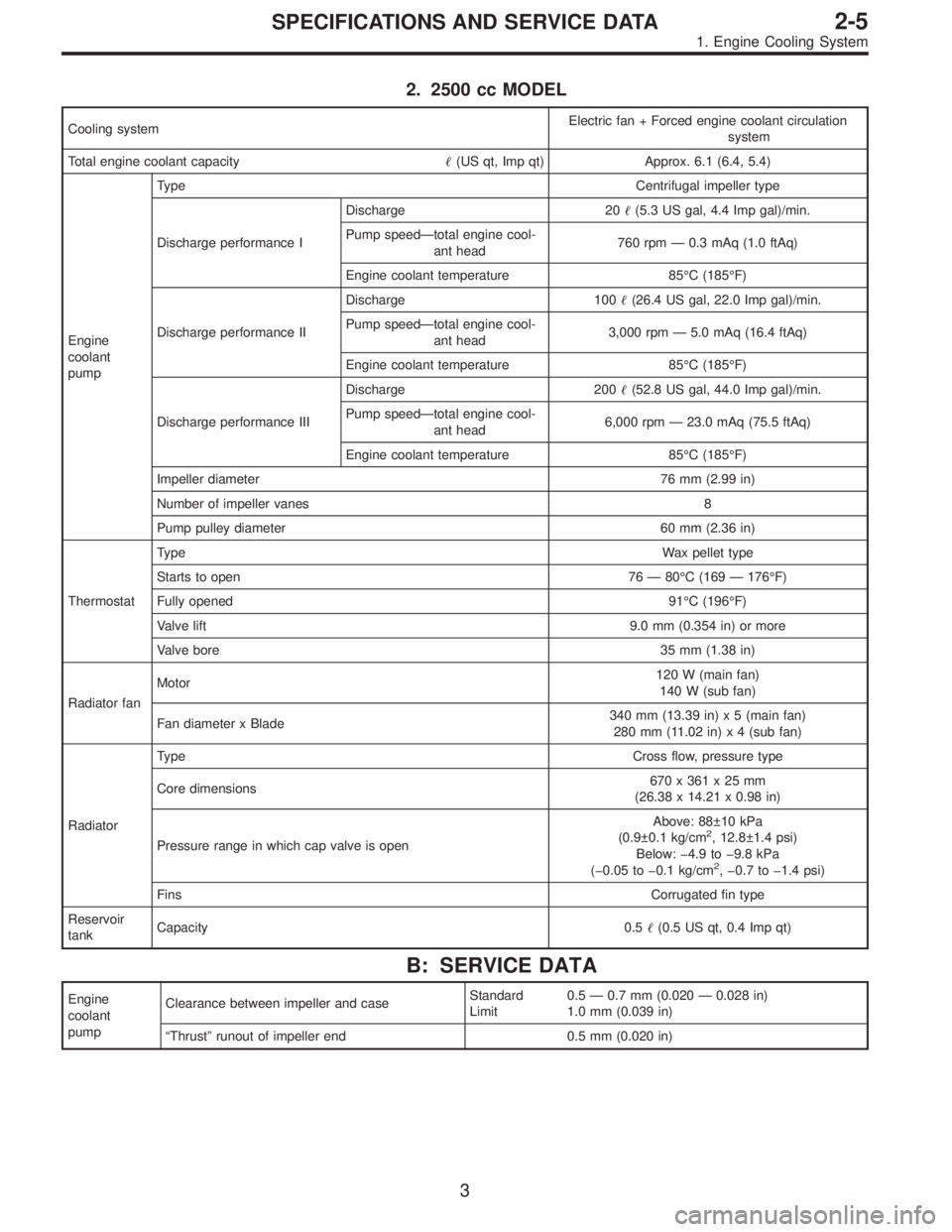

Page 486 of 2890

SUBARU LEGACY 1996  Service Repair Manual 2. 2500 cc MODEL
Cooling systemElectric fan + Forced engine coolant circulation
system
Total engine coolant capacity(US qt, Imp qt) Approx. 6.1 (6.4, 5.4)
Engine
coolant
pumpTypeCentrifugal impeller

Page 487 of 2890

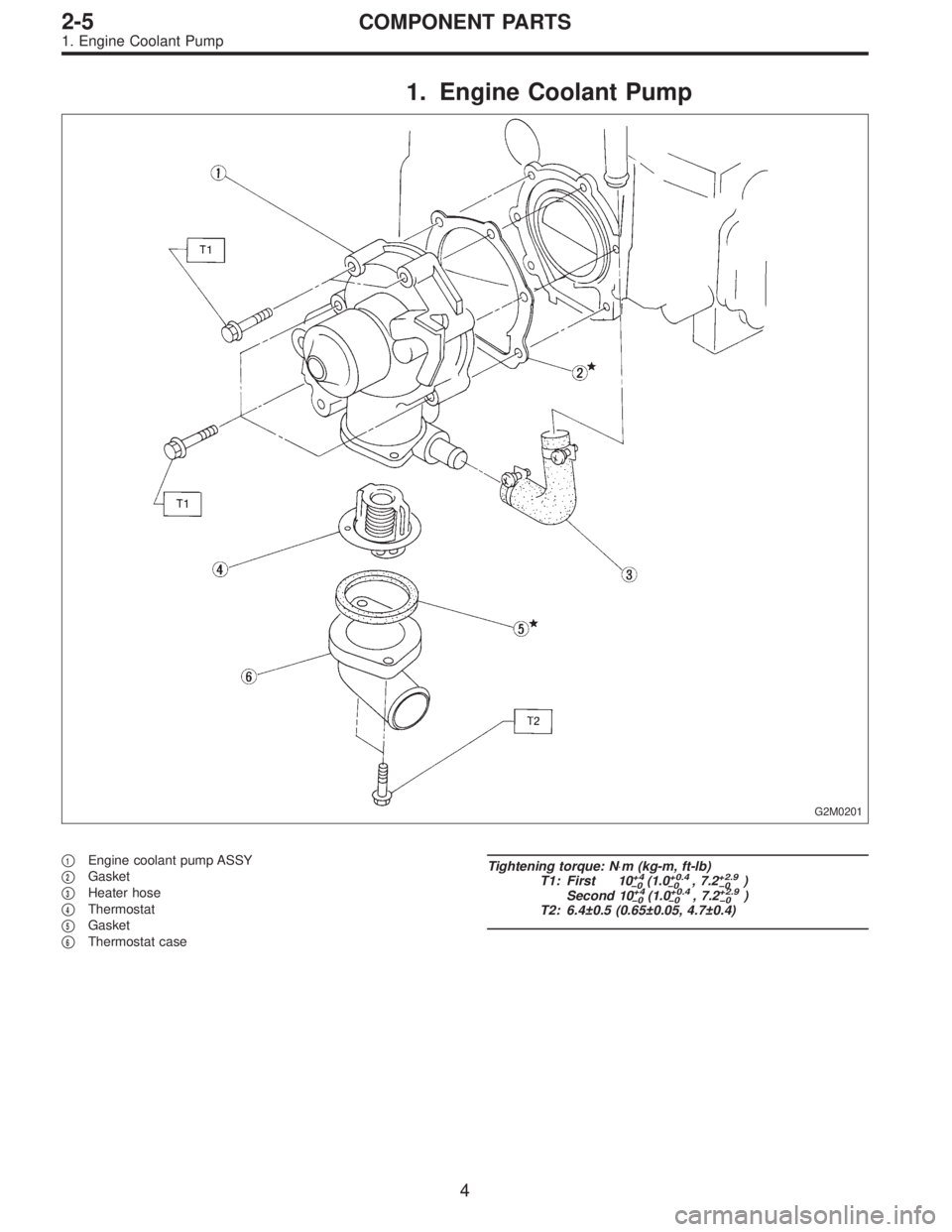

SUBARU LEGACY 1996  Service Repair Manual 1. Engine Coolant Pump
G2M0201
1Engine coolant pump ASSY

2Gasket

3Heater hose

4Thermostat

5Gasket

6Thermostat case
Tightening torque: N⋅m (kg-m, ft-lb)
T1: First 10+4
�0(1.0+0.4
�0, 7.2+2

Page 488 of 2890

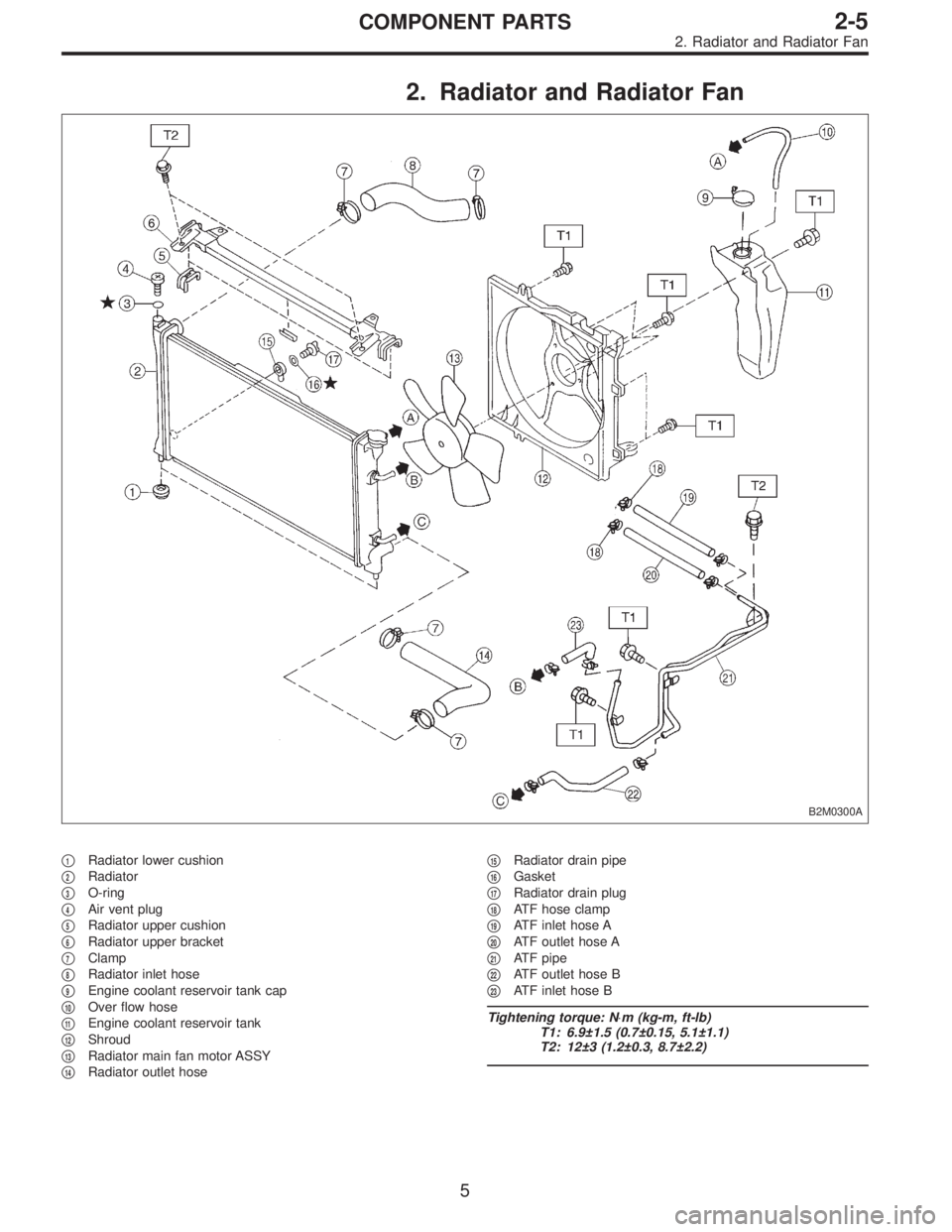

SUBARU LEGACY 1996  Service Repair Manual 2. Radiator and Radiator Fan
B2M0300A
1Radiator lower cushion

2Radiator

3O-ring

4Air vent plug

5Radiator upper cushion

6Radiator upper bracket

7Clamp

8Radiator inlet hose

9Engine cool
