1996 SUBARU LEGACY Service Repair Manual

Page 345 of 2890

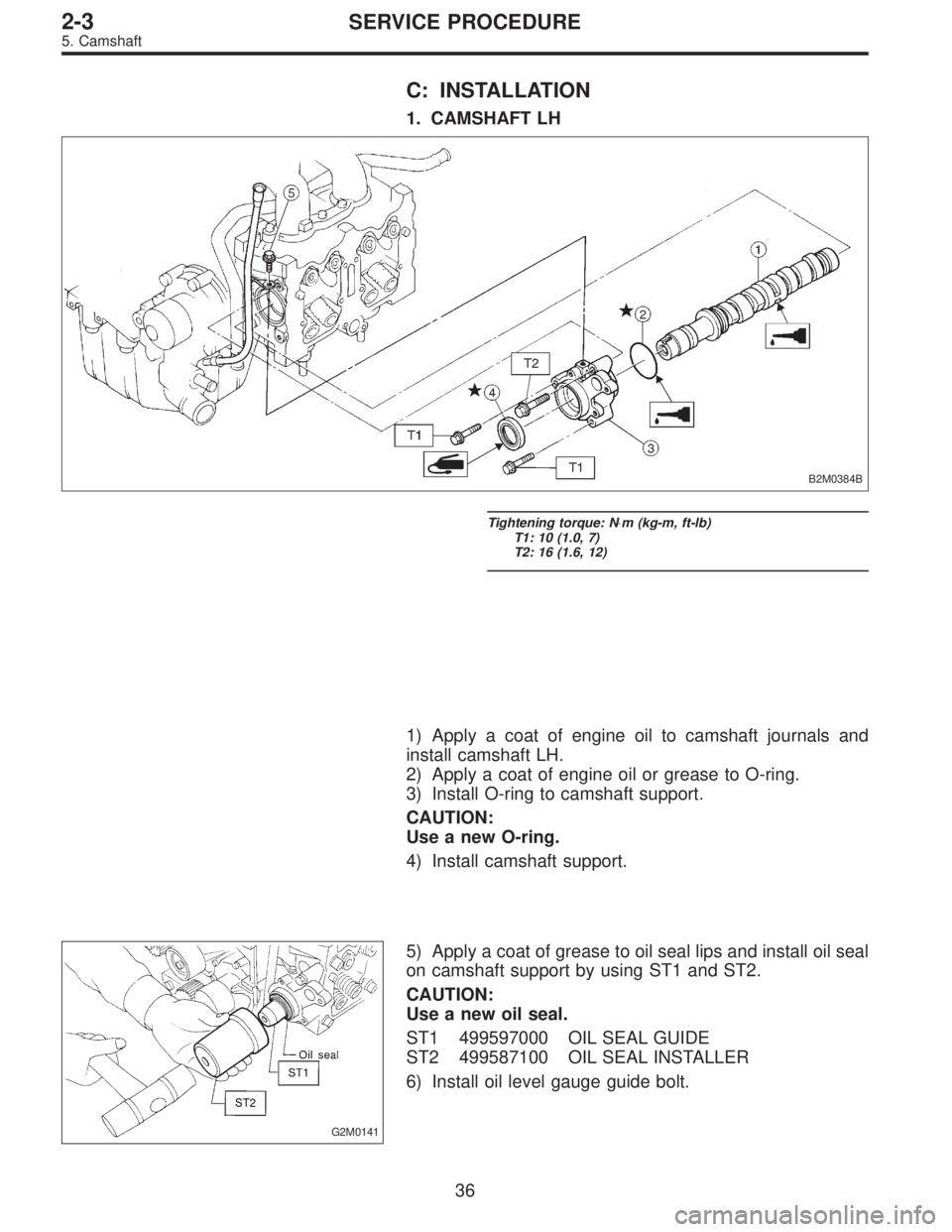

SUBARU LEGACY 1996  Service Repair Manual C: INSTALLATION
1. CAMSHAFT LH
B2M0384B
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 10 (1.0, 7)
T2: 16 (1.6, 12)
1) Apply a coat of engine oil to camshaft journals and
install camshaft LH.
2) Apply a c

Page 346 of 2890

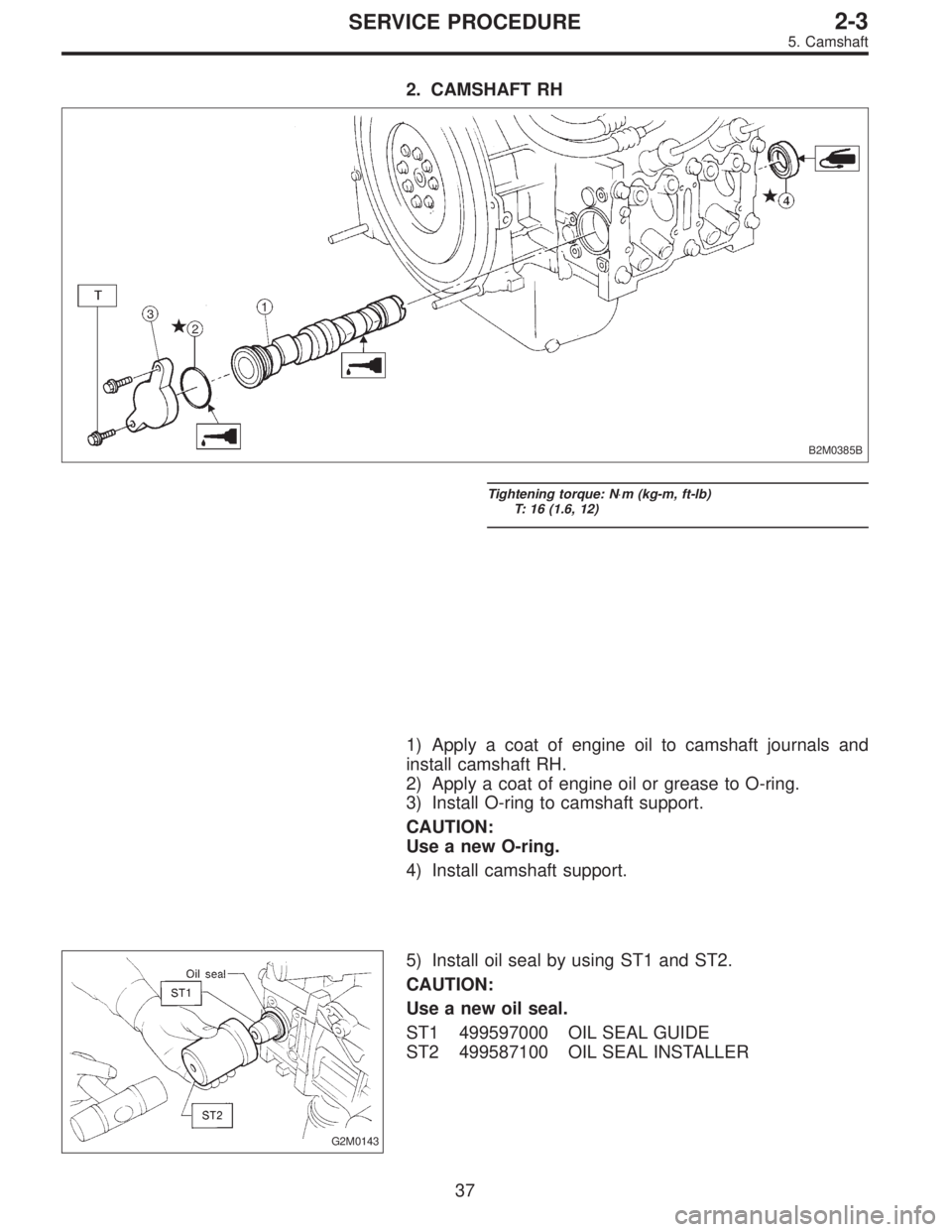

SUBARU LEGACY 1996  Service Repair Manual 2. CAMSHAFT RH
B2M0385B
Tightening torque: N⋅m (kg-m, ft-lb)
T: 16 (1.6, 12)
1) Apply a coat of engine oil to camshaft journals and
install camshaft RH.
2) Apply a coat of engine oil or grease to O-

Page 347 of 2890

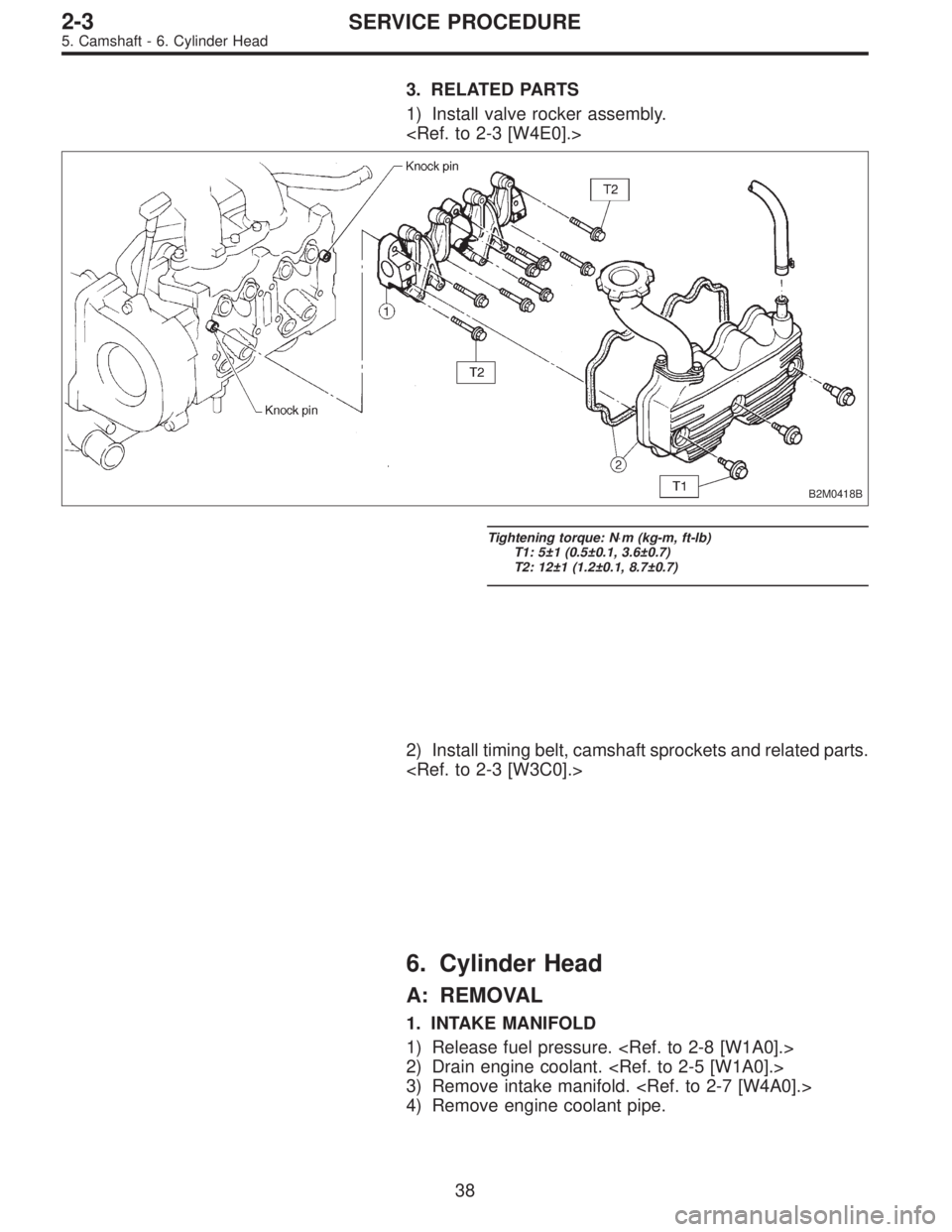

SUBARU LEGACY 1996  Service Repair Manual 3. RELATED PARTS
1) Install valve rocker assembly.
<Ref. to 2-3 [W4E0].>
B2M0418B
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 5±1 (0.5±0.1, 3.6±0.7)
T2: 12±1 (1.2±0.1, 8.7±0.7)
2) Install timing

Page 348 of 2890

SUBARU LEGACY 1996  Service Repair Manual 3. RELATED PARTS
1) Install valve rocker assembly.
<Ref. to 2-3 [W4E0].>
B2M0418B
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 5±1 (0.5±0.1, 3.6±0.7)
T2: 12±1 (1.2±0.1, 8.7±0.7)
2) Install timing

Page 349 of 2890

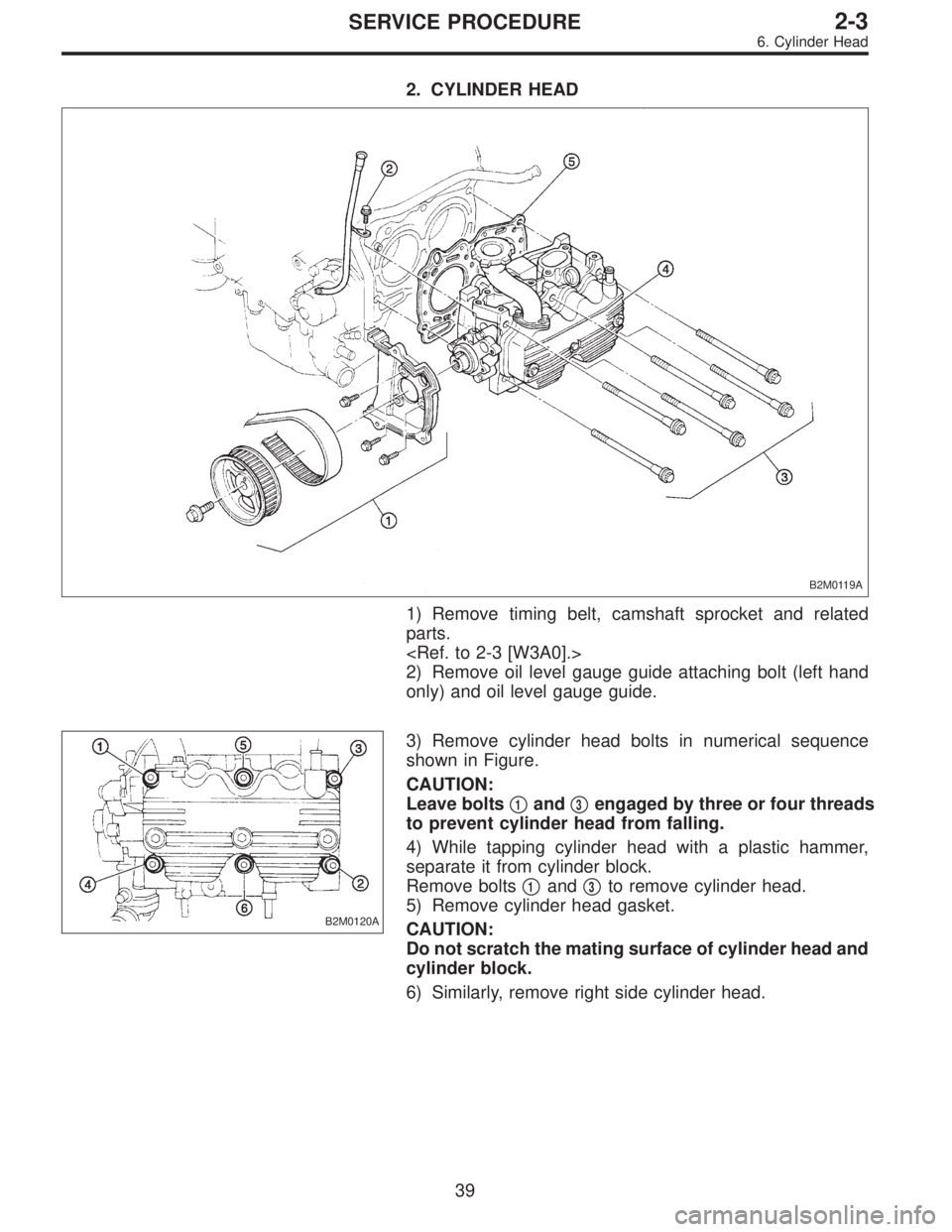

SUBARU LEGACY 1996  Service Repair Manual 2. CYLINDER HEAD
B2M0119A
1) Remove timing belt, camshaft sprocket and related
parts.
<Ref. to 2-3 [W3A0].>
2) Remove oil level gauge guide attaching bolt (left hand
only) and oil level gauge guide.
B

Page 350 of 2890

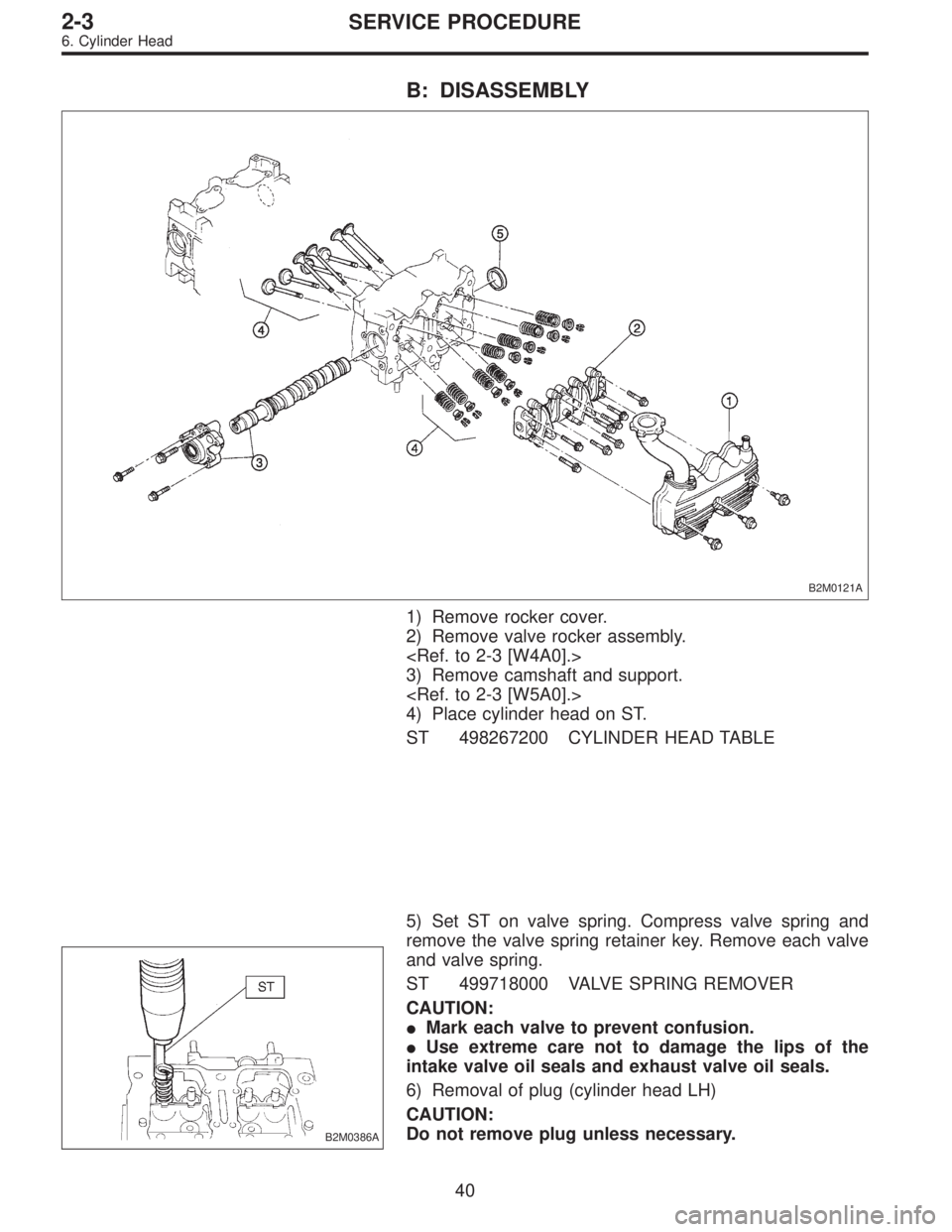

SUBARU LEGACY 1996  Service Repair Manual B: DISASSEMBLY
B2M0121A
1) Remove rocker cover.
2) Remove valve rocker assembly.
<Ref. to 2-3 [W4A0].>
3) Remove camshaft and support.
<Ref. to 2-3 [W5A0].>
4) Place cylinder head on ST.
ST 498267200

Page 351 of 2890

SUBARU LEGACY 1996  Service Repair Manual C: INSPECTION
1. CYLINDER HEAD
1) Make sure that no crack or other damage exists. In
addition to visual inspection, inspect important areas by
means of red lead check.
Also make sure that gasket insta

Page 352 of 2890

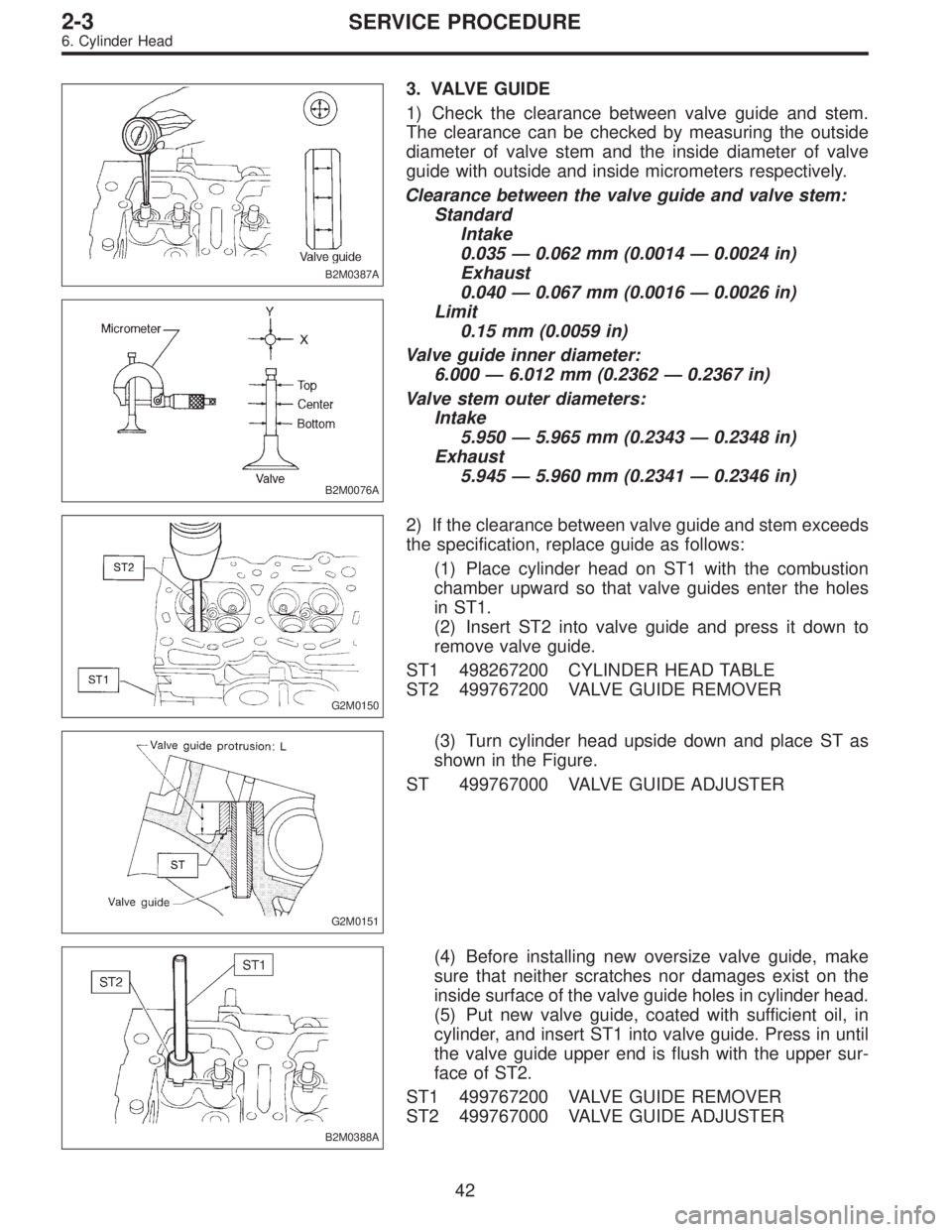

SUBARU LEGACY 1996  Service Repair Manual B2M0387A
B2M0076A
3. VALVE GUIDE
1) Check the clearance between valve guide and stem.
The clearance can be checked by measuring the outside
diameter of valve stem and the inside diameter of valve
guid
