1996 SUBARU LEGACY Service Repair Manual

Page 1553 of 2890

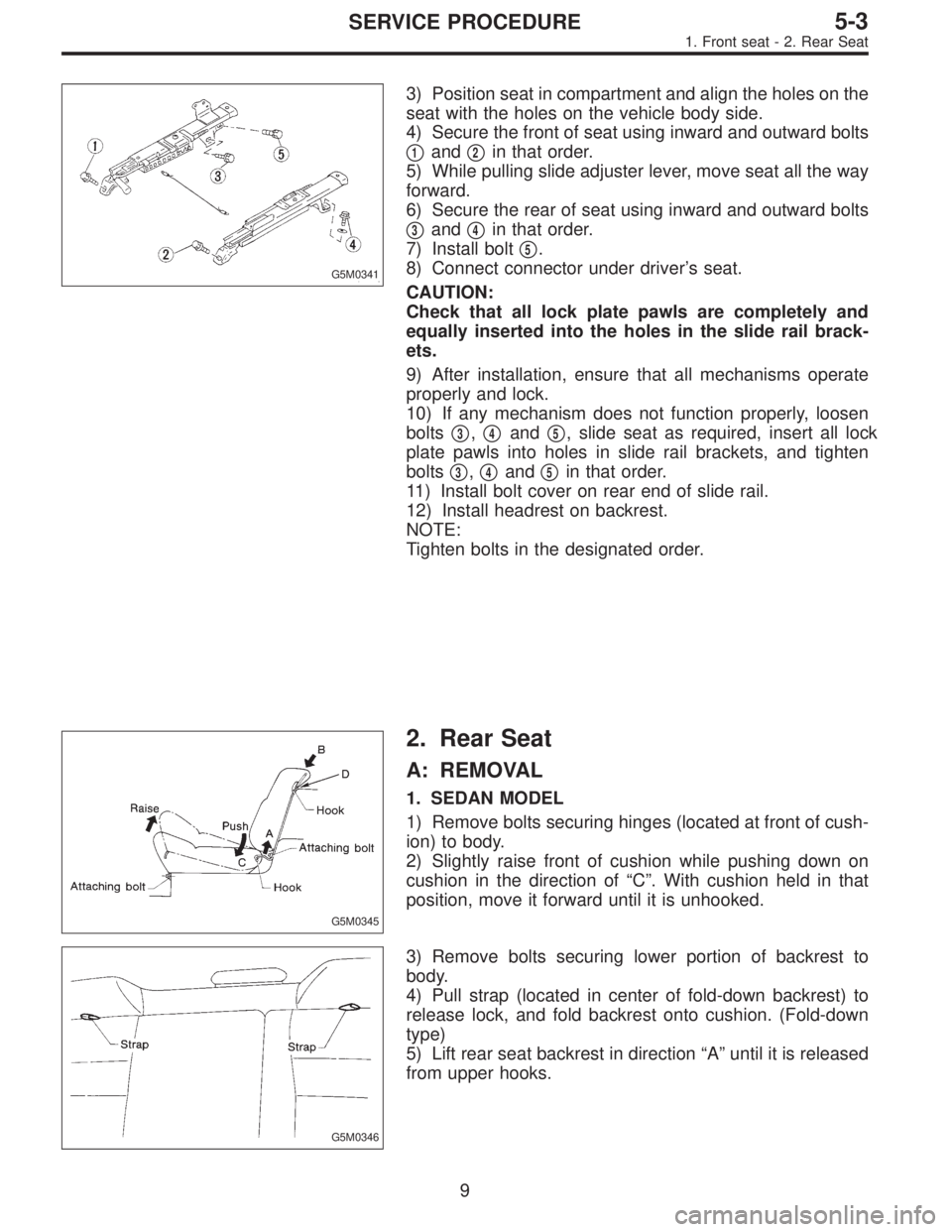

SUBARU LEGACY 1996  Service Repair Manual G5M0341
3) Position seat in compartment and align the holes on the
seat with the holes on the vehicle body side.
4) Secure the front of seat using inward and outward bolts

1and2in that order.
5) Wh

Page 1554 of 2890

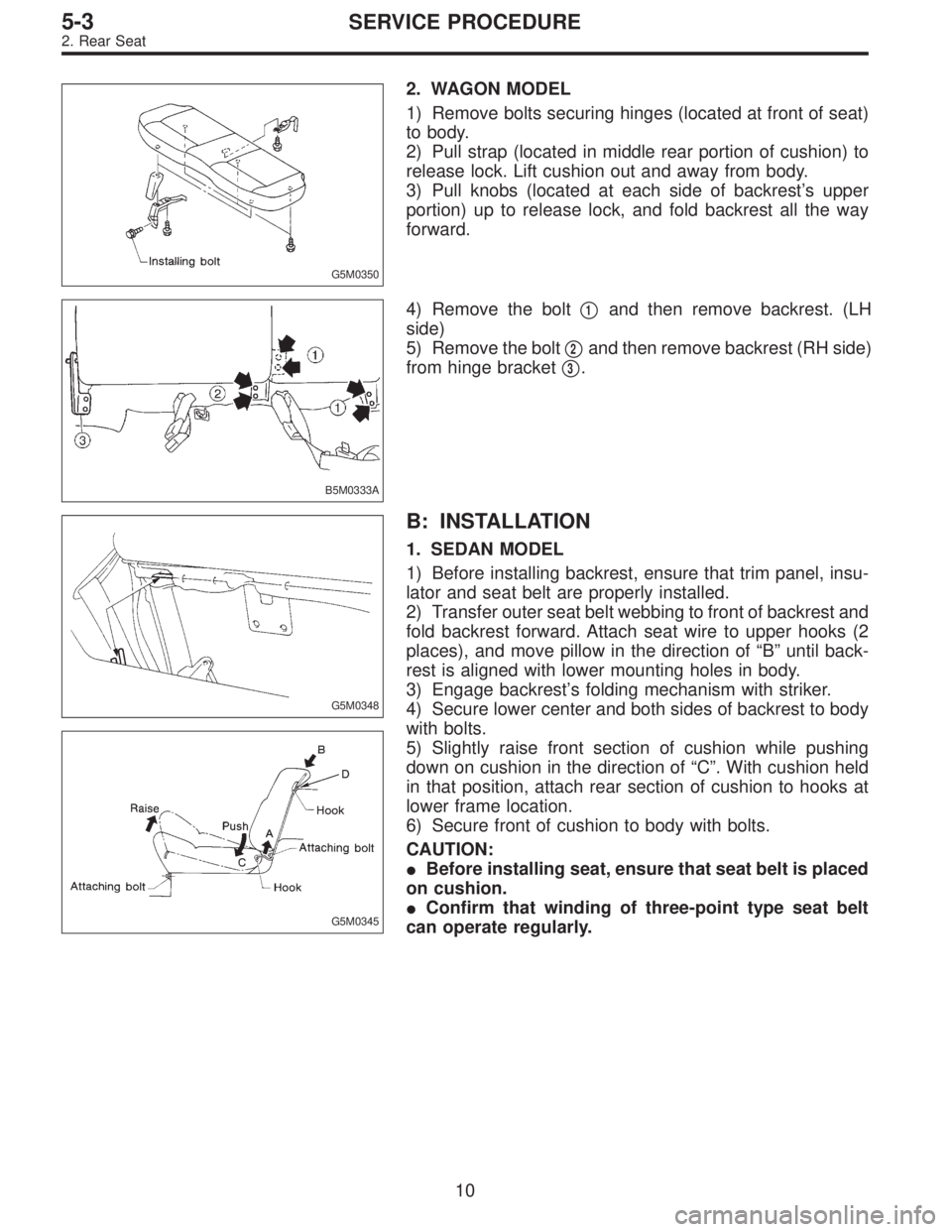

SUBARU LEGACY 1996  Service Repair Manual G5M0350
2. WAGON MODEL
1) Remove bolts securing hinges (located at front of seat)
to body.
2) Pull strap (located in middle rear portion of cushion) to
release lock. Lift cushion out and away from bod

Page 1555 of 2890

SUBARU LEGACY 1996  Service Repair Manual 2. WAGON MODEL
Installation is in the reverse order of removal.
CAUTION:
Do not allow center seat belt to get under cushion
when folding cushion.
Ensure that side seat belt tongue is free from cush-

Page 1556 of 2890

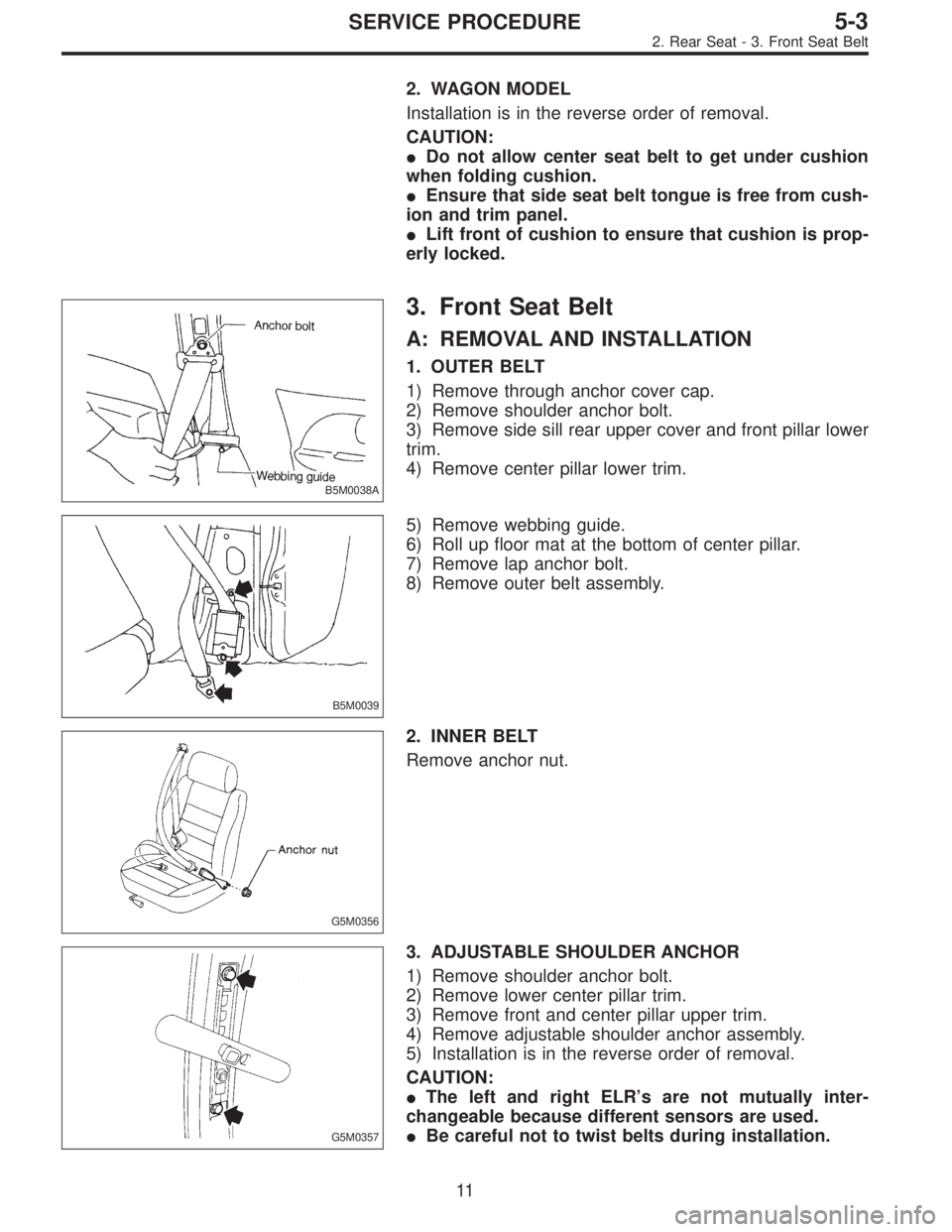

SUBARU LEGACY 1996  Service Repair Manual 2. WAGON MODEL
Installation is in the reverse order of removal.
CAUTION:
Do not allow center seat belt to get under cushion
when folding cushion.
Ensure that side seat belt tongue is free from cush-

Page 1557 of 2890

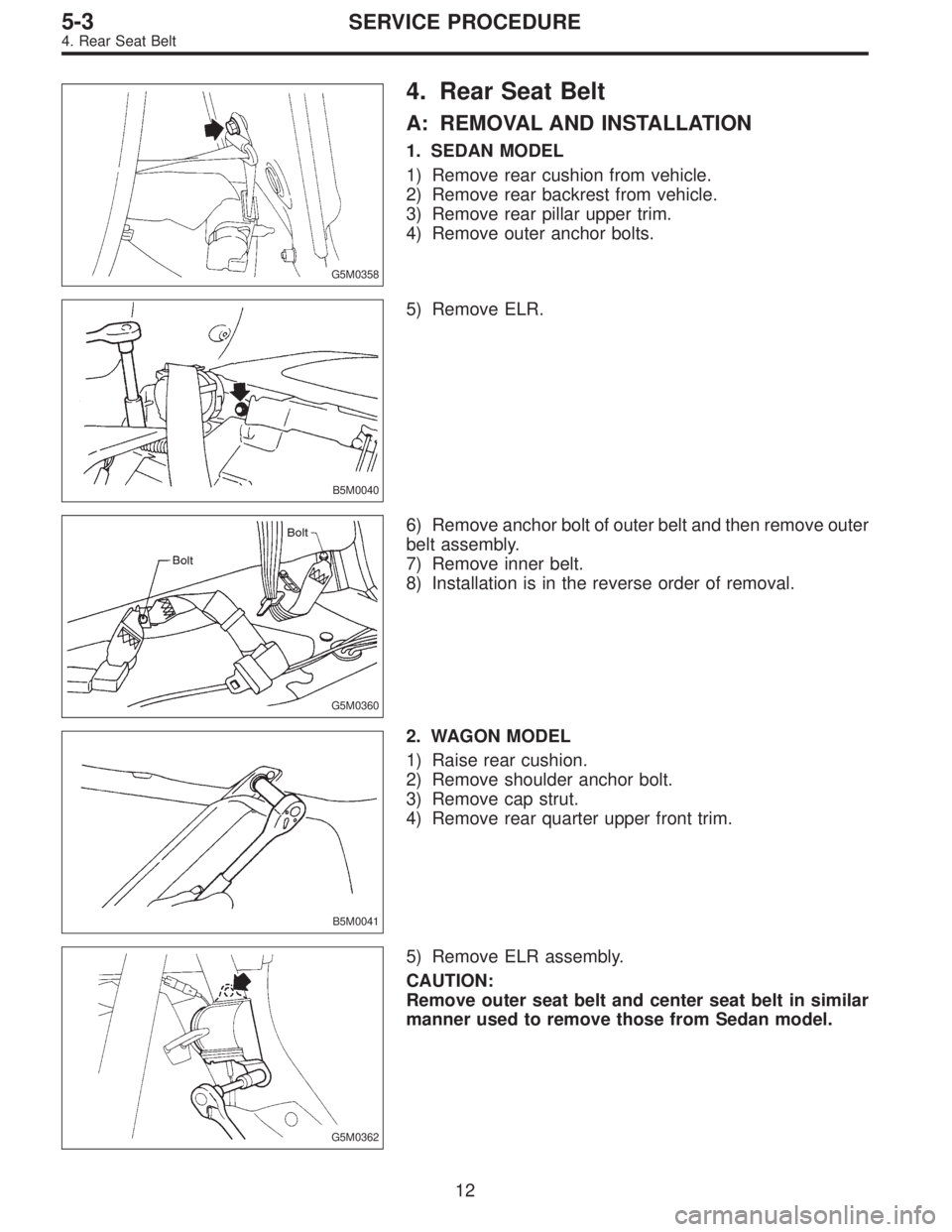

SUBARU LEGACY 1996  Service Repair Manual G5M0358
4. Rear Seat Belt
A: REMOVAL AND INSTALLATION
1. SEDAN MODEL
1) Remove rear cushion from vehicle.
2) Remove rear backrest from vehicle.
3) Remove rear pillar upper trim.
4) Remove outer anchor

Page 1558 of 2890

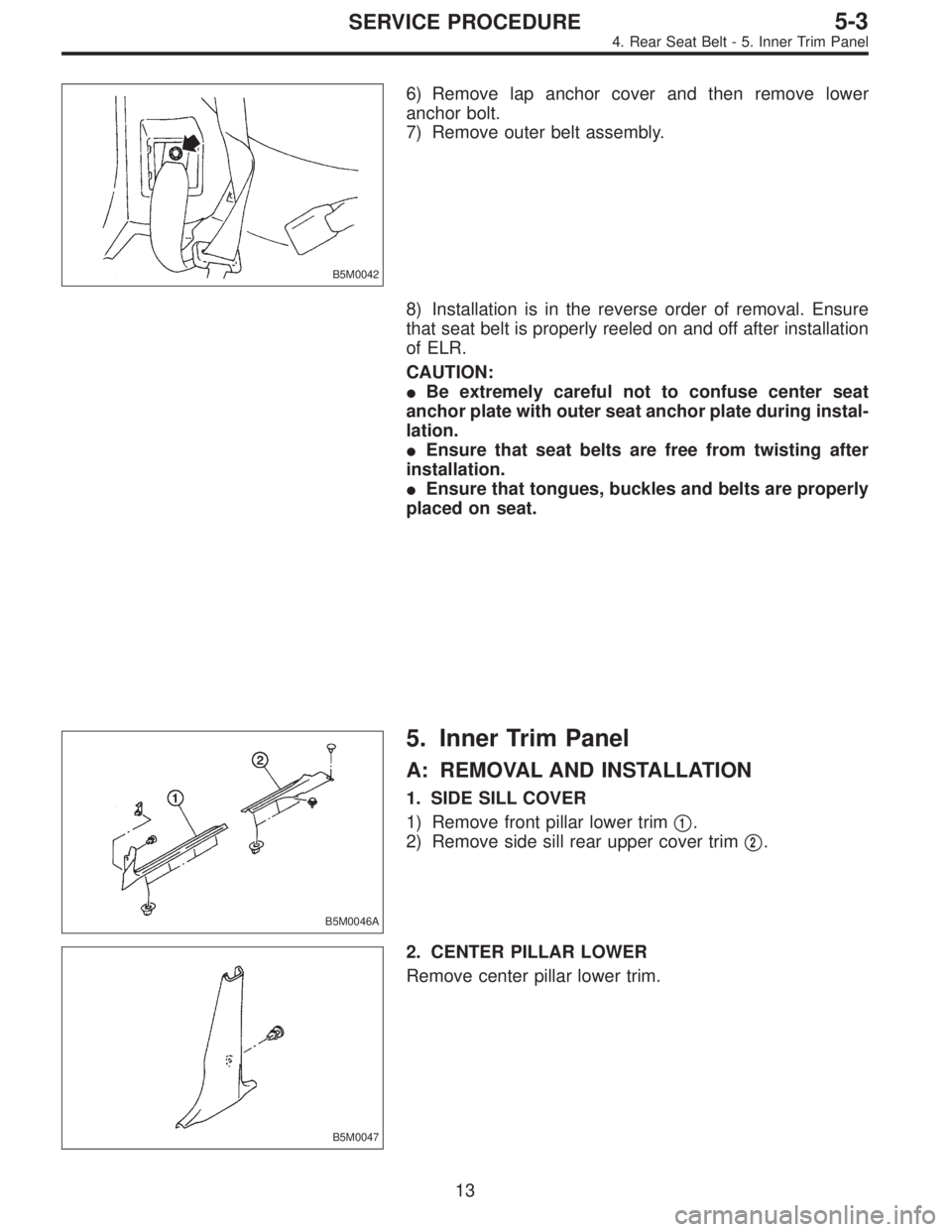

SUBARU LEGACY 1996  Service Repair Manual B5M0042
6) Remove lap anchor cover and then remove lower
anchor bolt.
7) Remove outer belt assembly.
8) Installation is in the reverse order of removal. Ensure
that seat belt is properly reeled on and

Page 1559 of 2890

SUBARU LEGACY 1996  Service Repair Manual B5M0042
6) Remove lap anchor cover and then remove lower
anchor bolt.
7) Remove outer belt assembly.
8) Installation is in the reverse order of removal. Ensure
that seat belt is properly reeled on and

Page 1560 of 2890

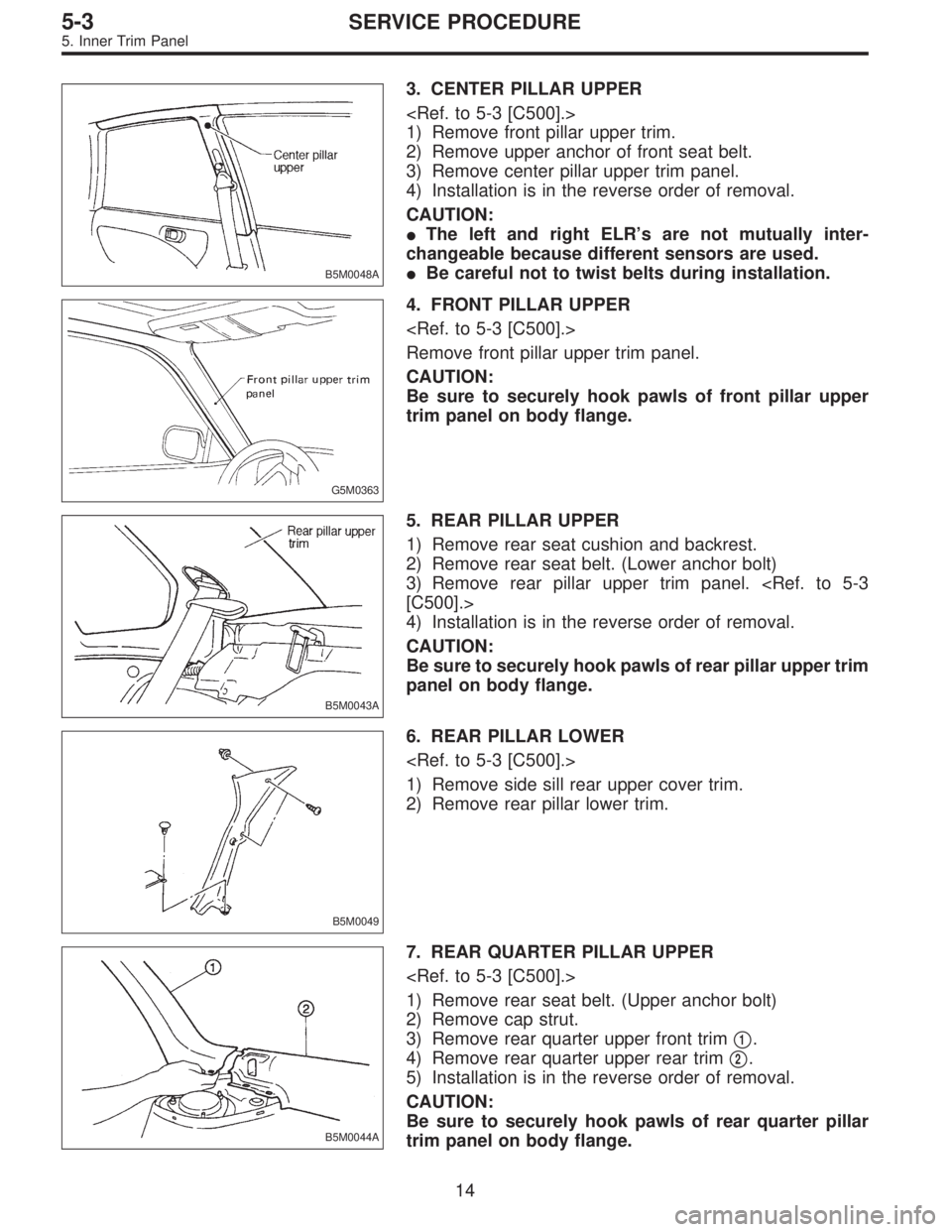

SUBARU LEGACY 1996  Service Repair Manual B5M0048A
3. CENTER PILLAR UPPER
<Ref. to 5-3 [C500].>
1) Remove front pillar upper trim.
2) Remove upper anchor of front seat belt.
3) Remove center pillar upper trim panel.
4) Installation is in the
