1996 SUBARU LEGACY Service Repair Manual

Page 921 of 2890

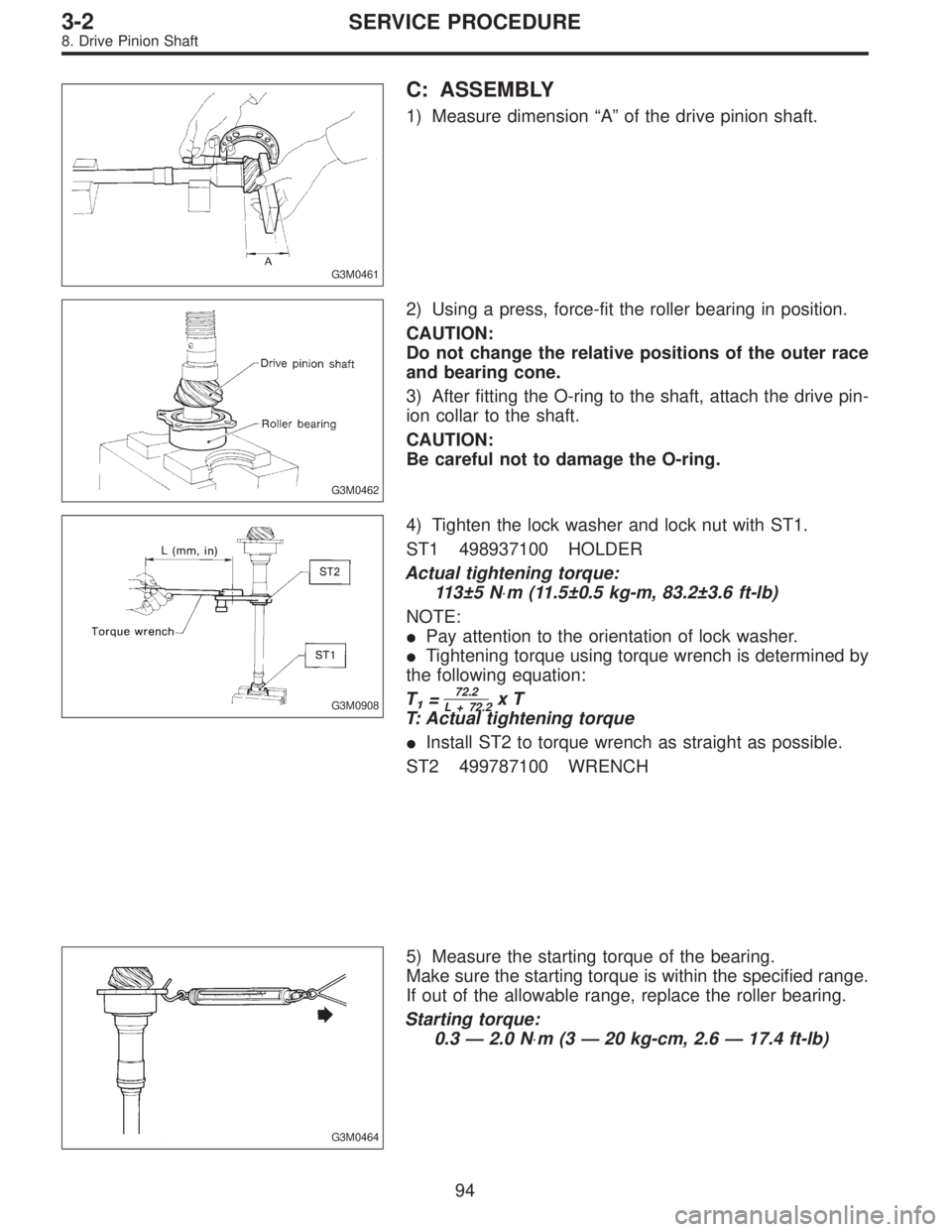

SUBARU LEGACY 1996  Service Repair Manual G3M0461
C: ASSEMBLY
1) Measure dimension“A”of the drive pinion shaft.
G3M0462
2) Using a press, force-fit the roller bearing in position.
CAUTION:
Do not change the relative positions of the outer

Page 922 of 2890

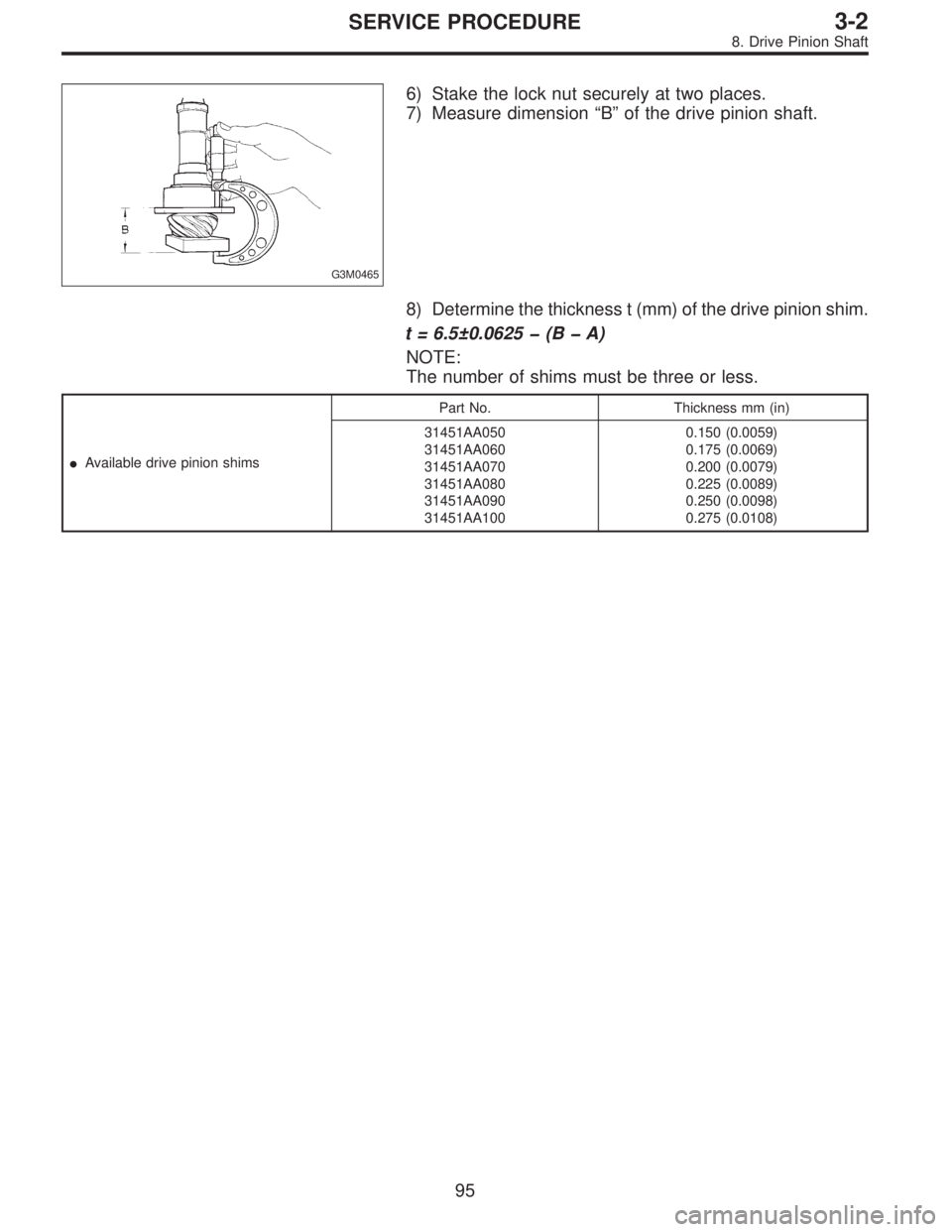

SUBARU LEGACY 1996  Service Repair Manual G3M0465
6) Stake the lock nut securely at two places.
7) Measure dimension“B”of the drive pinion shaft.
8) Determine the thickness t (mm) of the drive pinion shim.
t = 6.5±0.0625 � (B � A)
NOTE:

Page 923 of 2890

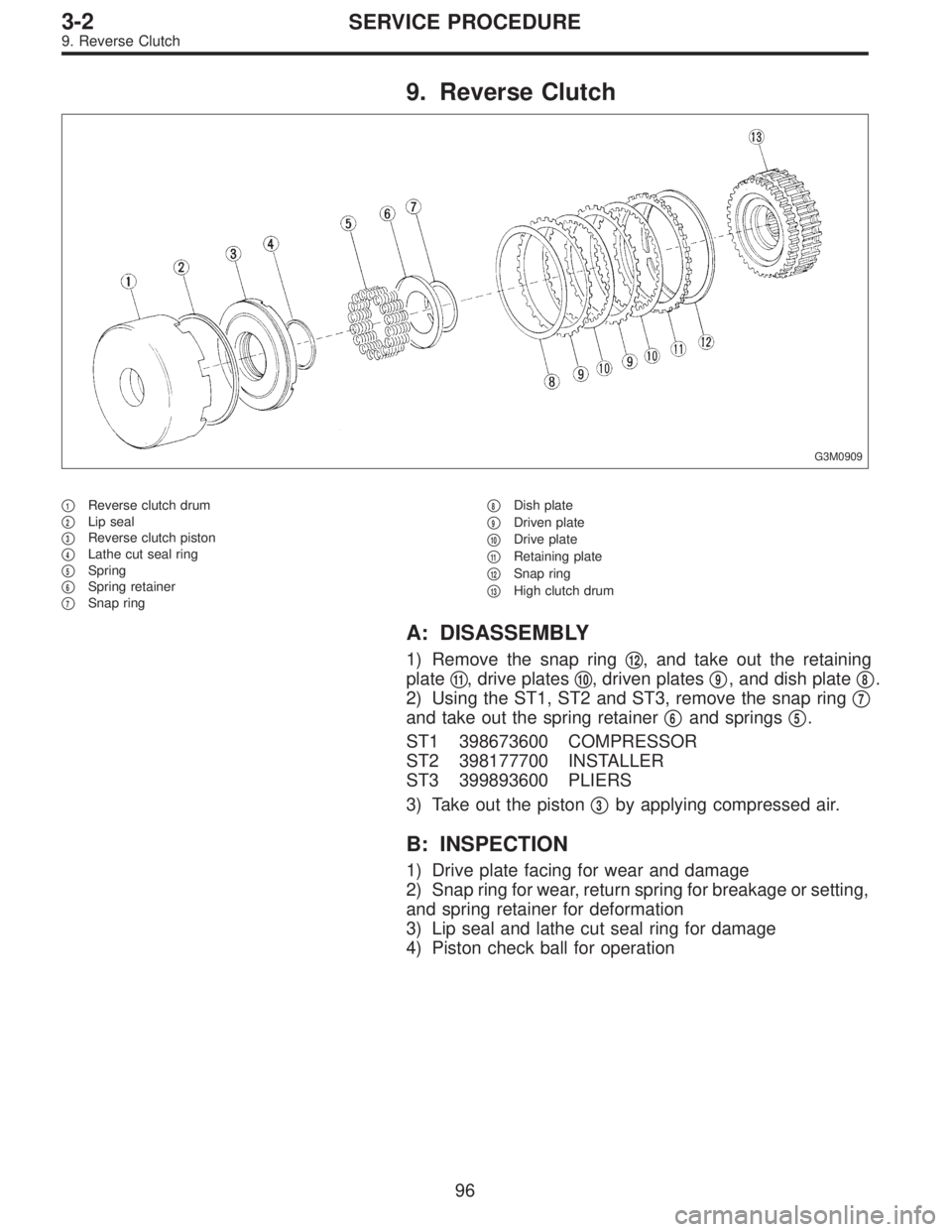

SUBARU LEGACY 1996  Service Repair Manual 9. Reverse Clutch
G3M0909
1Reverse clutch drum

2Lip seal

3Reverse clutch piston

4Lathe cut seal ring

5Spring

6Spring retainer

7Snap ring
8Dish plate

9Driven plate

10Drive plate

11R

Page 924 of 2890

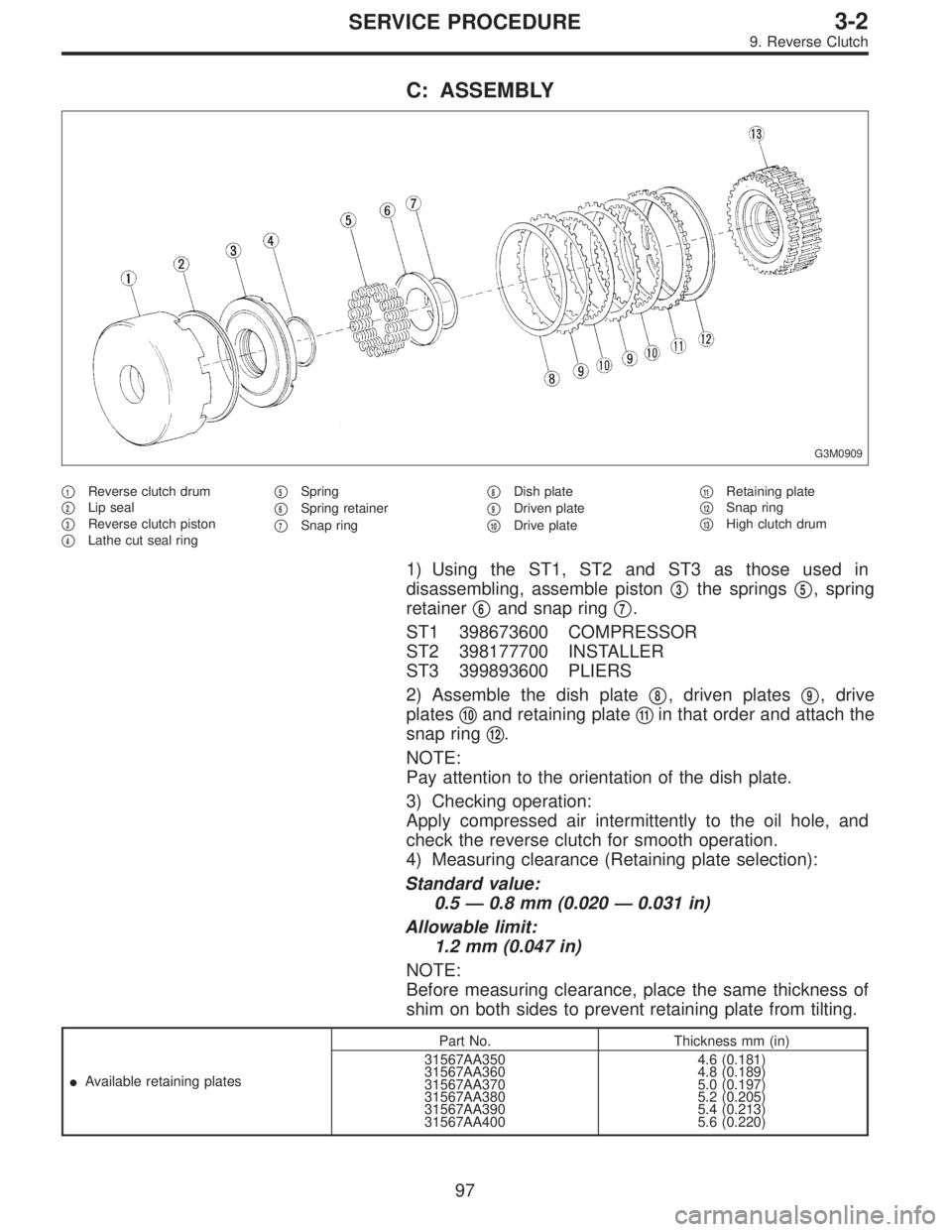

SUBARU LEGACY 1996  Service Repair Manual C: ASSEMBLY
G3M0909
1Reverse clutch drum

2Lip seal

3Reverse clutch piston

4Lathe cut seal ring
5Spring

6Spring retainer

7Snap ring
8Dish plate

9Driven plate

10Drive plate
11Retaining

Page 925 of 2890

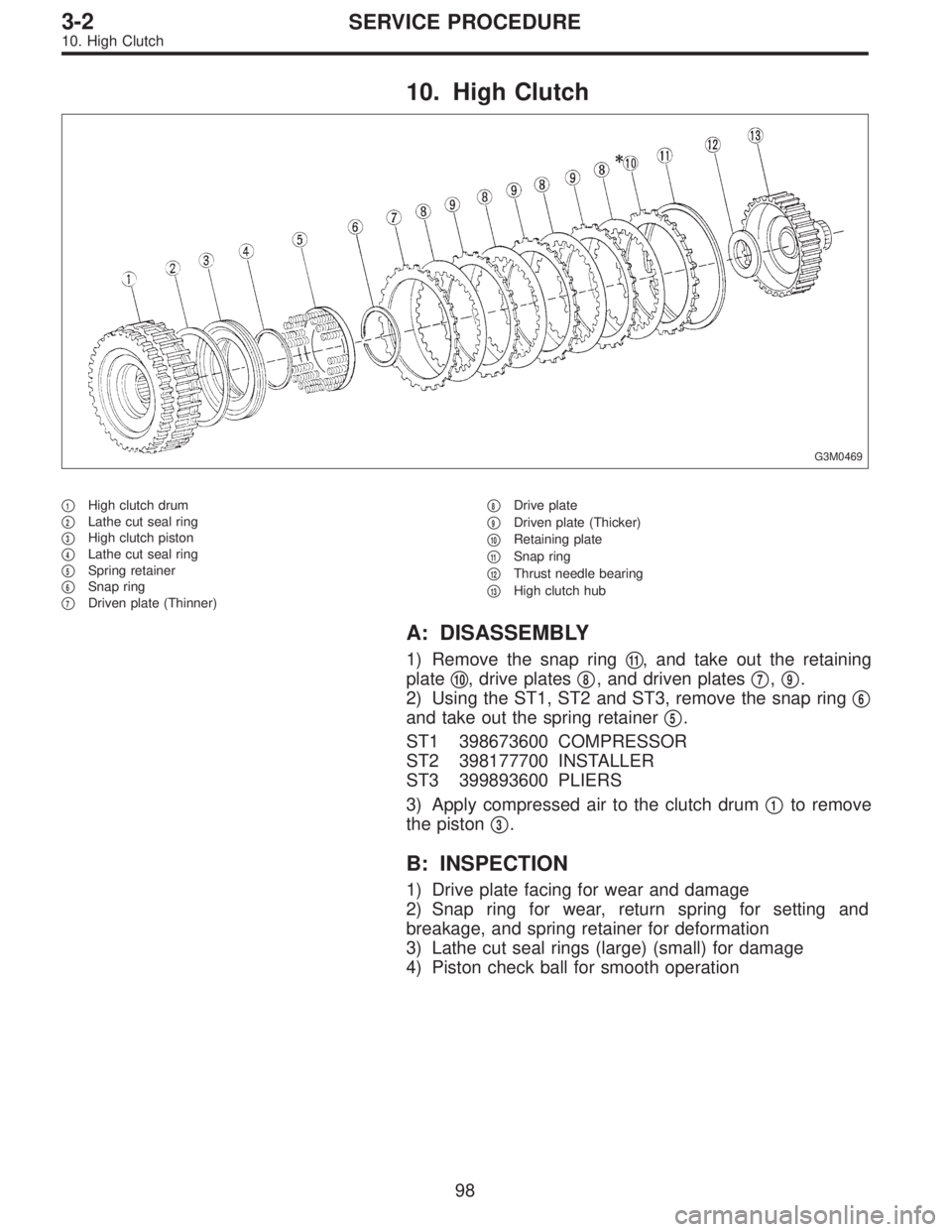

SUBARU LEGACY 1996  Service Repair Manual 10. High Clutch
G3M0469
1High clutch drum

2Lathe cut seal ring

3High clutch piston

4Lathe cut seal ring

5Spring retainer

6Snap ring

7Driven plate (Thinner)
8Drive plate

9Driven plate (

Page 926 of 2890

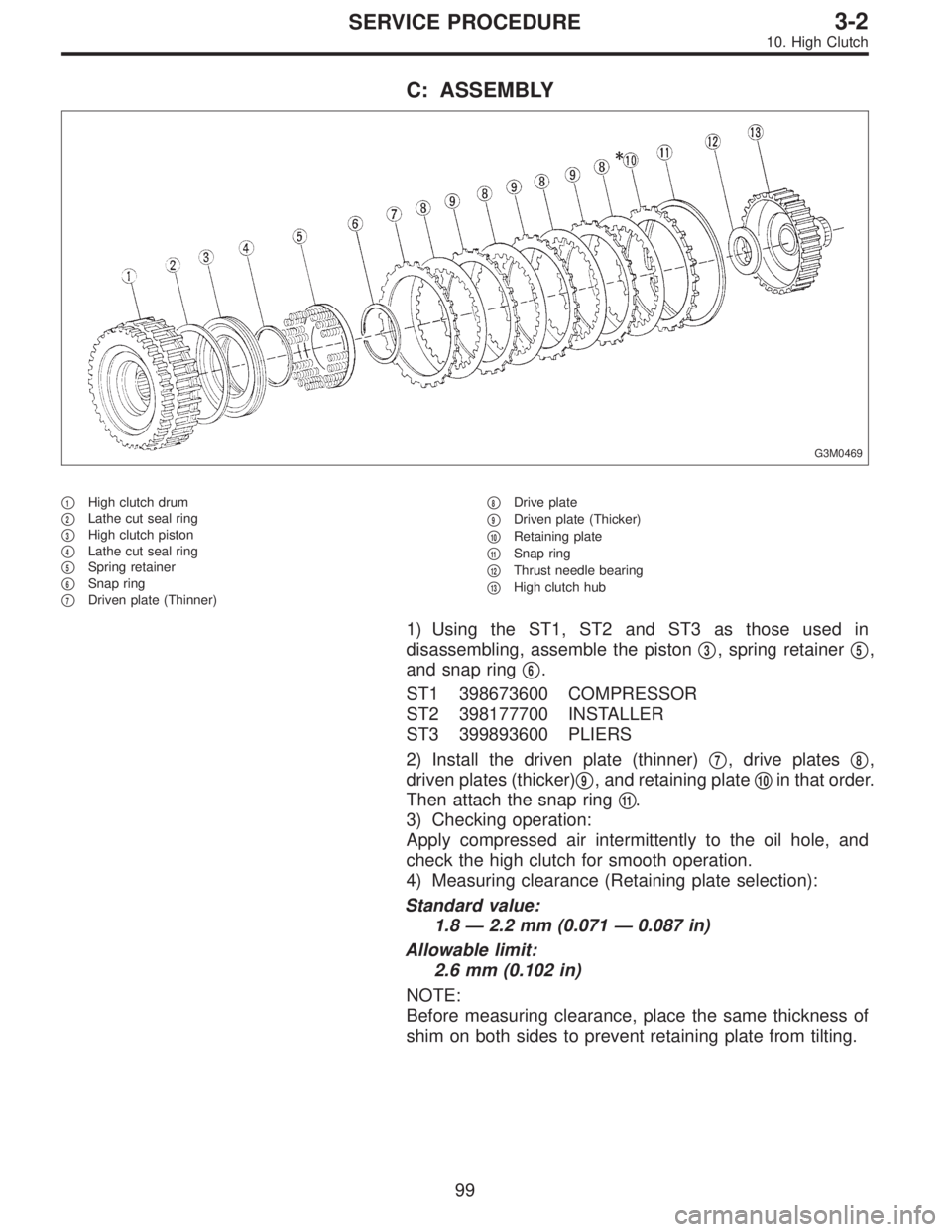

SUBARU LEGACY 1996  Service Repair Manual C: ASSEMBLY
G3M0469
1High clutch drum

2Lathe cut seal ring

3High clutch piston

4Lathe cut seal ring

5Spring retainer

6Snap ring

7Driven plate (Thinner)
8Drive plate

9Driven plate (Thic

Page 927 of 2890

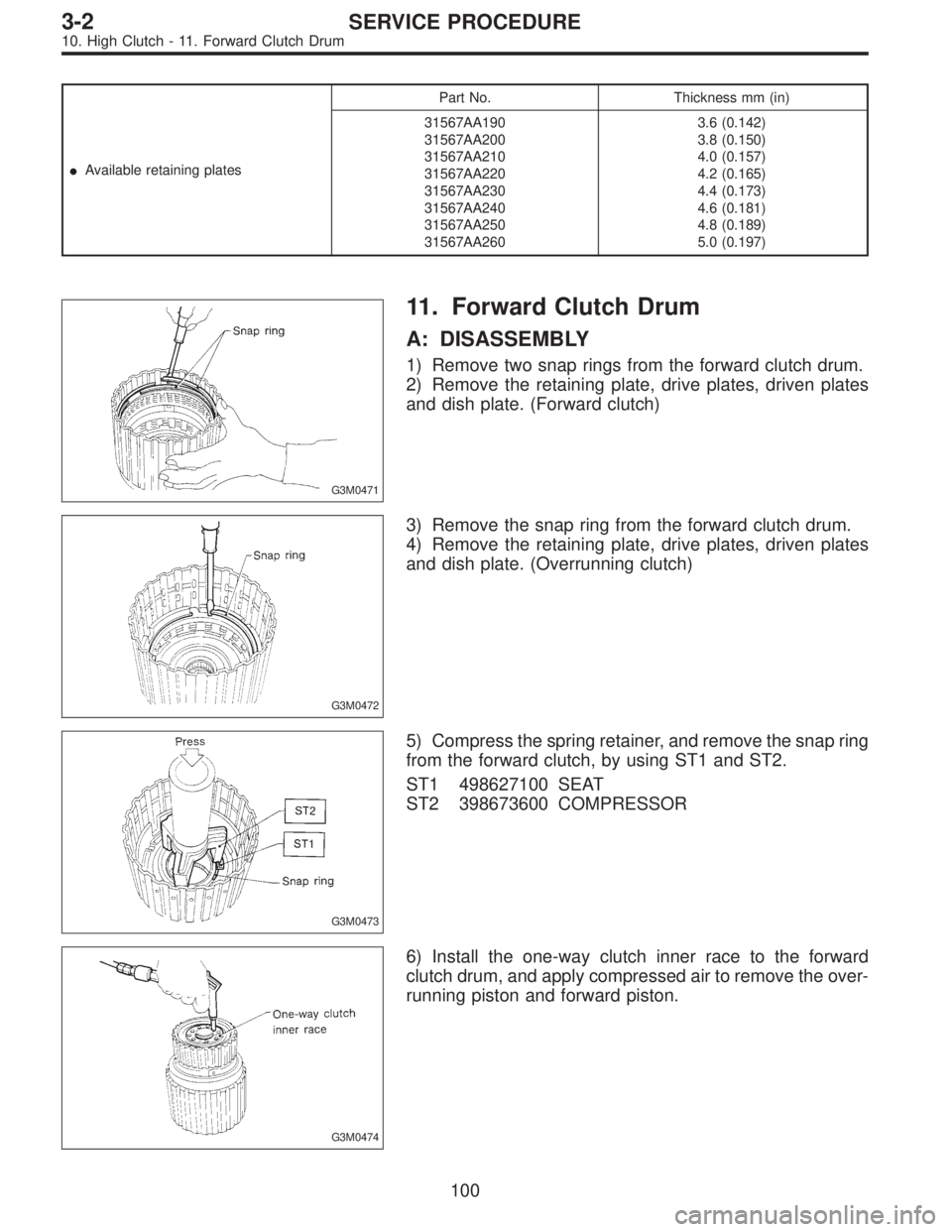

SUBARU LEGACY 1996  Service Repair Manual Available retaining platesPart No. Thickness mm (in)
31567AA190
31567AA200
31567AA210
31567AA220
31567AA230
31567AA240
31567AA250
31567AA2603.6 (0.142)
3.8 (0.150)
4.0 (0.157)
4.2 (0.165)
4.4 (0.173)

Page 928 of 2890

SUBARU LEGACY 1996  Service Repair Manual Available retaining platesPart No. Thickness mm (in)
31567AA190
31567AA200
31567AA210
31567AA220
31567AA230
31567AA240
31567AA250
31567AA2603.6 (0.142)
3.8 (0.150)
4.0 (0.157)
4.2 (0.165)
4.4 (0.173)
