Page 833 of 2890

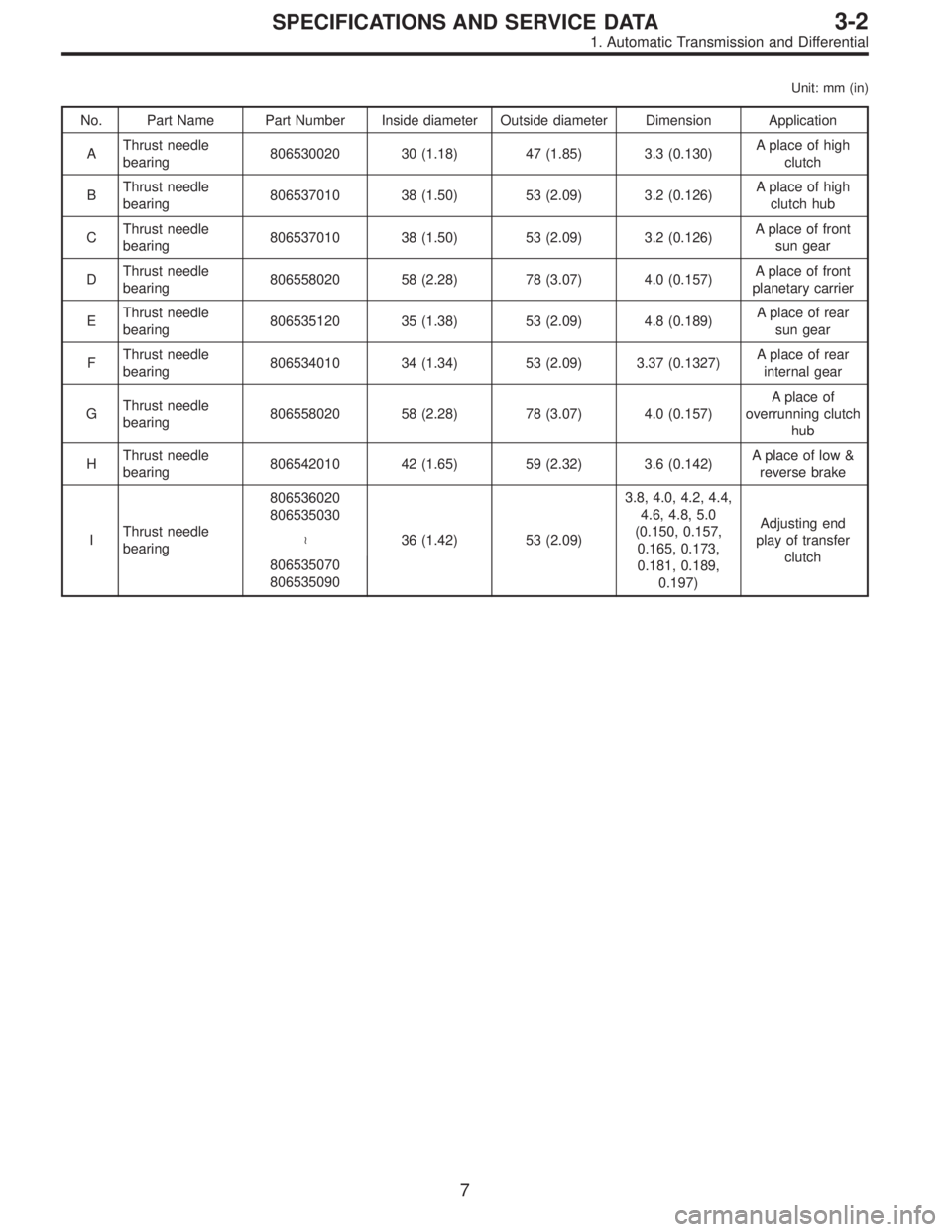

Unit: mm (in)
No. Part Name Part Number Inside diameter Outside diameter Dimension Application
AThrust needle
bearing806530020 30 (1.18) 47 (1.85) 3.3 (0.130)A place of high
clutch
BThrust needle
bearing806537010 38 (1.50) 53 (2.09) 3.2 (0.126)A place of high
clutch hub
CThrust needle
bearing806537010 38 (1.50) 53 (2.09) 3.2 (0.126)A place of front
sun gear
DThrust needle
bearing806558020 58 (2.28) 78 (3.07) 4.0 (0.157)A place of front
planetary carrier
EThrust needle
bearing806535120 35 (1.38) 53 (2.09) 4.8 (0.189)A place of rear
sun gear
FThrust needle
bearing806534010 34 (1.34) 53 (2.09) 3.37 (0.1327)A place of rear
internal gear
GThrust needle
bearing806558020 58 (2.28) 78 (3.07) 4.0 (0.157)A place of
overrunning clutch
hub
HThrust needle
bearing806542010 42 (1.65) 59 (2.32) 3.6 (0.142)A place of low &
reverse brake
IThrust needle
bearing806536020
806535030
36 (1.42) 53 (2.09)3.8, 4.0, 4.2, 4.4,
4.6, 4.8, 5.0
(0.150, 0.157,
0.165, 0.173,
0.181, 0.189,
0.197)Adjusting end
play of transfer
clutch
∼
806535070
806535090
7
3-2SPECIFICATIONS AND SERVICE DATA
1. Automatic Transmission and Differential
Page 834 of 2890

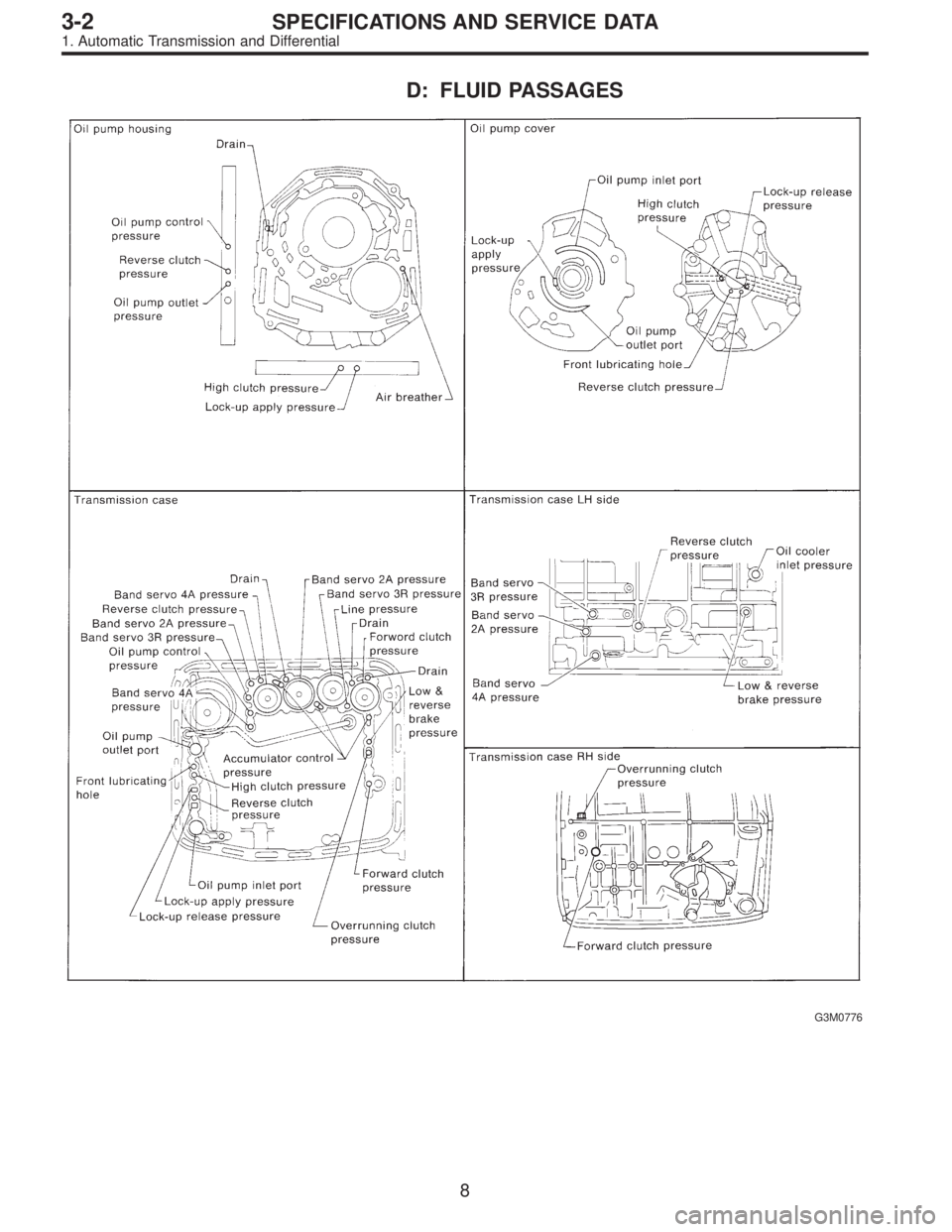

D: FLUID PASSAGES
G3M0776
8
3-2SPECIFICATIONS AND SERVICE DATA
1. Automatic Transmission and Differential
Page 835 of 2890

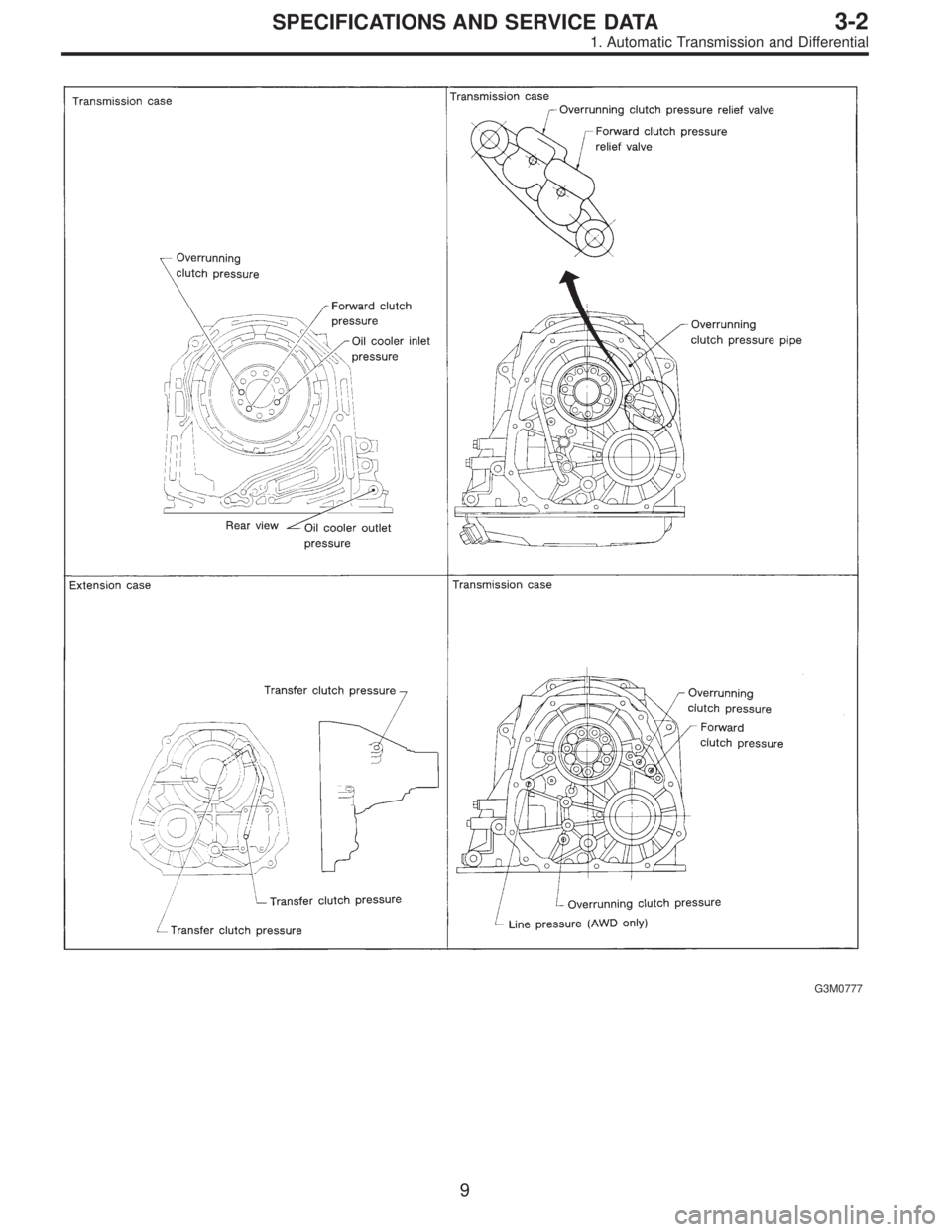

G3M0777
9
3-2SPECIFICATIONS AND SERVICE DATA
1. Automatic Transmission and Differential
Page 836 of 2890

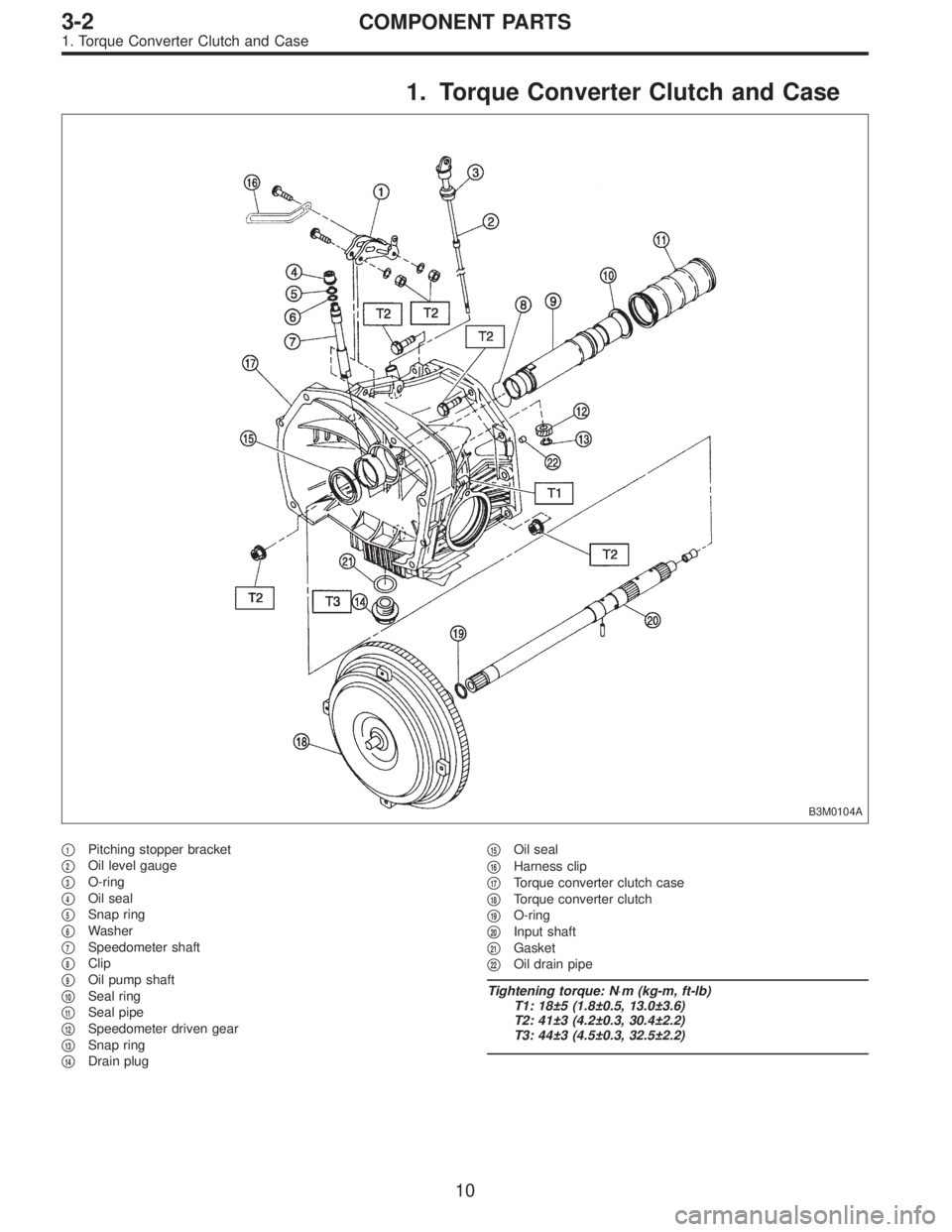

1. Torque Converter Clutch and Case
B3M0104A
1Pitching stopper bracket
2Oil level gauge
3O-ring
4Oil seal
5Snap ring
6Washer
7Speedometer shaft
8Clip
9Oil pump shaft
10Seal ring
11Seal pipe
12Speedometer driven gear
13Snap ring
14Drain plug
15Oil seal
16Harness clip
17Torque converter clutch case
18Torque converter clutch
19O-ring
20Input shaft
21Gasket
22Oil drain pipe
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 18±5 (1.8±0.5, 13.0±3.6)
T2: 41±3 (4.2±0.3, 30.4±2.2)
T3: 44±3 (4.5±0.3, 32.5±2.2)
10
3-2COMPONENT PARTS
1. Torque Converter Clutch and Case
Page 837 of 2890

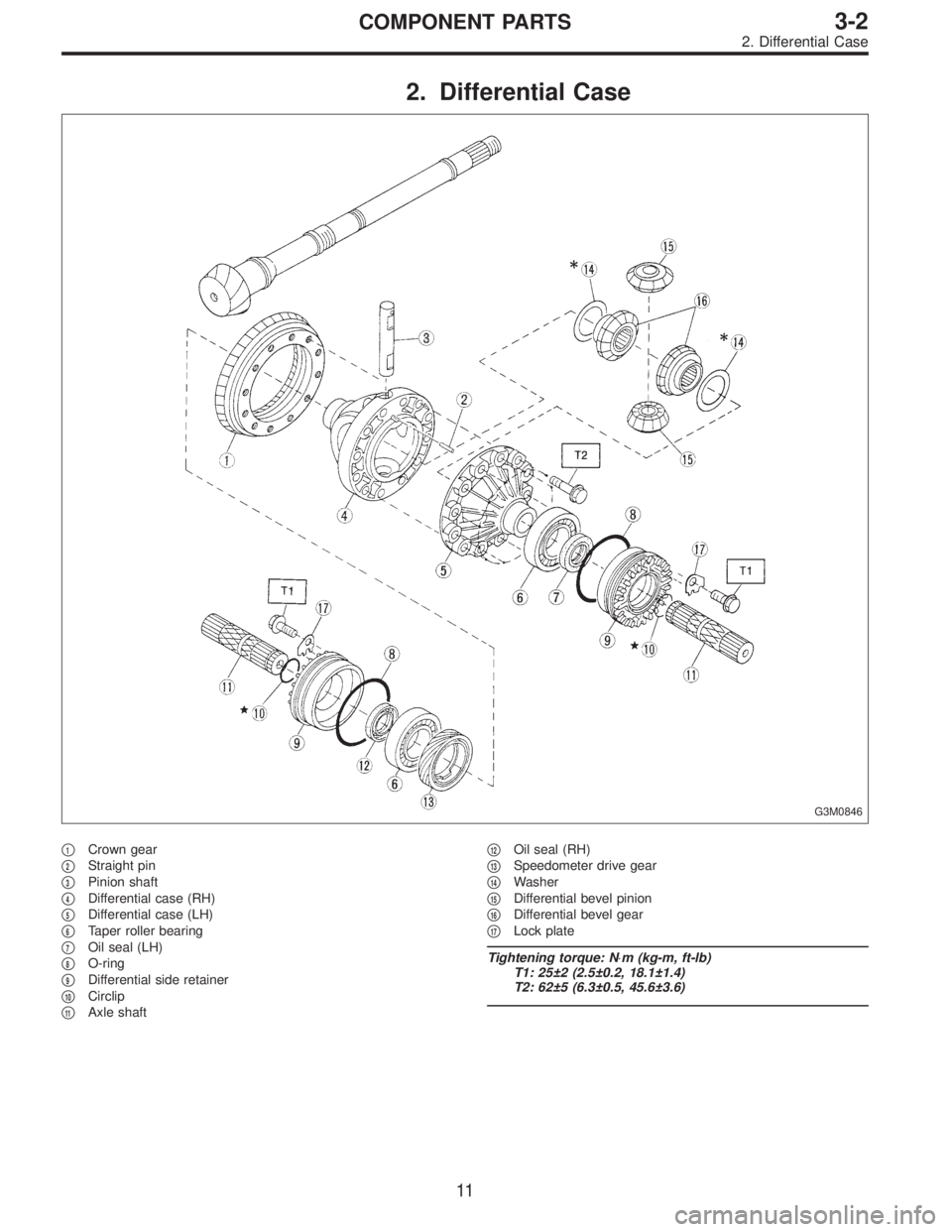

2. Differential Case
G3M0846
1Crown gear
2Straight pin
3Pinion shaft
4Differential case (RH)
5Differential case (LH)
6Taper roller bearing
7Oil seal (LH)
8O-ring
9Differential side retainer
10Circlip
11Axle shaft
12Oil seal (RH)
13Speedometer drive gear
14Washer
15Differential bevel pinion
16Differential bevel gear
17Lock plate
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 25±2 (2.5±0.2, 18.1±1.4)
T2: 62±5 (6.3±0.5, 45.6±3.6)
11
3-2COMPONENT PARTS
2. Differential Case
Page 838 of 2890

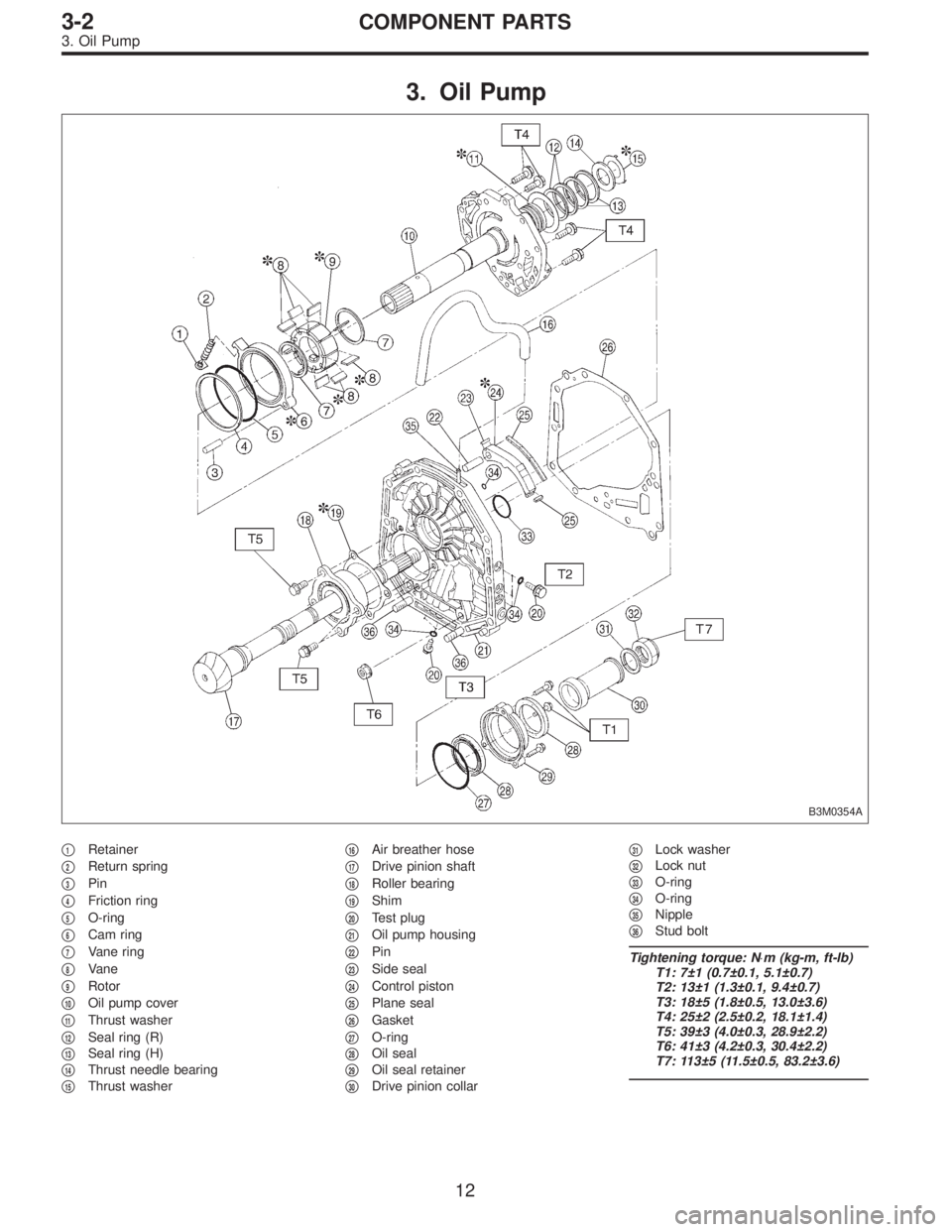

3. Oil Pump
B3M0354A
1Retainer
2Return spring
3Pin
4Friction ring
5O-ring
6Cam ring
7Vane ring
8Vane
9Rotor
10Oil pump cover
11Thrust washer
12Seal ring (R)
13Seal ring (H)
14Thrust needle bearing
15Thrust washer
16Air breather hose
17Drive pinion shaft
18Roller bearing
19Shim
20Test plug
21Oil pump housing
22Pin
23Side seal
24Control piston
25Plane seal
26Gasket
27O-ring
28Oil seal
29Oil seal retainer
30Drive pinion collar
31Lock washer
32Lock nut
33O-ring
34O-ring
35Nipple
36Stud bolt
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 7±1 (0.7±0.1, 5.1±0.7)
T2: 13±1 (1.3±0.1, 9.4±0.7)
T3: 18±5 (1.8±0.5, 13.0±3.6)
T4: 25±2 (2.5±0.2, 18.1±1.4)
T5: 39±3 (4.0±0.3, 28.9±2.2)
T6: 41±3 (4.2±0.3, 30.4±2.2)
T7: 113±5 (11.5±0.5, 83.2±3.6)
12
3-2COMPONENT PARTS
3. Oil Pump
Page 839 of 2890

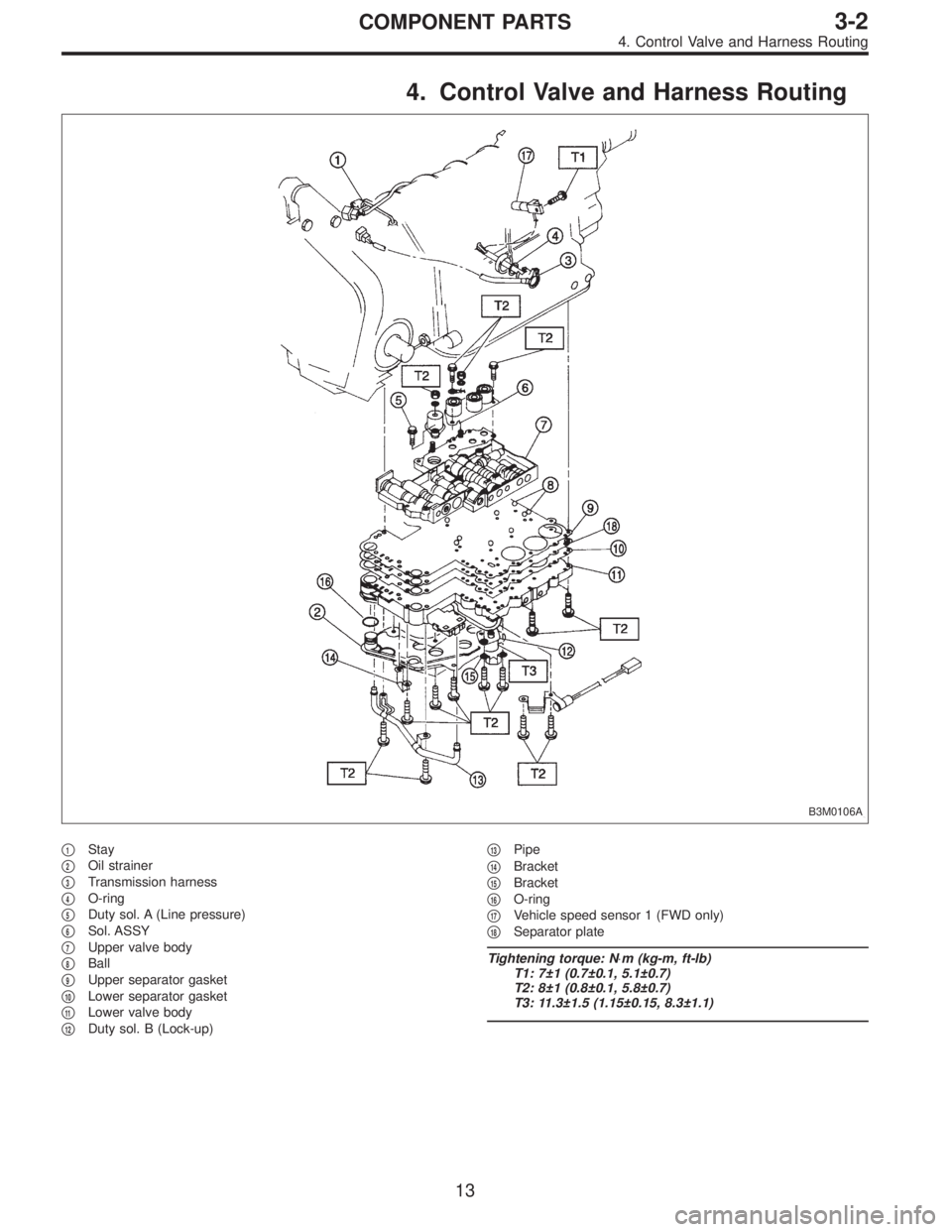

4. Control Valve and Harness Routing
B3M0106A
1Stay
2Oil strainer
3Transmission harness
4O-ring
5Duty sol. A (Line pressure)
6Sol. ASSY
7Upper valve body
8Ball
9Upper separator gasket
10Lower separator gasket
11Lower valve body
12Duty sol. B (Lock-up)
13Pipe
14Bracket
15Bracket
16O-ring
17Vehicle speed sensor 1 (FWD only)
18Separator plate
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 7±1 (0.7±0.1, 5.1±0.7)
T2: 8±1 (0.8±0.1, 5.8±0.7)
T3: 11.3±1.5 (1.15±0.15, 8.3±1.1)
13
3-2COMPONENT PARTS
4. Control Valve and Harness Routing
Page 840 of 2890

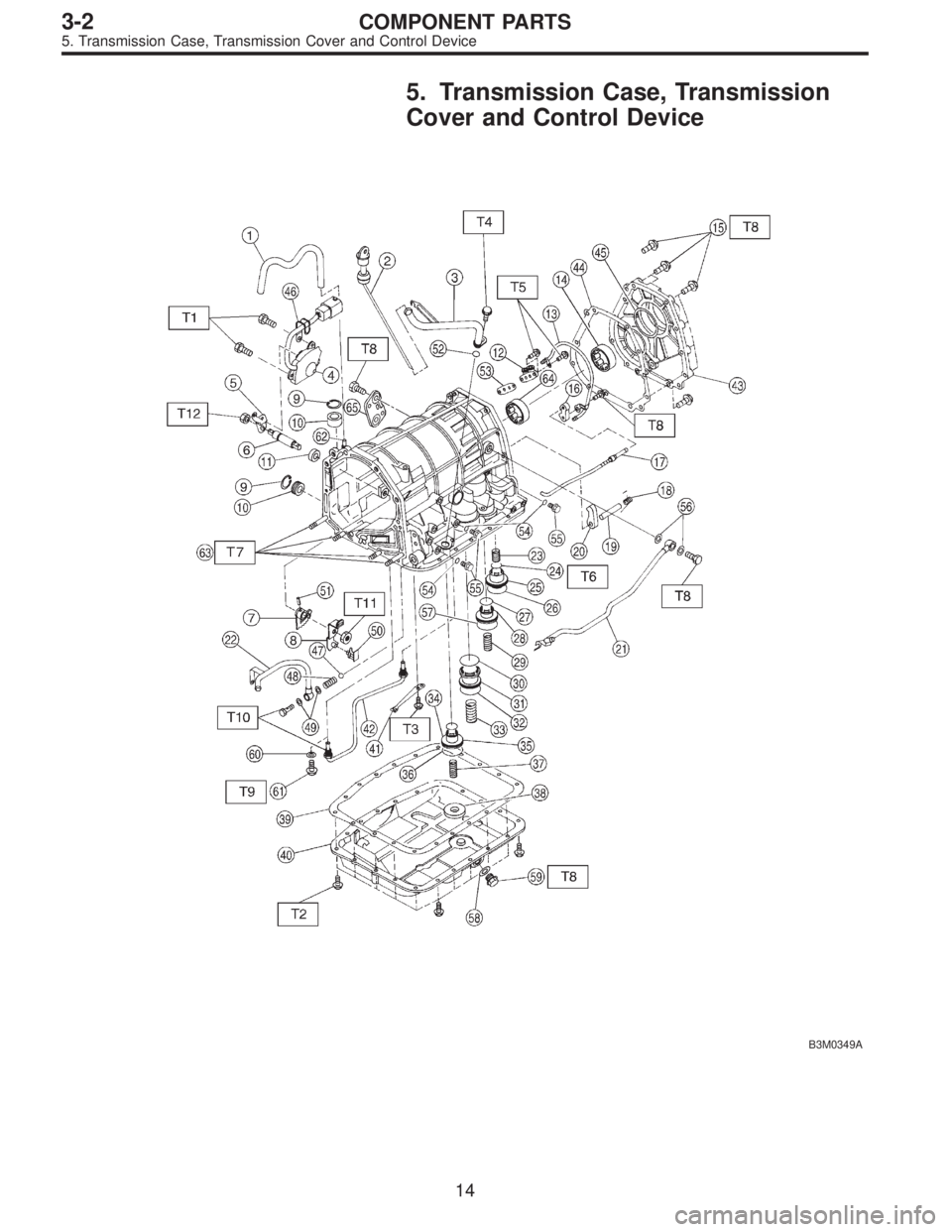

5. Transmission Case, Transmission
Cover and Control Device
B3M0349A
14
3-2COMPONENT PARTS
5. Transmission Case, Transmission Cover and Control Device
