Page 697 of 2890
B2M0055

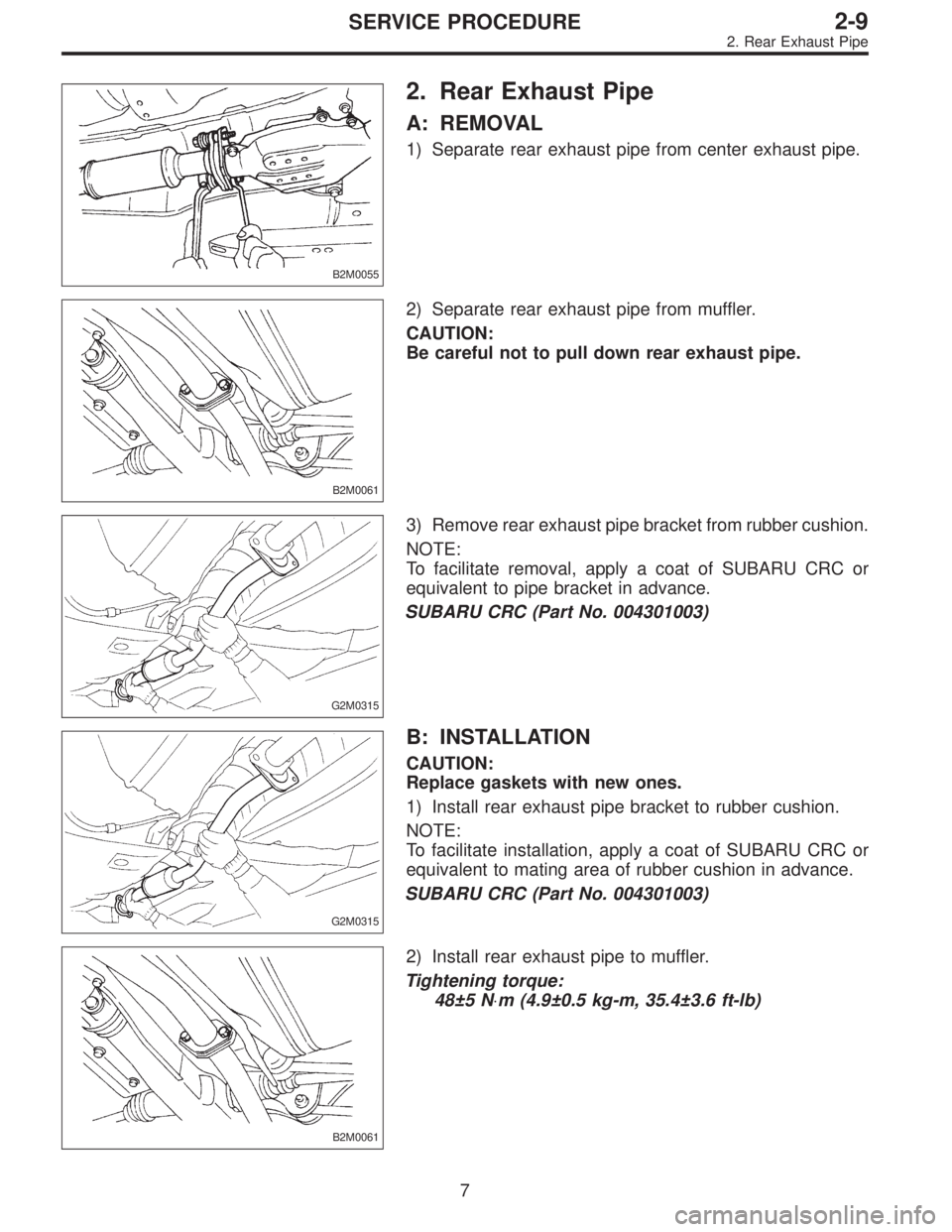

2. Rear Exhaust Pipe
A: REMOVAL
1) Separate rear exhaust pipe from center exhaust pipe.
B2M0061
2) Separate rear exhaust pipe from muffler.
CAUTION:
Be careful not to pull down rear exhaust pipe.
G2M0315
3) Remove rear exhaust pipe bracket from rubber cushion.
NOTE:
To facilitate removal, apply a coat of SUBARU CRC or
equivalent to pipe bracket in advance.
SUBARU CRC (Part No. 004301003)
G2M0315
B: INSTALLATION
CAUTION:
Replace gaskets with new ones.
1) Install rear exhaust pipe bracket to rubber cushion.
NOTE:
To facilitate installation, apply a coat of SUBARU CRC or
equivalent to mating area of rubber cushion in advance.
SUBARU CRC (Part No. 004301003)
B2M0061
2) Install rear exhaust pipe to muffler.
Tightening torque:
48±5 N⋅m (4.9±0.5 kg-m, 35.4±3.6 ft-lb)
7
2-9SERVICE PROCEDURE
2. Rear Exhaust Pipe
Page 698 of 2890
B2M0055

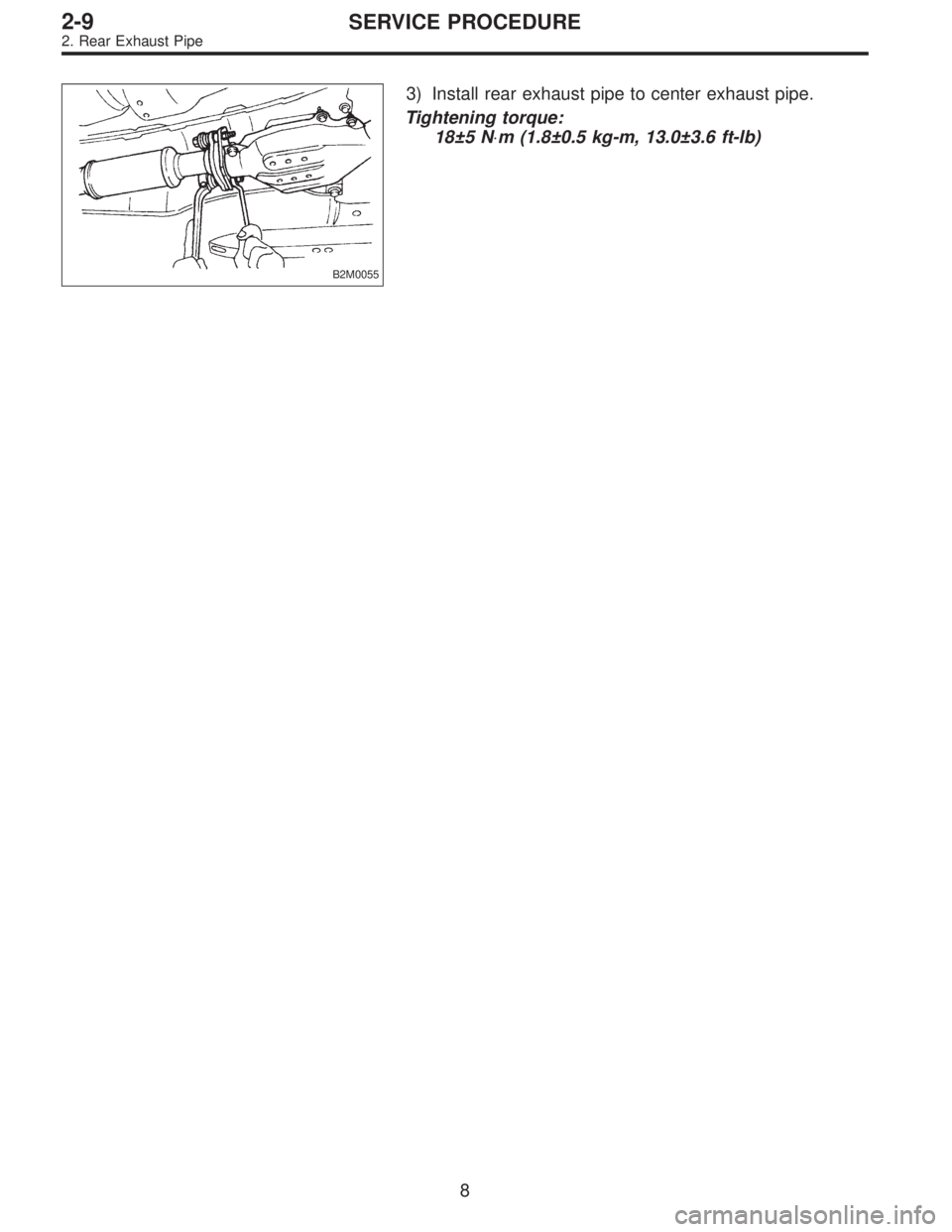

3) Install rear exhaust pipe to center exhaust pipe.
Tightening torque:
18±5 N⋅m (1.8±0.5 kg-m, 13.0±3.6 ft-lb)
8
2-9SERVICE PROCEDURE
2. Rear Exhaust Pipe
Page 699 of 2890
B2M0061

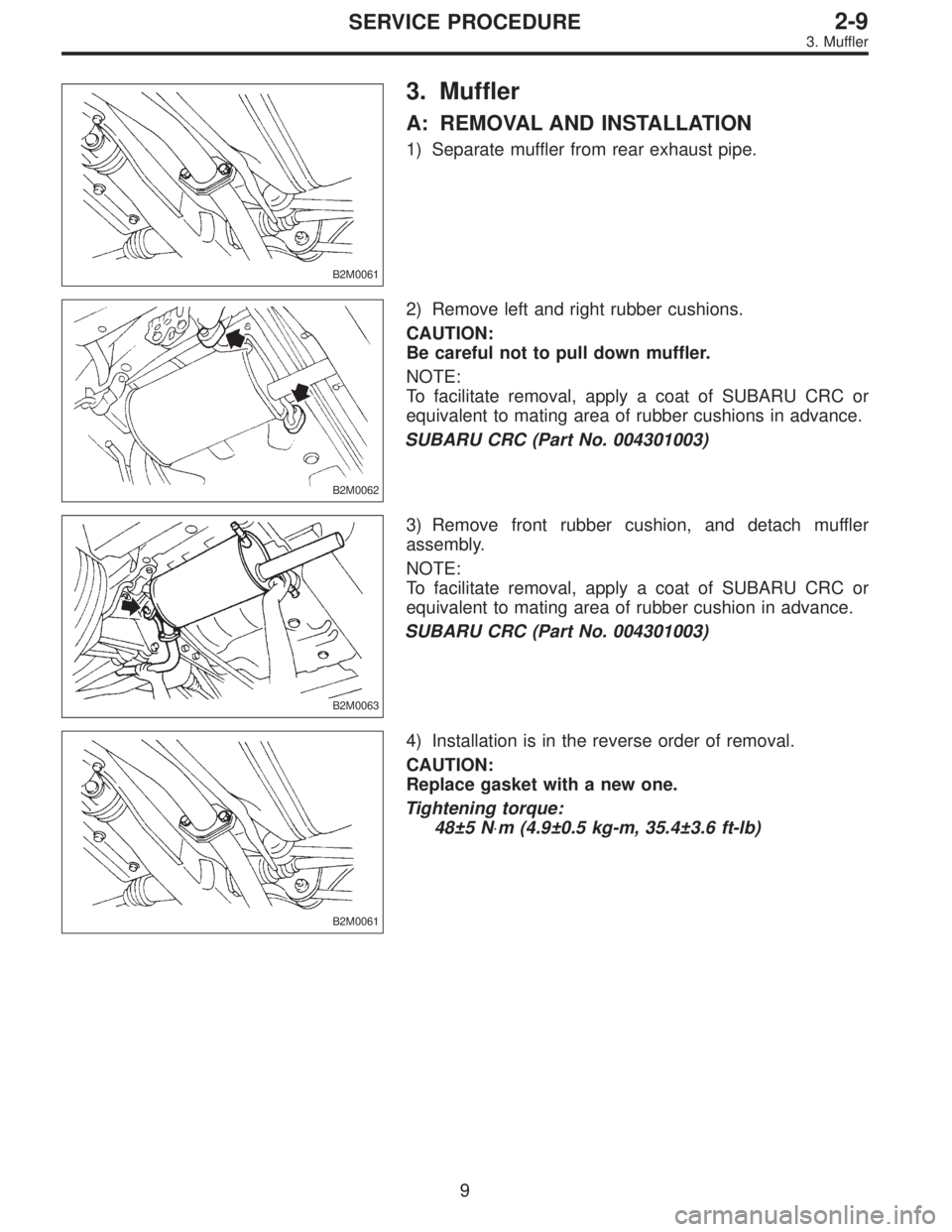

3. Muffler
A: REMOVAL AND INSTALLATION
1) Separate muffler from rear exhaust pipe.
B2M0062
2) Remove left and right rubber cushions.
CAUTION:
Be careful not to pull down muffler.
NOTE:
To facilitate removal, apply a coat of SUBARU CRC or
equivalent to mating area of rubber cushions in advance.
SUBARU CRC (Part No. 004301003)
B2M0063
3) Remove front rubber cushion, and detach muffler
assembly.
NOTE:
To facilitate removal, apply a coat of SUBARU CRC or
equivalent to mating area of rubber cushion in advance.
SUBARU CRC (Part No. 004301003)
B2M0061
4) Installation is in the reverse order of removal.
CAUTION:
Replace gasket with a new one.
Tightening torque:
48±5 N⋅m (4.9±0.5 kg-m, 35.4±3.6 ft-lb)
9
2-9SERVICE PROCEDURE
3. Muffler
Page 700 of 2890

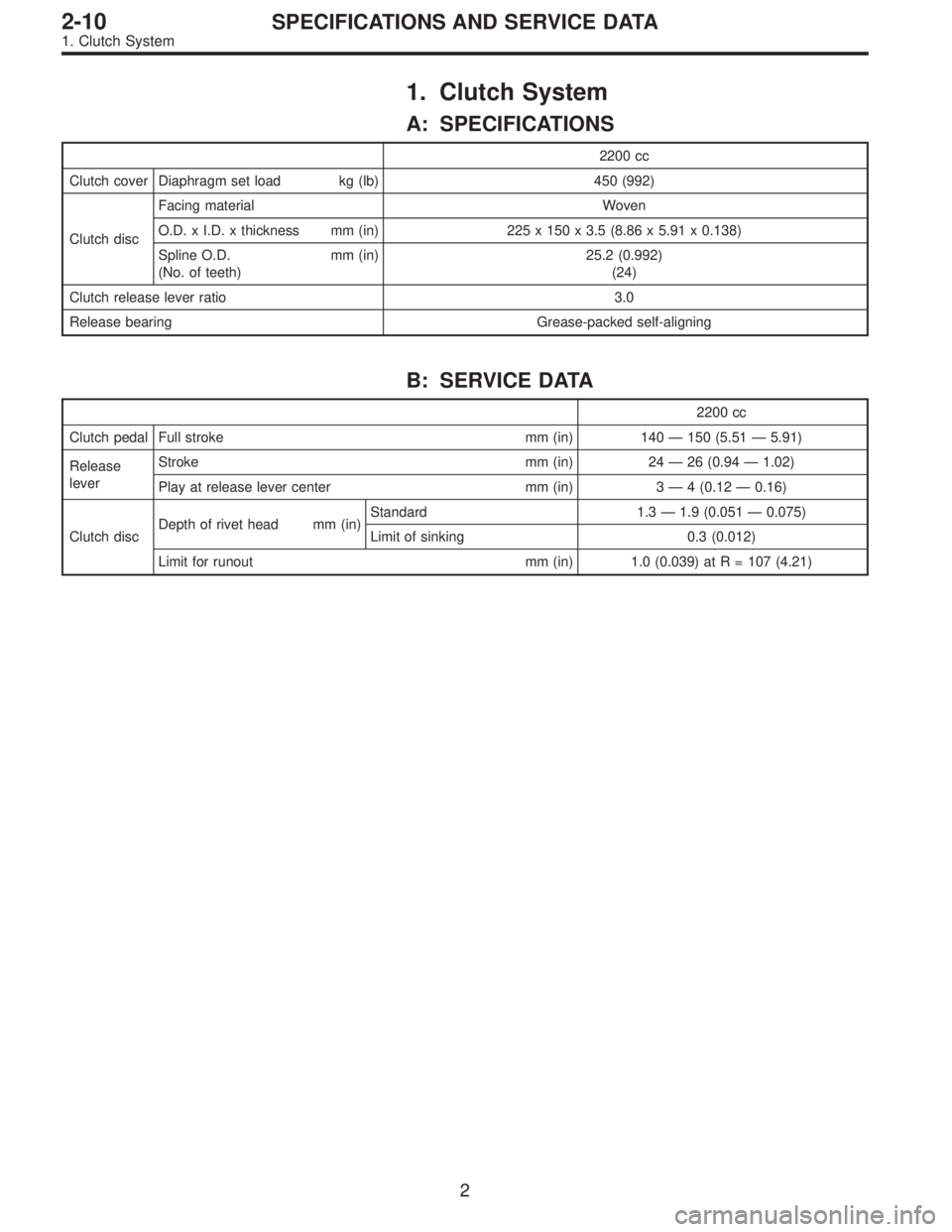

1. Clutch System
A: SPECIFICATIONS
2200 cc
Clutch cover Diaphragm set load kg (lb) 450 (992)
Clutch discFacing material Woven
O.D. x I.D. x thickness mm (in) 225 x 150 x 3.5 (8.86 x 5.91 x 0.138)
Spline O.D. mm (in)
(No. of teeth)25.2 (0.992)
(24)
Clutch release lever ratio 3.0
Release bearing Grease-packed self-aligning
B: SERVICE DATA
2200 cc
Clutch pedal Full stroke mm (in) 140 — 150 (5.51 — 5.91)
Release
leverStroke mm (in) 24 — 26 (0.94 — 1.02)
Play at release lever center mm (in) 3 — 4 (0.12 — 0.16)
Clutch discDepth of rivet head mm (in)Standard 1.3 — 1.9 (0.051 — 0.075)
Limit of sinking 0.3 (0.012)
Limit for runout mm (in) 1.0 (0.039) at R = 107 (4.21)
2
2-10SPECIFICATIONS AND SERVICE DATA
1. Clutch System
Page 701 of 2890

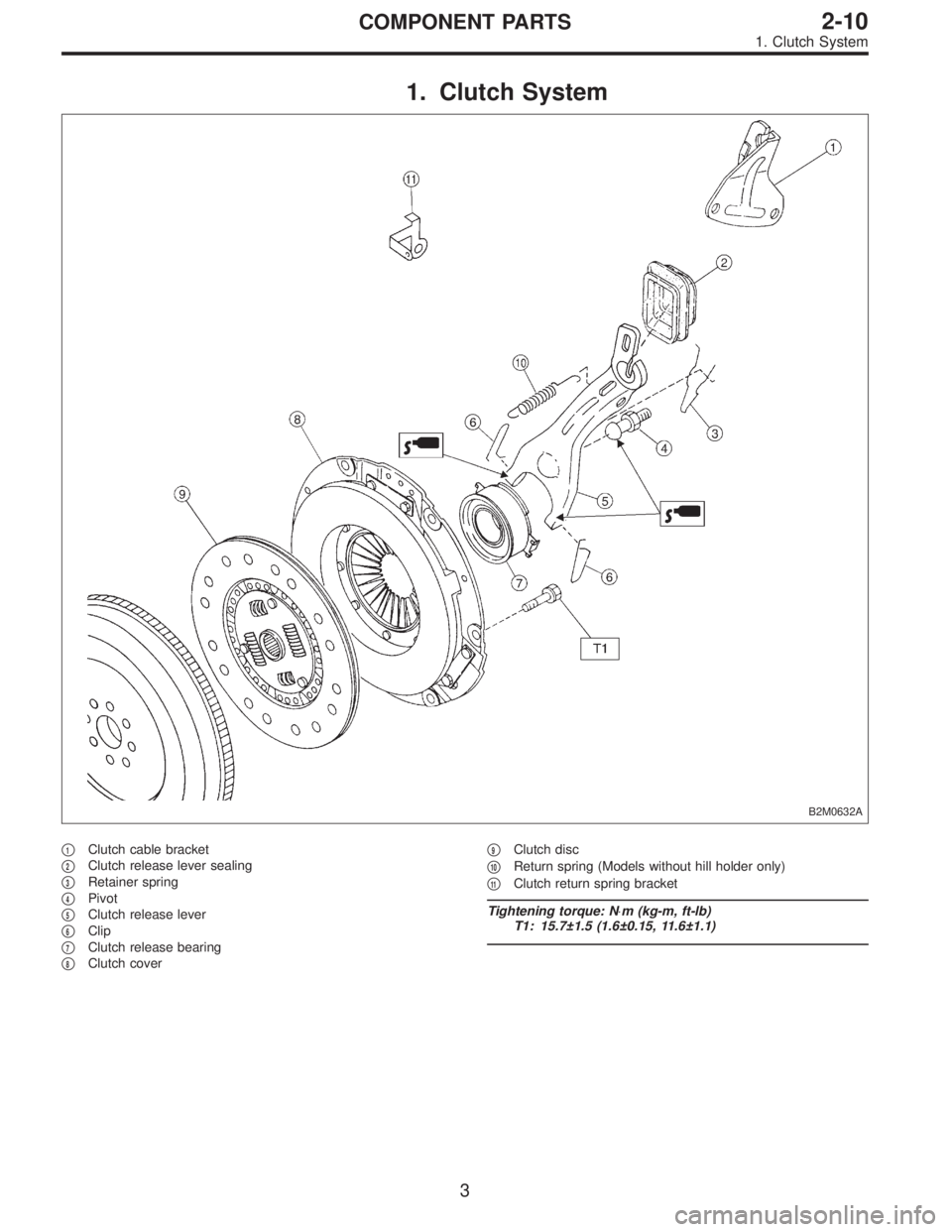

1. Clutch System
B2M0632A
1Clutch cable bracket
2Clutch release lever sealing
3Retainer spring
4Pivot
5Clutch release lever
6Clip
7Clutch release bearing
8Clutch cover
9Clutch disc
10Return spring (Models without hill holder only)
11Clutch return spring bracket
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 15.7±1.5 (1.6±0.15, 11.6±1.1)
3
2-10COMPONENT PARTS
1. Clutch System
Page 702 of 2890

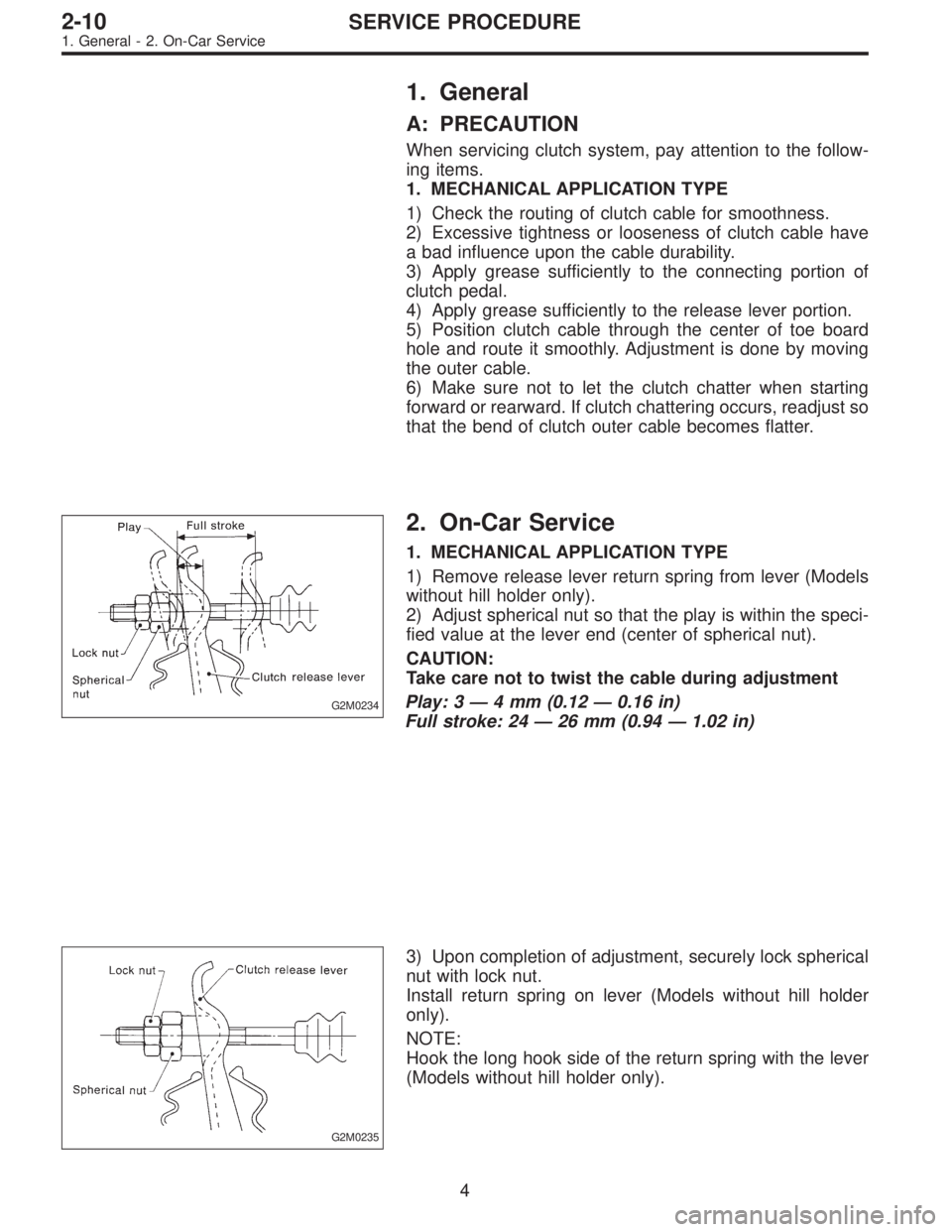

1. General
A: PRECAUTION
When servicing clutch system, pay attention to the follow-
ing items.
1. MECHANICAL APPLICATION TYPE
1) Check the routing of clutch cable for smoothness.
2) Excessive tightness or looseness of clutch cable have
a bad influence upon the cable durability.
3) Apply grease sufficiently to the connecting portion of
clutch pedal.
4) Apply grease sufficiently to the release lever portion.
5) Position clutch cable through the center of toe board
hole and route it smoothly. Adjustment is done by moving
the outer cable.
6) Make sure not to let the clutch chatter when starting
forward or rearward. If clutch chattering occurs, readjust so
that the bend of clutch outer cable becomes flatter.
G2M0234
2. On-Car Service
1. MECHANICAL APPLICATION TYPE
1) Remove release lever return spring from lever (Models
without hill holder only).
2) Adjust spherical nut so that the play is within the speci-
fied value at the lever end (center of spherical nut).
CAUTION:
Take care not to twist the cable during adjustment
Play: 3 — 4 mm (0.12 — 0.16 in)
Full stroke: 24 — 26 mm (0.94 — 1.02 in)
G2M0235
3) Upon completion of adjustment, securely lock spherical
nut with lock nut.
Install return spring on lever (Models without hill holder
only).
NOTE:
Hook the long hook side of the return spring with the lever
(Models without hill holder only).
4
2-10SERVICE PROCEDURE
1. General - 2. On-Car Service
Page 703 of 2890

1. General
A: PRECAUTION
When servicing clutch system, pay attention to the follow-
ing items.
1. MECHANICAL APPLICATION TYPE
1) Check the routing of clutch cable for smoothness.
2) Excessive tightness or looseness of clutch cable have
a bad influence upon the cable durability.
3) Apply grease sufficiently to the connecting portion of
clutch pedal.
4) Apply grease sufficiently to the release lever portion.
5) Position clutch cable through the center of toe board
hole and route it smoothly. Adjustment is done by moving
the outer cable.
6) Make sure not to let the clutch chatter when starting
forward or rearward. If clutch chattering occurs, readjust so
that the bend of clutch outer cable becomes flatter.
G2M0234
2. On-Car Service
1. MECHANICAL APPLICATION TYPE
1) Remove release lever return spring from lever (Models
without hill holder only).
2) Adjust spherical nut so that the play is within the speci-
fied value at the lever end (center of spherical nut).
CAUTION:
Take care not to twist the cable during adjustment
Play: 3 — 4 mm (0.12 — 0.16 in)
Full stroke: 24 — 26 mm (0.94 — 1.02 in)
G2M0235
3) Upon completion of adjustment, securely lock spherical
nut with lock nut.
Install return spring on lever (Models without hill holder
only).
NOTE:
Hook the long hook side of the return spring with the lever
(Models without hill holder only).
4
2-10SERVICE PROCEDURE
1. General - 2. On-Car Service
Page 704 of 2890
G2M0236

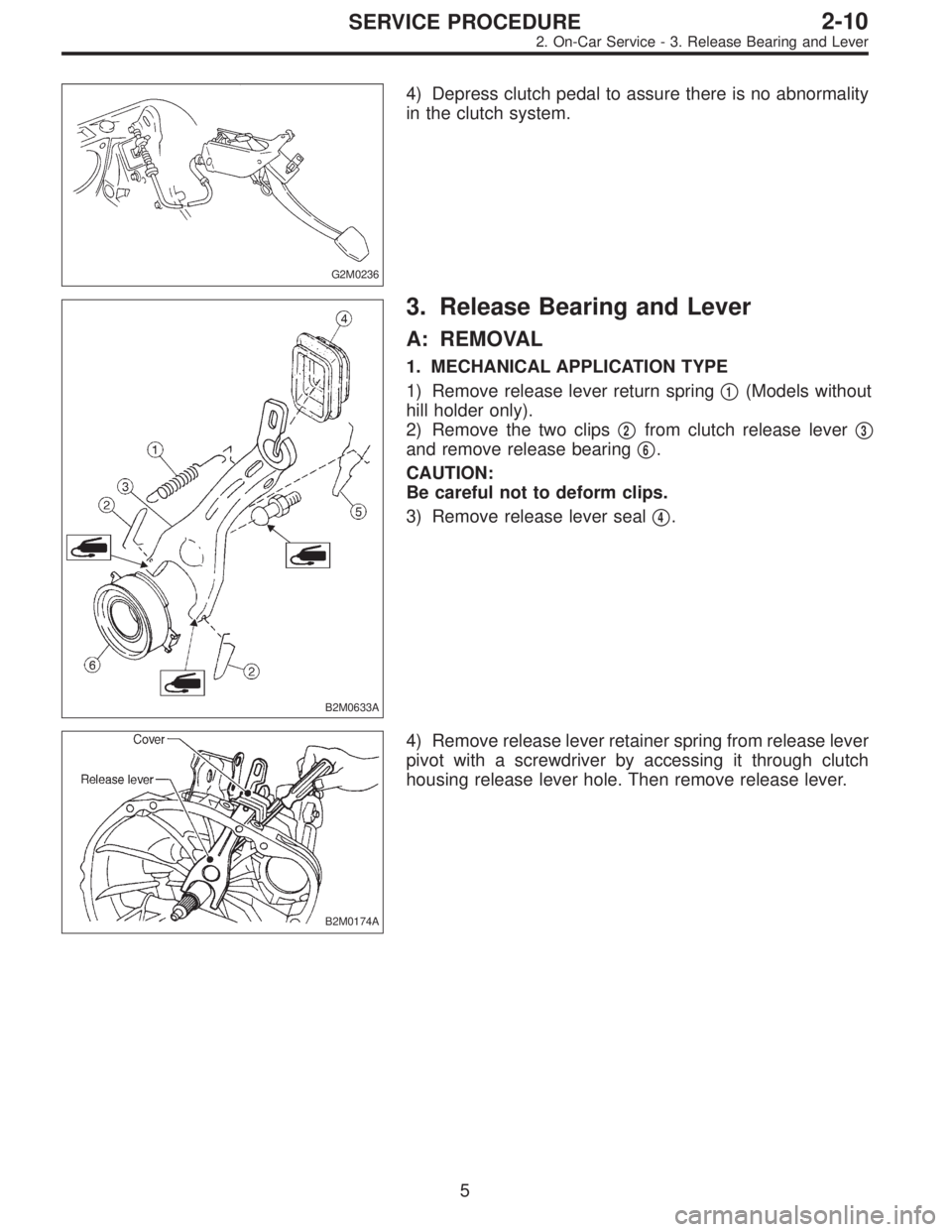

4) Depress clutch pedal to assure there is no abnormality
in the clutch system.
B2M0633A
3. Release Bearing and Lever
A: REMOVAL
1. MECHANICAL APPLICATION TYPE
1) Remove release lever return spring
1(Models without
hill holder only).
2) Remove the two clips
2from clutch release lever3
and remove release bearing6.
CAUTION:
Be careful not to deform clips.
3) Remove release lever seal
4.
B2M0174A
4) Remove release lever retainer spring from release lever
pivot with a screwdriver by accessing it through clutch
housing release lever hole. Then remove release lever.
5
2-10SERVICE PROCEDURE
2. On-Car Service - 3. Release Bearing and Lever
