SUBARU LEGACY 1996 Service Repair Manual G2M0223

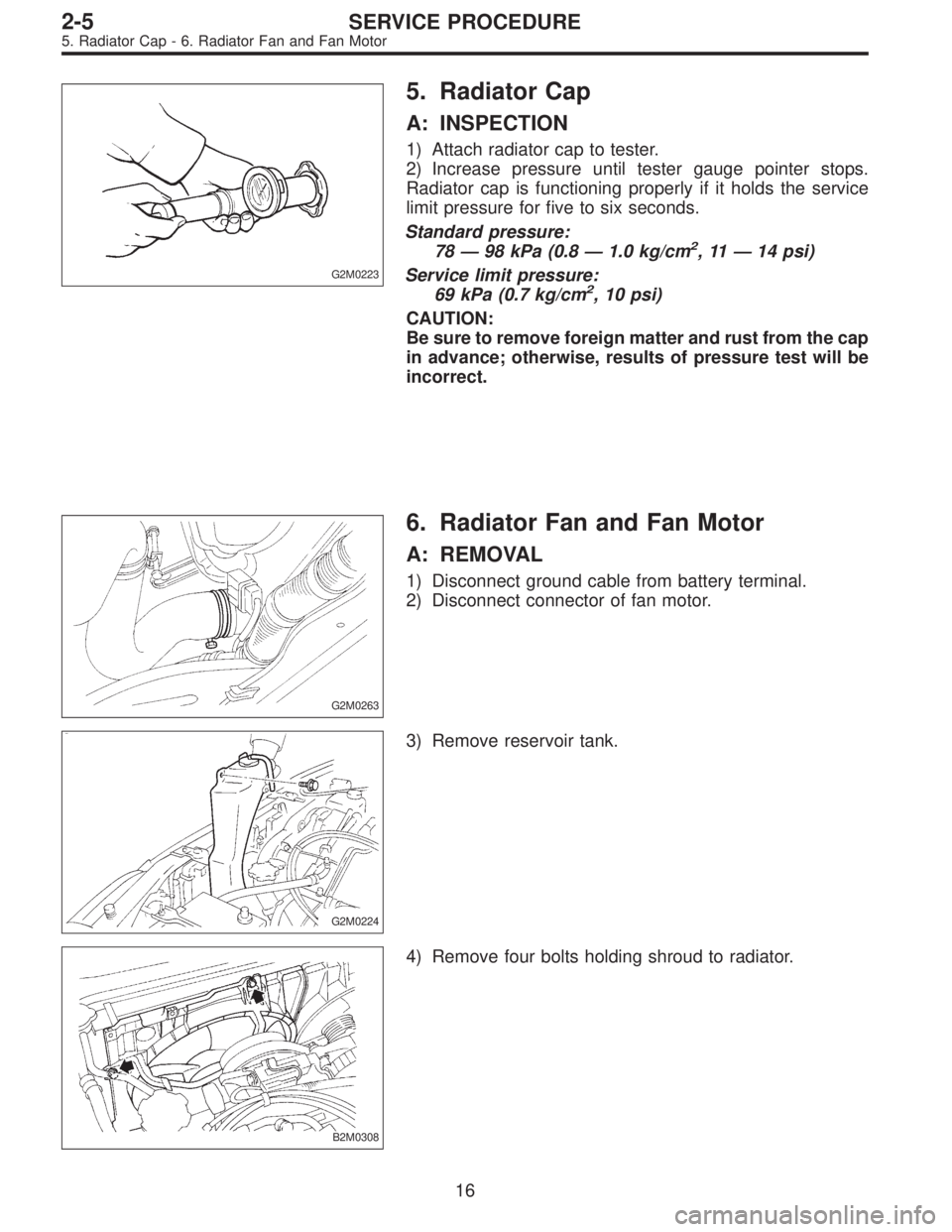

5. Radiator Cap
A: INSPECTION
1) Attach radiator cap to tester.
2) Increase pressure until tester gauge pointer stops.
Radiator cap is functioning properly if it holds the service
limit pressu

Page 602 of 2890

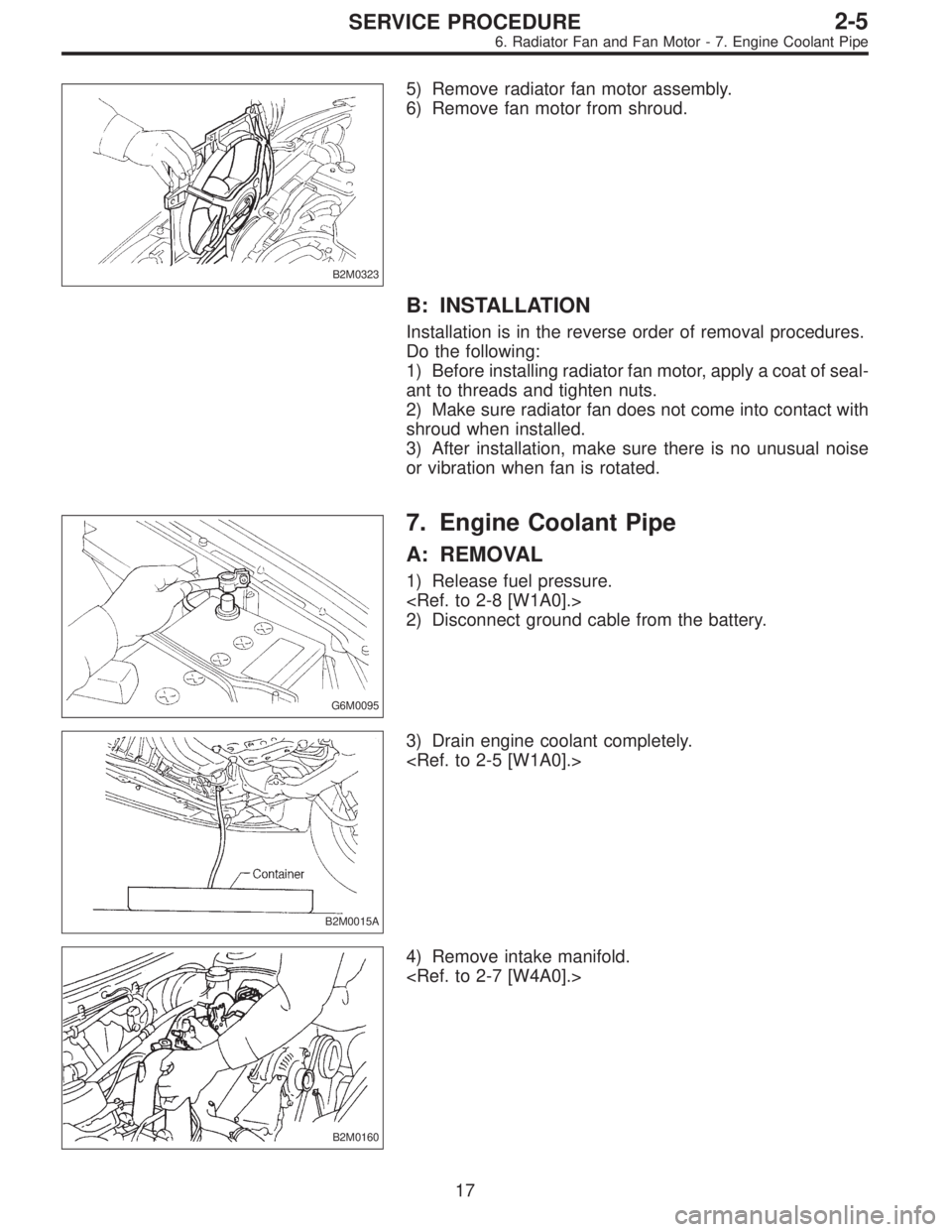

SUBARU LEGACY 1996 Service Repair Manual B2M0323
5) Remove radiator fan motor assembly.
6) Remove fan motor from shroud.
B: INSTALLATION
Installation is in the reverse order of removal procedures.
Do the following:
1) Before installing radia

Page 603 of 2890

SUBARU LEGACY 1996 Service Repair Manual B2M0323
5) Remove radiator fan motor assembly.
6) Remove fan motor from shroud.
B: INSTALLATION
Installation is in the reverse order of removal procedures.
Do the following:
1) Before installing radia

Page 604 of 2890

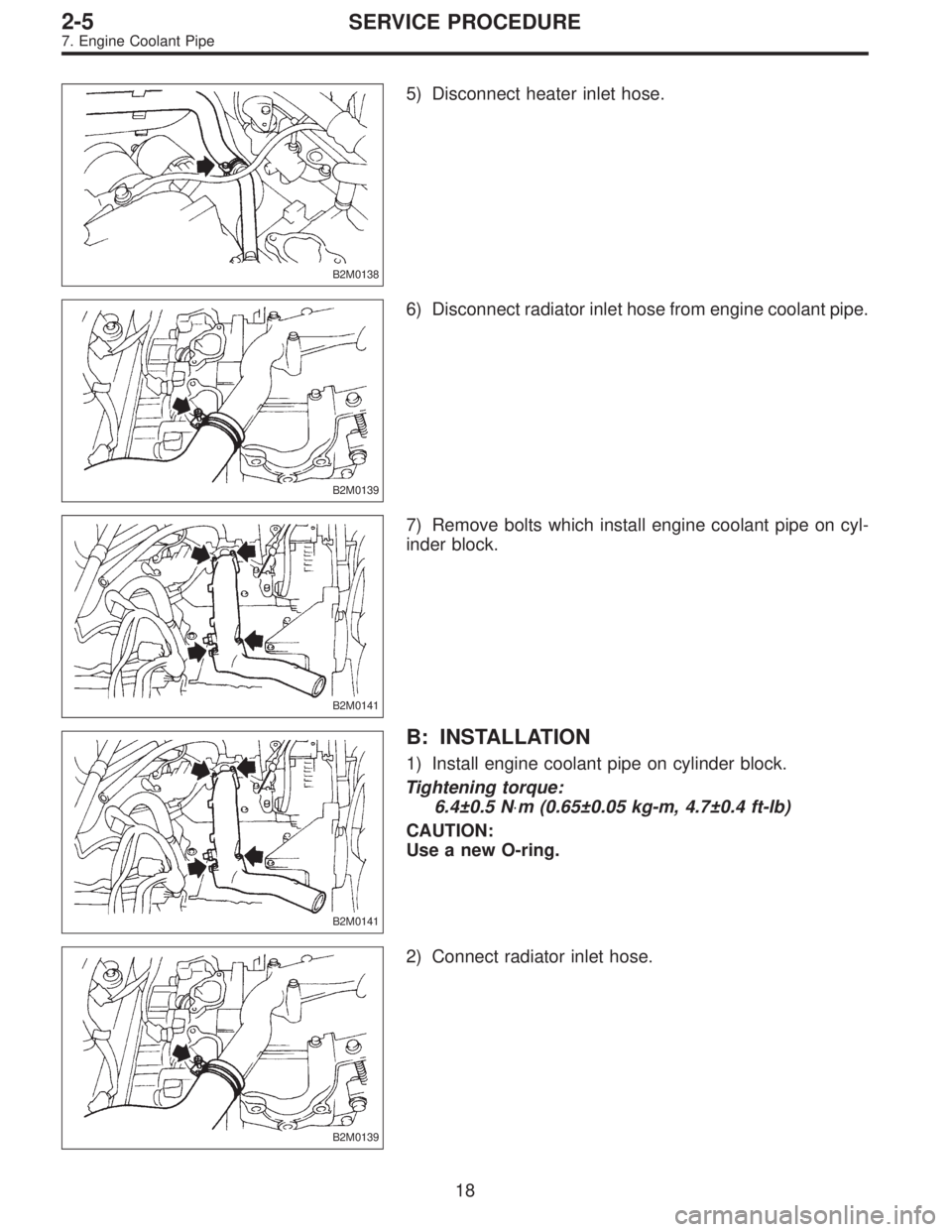

SUBARU LEGACY 1996 Service Repair Manual B2M0138
5) Disconnect heater inlet hose.
B2M0139
6) Disconnect radiator inlet hose from engine coolant pipe.
B2M0141
7) Remove bolts which install engine coolant pipe on cyl-
inder block.
B2M0141
B: I

Page 605 of 2890

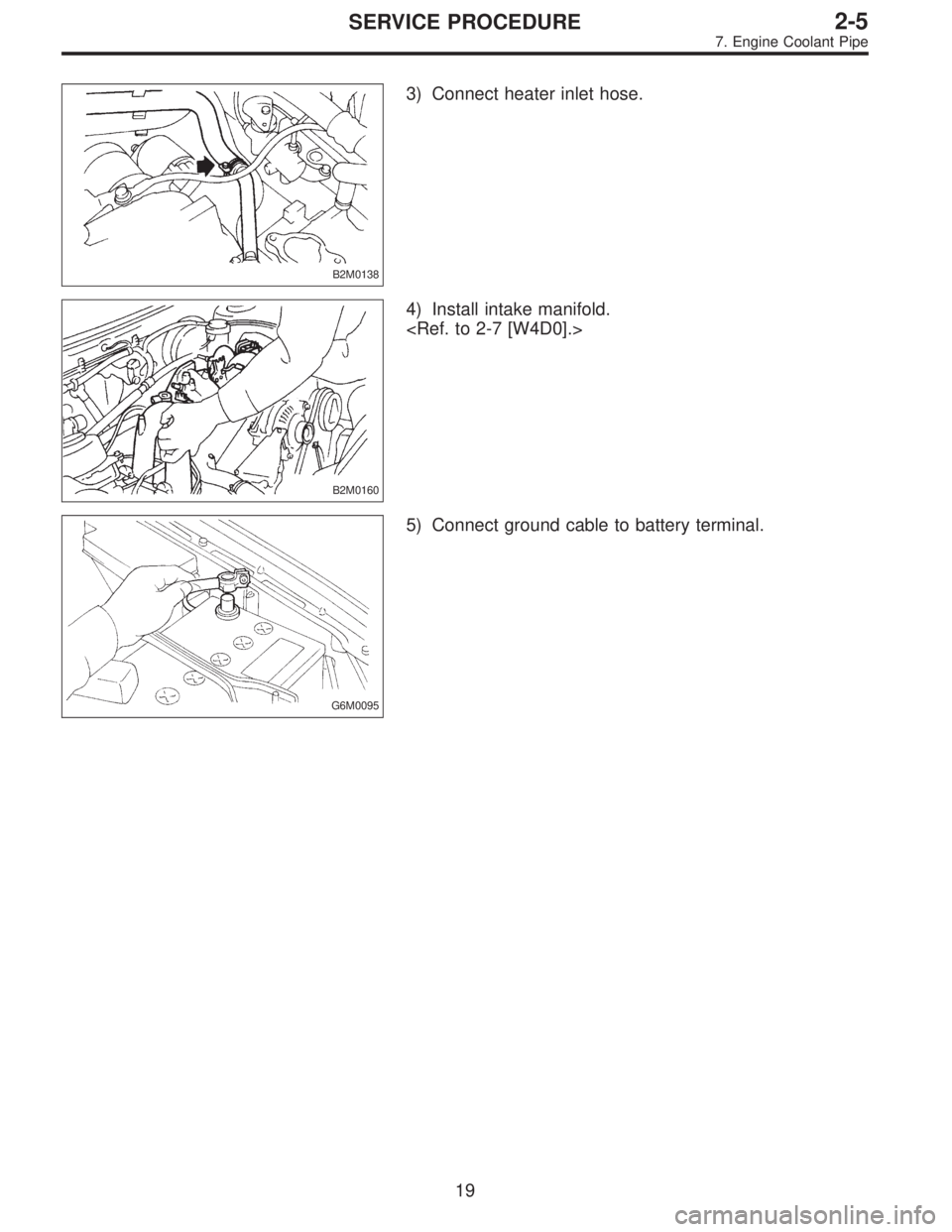

SUBARU LEGACY 1996 Service Repair Manual B2M0138
3) Connect heater inlet hose.
B2M0160
4) Install intake manifold.
<Ref. to 2-7 [W4D0].>
G6M0095
5) Connect ground cable to battery terminal.
19
2-5SERVICE PROCEDURE
7. Engine Coolant Pipe

Page 606 of 2890

SUBARU LEGACY 1996 Service Repair Manual 1. Engine Cooling System
Trouble Possible cause Corrective action
Over-heatinga. Insufficient engine coolantReplenish engine coolant, inspect for leakage, and
repair.
b. Loose timing belt Repair or re

Page 607 of 2890

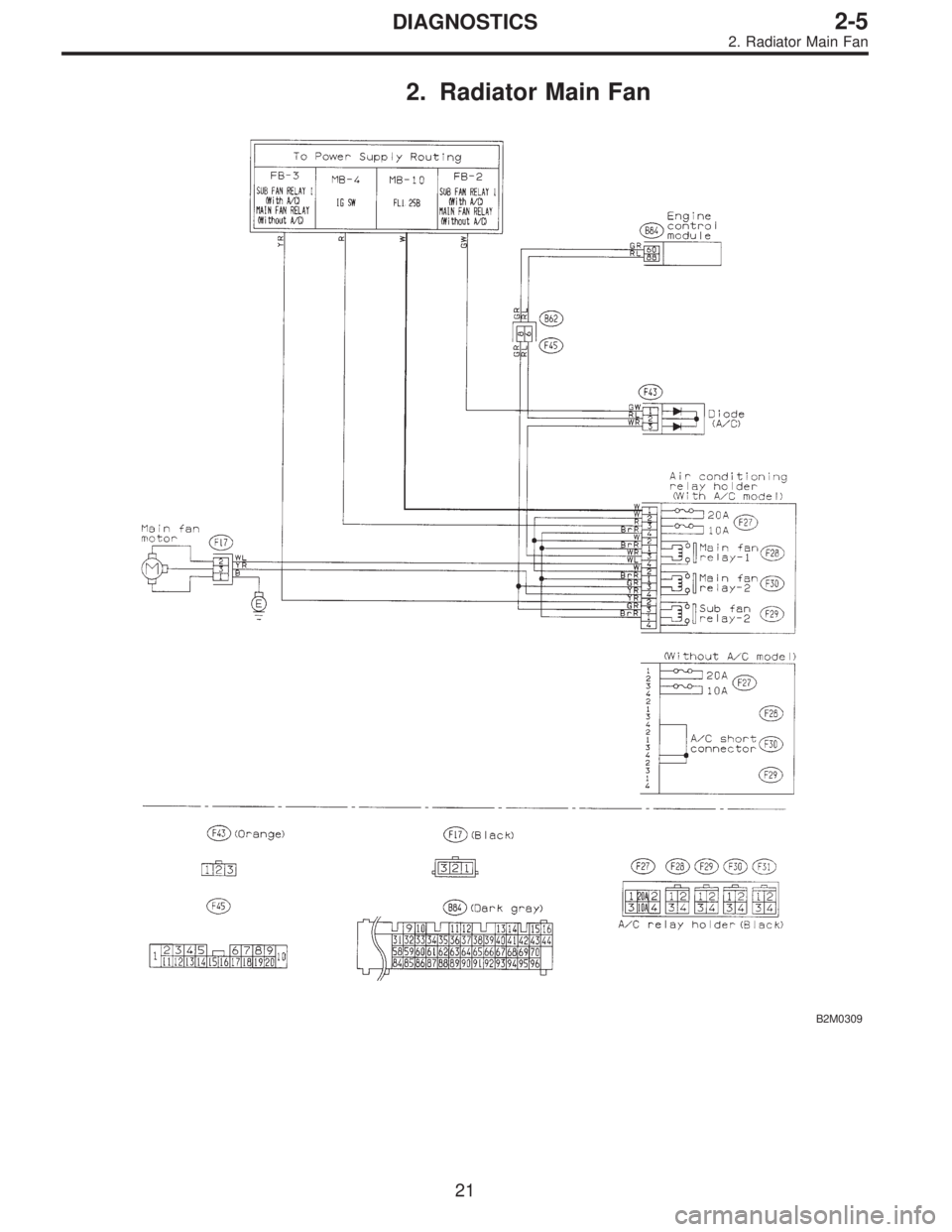

SUBARU LEGACY 1996 Service Repair Manual 2. Radiator Main Fan
B2M0309
21
2-5DIAGNOSTICS
2. Radiator Main Fan

Page 608 of 2890

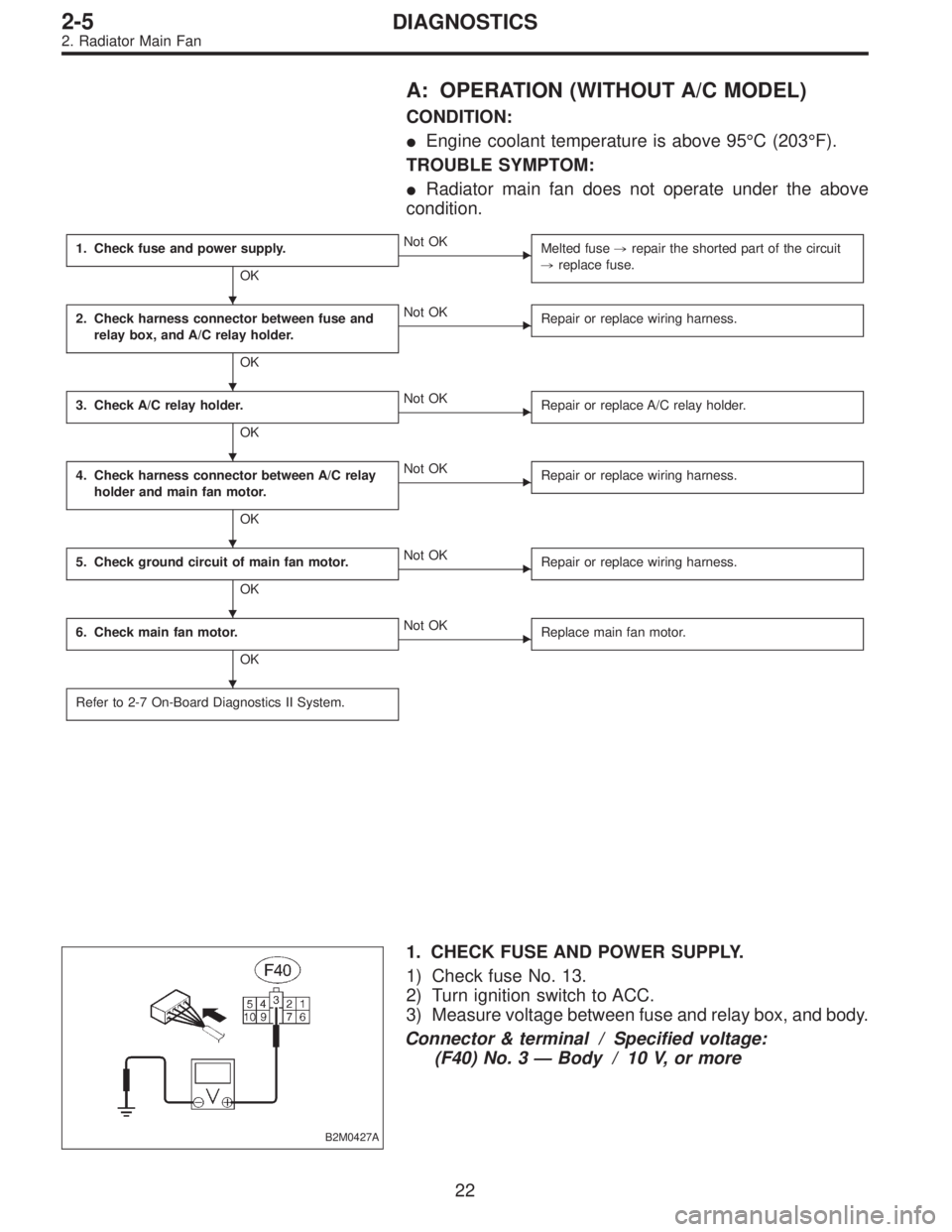

SUBARU LEGACY 1996 Service Repair Manual A: OPERATION (WITHOUT A/C MODEL)
CONDITION:
Engine coolant temperature is above 95°C (203°F).
TROUBLE SYMPTOM:
Radiator main fan does not operate under the above
condition.
1. Check fuse and power

Load next 8 pages
