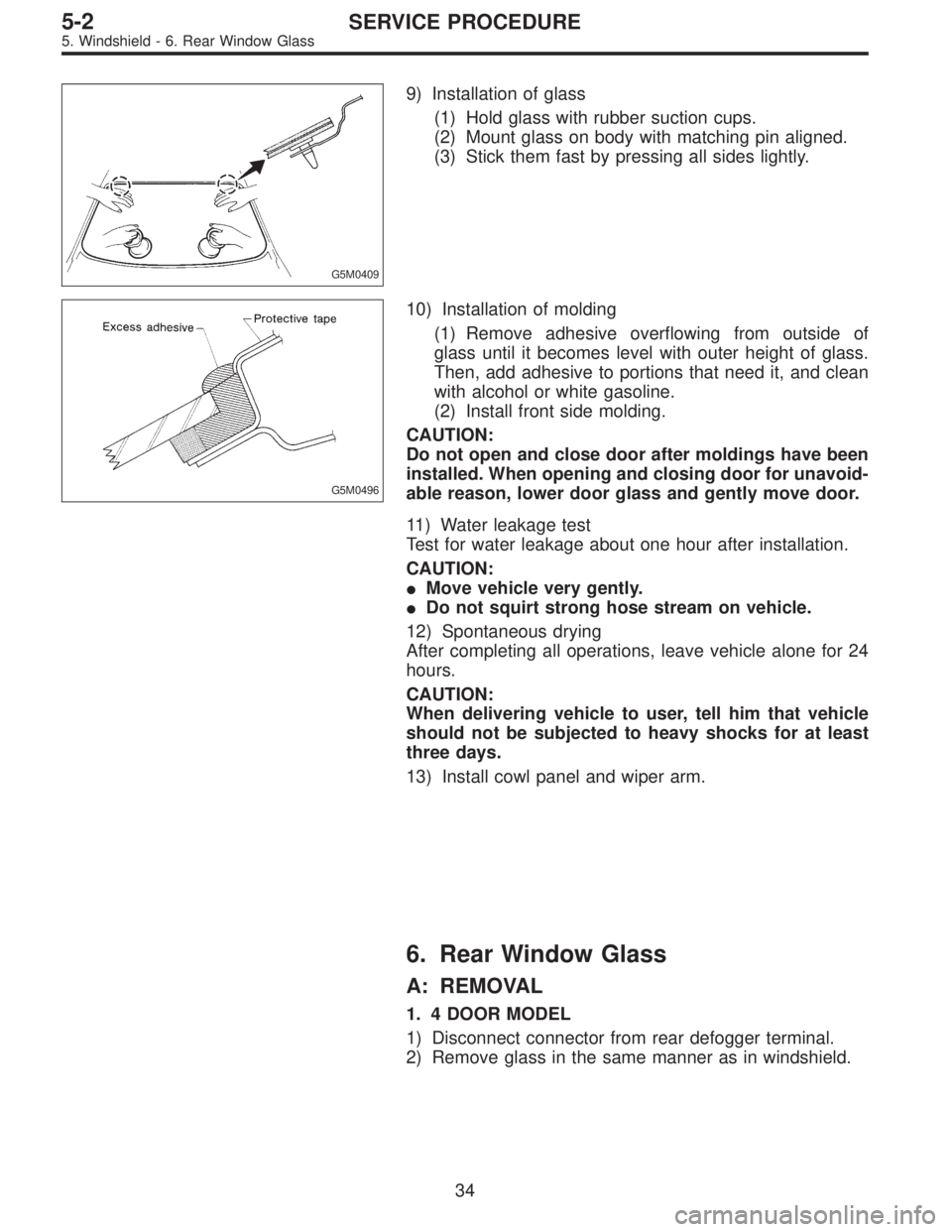

Page 1537 of 2890

SUBARU LEGACY 1996 Service Repair Manual G5M0409
9) Installation of glass
(1) Hold glass with rubber suction cups.
(2) Mount glass on body with matching pin aligned.
(3) Stick them fast by pressing all sides lightly.
G5M0496
10) Installation

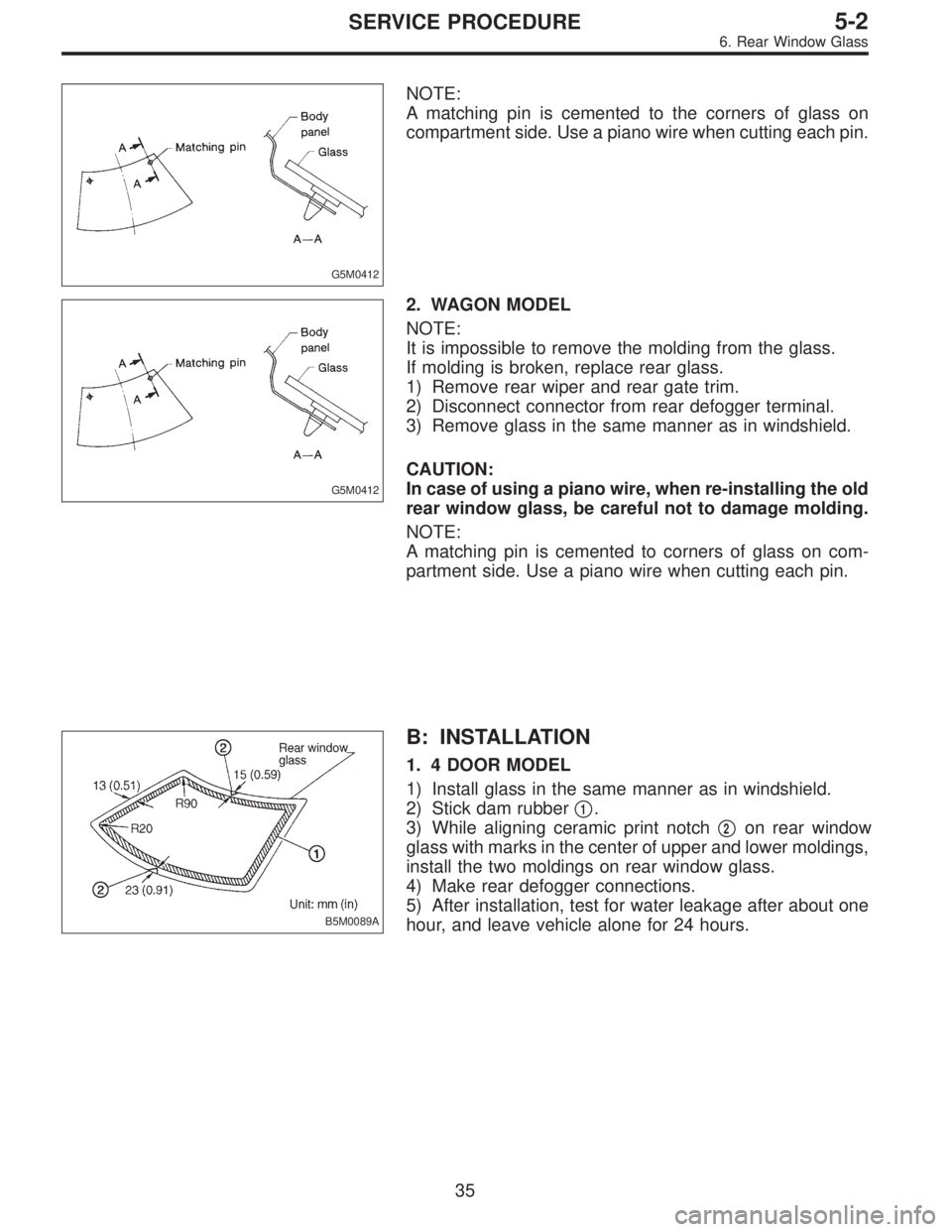

Page 1538 of 2890

SUBARU LEGACY 1996 Service Repair Manual G5M0412
NOTE:
A matching pin is cemented to the corners of glass on
compartment side. Use a piano wire when cutting each pin.
G5M0412
2. WAGON MODEL
NOTE:
It is impossible to remove the molding from t

Page 1539 of 2890

SUBARU LEGACY 1996 Service Repair Manual 2. WAGON MODEL
B5M0090A
1) Install rear gate trim.
2) Install glass in the same manner as in windshield.
3) About one hour after installation, test for water leakage.
Leave vehicle for 24 hours before

Page 1540 of 2890

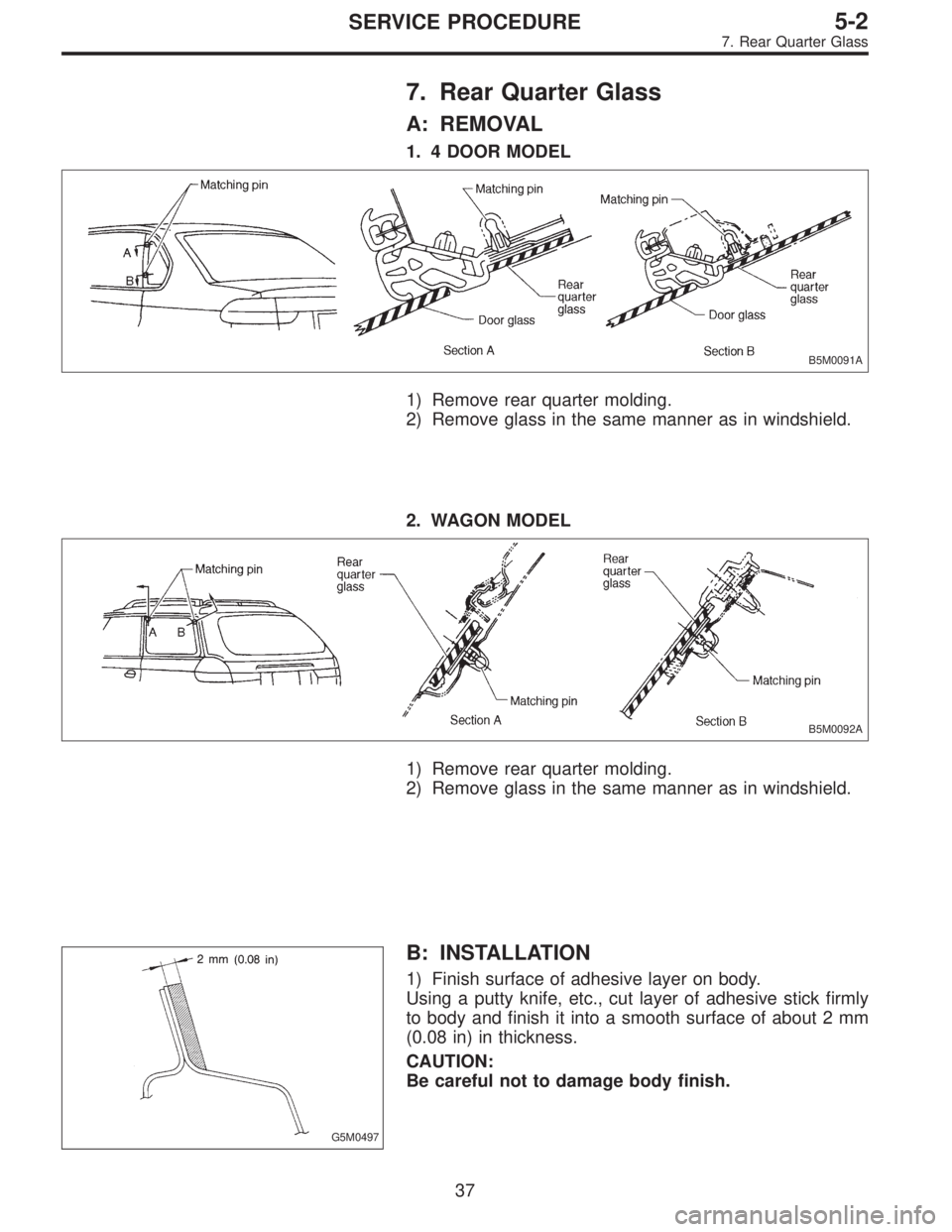

SUBARU LEGACY 1996 Service Repair Manual 7. Rear Quarter Glass
A: REMOVAL
1. 4 DOOR MODEL
B5M0091A
1) Remove rear quarter molding.
2) Remove glass in the same manner as in windshield.
2. WAGON MODEL
B5M0092A
1) Remove rear quarter molding.
2

Page 1541 of 2890

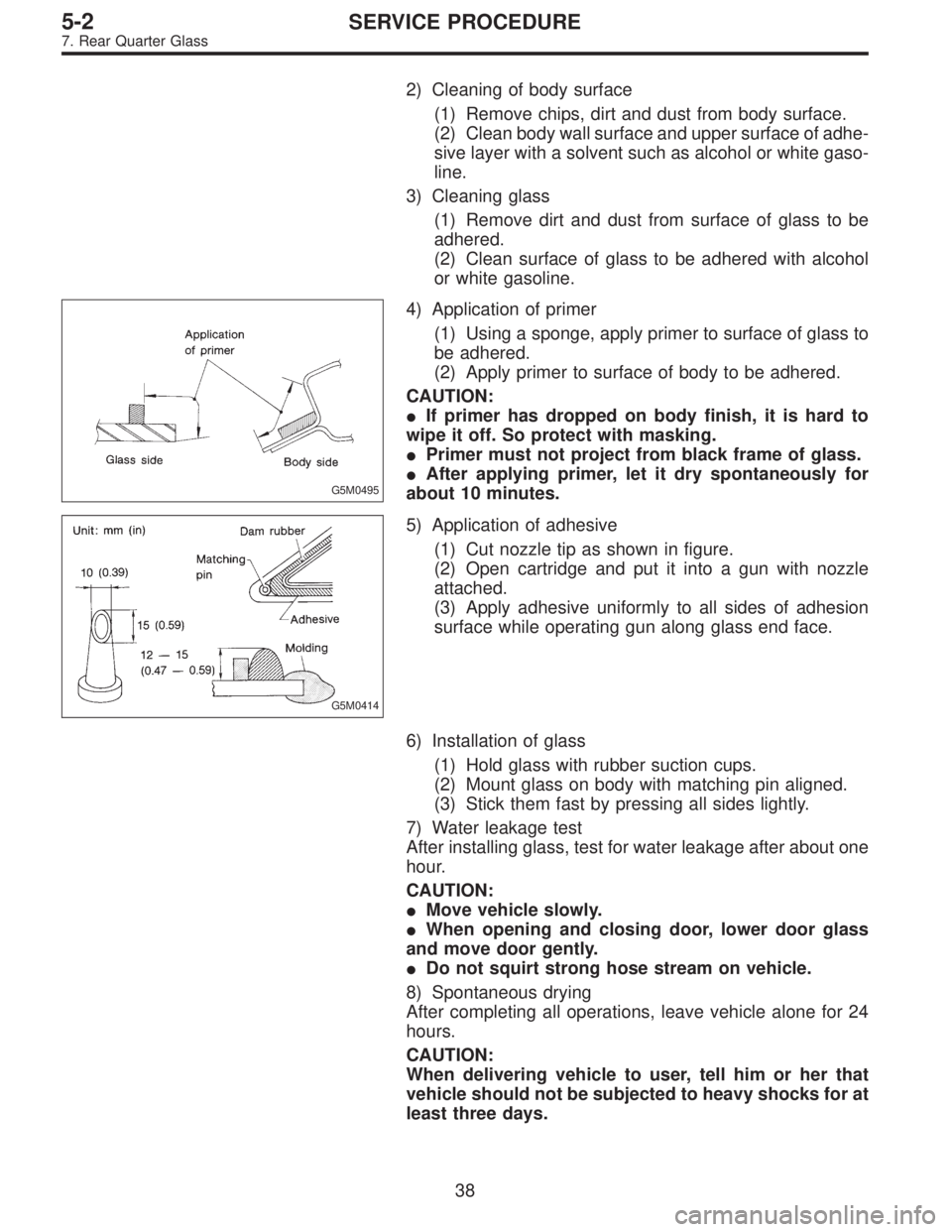

SUBARU LEGACY 1996 Service Repair Manual 2) Cleaning of body surface
(1) Remove chips, dirt and dust from body surface.
(2) Clean body wall surface and upper surface of adhe-
sive layer with a solvent such as alcohol or white gaso-
line.
3)

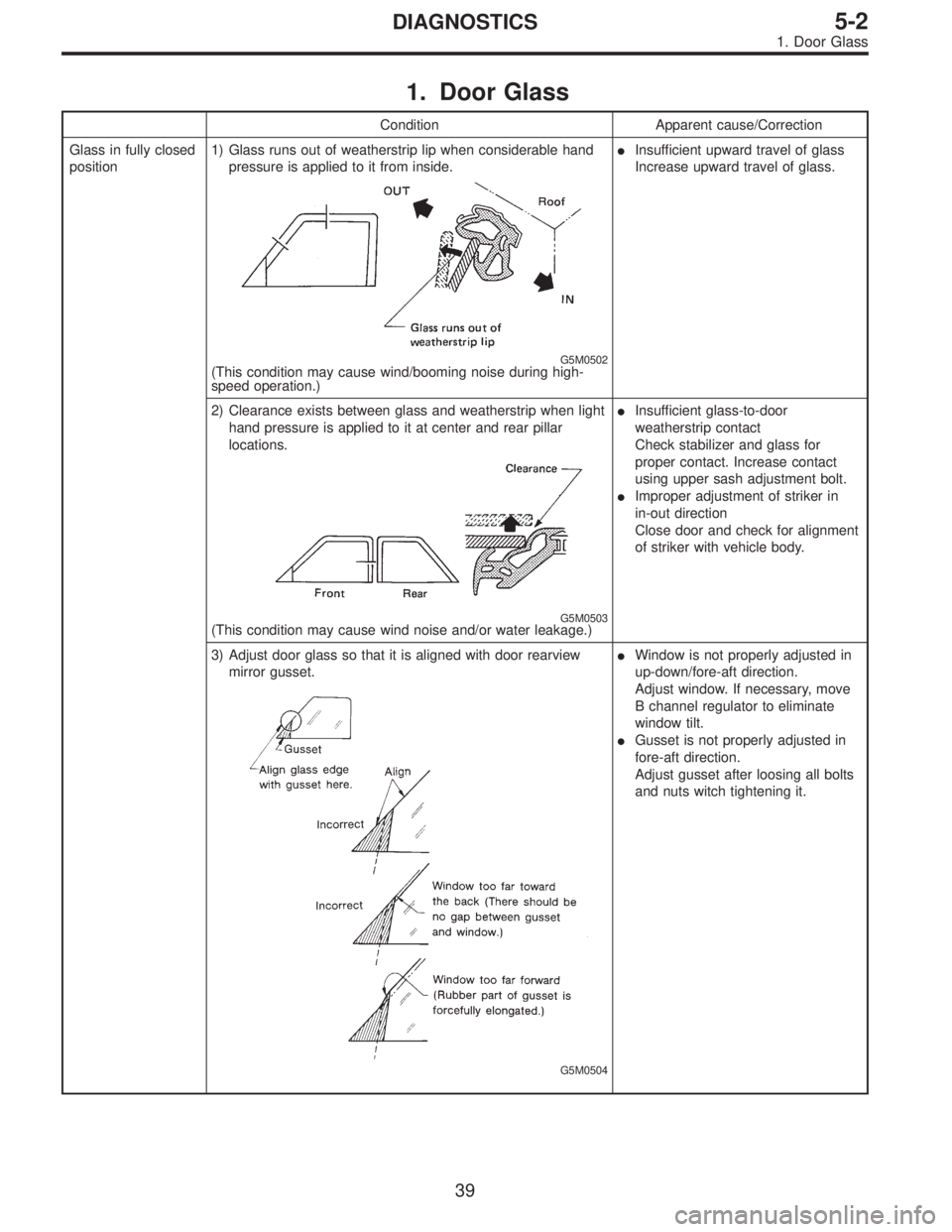

Page 1542 of 2890

SUBARU LEGACY 1996 Service Repair Manual 1. Door Glass
Condition Apparent cause/Correction
Glass in fully closed
position1) Glass runs out of weatherstrip lip when considerable hand
pressure is applied to it from inside.
G5M0502(This conditi

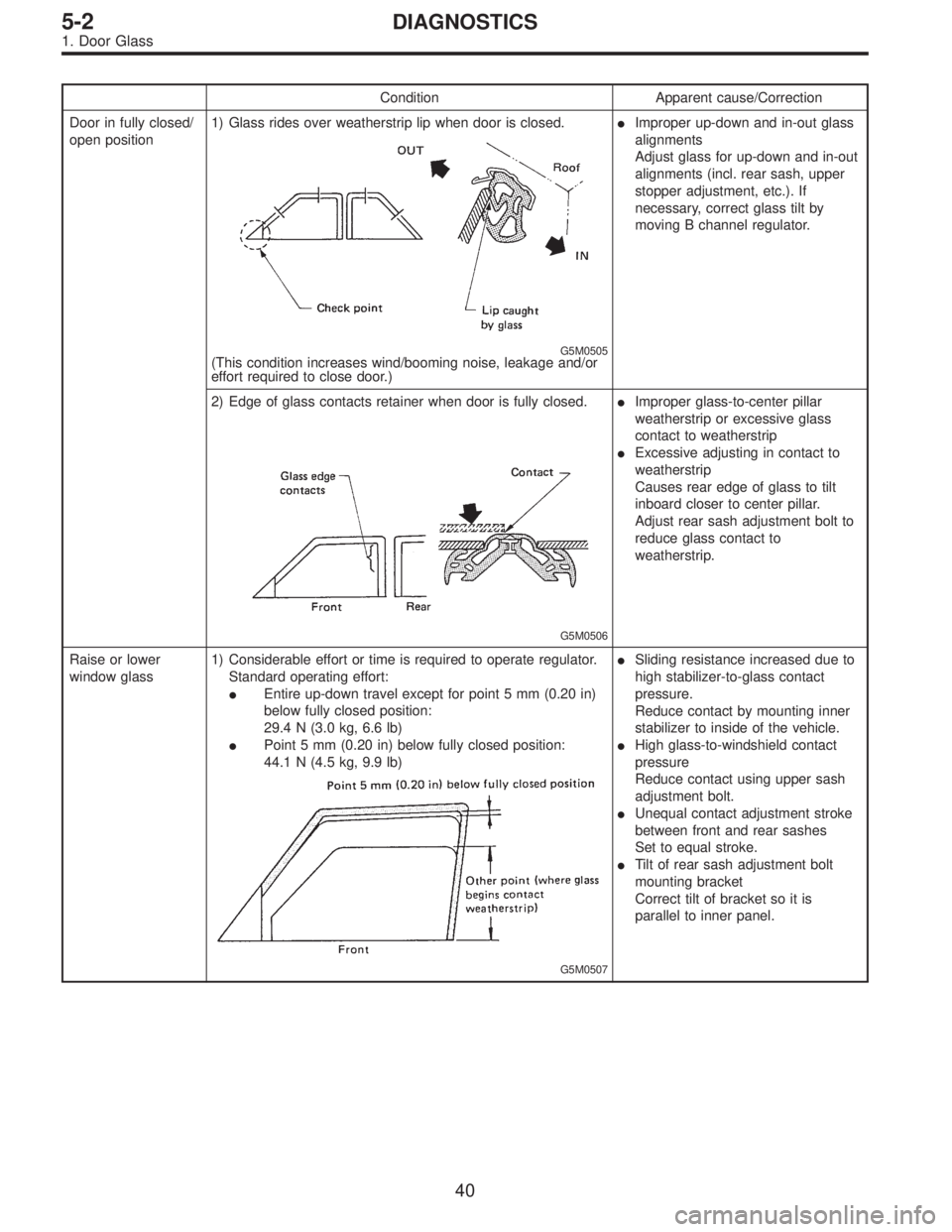

Page 1543 of 2890

SUBARU LEGACY 1996 Service Repair Manual Condition Apparent cause/Correction
Door in fully closed/
open position1) Glass rides over weatherstrip lip when door is closed.
G5M0505(This condition increases wind/booming noise, leakage and/or
eff

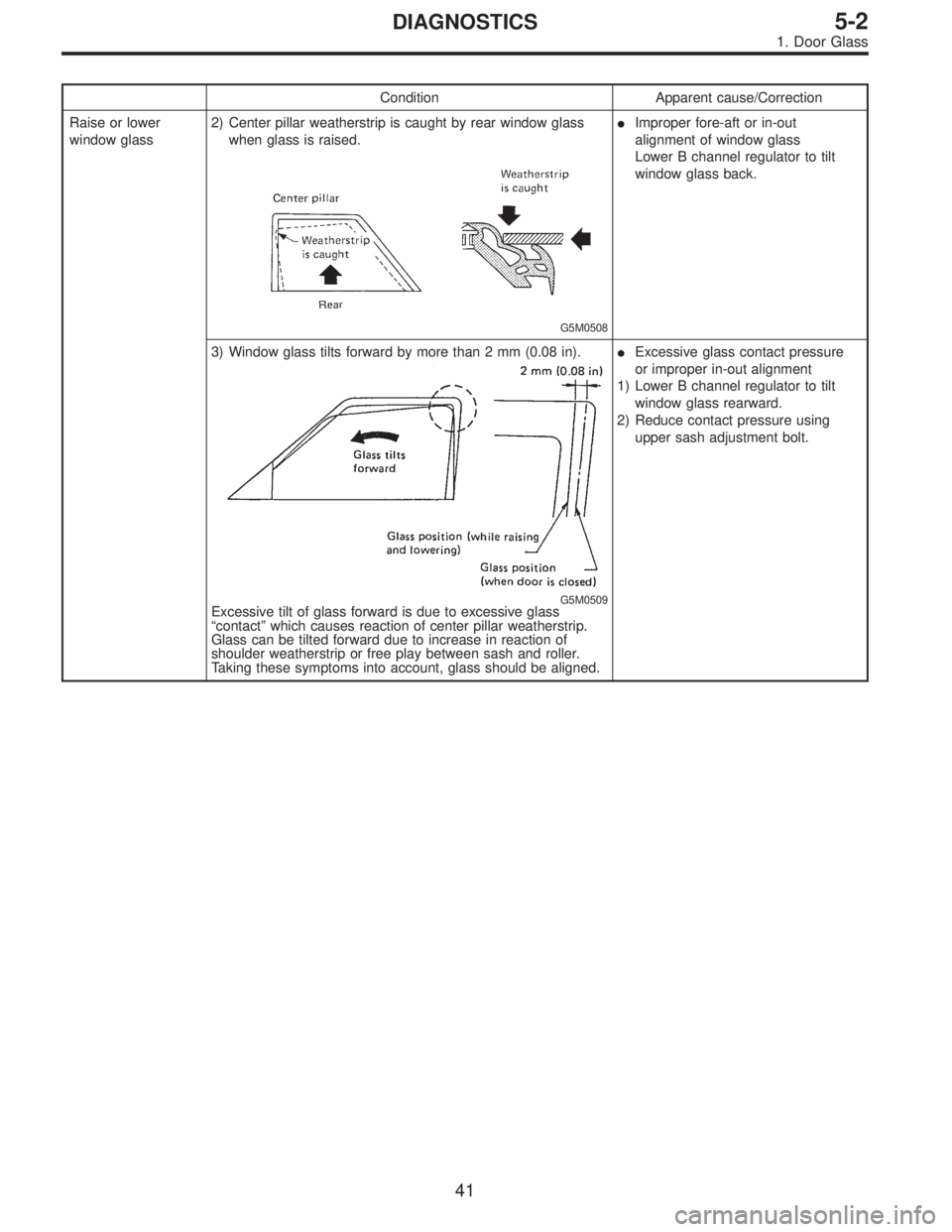

Page 1544 of 2890

SUBARU LEGACY 1996 Service Repair Manual Condition Apparent cause/Correction
Raise or lower
window glass2) Center pillar weatherstrip is caught by rear window glass
when glass is raised.
G5M0508
Improper fore-aft or in-out
alignment of wind
