1996 SUBARU LEGACY Service Repair Manual

Page 689 of 2890

SUBARU LEGACY 1996  Service Repair Manual G2M0864

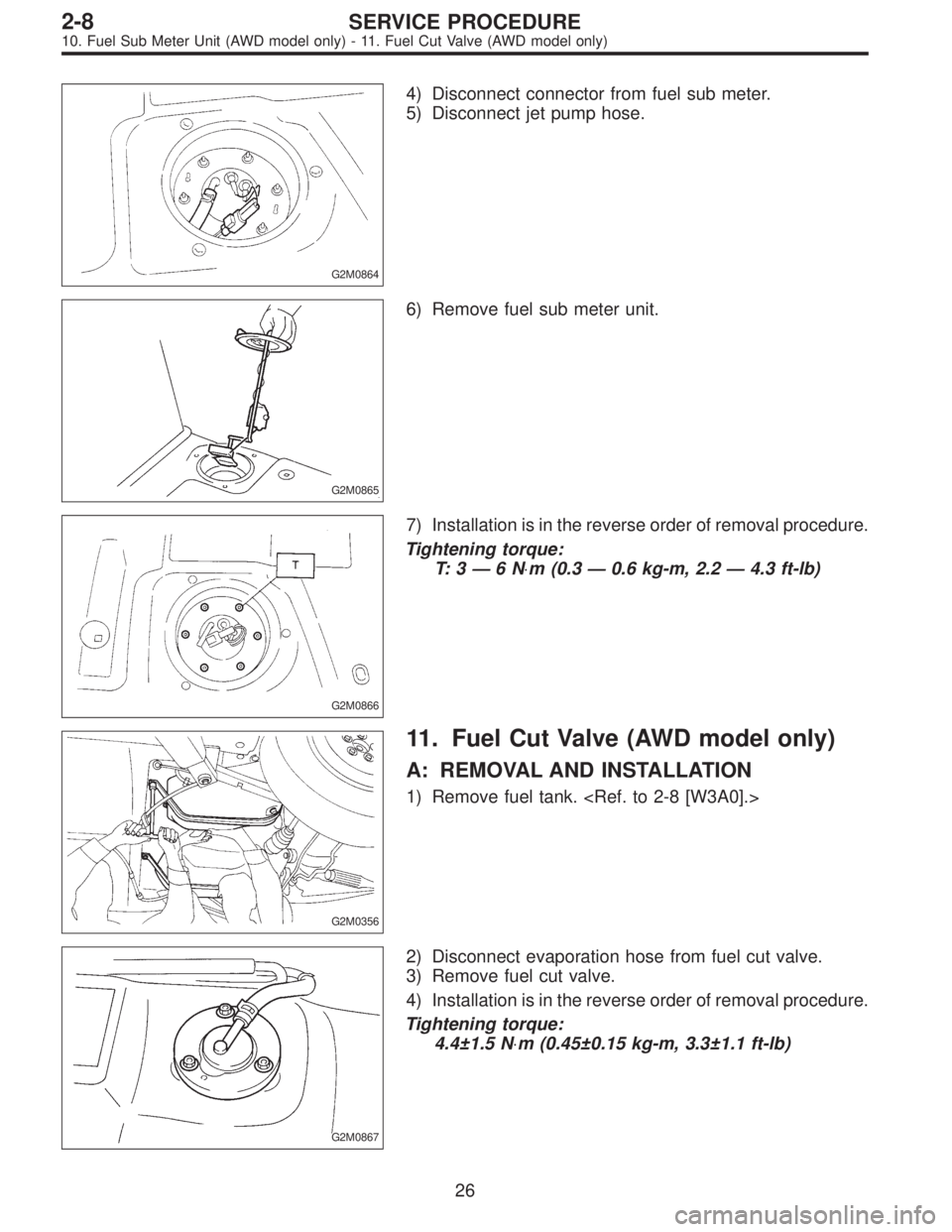

4) Disconnect connector from fuel sub meter.
5) Disconnect jet pump hose.
G2M0865
6) Remove fuel sub meter unit.
G2M0866
7) Installation is in the reverse order of removal procedure.
Tightenin

Page 690 of 2890

SUBARU LEGACY 1996  Service Repair Manual G2M0864
4) Disconnect connector from fuel sub meter.
5) Disconnect jet pump hose.
G2M0865
6) Remove fuel sub meter unit.
G2M0866
7) Installation is in the reverse order of removal procedure.
Tightenin

Page 691 of 2890

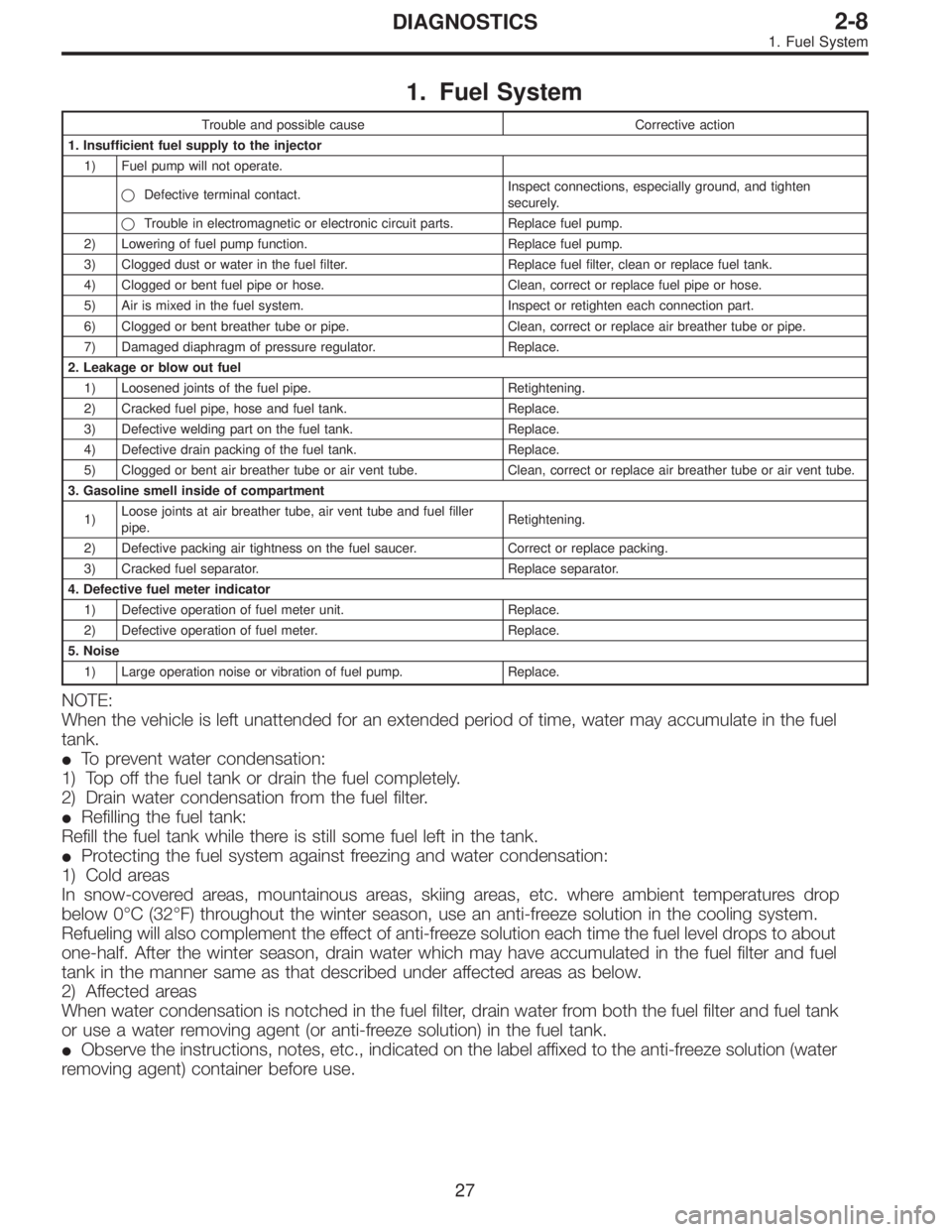

SUBARU LEGACY 1996  Service Repair Manual 1. Fuel System
Trouble and possible cause Corrective action
1. Insufficient fuel supply to the injector
1) Fuel pump will not operate.
Defective terminal contact.Inspect connections, especially groun

Page 692 of 2890

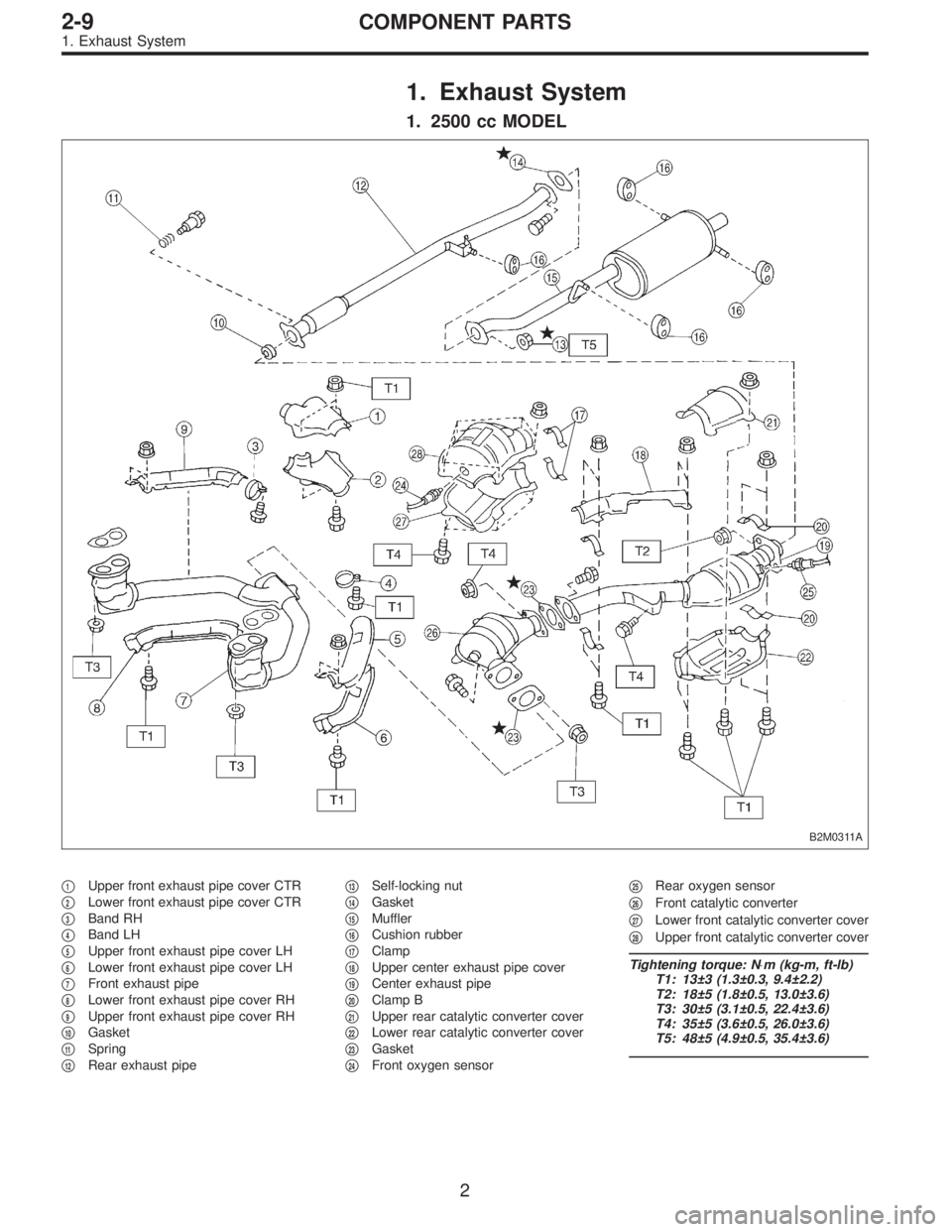

SUBARU LEGACY 1996  Service Repair Manual 1. Exhaust System
1. 2500 cc MODEL
B2M0311A
1Upper front exhaust pipe cover CTR

2Lower front exhaust pipe cover CTR

3Band RH

4Band LH

5Upper front exhaust pipe cover LH

6Lower front exhaust

Page 693 of 2890

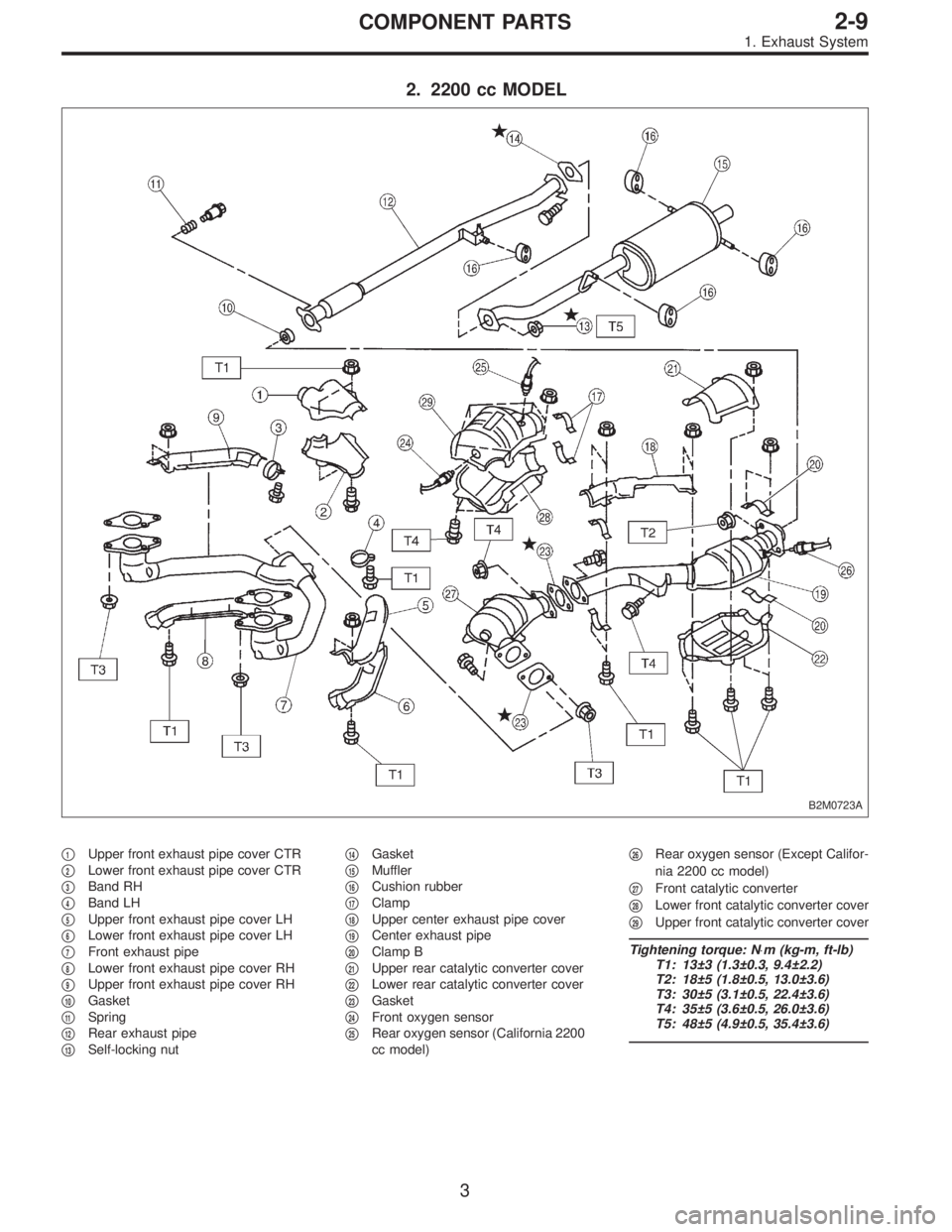

SUBARU LEGACY 1996  Service Repair Manual 2. 2200 cc MODEL
B2M0723A
1Upper front exhaust pipe cover CTR

2Lower front exhaust pipe cover CTR

3Band RH

4Band LH

5Upper front exhaust pipe cover LH

6Lower front exhaust pipe cover LH

7

Page 694 of 2890

SUBARU LEGACY 1996  Service Repair Manual B2M0724

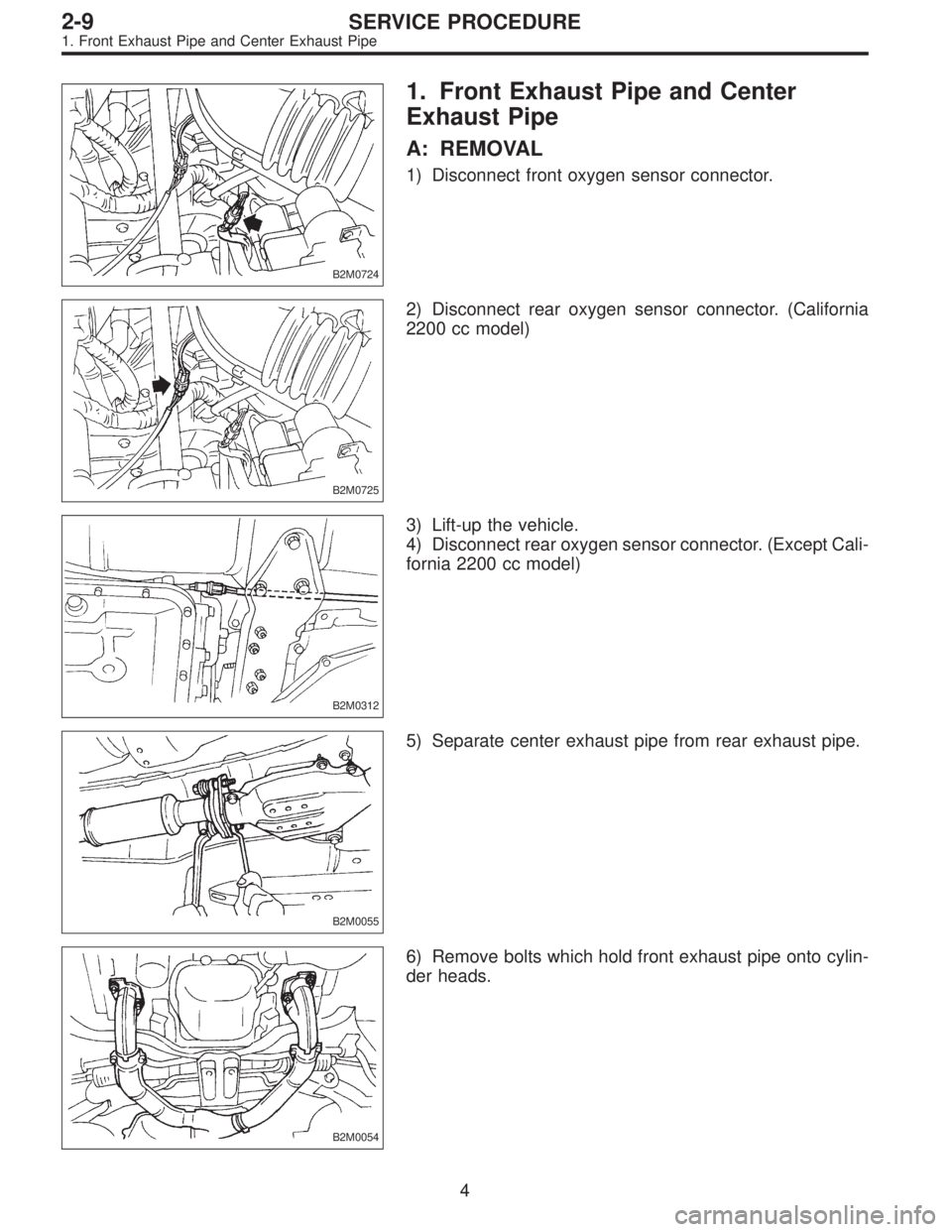

1. Front Exhaust Pipe and Center
Exhaust Pipe
A: REMOVAL
1) Disconnect front oxygen sensor connector.
B2M0725
2) Disconnect rear oxygen sensor connector. (California
2200 cc model)
B2M0312
3)

Page 695 of 2890

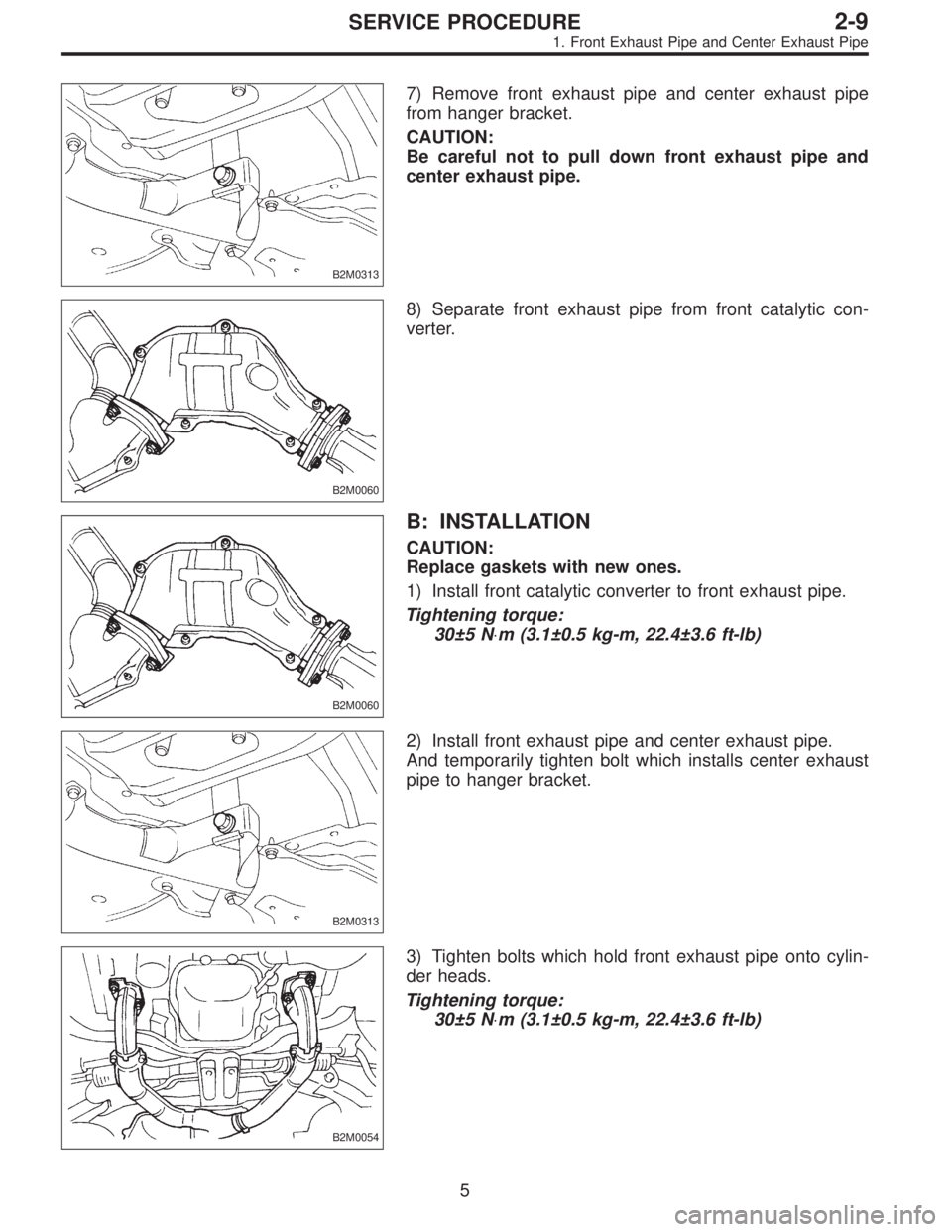

SUBARU LEGACY 1996  Service Repair Manual B2M0313
7) Remove front exhaust pipe and center exhaust pipe
from hanger bracket.
CAUTION:
Be careful not to pull down front exhaust pipe and
center exhaust pipe.
B2M0060
8) Separate front exhaust pip

Page 696 of 2890

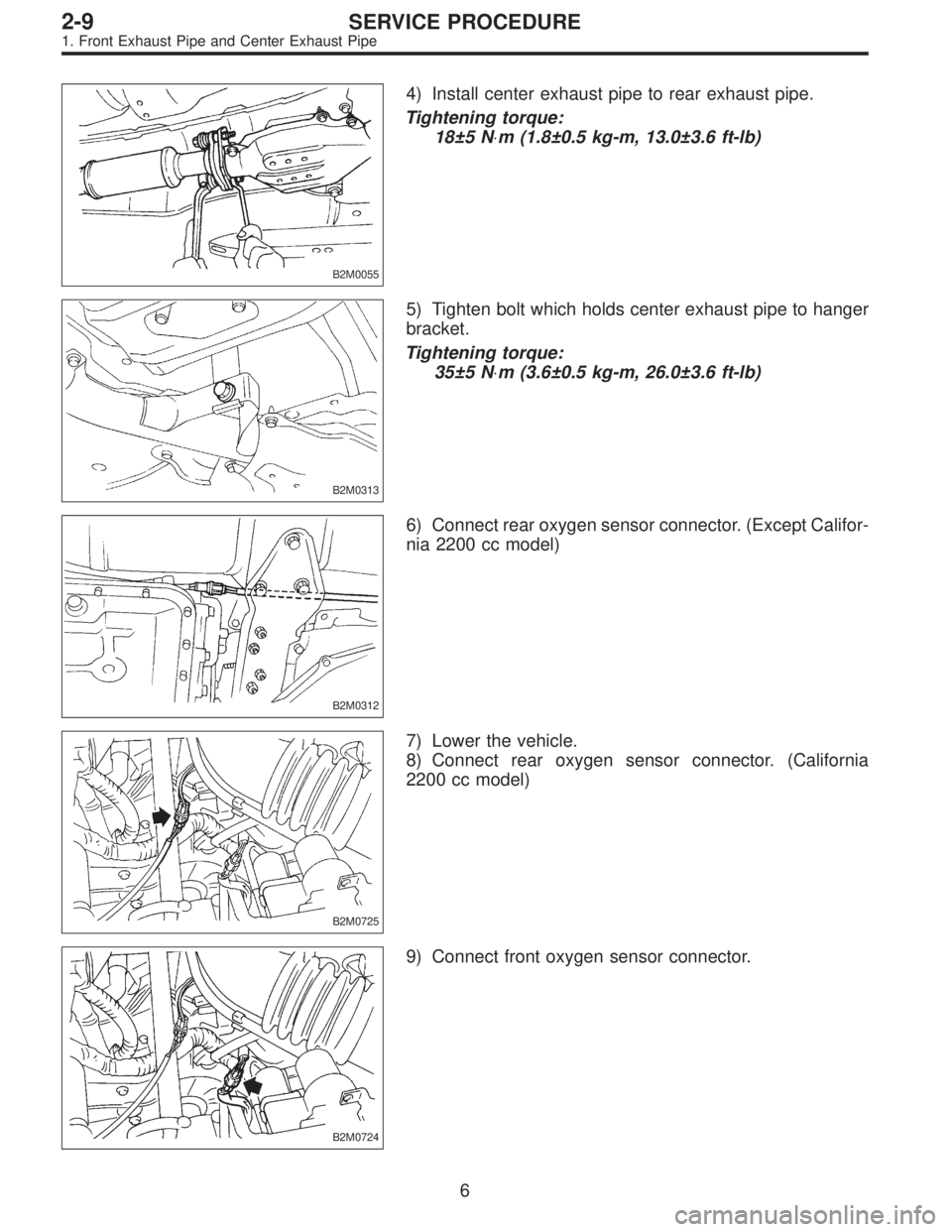

SUBARU LEGACY 1996  Service Repair Manual B2M0055
4) Install center exhaust pipe to rear exhaust pipe.
Tightening torque:
18±5 N⋅m (1.8±0.5 kg-m, 13.0±3.6 ft-lb)
B2M0313
5) Tighten bolt which holds center exhaust pipe to hanger
bracket.
