1996 SUBARU LEGACY Service Repair Manual

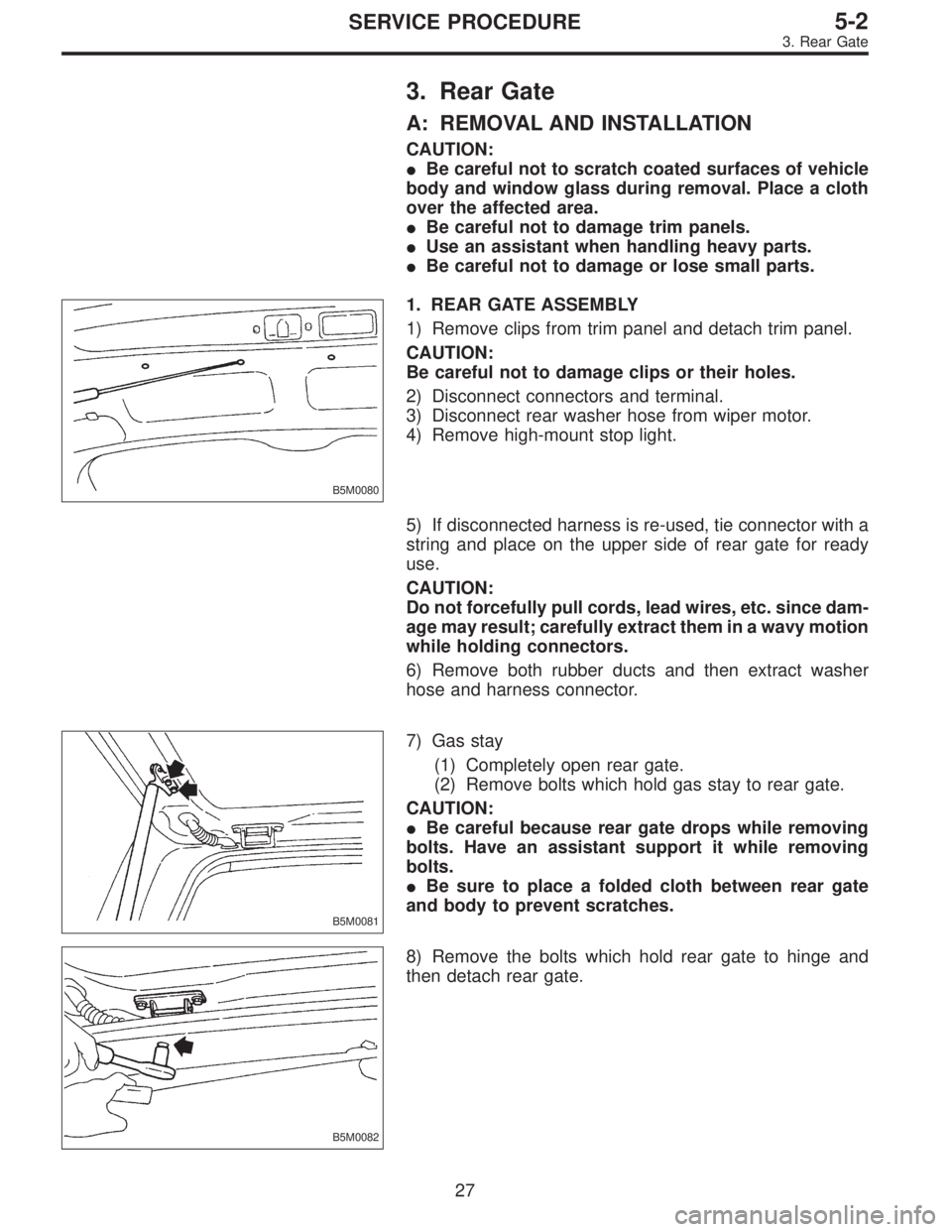

Page 1529 of 2890

SUBARU LEGACY 1996  Service Repair Manual 3. Rear Gate
A: REMOVAL AND INSTALLATION
CAUTION:
Be careful not to scratch coated surfaces of vehicle
body and window glass during removal. Place a cloth
over the affected area.
Be careful not to d

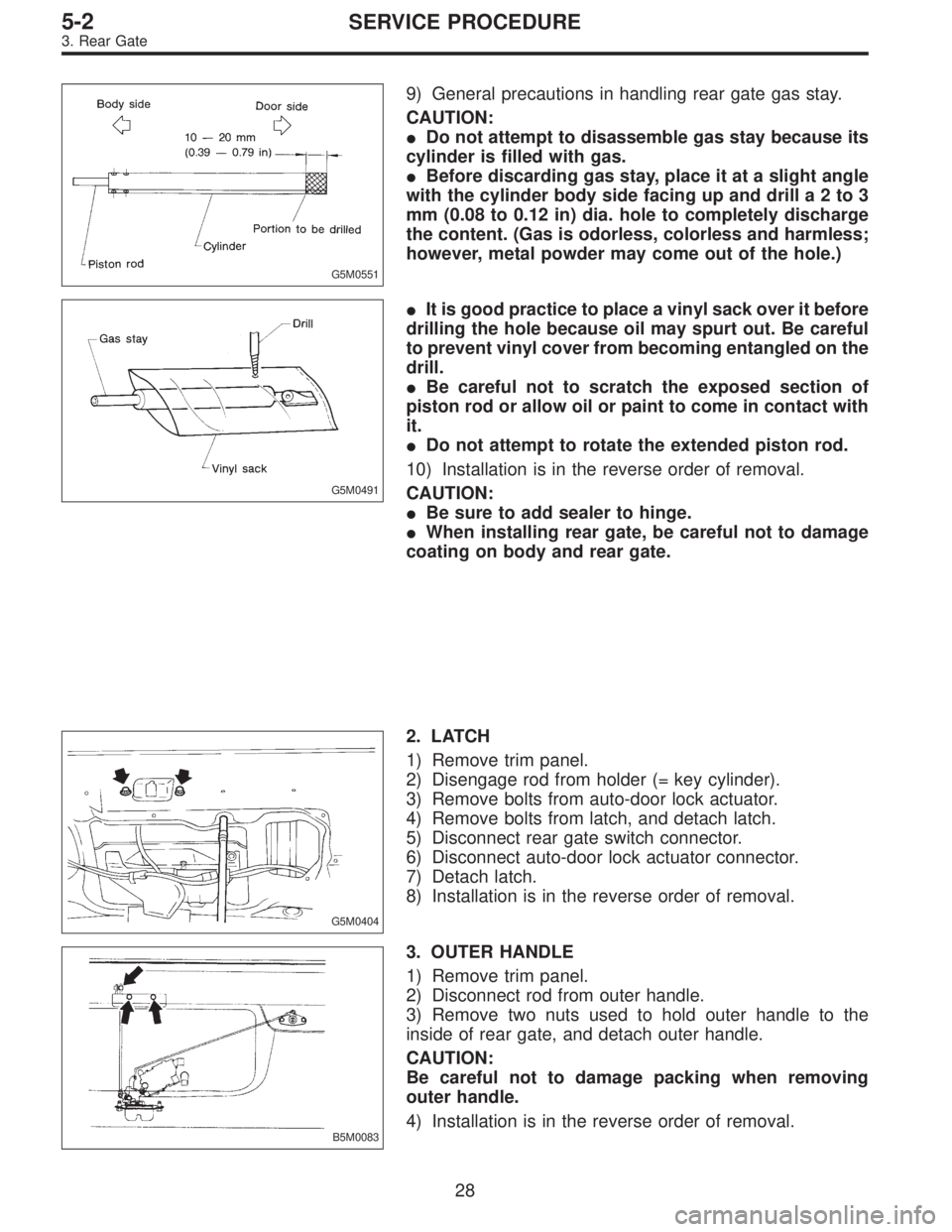

Page 1530 of 2890

SUBARU LEGACY 1996  Service Repair Manual G5M0551
9) General precautions in handling rear gate gas stay.
CAUTION:
Do not attempt to disassemble gas stay because its
cylinder is filled with gas.
Before discarding gas stay, place it at a slig

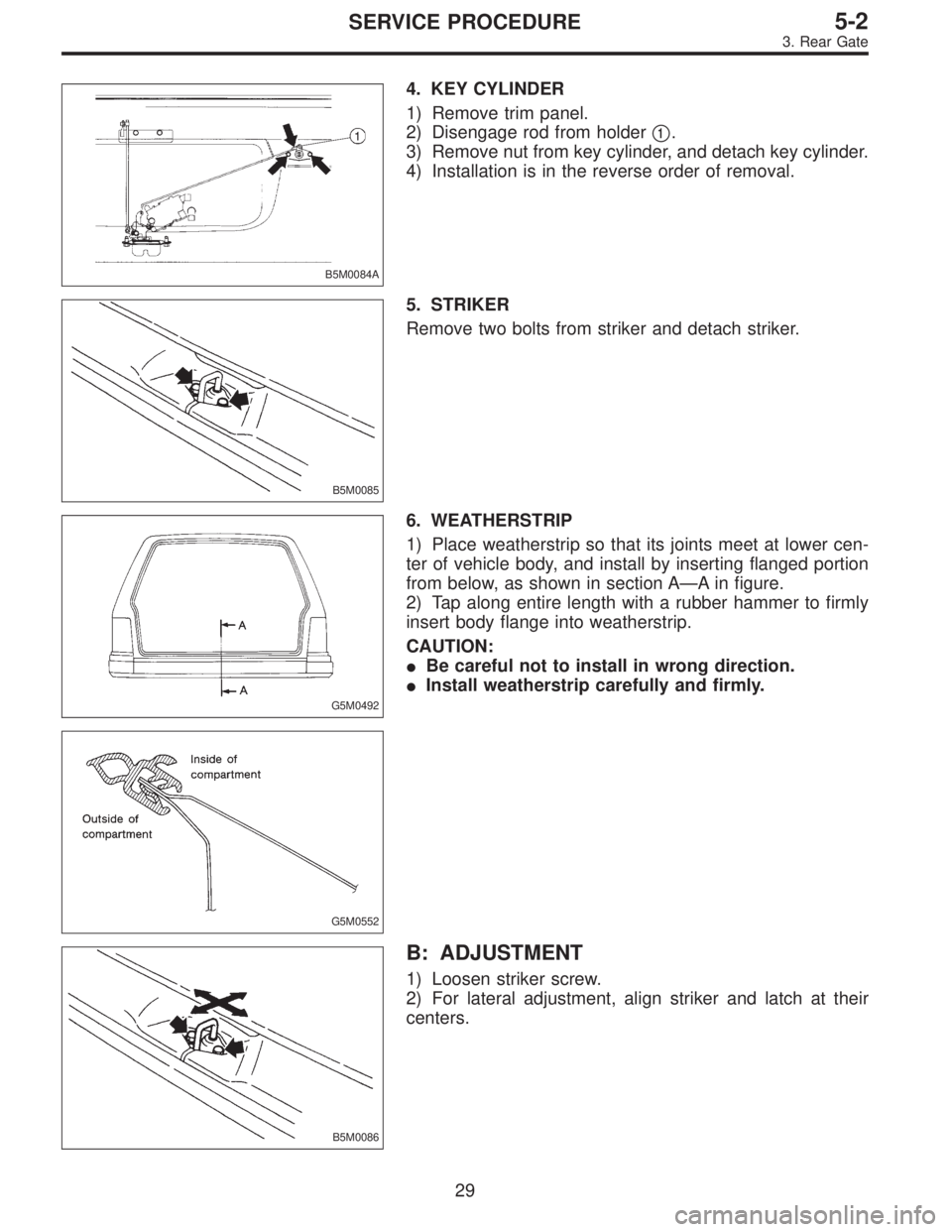

Page 1531 of 2890

SUBARU LEGACY 1996  Service Repair Manual B5M0084A
4. KEY CYLINDER
1) Remove trim panel.
2) Disengage rod from holder
1.
3) Remove nut from key cylinder, and detach key cylinder.
4) Installation is in the reverse order of removal.
B5M0085
5.

Page 1532 of 2890

SUBARU LEGACY 1996  Service Repair Manual 4. Procedure Chart for Removing and
Installing Window Glass
1. PROCEDURES OF REMOVAL AND INSTALLATION
Removal of molding
Removal of glass
BodyGlass
Finishing and cleaning of adhesion
surface
Cleaning

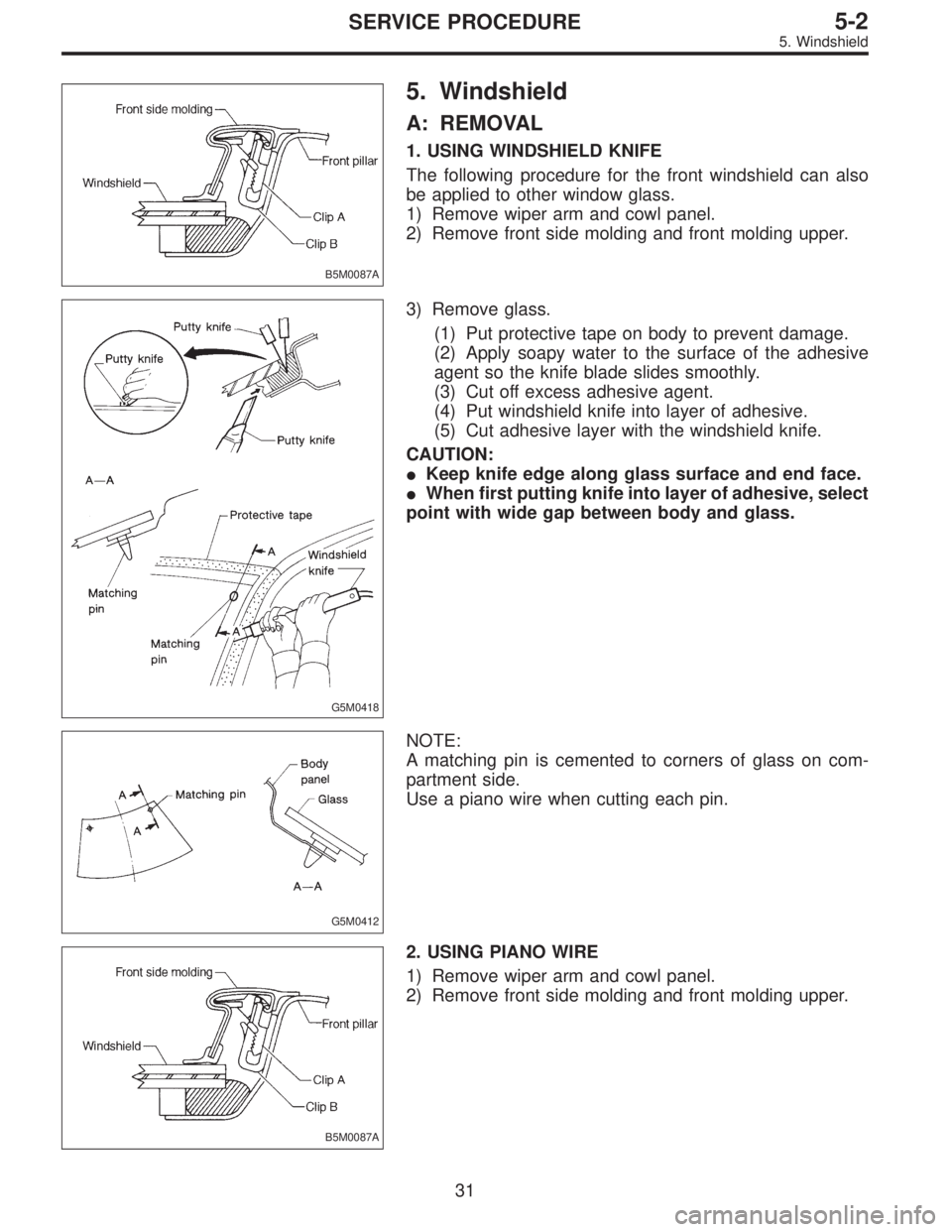

Page 1533 of 2890

SUBARU LEGACY 1996  Service Repair Manual B5M0087A
5. Windshield
A: REMOVAL
1. USING WINDSHIELD KNIFE
The following procedure for the front windshield can also
be applied to other window glass.
1) Remove wiper arm and cowl panel.
2) Remove fr

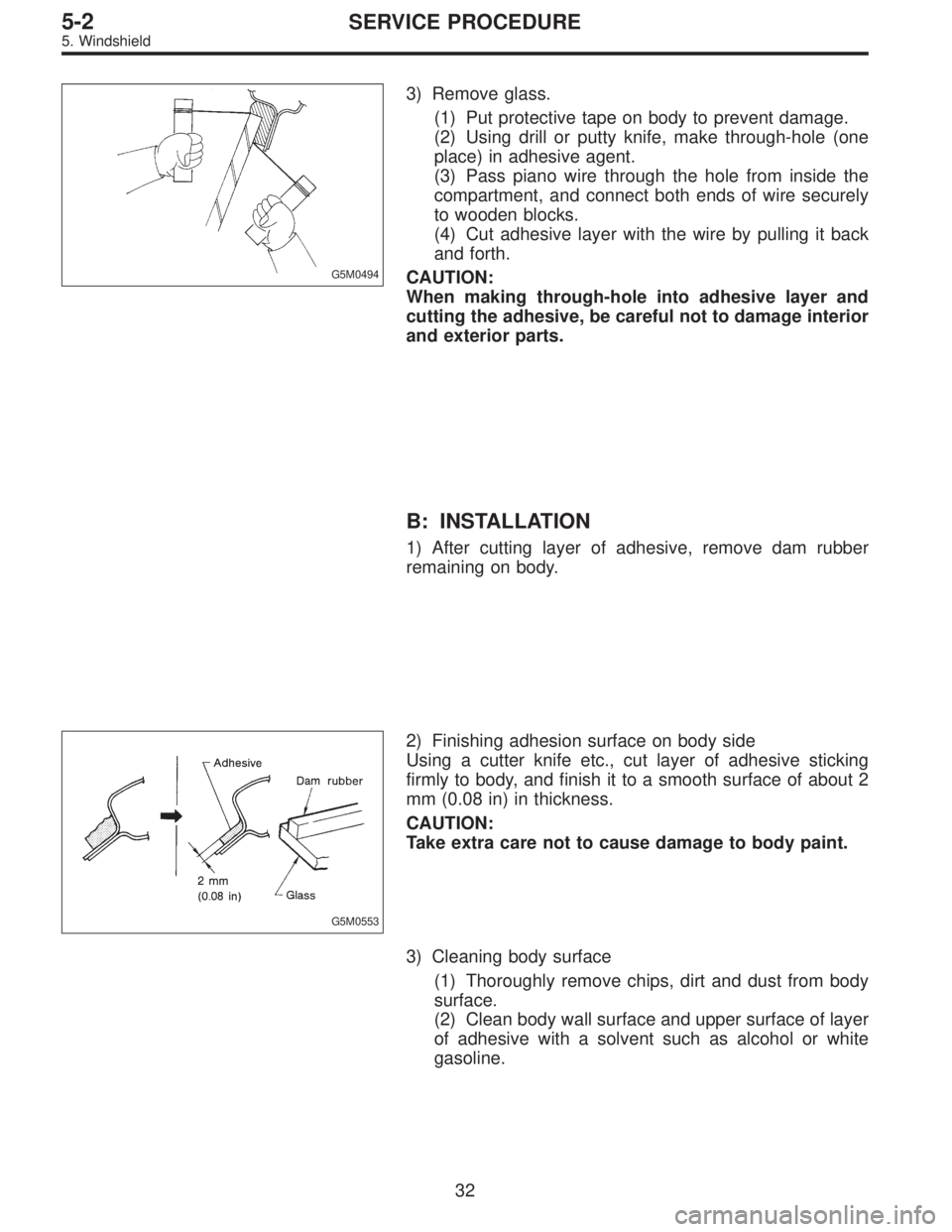

Page 1534 of 2890

SUBARU LEGACY 1996  Service Repair Manual G5M0494
3) Remove glass.
(1) Put protective tape on body to prevent damage.
(2) Using drill or putty knife, make through-hole (one
place) in adhesive agent.
(3) Pass piano wire through the hole from i

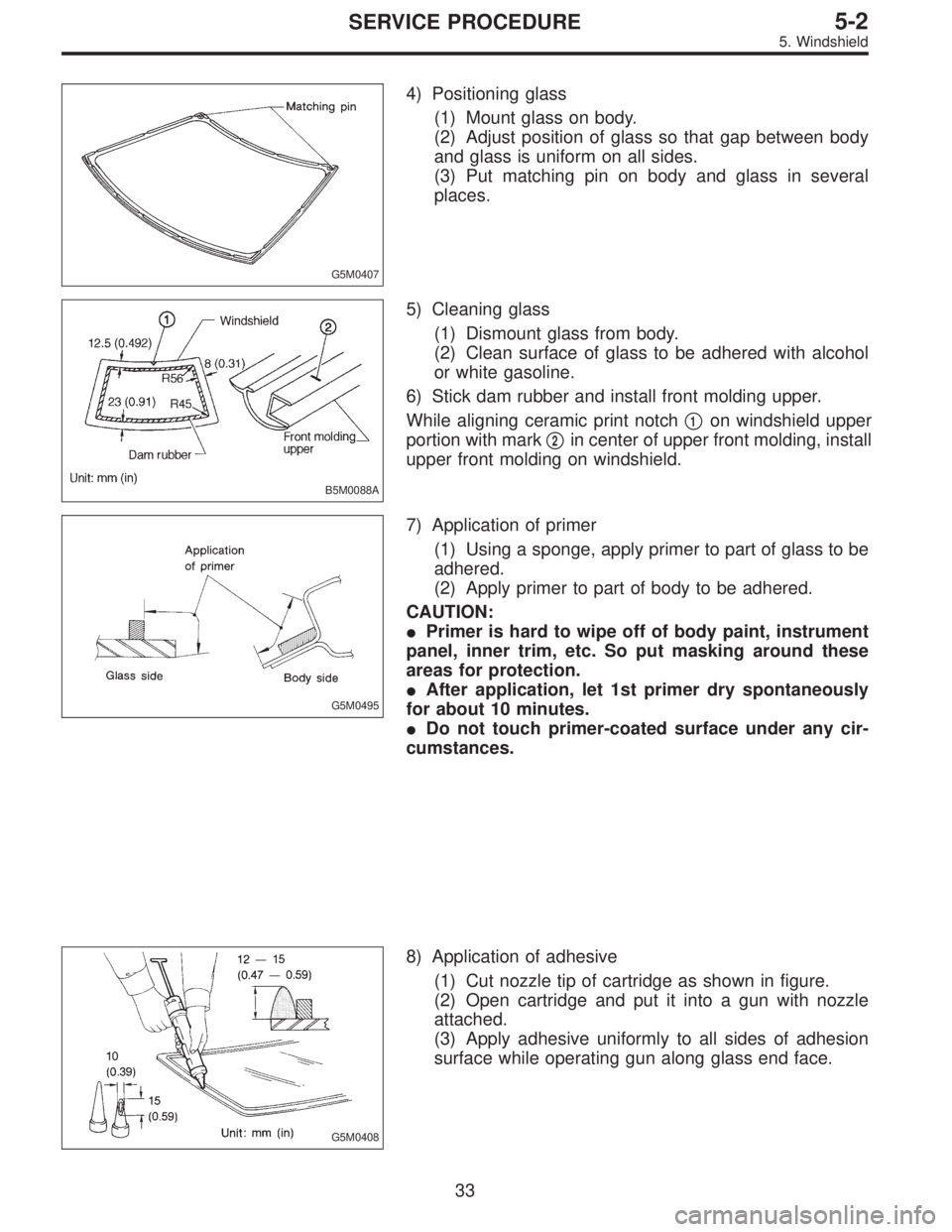

Page 1535 of 2890

SUBARU LEGACY 1996  Service Repair Manual G5M0407
4) Positioning glass
(1) Mount glass on body.
(2) Adjust position of glass so that gap between body
and glass is uniform on all sides.
(3) Put matching pin on body and glass in several
places.

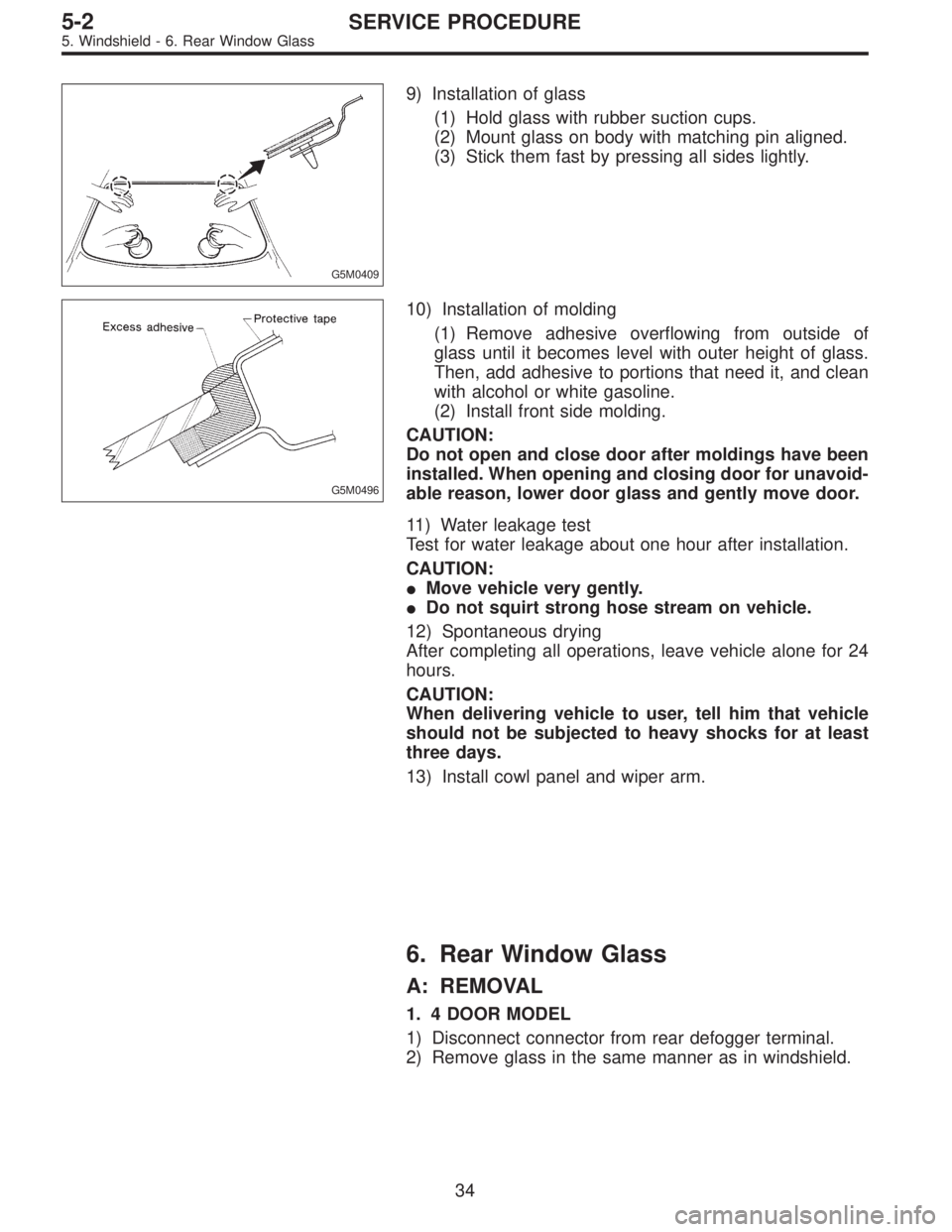

Page 1536 of 2890

SUBARU LEGACY 1996  Service Repair Manual G5M0409
9) Installation of glass
(1) Hold glass with rubber suction cups.
(2) Mount glass on body with matching pin aligned.
(3) Stick them fast by pressing all sides lightly.
G5M0496
10) Installation
